Oval 3-Way Adjustable Concealed Hinge 90mm - HES3D-90

Enhance your cabinetry and door installations with our premium Sugatsune HES3D-90 3-way adjustable concealed hinge, designed for effortless installation and precise adjustments in three directions: height, depth, and width. This hinge ensures a sleek, modern look with its hidden design, while providing robust support and smooth operation for both residential and commercial applications. Crafted from high-quality materials, it guarantees long-lasting durability and reliability, making it the perfect choice for achieving a flawless, professional finish in any space. Dedicated for room dividing or entrance doors making installation a breeze with 3 way vertical, horizontal and depth adjustment.

• Thin profile
• Sold in singles
• Installation: inset
• Opening angle: 180°
• Hinge length: 90mm
• Maximum door width: 600mm
• Maximum door height: 1500mm
• Minimum door thickness: 23mm
• Tested to 50,000 open and closed cycles

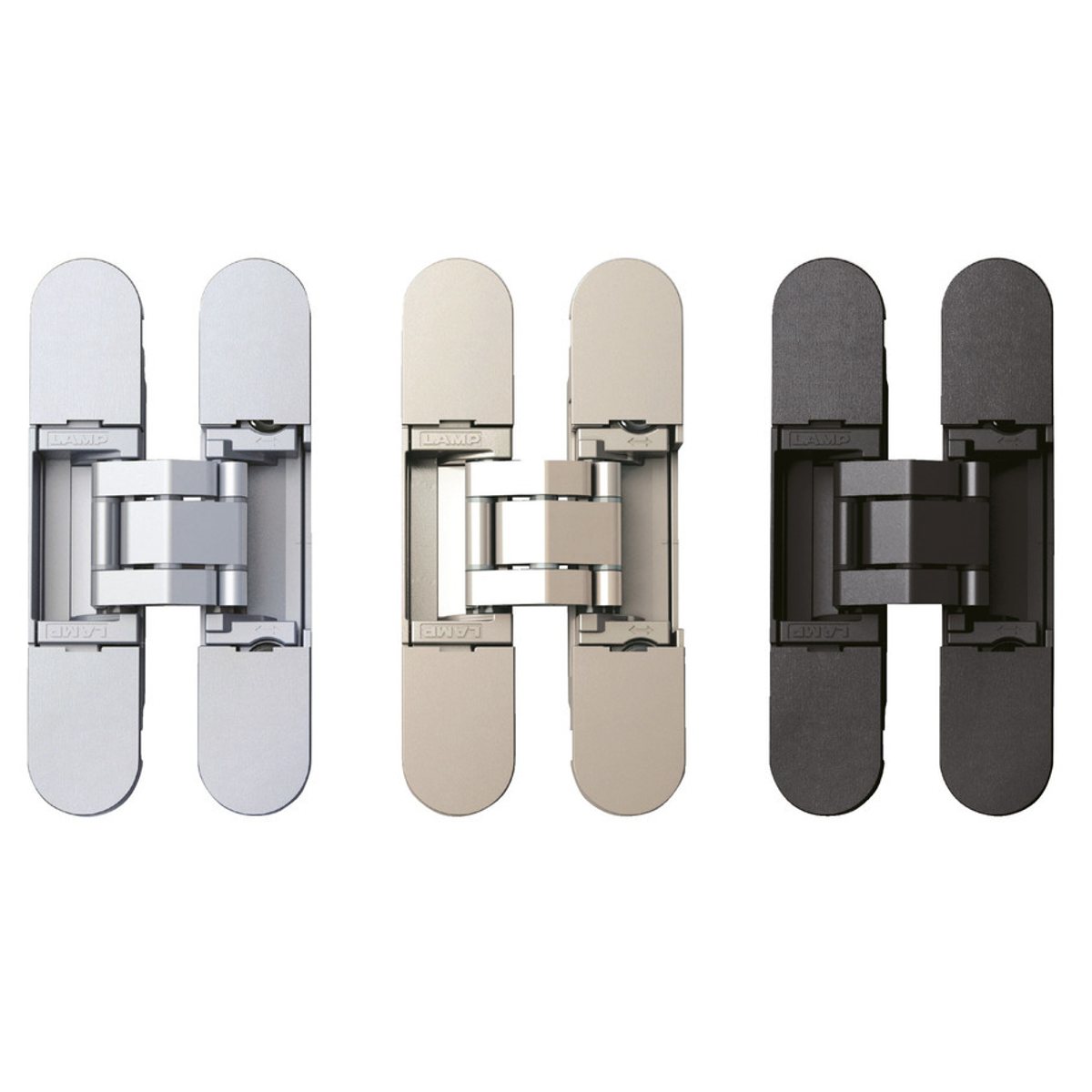

• Varieties of colours available: silver, champagne gold and black
• Maximum load capacity:
  • 2 hinges: 12kg
  • 3 hinges: 16kg

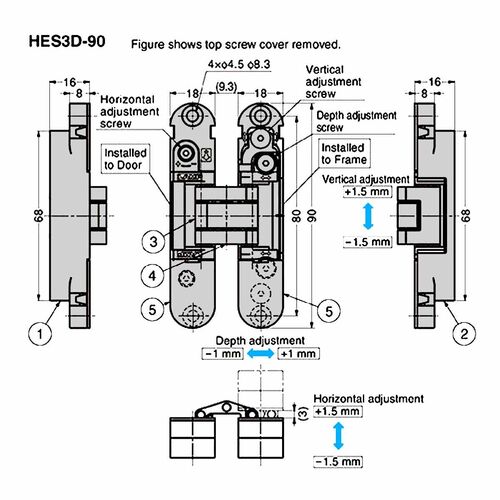

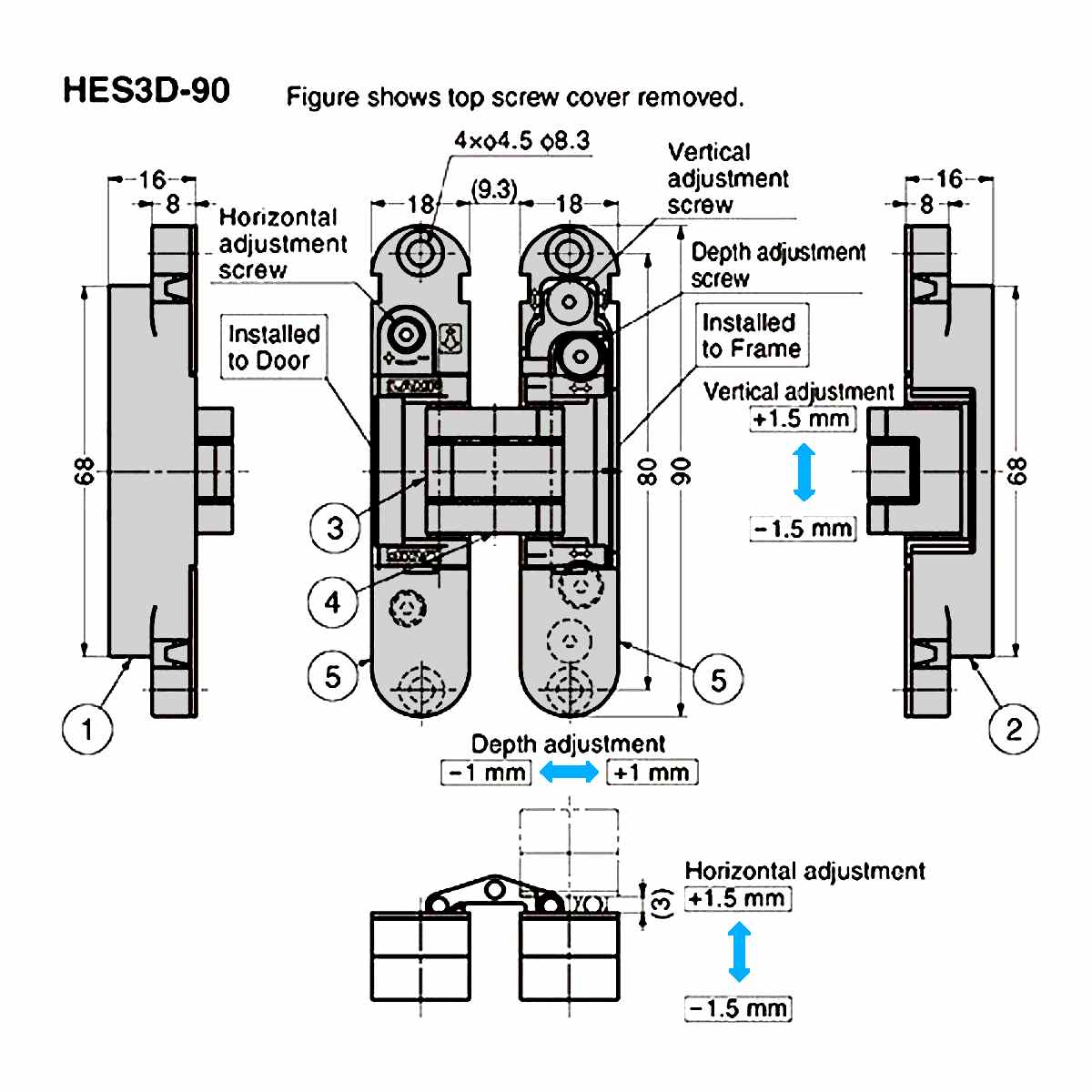

• 3-way adjustment:
  • Depth
  • Vertical
  • Horizontal
