Accuride 1532 Pivot Pocket Door Gear For 400-600mm Tall Cabinet Doors

The Accuride 1532 pivot pocket sliding door gear for 400-600mm tall cabinet doors is part of Accuride’s solution for wardrobes and cabinets, designed specifically for large wardrobe doors and tall room dividers. This specific height option is recommended for doors weighing up to 9kg. The system stands out for its ease of installation, with fewer components and simplified cable alignment, saving time and money for the fitter.

Specifications:

• Kit for 1 door
• Finish: aluminium
• Material: aluminium

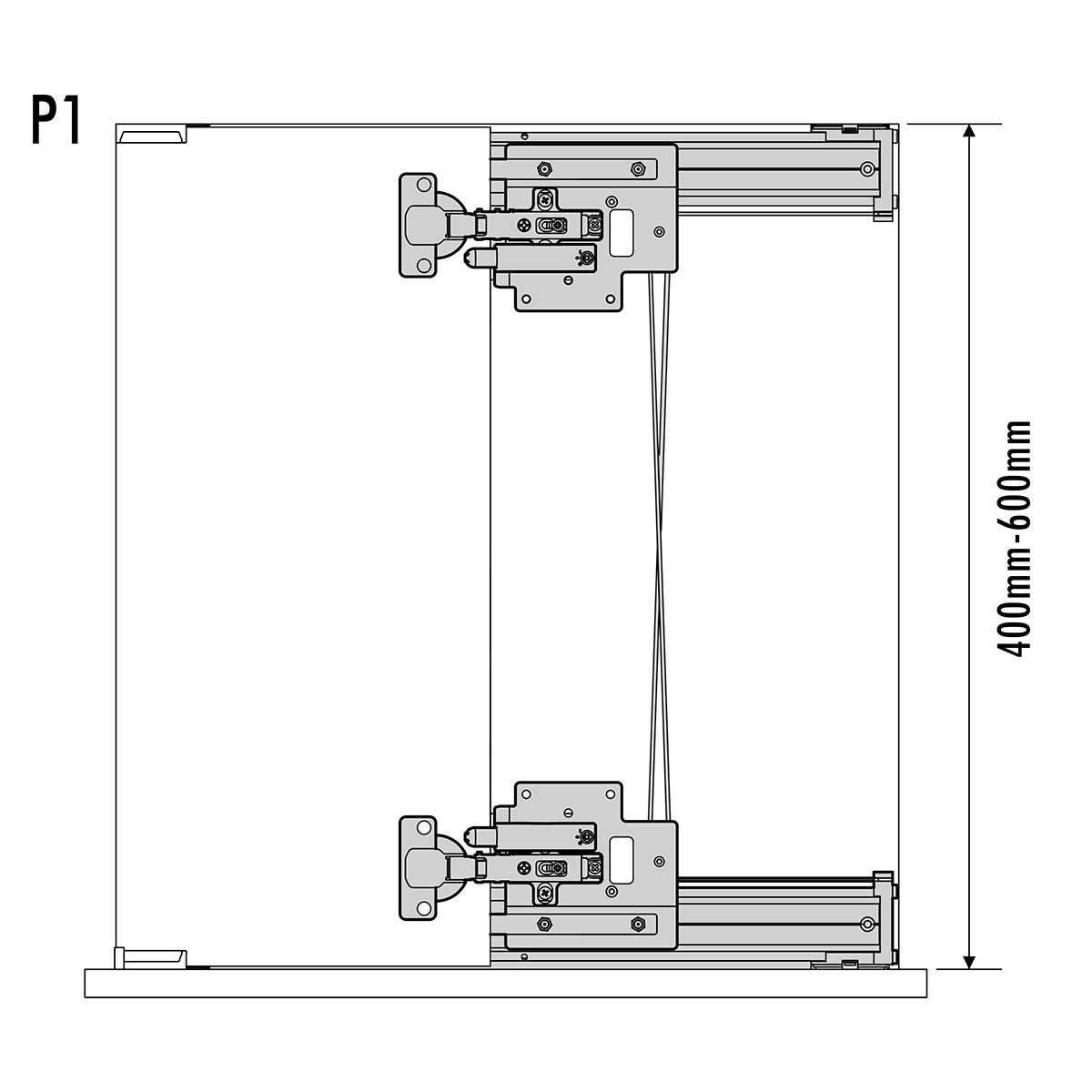

• Maximum door height: 600mm (other versions available for doors up to 3000mm tall - please look in related products)
• Maximum door width: 1000mm
• Maximum door weight: up to 9kg
• The door retracts 131.5 mm less than the slide length

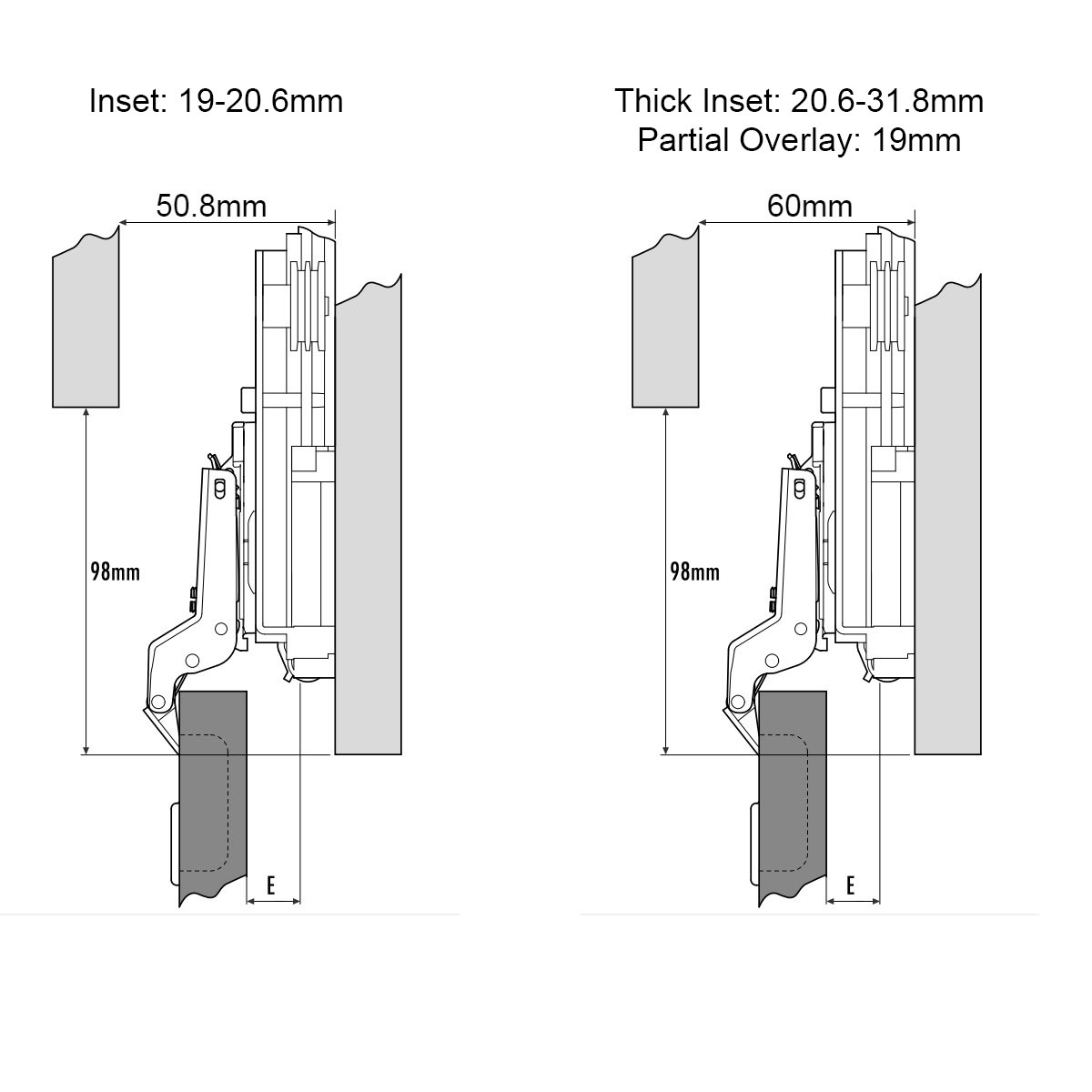

• Maximum door thickness:
  • Inset: up to 19-20.6mm
  • Partial overlay: 19mm
  • Thick inset: 20.6-31.8mm
• Temperature range: -20°C to +70°C
• Track length: 300/650-1000mm (650mm track can be cut, to a minimum of 300mm)

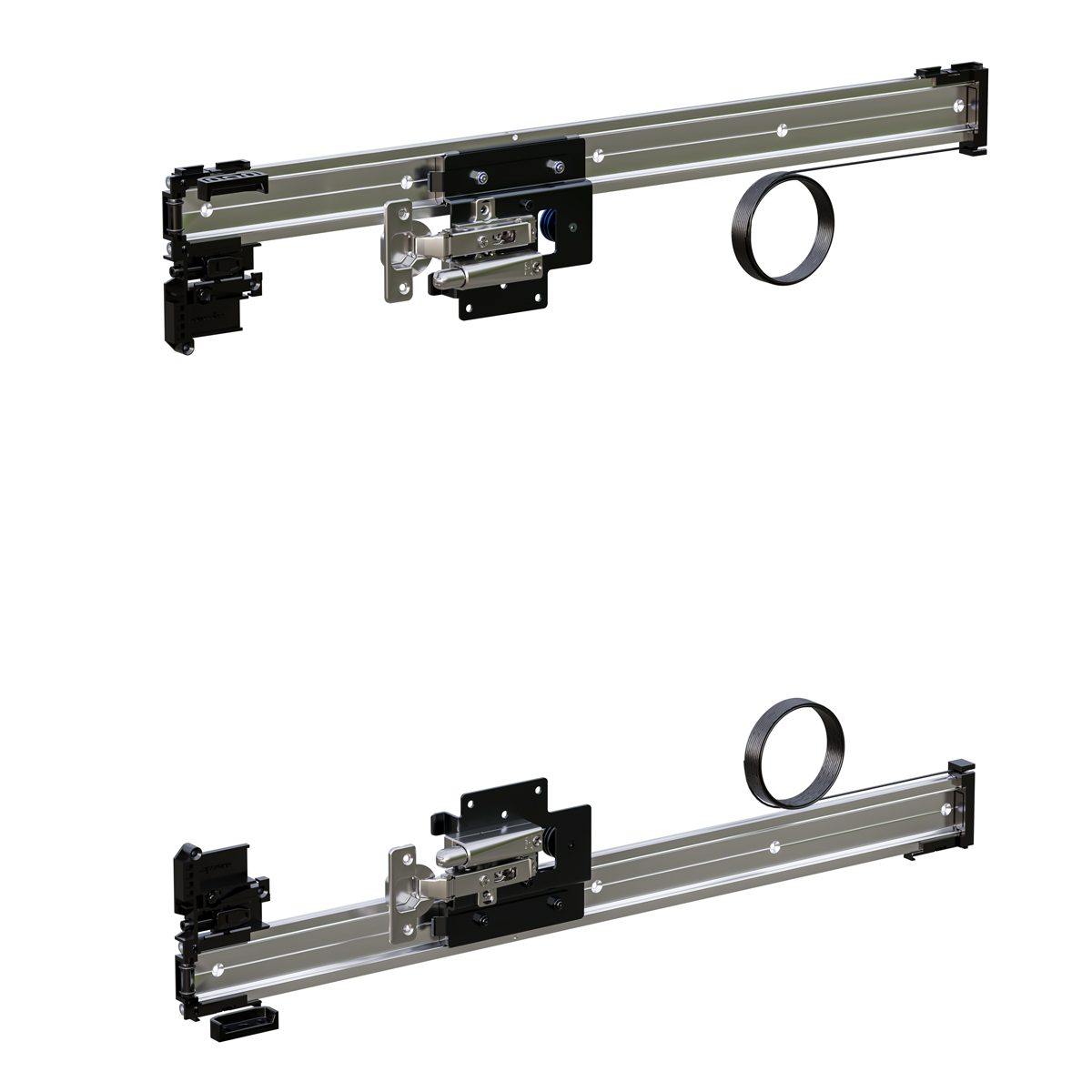

Pocket door pack containing:

• 1 x pair of slides (1 top and 1 bottom slide)
• 1 x hinge kit
• 1 x damper
• 1 x damper bracket

Features

• Soft close hinge feature: reduces the impact and noise of the door closing
• Customizable length: the linear track can be cut to the exact length of the cabinet
• Easy to clean: less likely to trap dirt and dust thanks to its recirculating ball cassettes
• High load support: The recirculating linear guide system supports high loads of up to 9kg
• Easy setup: quicker installation compared to similar products due to fewer components and simplified cable alignment

Please note that:

• Doors not included
• Not suitable for horizontal mounting
• This is a made-to-order product, meaning it is excluded from the standard return policy and cannot be returned
