Accuride 1532 Pivot Sliding Door Gear For 1800-3000mm Tall Doors

The Accuride 1532 pivot pocket sliding door gear for 1800-3000mm tall cabinet doors is part of Accuride’s solution for wardrobes and cabinets, designed specifically for large wardrobe doors and tall room dividers. This specific height option is recommended for doors weighing up to 45kg. The system stands out for its ease of installation, with fewer components and simplified cable alignment, saving time and money for the fitter. The central slide adds to the stability and rigidity of the entire system making the sliding and pivoting action smoother than ever.

Specifications:

• Kit for 1 door
• Finish: aluminium
• Material: aluminium

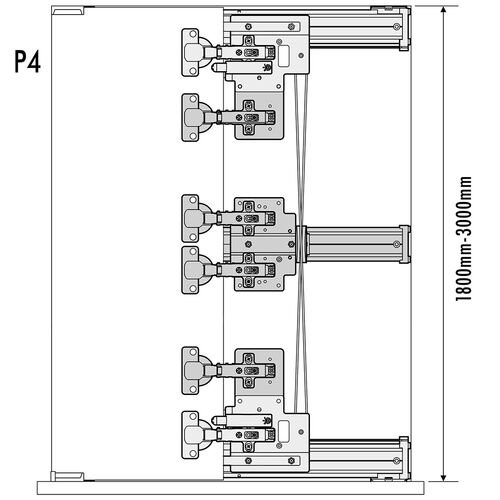

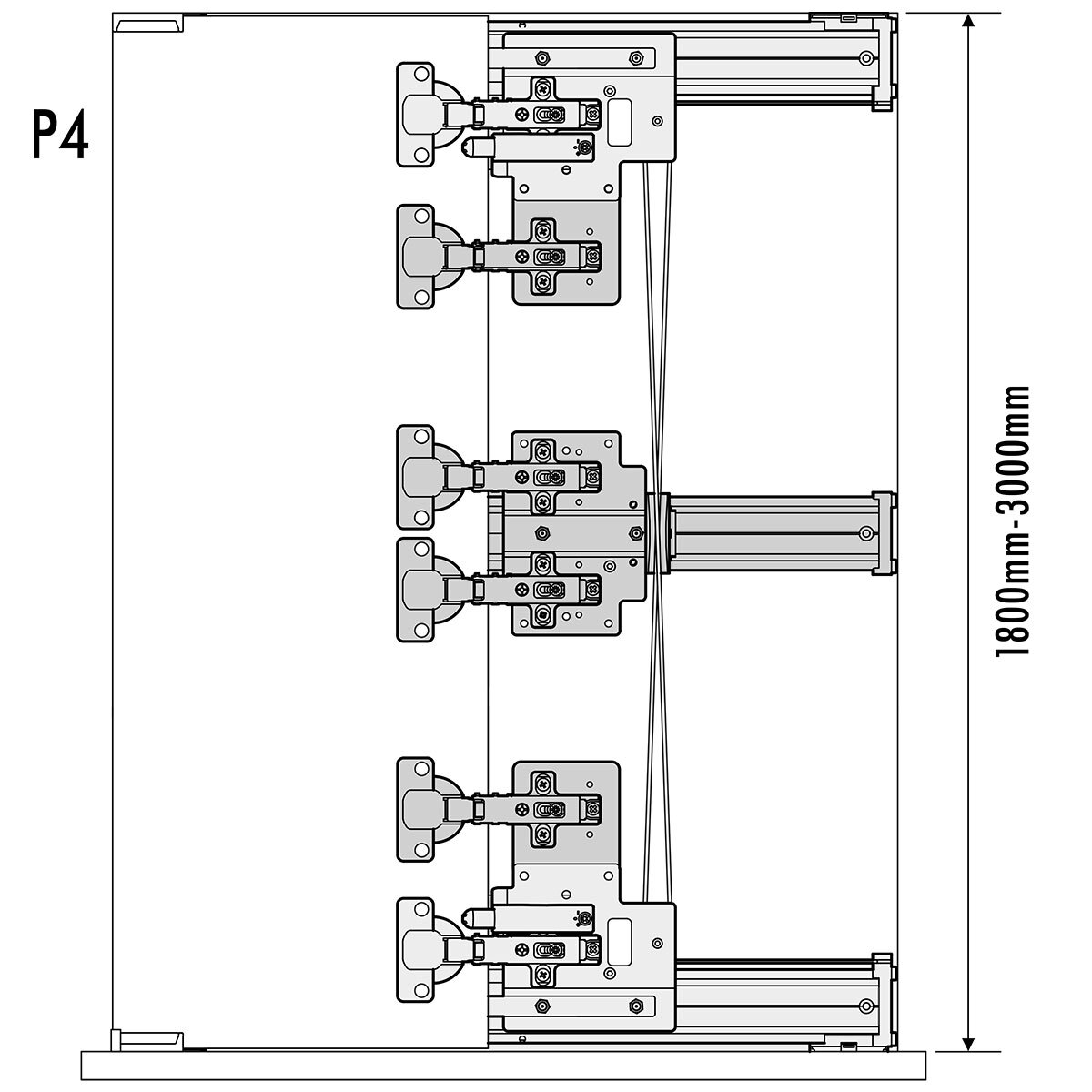

• Maximum door height: 3000mm (smaller versions available for doors down to 400mm tall - please look in related products)
• Maximum door width: 1000mm
• Maximum door weight: up to 45kg
• The door retracts 131.5 mm less than the slide length

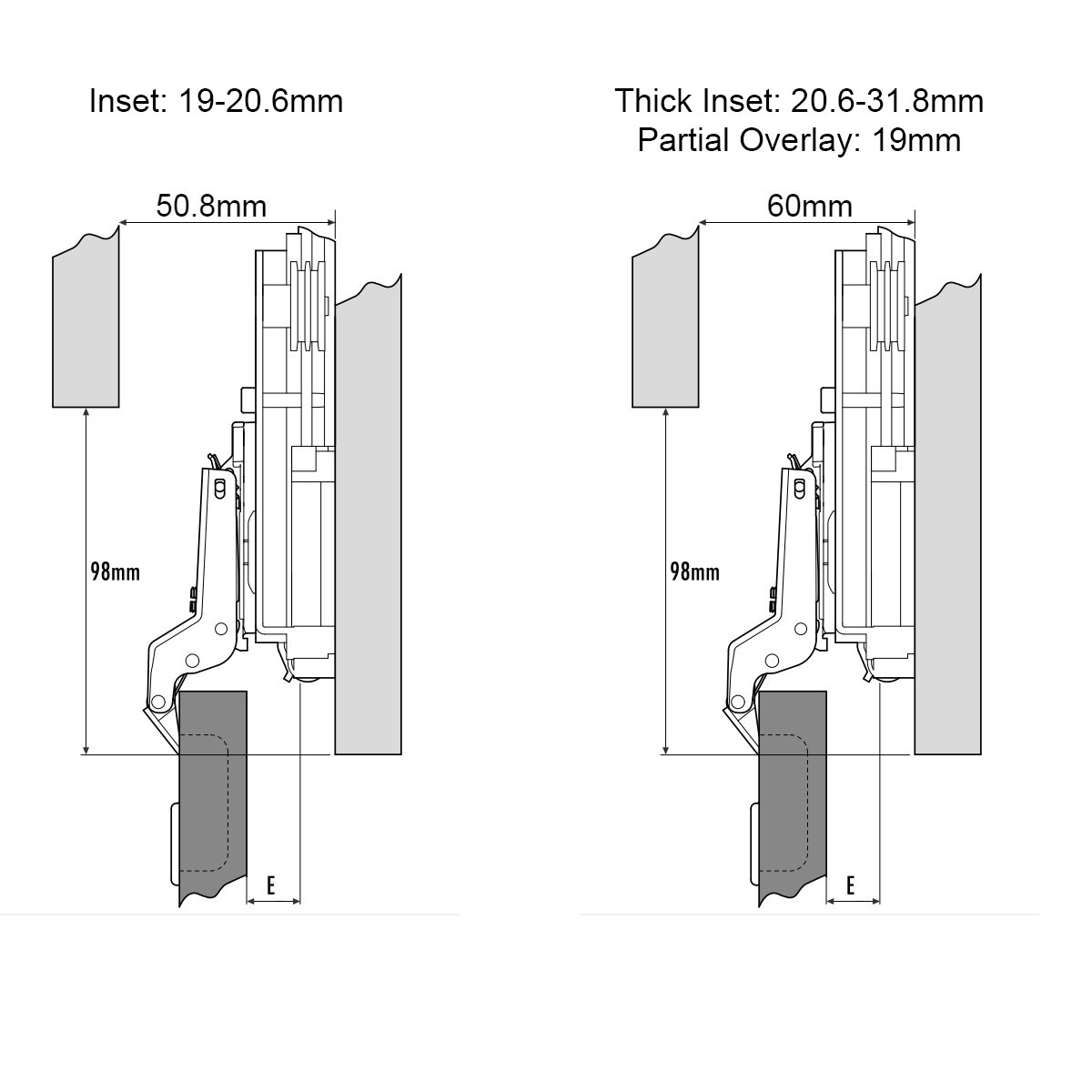

• Maximum door thickness:
  • Inset: up to 19-20.6mm
  • Partial overlay: 19mm
  • Thick inset: 20.6-31.8mm
• Temperature range: -20°C to +70°C
• Track length: 650-1000mm (650mm track can be cut, to a minimum of 300mm)

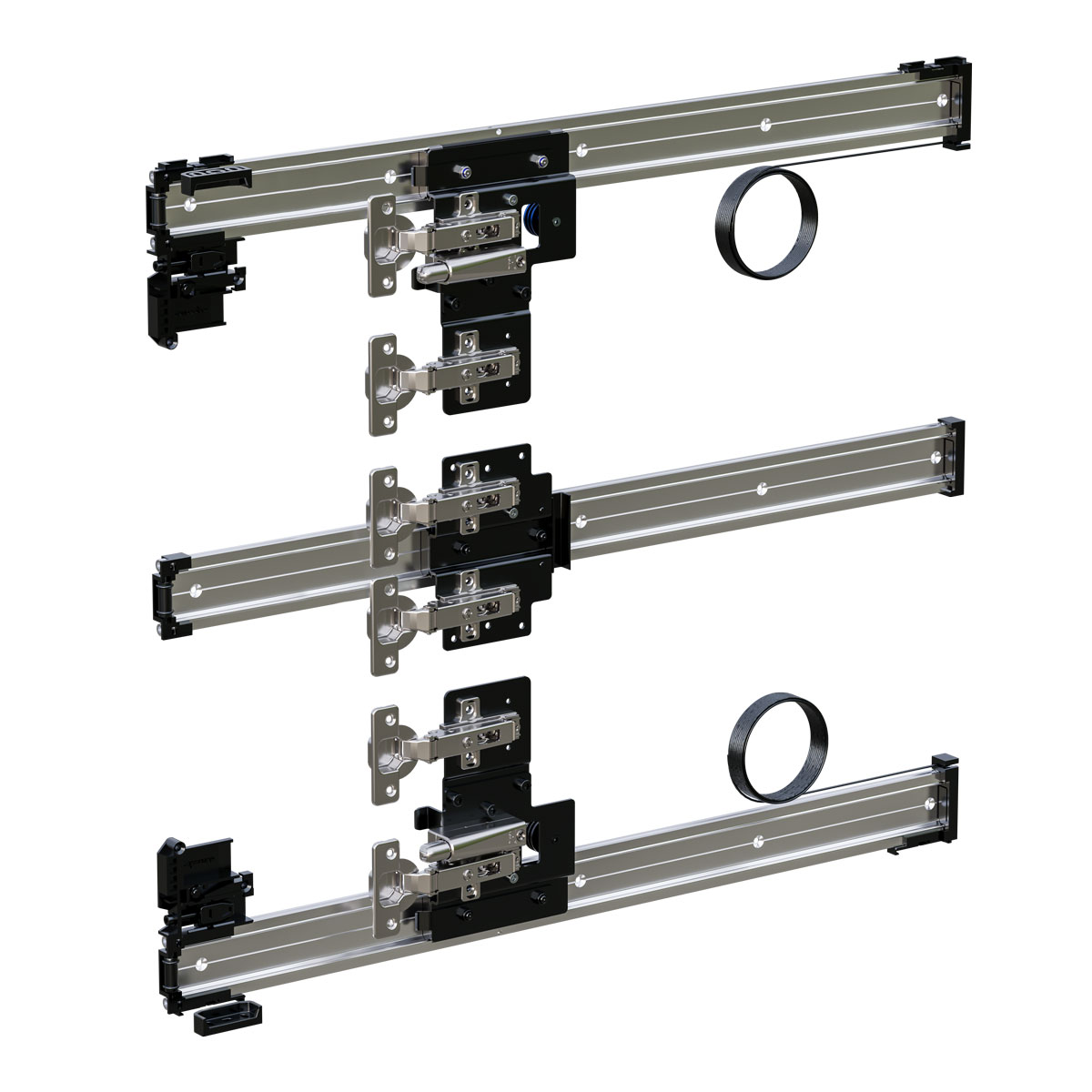

Pocket door pack containing:

• 1 x pair of slides (1 top and 1 bottom slide)
• 1 x centre slide
• 3 x hinge kits
• 2 x brackets
• 1 x damper
• 1 x damper bracket

Features

• Soft close hinge feature: reduces the impact and noise of the door closing
• Customizable length: the linear track can be cut to the exact length of the cabinet
• Easy to clean: less likely to trap dirt and dust thanks to its recirculating ball cassettes
• High load support: The recirculating linear guide system supports high loads of up to 45kg
• Easy setup: quicker installation compared to similar products due to fewer components and simplified cable alignment
• Additional stability thanks to the central runner
• The only system on the market to work with such big and heavy doors: Up to 3000mm x 1000mm / 45kg

Please note that:

• Doors not included
• Not suitable for horizontal mounting
• This is a made-to-order product, meaning it is excluded from the standard return policy and cannot be returned
