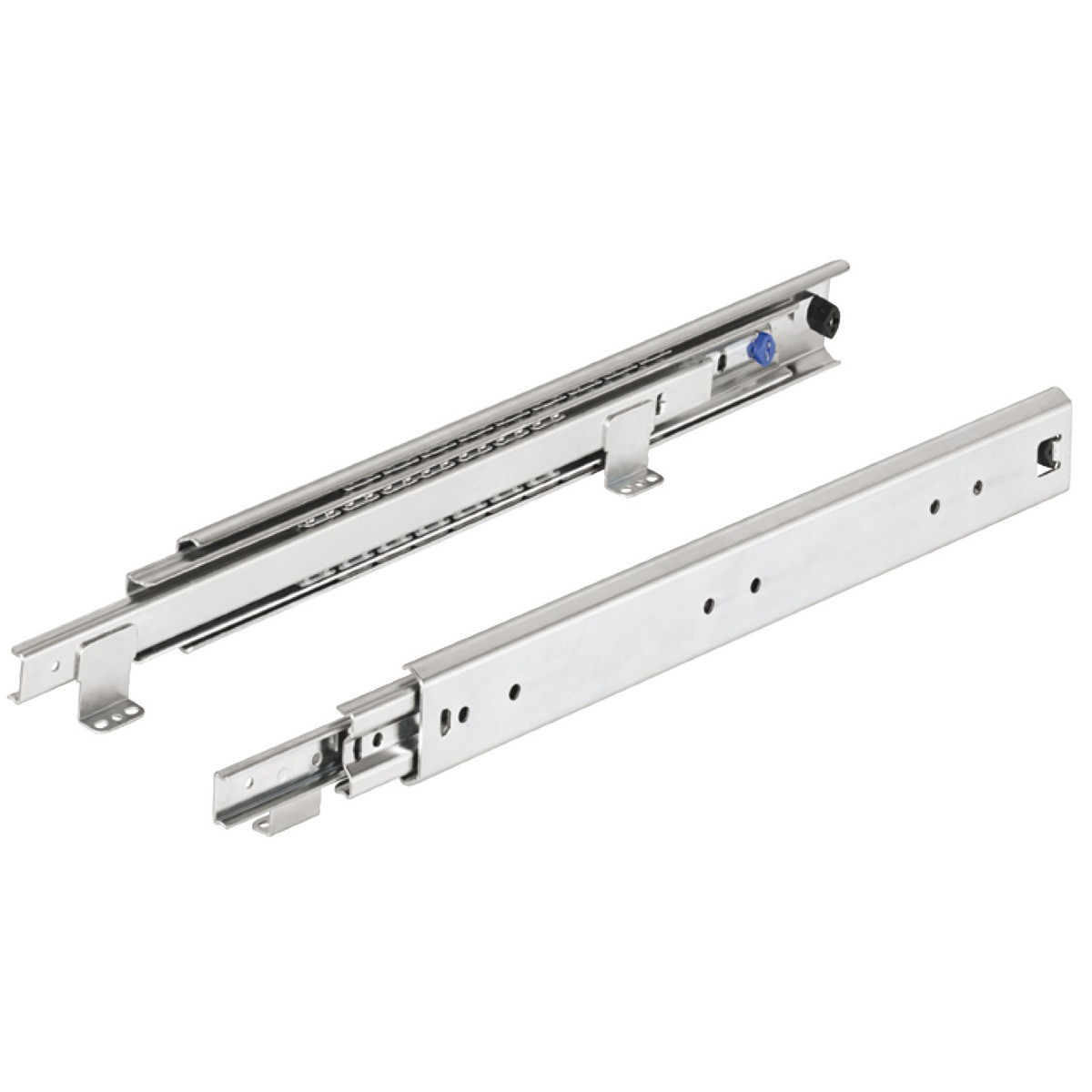

Accuride heavy duty ball bearing drawer runners with welded "l" brackets suitable for heavy weights up to 120kg
- Hold-in
- Made out of steel
- Full extension runners
- Bright zinc plated finish
- Tested drawer width 18"
- Stainless steel ball bearings
- Maximum weight rating: 120kg
- Thickness of the actual runner: 20.7mm
- Brackets on drawer member for bottom mounting
- Tested to 80,000 cycles (21 years and 9 months estimated on opening and closing 10 times a day)

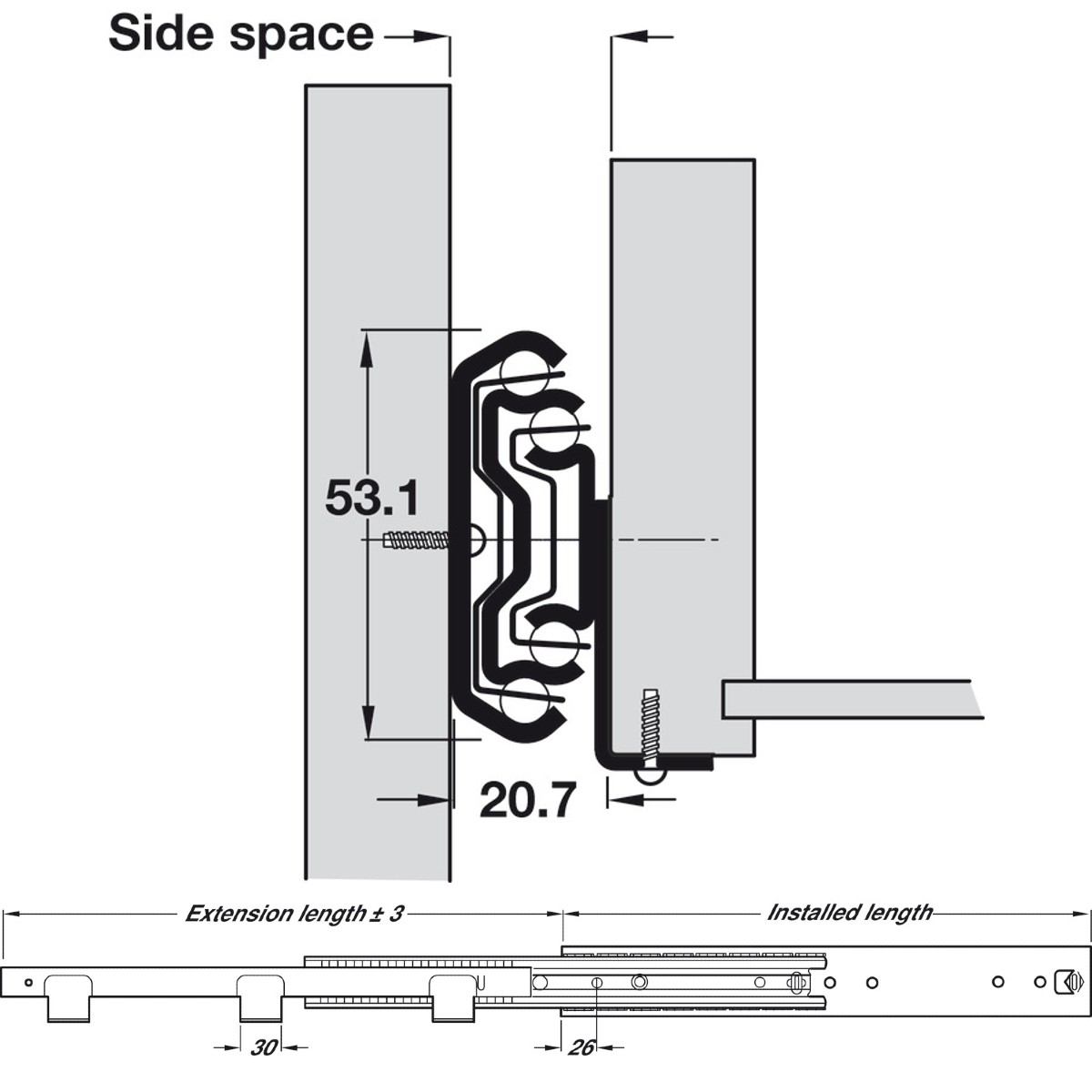

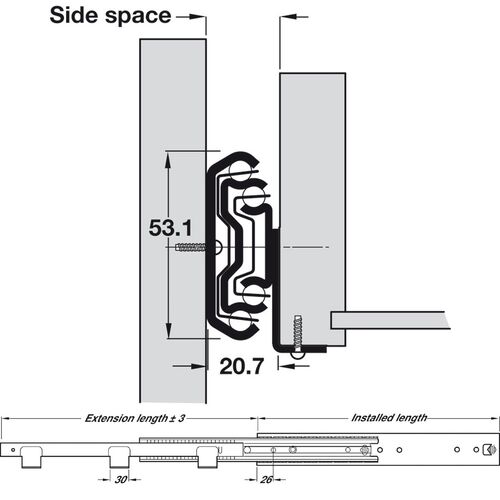

- Dimensions:
- Height: 53.1mm
- Width: 20.7mm
Extension length:
- 300mm length = 324mm (maximum weight: 105kg)
- 350mm length = 374mm (maximum weight: 110kg)
- 400mm length = 424mm (maximum weight: 115kg)
- 450mm length = 474mm (maximum weight: 120kg)
- 500mm length = 524mm (maximum weight: 120kg)
- 550mm length = 574mm (maximum weight: 120kg)
- 600mm length = 624mm (maximum weight: 115kg)
- 700mm length = 724mm (maximum weight: 107kg)
- 790mm length = 804mm (maximum weight: 100kg)
Length:
300mm
