Accuride Runners (5321EC) 55-100kg

2045-001
Price from: £100.34inc VAT
+

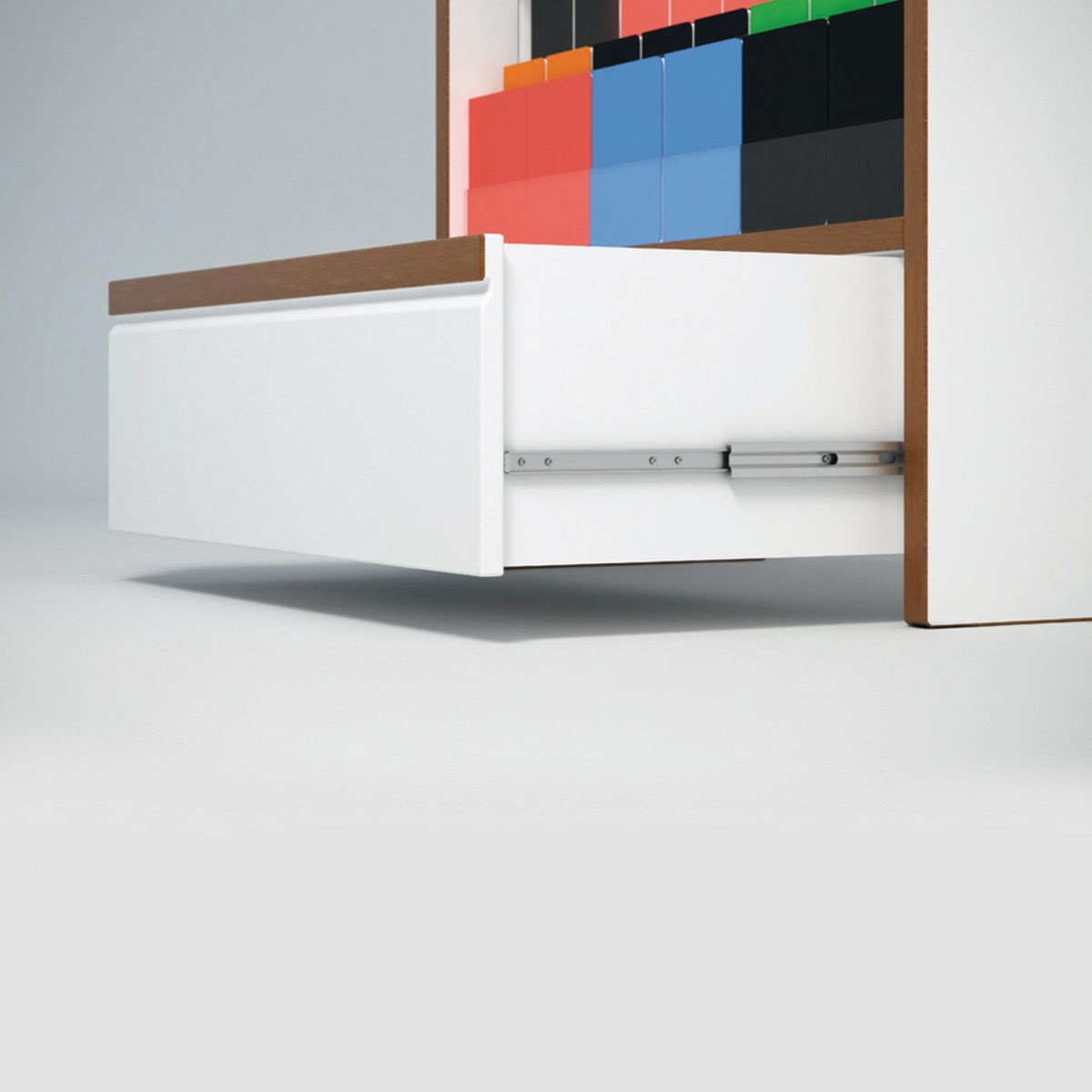

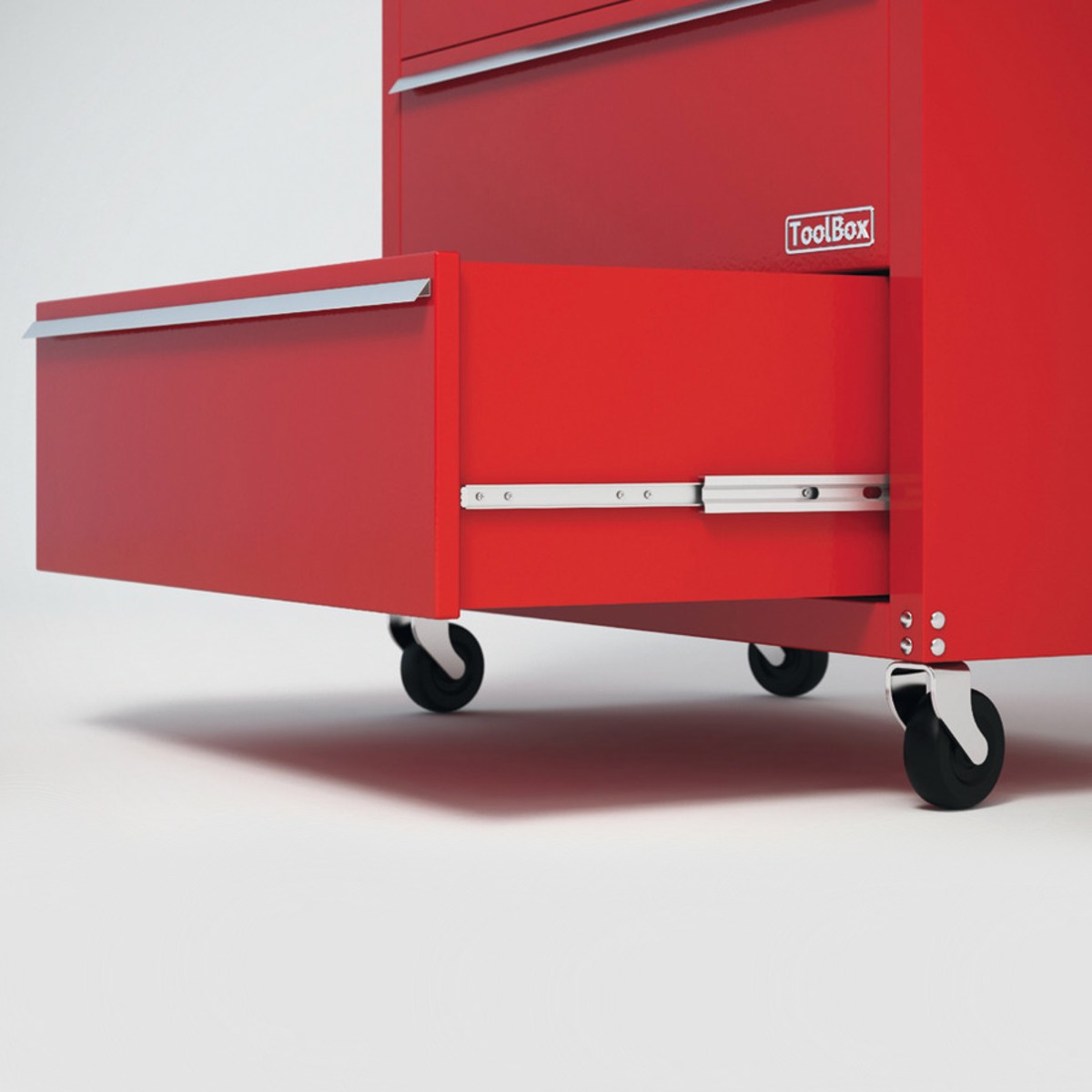

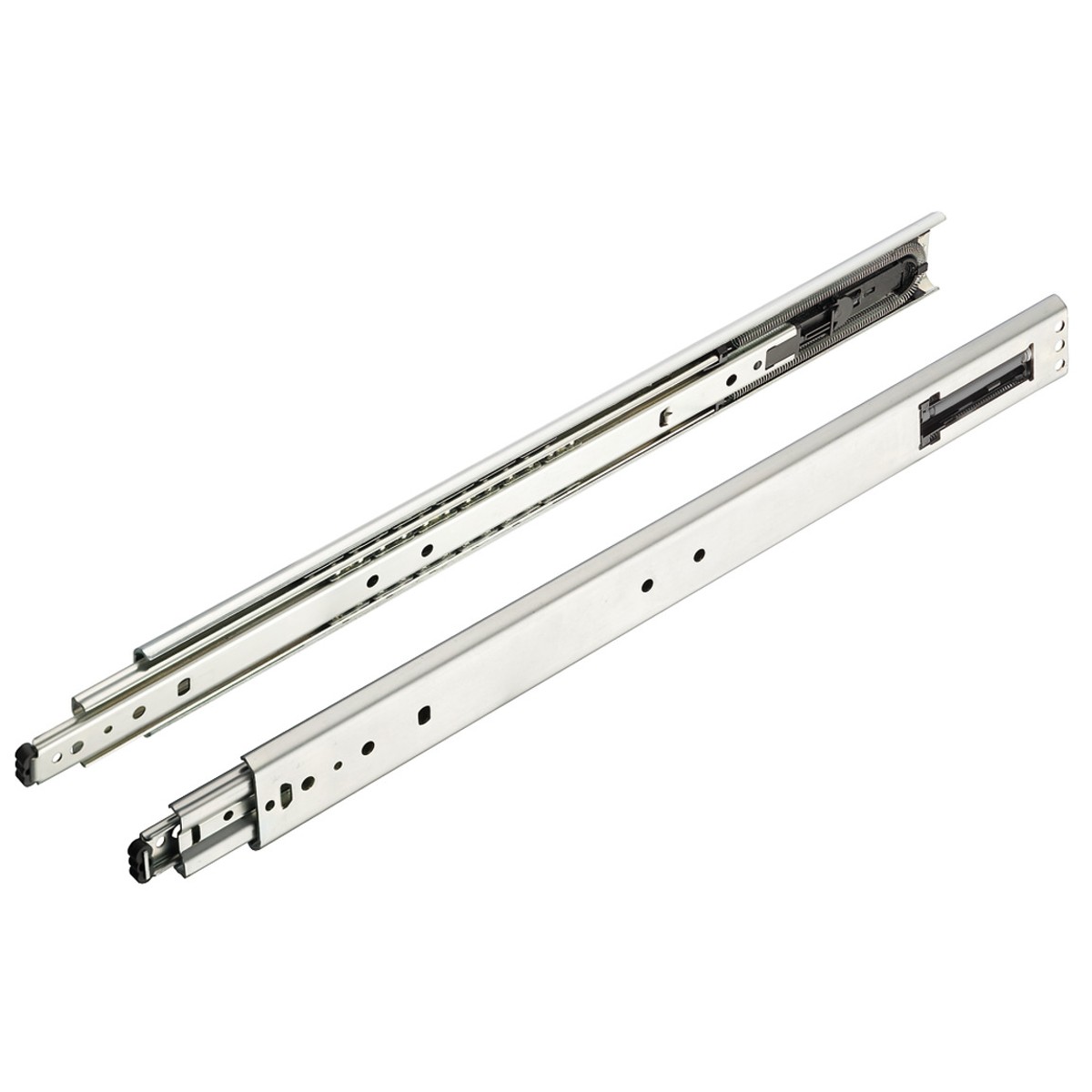

Accuride 5321 ball bearing runners with load capacity 50-100kg soft close and full extension. For applications such as lateral filing cabinets, extra heavy duty storage drawers.

  • For applications such as lateral filing cabinets
  • Extra heavy duty storage drawers
  • Load carrying capacity: up to 100 kg
  • Base-mounted runners can support 25% of the total weight
  • Soft close feature holds the closed drawer in
  • Maximum drawer width: 1000 mm

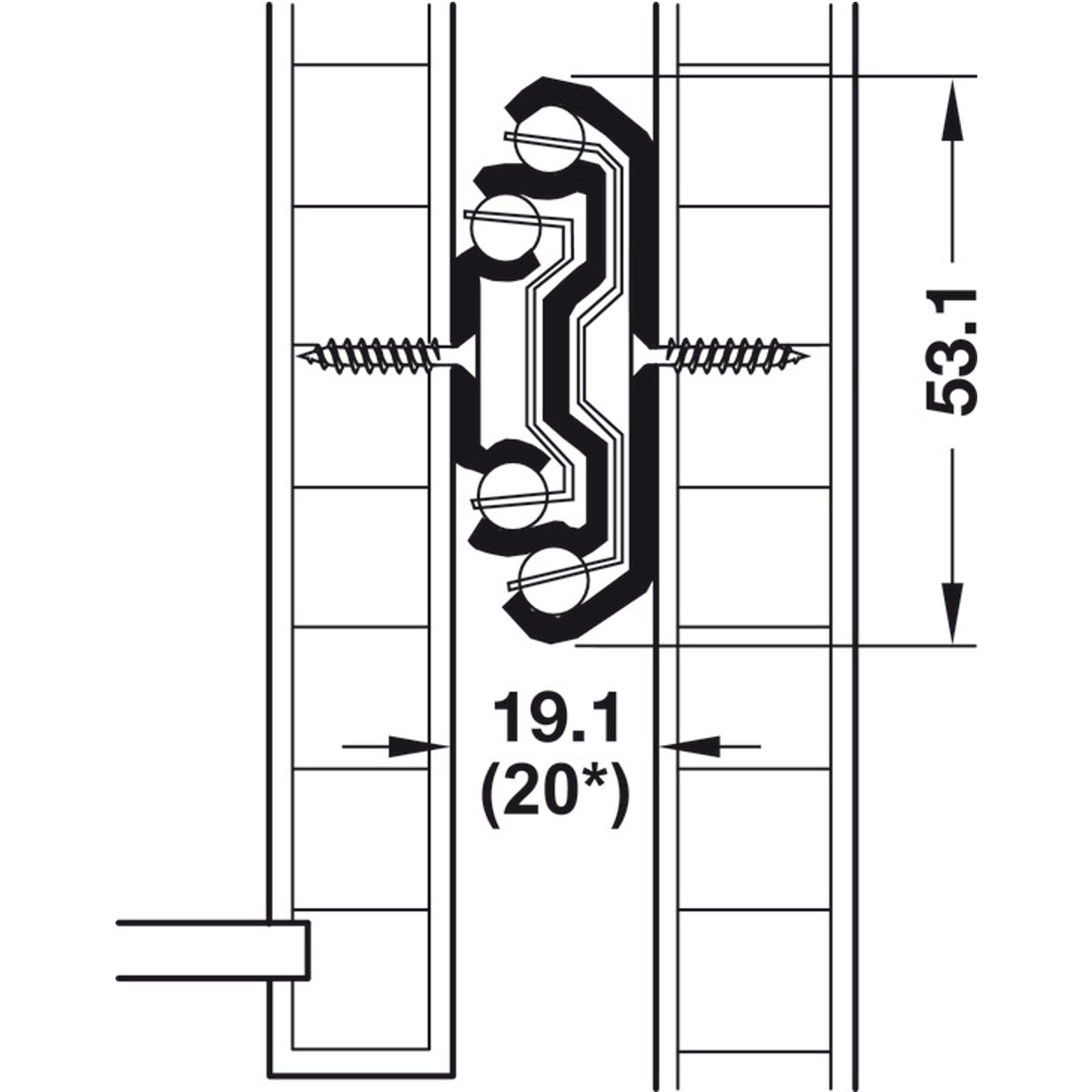

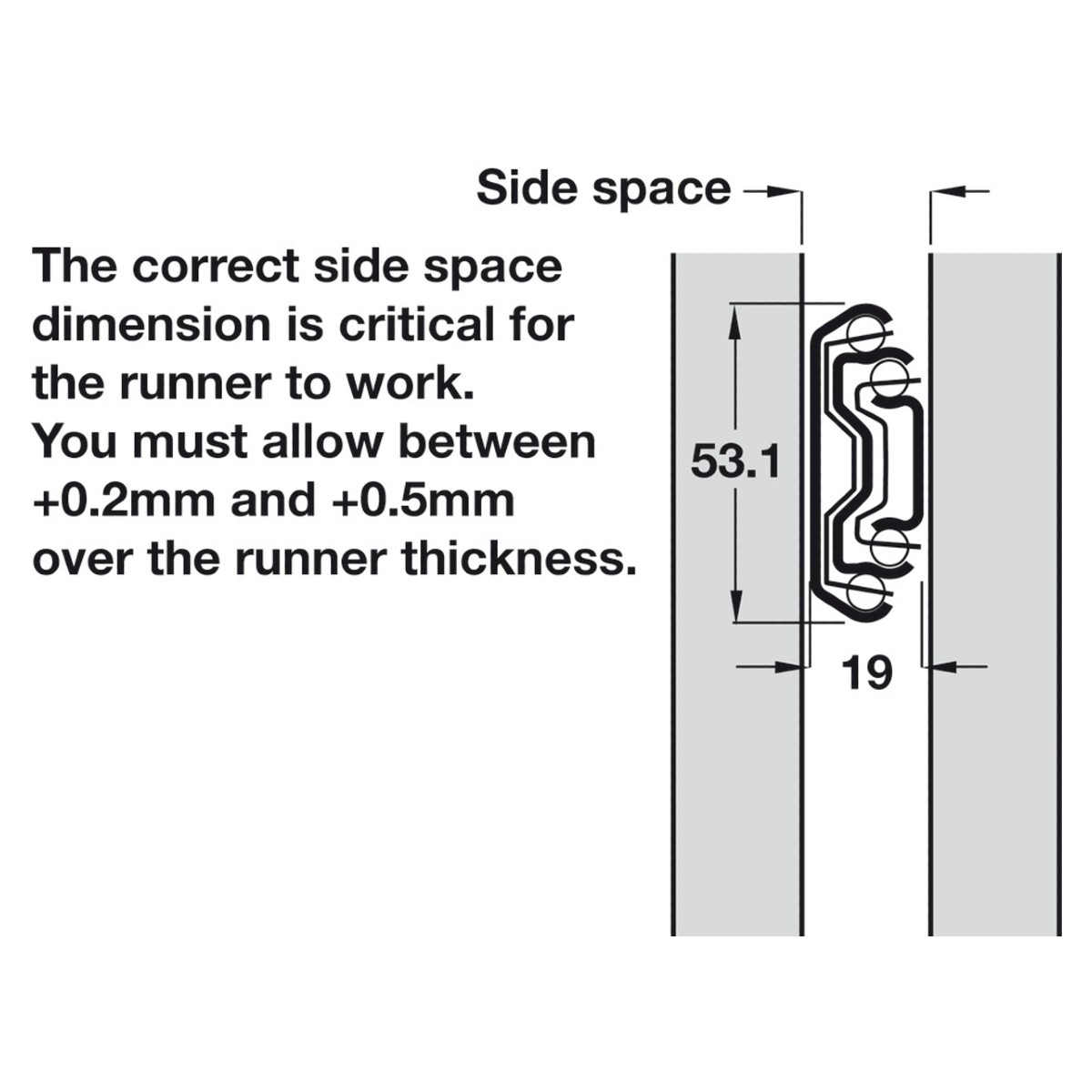

  • Dimensions:
    • Height: 53.1mm
    • Thickness: 19mm

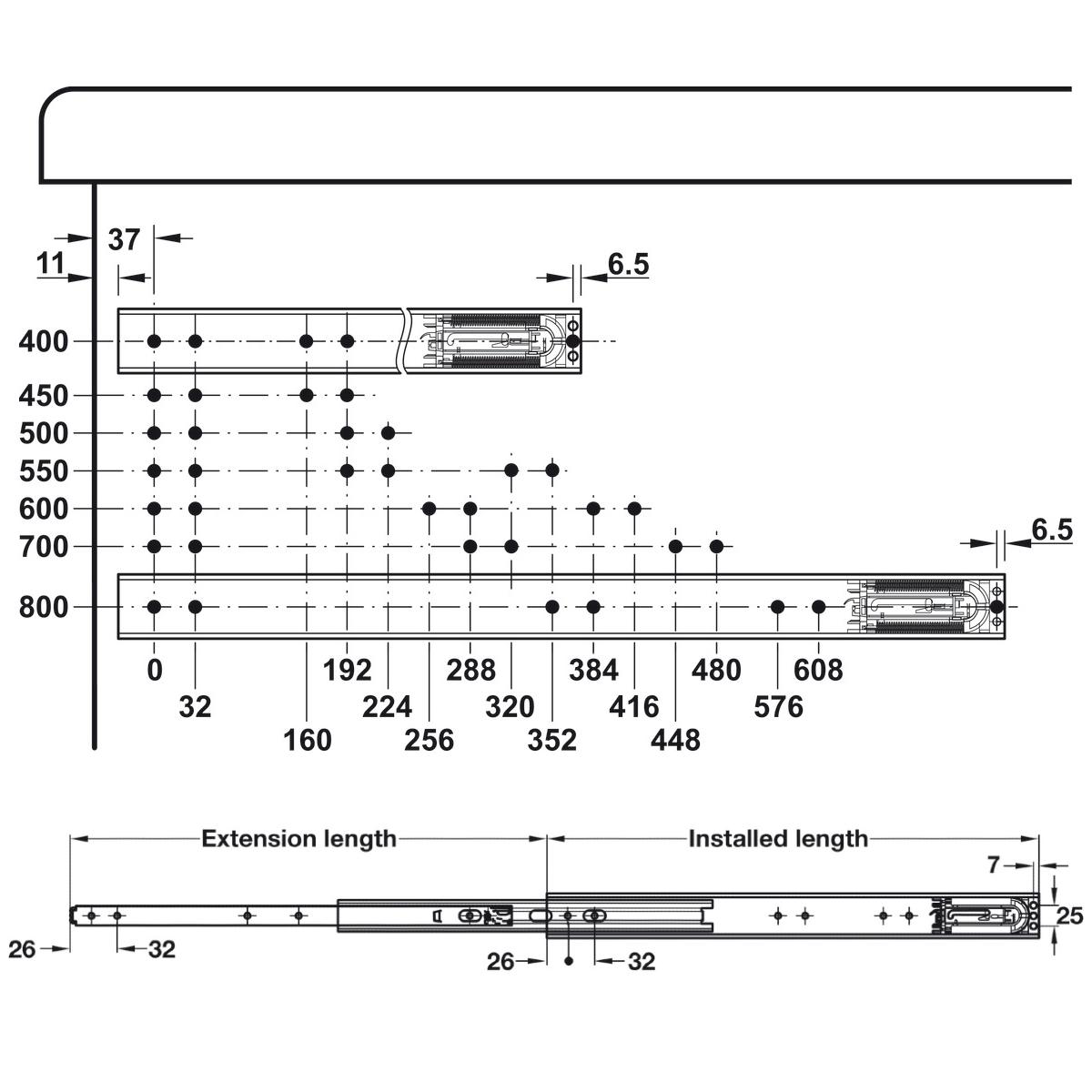

  • Ensure all fixing holes are used for heavier loads
  • Bright zinc-plated steel
  • Order fixings screws separately
  • Order qty: 1 pair

Weight capacity per length:

  • 400mm = 65kg
  • 450mm = 65kg
  • 500mm = 70kg
  • 550mm = 85kg
  • 600mm = 100kg
  • 700mm = 100kg
  • 790mm = 90kg
  • 900mm = 85kg
  • 1000mm = 80kg
  • 1100mm = 75kg
Length:
400mm

Drawer Runners

Runner Type :
Full Extension
Closing Mechanism:
Soft Close
Runner Height :
53.1mm
