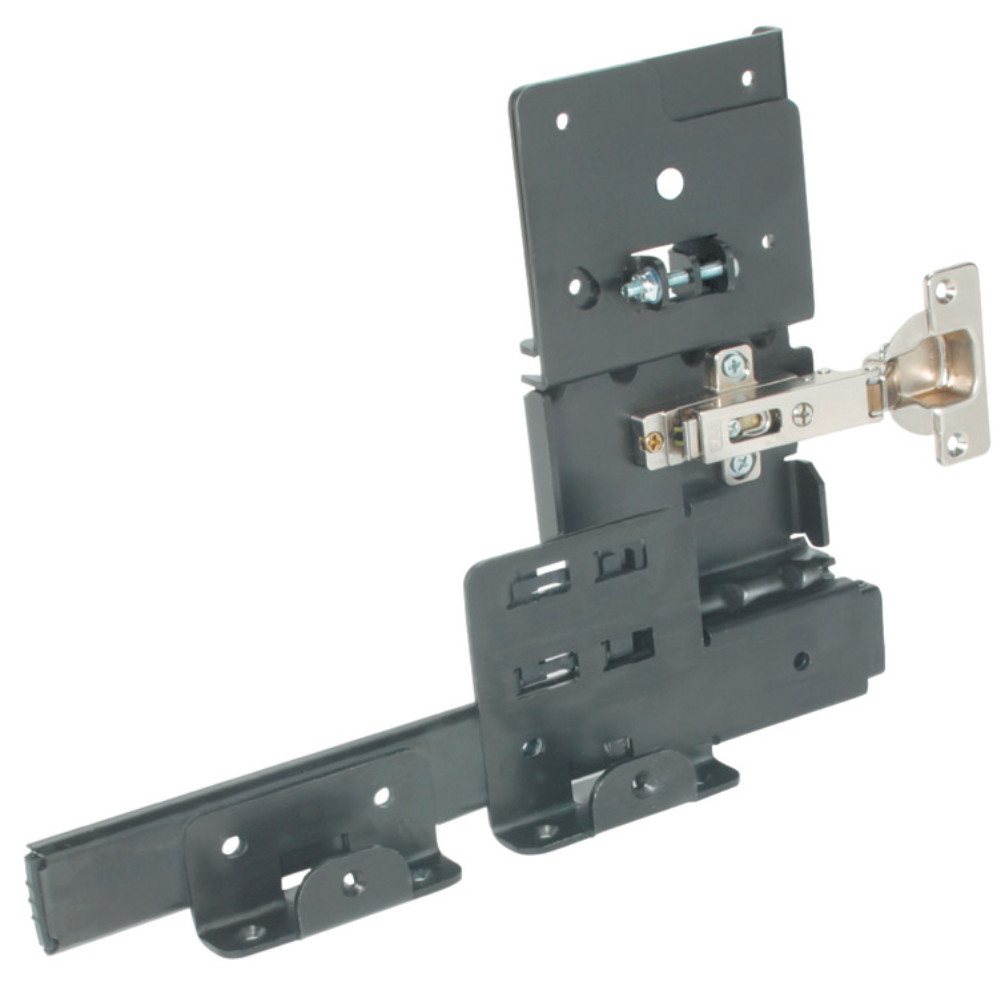

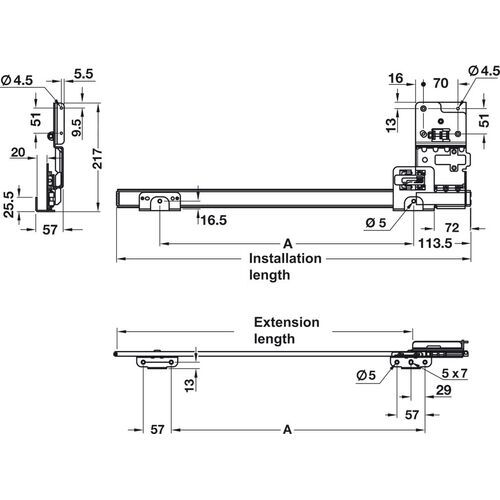

Accuride 1321 Sliding Pivot Cabinet Runners For Concealed Doors

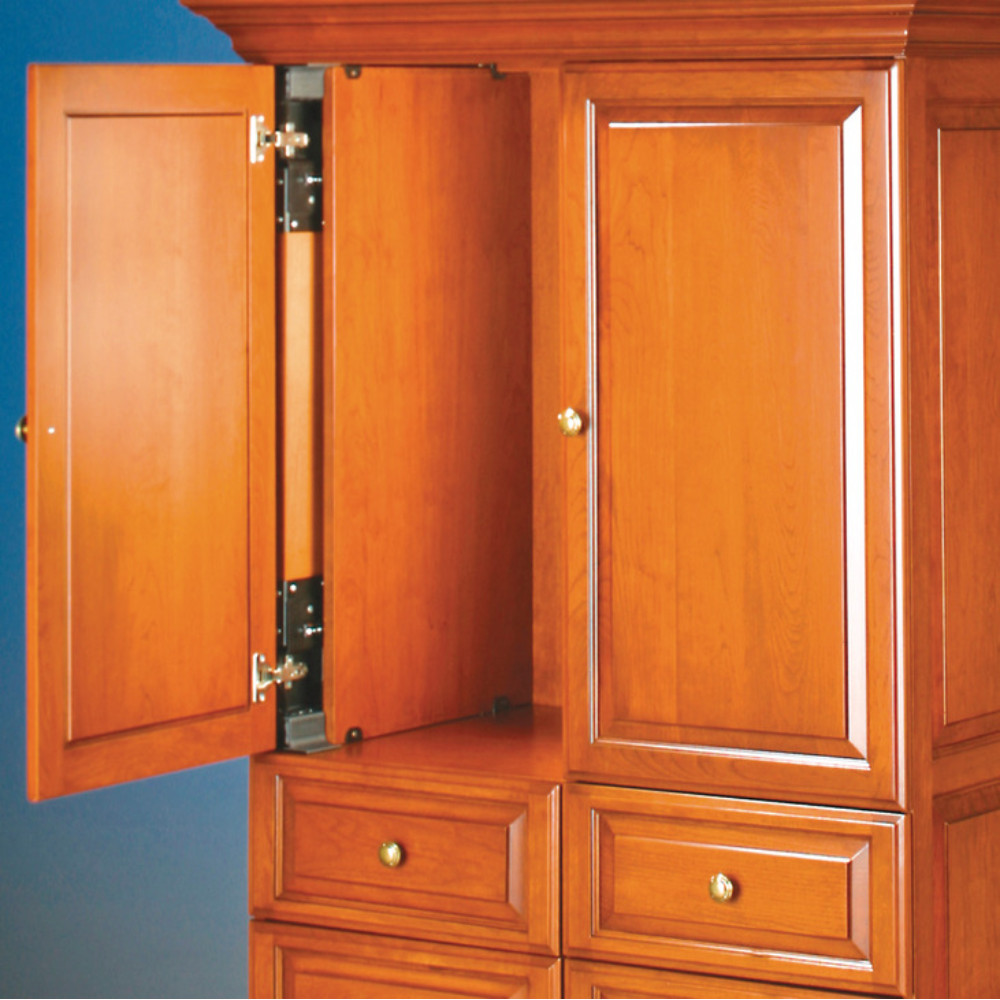

Accuride 1321 sliding pivot cabinet runners for vertical use. 1321 set supplied with hinges and mounting plates. Revitalize your cabinets with Accuride 1321 pocket sliding door runners. Ideal for vertical and horizontal pocket doors in residential and commercial applications, these runners support inset and 3/4 full-overlay designs. The auto-open feature pushes cabinet doors open during the last 32 mm of travel, and anti-sag adjustment ensures smooth operation.

• For vertical use
• For wooden doors

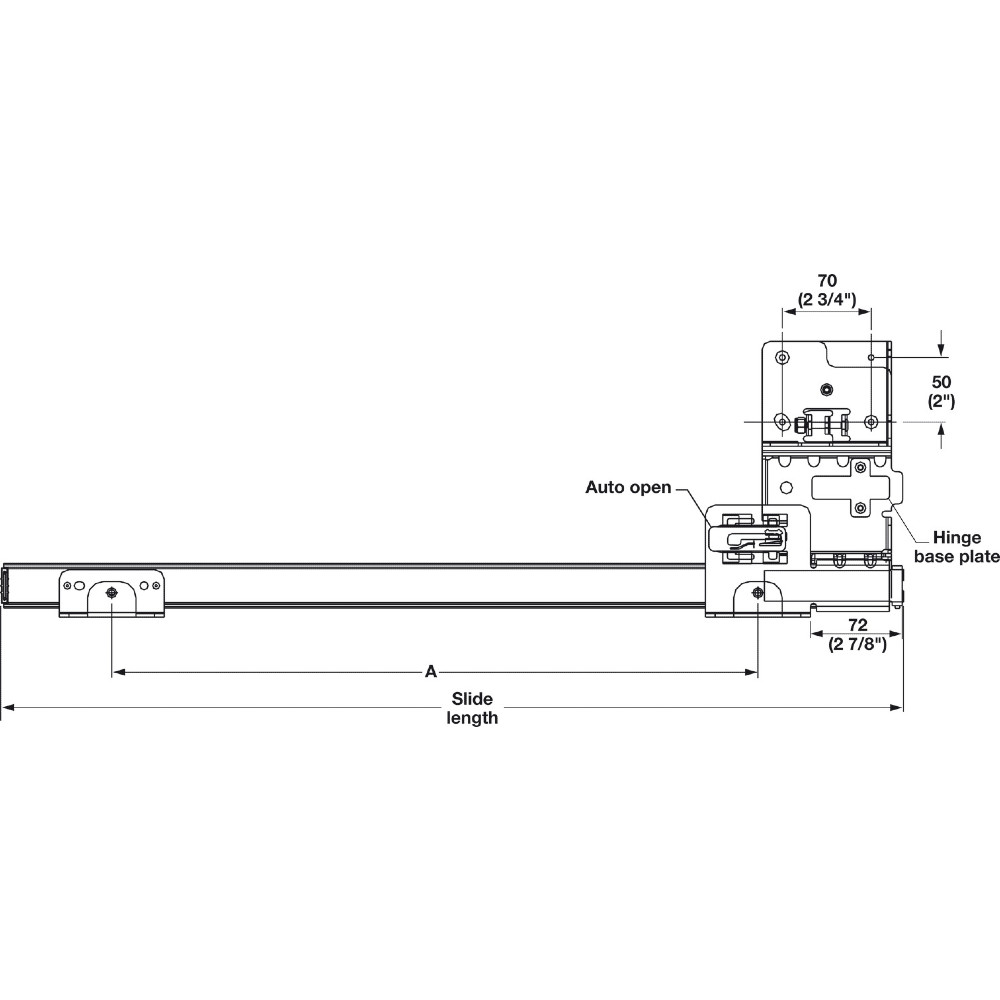

• Auto open feature

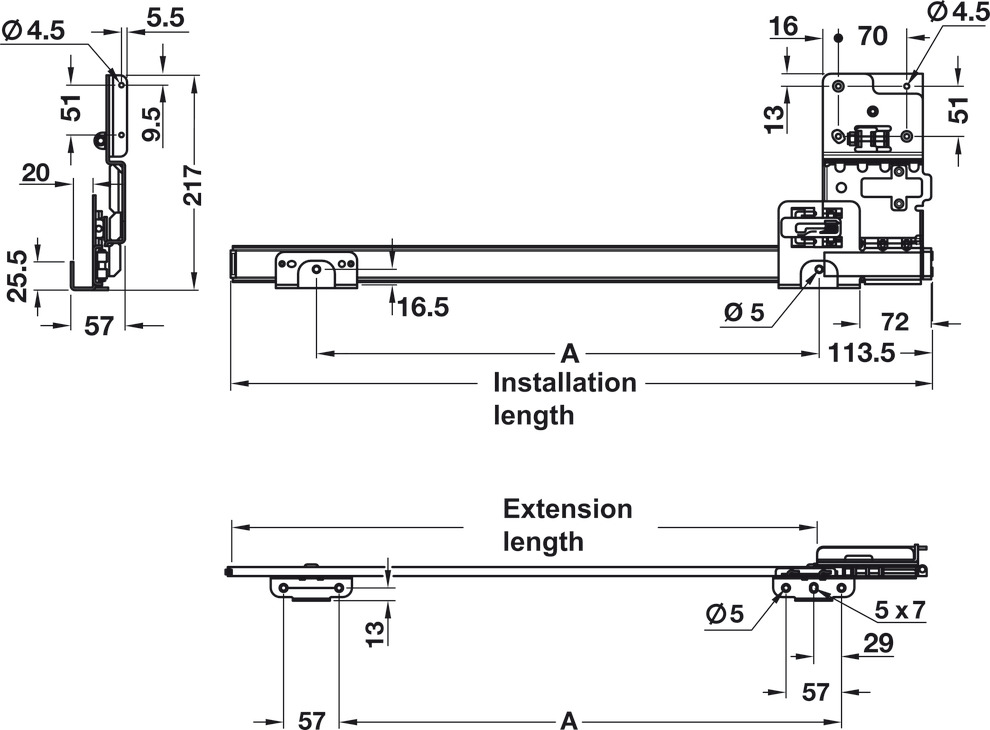

• Maximum height: 1065mm
• Maximum door weight: 14kg
• Maximum door width: 610mm
• For door thickness: 19-38mm

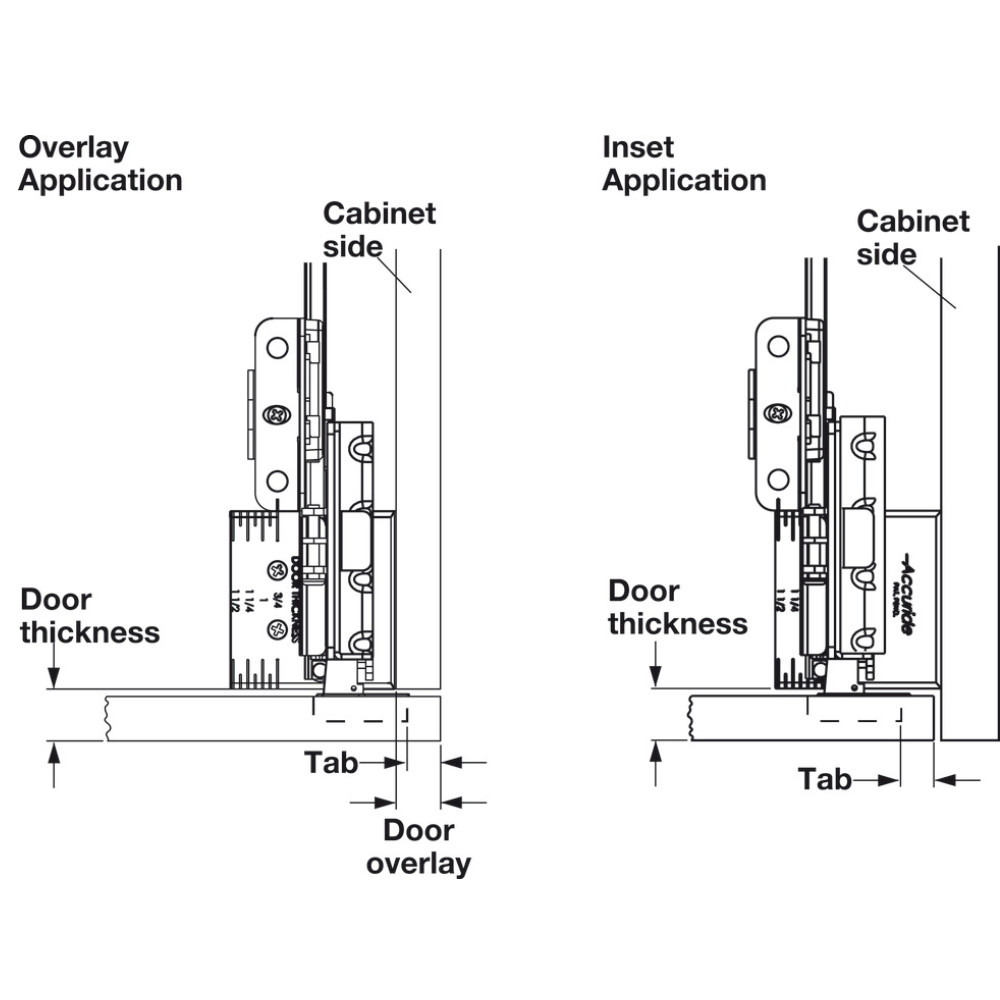

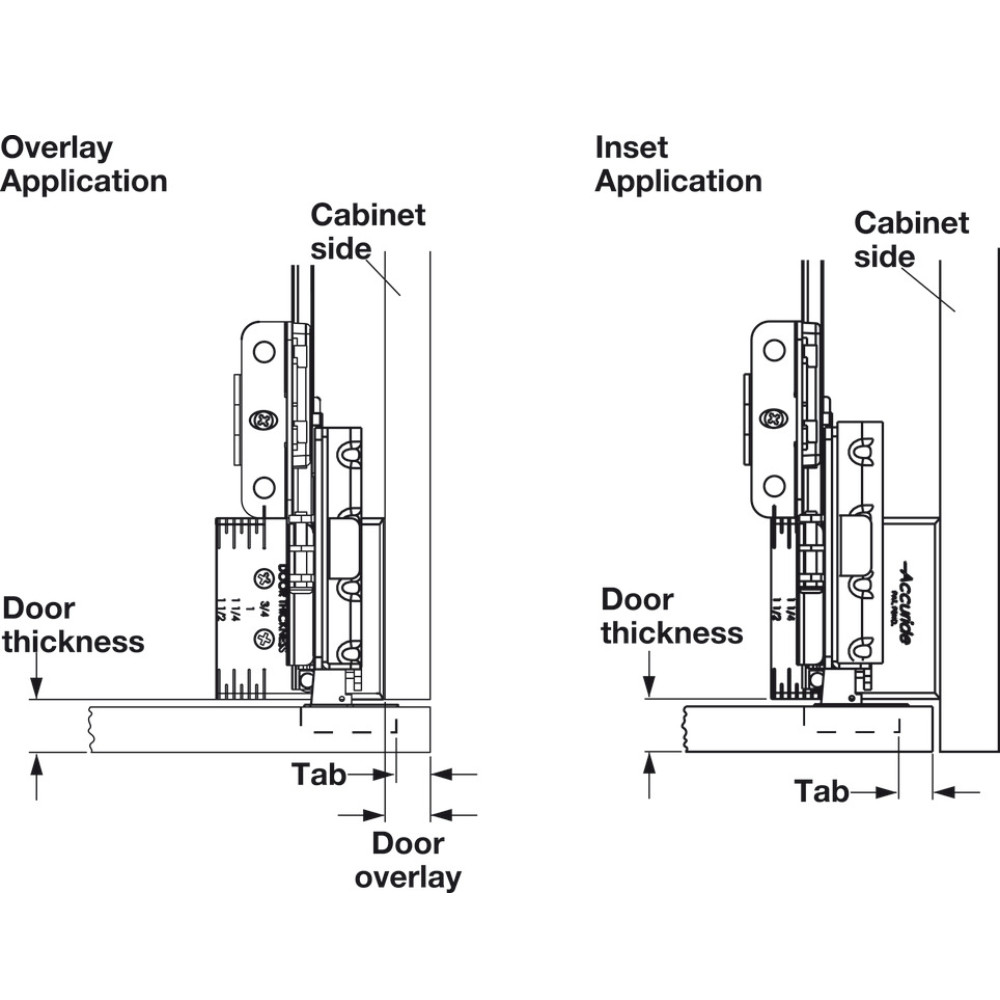

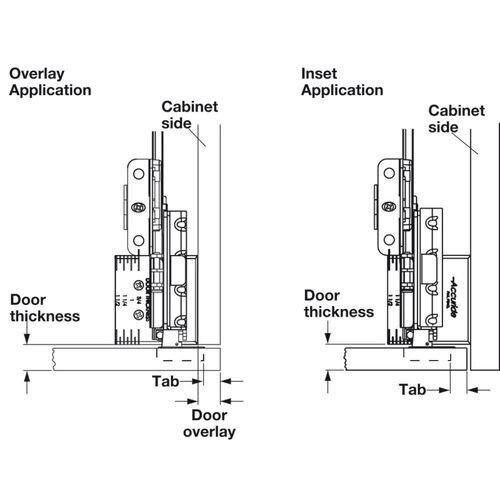

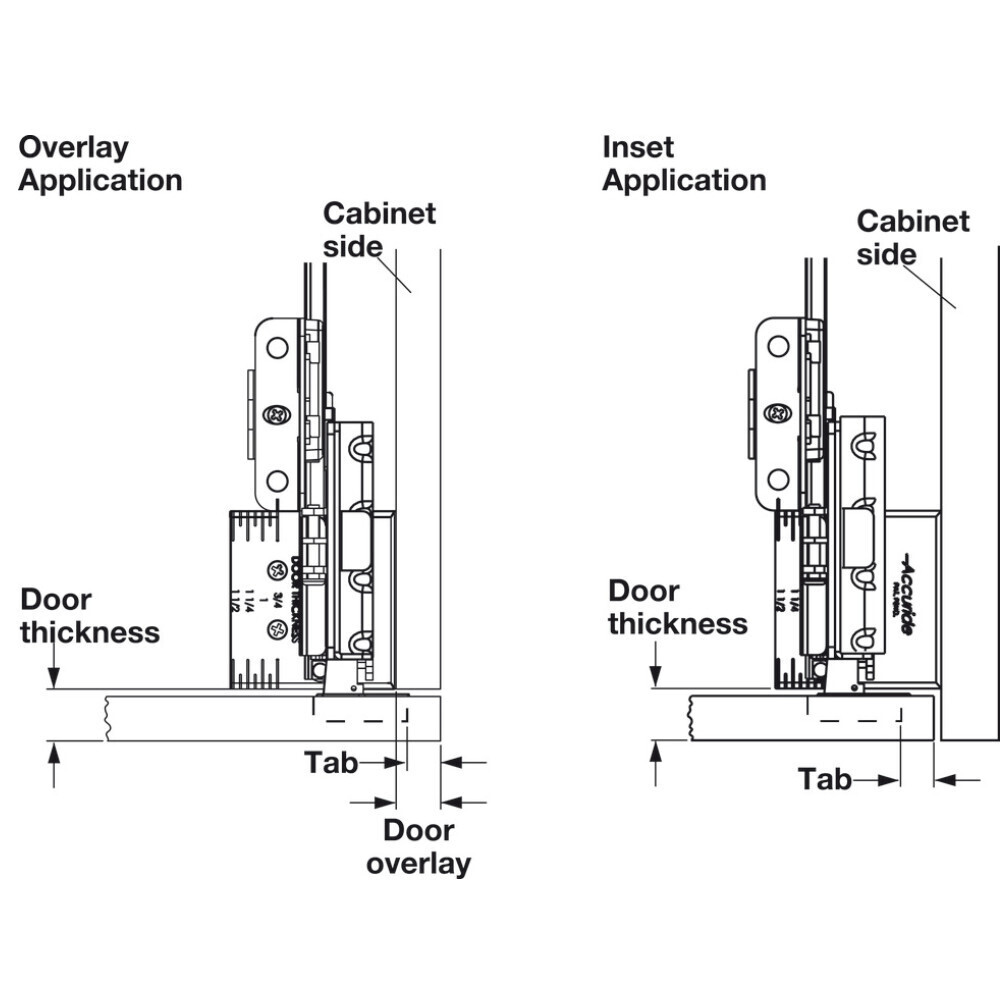

• For inset and overlay cabinet doors
• Maximum door thickness: 19.1mm with full-overlay use
• Anti-sag adjustment feature allows vertical adjustment of the door
• Suitable for sculptured doors, applied mouldings or raised panels

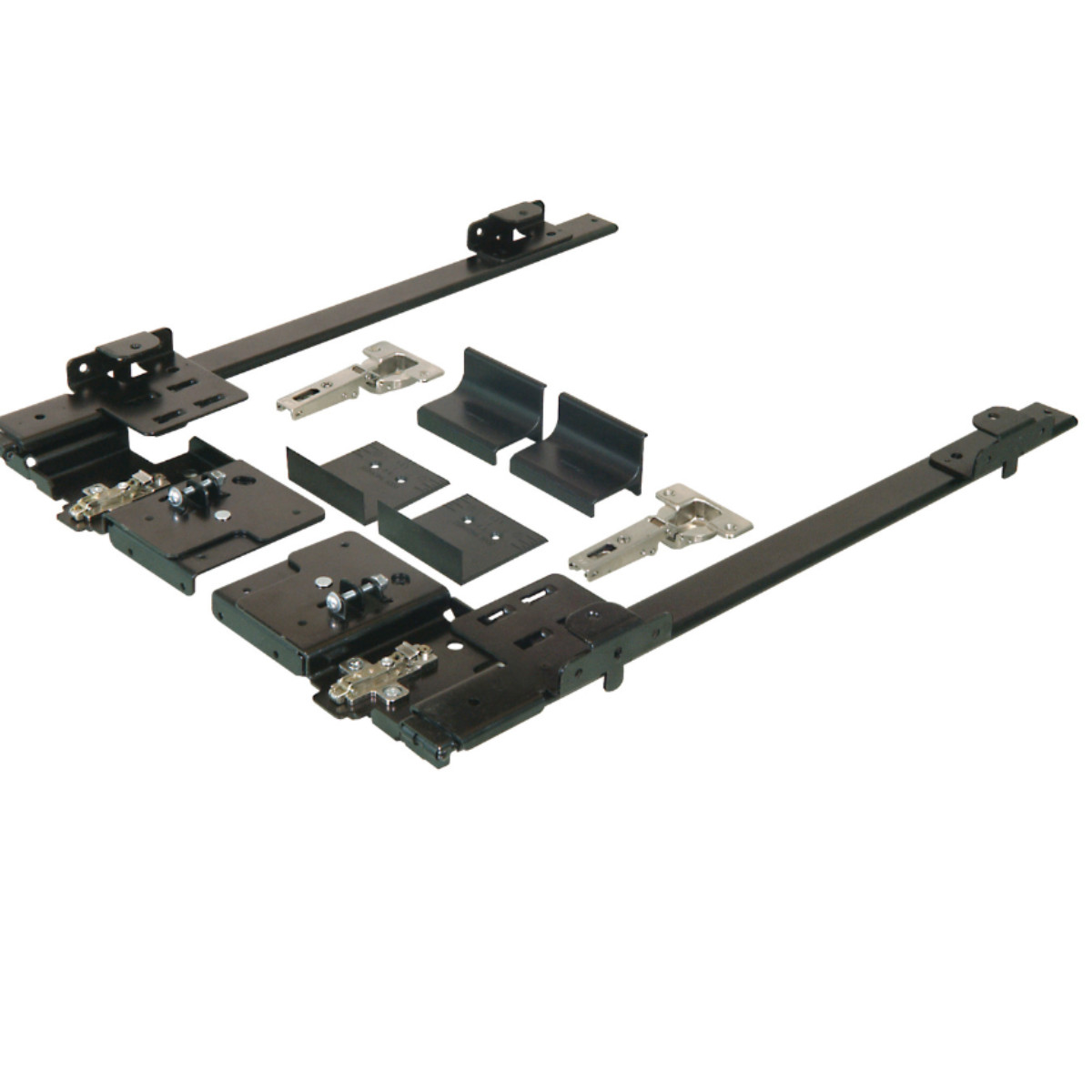

Set contains:

• 1 x pair of runners
• 2 x concealed hinges
• 2 x mounting plates
• 2 x mounting brackets
• Fixings

Please note that:

• Hinge carrier not supplied and should be made from scratch
