Air Push Hinge Salice Kit

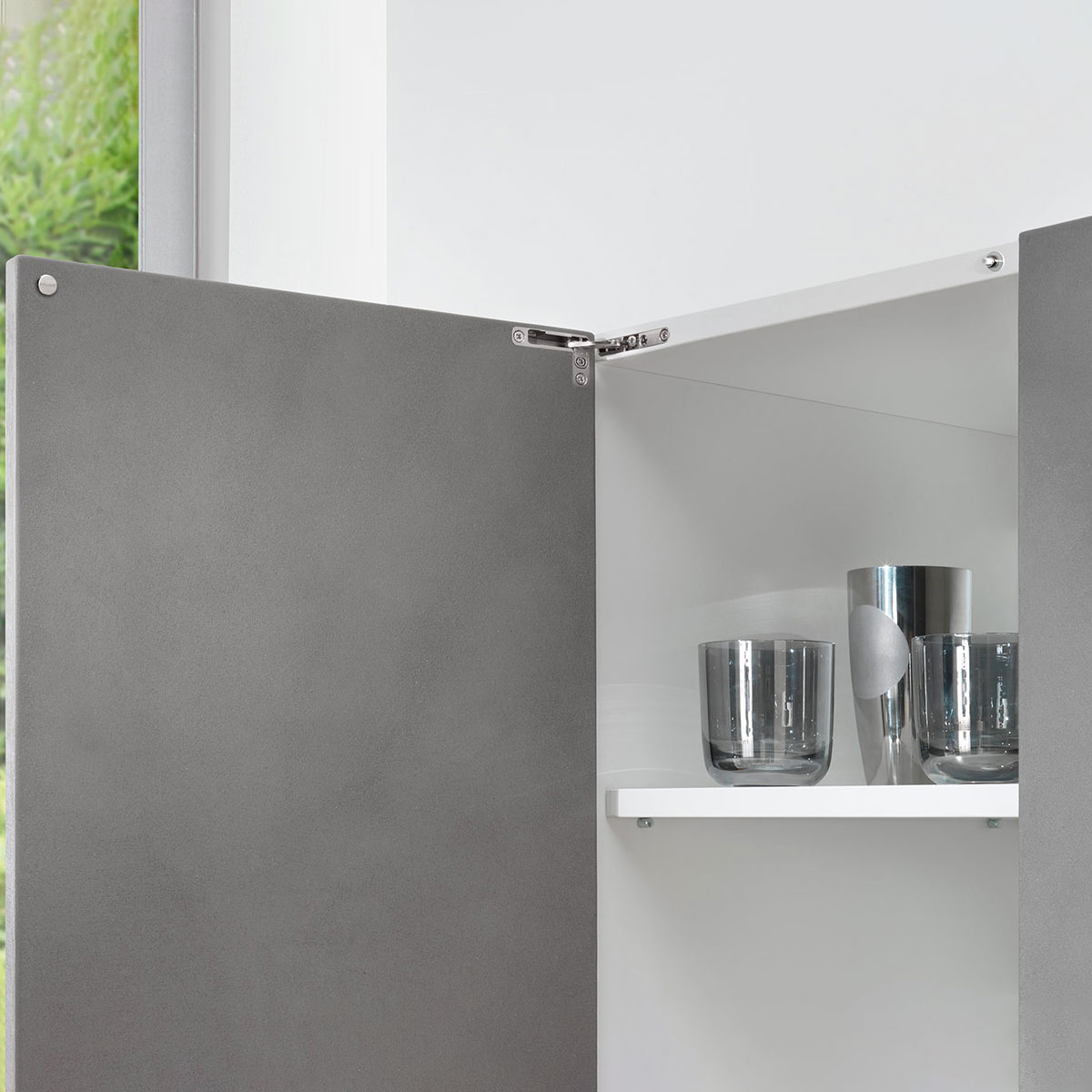

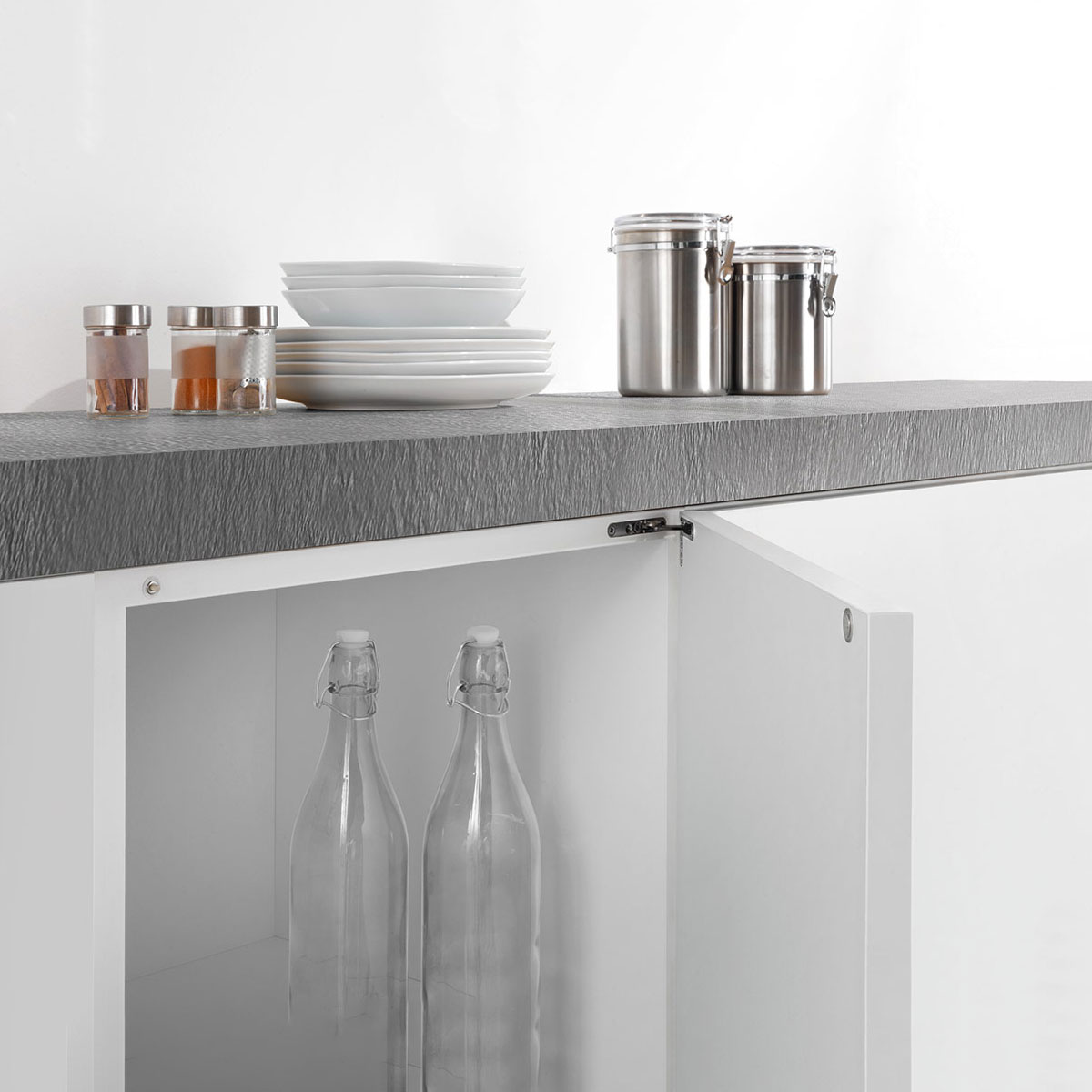

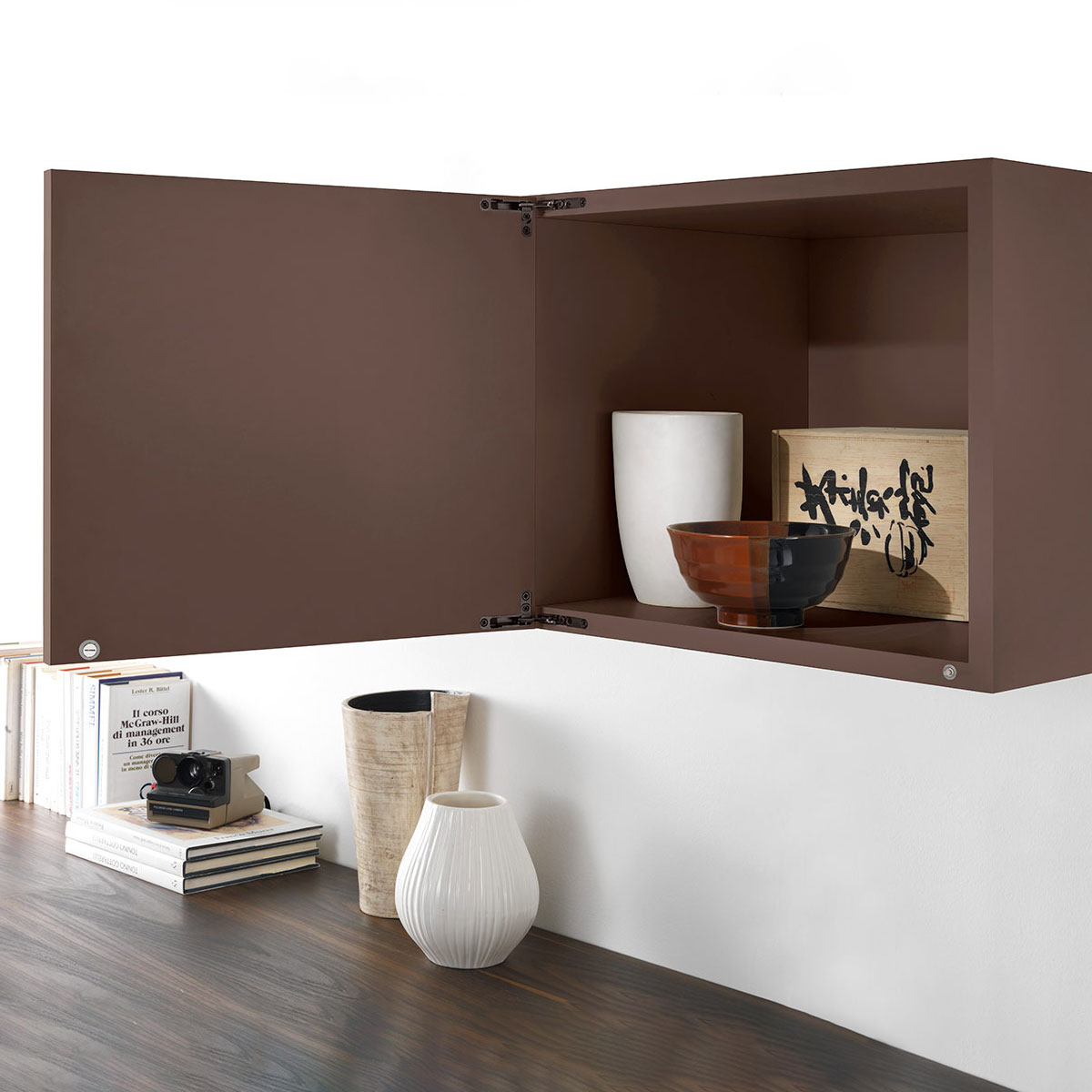

Innovative Air Push hinge by Italian manufacturer 'Salice' brings a completely new level onto the market. With integrated soft close, along with a special spring for the opening of handle-less doors and the ability to use it within an aluminium frame as well as an 18mm board, making it very attractive for cabinet makers and manufacturers. The advantage of the Air Push hinge is that it frees up the space that normally would be taken by the traditional type of hinge. That creates more possibilities for cabinets that can be upgraded with pull-out storage solutions that don't always clear the standard hinges. No need for the centre post in corner cabinets will create more usable space inside and will allow for a wider range of corner optimisers to be installed. Available in two finishes - nickel and titanium effect to match the furniture.

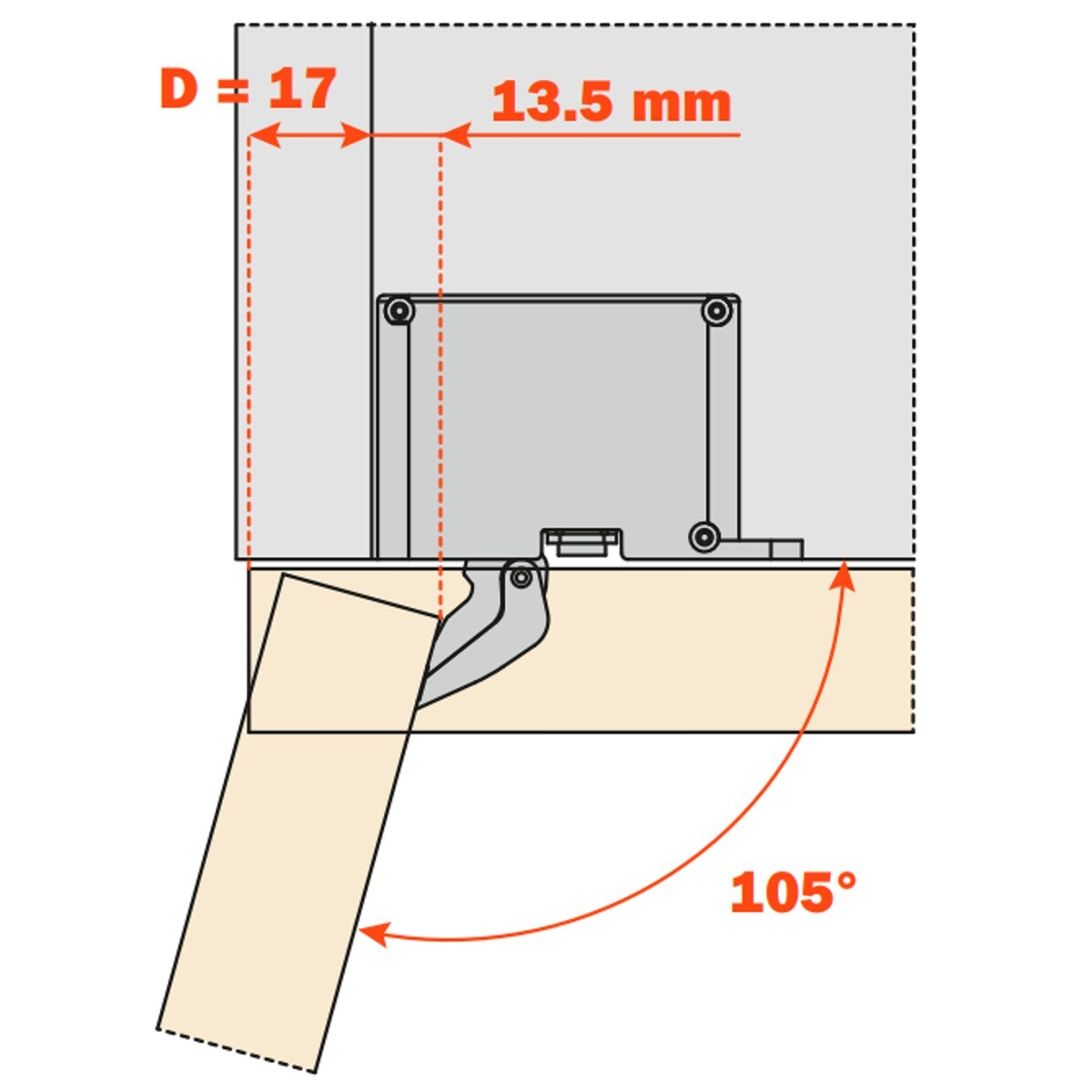

• 105° opening
• Integrated push system
• 16.5mm deep metal cup
• 3D regulation/adjustment
• Maximum door weight: 25kg
• The price displayed for 1 set (top + bottom)
• L (gap between door and carcass) = 2.5mm
• Two finishes including nickel-plated and titanium effect
• Hinges are to be recessed into the cabinet and into the door

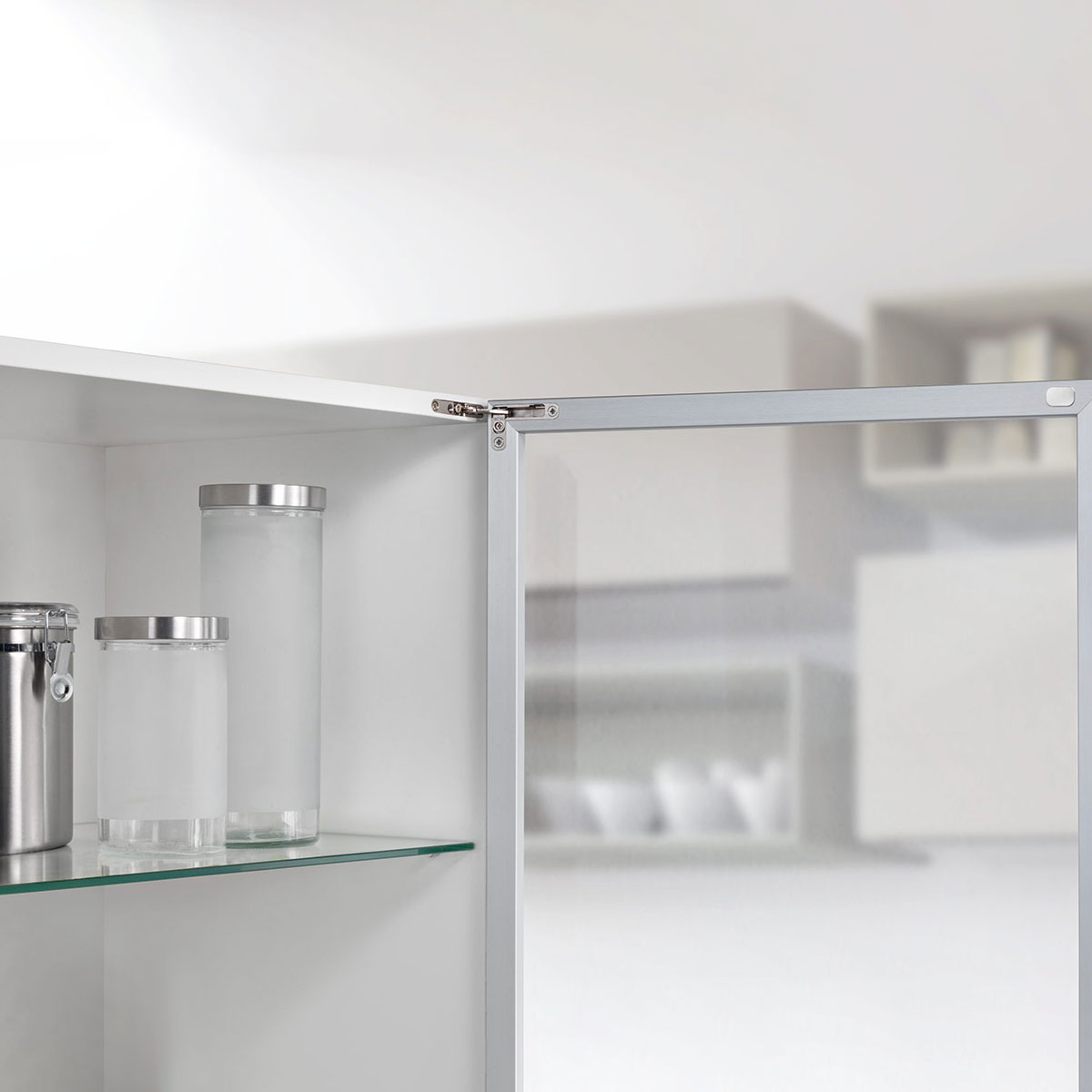

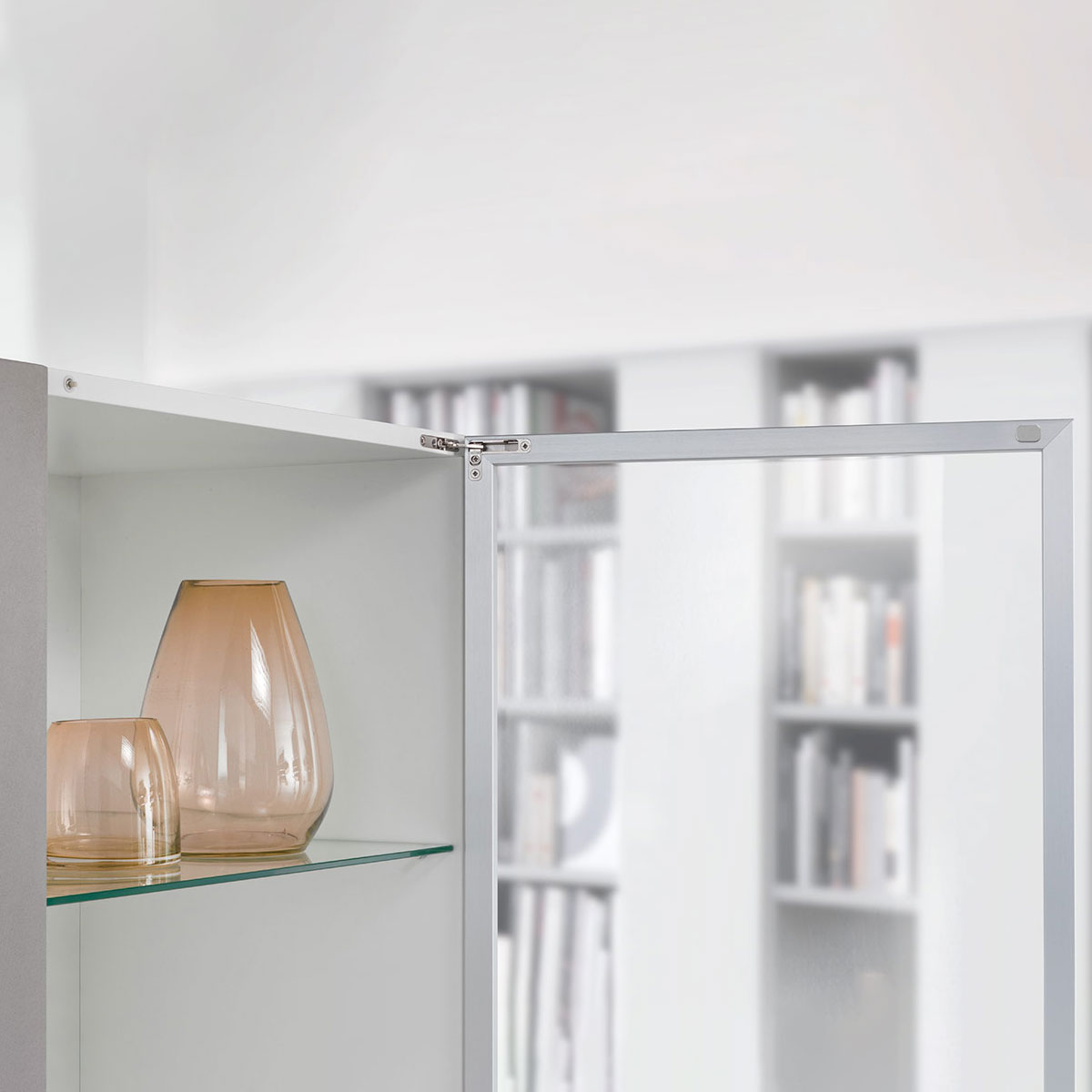

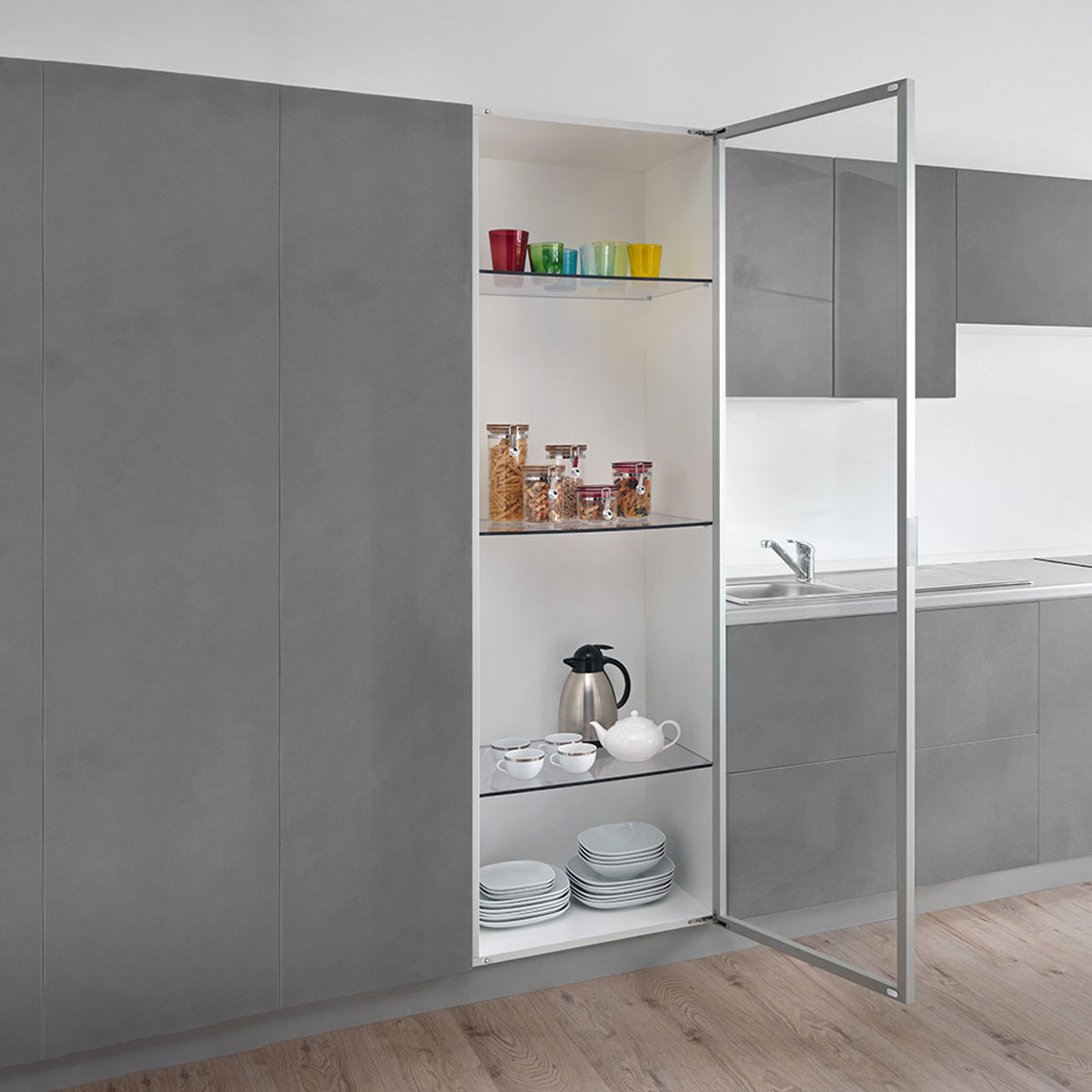

• For minimum 18mm wooden, MDF or aluminium framed doors

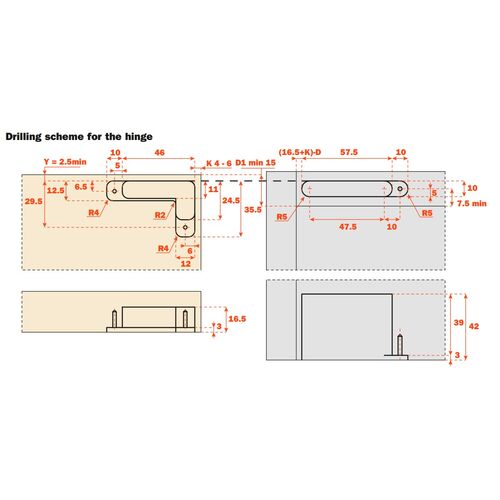

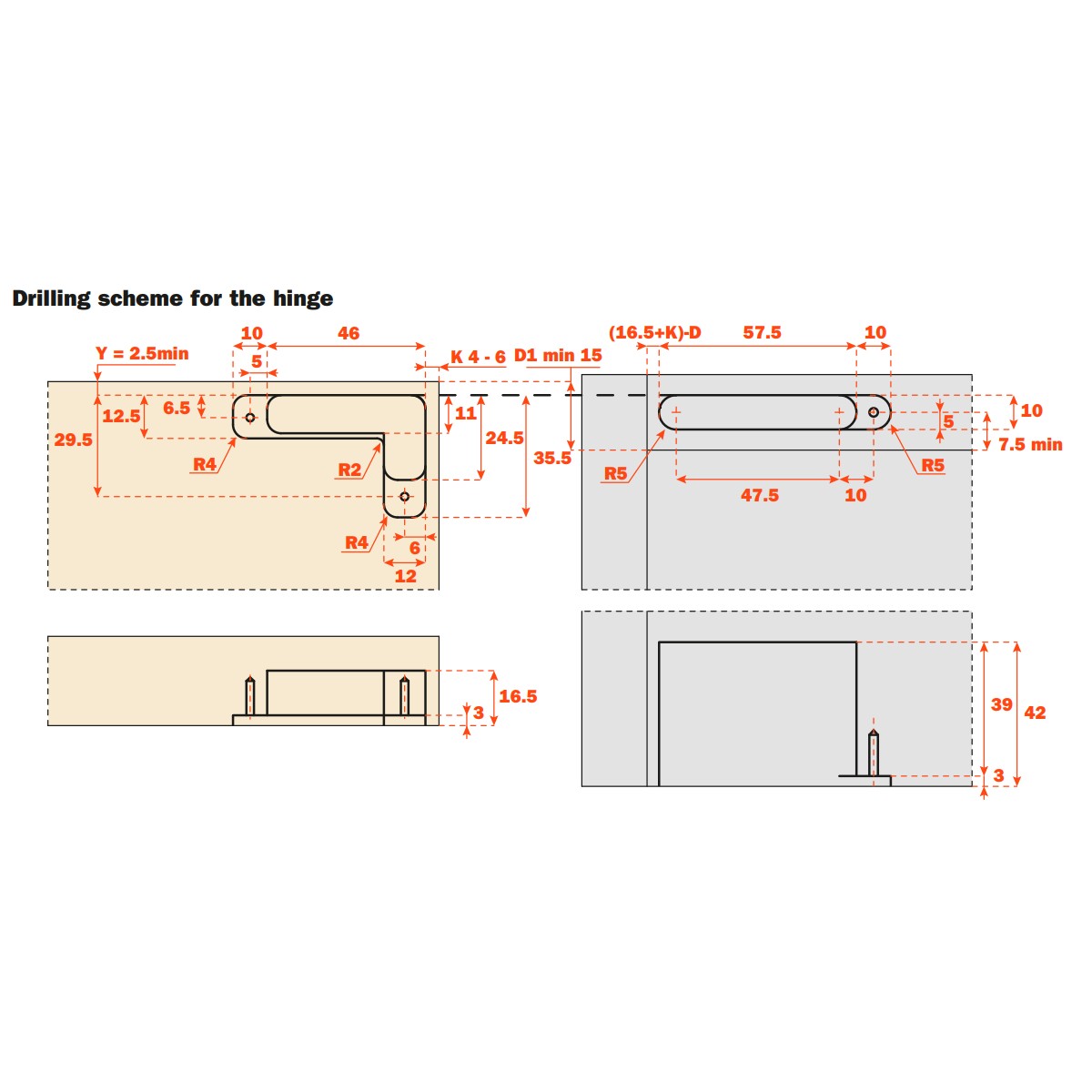

• Fixed k (drilling distance)= 4mm for aluminium - framed doors (del6lp300_)
• Possible drilling distance on the door (k): from 3mm to 6mm for wooden doors
• Maximum dimensions of the door:
  • Height: 2700mm
  • Width: 600mm

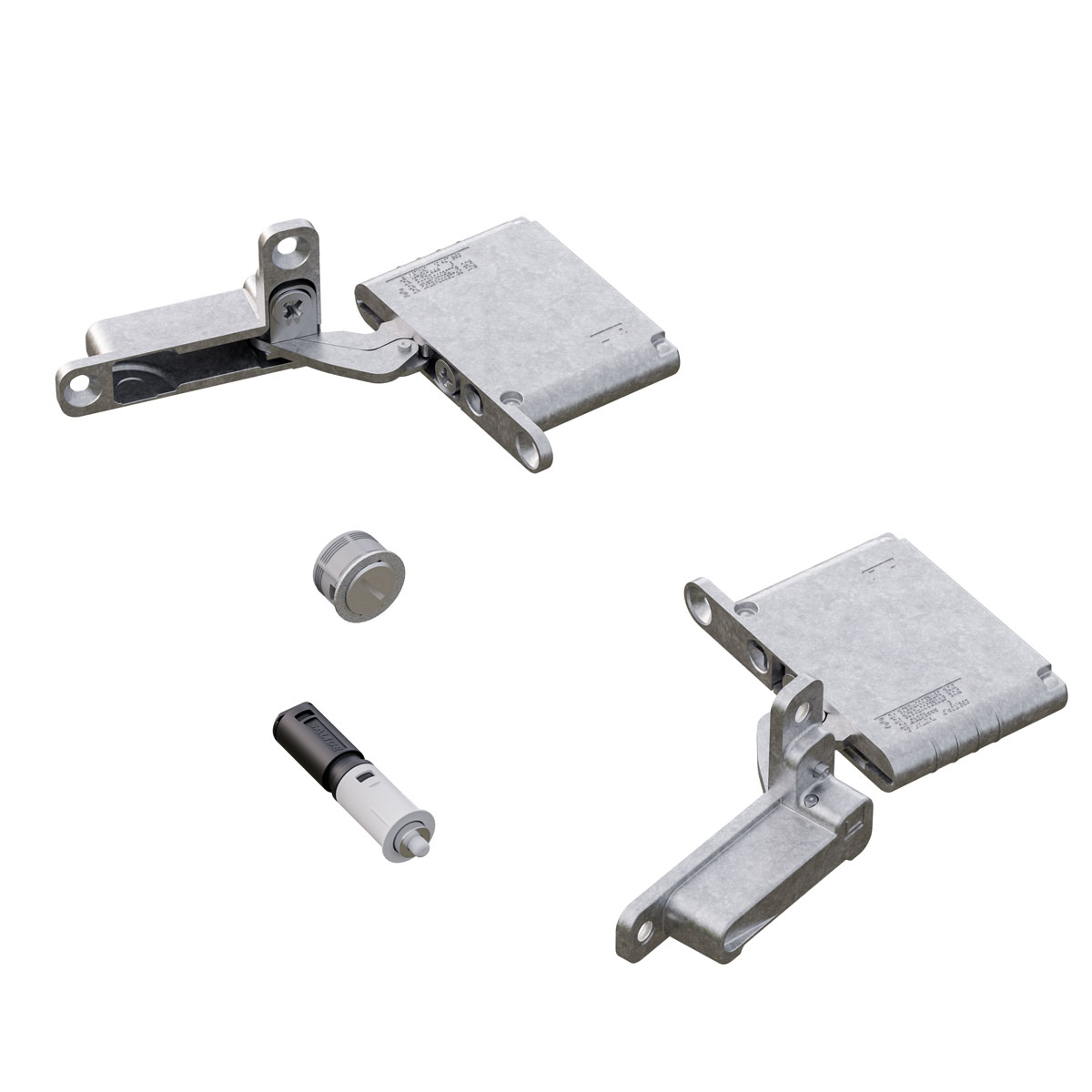

Contents of one set::

• 6 x fixing screws

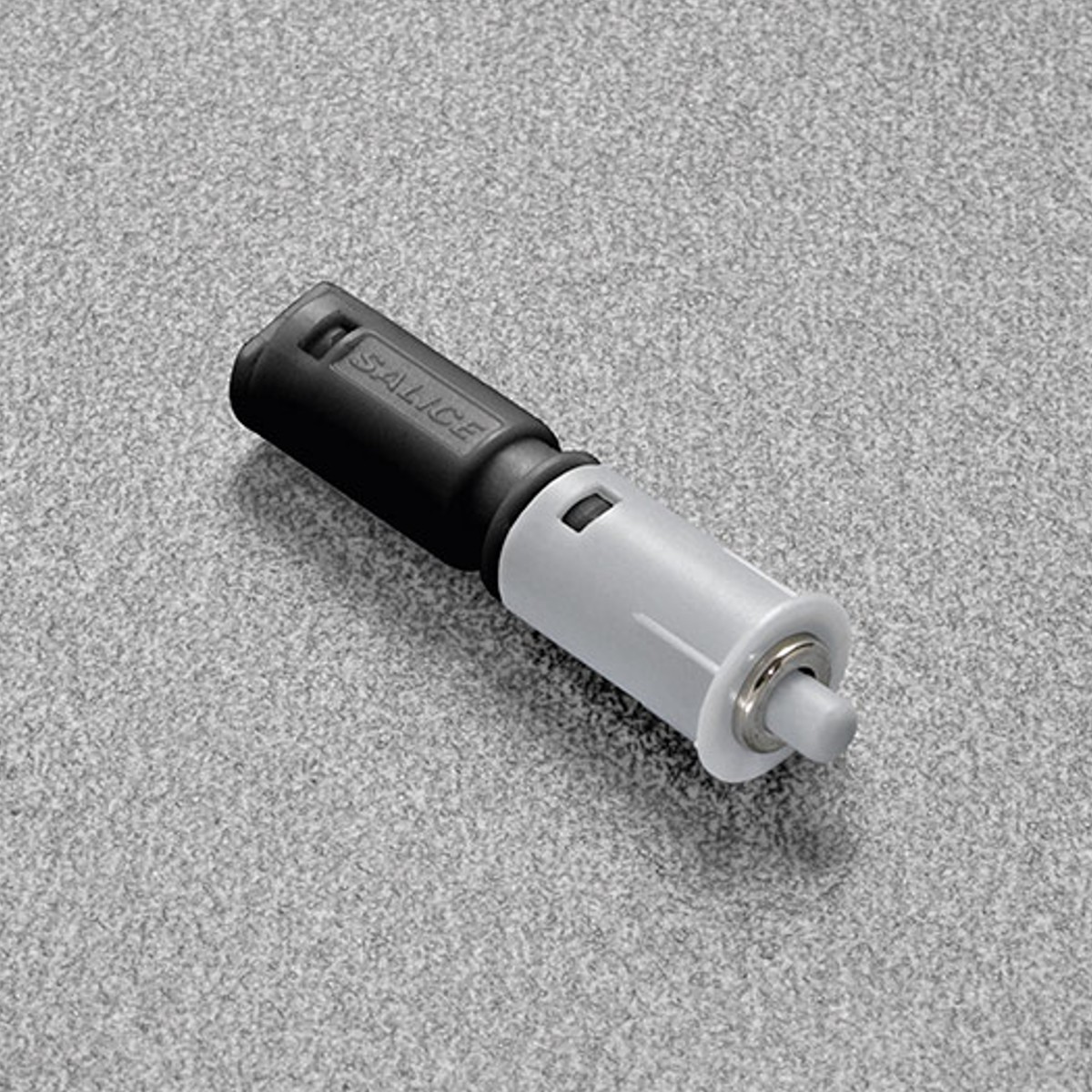

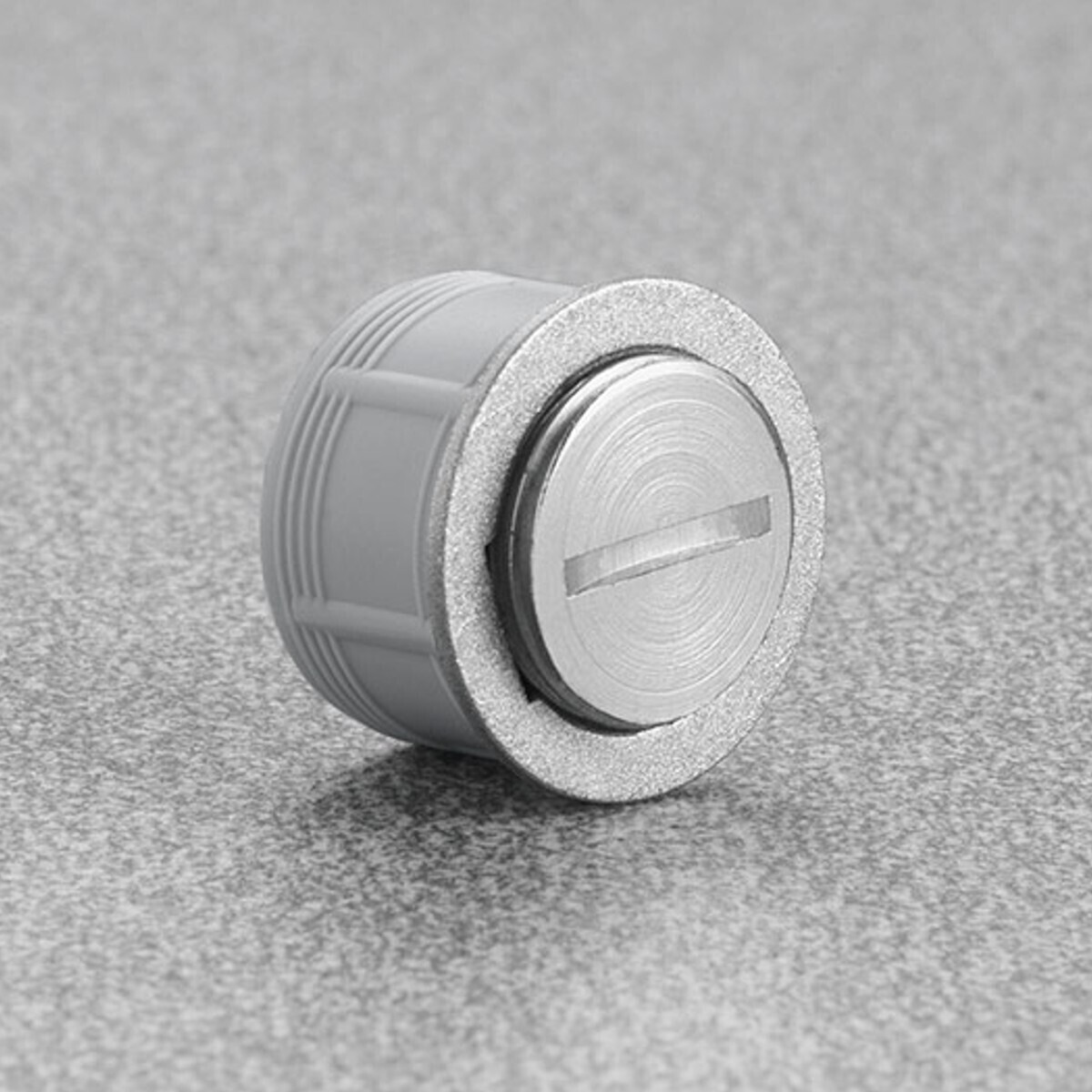

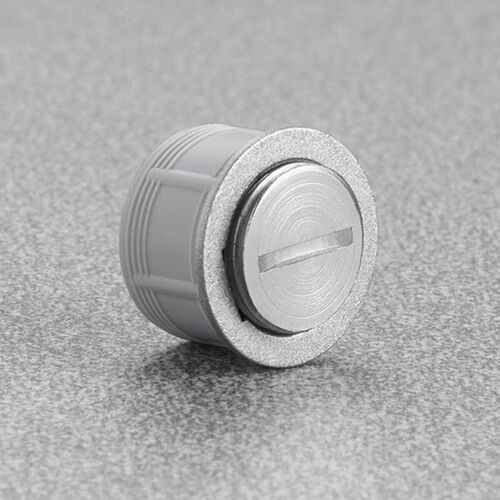

• 1 x door release device
• 1 x door magnetic catcher
• 2 x hinges (1 for the top and 1 for the bottom)
