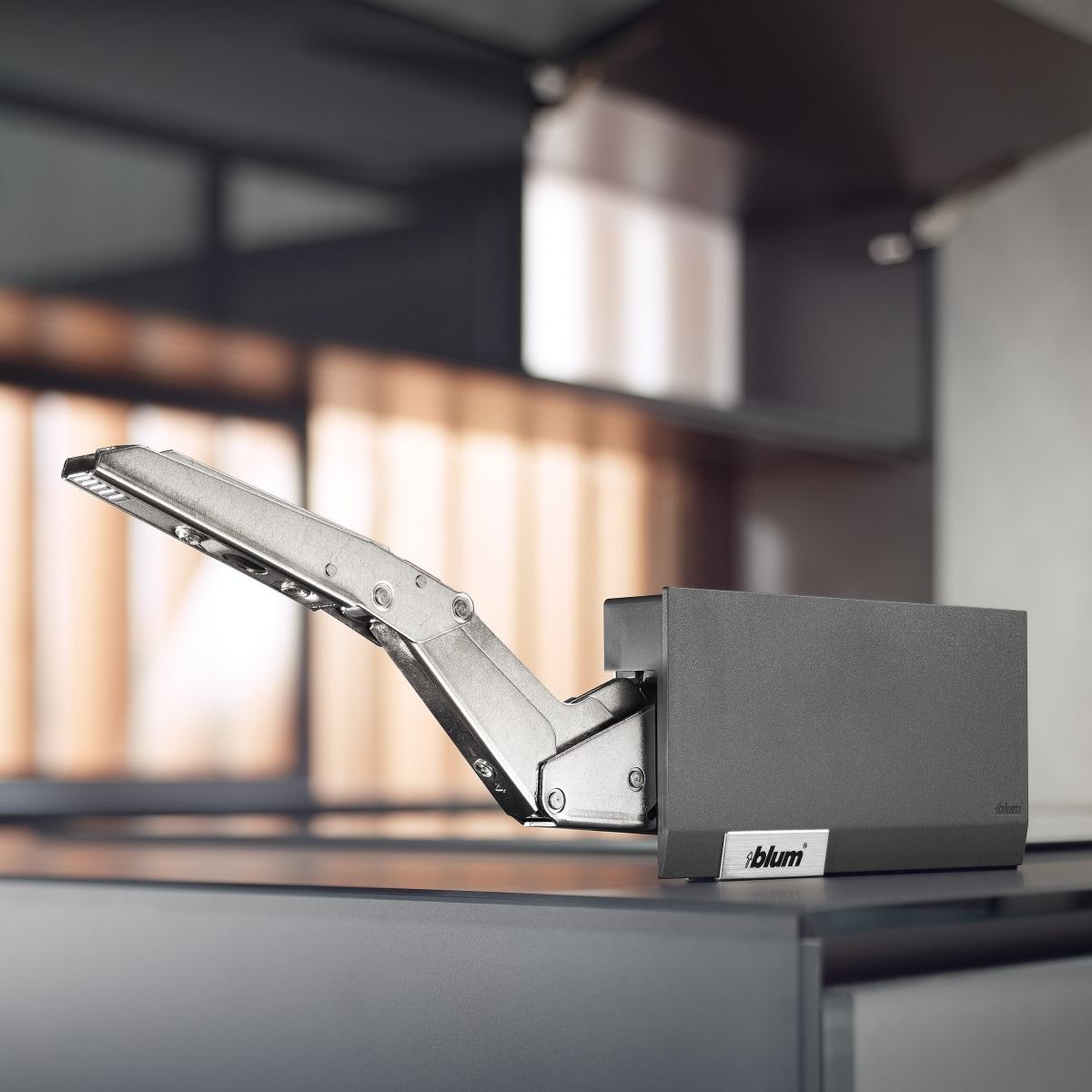

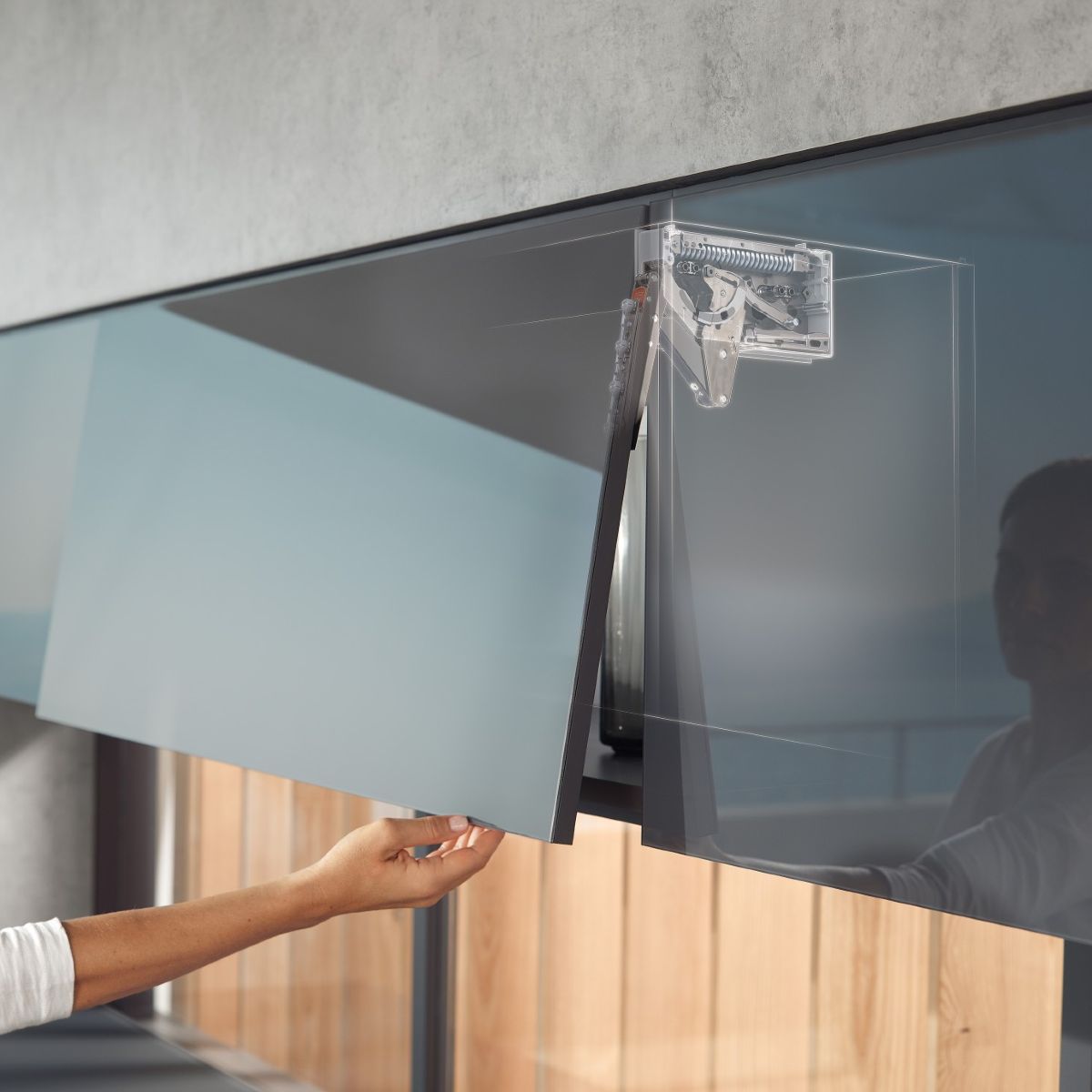

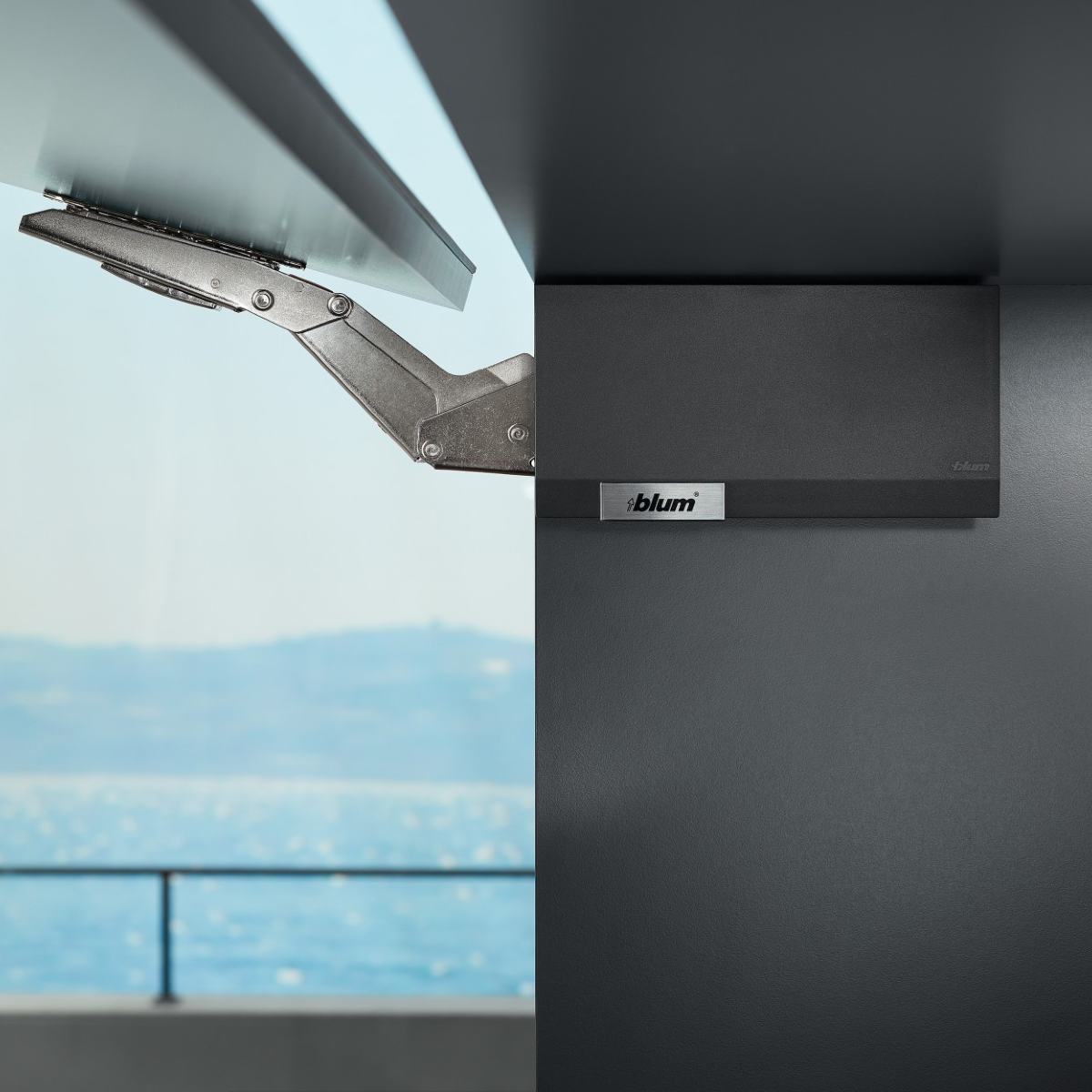

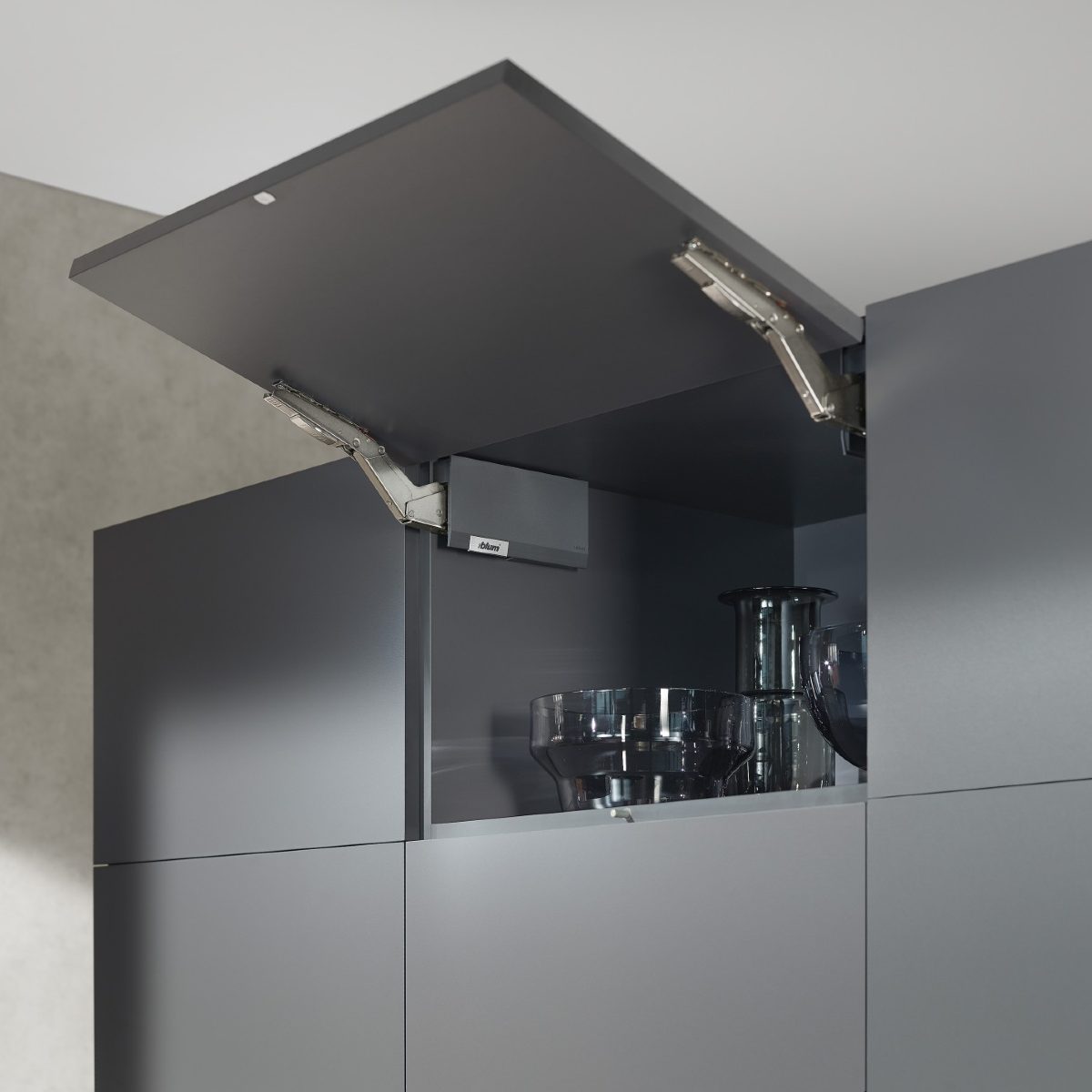

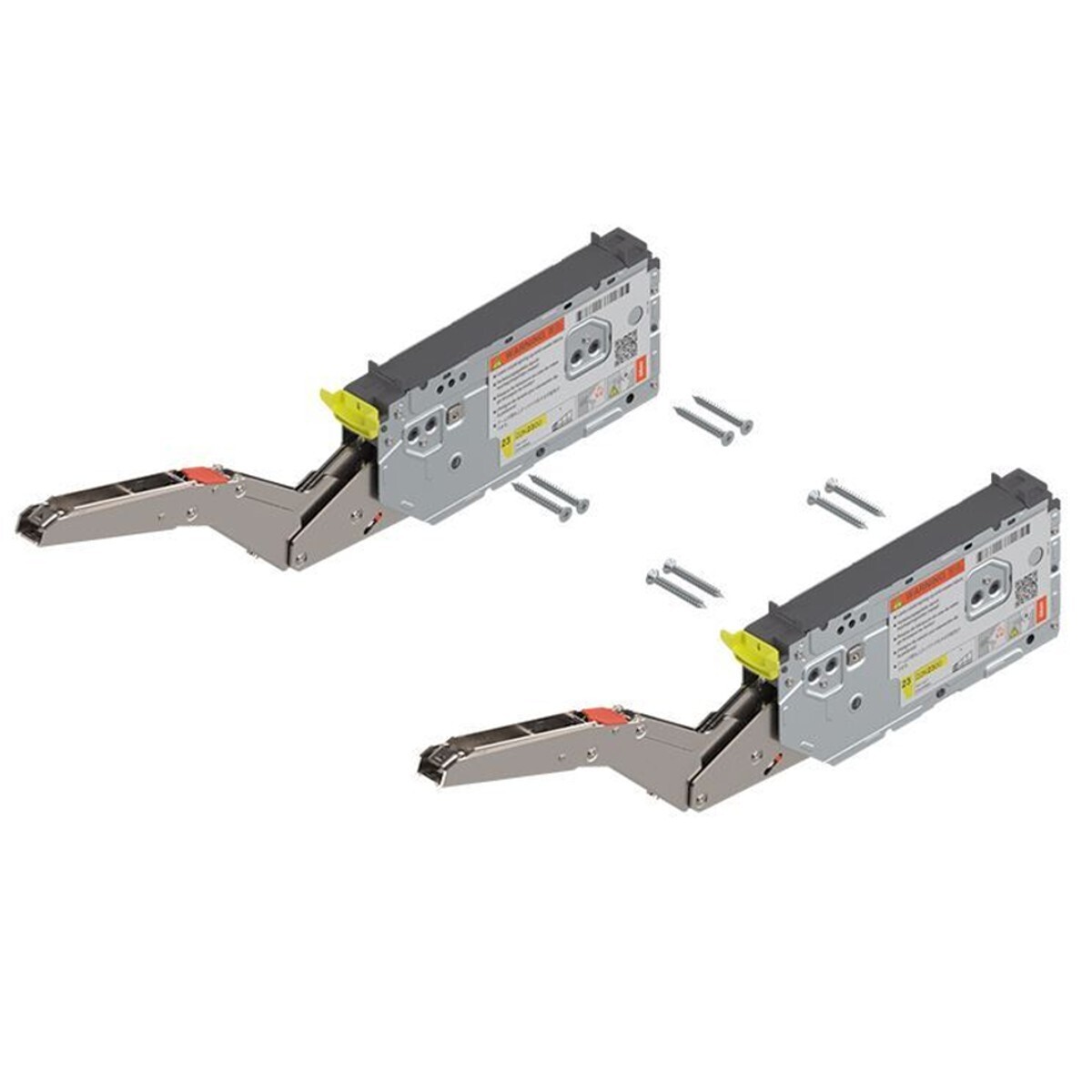

Aventos HK provides easy access to cabinet contents, as the front opens up and out of the user’s way. Designed for handle-less fronts, this lift system utilizes the TIP-ON mechanical opening support, eliminating the need for cabinet handles.
- Tip-On
- Lift mechanism
- Made out of steel
- Finish: zinc plated
- Range: Aventos HK
- Opening angle: 107°
- Fixing type: screw-on
- Comes with cover caps
- Power factor: 420-9000
- Sold in pairs (left + right)
- Maximum cabinet width: 1800mm
- Suitable for cabinet heights: 205-600mm

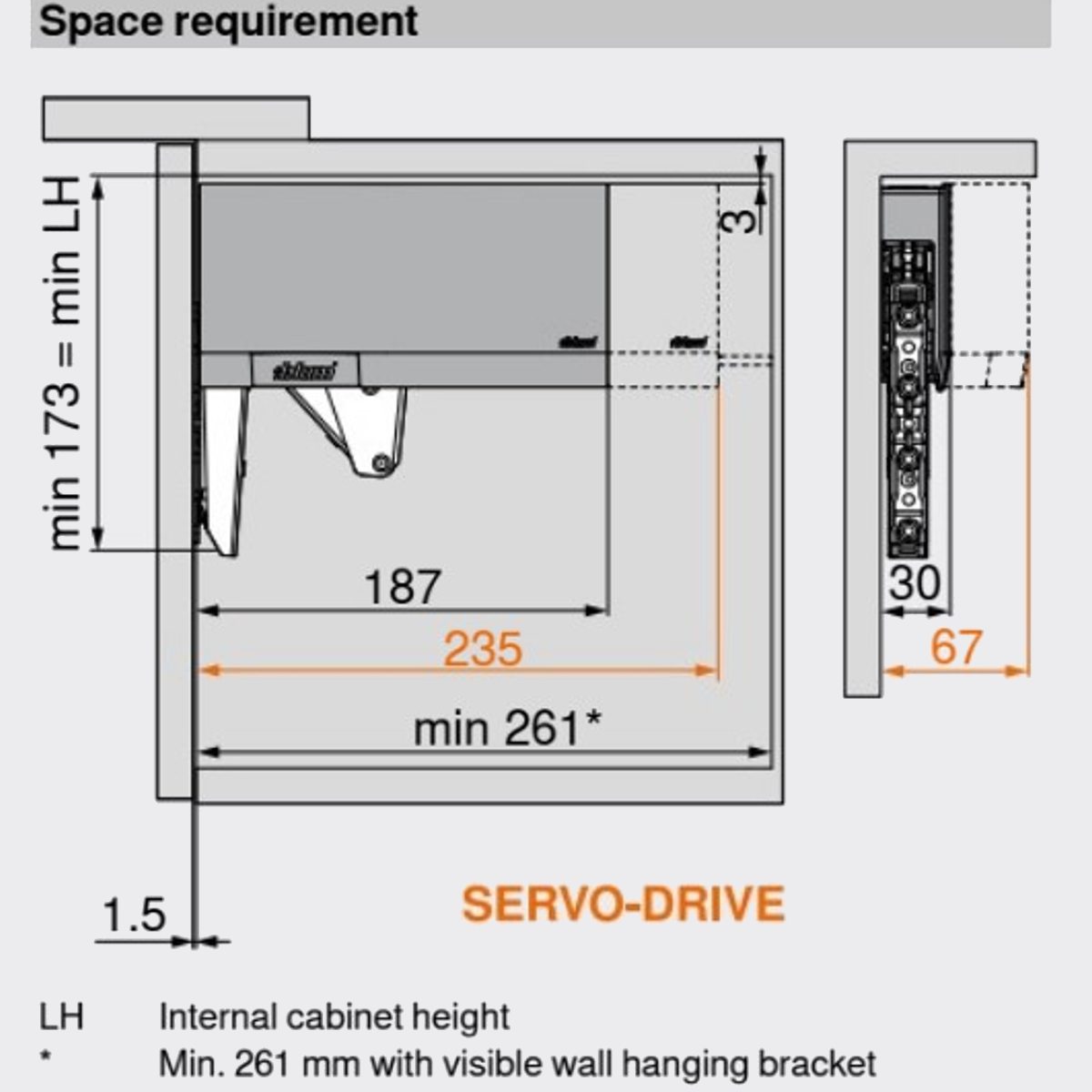

- Minimum internal cabinet depth: 187mm

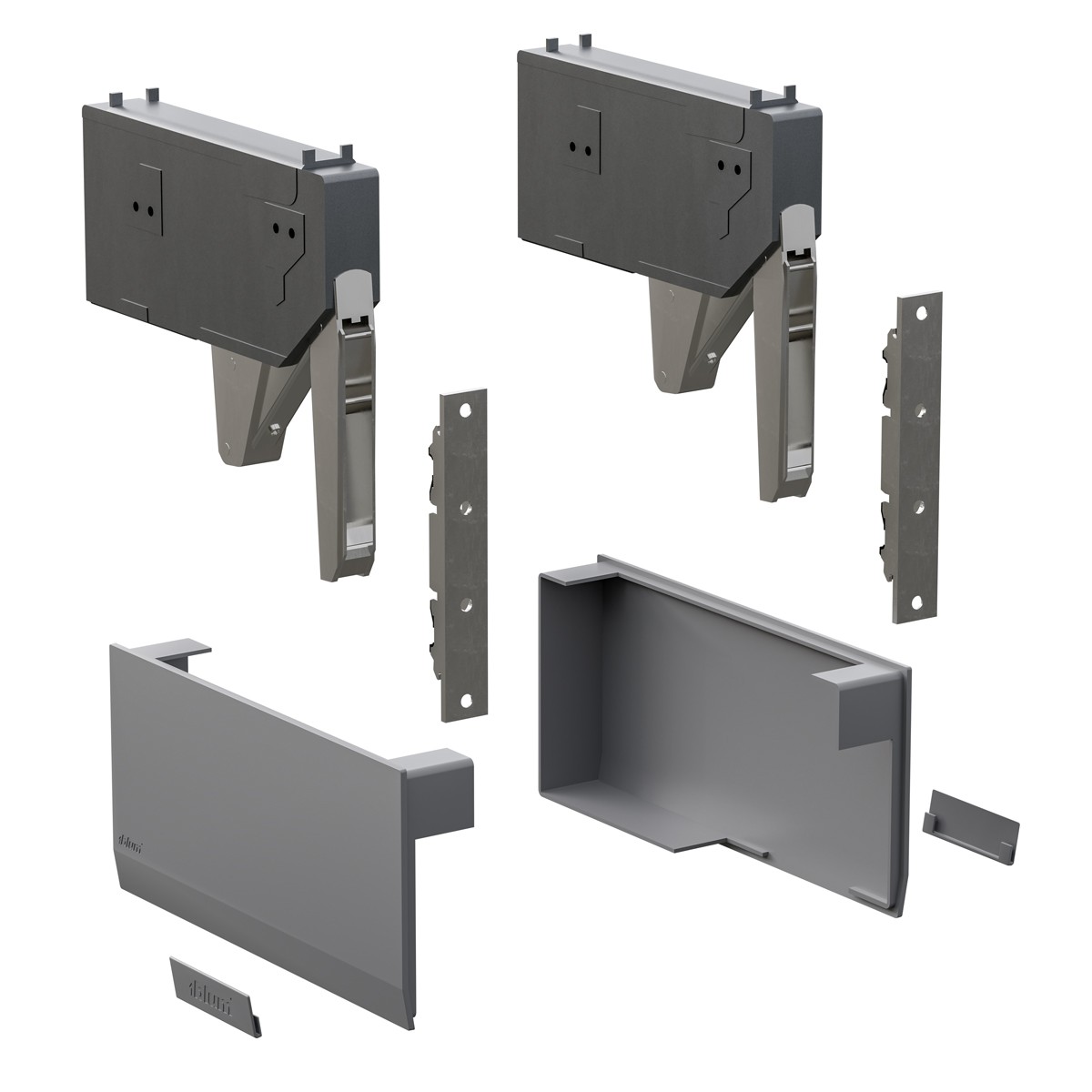

A set consists of:

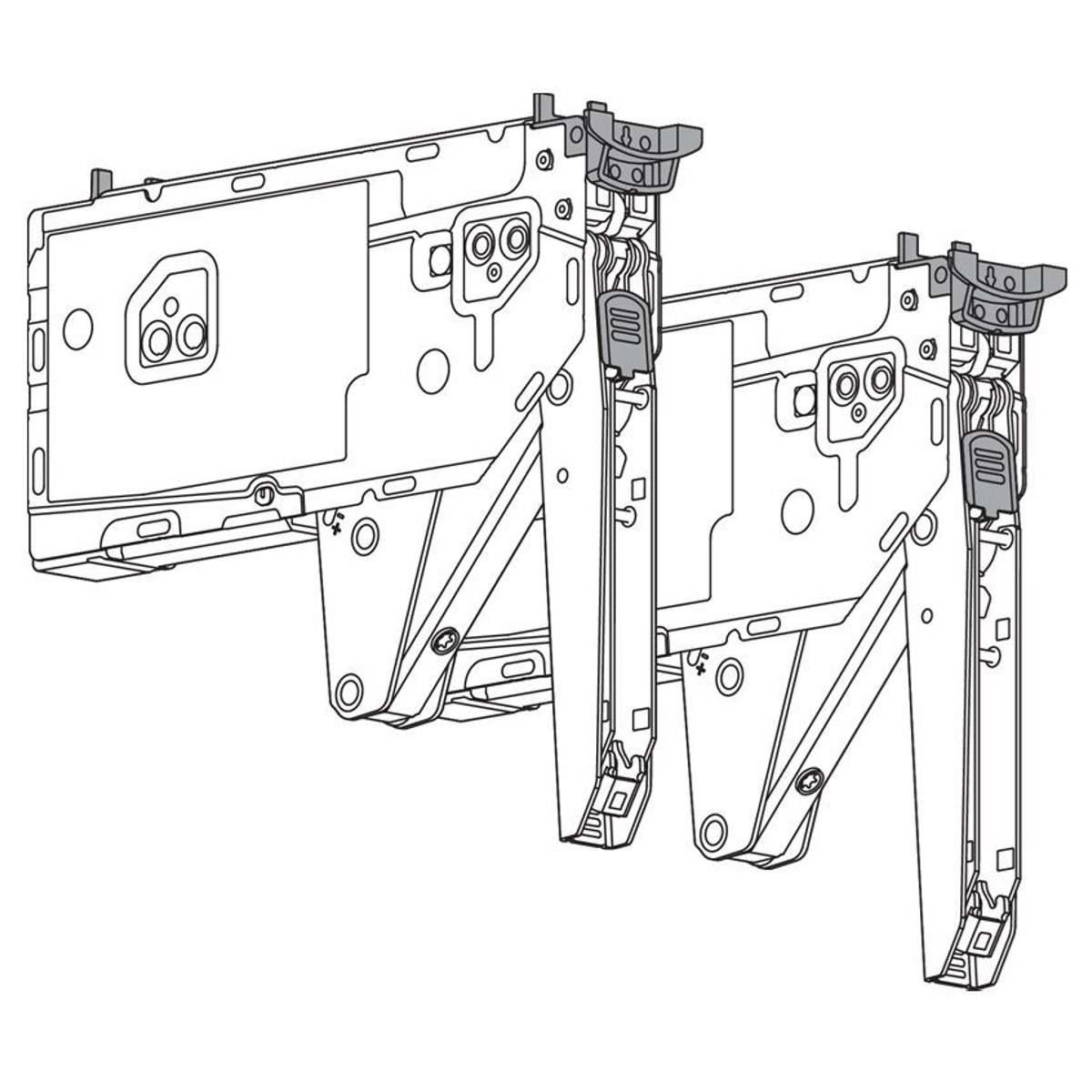

- 1 x Blum Aventos HK (left + right)
- 1 x Blum Aventos HK cover caps (left+right)

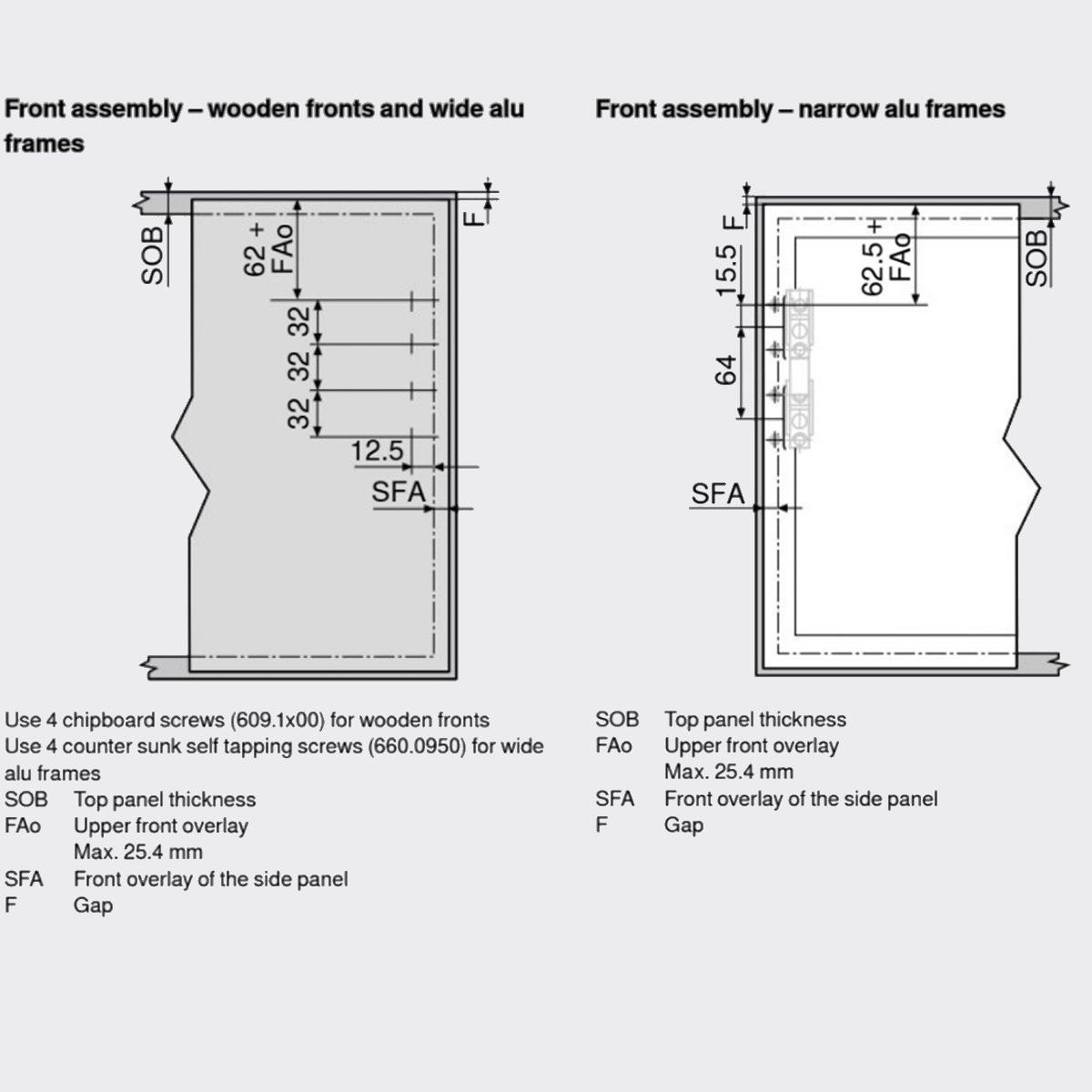

- 2 x Blum Aventos HK front fixing brackets
- 1 x Blum tip-on holder long version – 956A1201
- 1 x Blum cabinet door tip-on long version – 956A1004
To work out the "Power Factor" please use the below formula:
- Carcass height (mm) x door weight (kg) = power factor
Power Factor:
420-1610
Finish:
Light Grey
