Blum Clip Hinge Mounting Plate 173H7100

0925-001
Price: £0.61inc VAT
Write a review
− +

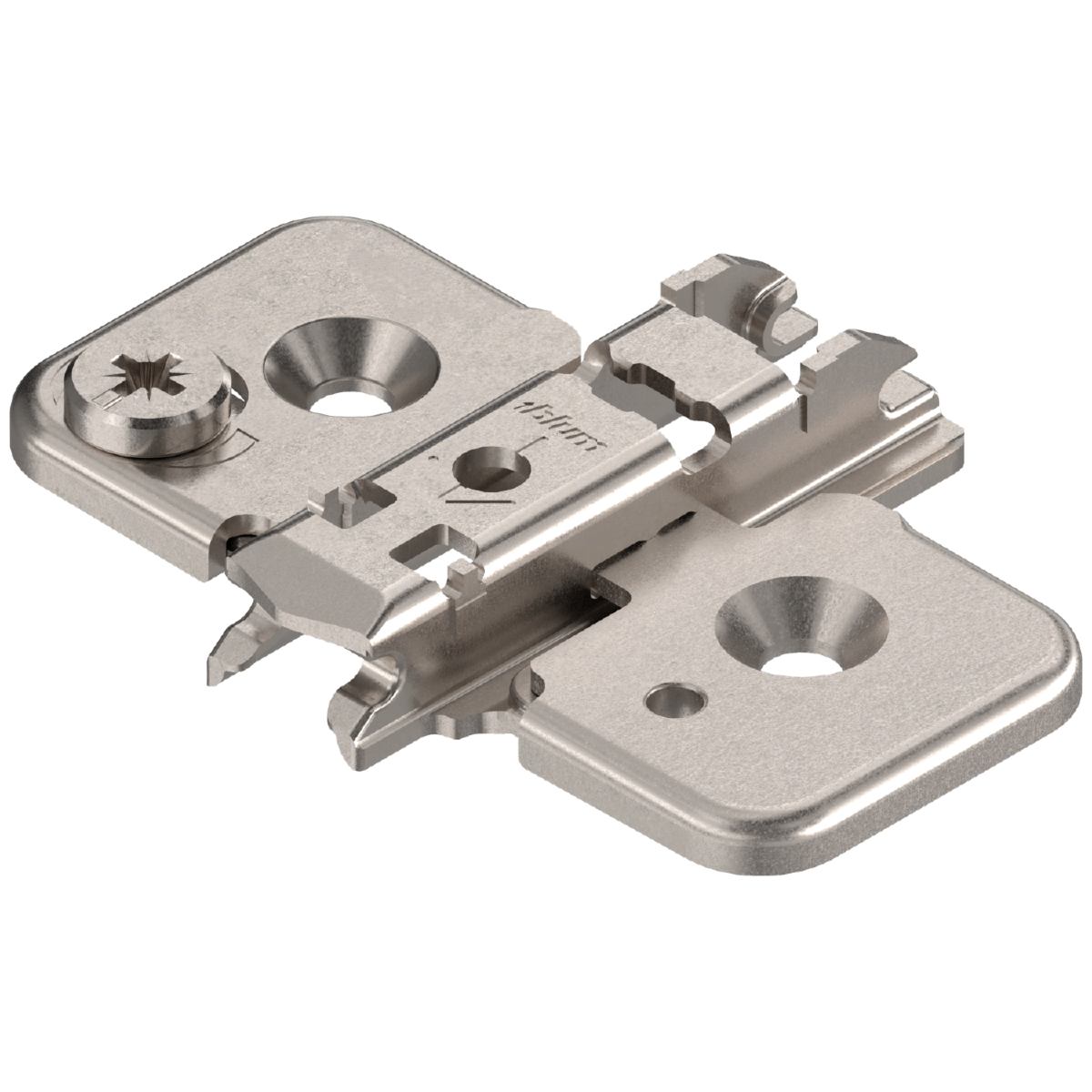

The Blum clip hinge mounting plate 173H7100 is a component used in cabinetry to attach the hinge to the cabinet door and frame. It’s designed for easy installation and removal, allowing the door to be quickly affixed or detached. The mounting plate also enables height adjustment for a precise fit and professional finish.

  • Mounting plate system: clip
  • Spacing: 0mm
  • The shape of the mounting plate: cruciform
  • Material: steel
  • Finish: nickel-plated
  • Fixing: for chipboard screws
  • Height adjustment: through lower and upper part/cam

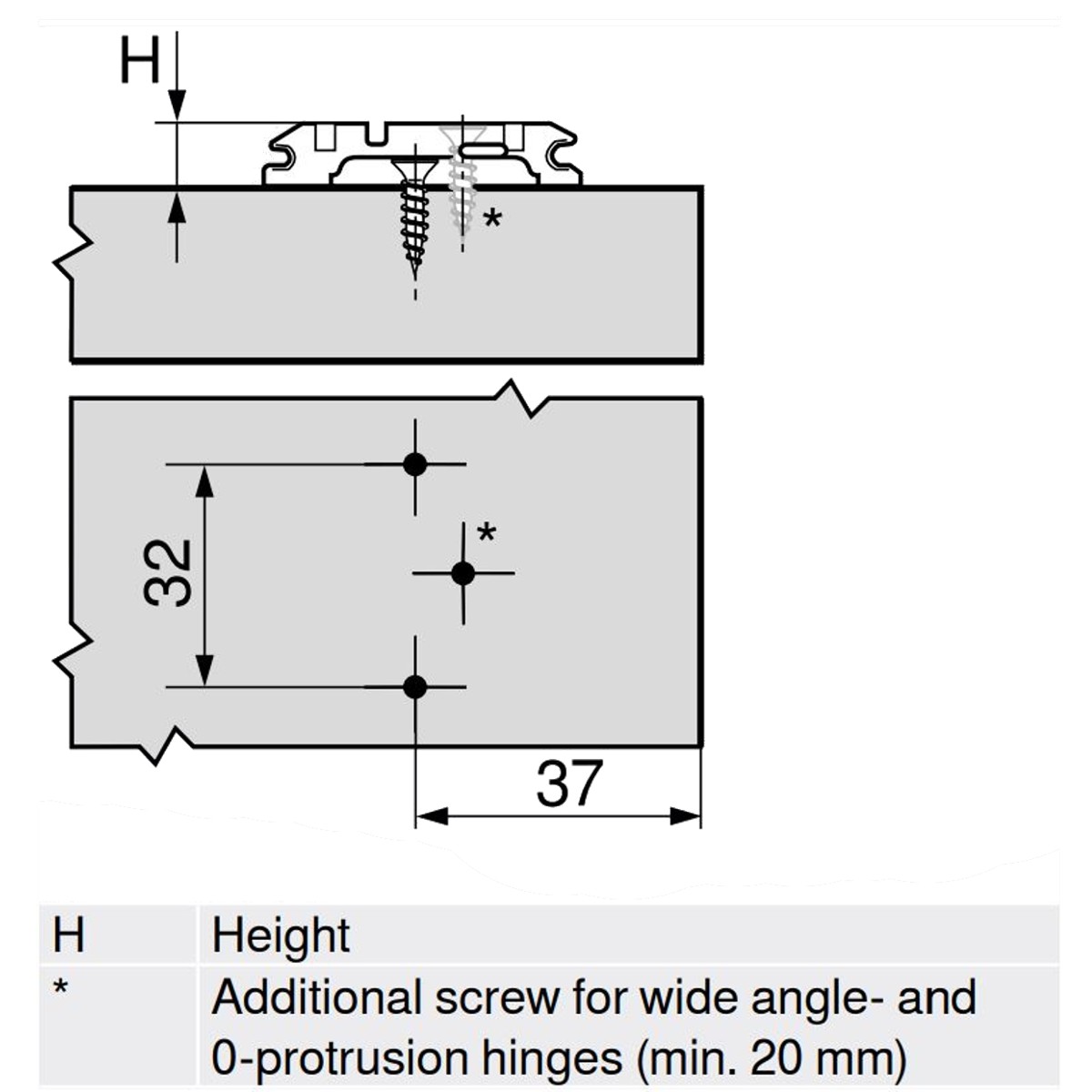

Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm

Download Product Details (pdf)

Download CAD File (dxf)
