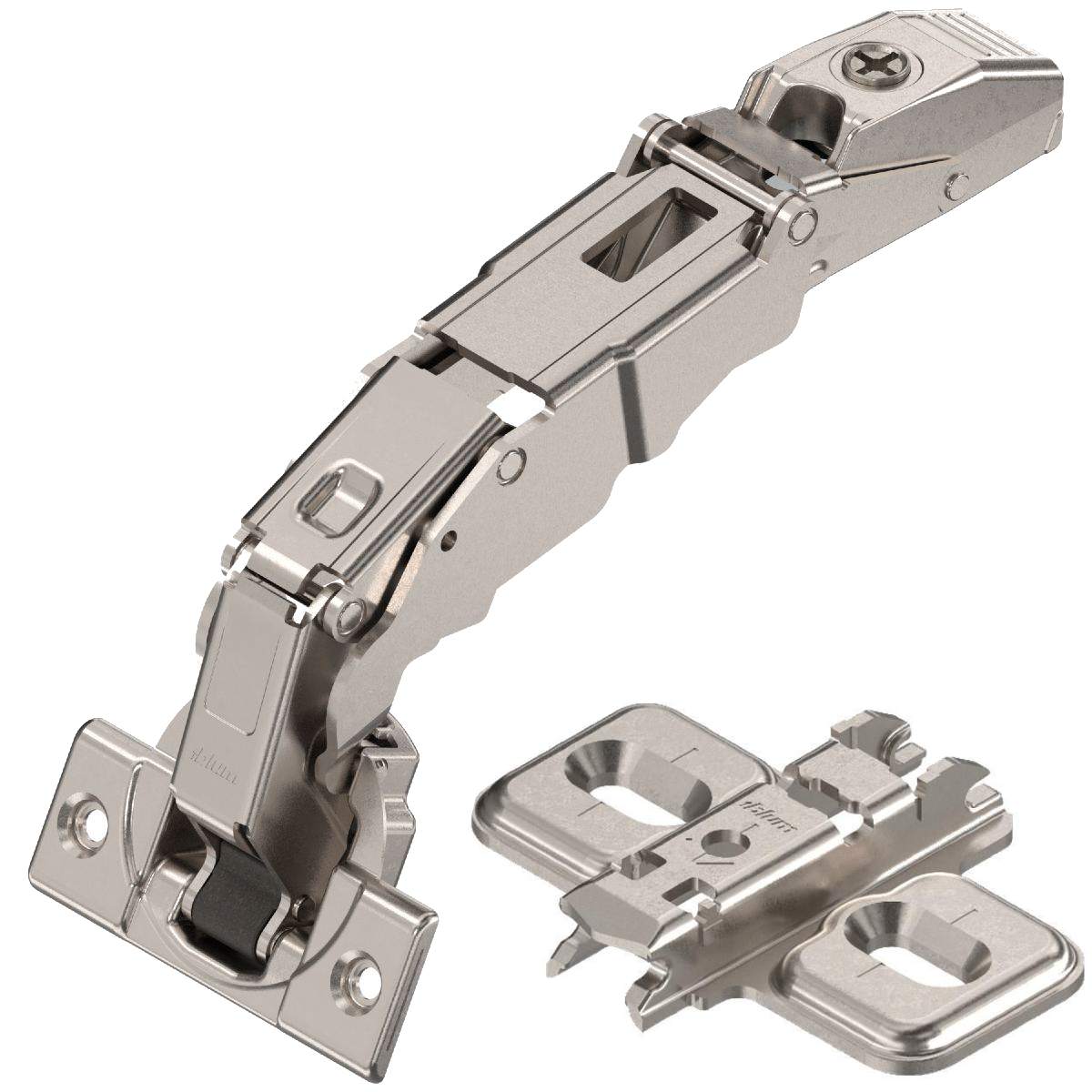

Blum Clip Top 0-Protrusion 155 Degree Cabinet Hinge 71T7550 With Mounting Plate

The Blum clip top 0-protrusion 155 degree cabinet hinge 71T7550 is a high-quality hinge designed for cabinet doors with 0-protrusion. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

• Clip top door hinge 71T7550

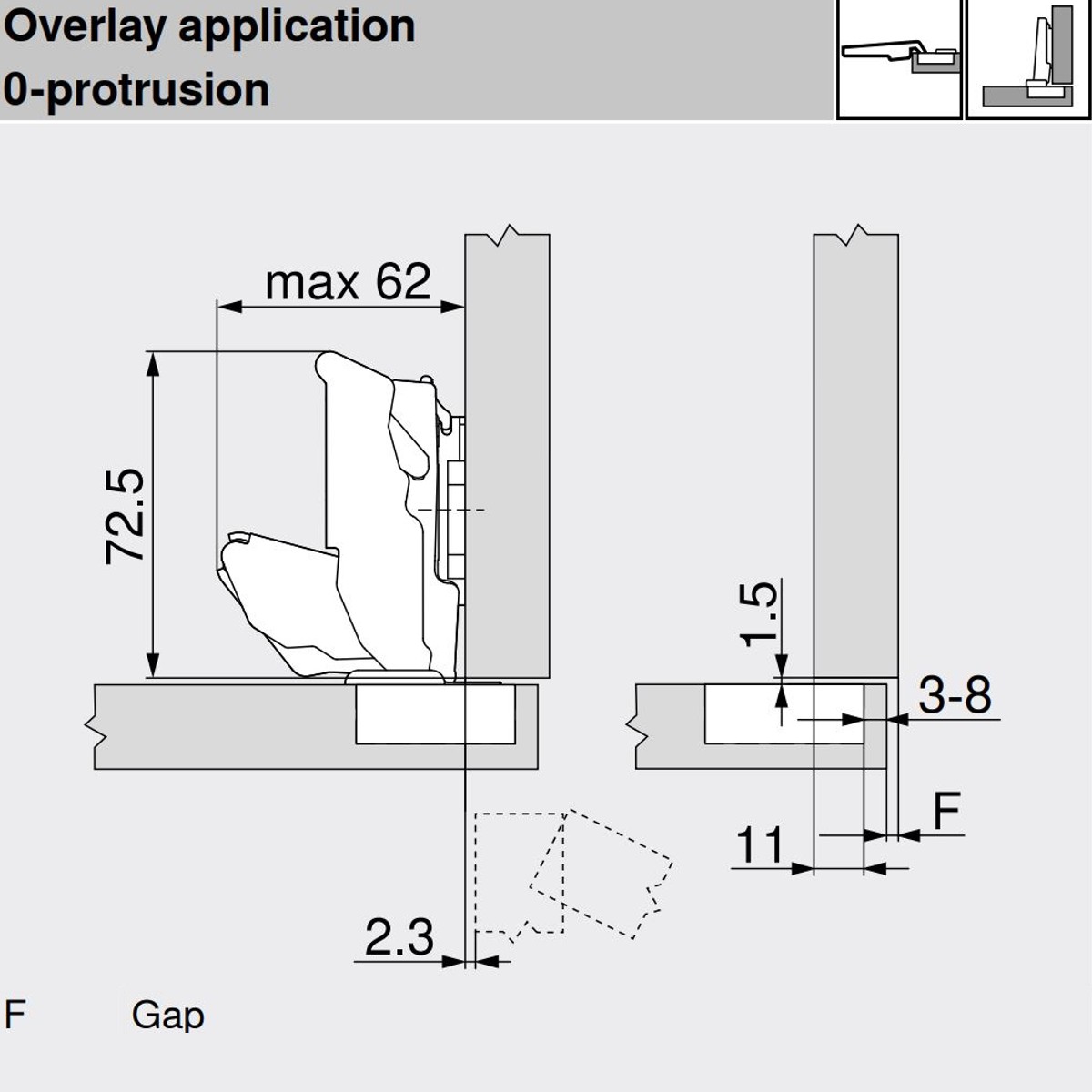

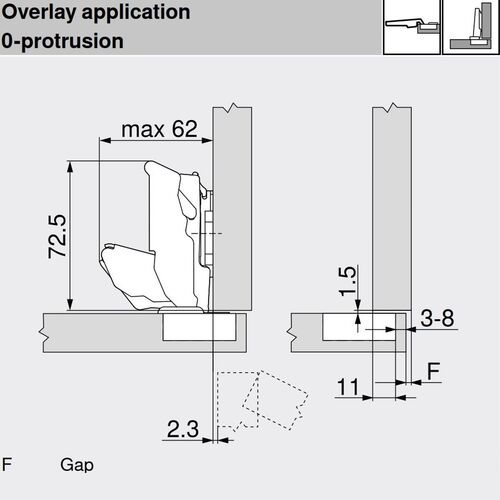

• Opening angle: 155 degrees - wide angle (0 protrusion)

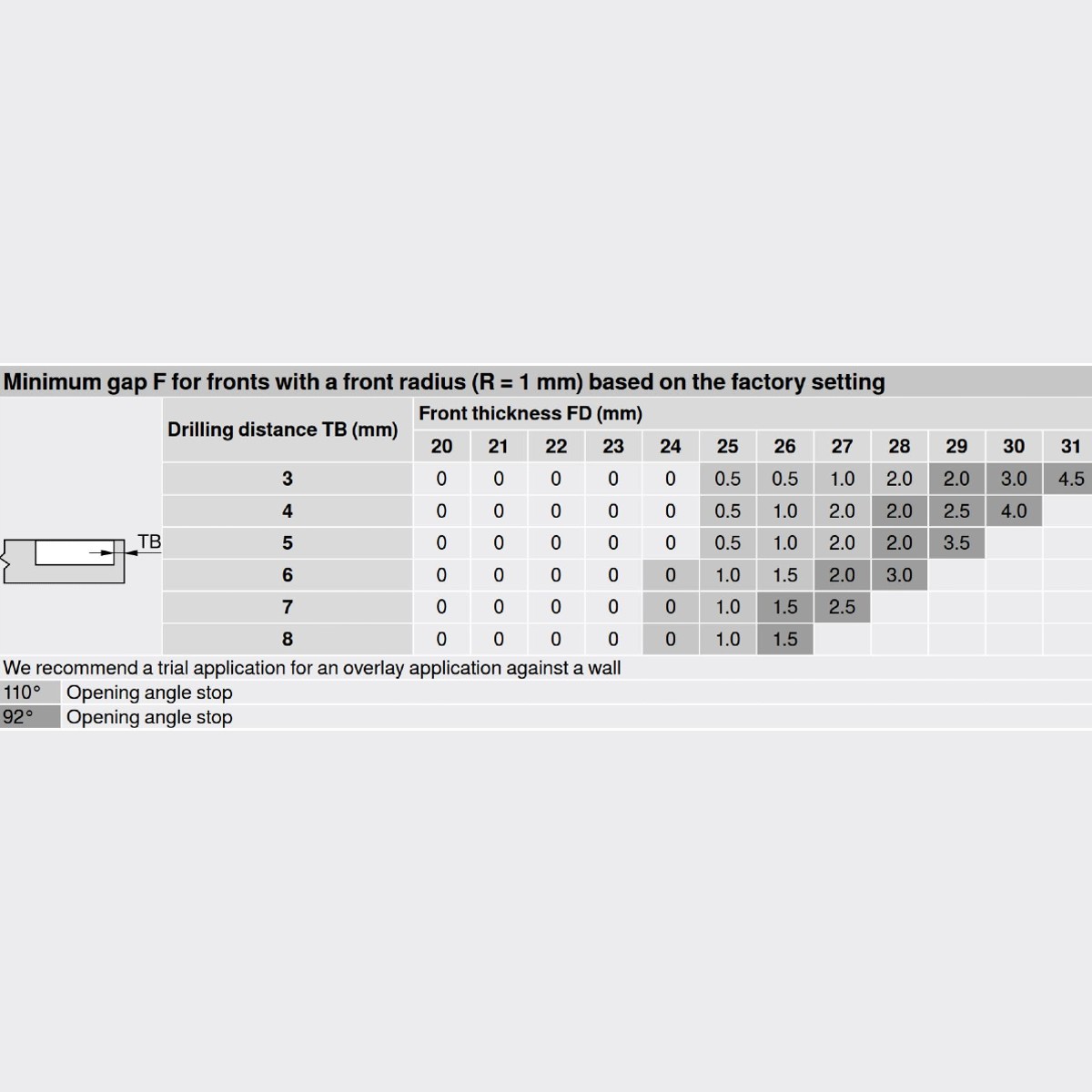

• Door thickness: 20-31mm
• Cranking: horizontal
• Boss assembly: screw-on
• Boss material: steel boss
• Closing mechanism: with spring

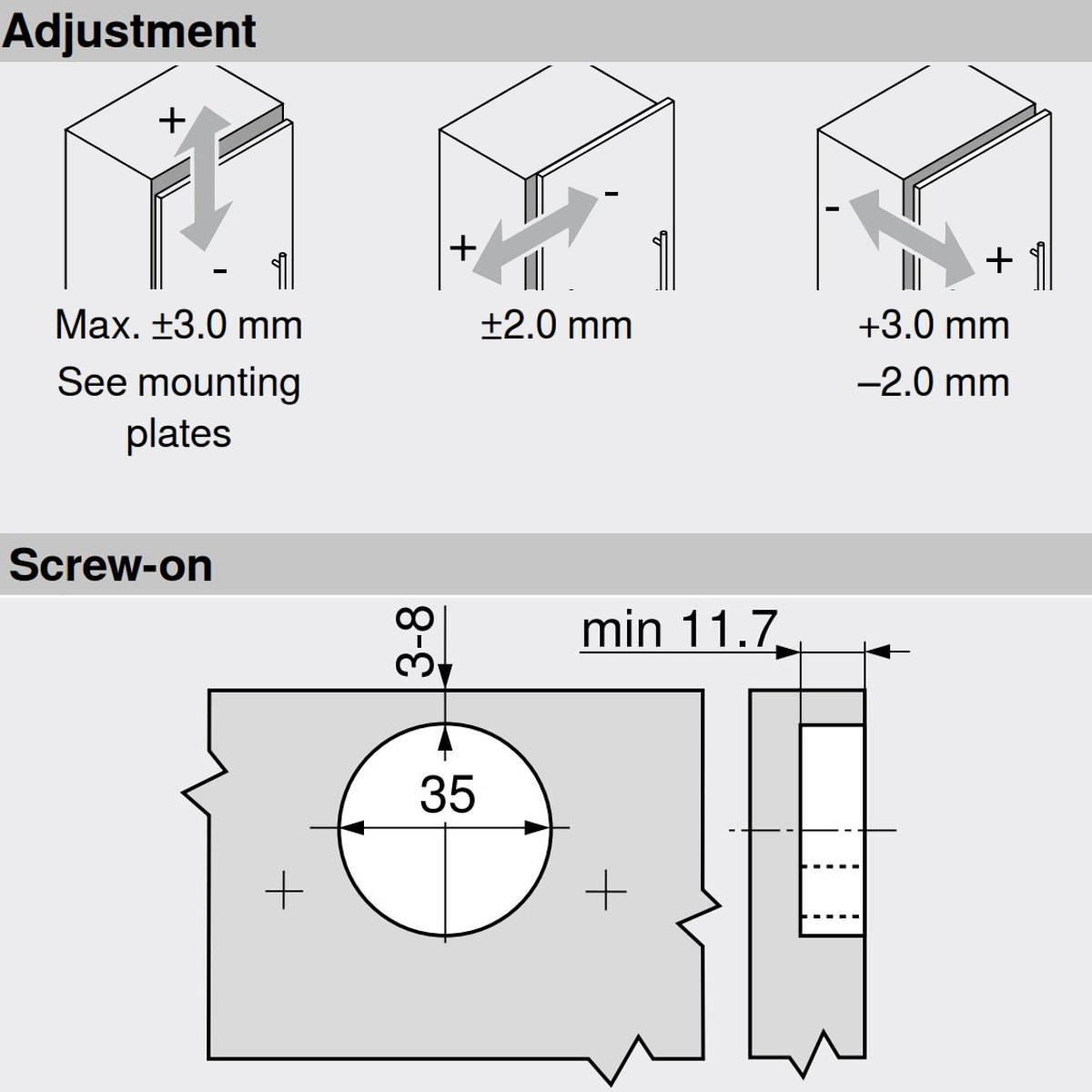

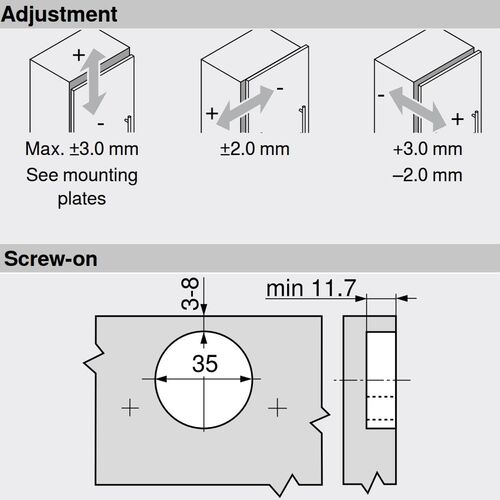

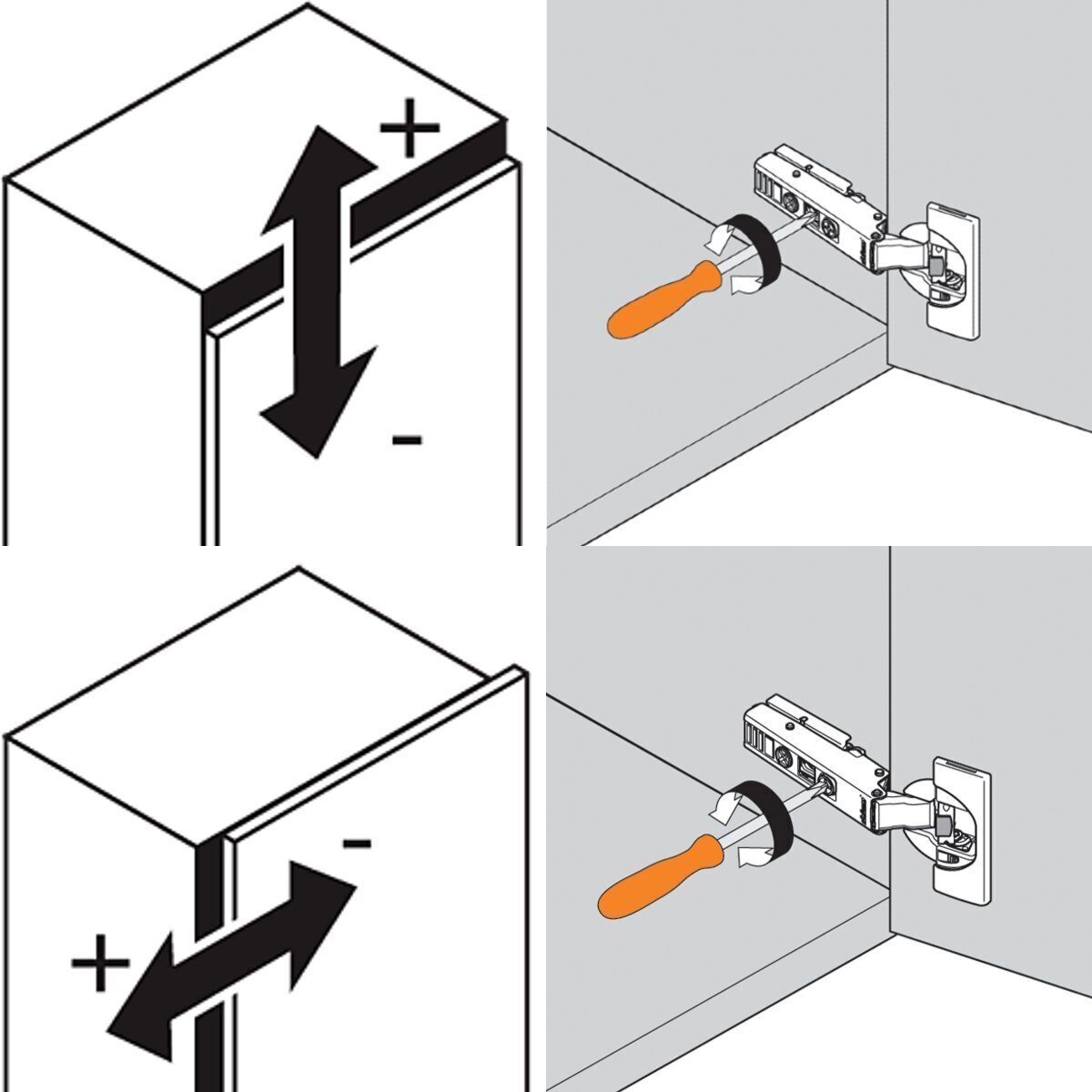

• Side adjustment: +/- 2mm
• Depth adjustment: plus 3/minus 2mm, convenient with spiral screw

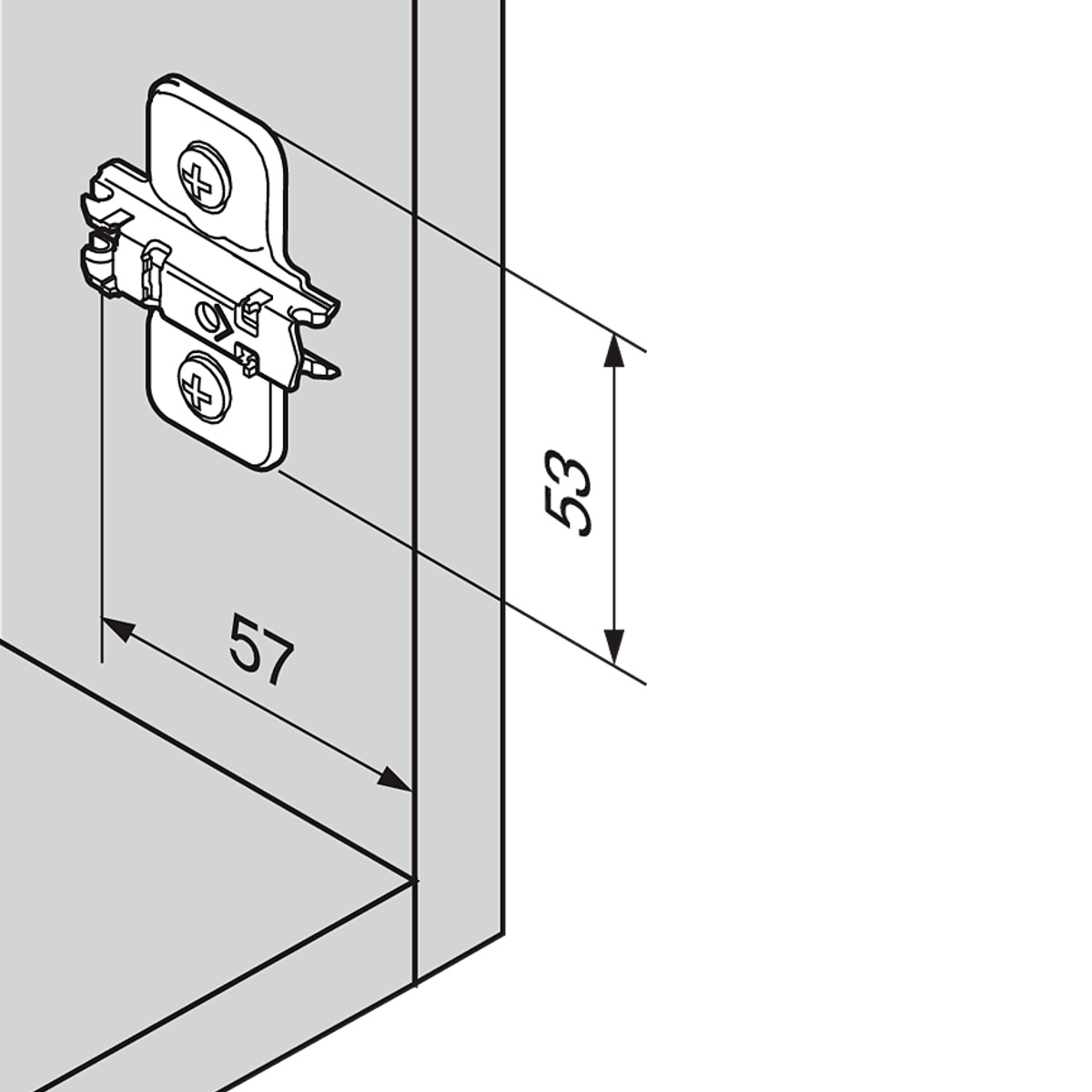

Mounting plates:

• 173L6100:
  • Screws: no
  • Spacing: 0mm
  • Adjustment: no
• 173L8100
  • Screws: yes
  • Spacing: 0mm
  • Adjustment: no
• 175H3100 (inline)
  • Screws: no
  • Spacing: 0mm
  • Adjustment: no
• 173H7100
  • Screws: no
  • Spacing: 0mm
  • Adjustment: yes
• 175H7100
  • Screws: no
  • Spacing: 0mm
  • Adjustment: yes
