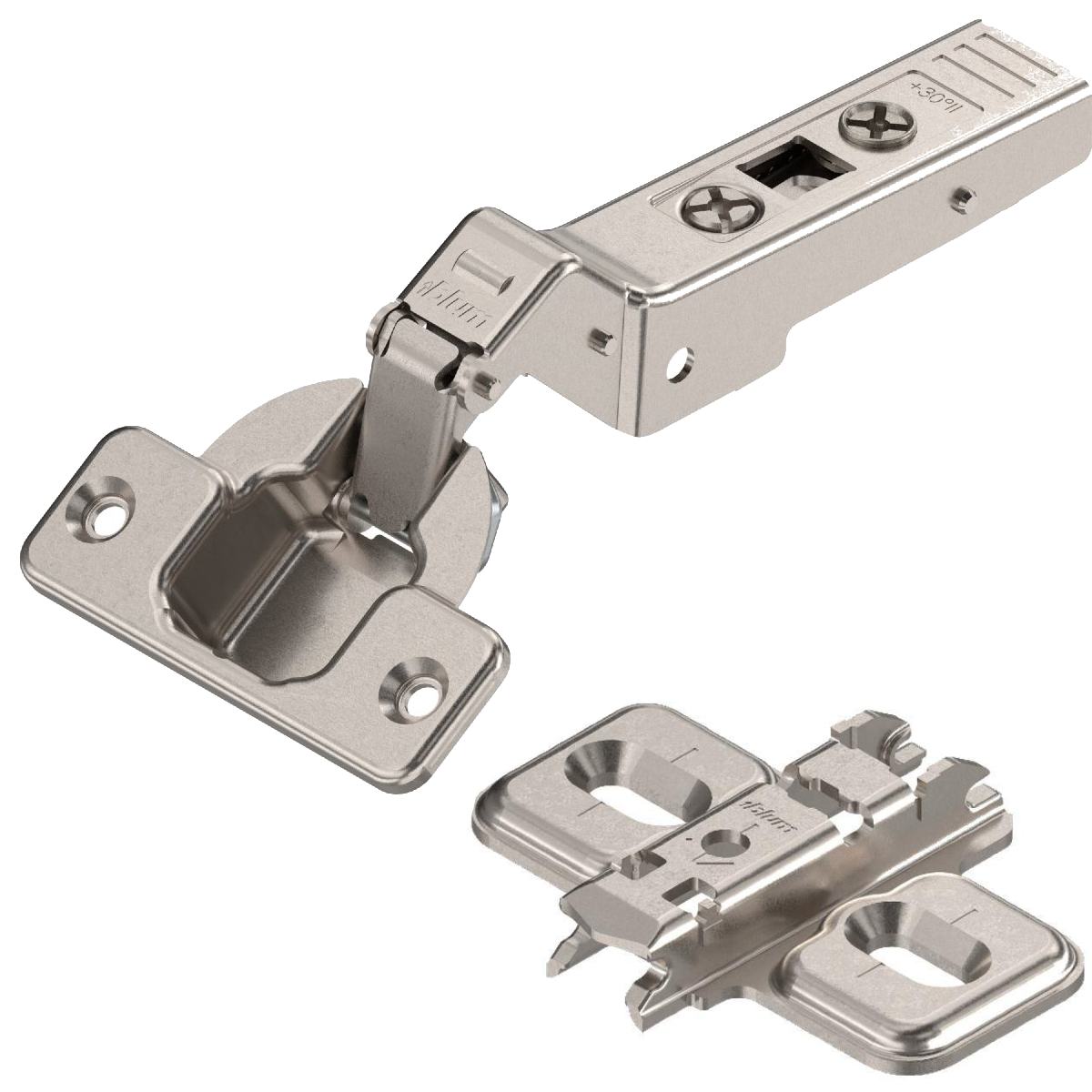

Blum Clip Top 30 Degree Angled Full Overlay 95 Degree Cabinet Hinge 79A9556 With Mounting Plate

0645-001
Price from: £3.58inc VAT
+

The Blum clip top 30 degree angled full overlay 95 degree cabinet hinge 79A9556 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip standard hinge 79A9556
  • Opening angle: 95 degrees
  • Door thickness: 16-19mm
  • Cranking: overlay
  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: with spring
  • Cabinet angle: 30 degrees
  • Side adjustment: +/- 1.8mm
  • Depth adjustment: +/- 2mm
  • Please refer to 'technical documents' for more information regarding this product

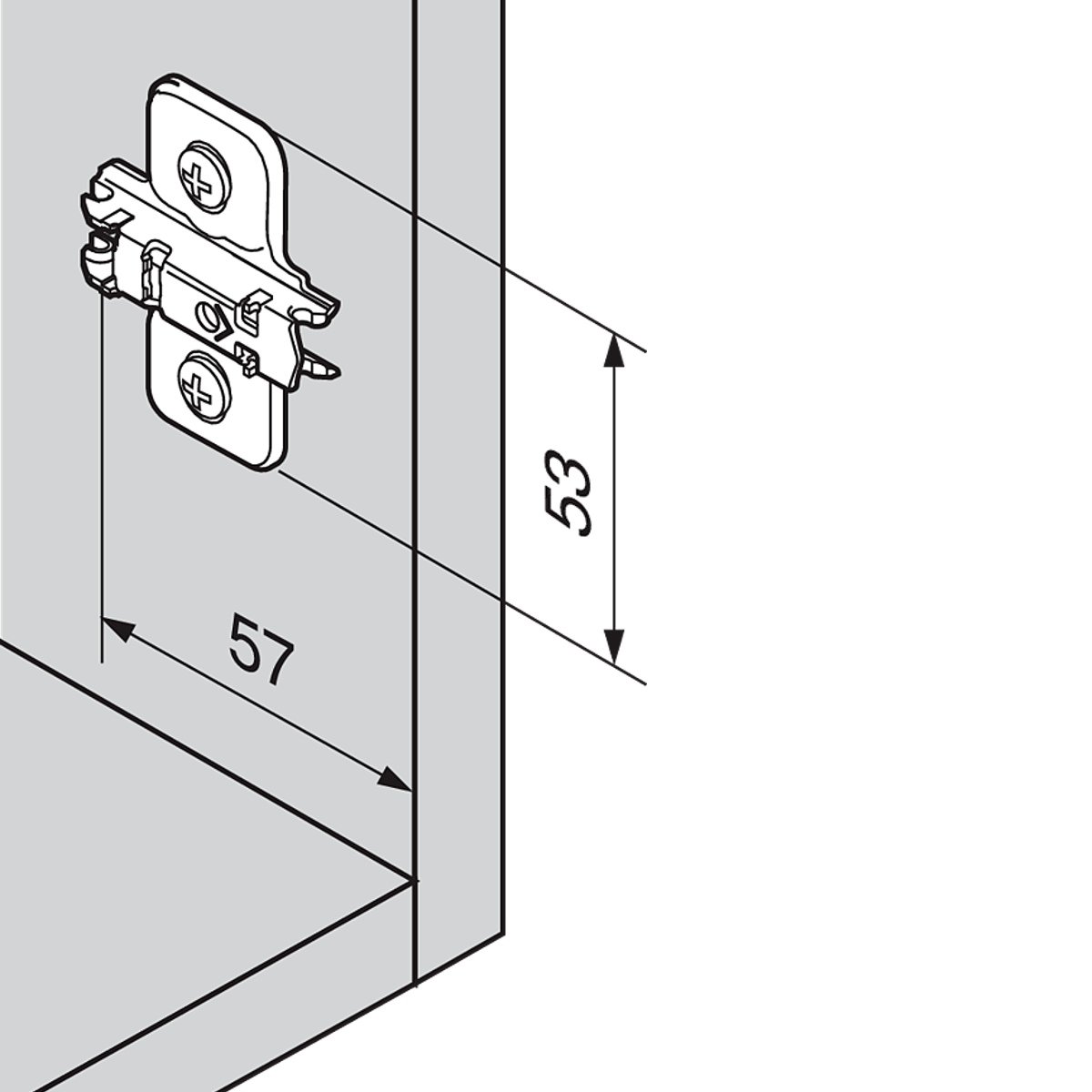

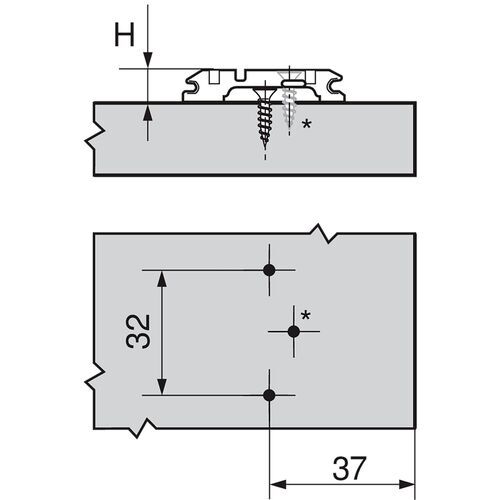

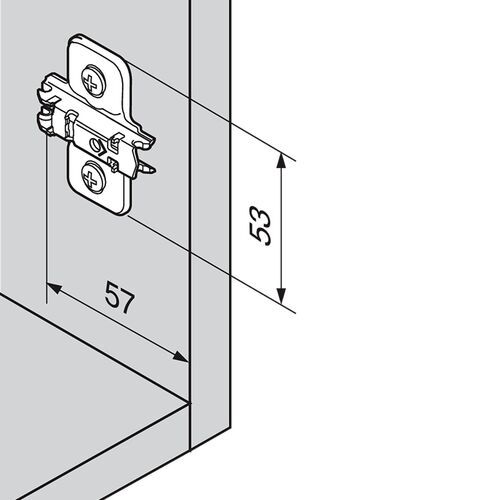

Mounting plates:

  • 173L6100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173L8100
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H3100 (inline)
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
  • 175H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
