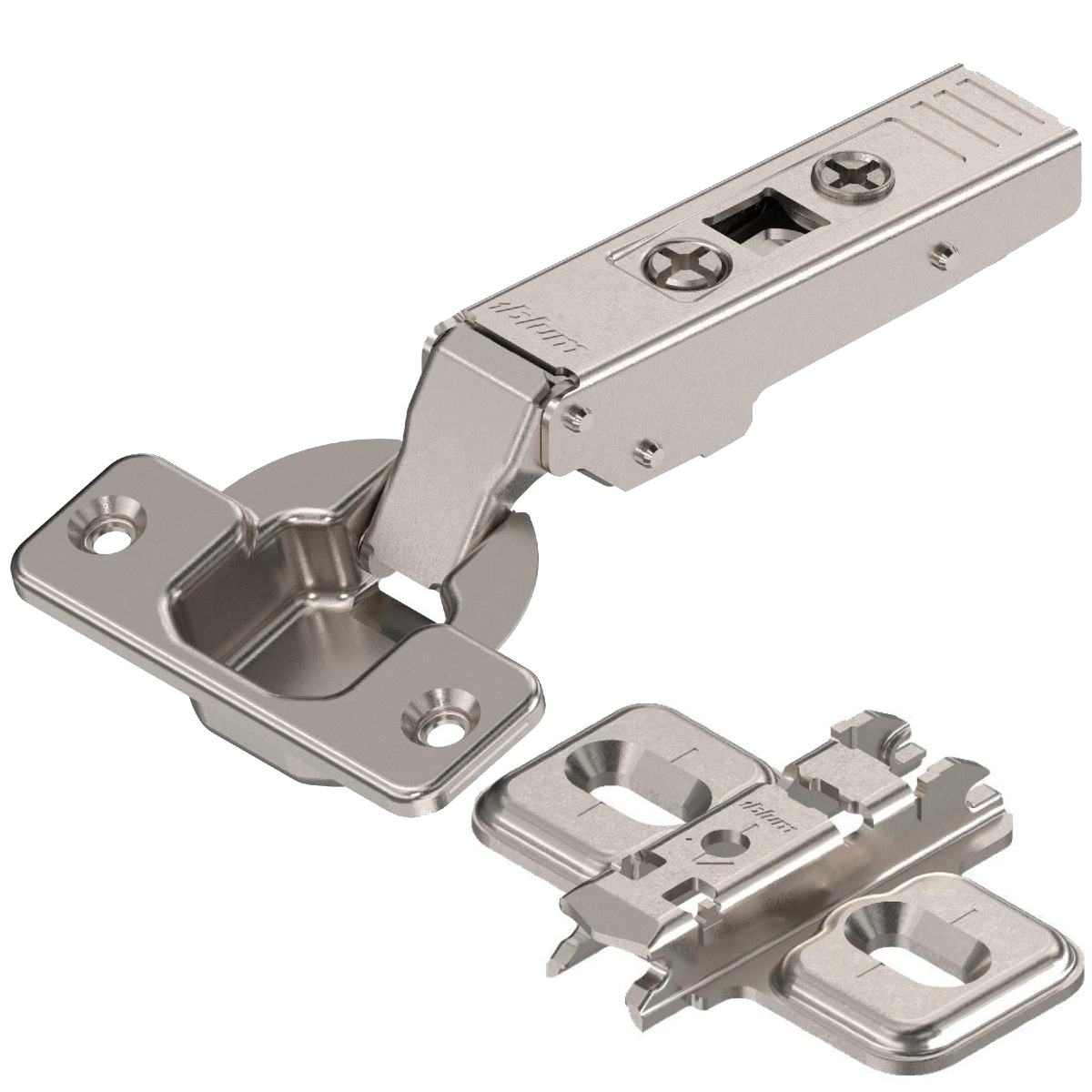

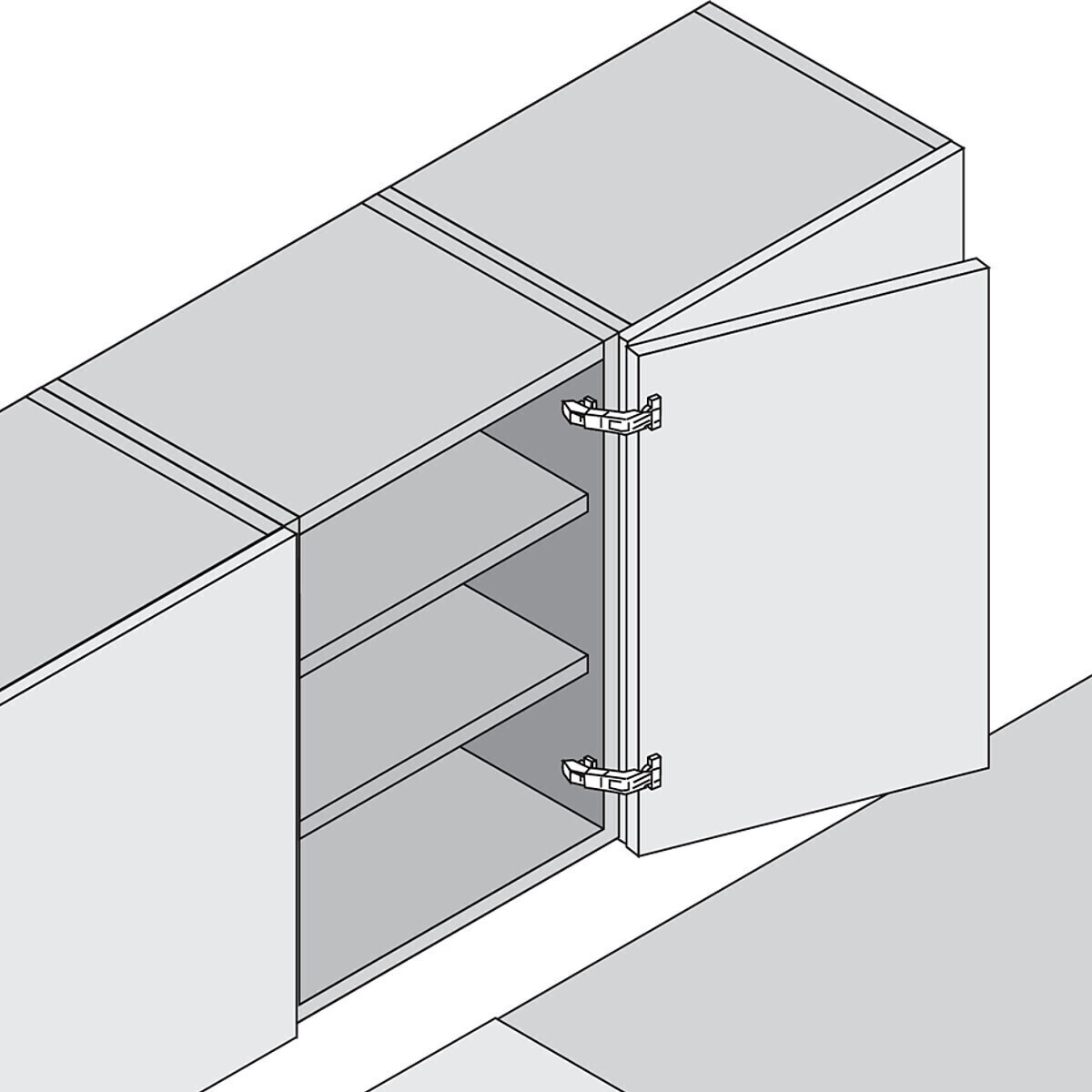

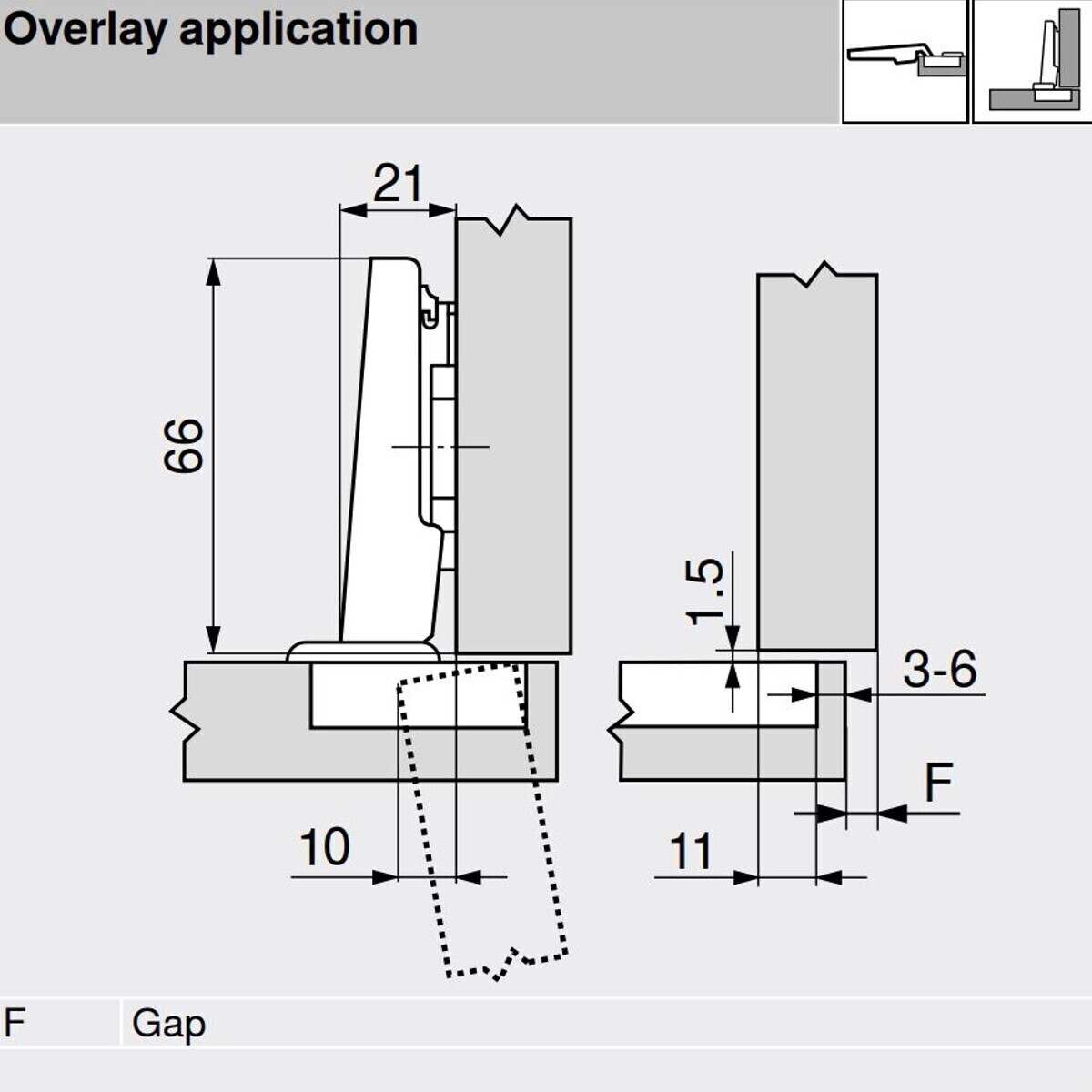

The Blum clip top overlay 107 degree cabinet hinge 75T1550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 75T1550
- Opening angle: 107 degrees
- Door thickness 15-24mm

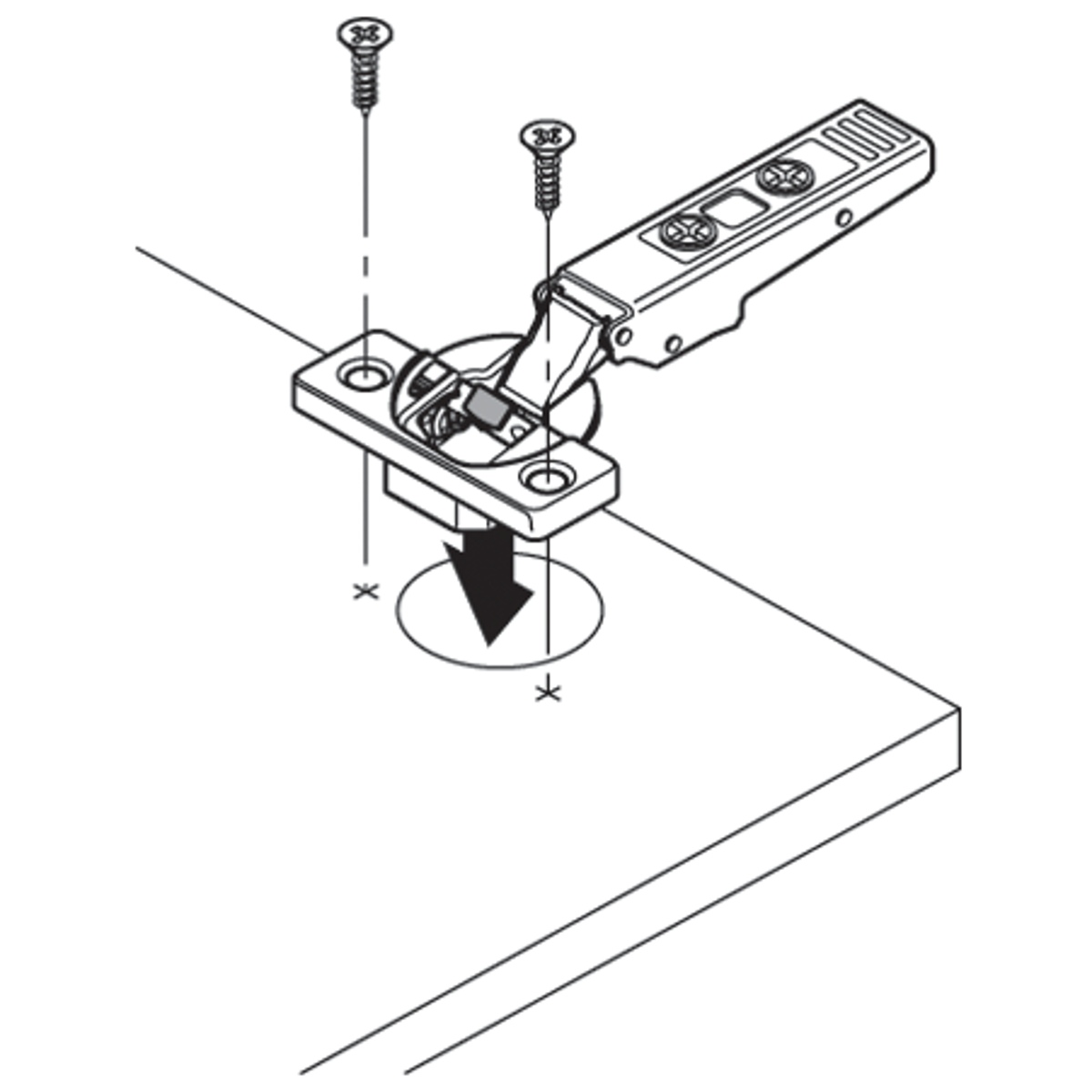

- Boss assembly: Screw-on
- Boss material: Steel
- Closing mechanism: with spring

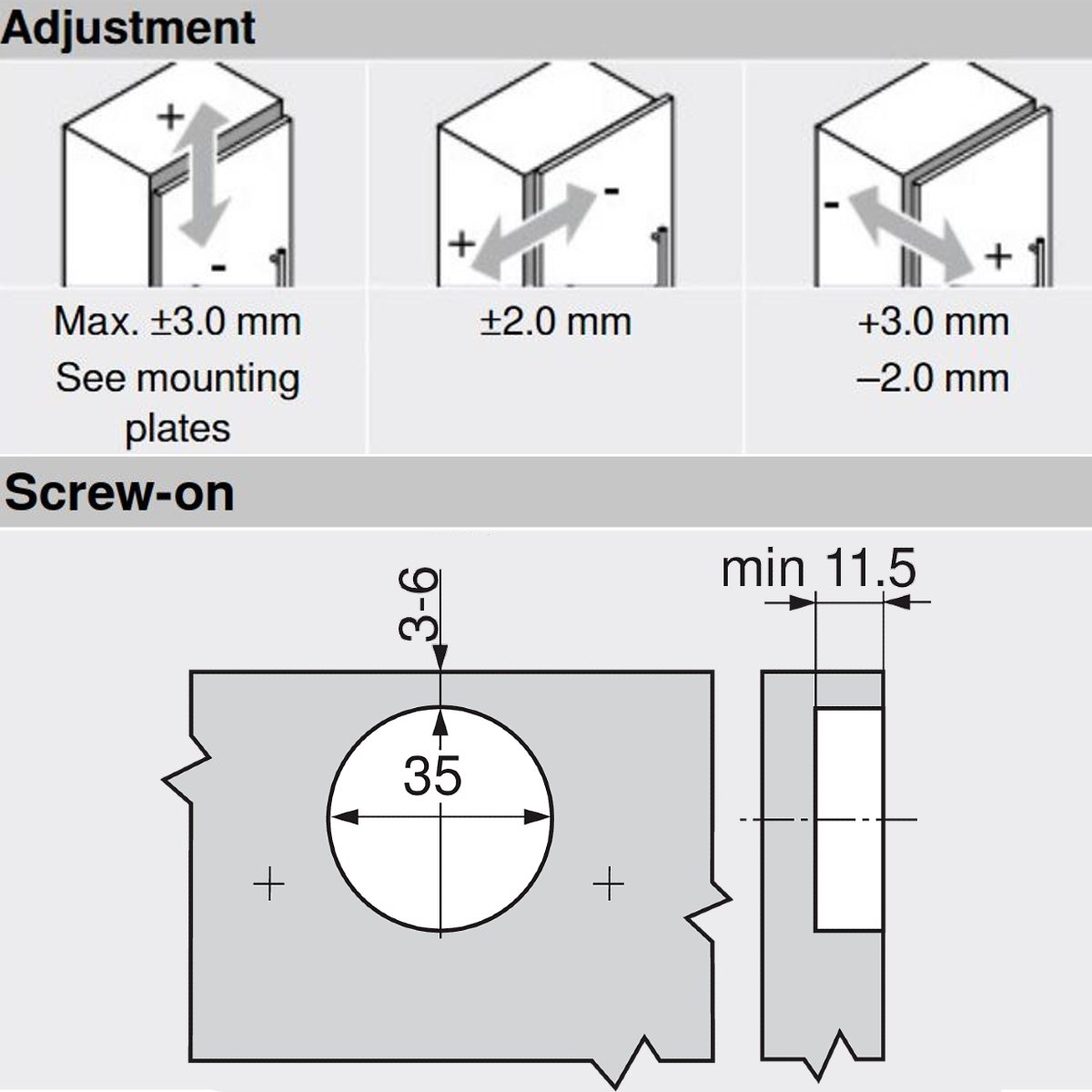

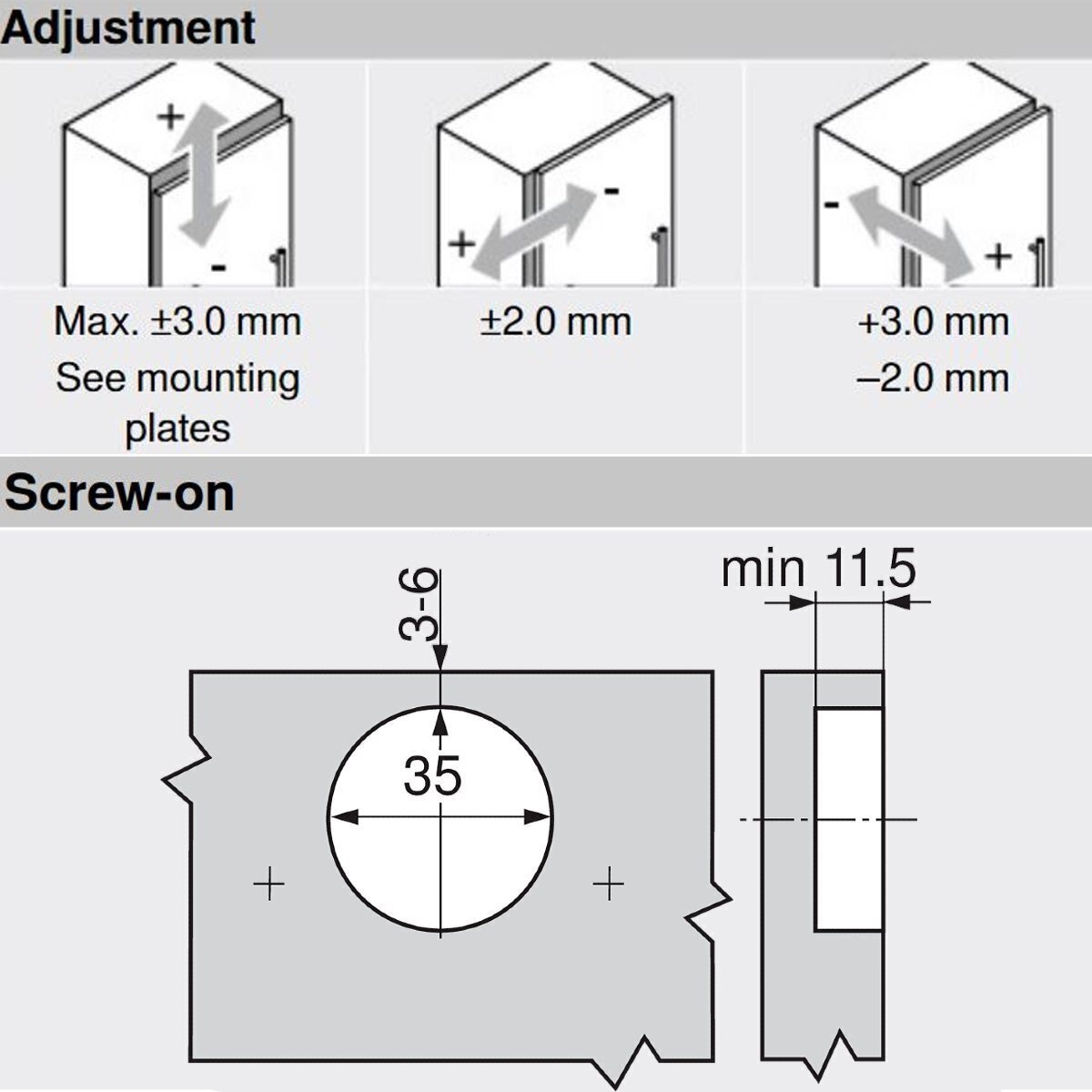

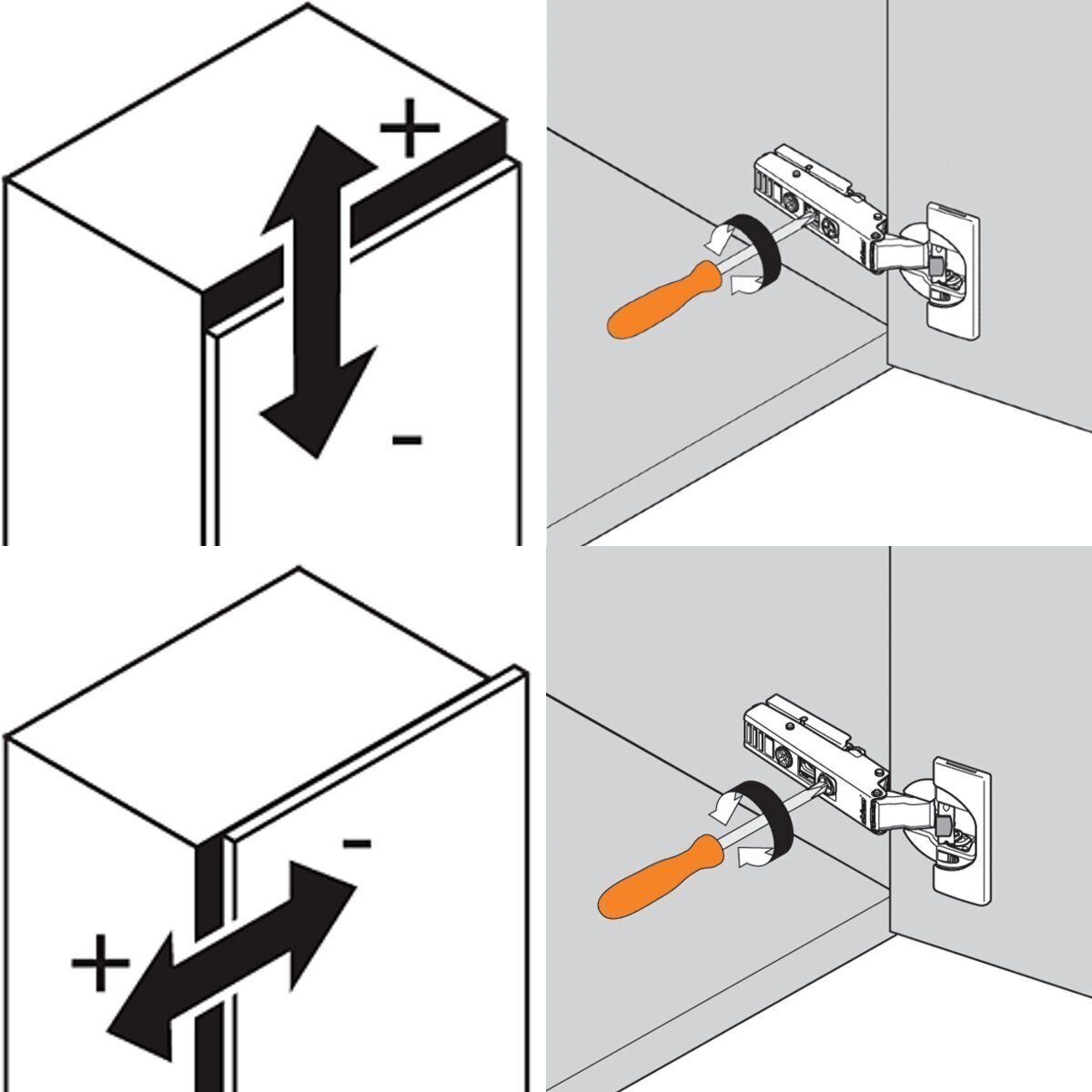

- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 0,5 mm, With screw

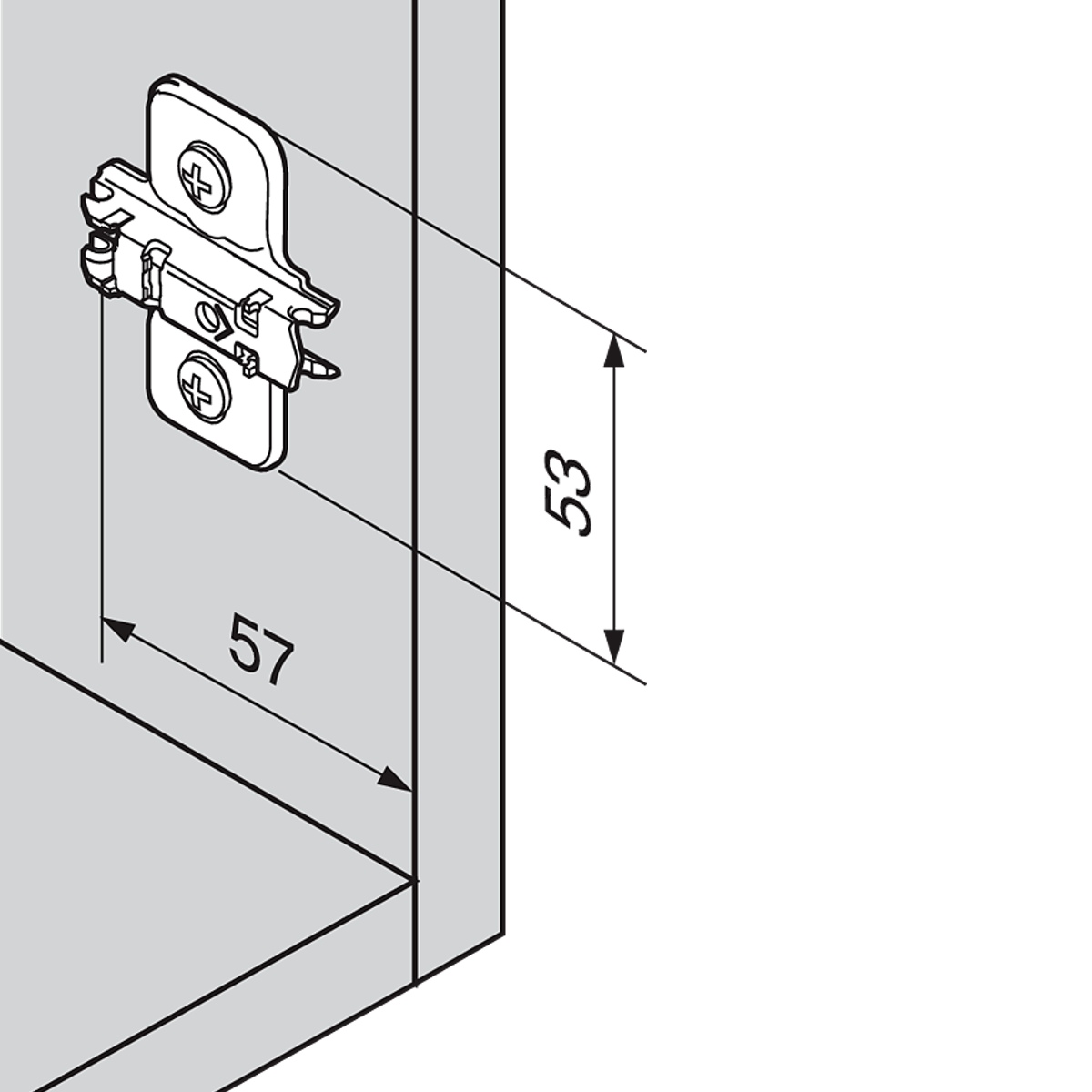

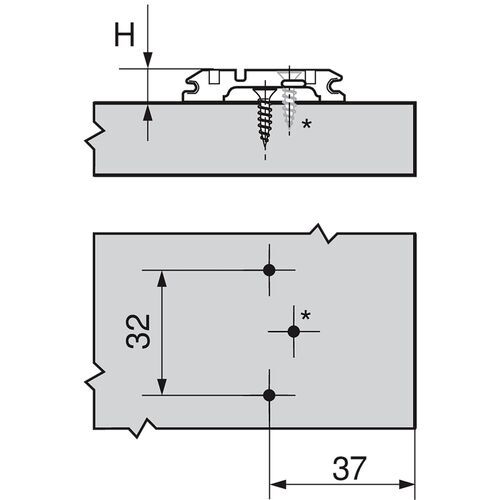

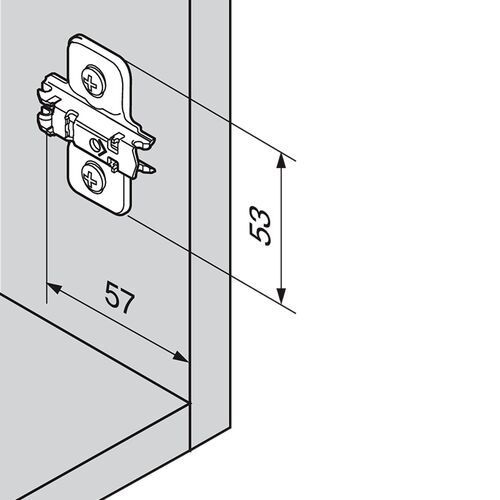

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
