The Blum clip top overlay 110 degree cabinet hinge 71B3550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top profile door hinge 71B3550
- Opening angle: 110 degrees
- Door thickness 16-26mm

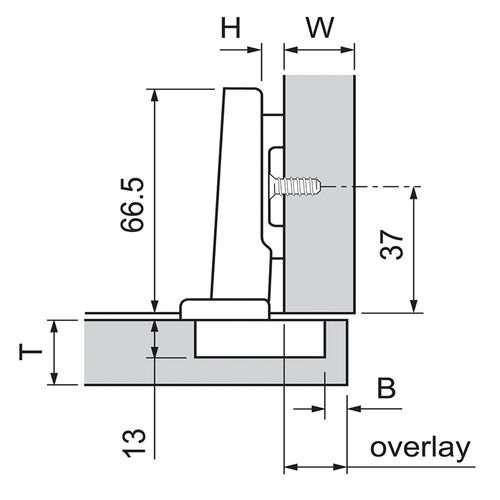

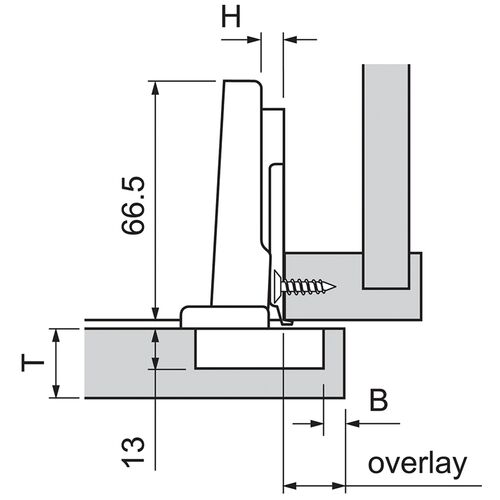

- Cranking: overlay application

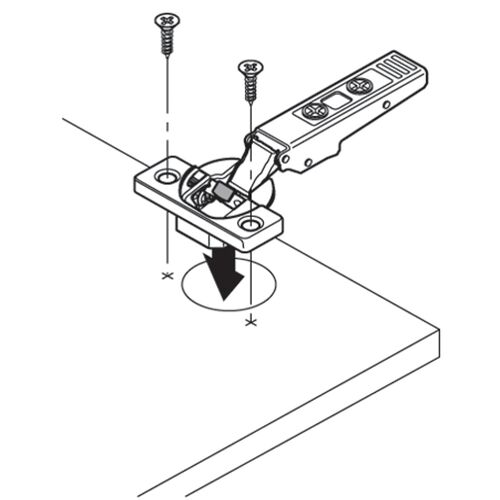

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: blumotion soft-close

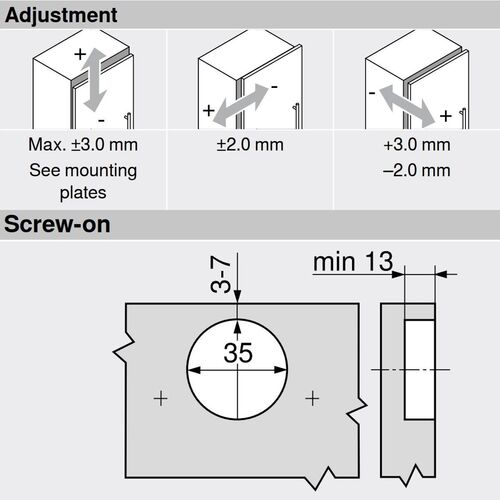

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

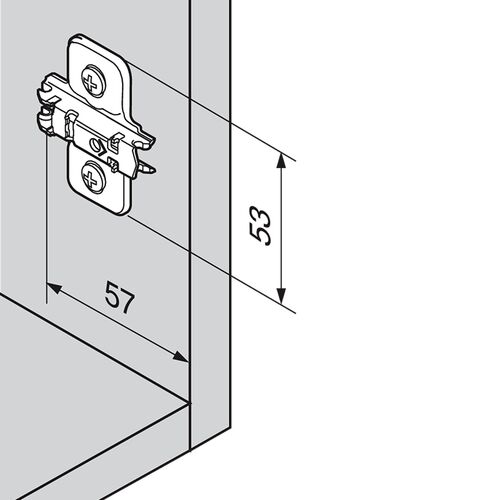

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
