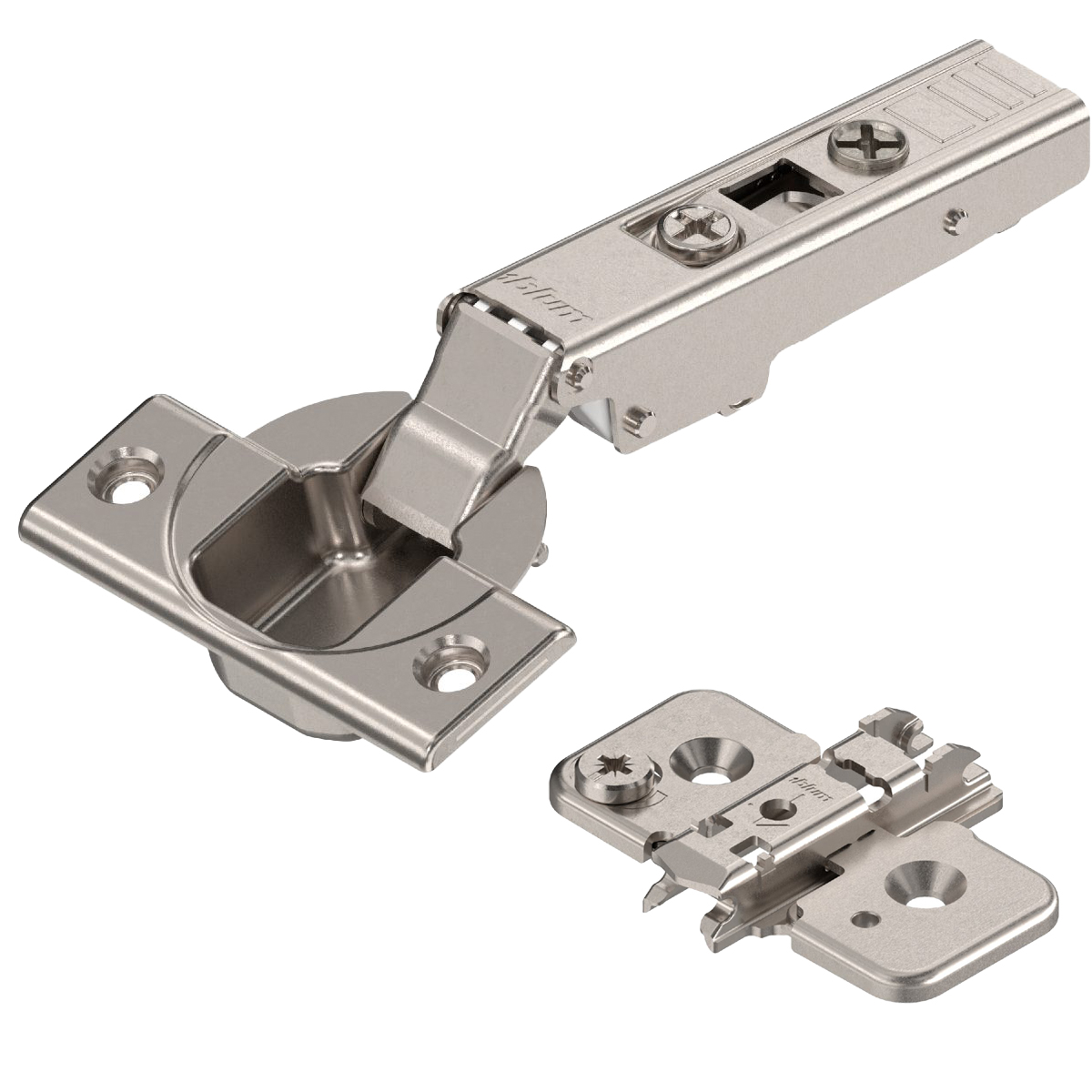

Blum Clip Top Full Overlay 110 Degree Cabinet Hinge 71T3550 With Mounting Plate

9890-001
Price from: £2.46inc VAT
Write a review
− +

The Blum clip top overlay 110 degree cabinet hinge 71T3550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip standard hinge 71T3550
  • Opening angle: 110 degrees
  • Door thickness: 16-26mm
  • Cranking: horizontal

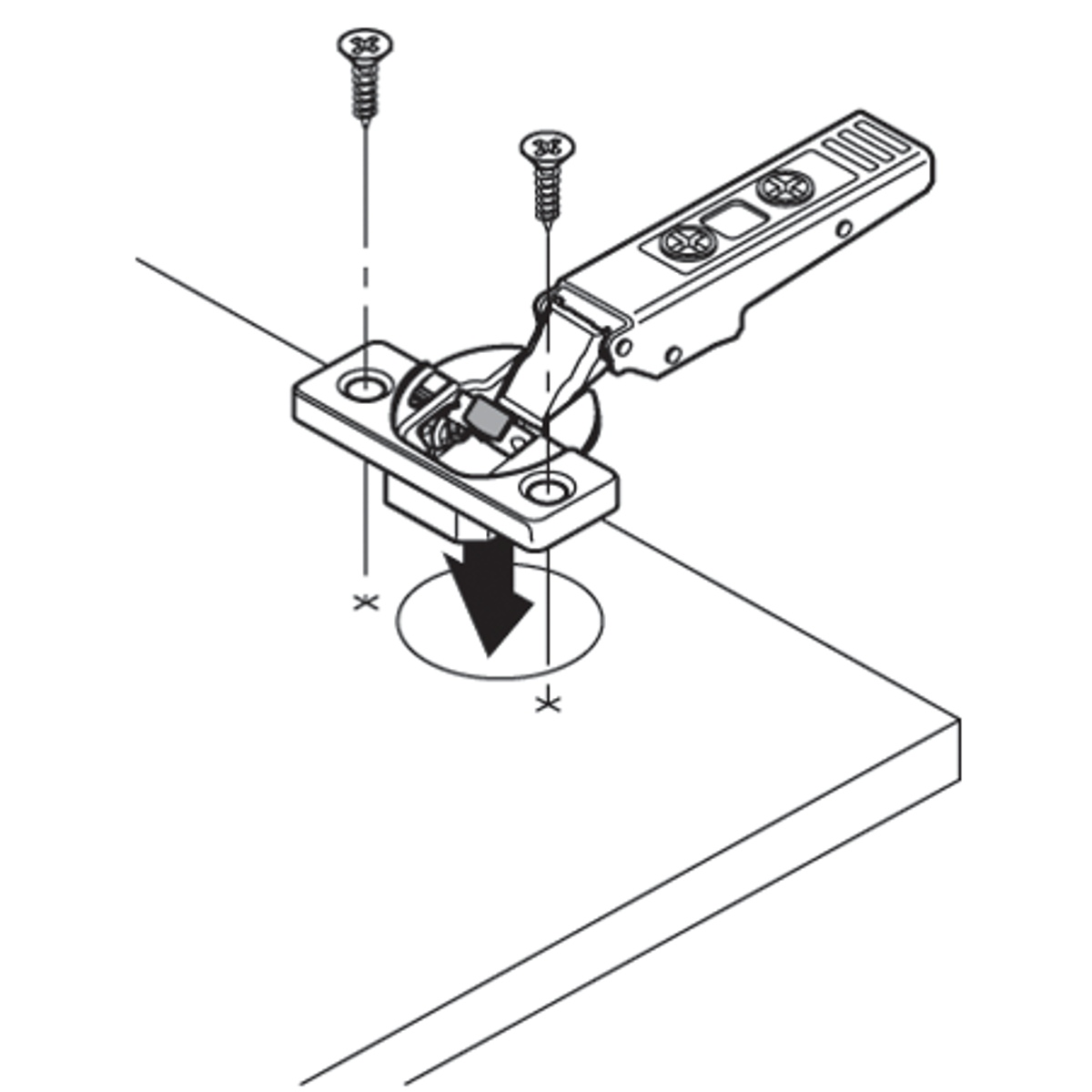

  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: with spring

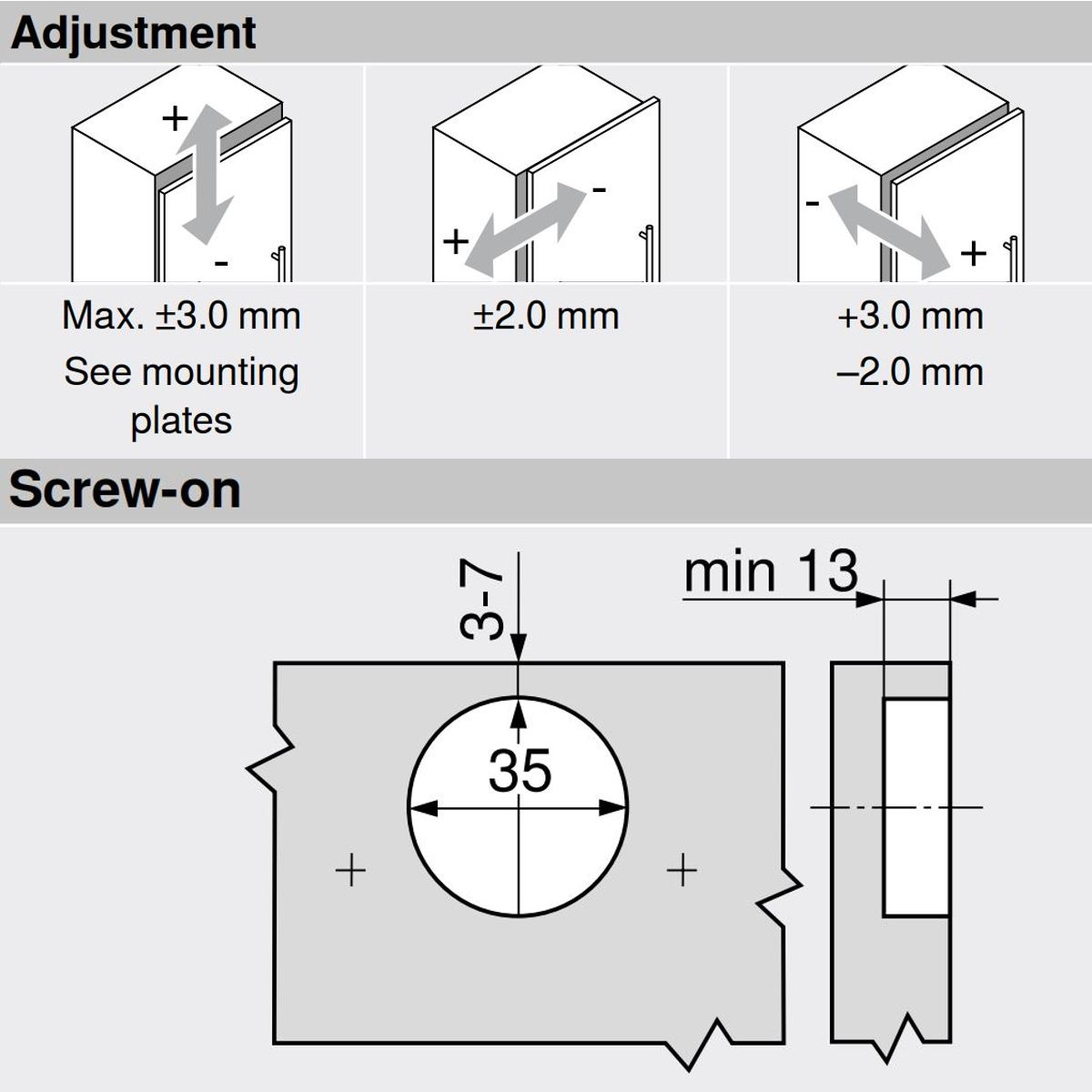

  • Side adjustment: +/- 2mm
  • Depth adjustment: plus 3mm/minus 0,5mm, with screw

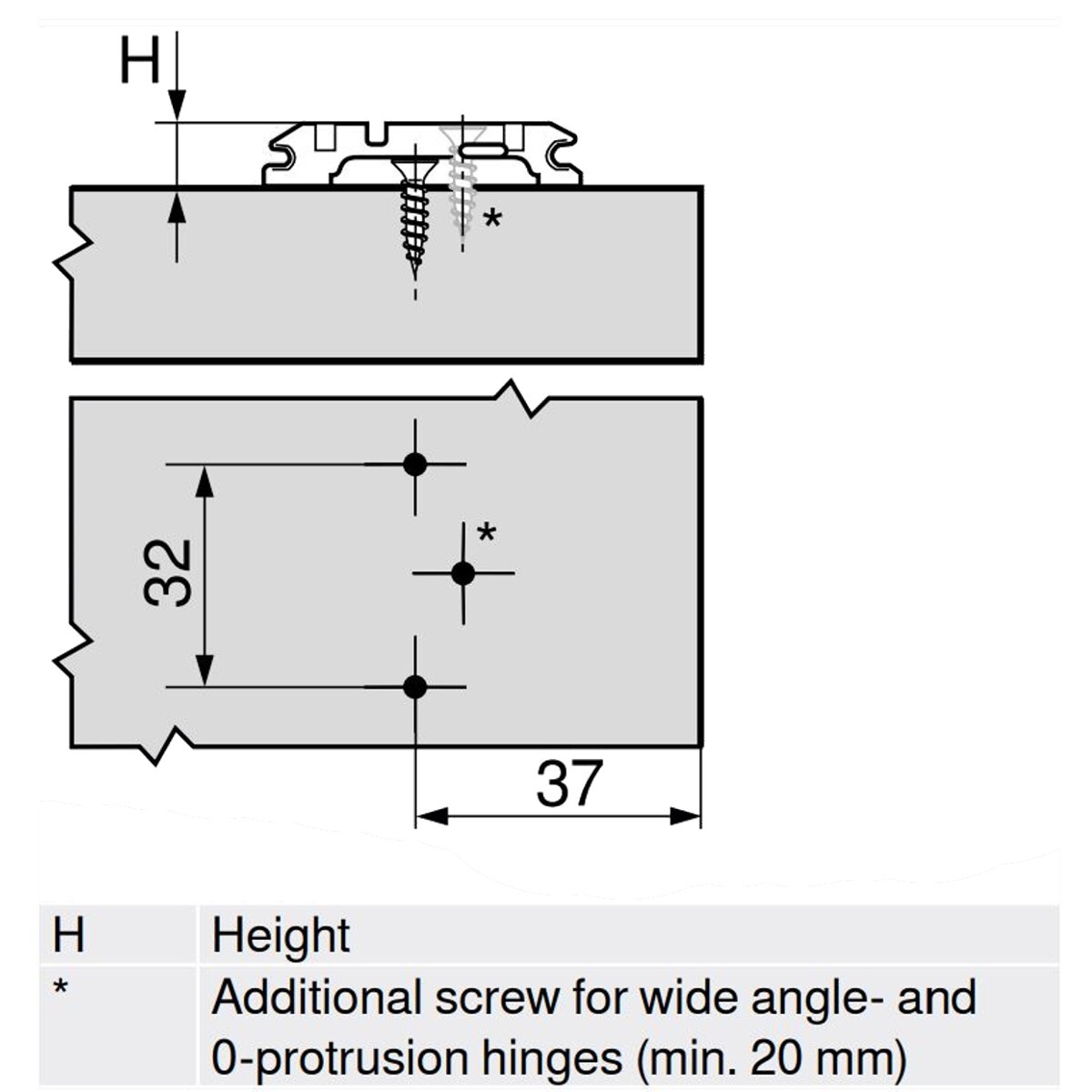

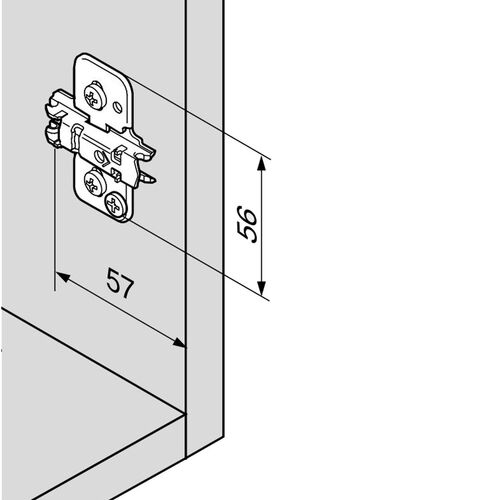

Mounting plates:

  • 173L6100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173L8100
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H3100 (inline)
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
  • 175H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes

Download Product Details (pdf)

Download CAD File (dxf)

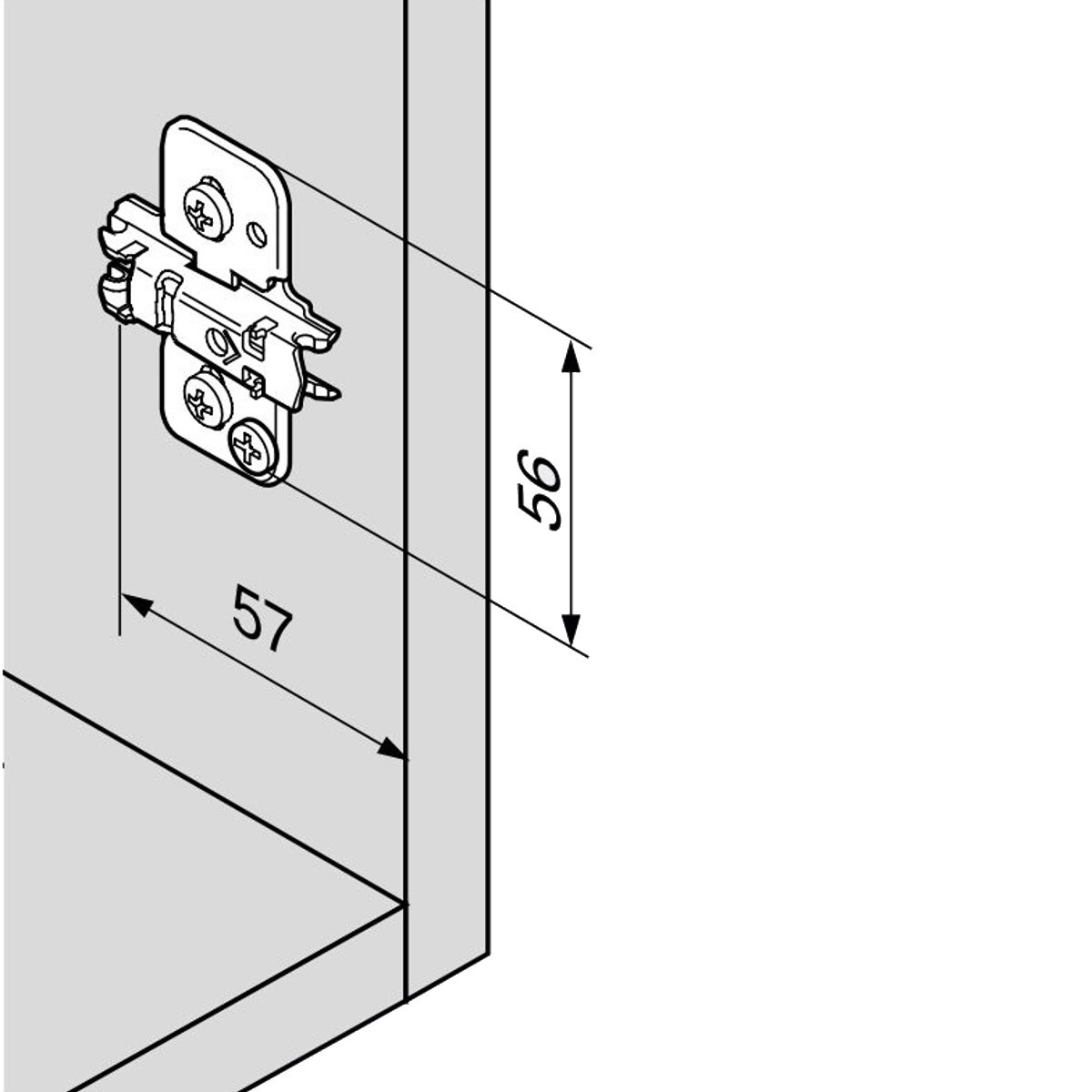

Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
