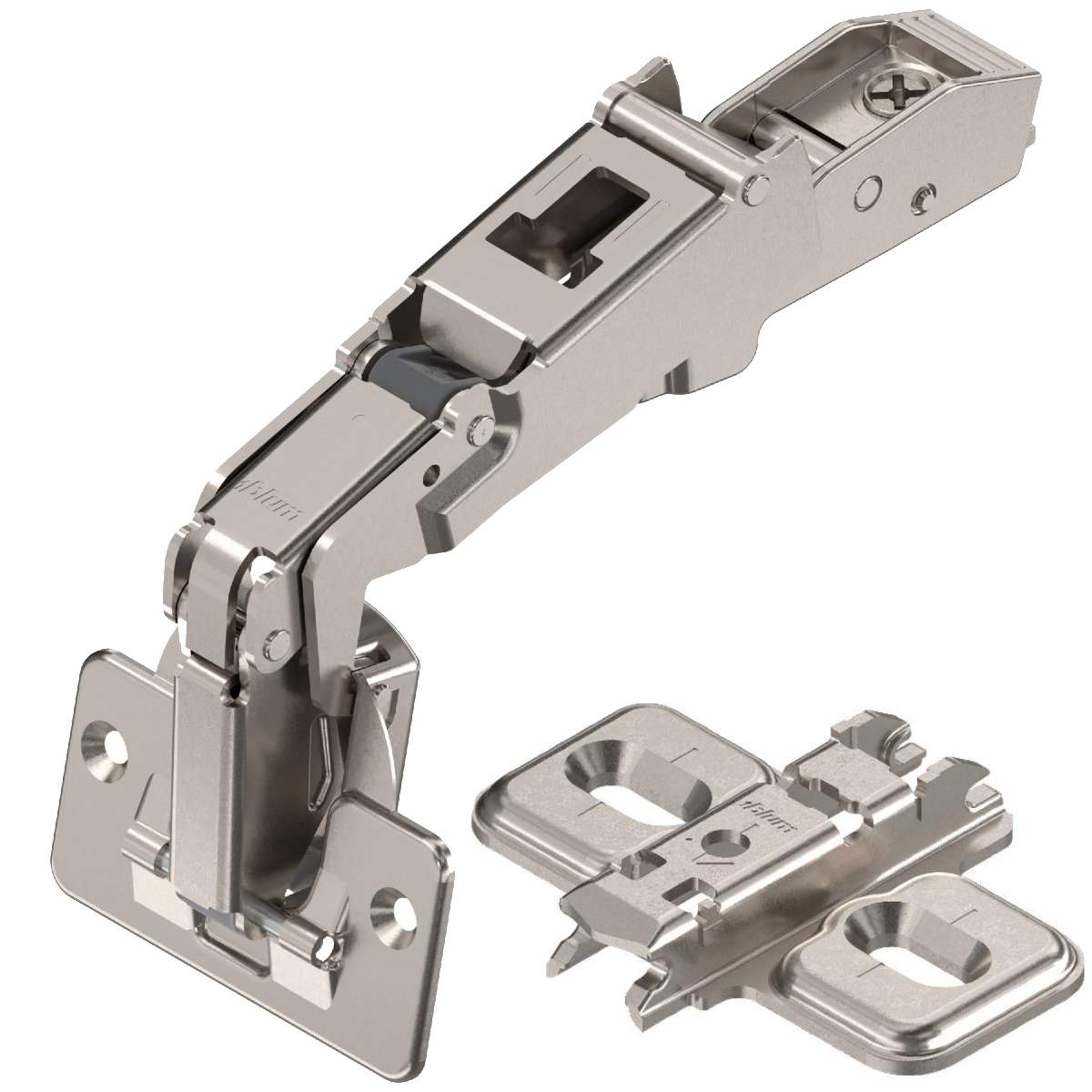

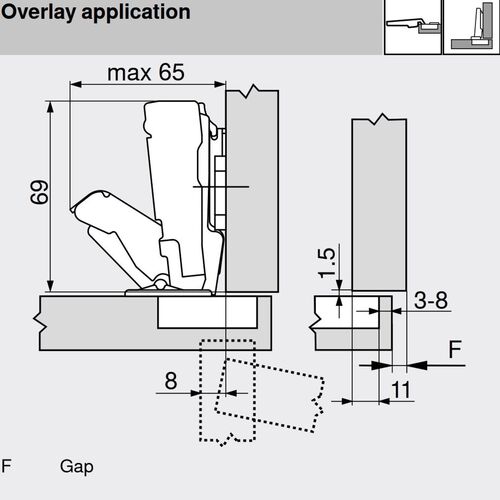

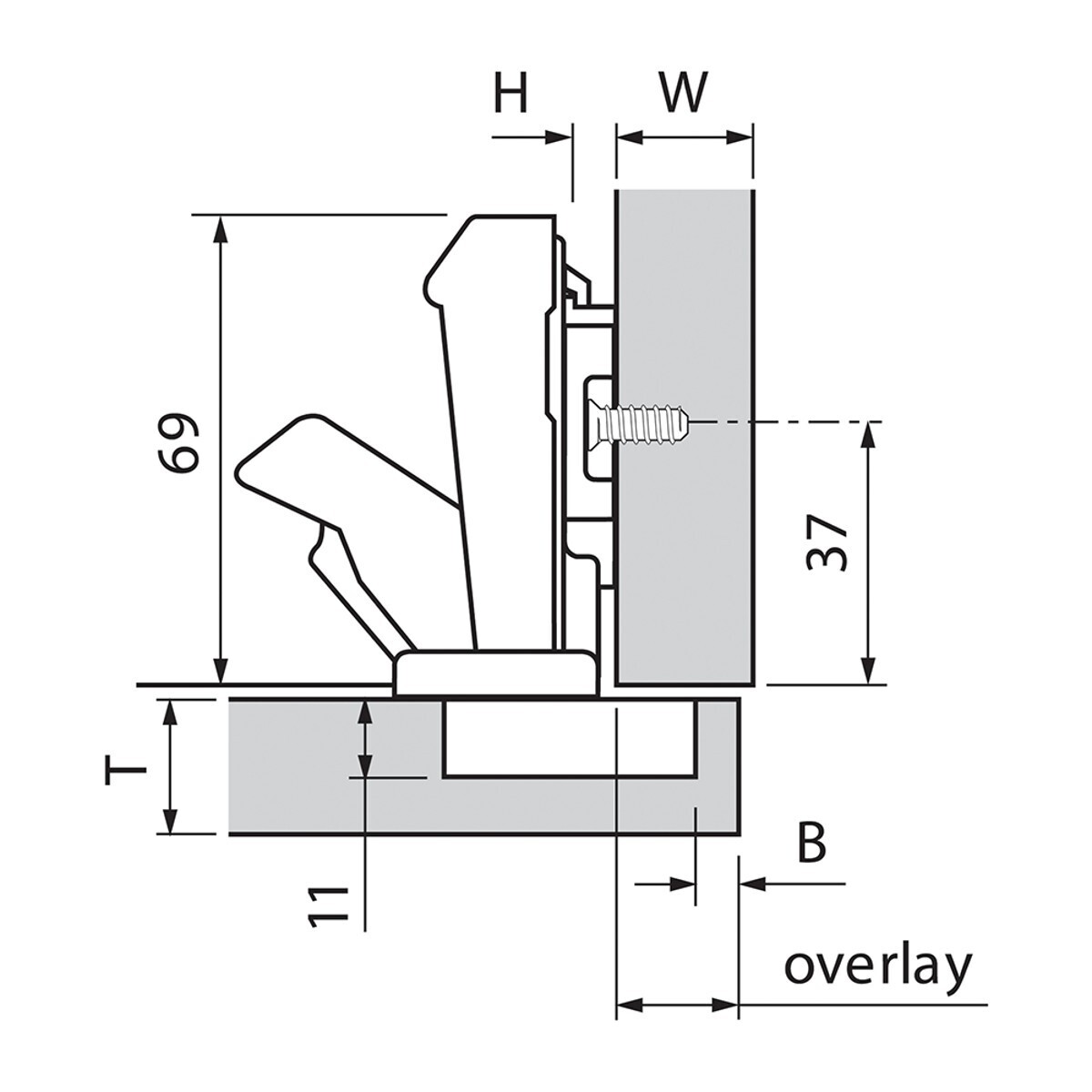

The Blum clip top overlay 170 degree cabinet hinge 71T6550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Opening angle: 170 degree
- Door thickness: 16-21mm
- Boss assembly: Screw-on
- Boss material: Steel
- Closing mechanism: sprung
- Flange width: 57mm
- Flange height: 2.2mm

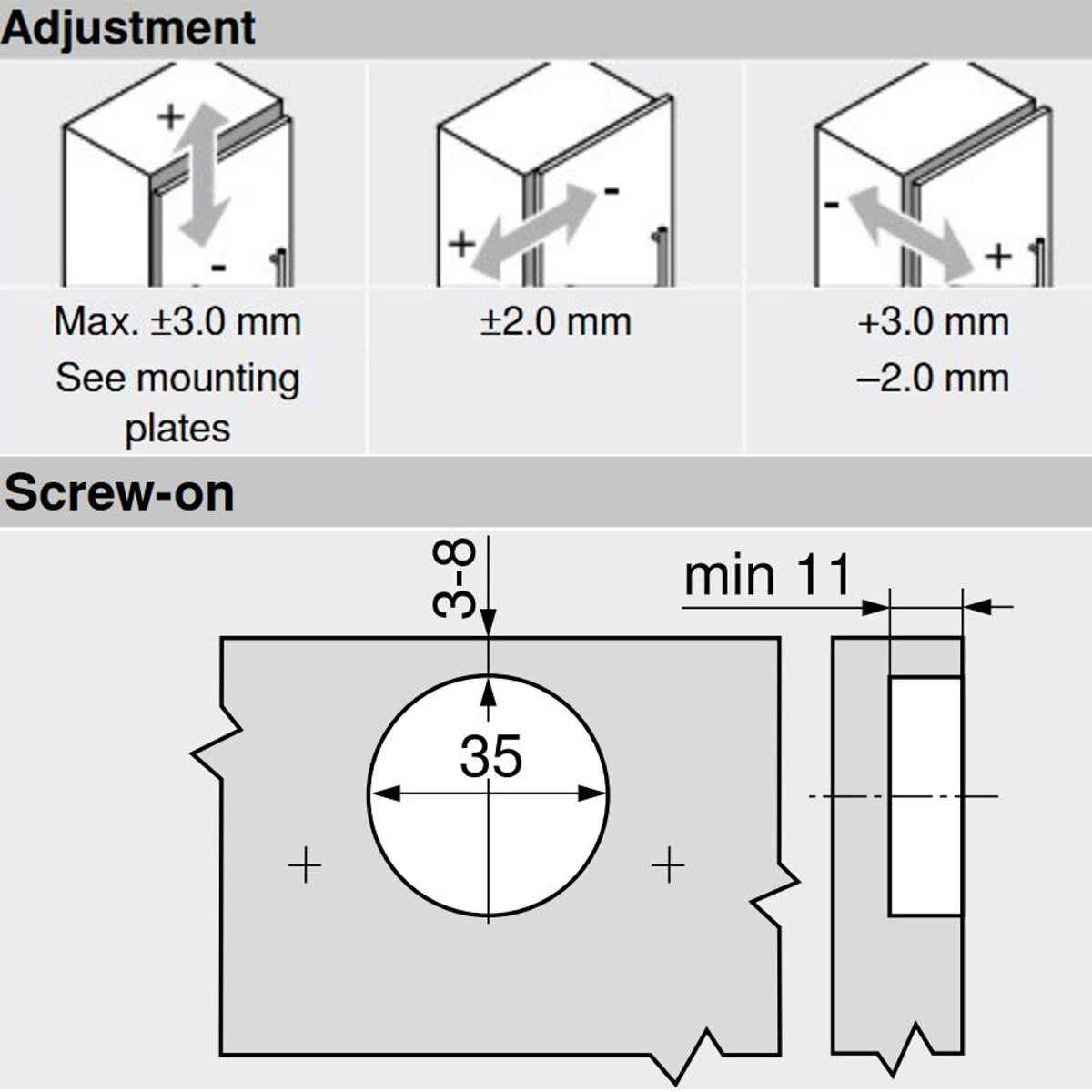

- Depth adjustment: +3/-2mm
- Side adjustment +/-2mm

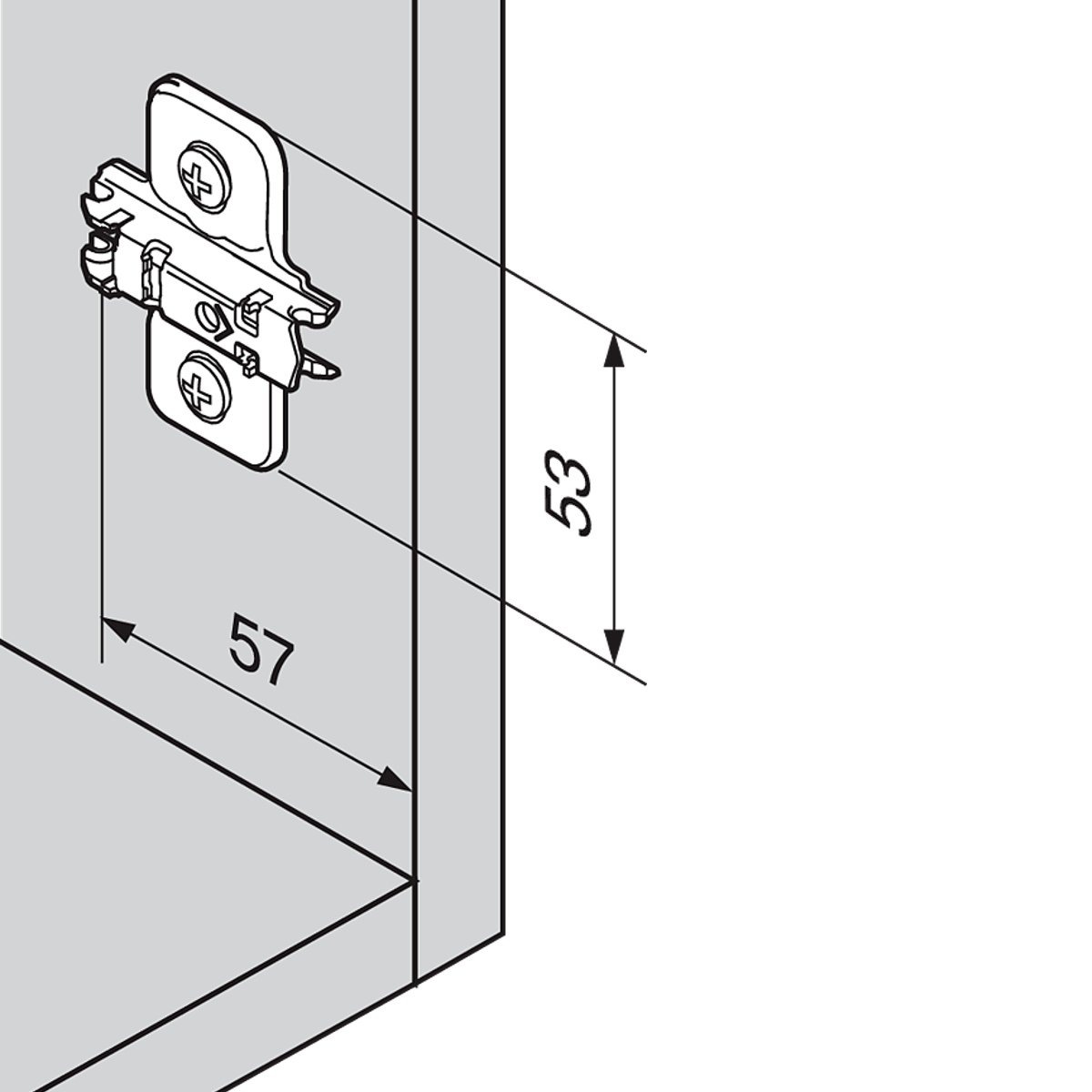

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Please note that:

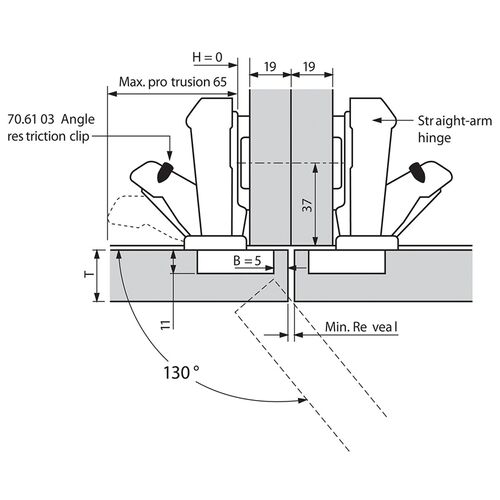

- Safety information if young children have access to furniture with wide angle hinges then the 155° opening 0-protrusion hinges should be used

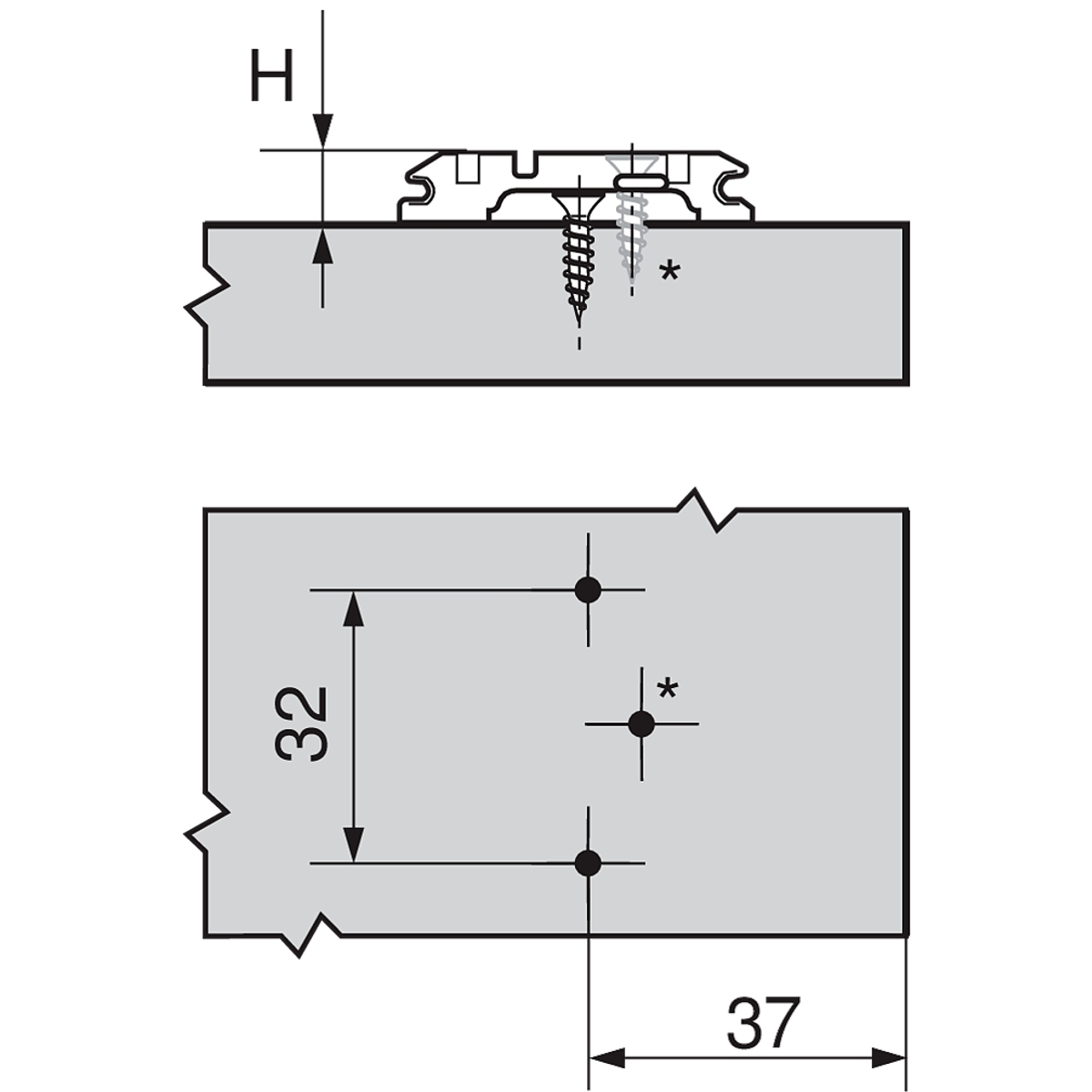

Mounting Plate:
173L6100
