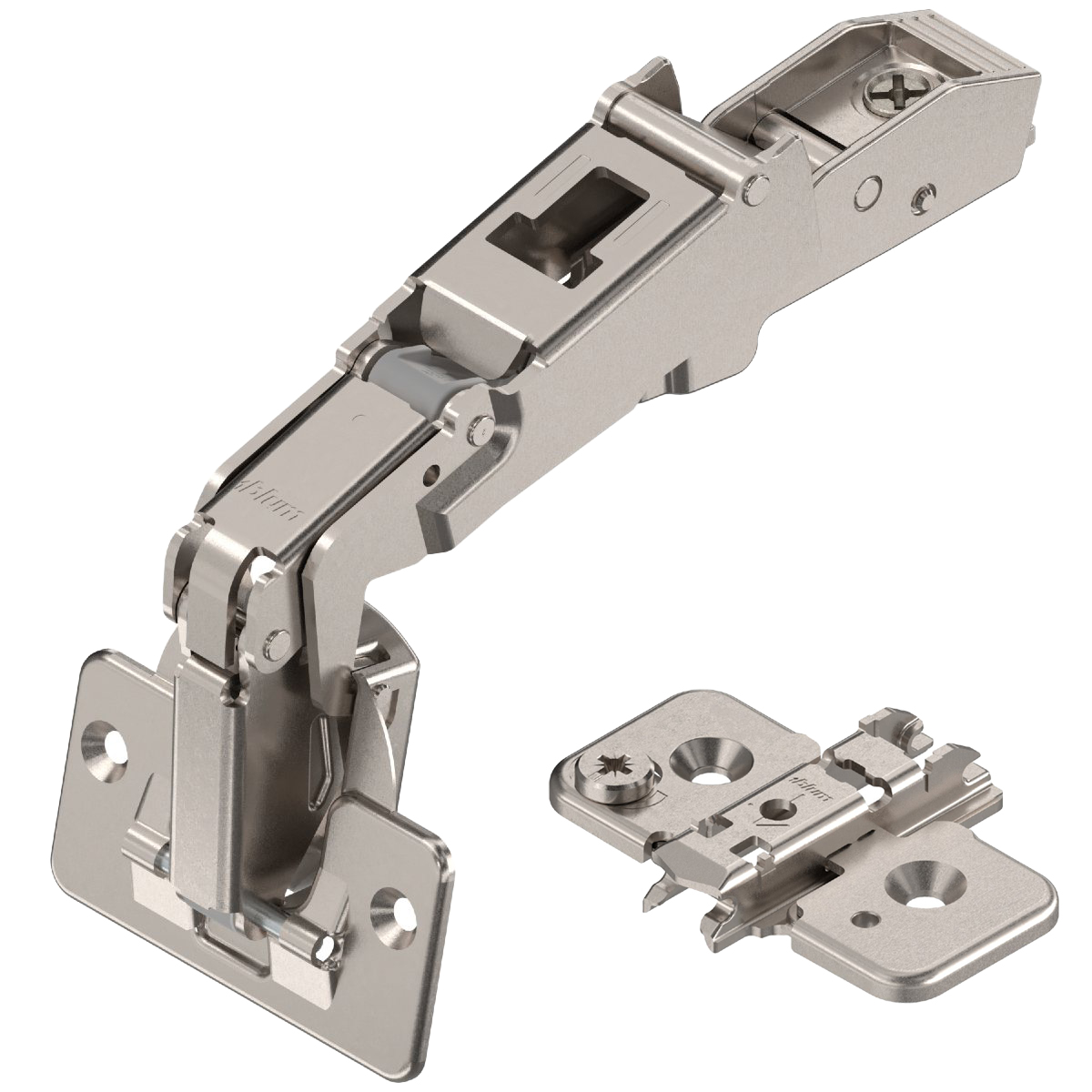

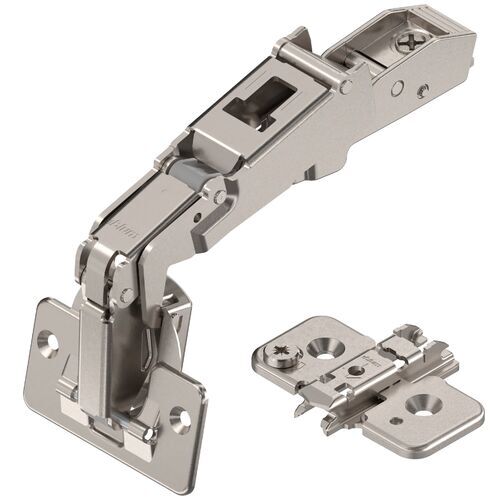

Blum Clip Top Full Overlay 170 Degree Unsprung Hinge 70T6550.TL With Mounting Plate

9885-001
Price from: £5.15inc VAT
Write a review
− +

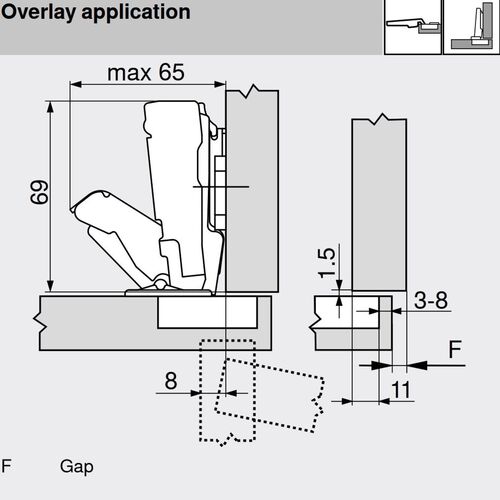

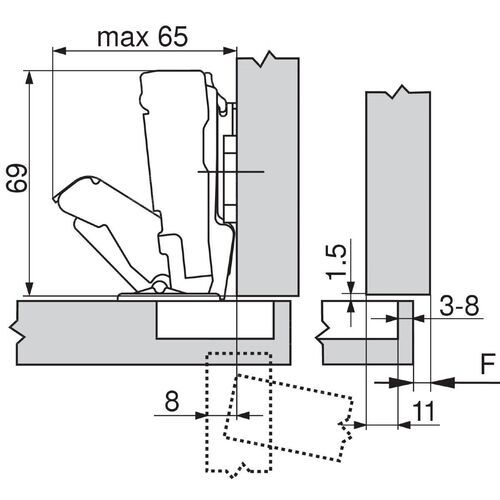

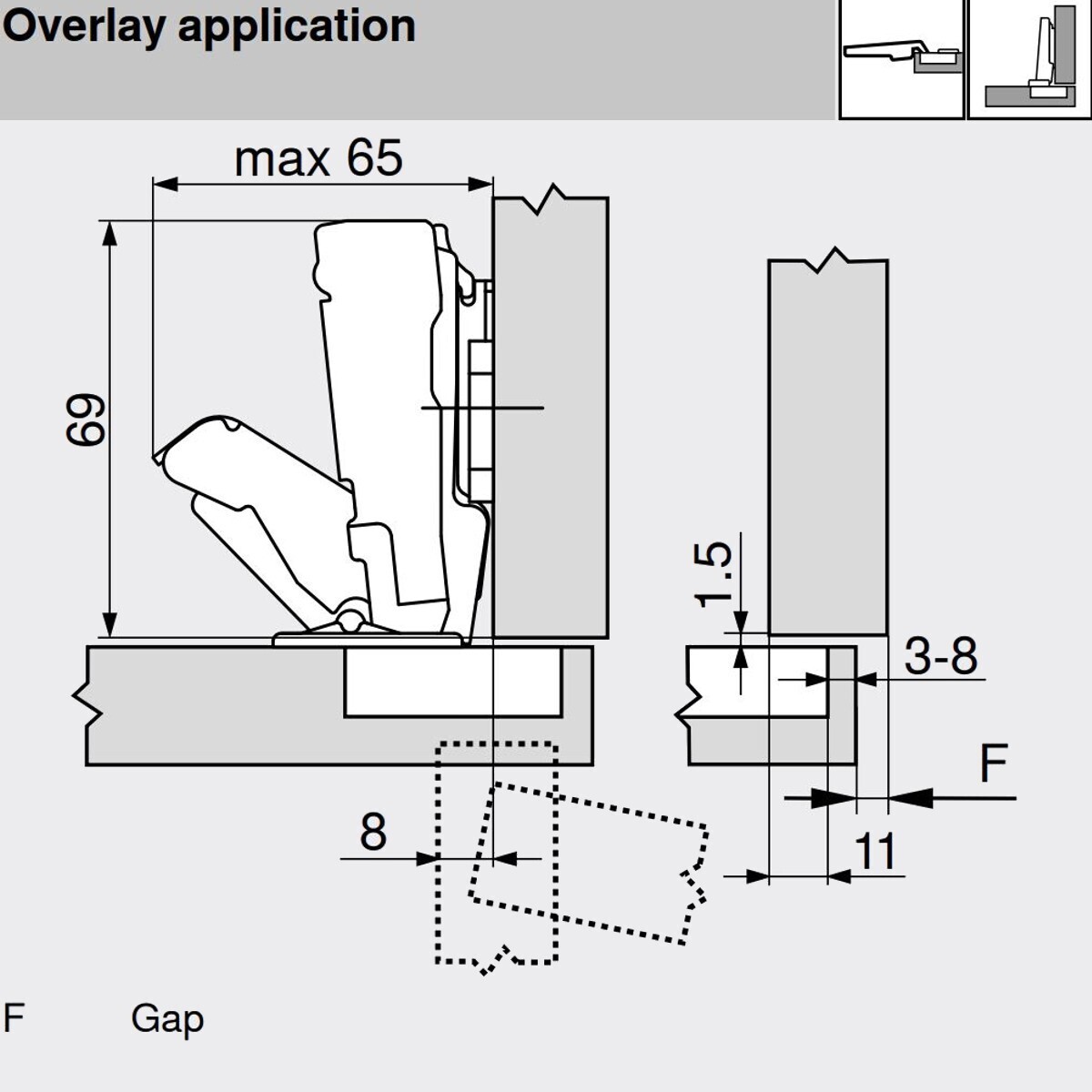

The Blum clip top overlay 170 degree cabinet hinge 70T6550.TL is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Opening angle: 170 degree
  • Door thickness: 16-21mm
  • Boss assembly: Screw-on
  • Boss material: Steel
  • Closing mechanism: Unsprung (for use with Tip-on)

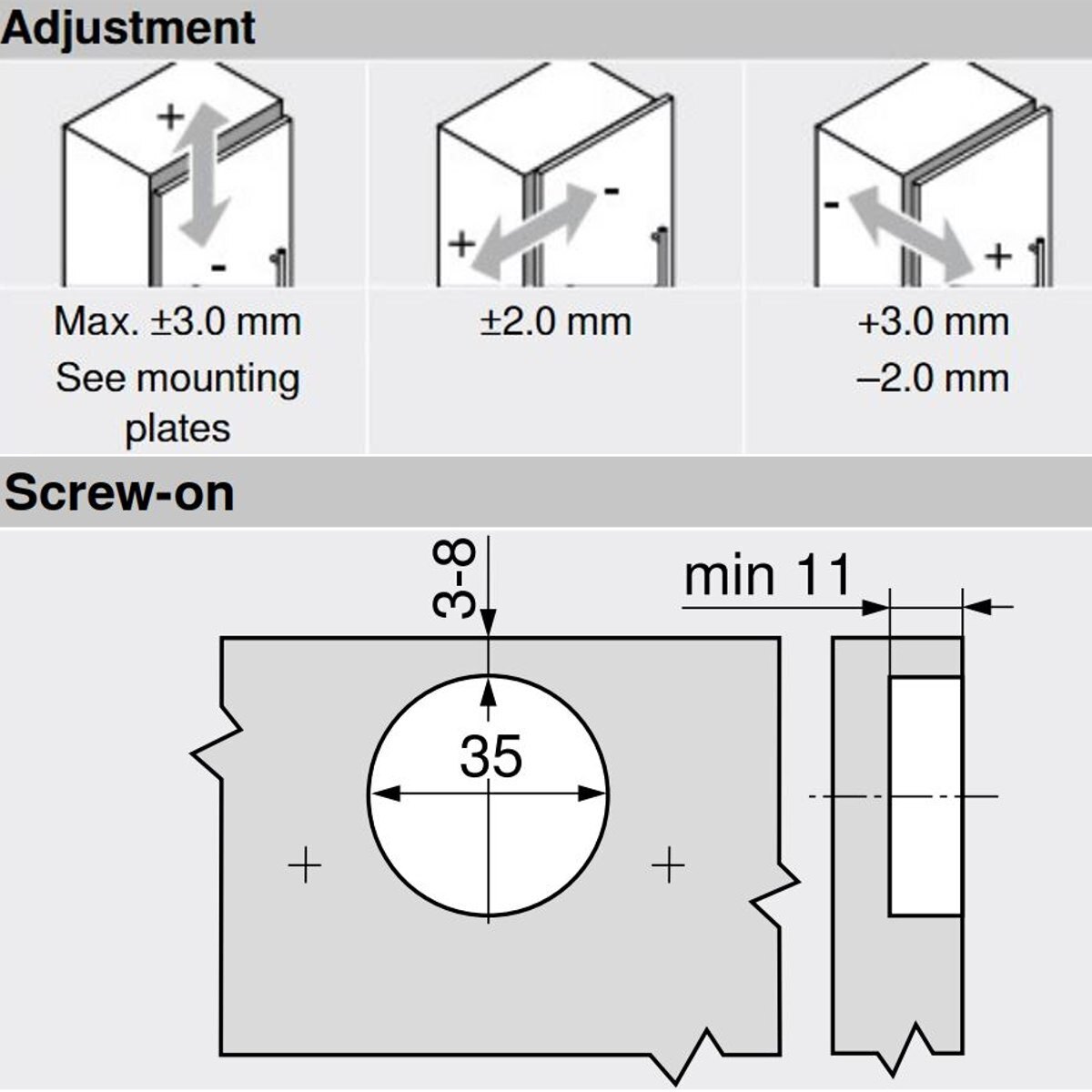

  • 3d front adjustment

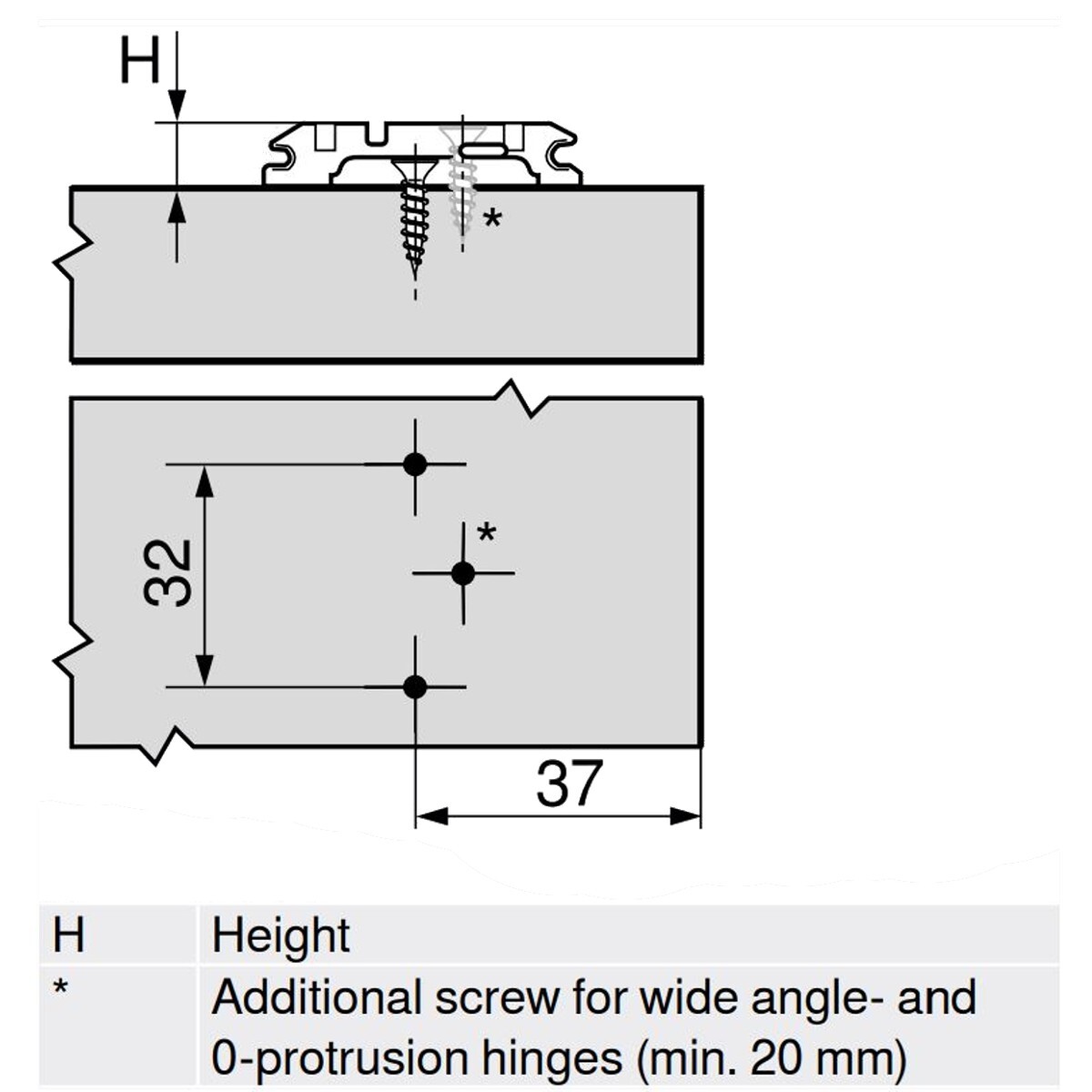

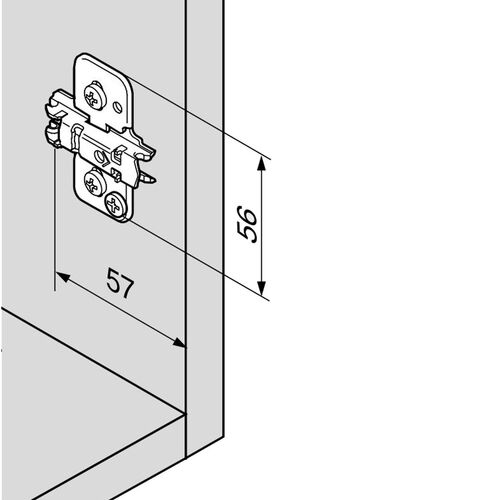

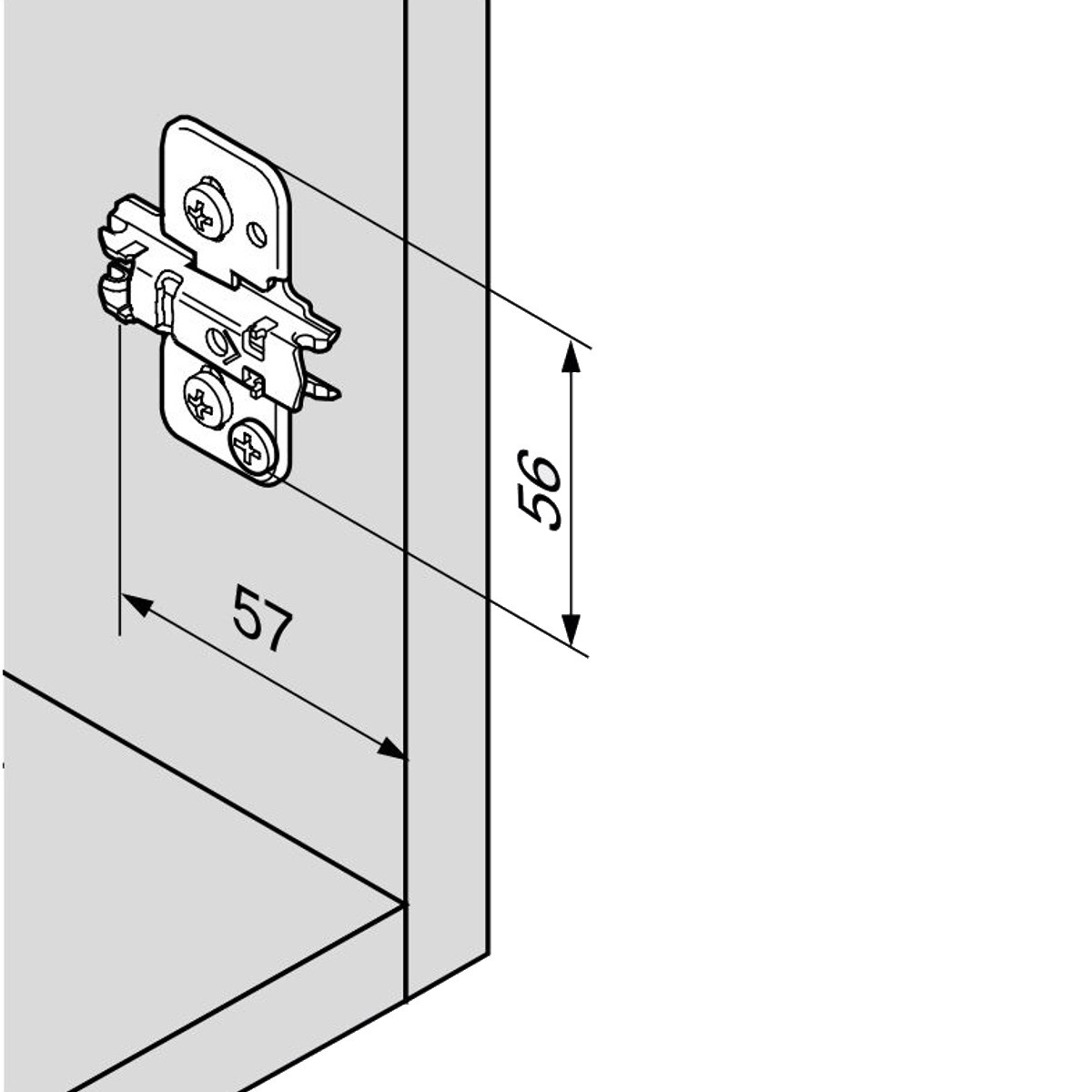

Mounting plates:

  • 174E6100 Expando:
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 174E6130 Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
  • 177H3100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no

Please note that:

  • Safety information if young children have access to furniture with wide angle hinges then the 155° opening 0-protrusion hinges should be used

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
173H7100
