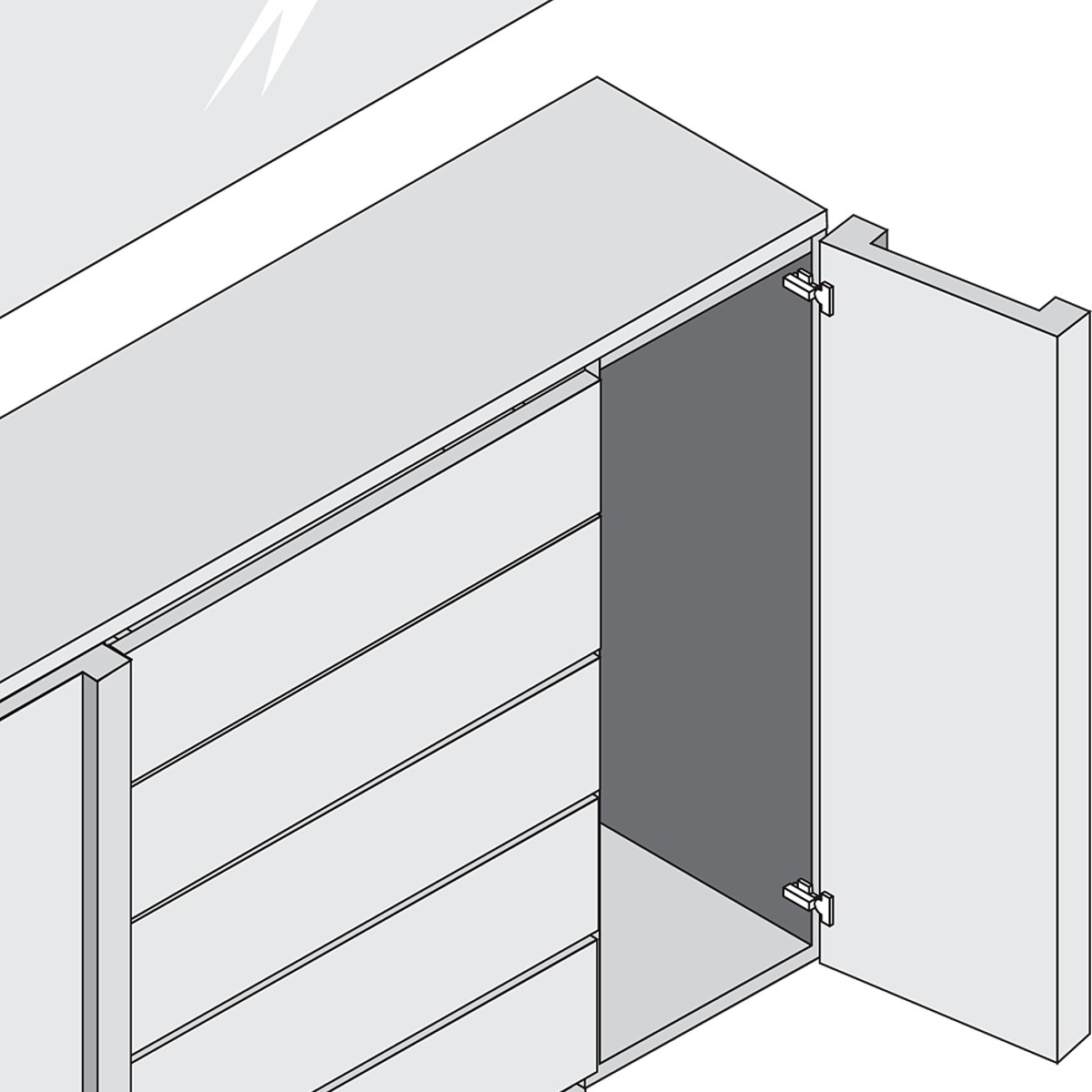

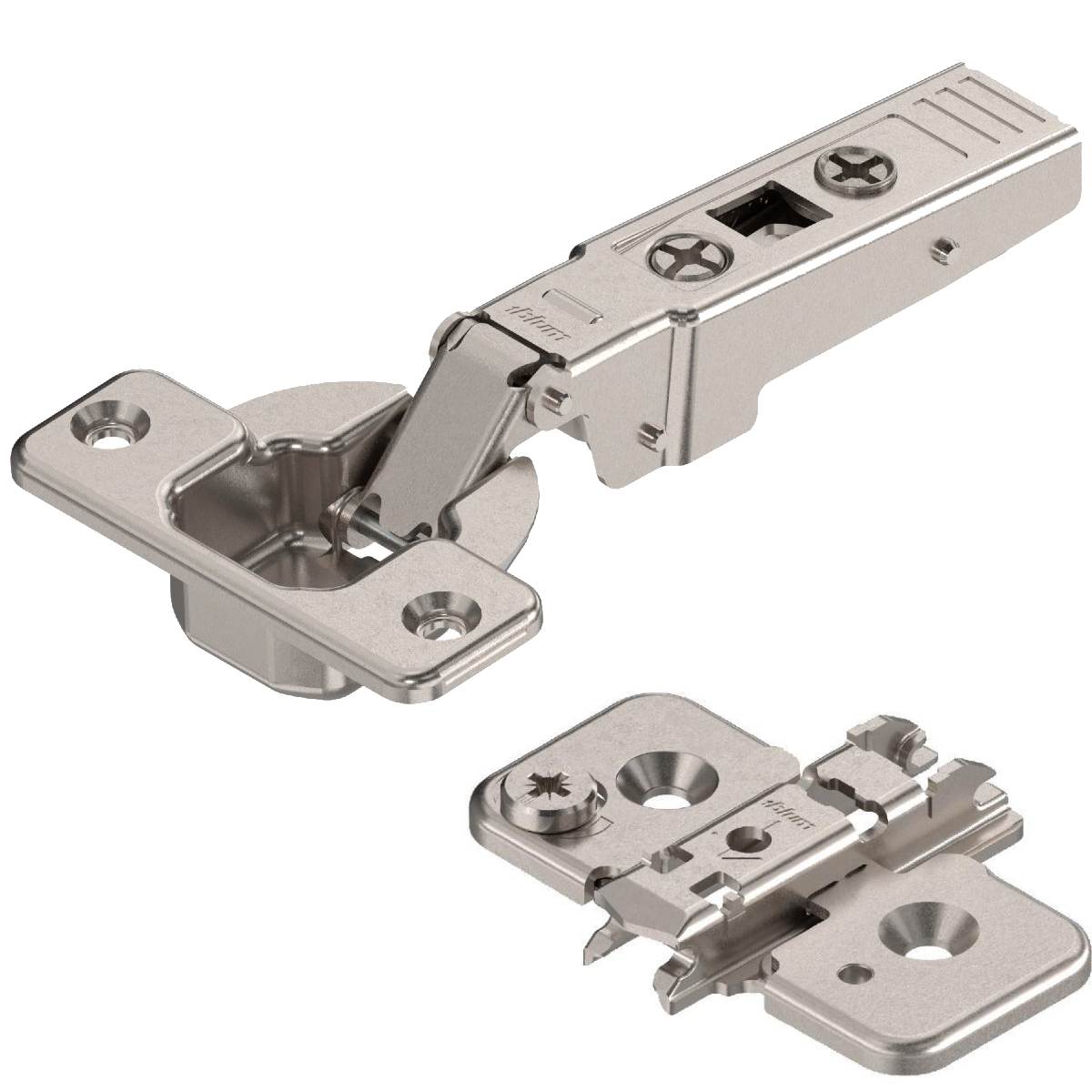

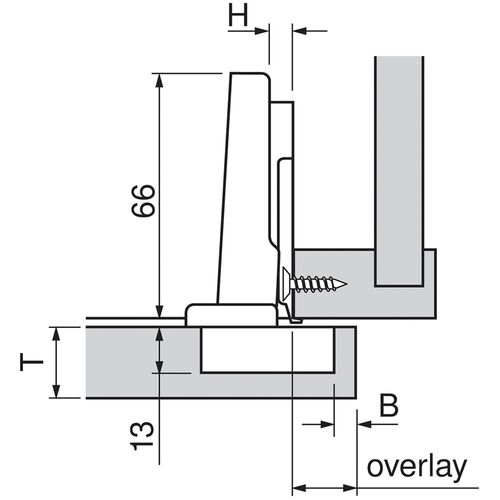

The Blum clip top full overlay 95-degree cabinet hinge 71T9550 is a high-quality hinge designed for cabinet doors with a full overlay. This hinge ensures reliable function and an attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip-top hinge provides ease of adjustment and smooth operation.
- Clip top profile/thick door hinge 71T9550
- Opening angle: 95 degrees
- Door thickness: 16-32mm
- Cranking: horizontal

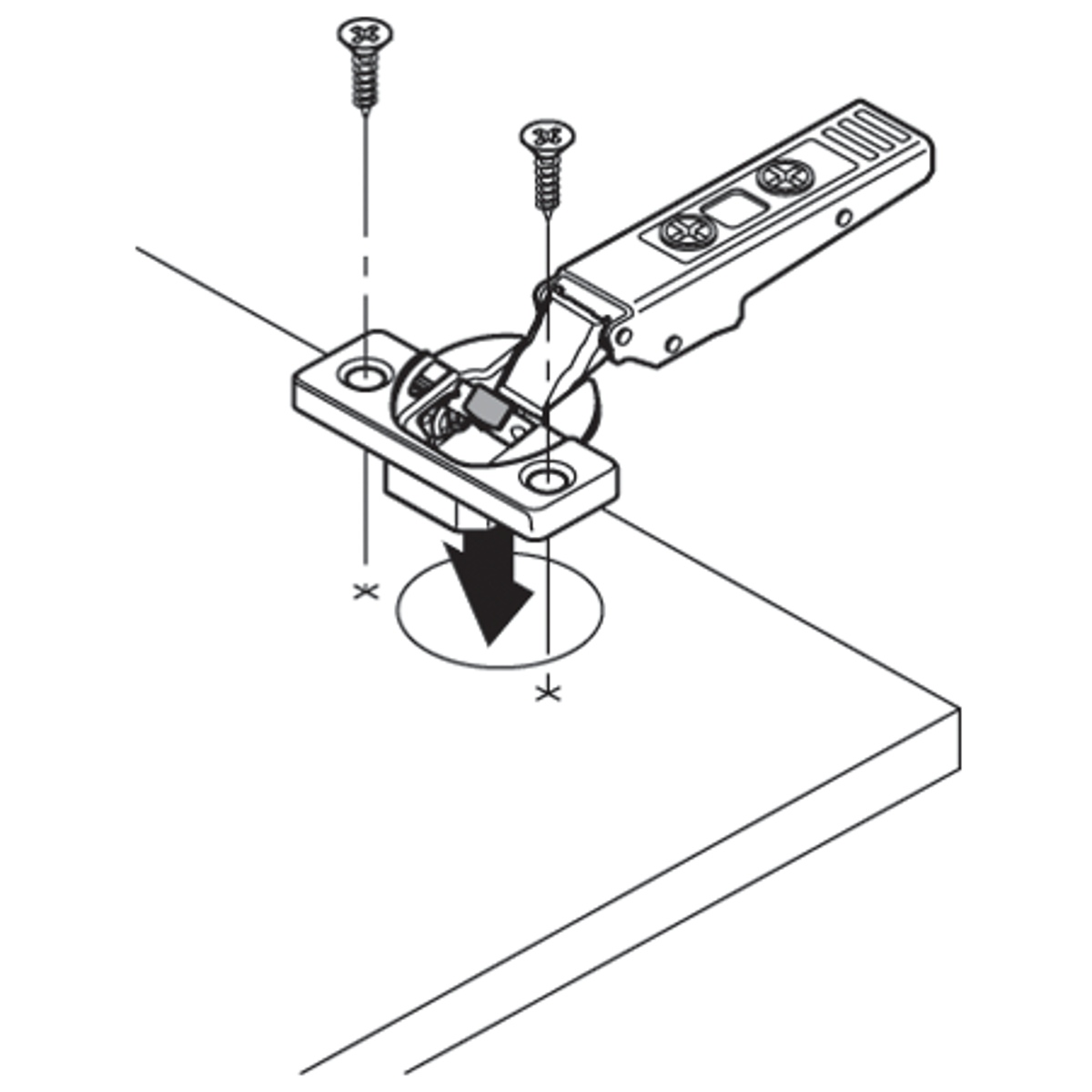

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

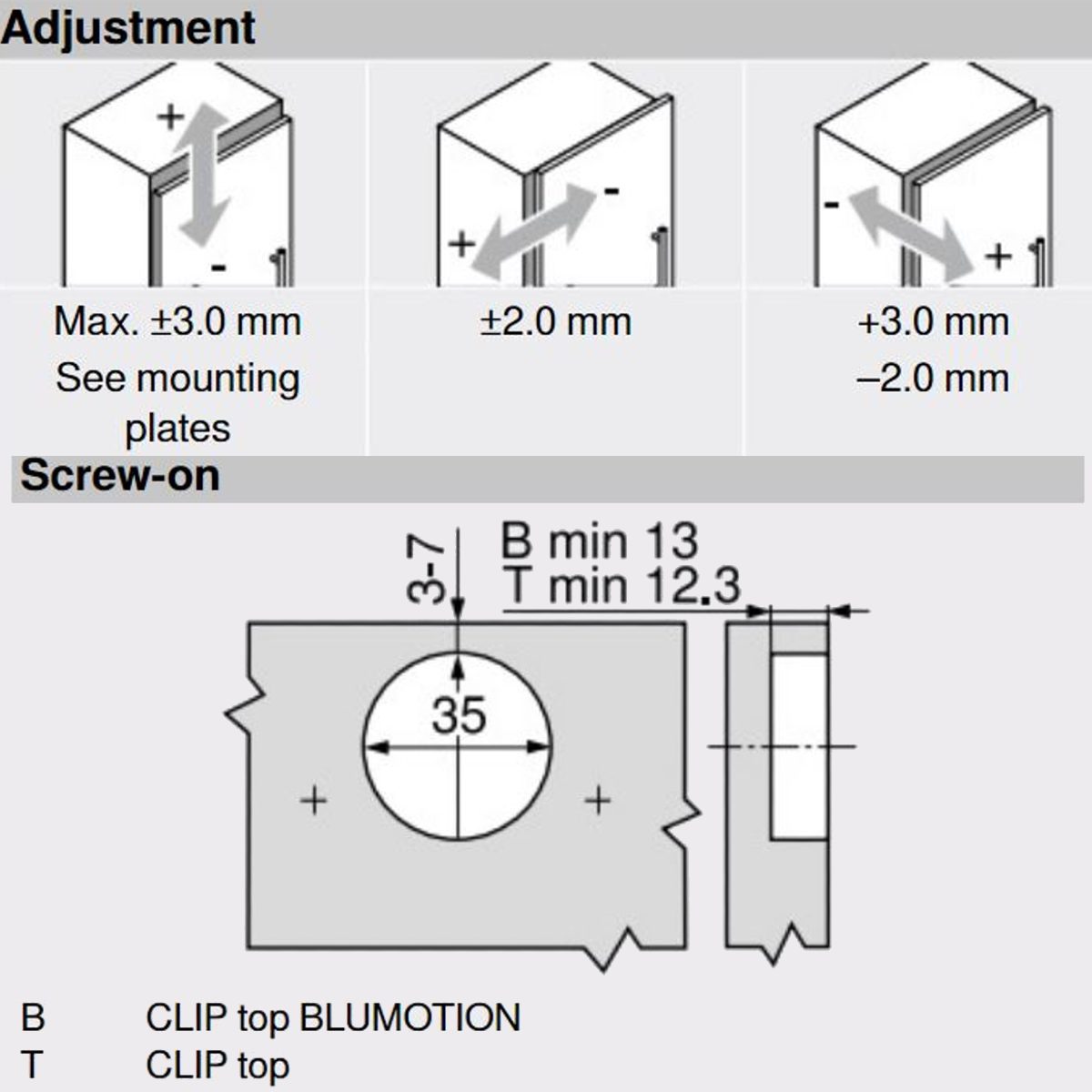

- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2mm, convenient with spiral screw

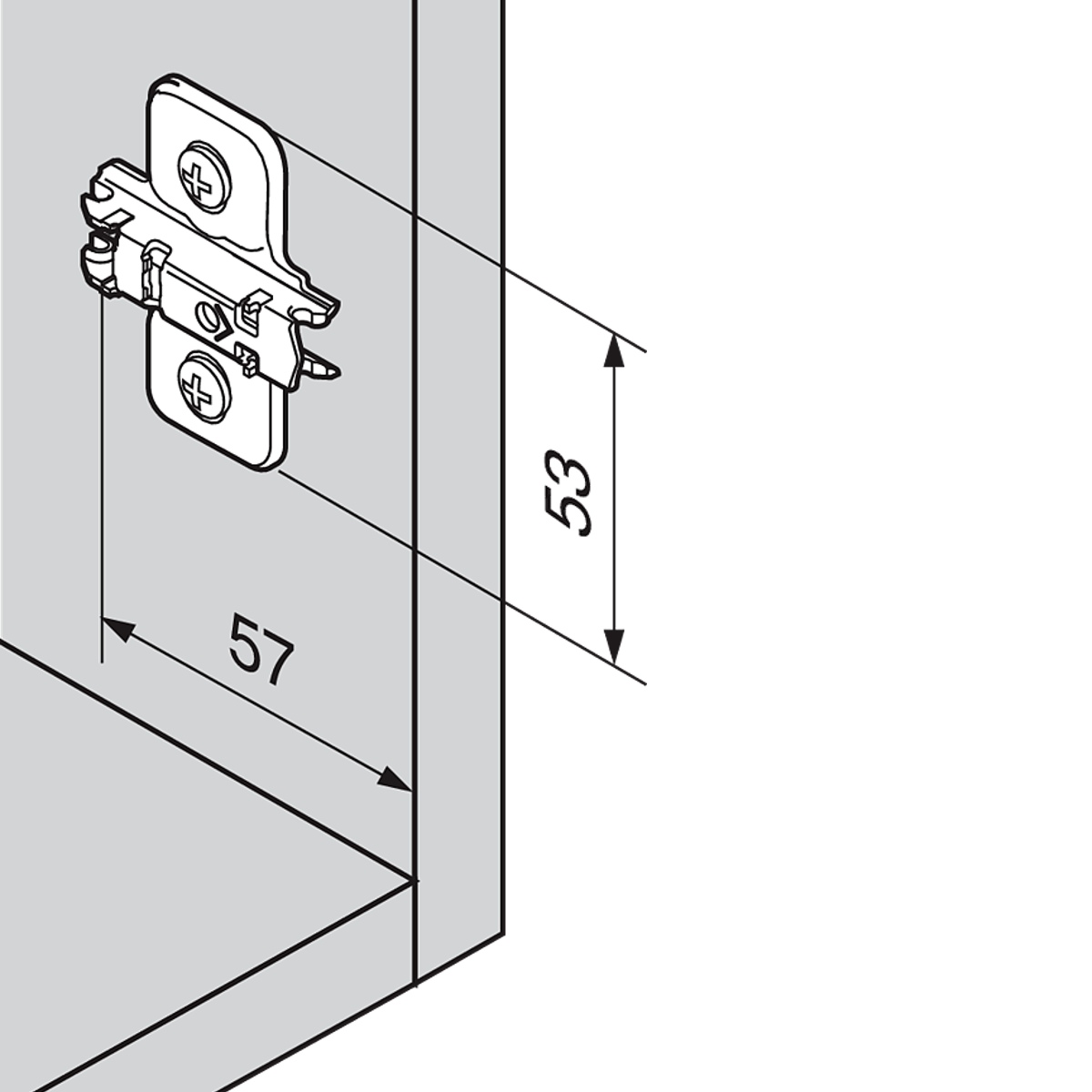

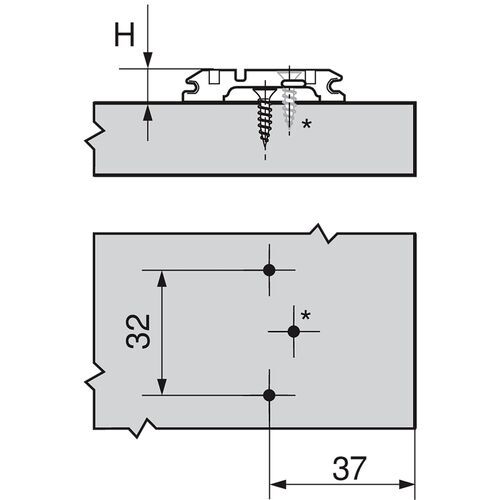

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
