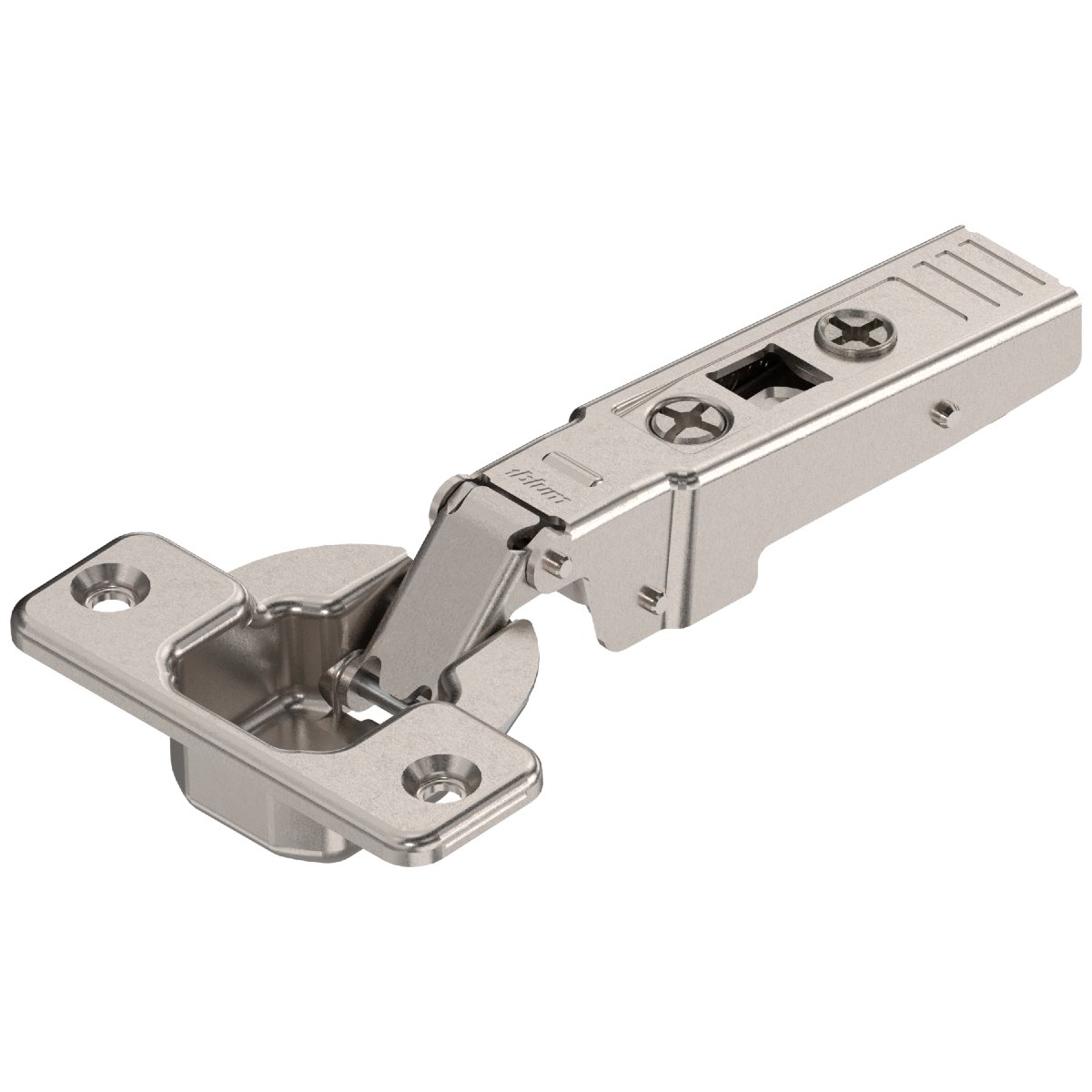

The Blum clip top full overlay 95-degree cabinet hinge 71T9550 is a high-quality hinge designed for cabinet doors with a full overlay. This hinge ensures reliable function and an attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip-top hinge provides ease of adjustment and smooth operation.

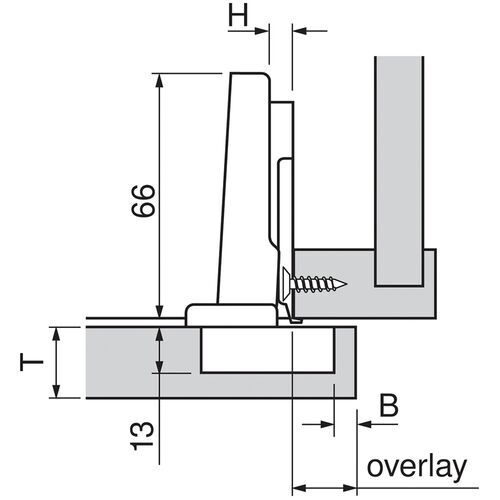

- Clip top profile/thick door hinge 71T9550
- Opening angle: 95 degrees
- Door thickness: 16-32mm
- Cranking: horizontal

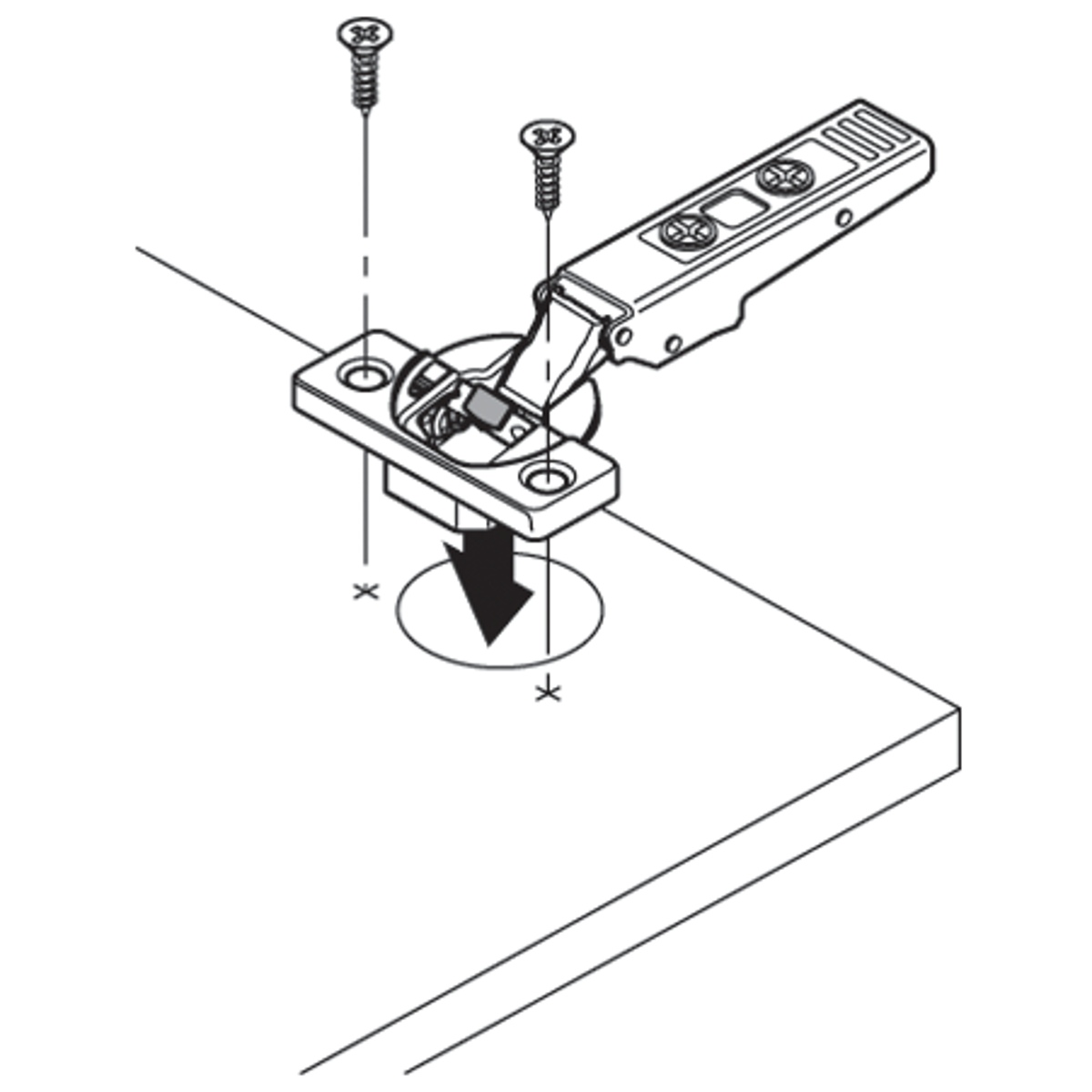

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

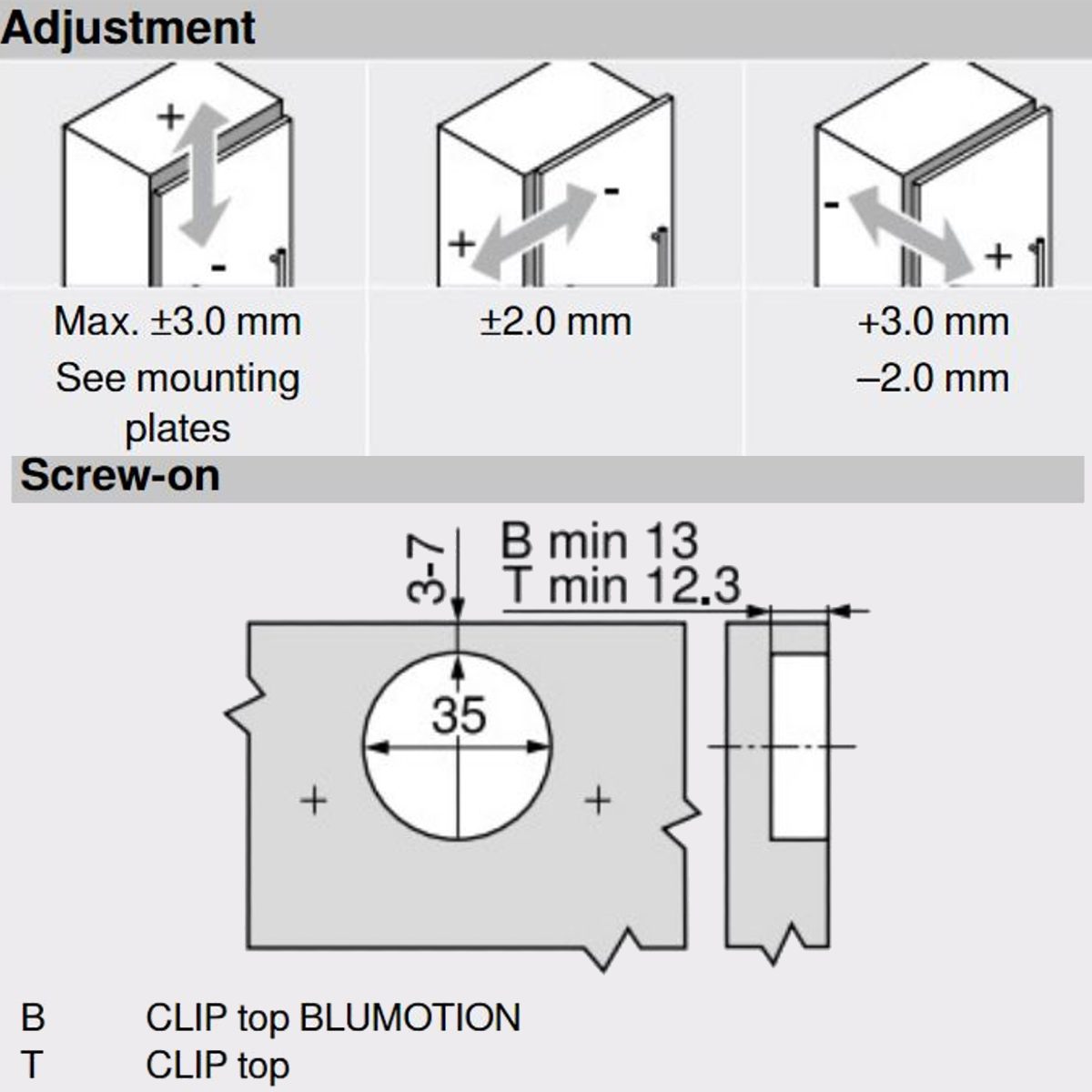

- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2mm, convenient with spiral screw
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
