Blum Clip Top Full Overlay 95 degree Unsprung Hinge For Tip-On 70T9550.TL With Mounting Plate

9888-001
Price from: £3.08inc VAT
Write a review
− +

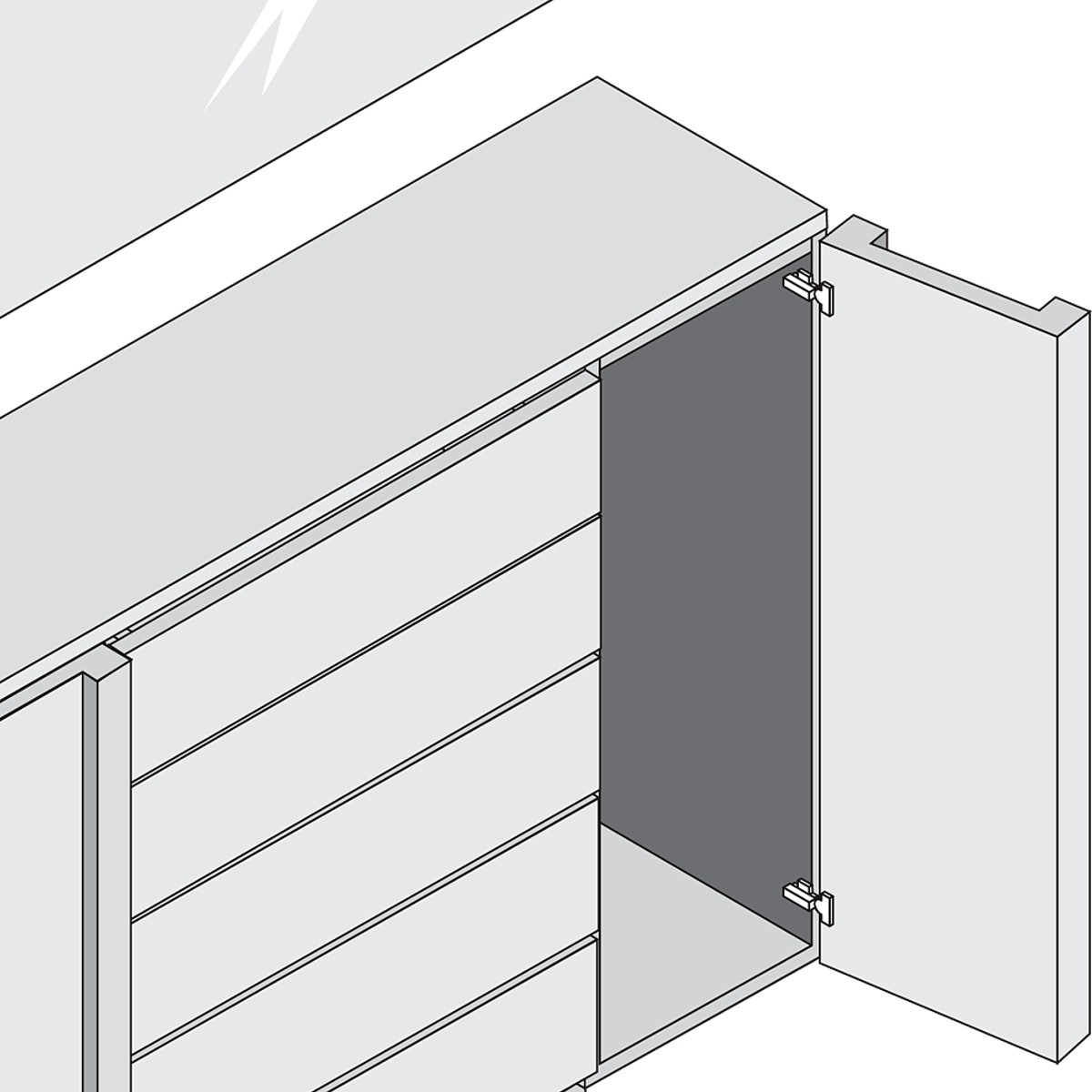

The Blum clip top overlay 95 degree cabinet hinge 70T9550.TL is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

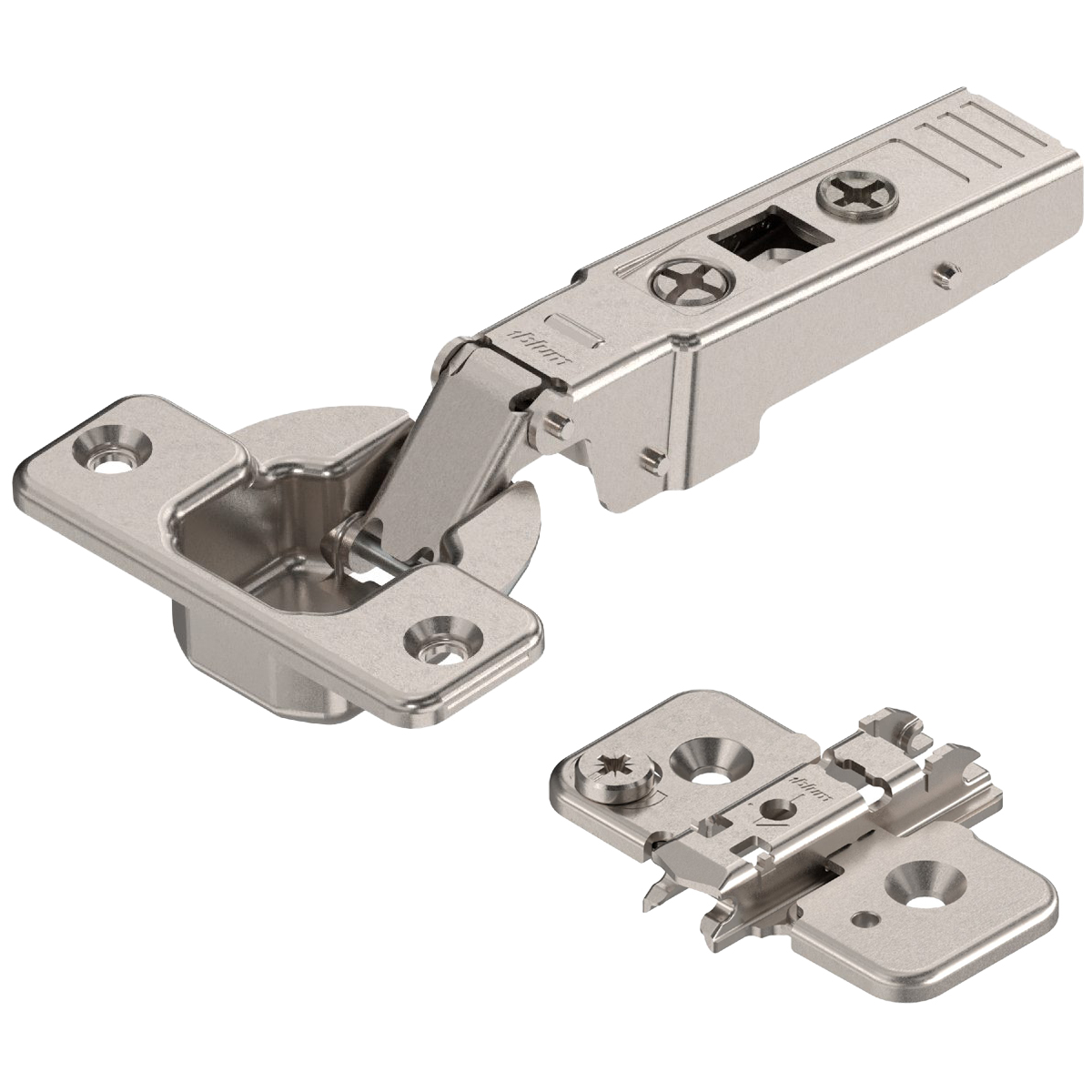

  • Clip Top hinge 70T9550.TL
  • Unsprung hinge - free swing hinge for tip-on push to open cabinet doors

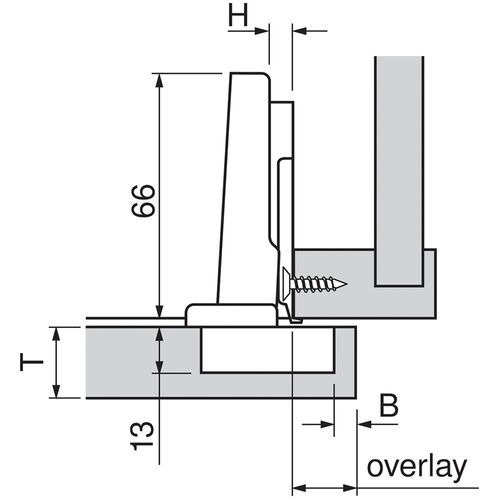

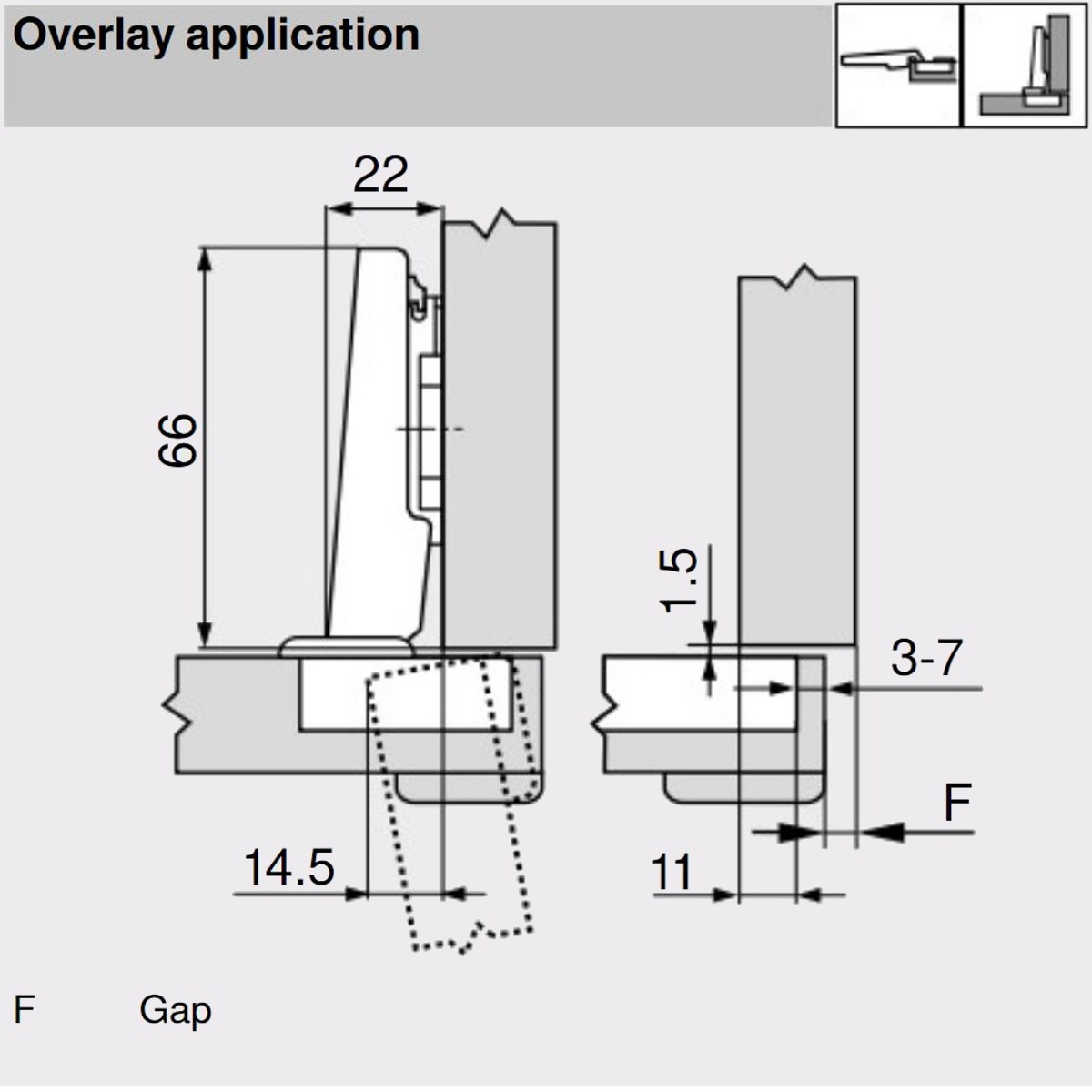

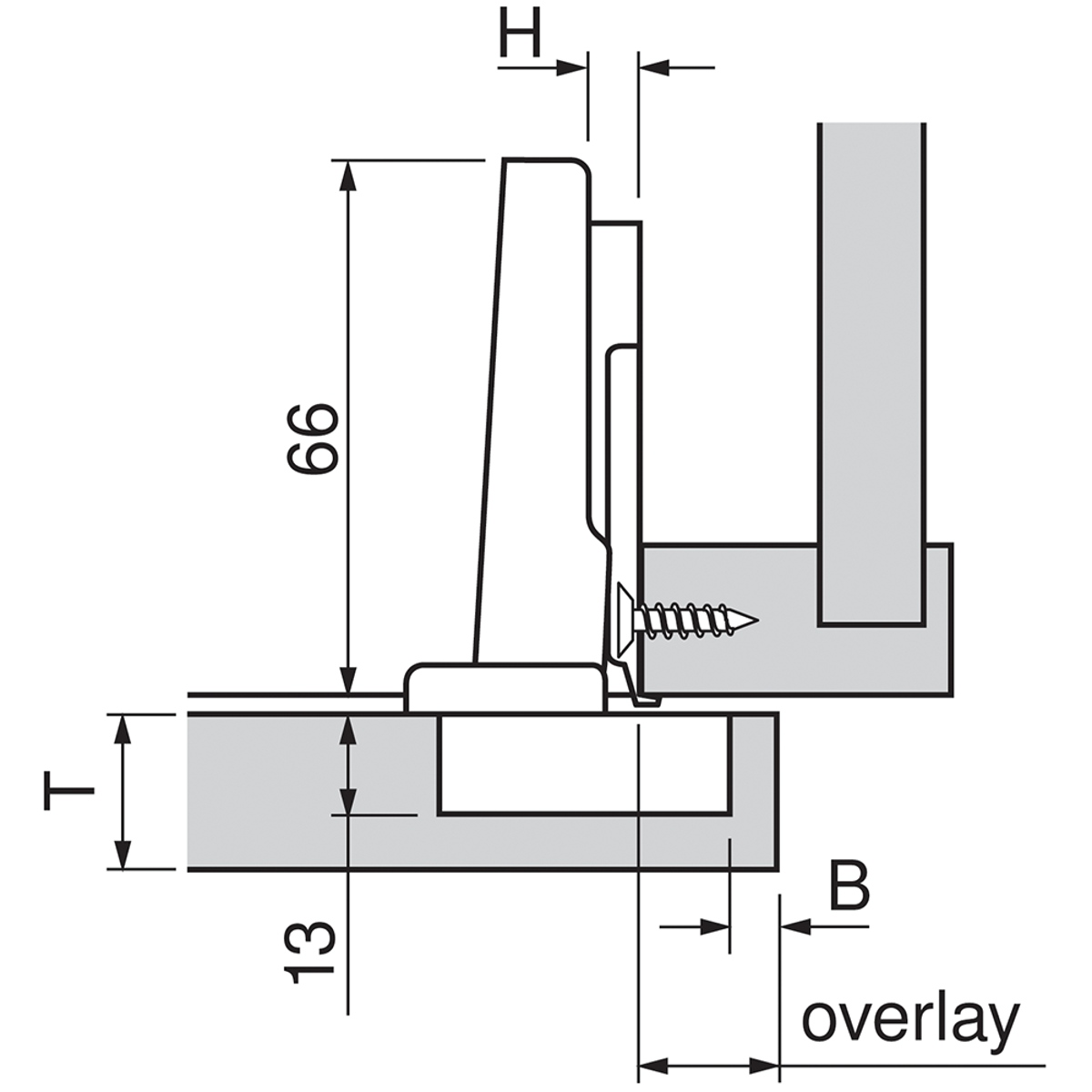

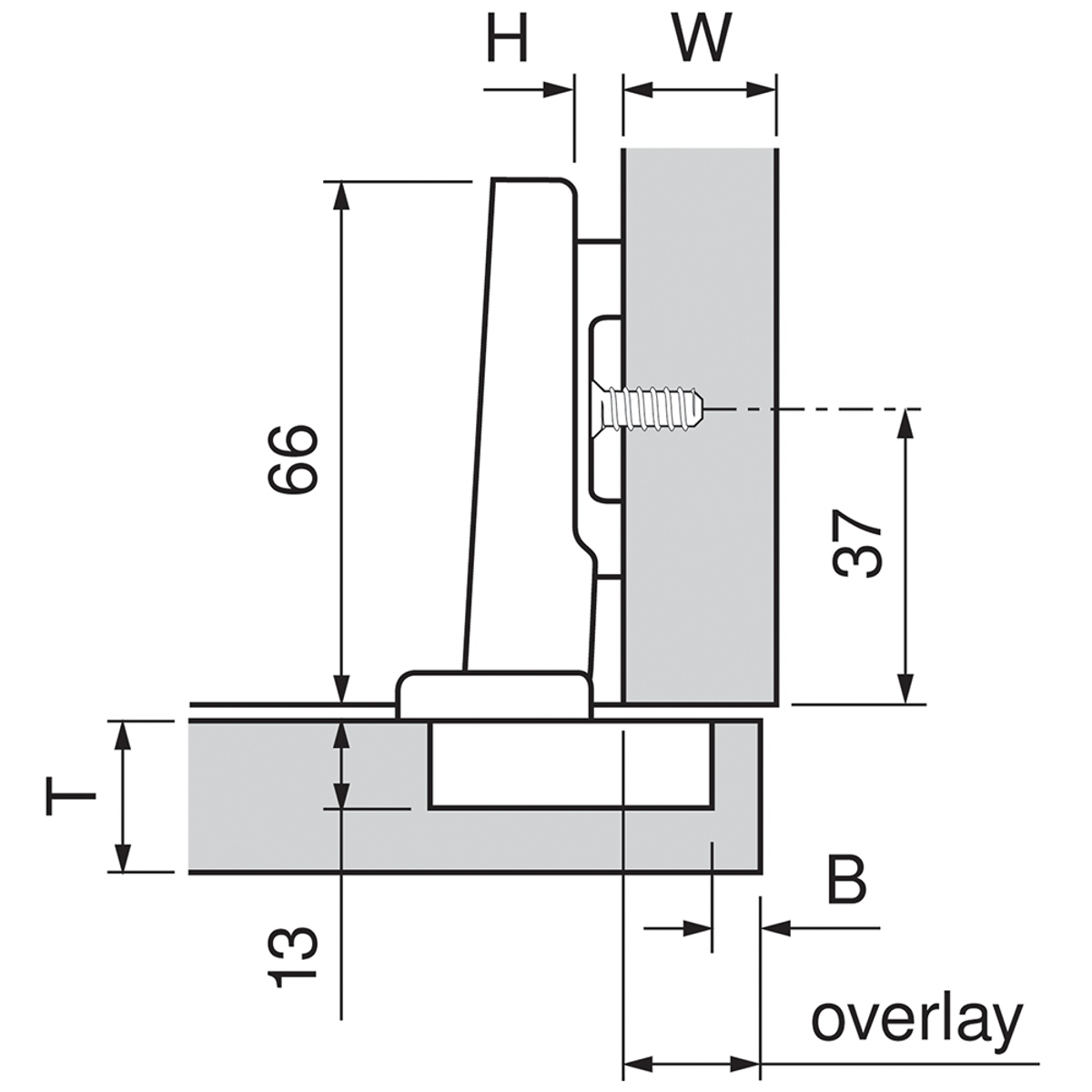

  • Application: overlay doors
  • Opening angle: 95 degrees
  • Door thickness: 16-32mm

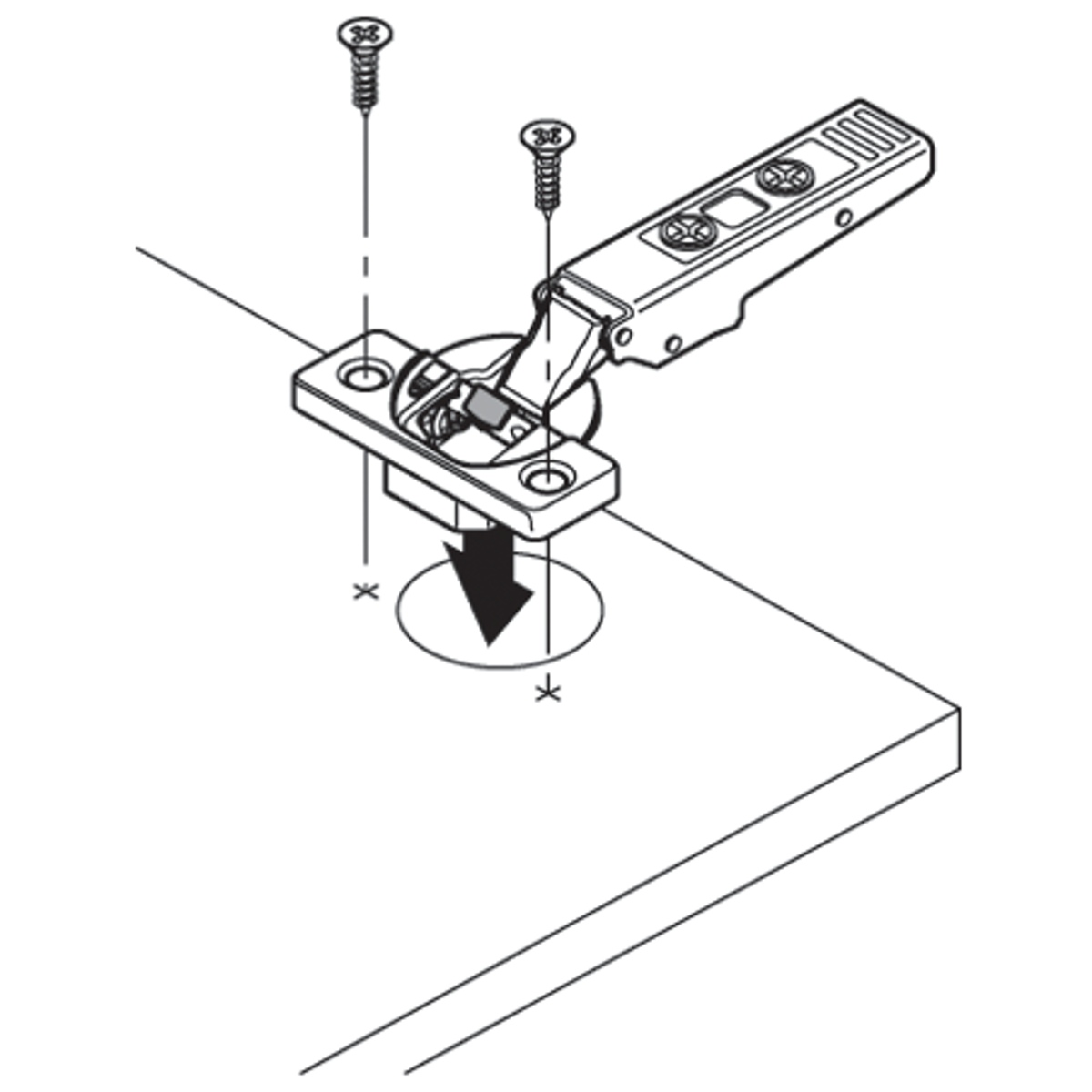

  • Boss assembly - screw-on
  • Finish - Nickel

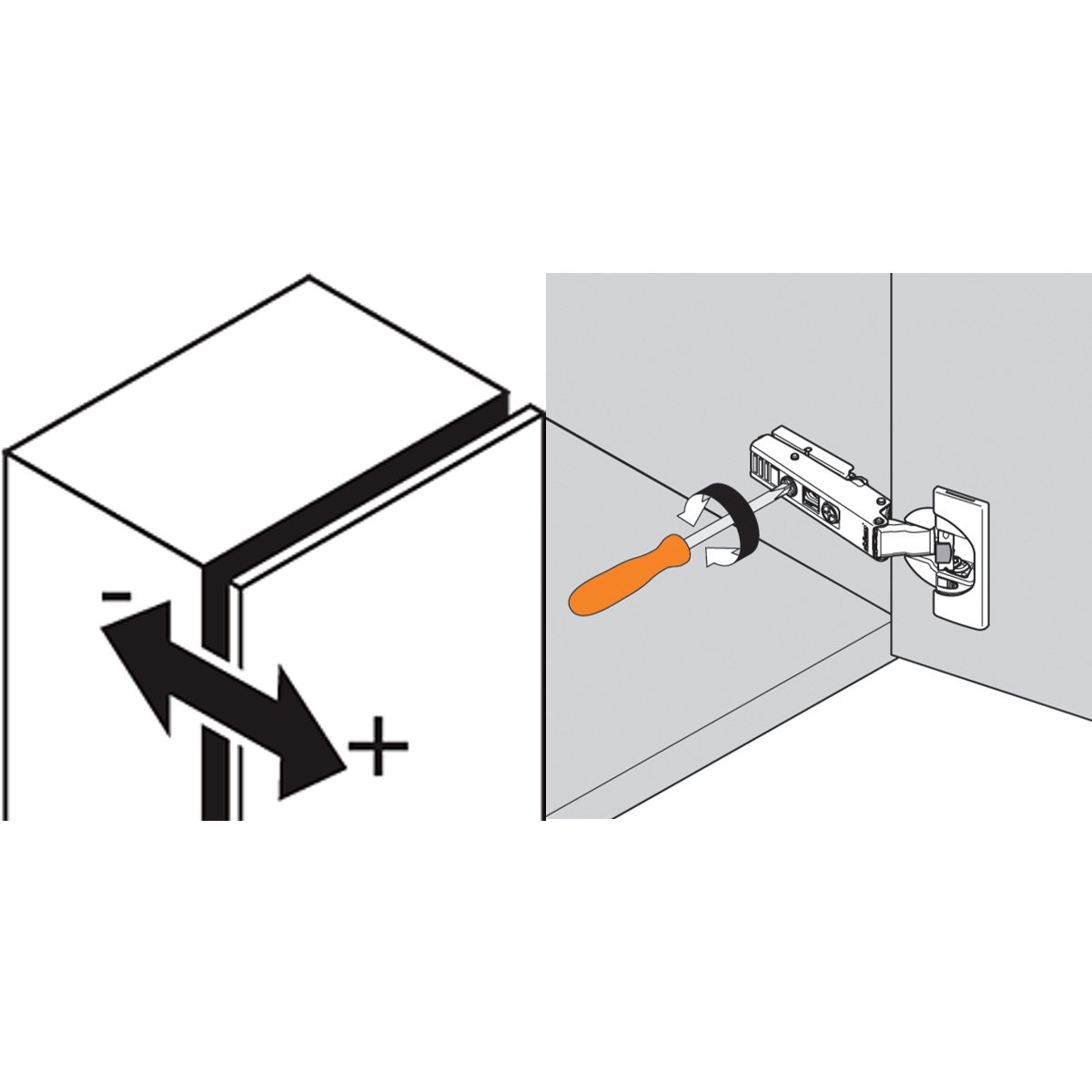

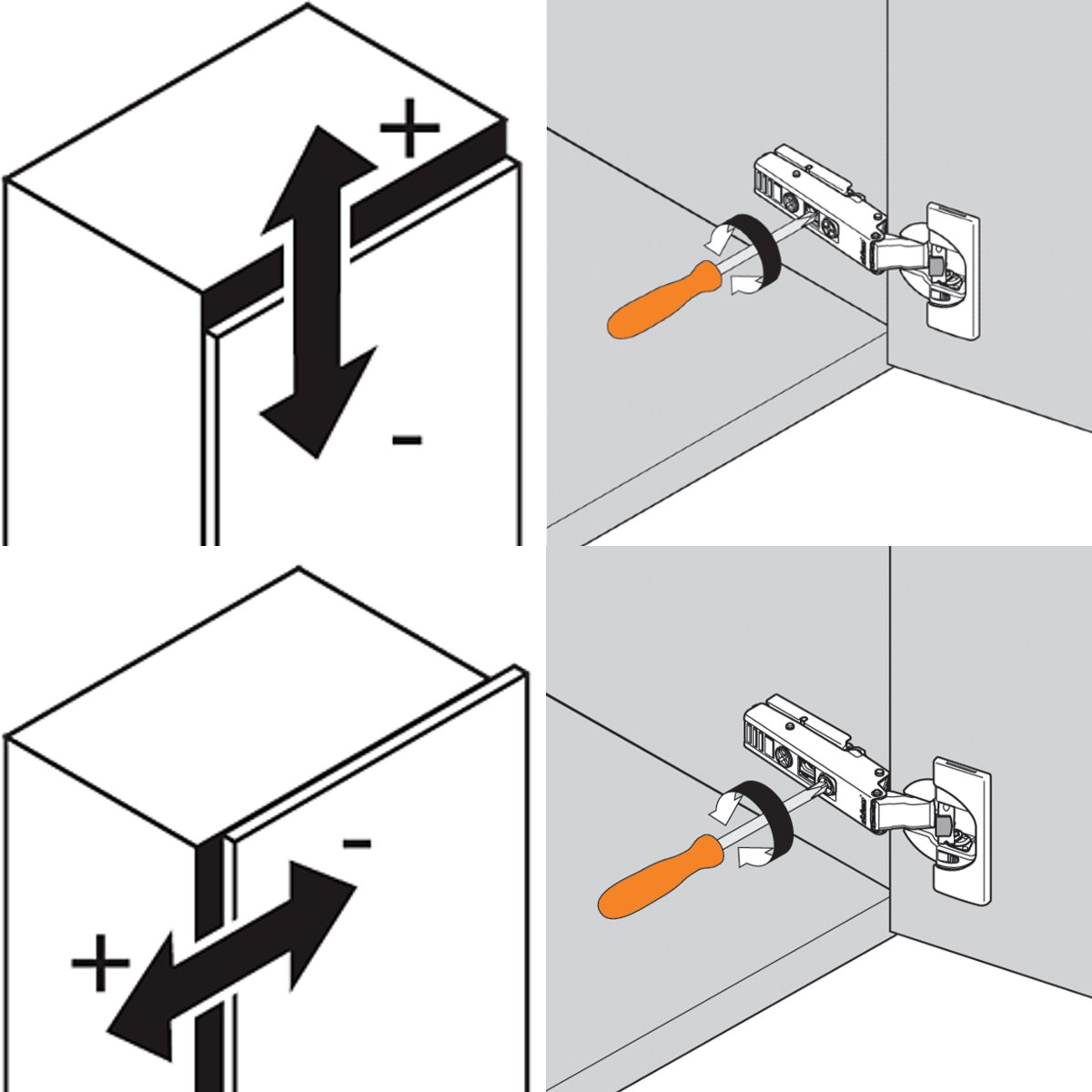

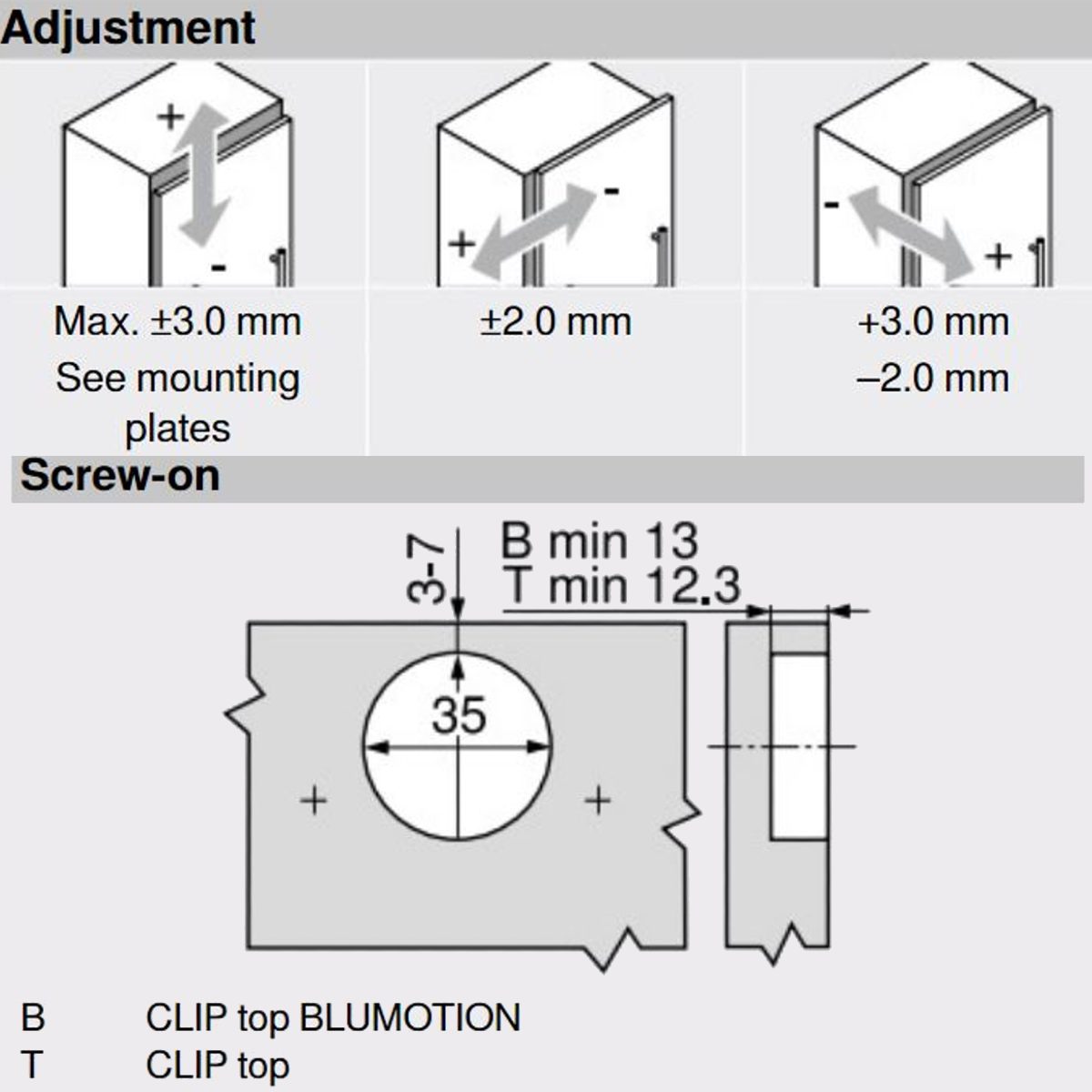

  • Side adjustment: +/- 2mm

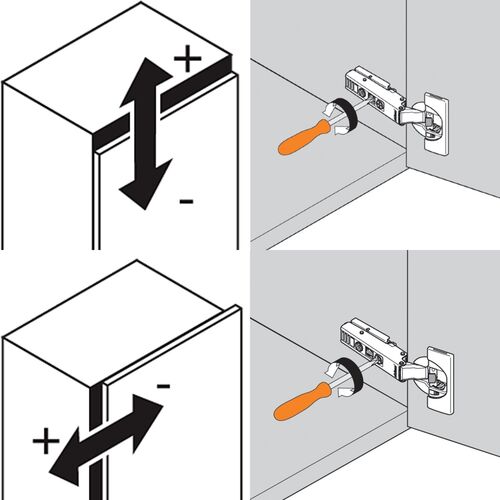

  • Depth adjustment: +3mm/- 2mm

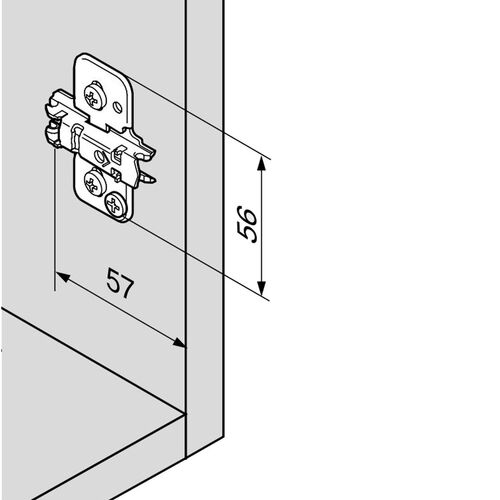

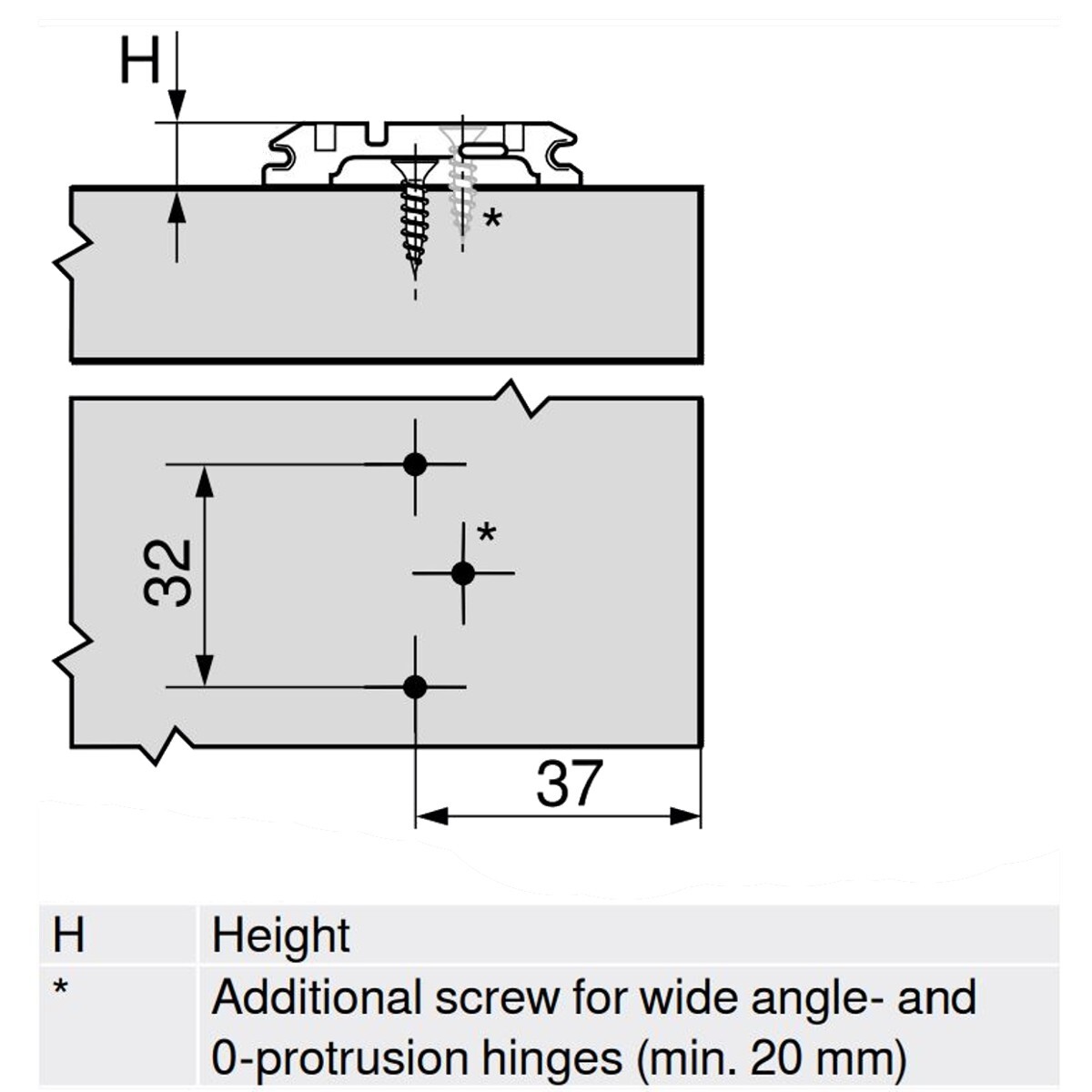

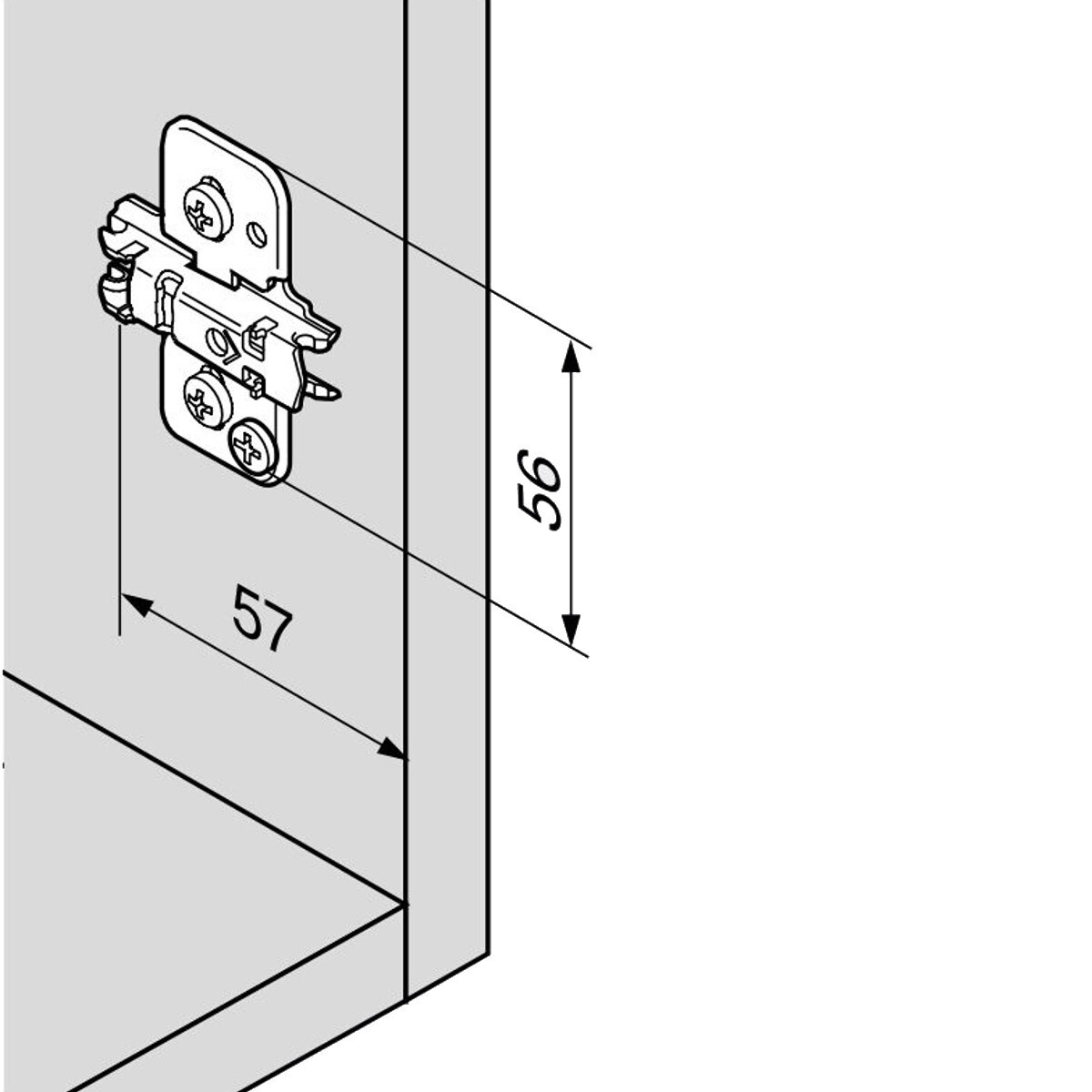

Mounting plates:

  • 174E6100 Expando:
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 174E6130 Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
  • 177H3100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
173H7100
Cover Caps:
No
