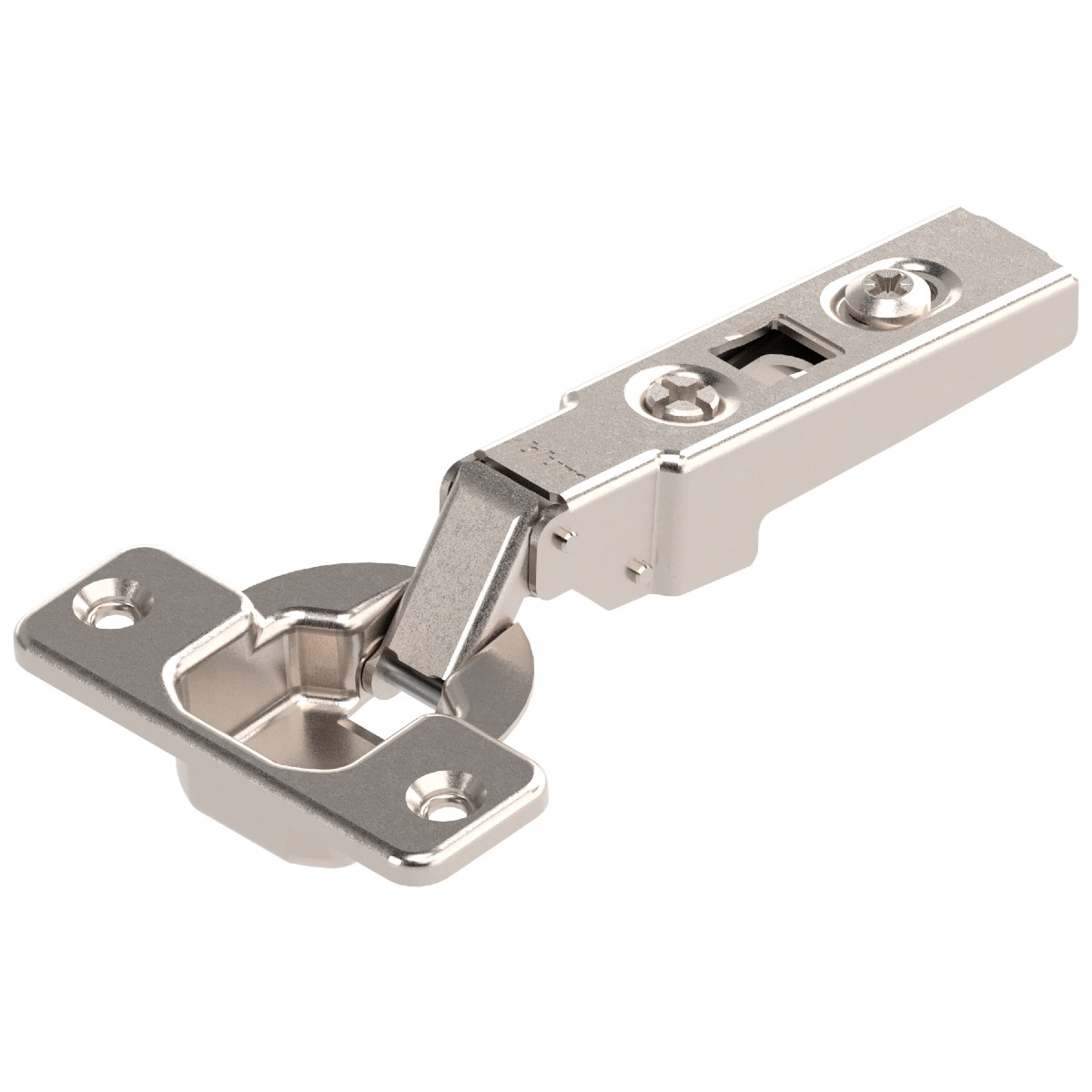

The Blum clip top overlay 100 degree cabinet hinge 71M2550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 71M2550
- Opening angle: 100 degrees
- Door thickness: 16-24mm
- Cranking: horizontal
- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

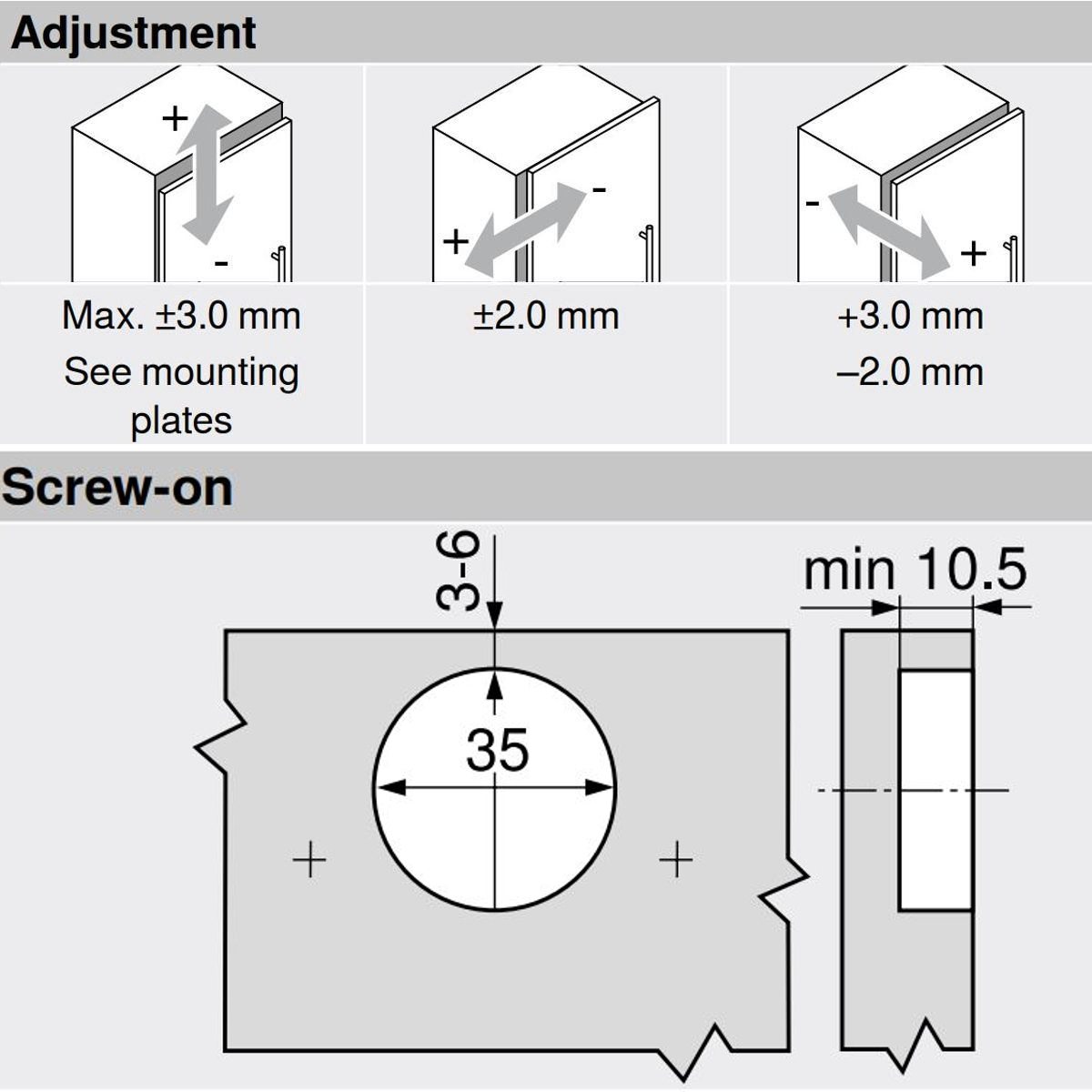

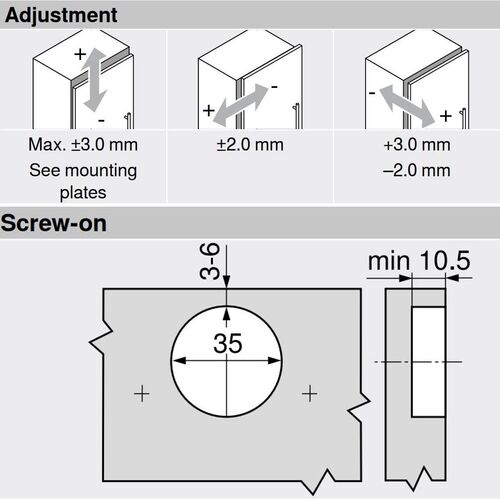

- Side adjustment: +/- 2mm
- Depth adjustment: plus 3mm/minus 0,5mm, with screw
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
