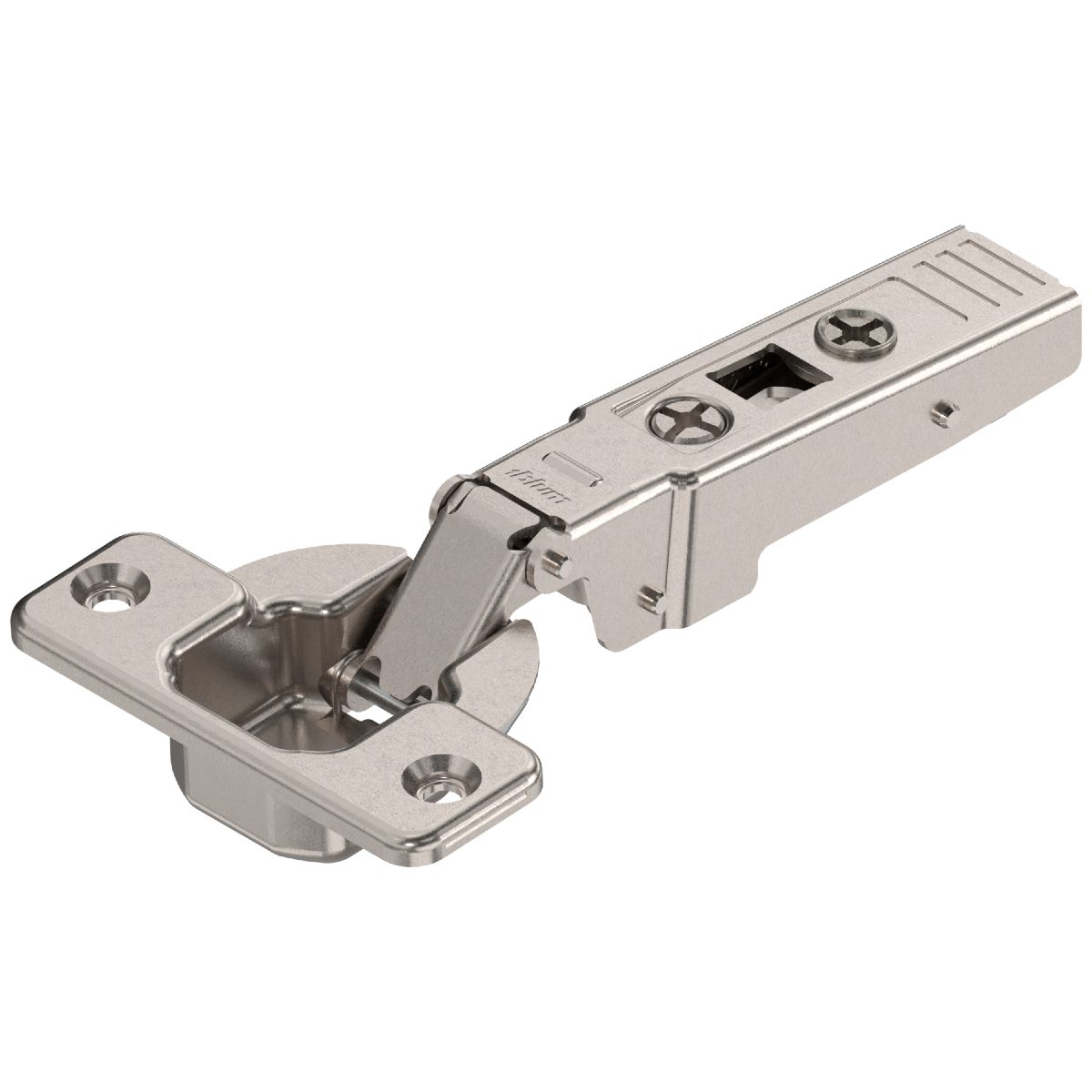

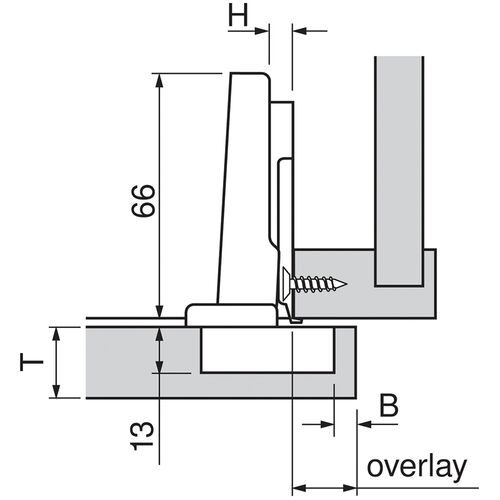

The Blum clip top overlay 95 degree cabinet hinge 70T9550.TL is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip Top hinge 70T9550.TL

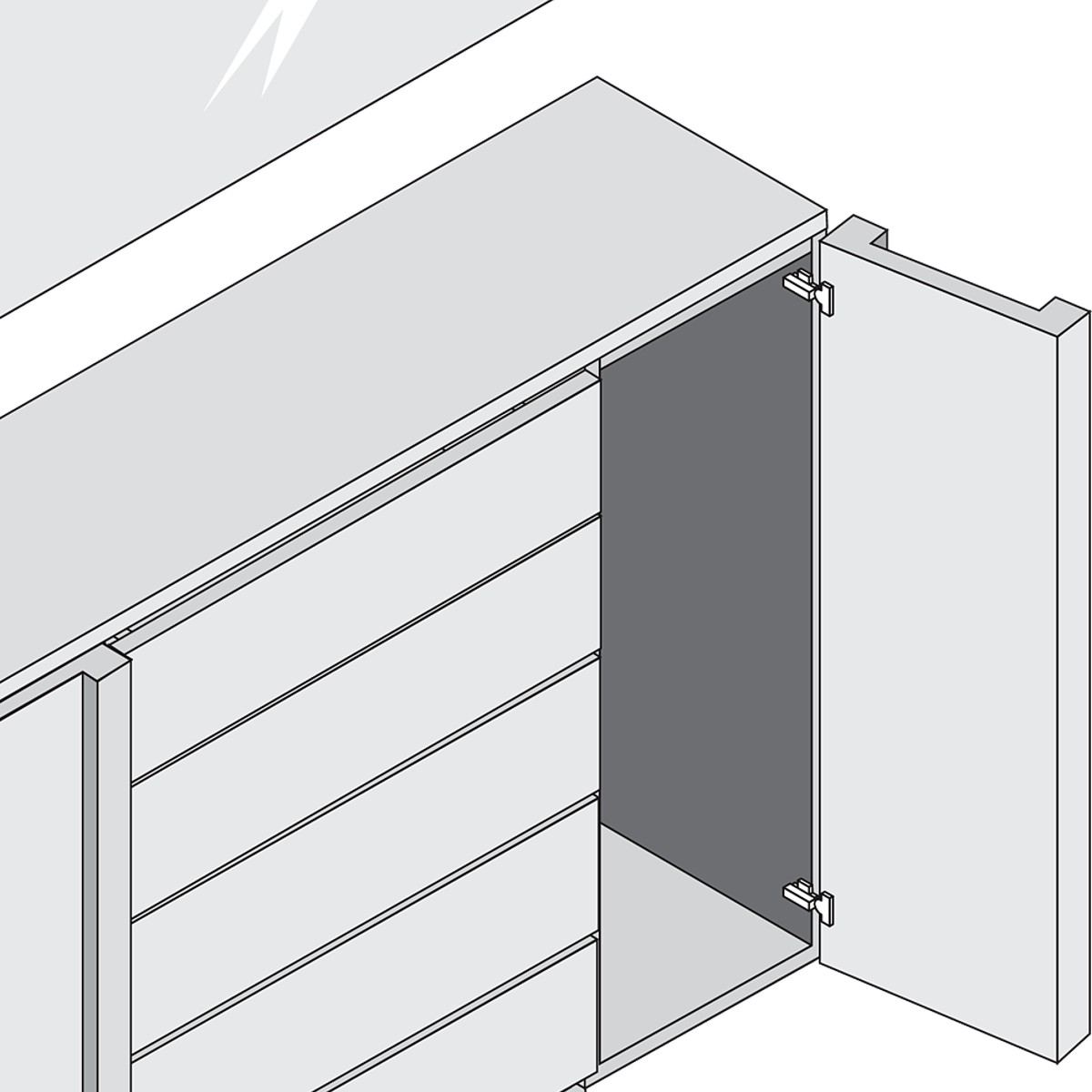

- Unsprung hinge - free swing hinge for tip-on push to open cabinet doors

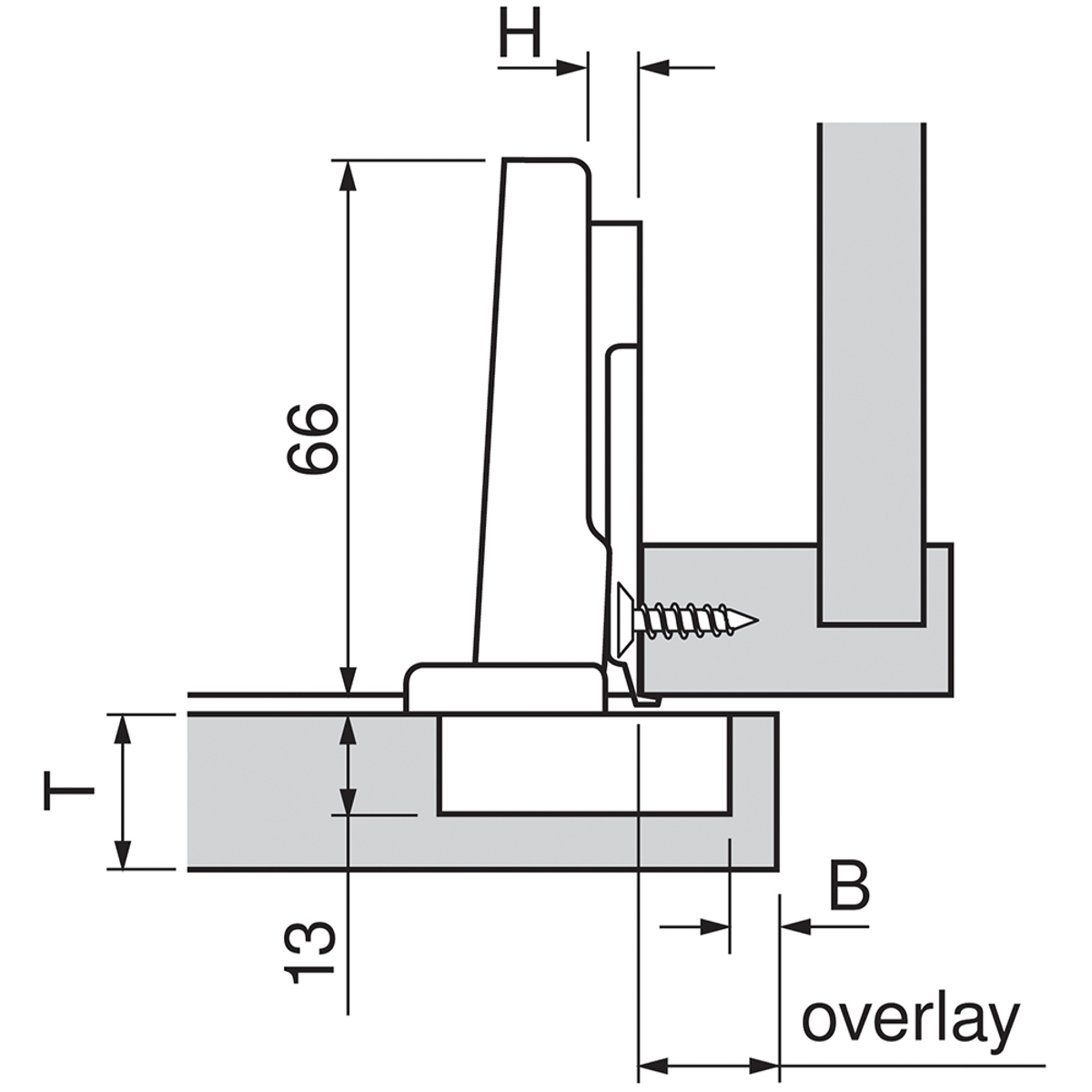

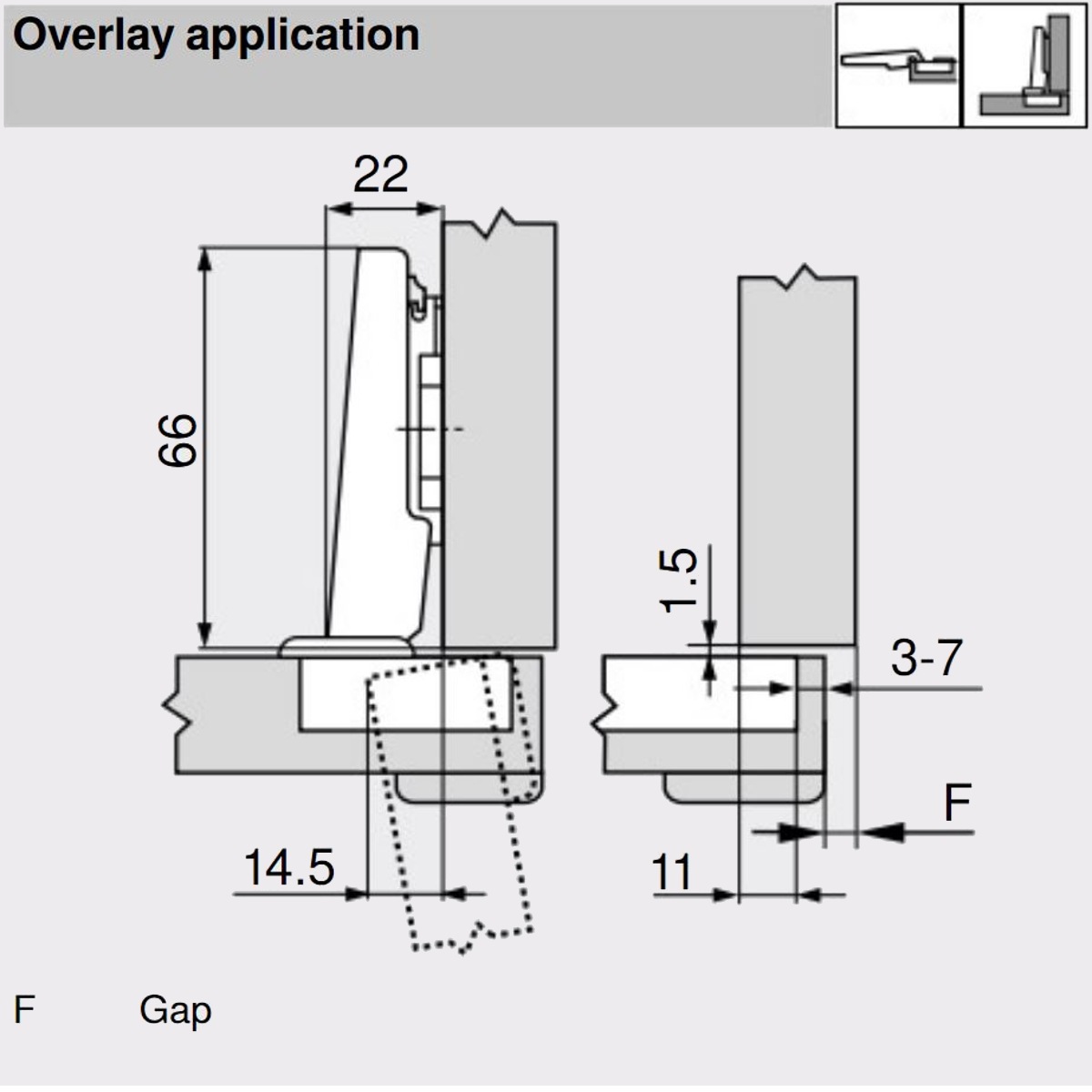

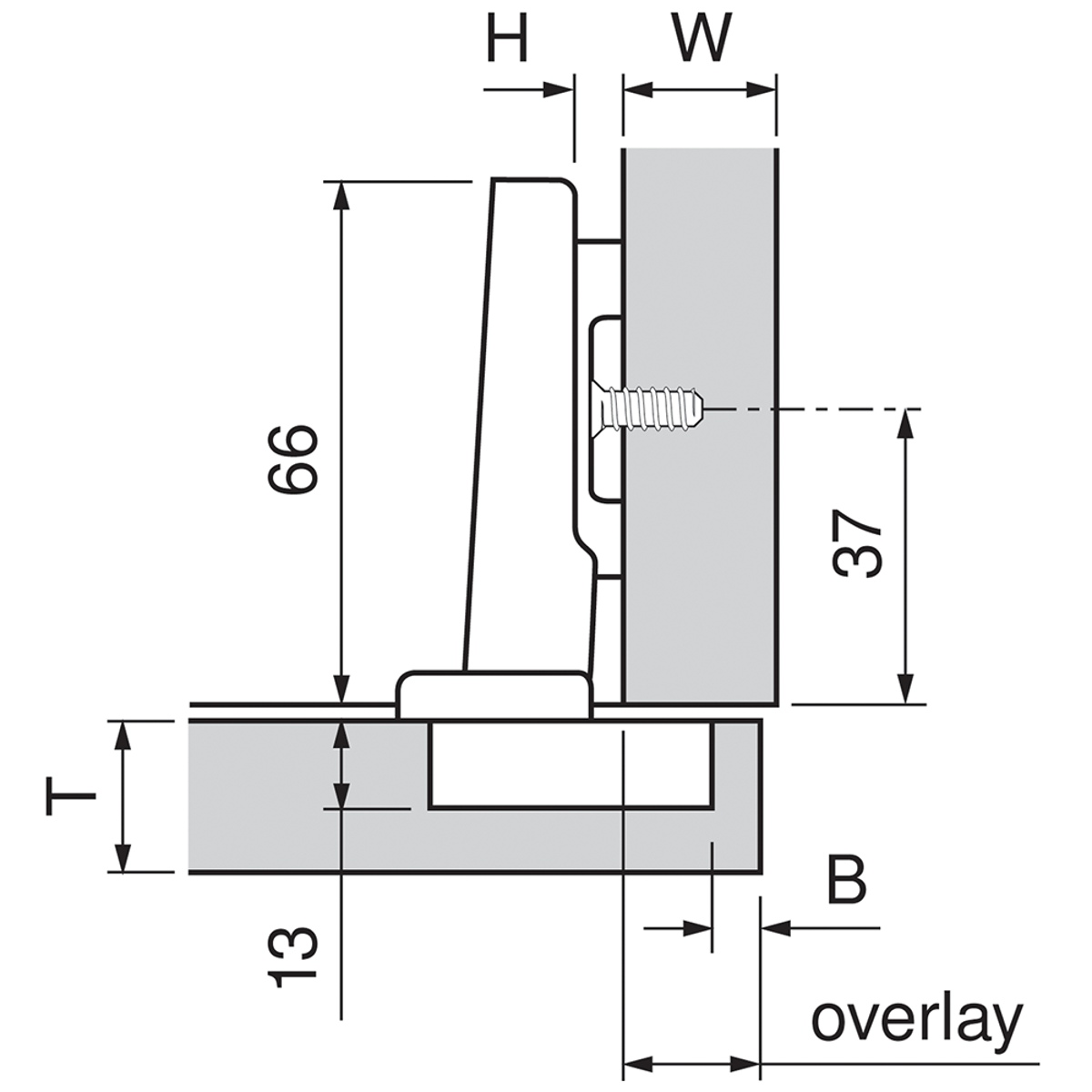

- Application: overlay doors
- Opening angle: 95 degrees
- Door thickness: 16-32mm

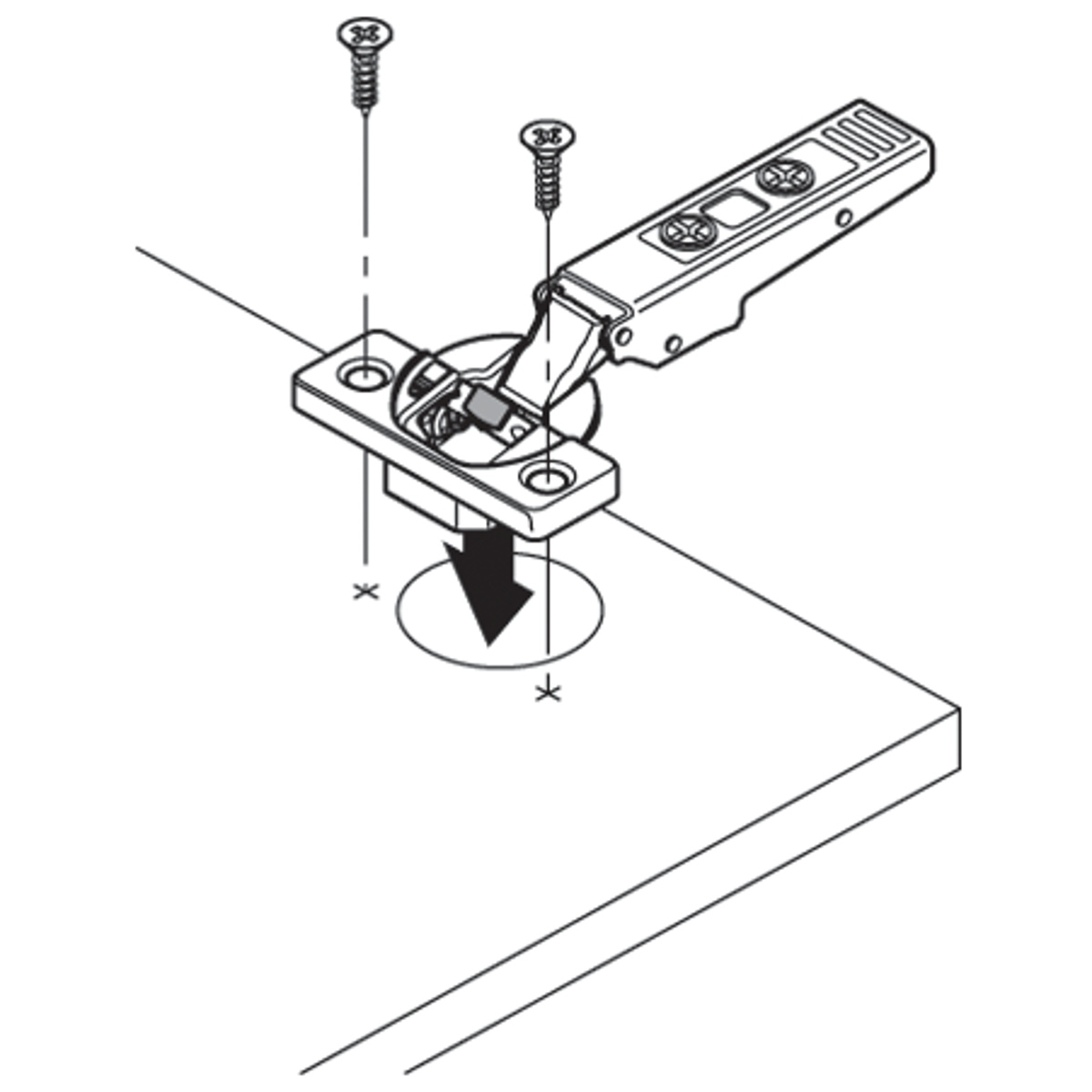

- Boss assembly - screw-on
- Finish - Nickel

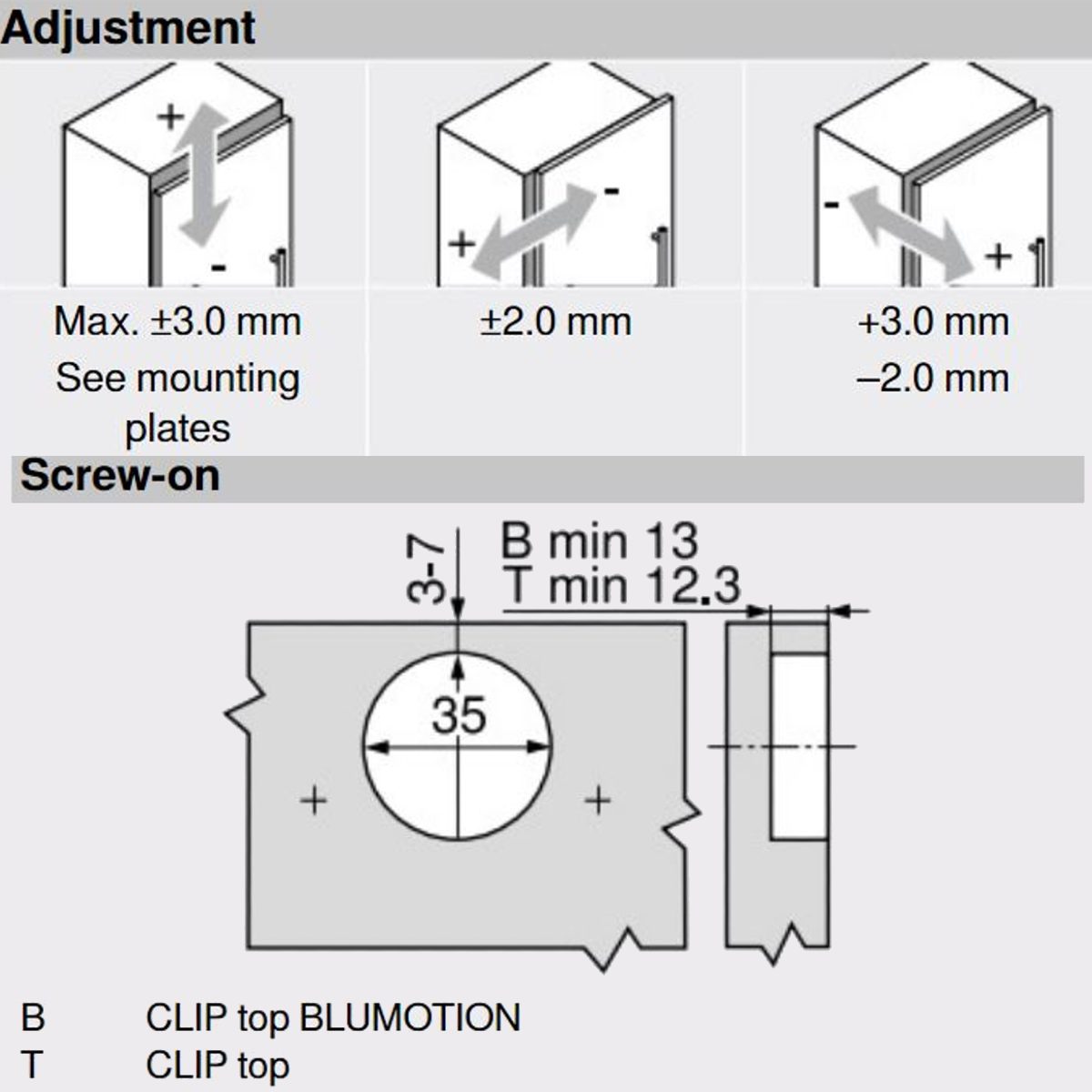

- Side adjustment: +/- 2mm
- Depth adjustment: +3mm/- 2mm
Please note that:
- The hinge mounting plate, cover cap, arm cover and screws are not included
