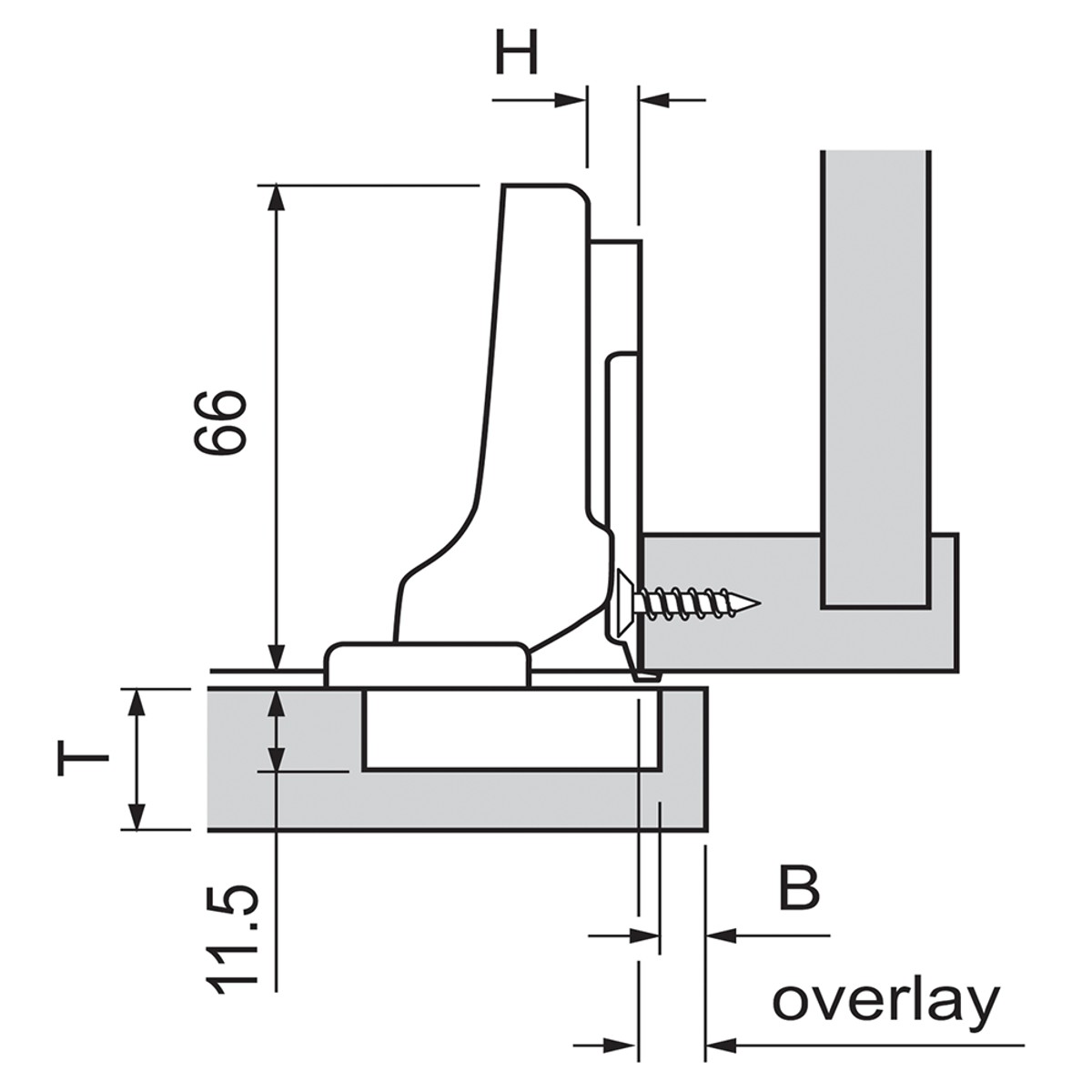

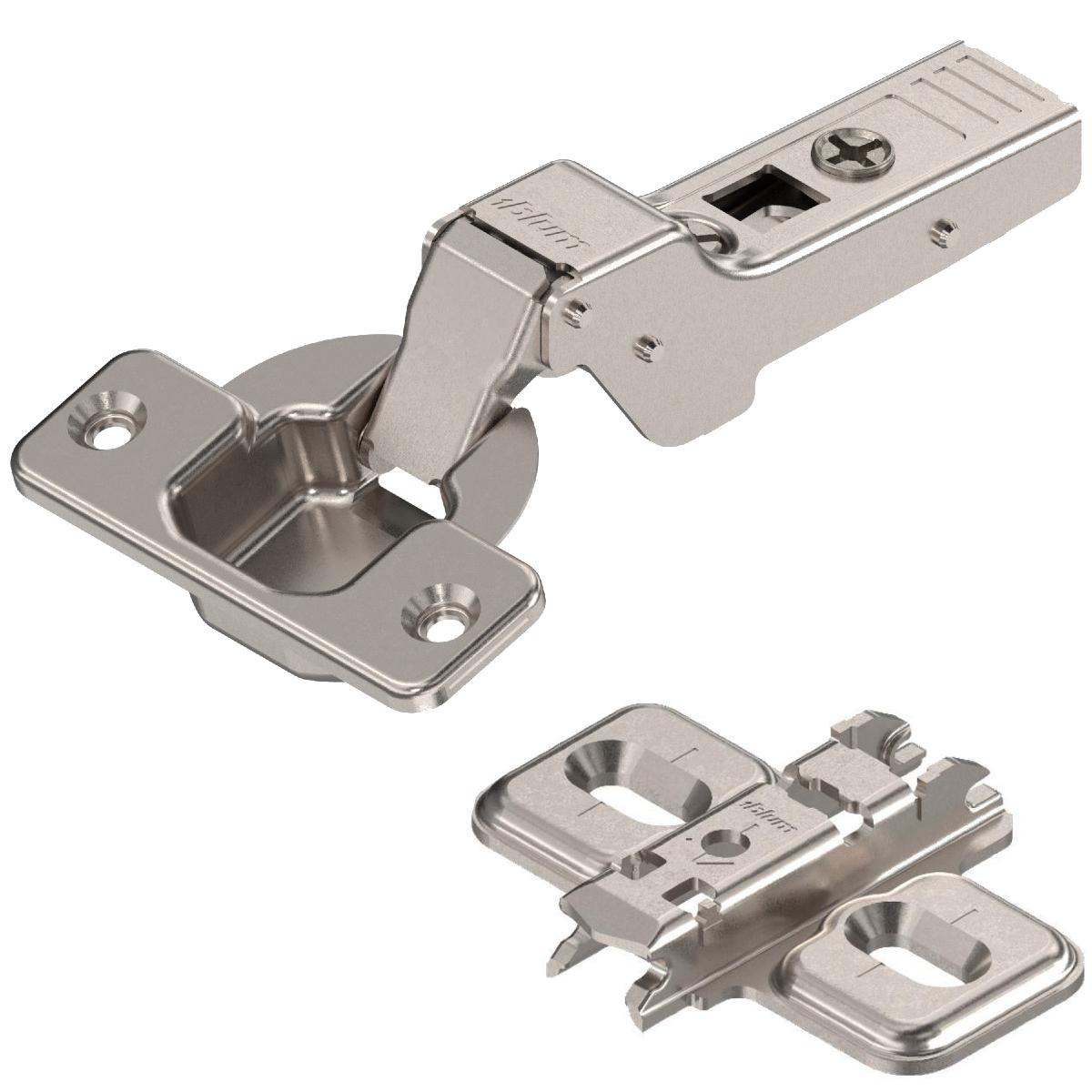

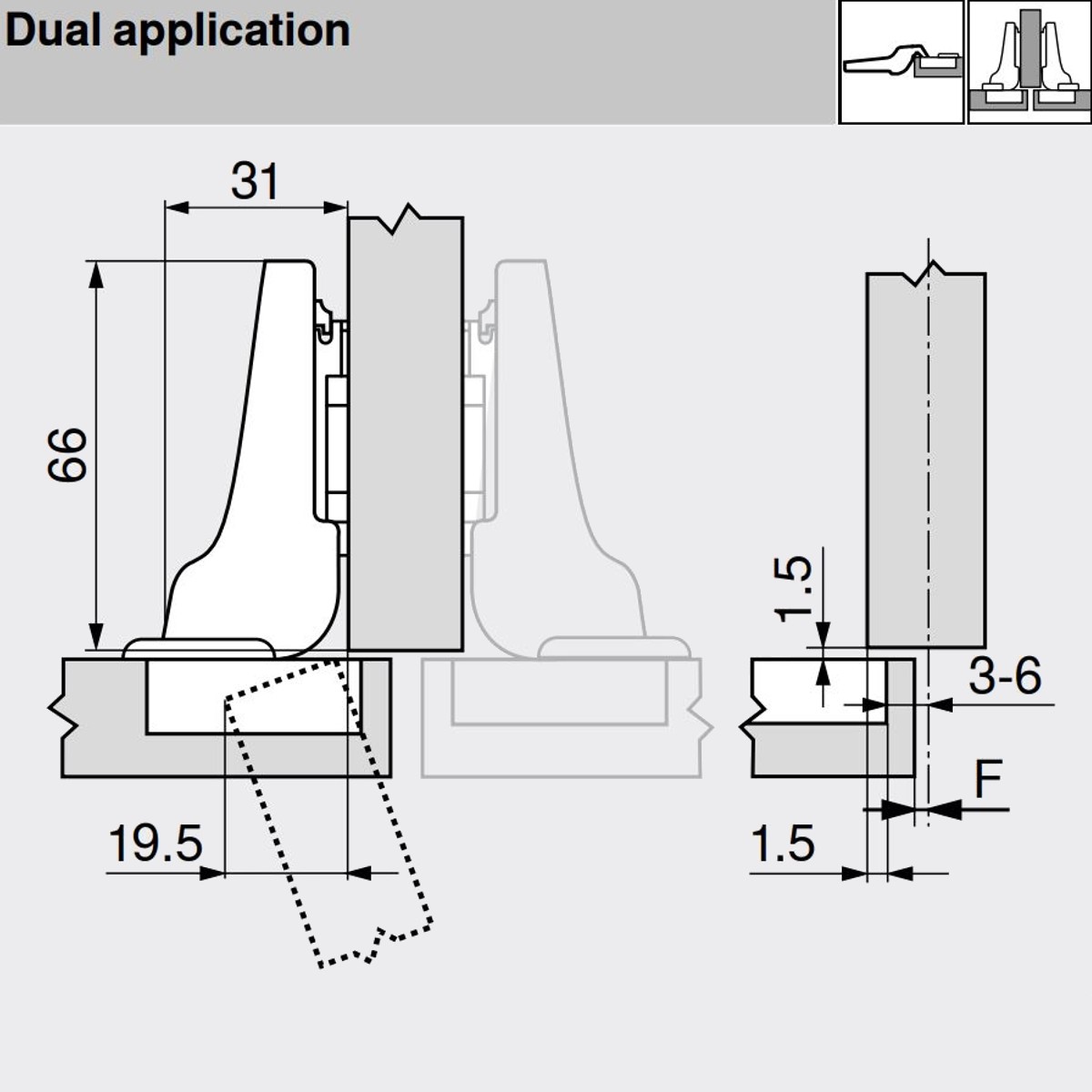

The Blum clip top half overlay 107 degree cabinet hinge 75T1650 is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 75T1650
- Opening angle: 107 degrees
- Door thickness 15-24mm

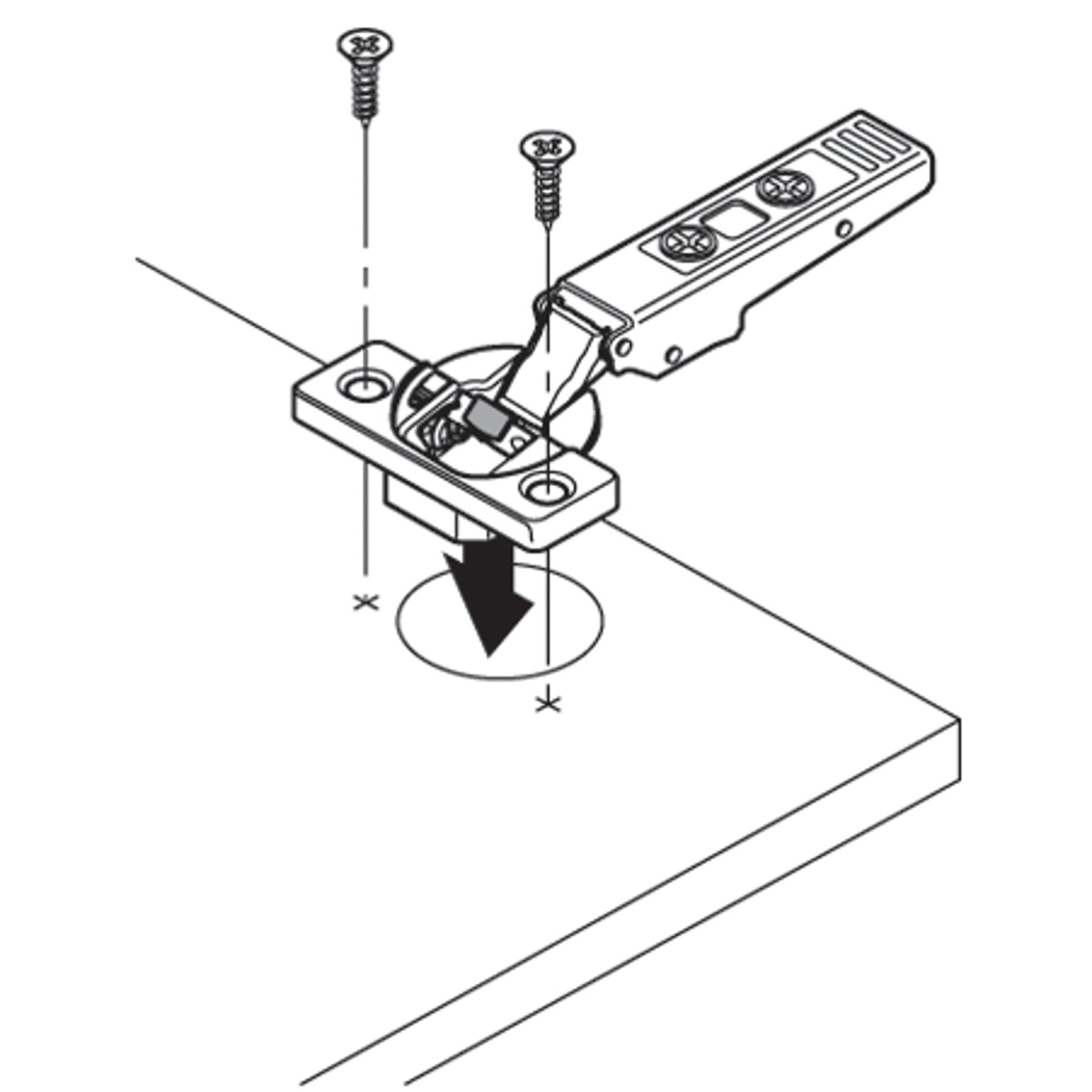

- Boss assembly: Screw-on
- Boss material: Steel
- Closing mechanism: with spring

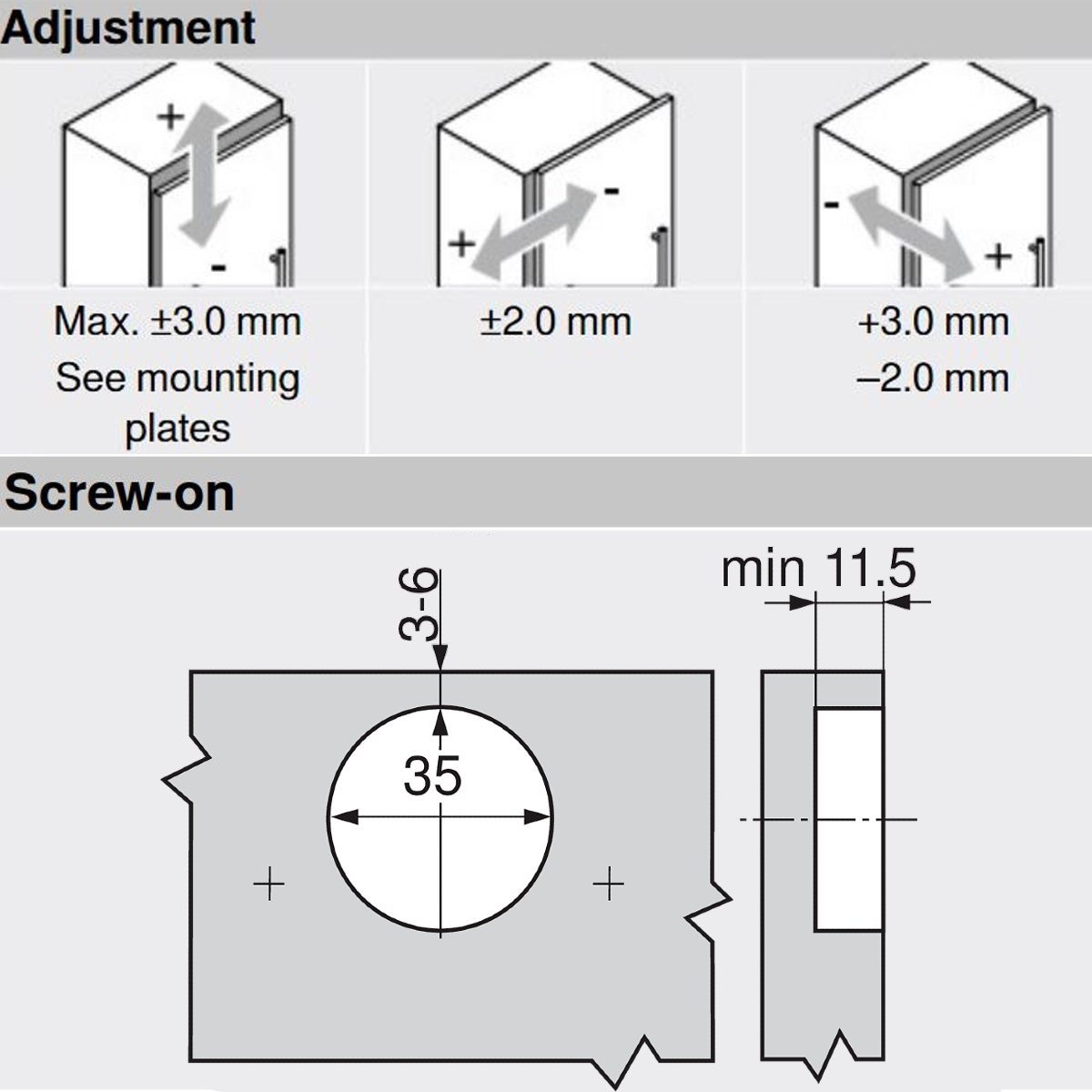

- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 0,5 mm, with screw

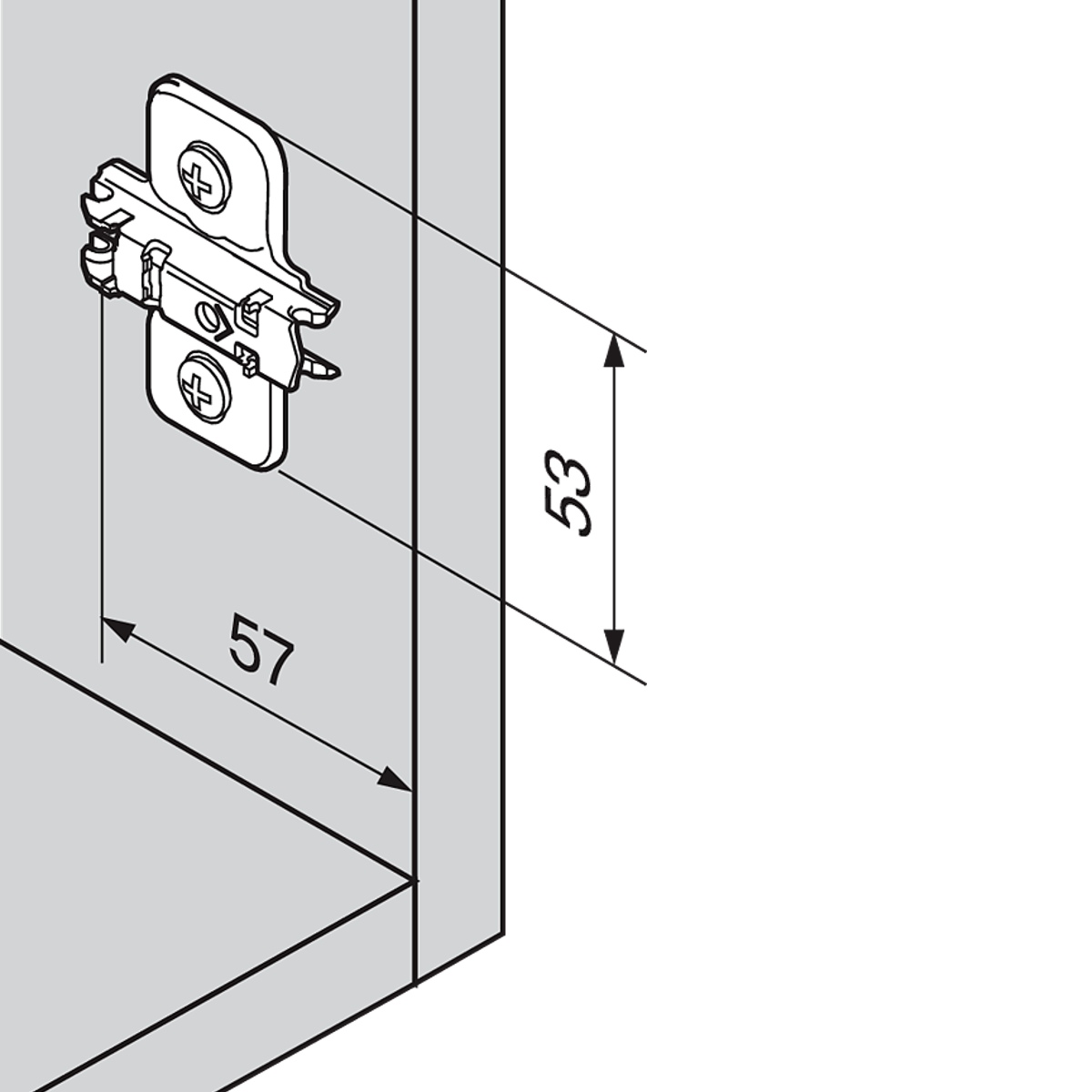

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Please note that:
- Safety information if young children have access to furniture with wide angle hinges then the 155° opening 0-protrusion hinges should be used
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
