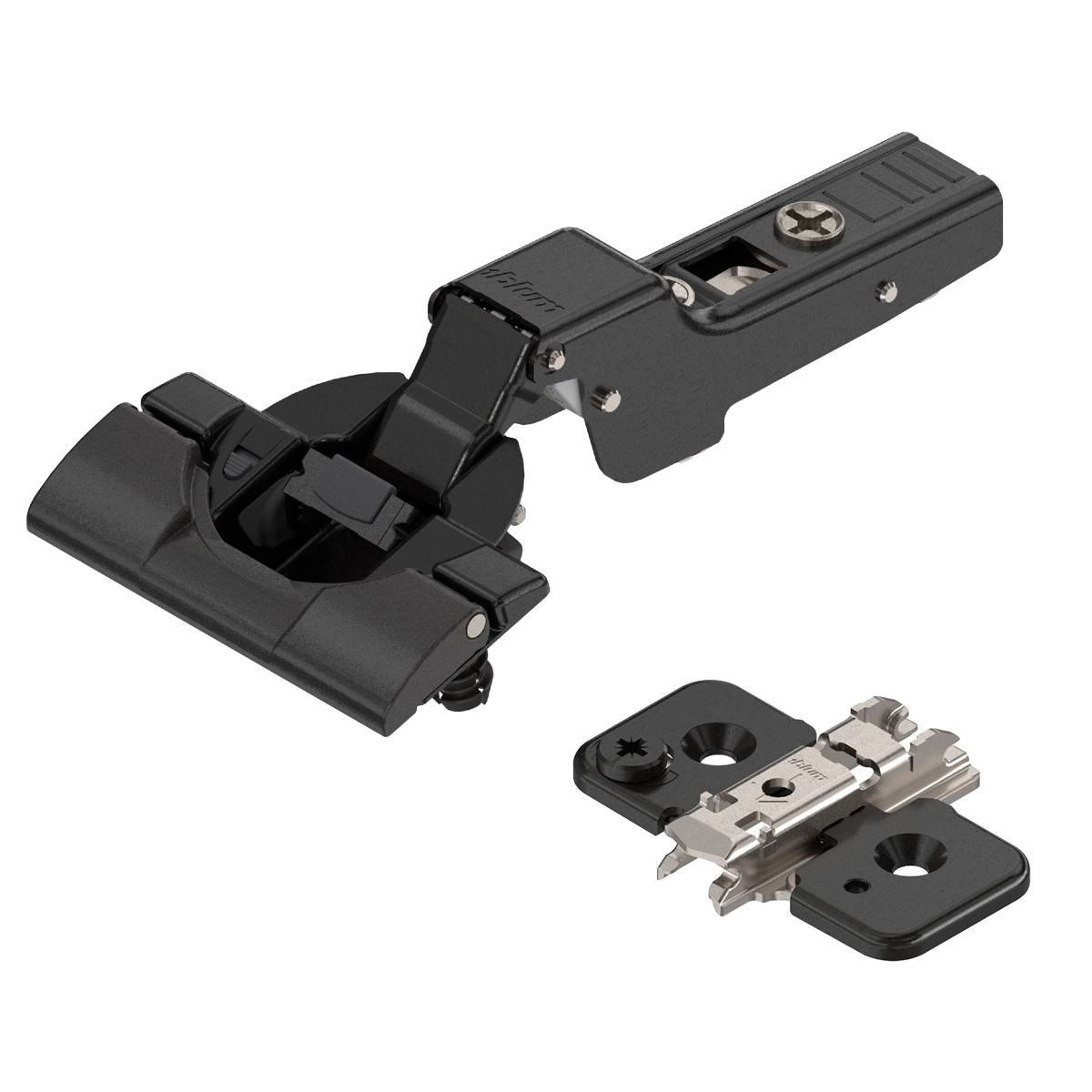

Blum Clip Top Half Overlay 110 Degree Blumotion Cabinet Hinge 71B3690 Inserta With Mounting Plate Onyx

9778-001
Price from: £6.10inc VAT
+

The Blum clip top half overlay 110 degree cabinet hinge 71B3690 inserta is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top half overlay blumotion hinge 71B3690
  • Opening angle: 110°
  • Door thickness: 16-26mm

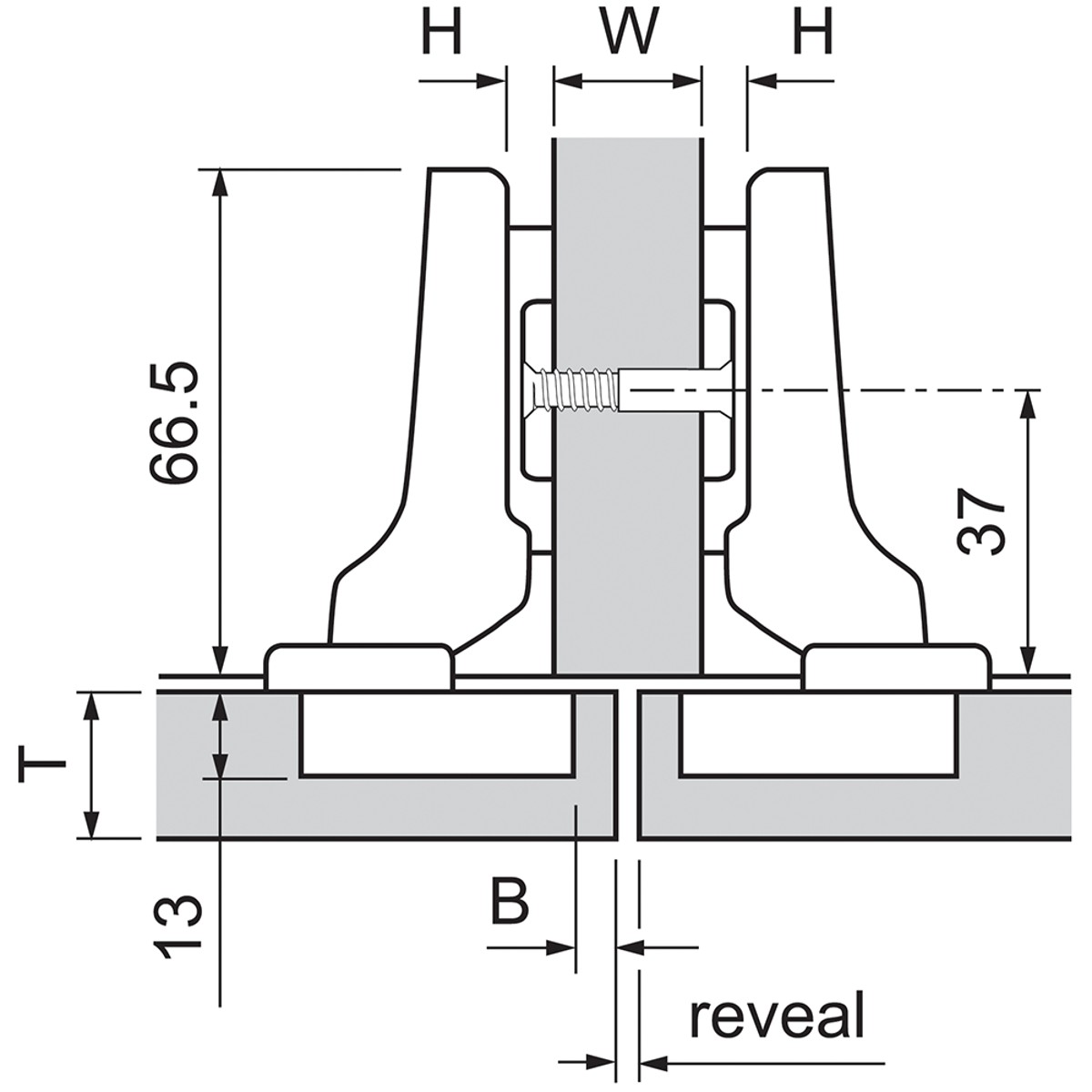

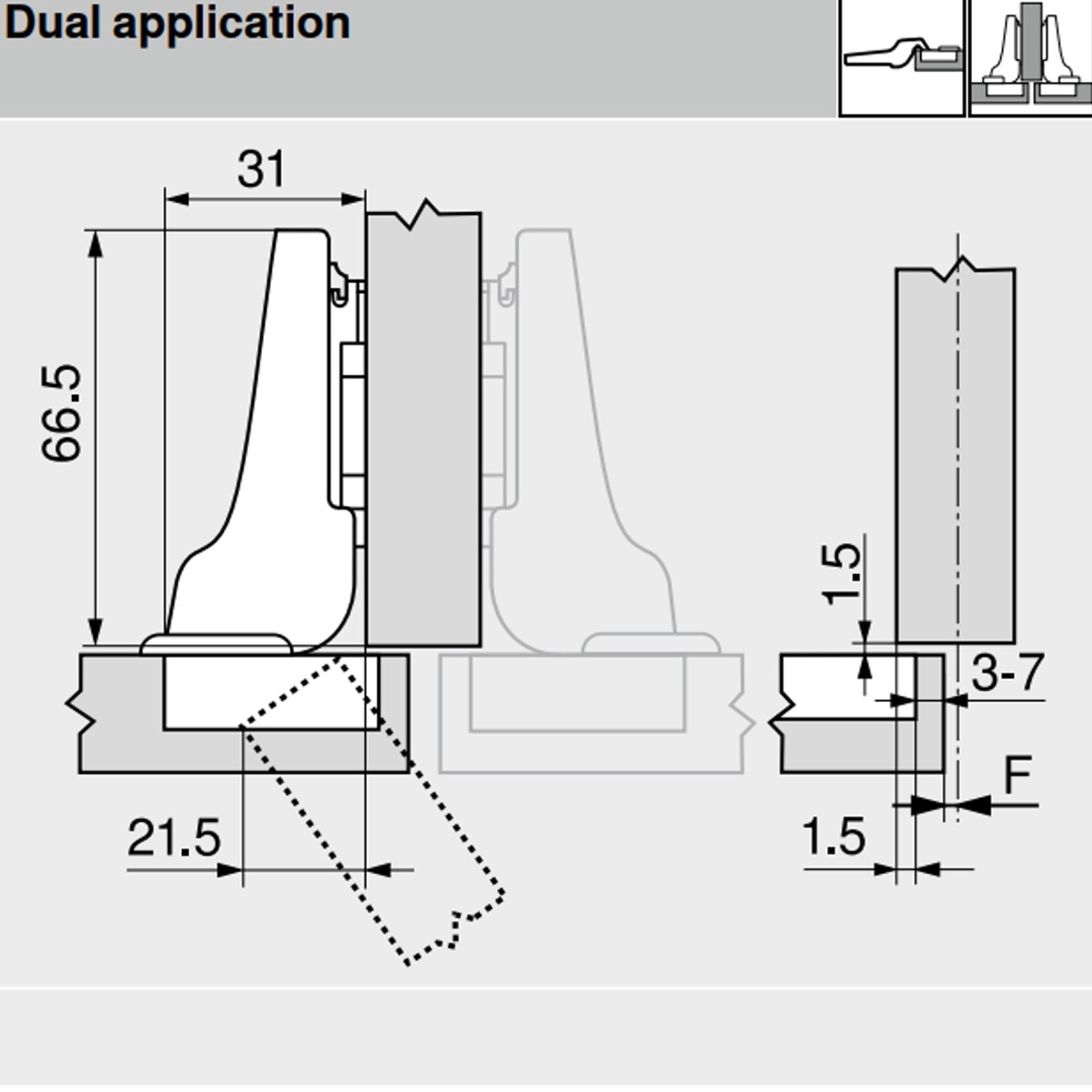

  • Cranking: dual application
  • Blumotion soft-close

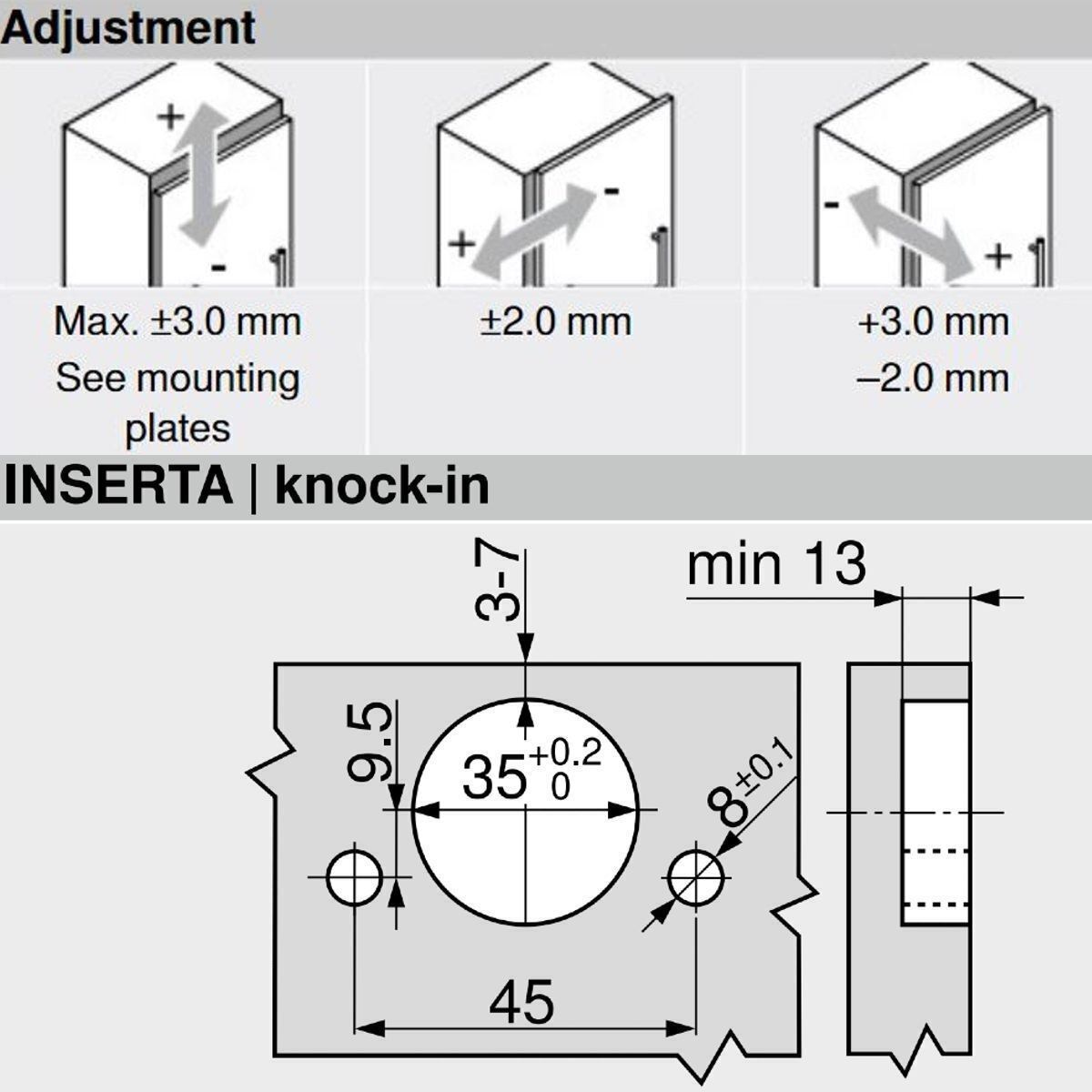

  • Boss assembly: inserta
  • Boss material: steel boss
  • Closing mechanism: with spring

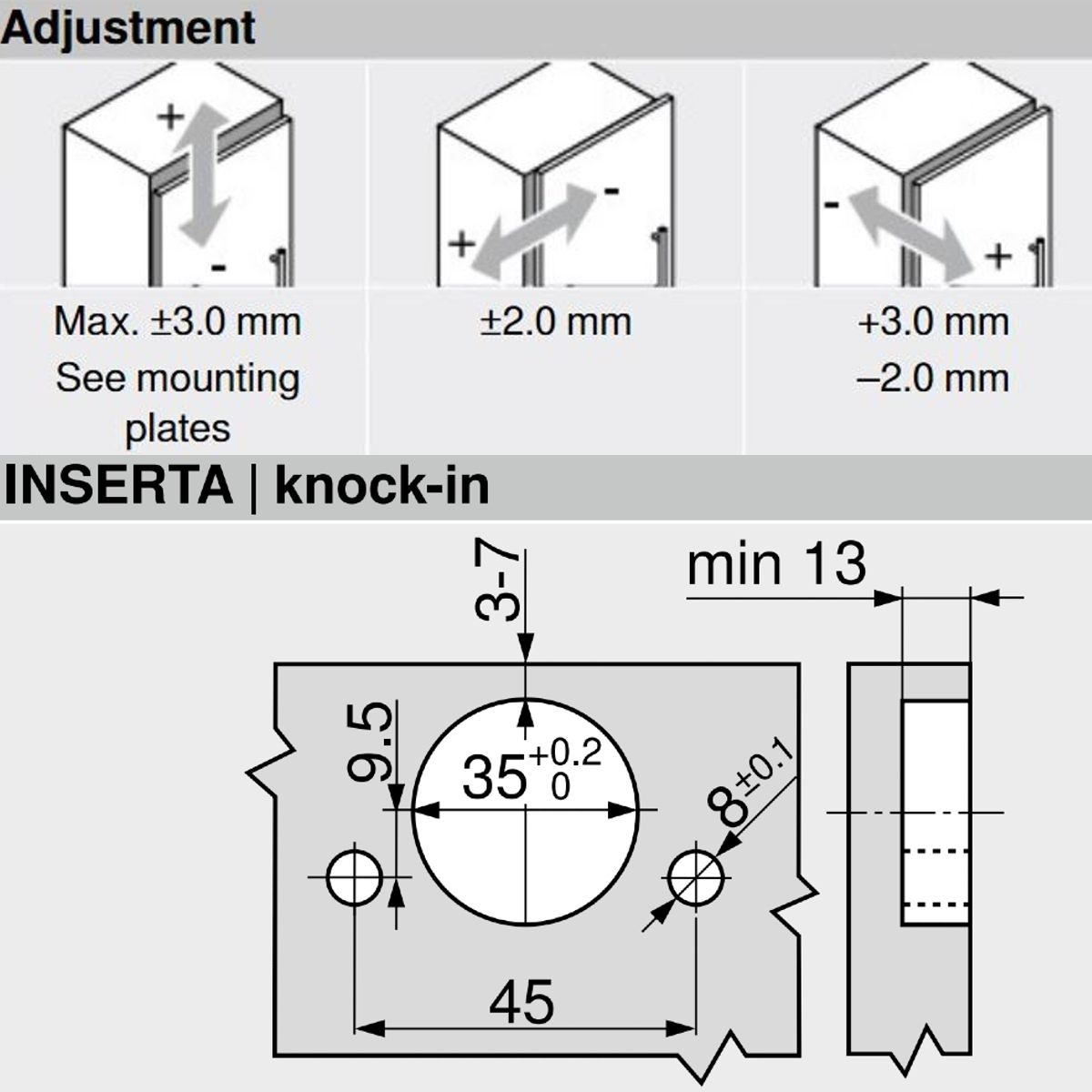

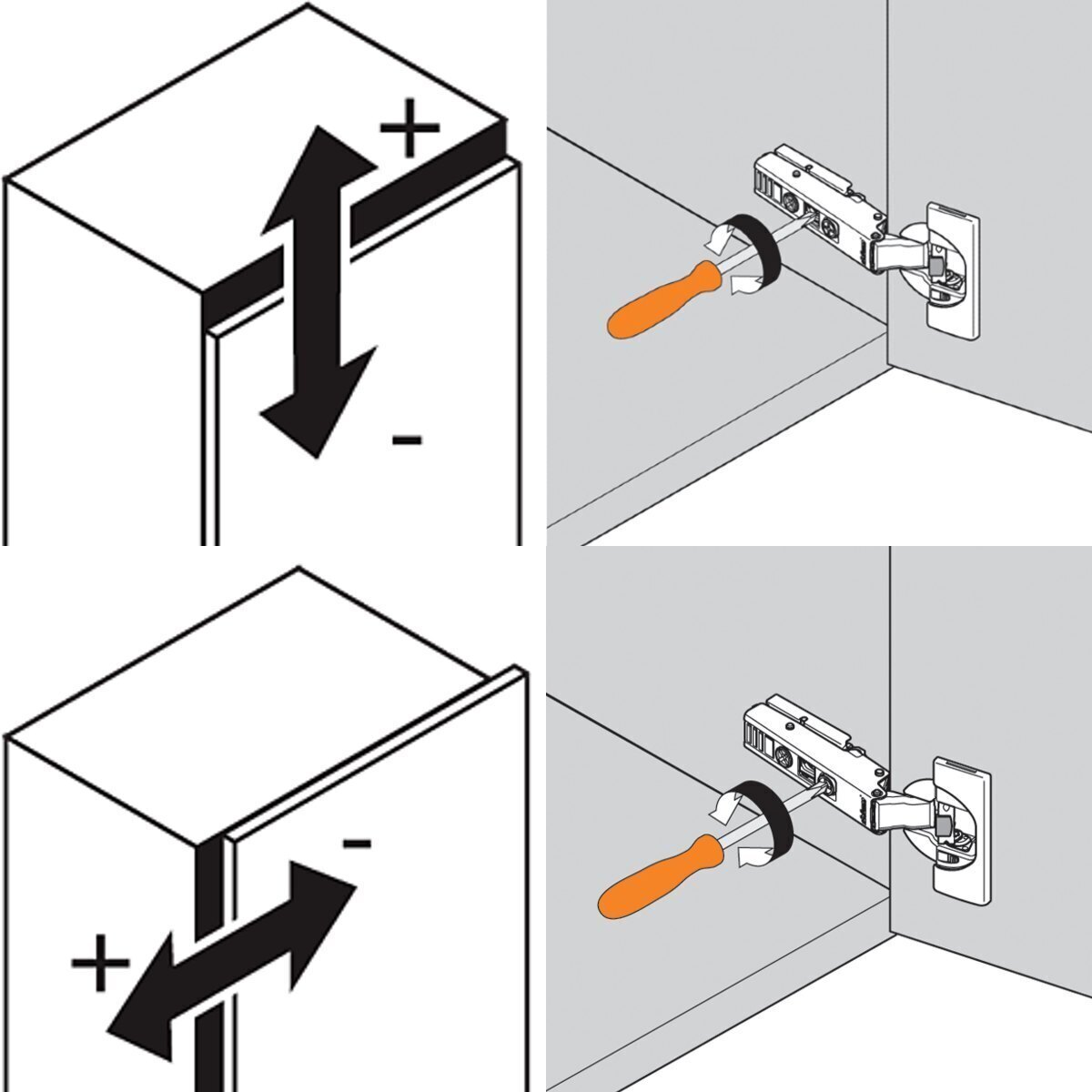

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

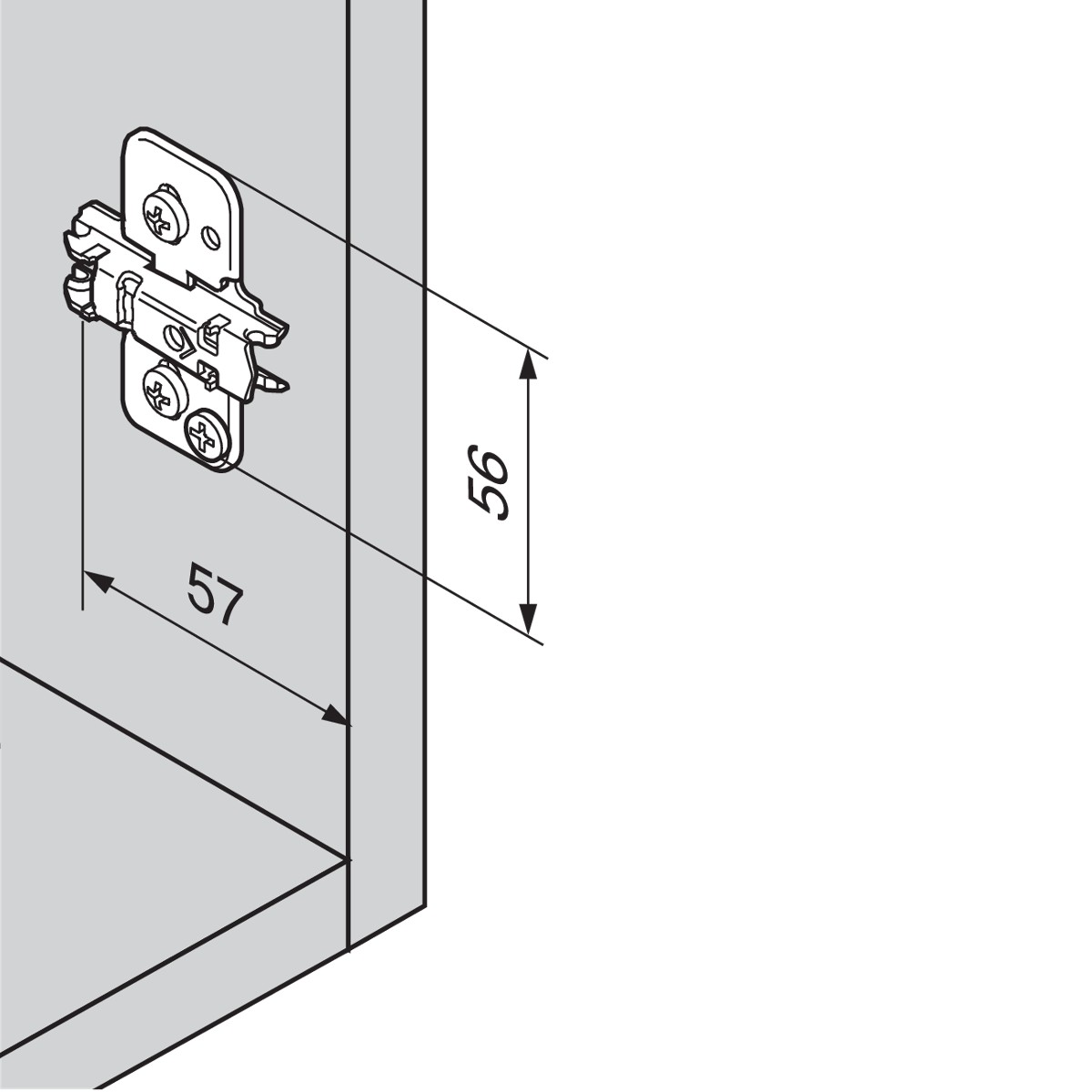

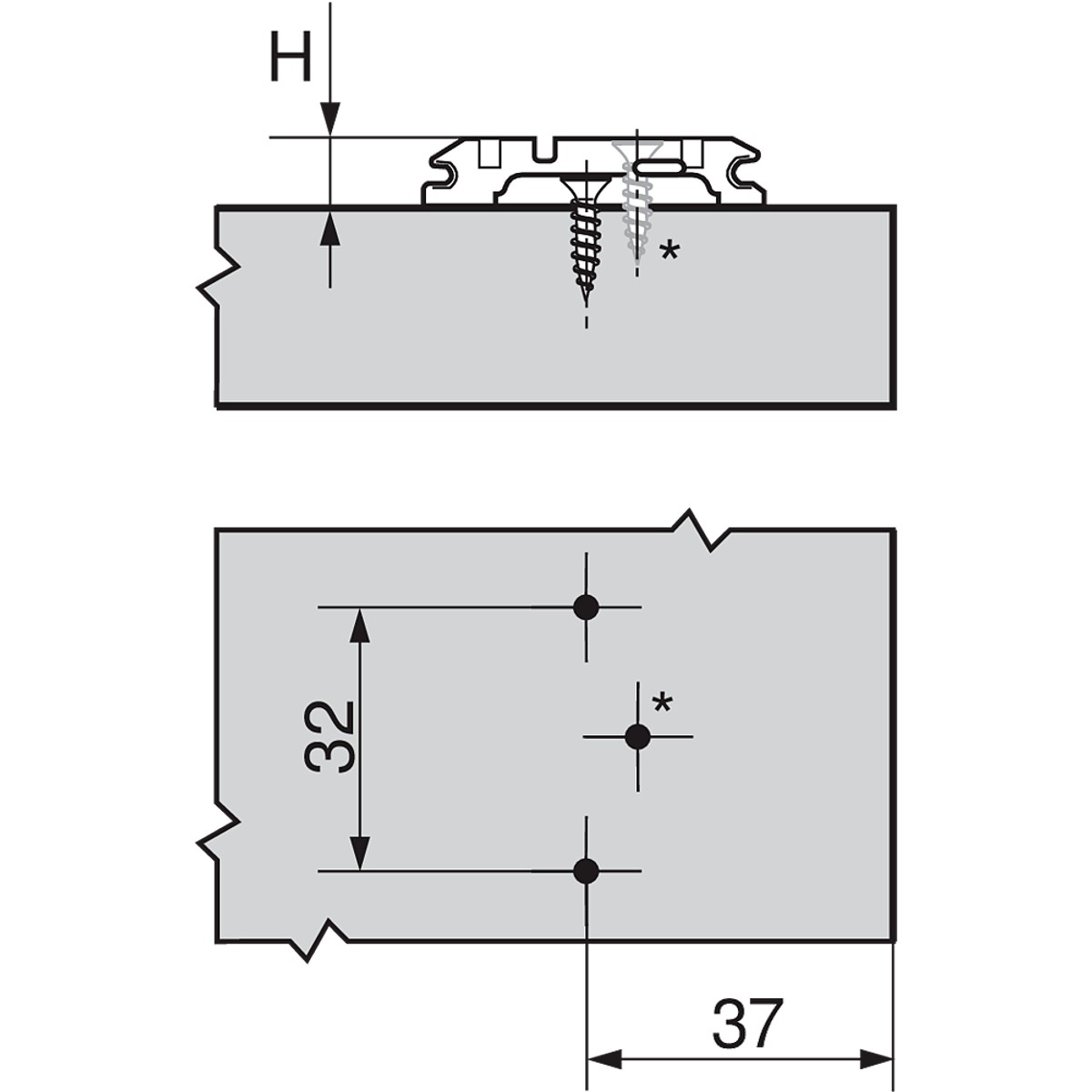

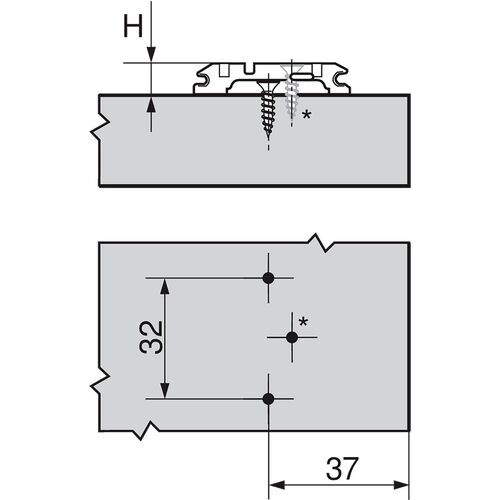

Mounting plates:

  • 173H7100:
    • Adjustment: yes
    • Spacing: 0mm
    • Screws: no
  • 175H3100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 177H3100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H31310:
    • Screws: no
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E: Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
