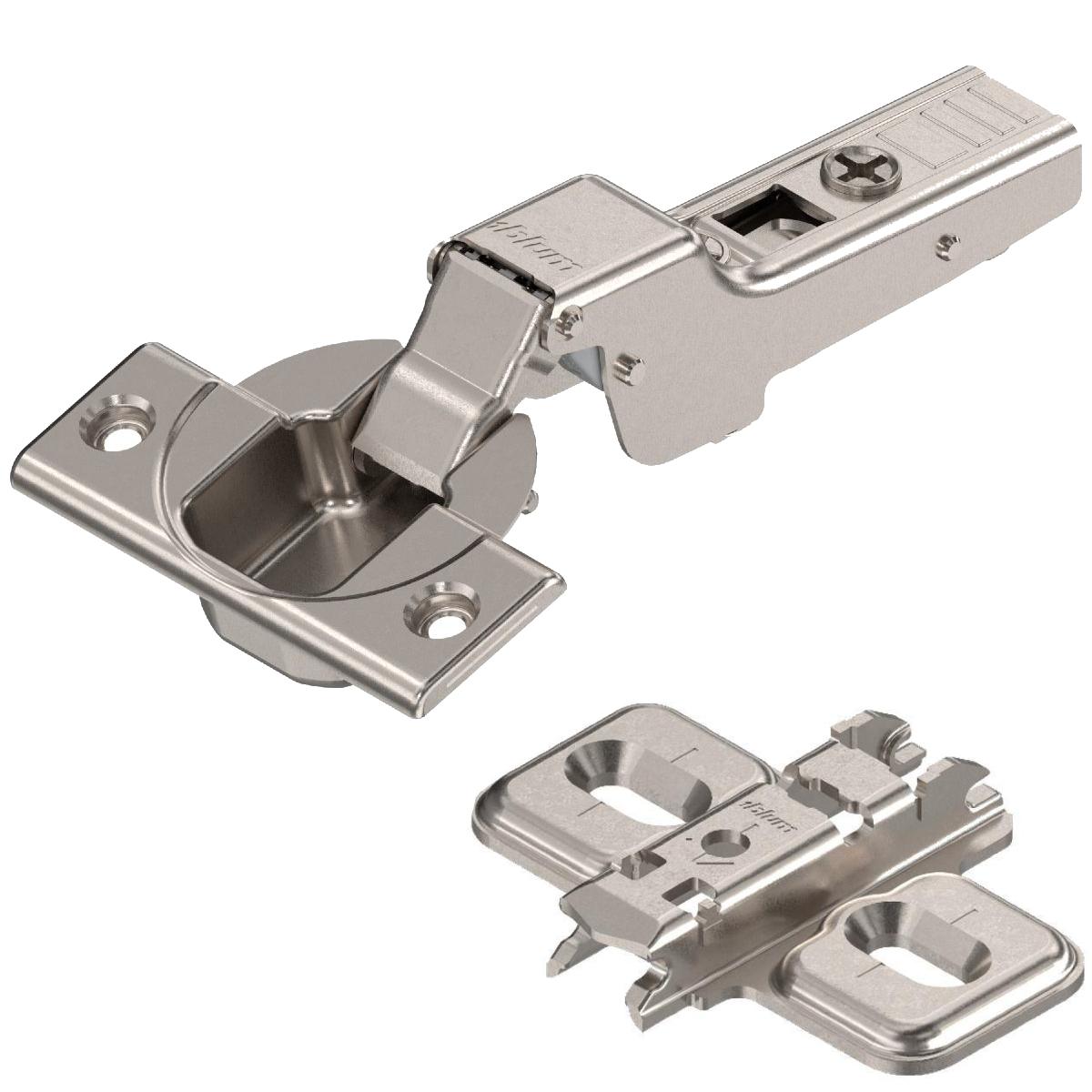

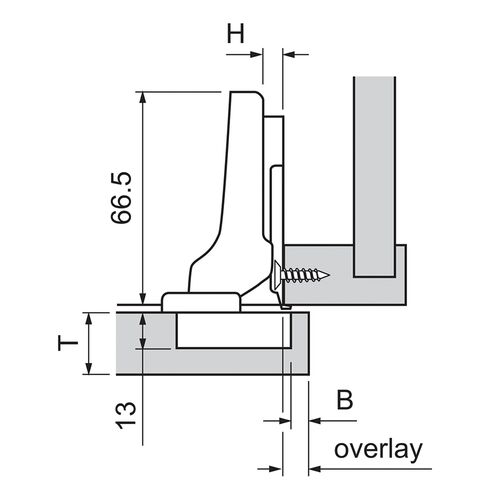

The Blum clip top half overlay 110 degree cabinet hinge 71T3650 is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 71T3650
- Opening angle: 110 degrees
- Door thickness: 16-26mm
- Cranking: horizontal

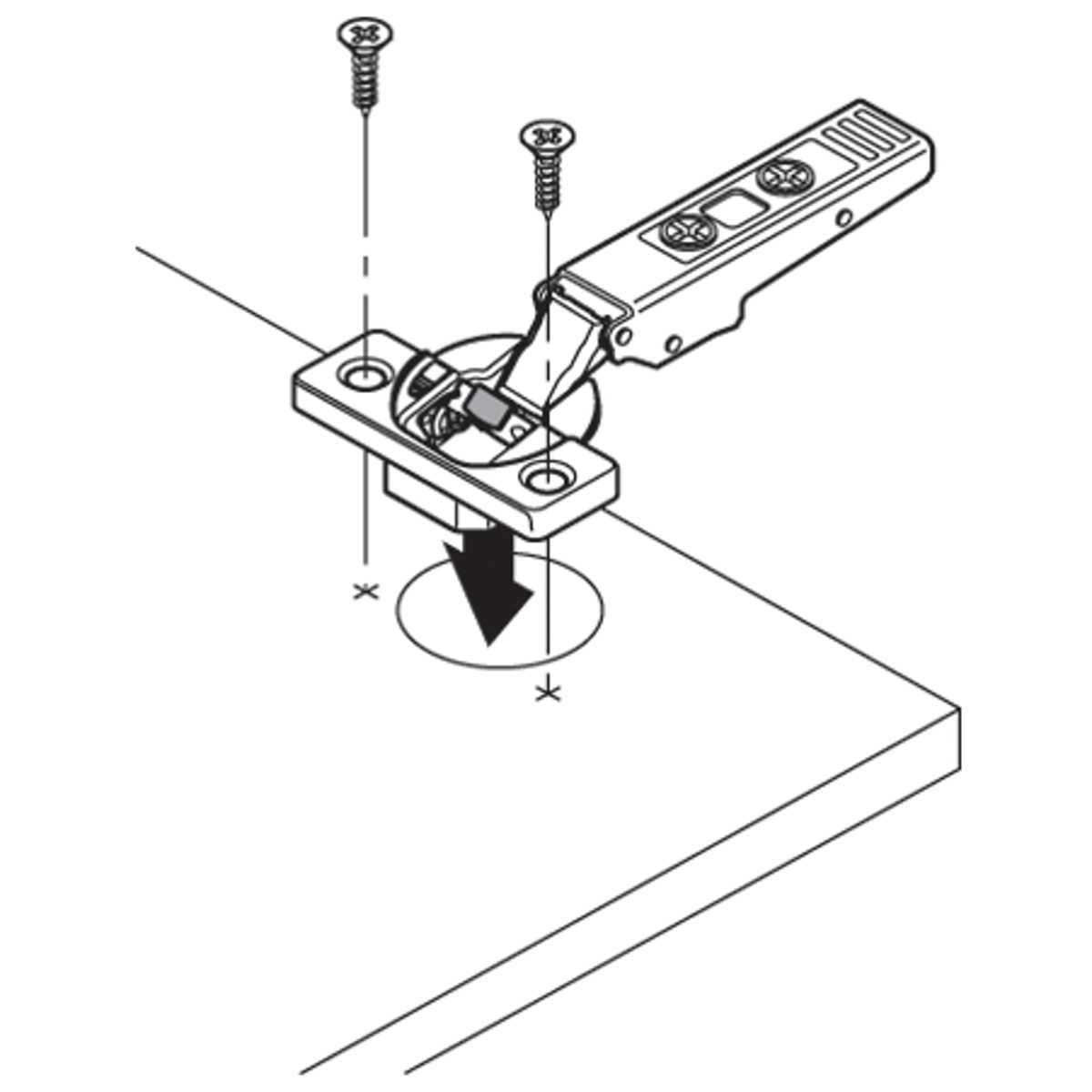

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

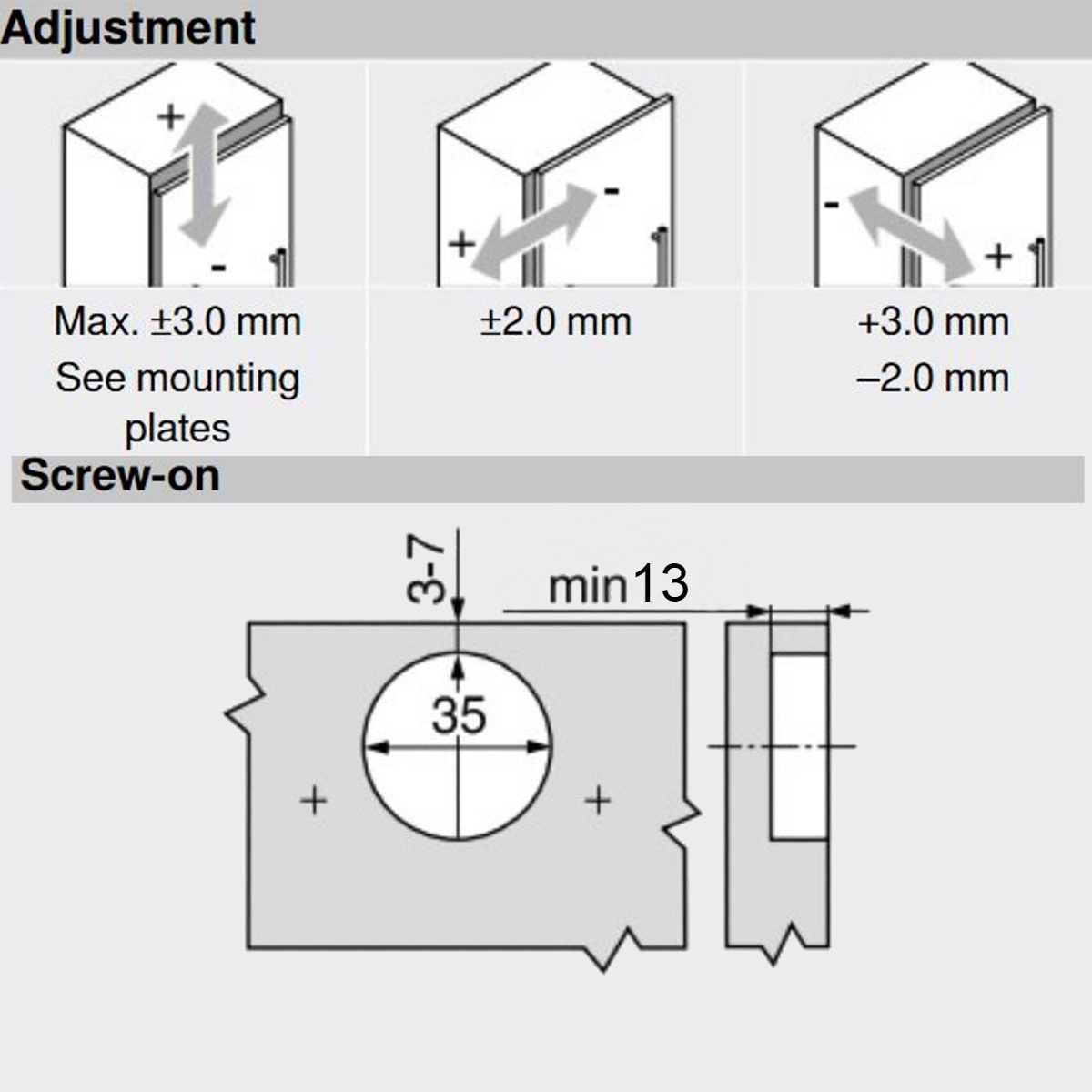

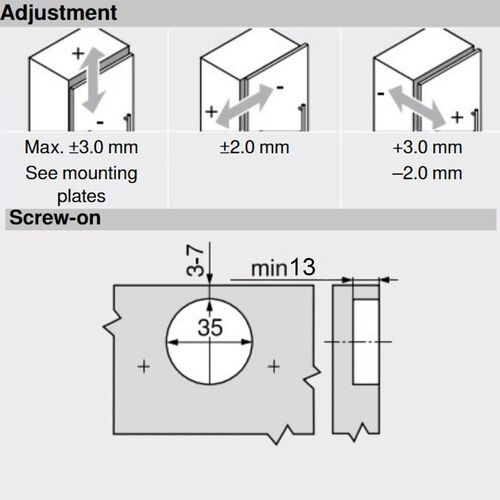

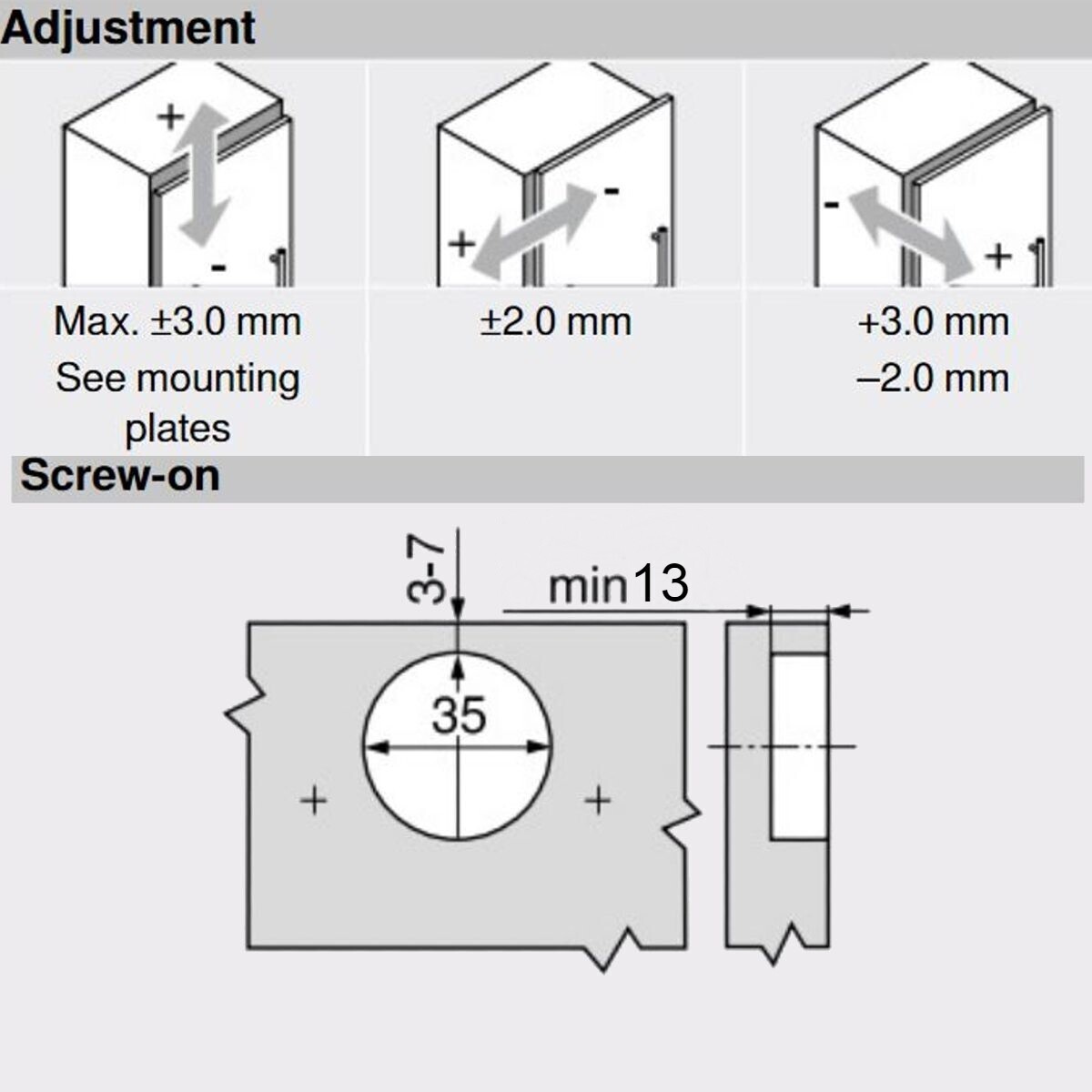

- Side adjustment: +/- 2mm
- Depth adjustment: plus 3mm/minus 0,5mm, with screw

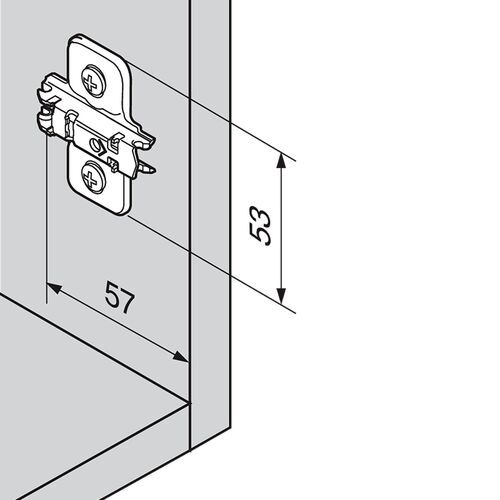

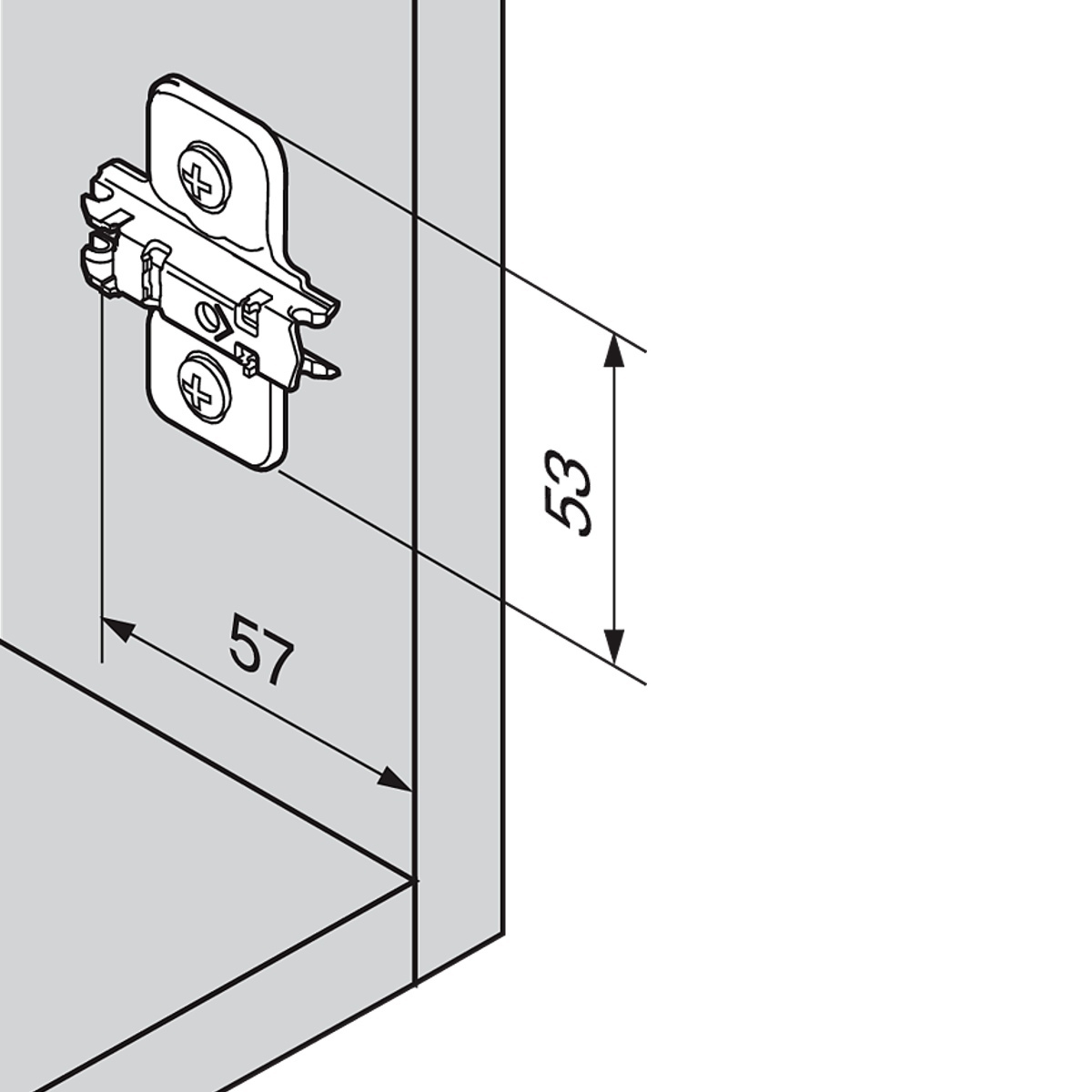

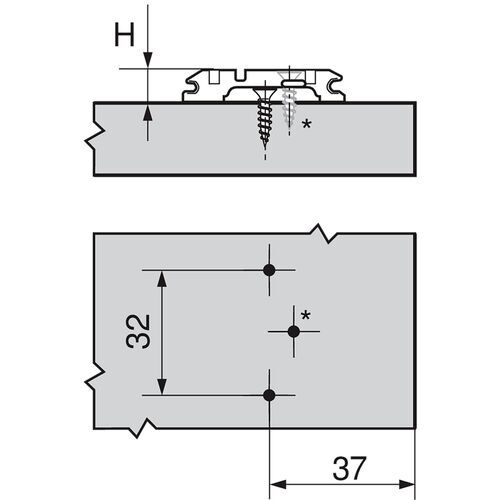

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
