Blum Clip Top Half Overlay 110 Degree Unsprung Cabinet Hinge 70T3650 Tip-on With Mounting Plate

9887-001
Price from: £2.90inc VAT
Write a review
− +

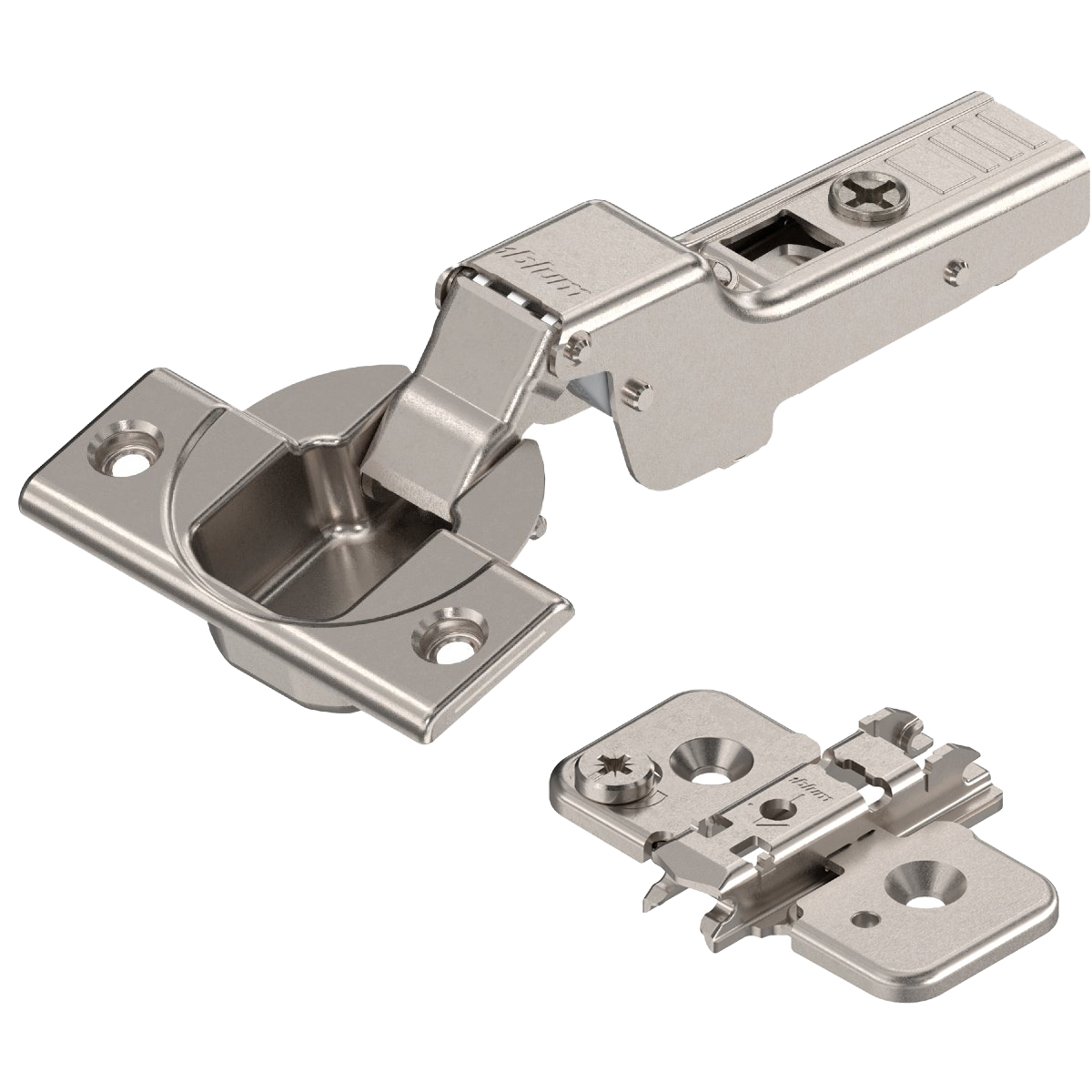

The Blum clip top half overlay 110 degree cabinet hinge 70T3650TL is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top standard hinge 71B3650TL
  • Opening angle: 110 degrees

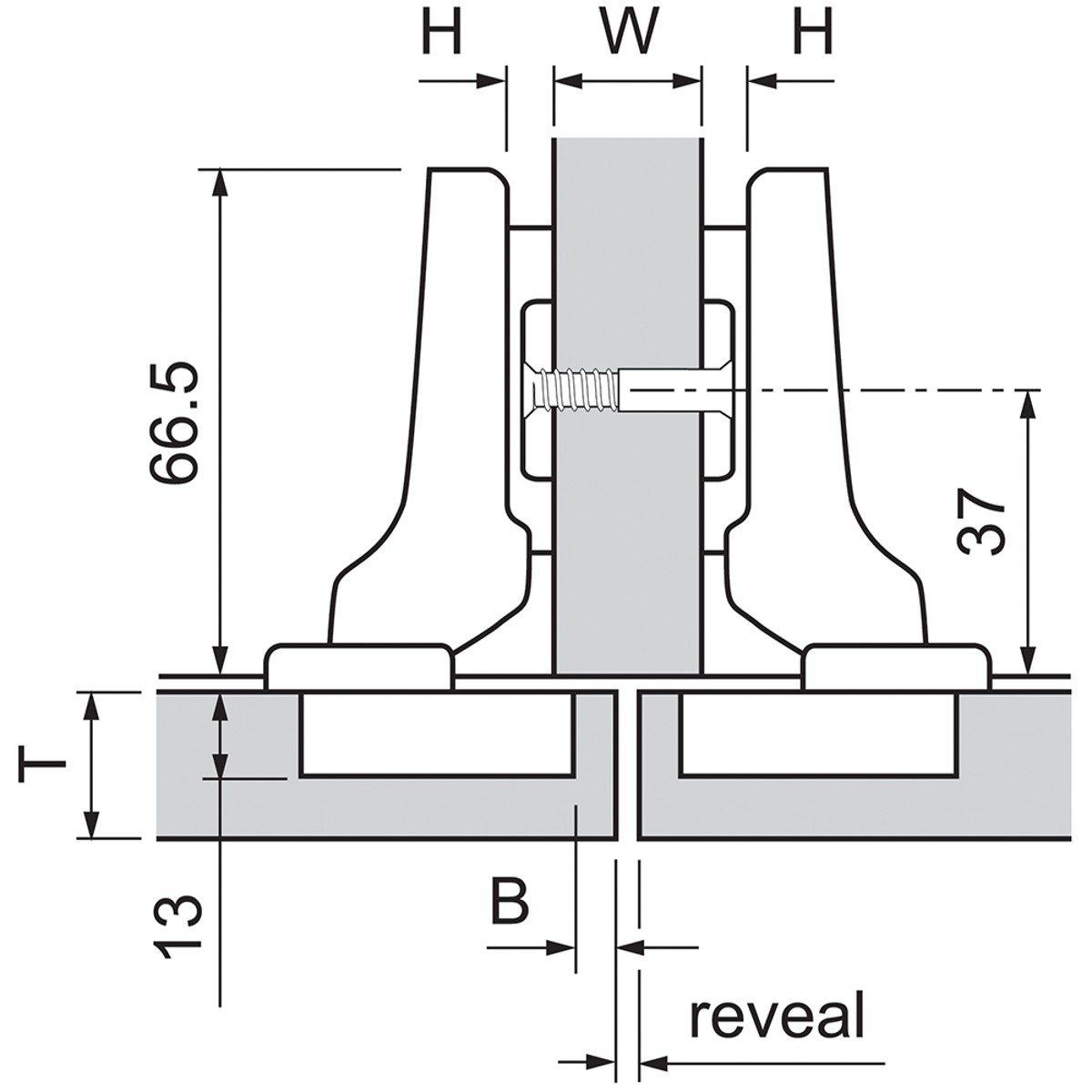

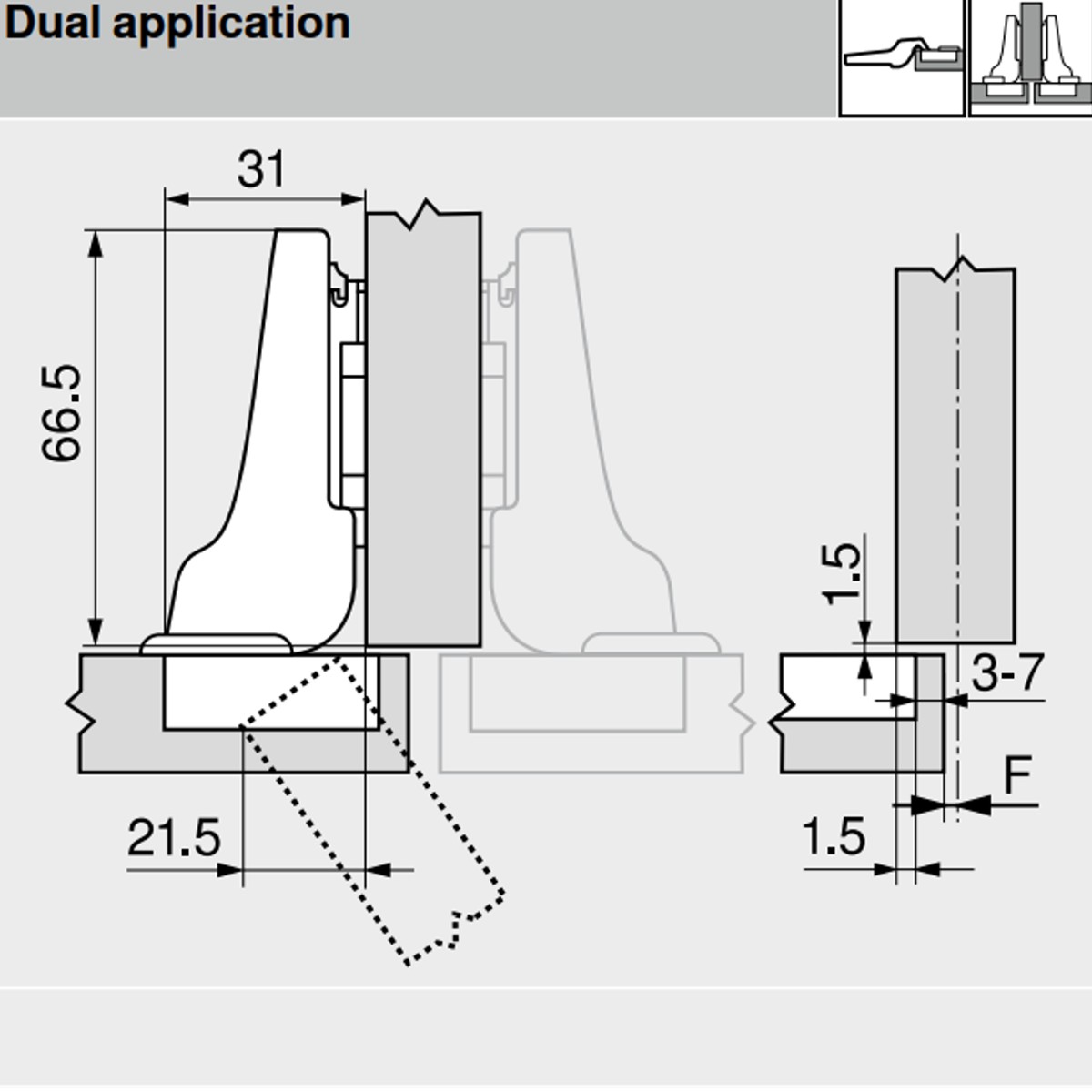

  • Cranking: half overlay application (dual application)

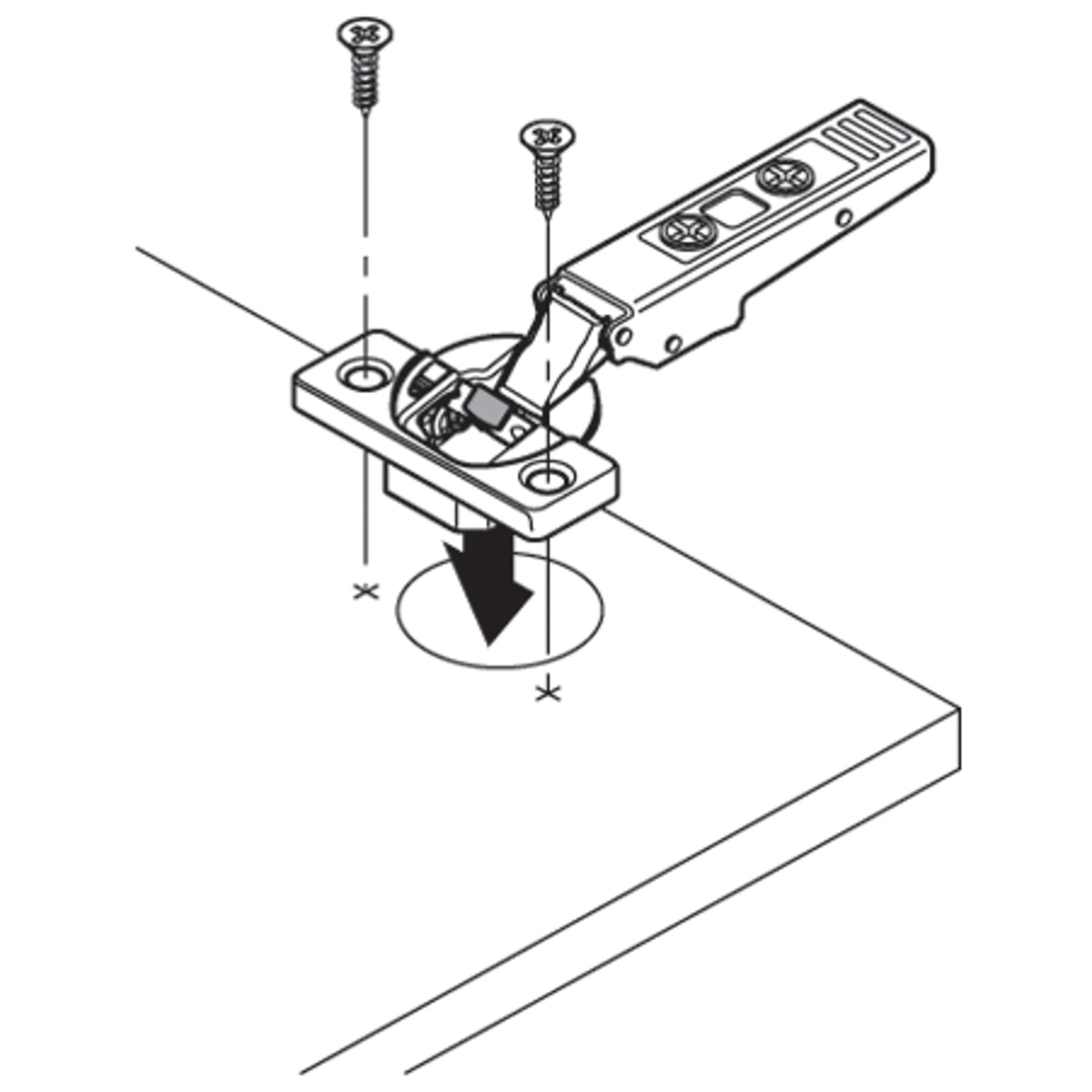

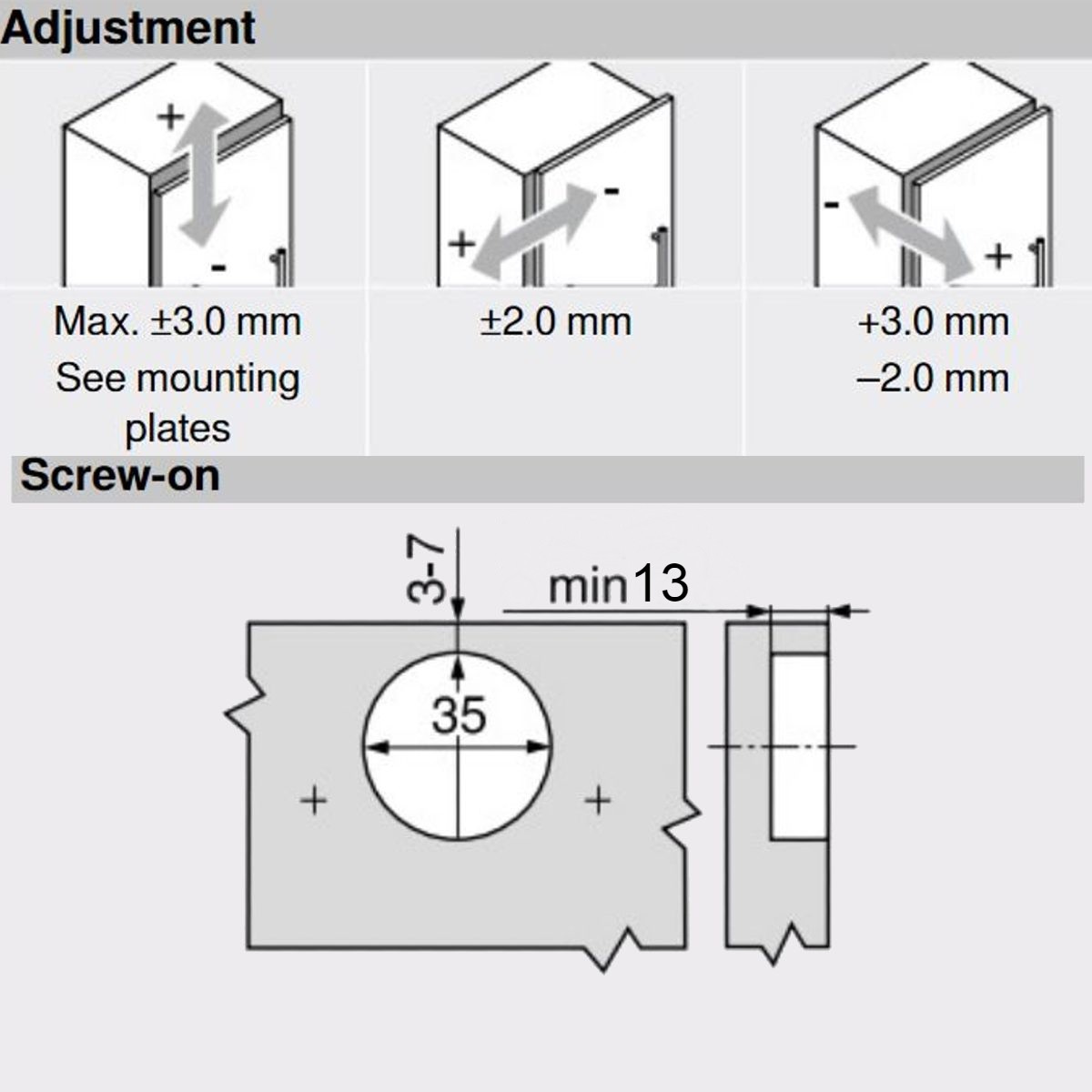

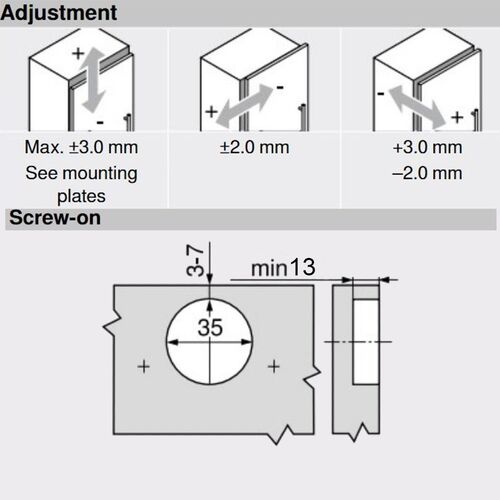

  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: Un-sprung (for Tip-on)
  • Door thickness: 16-26mm
  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

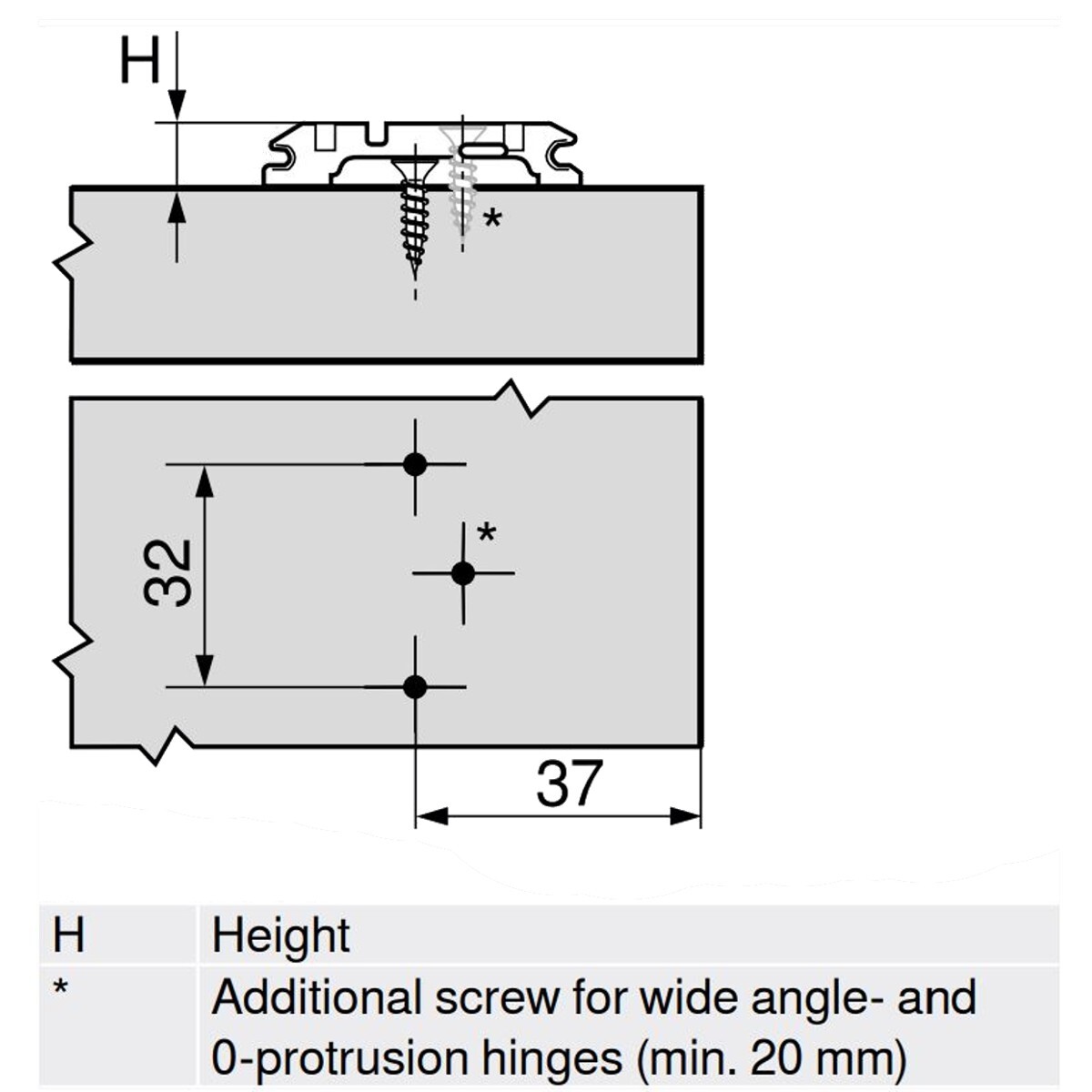

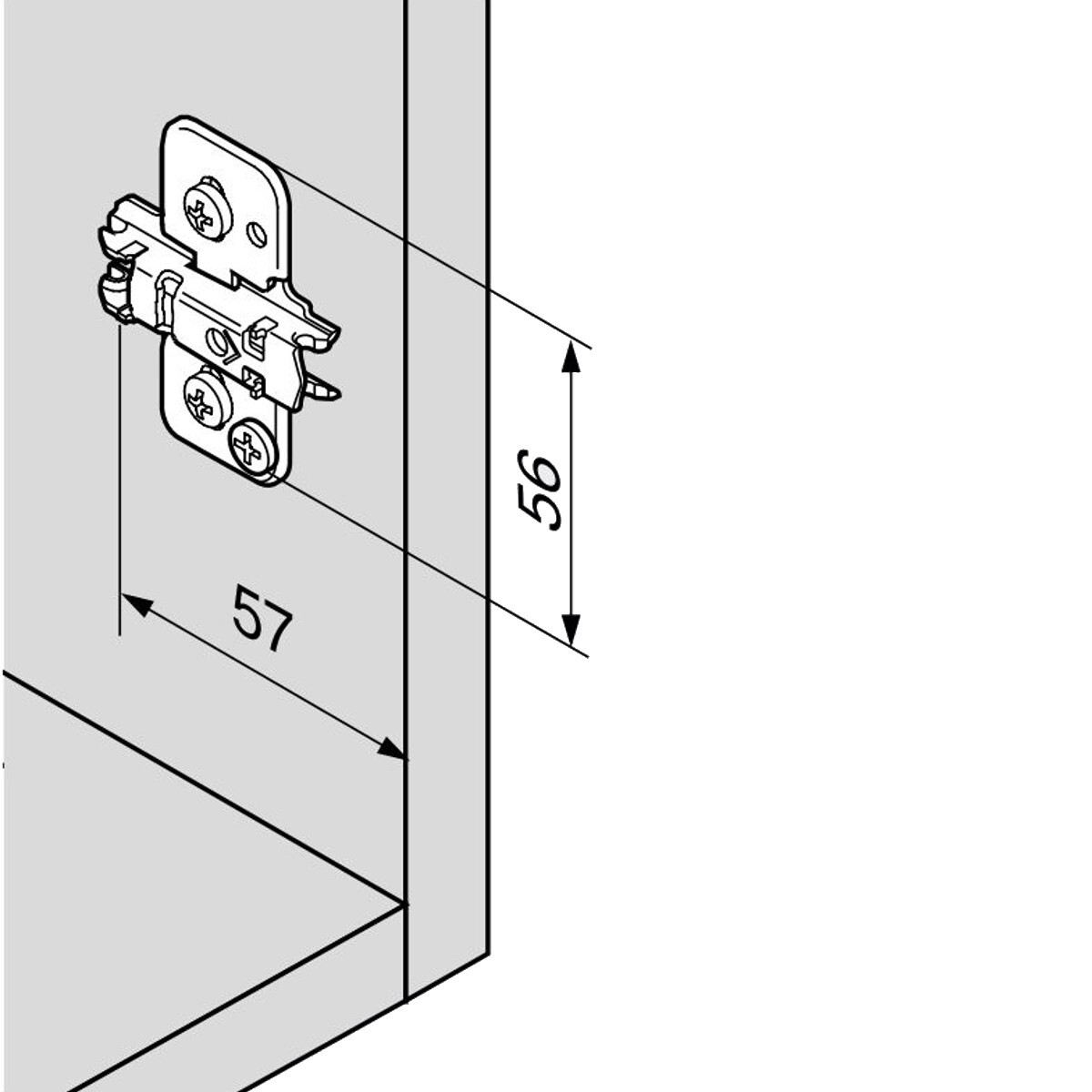

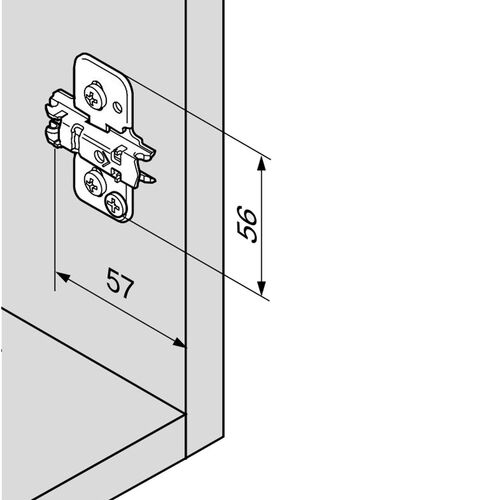

Mounting plates:

  • 173L6100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173L8100
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H3100 (inline)
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
  • 175H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
173H7100
Cover Caps:
No
