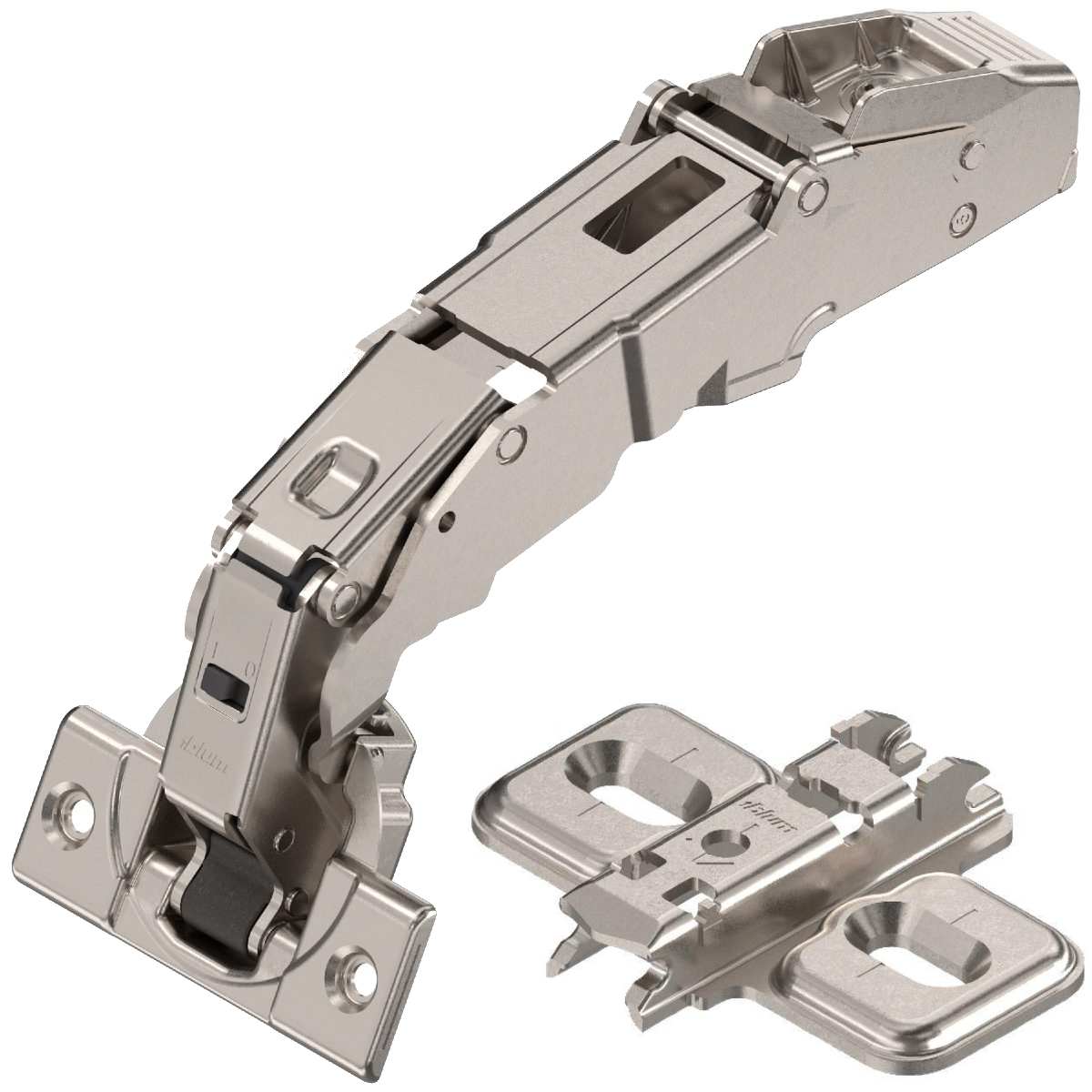

Blum Clip Top Half Overlay 155 Degree Blumotion Cabinet Hinge 71B7650 With Mounting Plate

The Blum clip top half overlay 155 degree cabinet hinge 71B7550 is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

• Clip top Blumotion hinge 71B7550

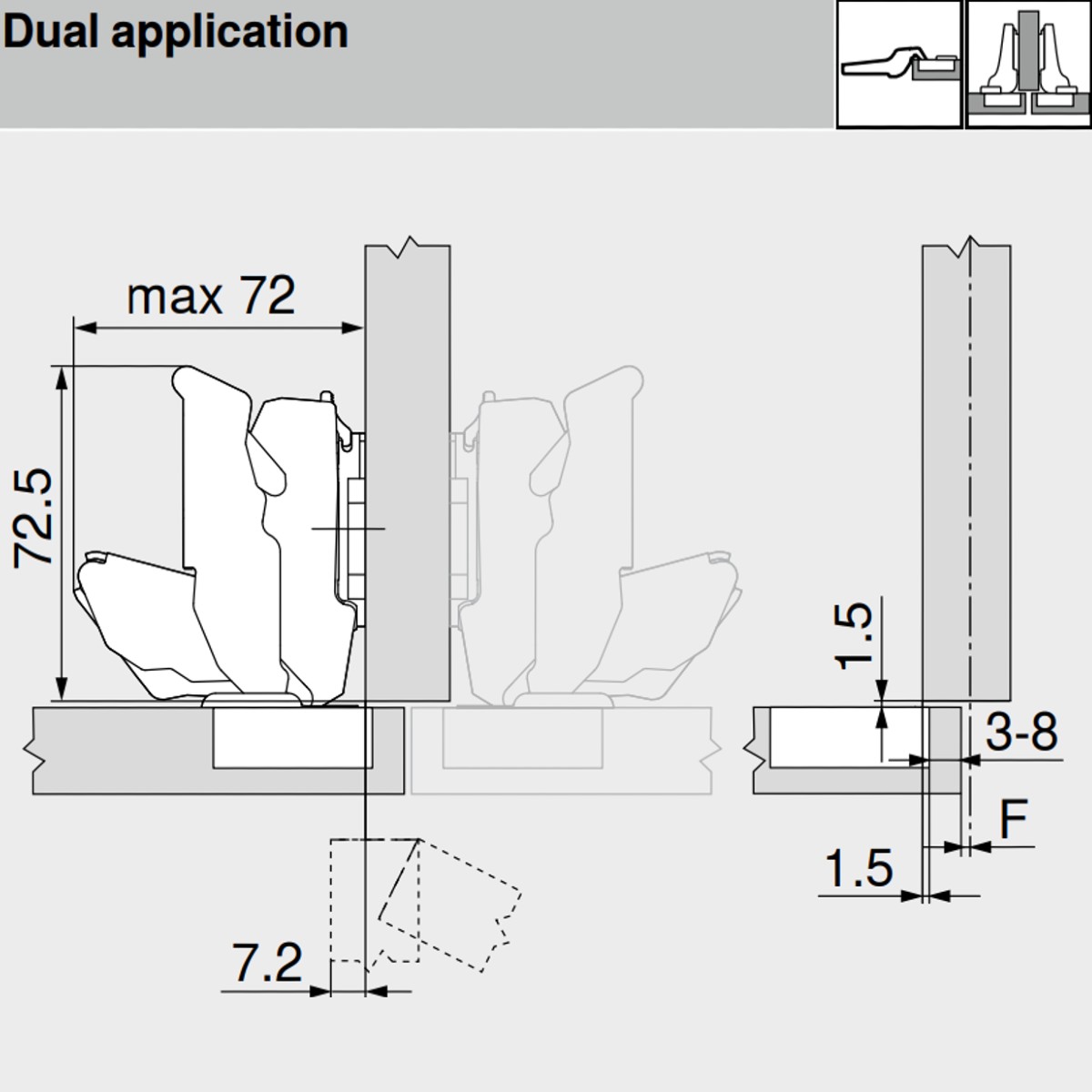

• Application: half overlay
• 0-protrusion - the door clears the opening space entirely
• Opening angle: 155 degrees
• Door thickness 20-31mm
• Cranking: half overlay application
• Blumotion - soft-close
• Boss assembly: screw-on
• Boss material: steel boss
• Closing mechanism: with spring and soft-close

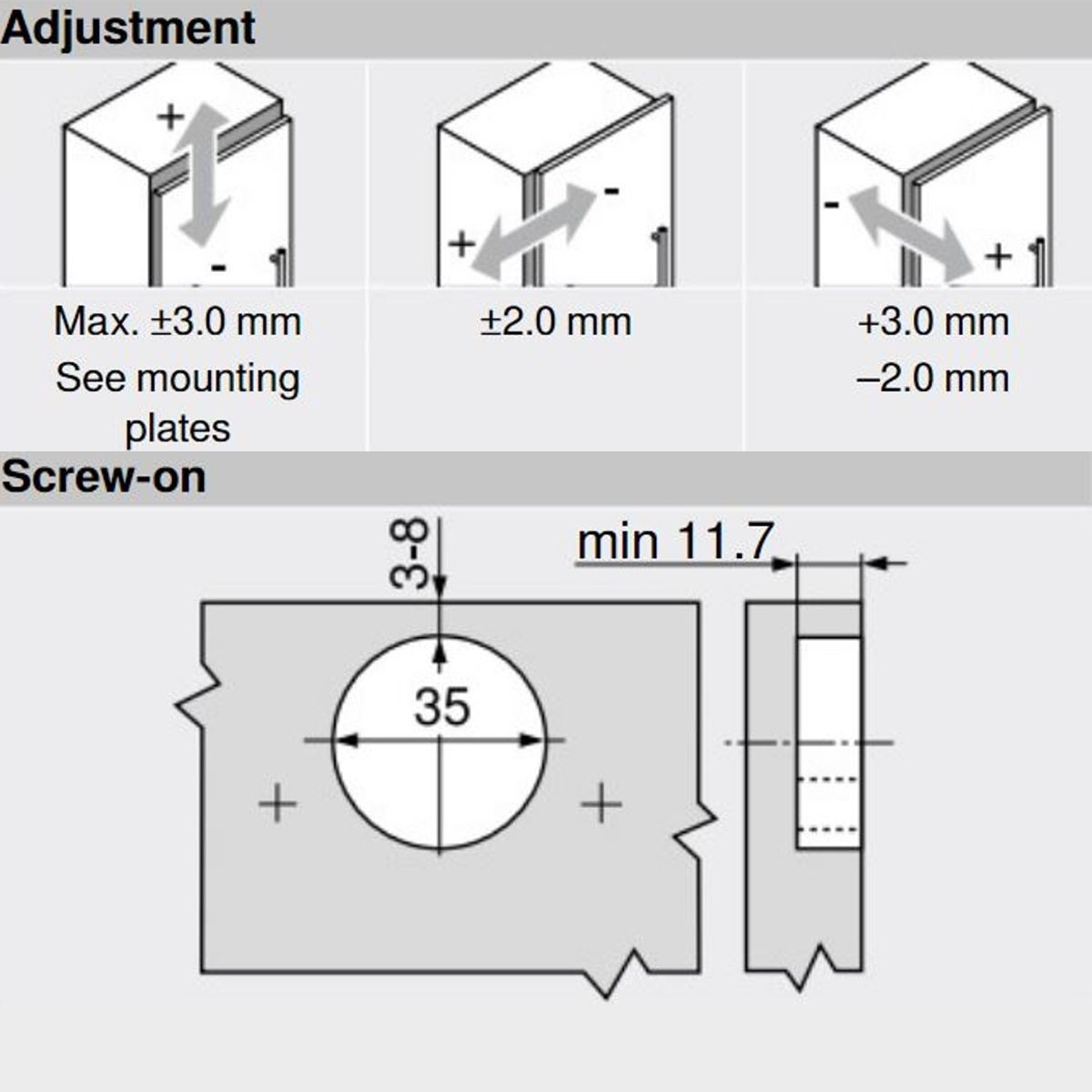

• Side adjustment: +/- 2mm
• Depth adjustment: + 3/- 2mm, convenient with spiral screw

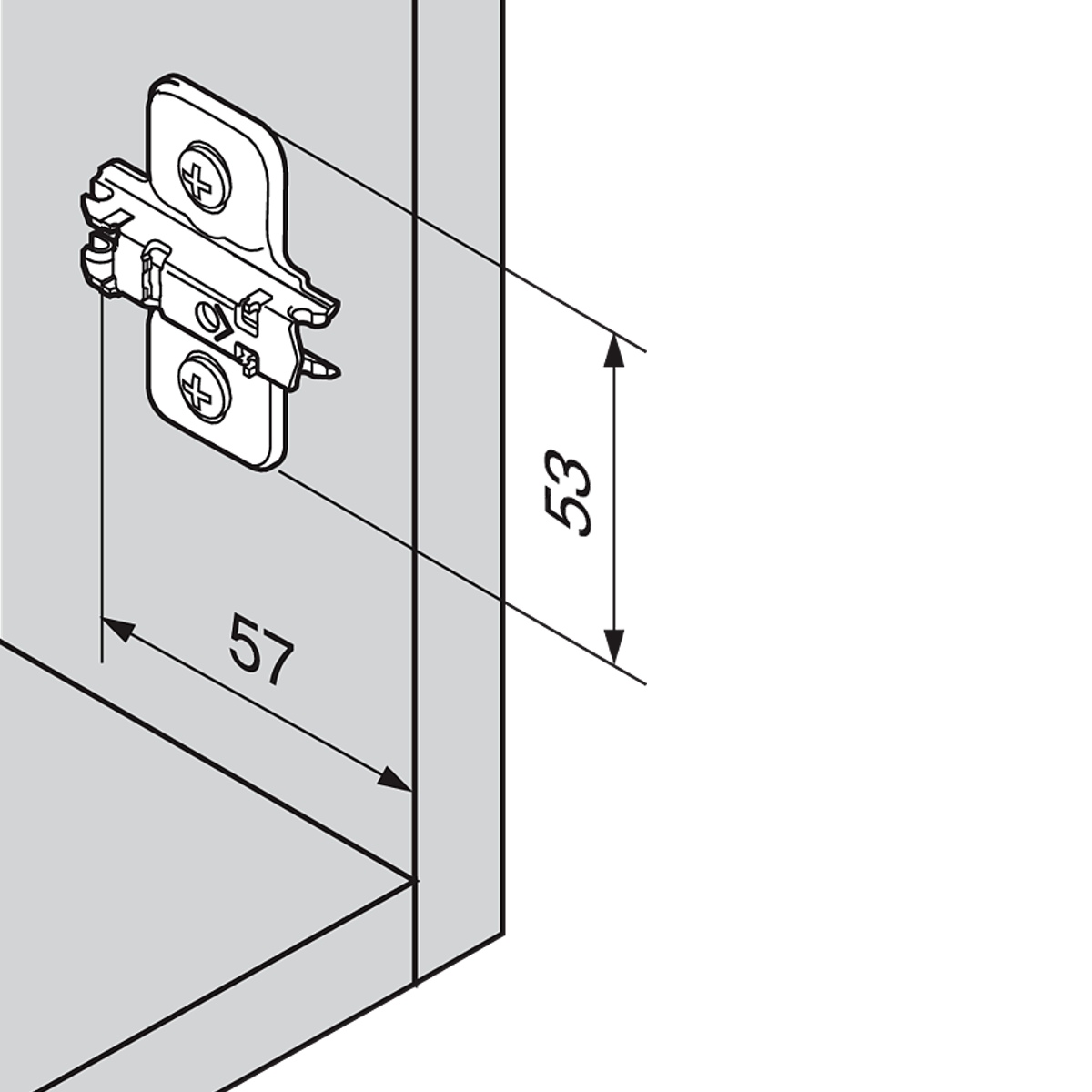

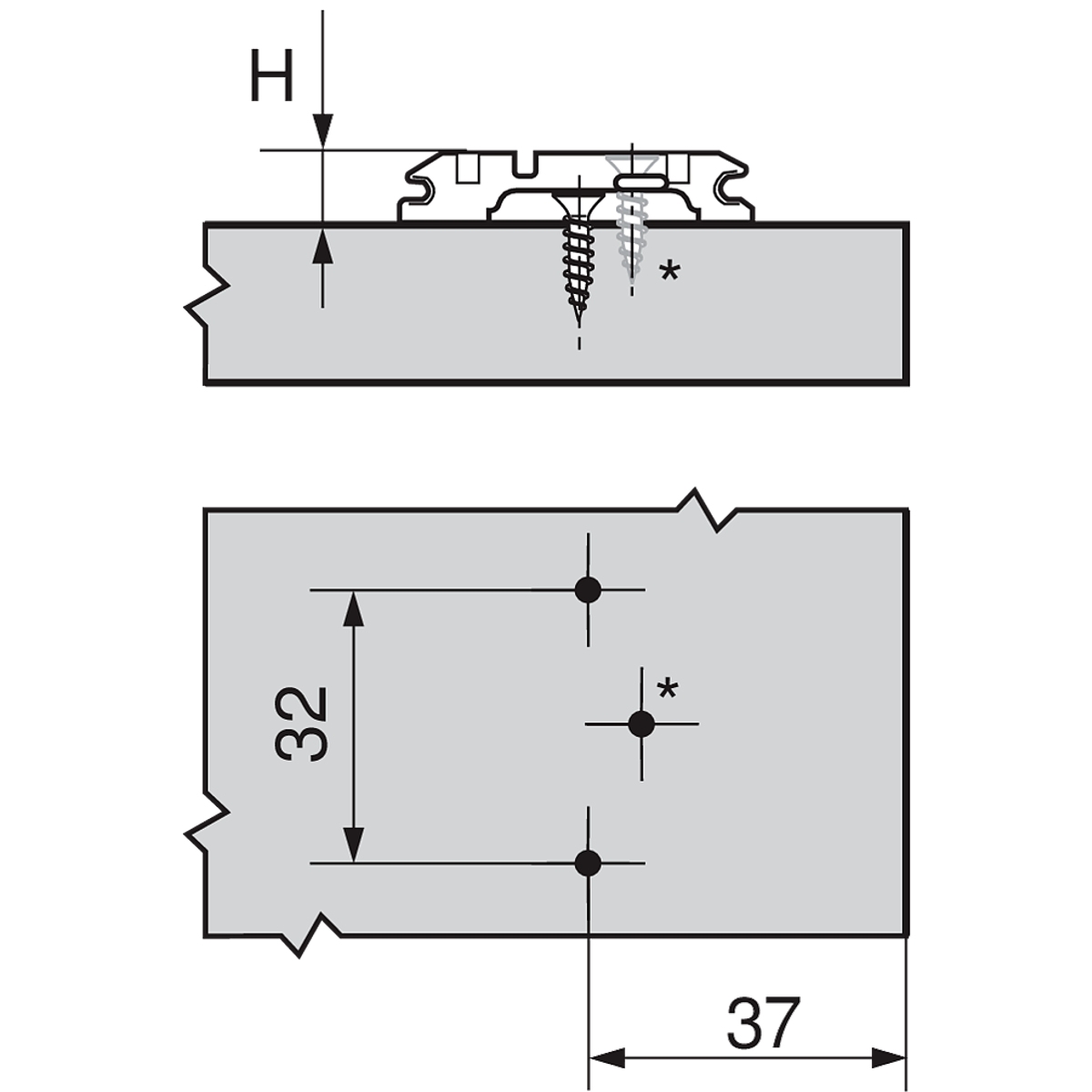

Mounting plates:

• 173L6100:
  • Screws: no
  • Spacing: 0mm
  • Adjustment: no
• 173L8100
  • Screws: yes
  • Spacing: 0mm
  • Adjustment: no
• 175H3100 (inline)
  • Screws: no
  • Spacing: 0mm
  • Adjustment: no
• 173H7100
  • Screws: no
  • Spacing: 0mm
  • Adjustment: yes
• 175H7100
  • Screws: no
  • Spacing: 0mm
  • Adjustment: yes
