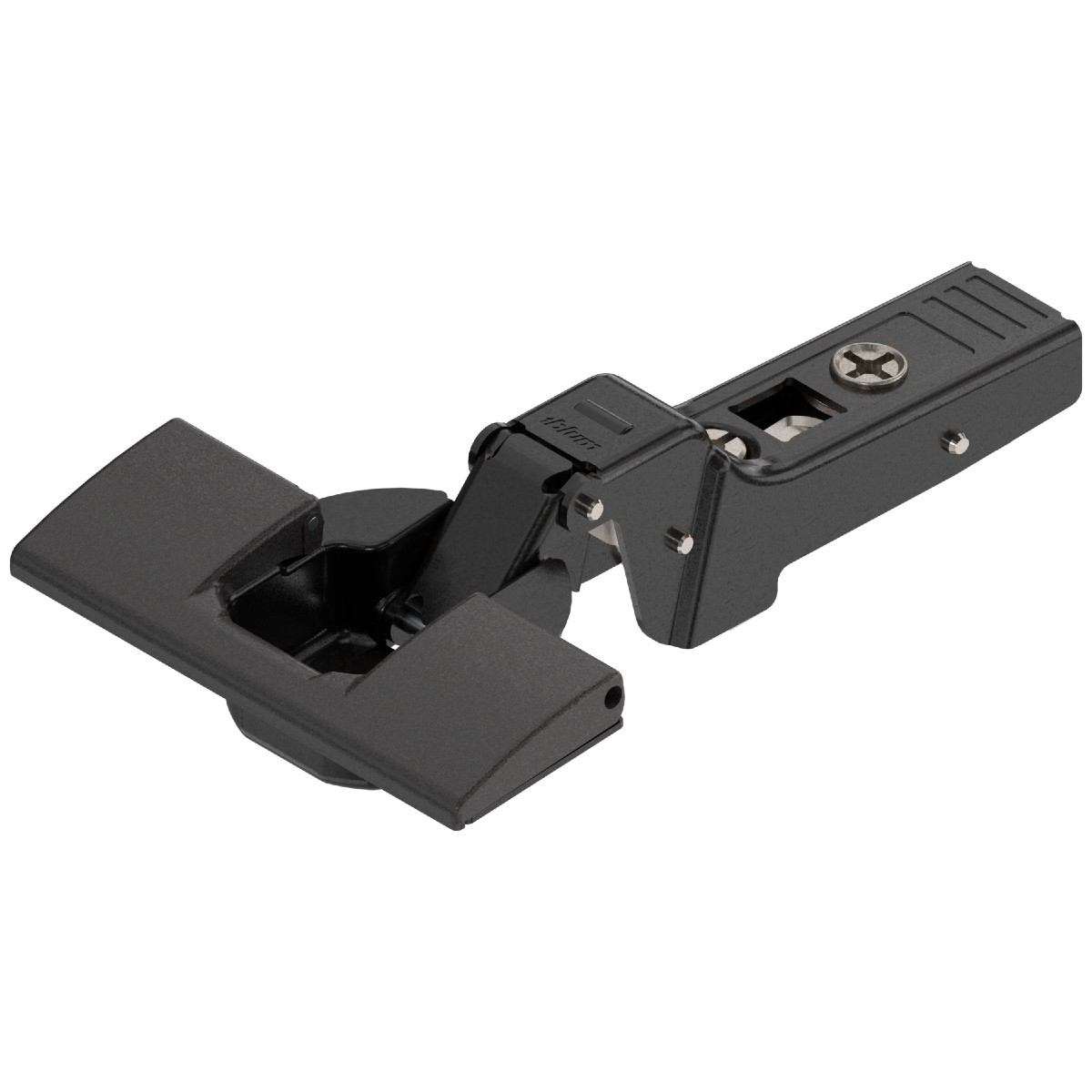

Blum Clip Top Half-Overlay 95 Degree Blumotion Cabinet Hinge 70T9690BTL Black Onyx Inserta

8346-001
Price: £4.03inc VAT
Write a review
− +

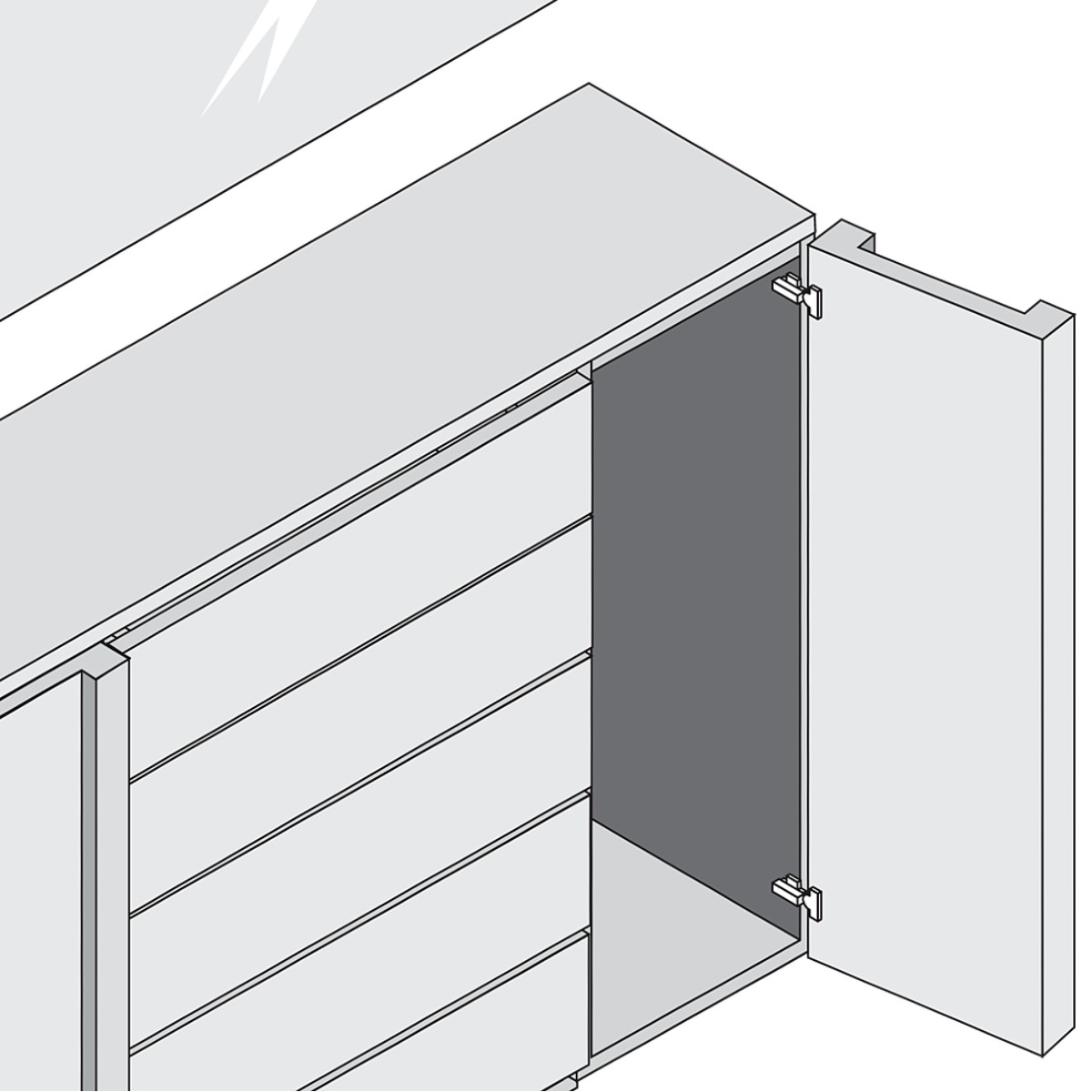

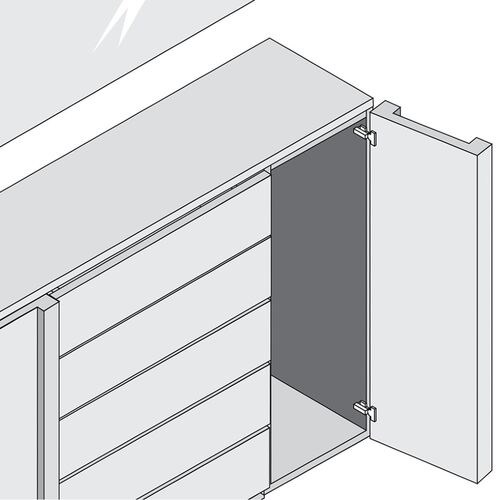

The Blum clip top half overlay 95 degree cabinet hinge 70T9690BTL inserta is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top hinge 70T9690BTL
  • Opening angle: 95°
  • Door thickness: 16-32mm

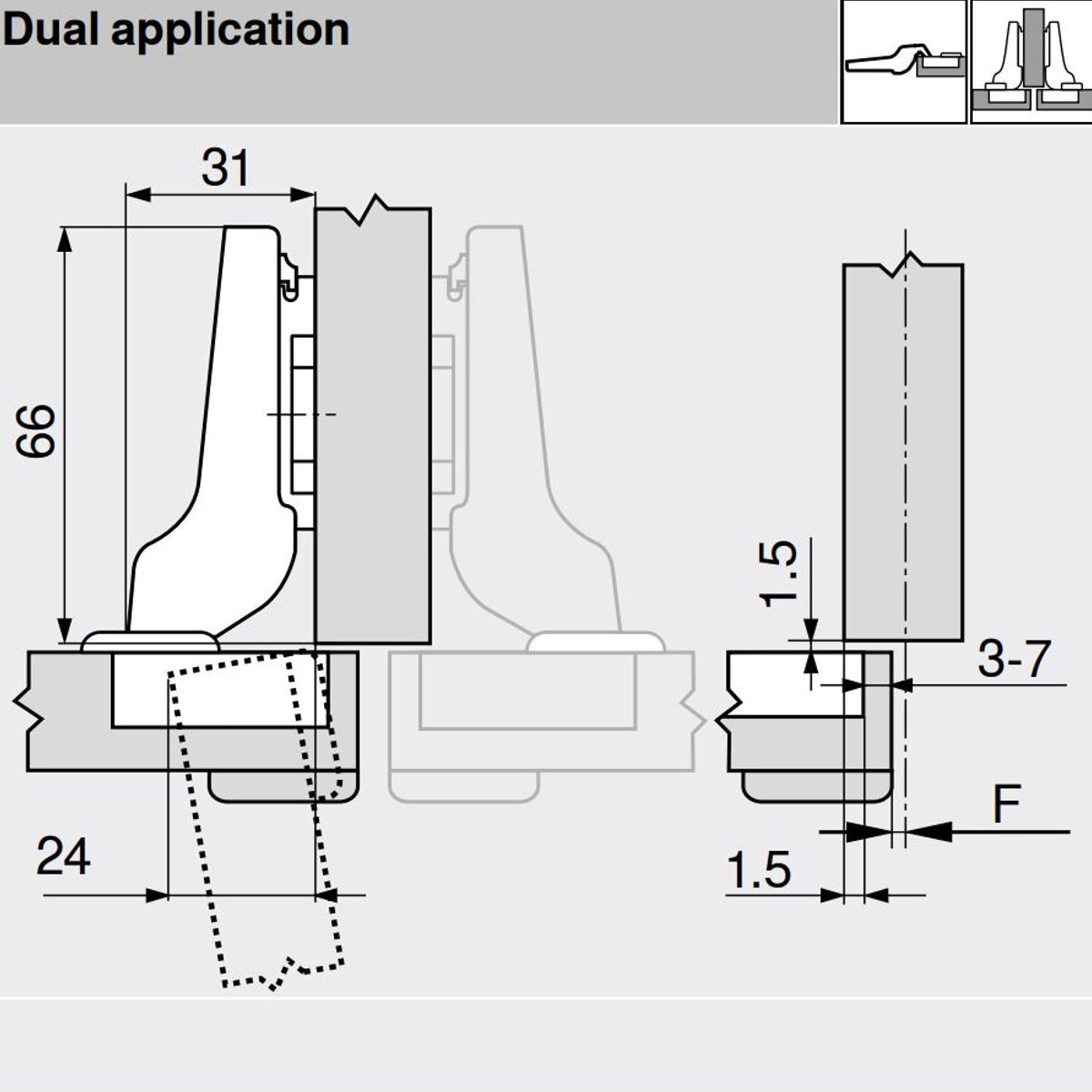

  • Cranking: dual application
  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: unsprung

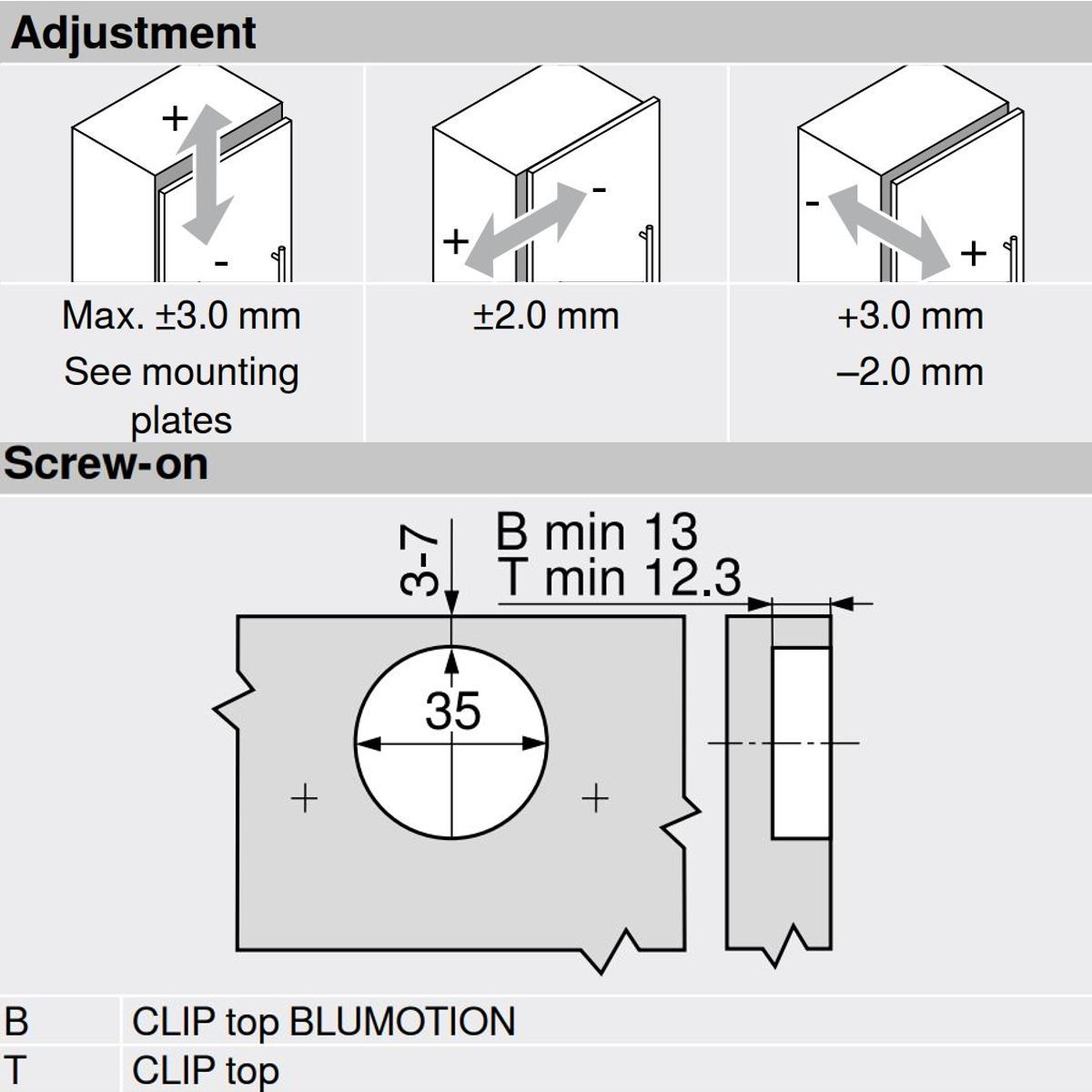

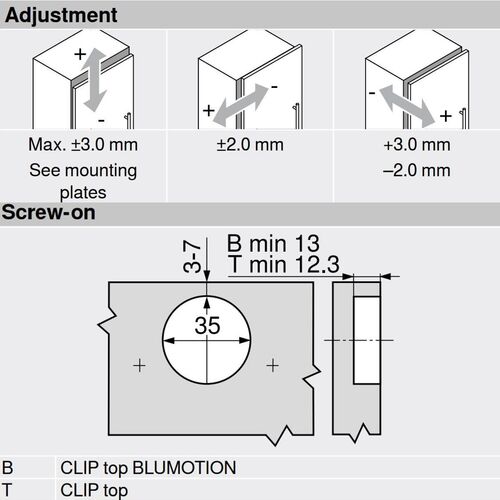

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

Please note that:

  • The hinge mounting plate, cover cap, arm cover and screws are not included

Download Product Details (pdf)

Download CAD File (dxf)
