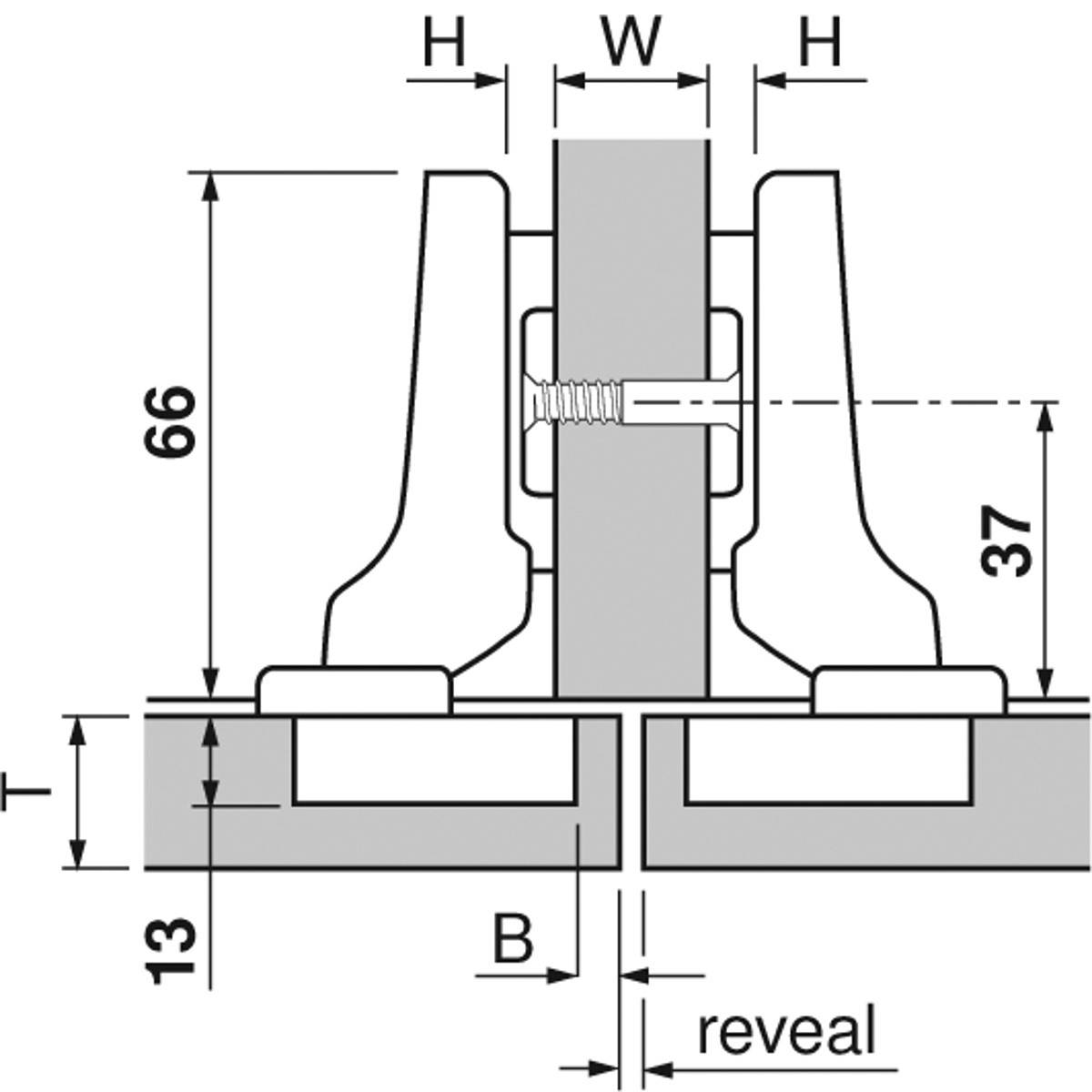

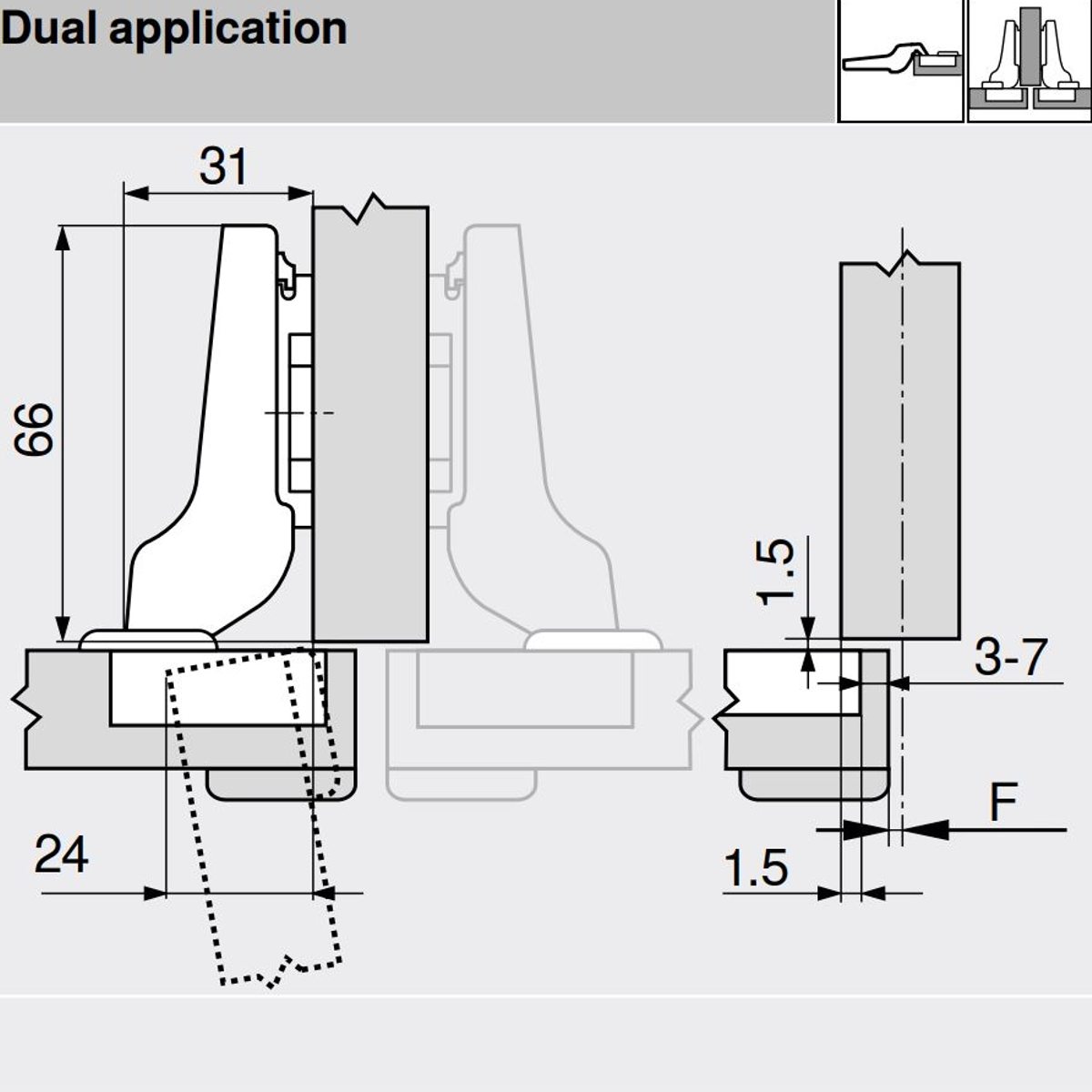

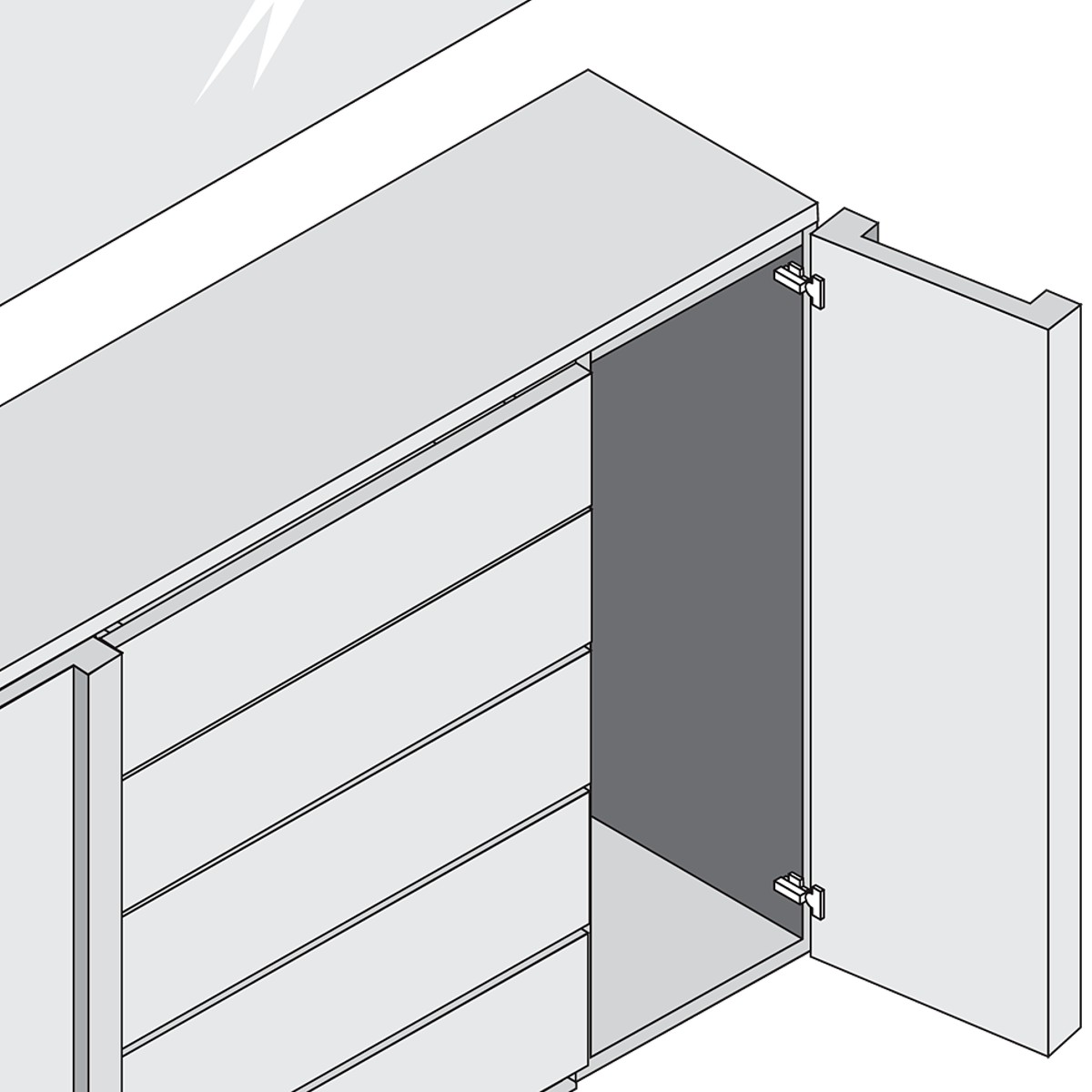

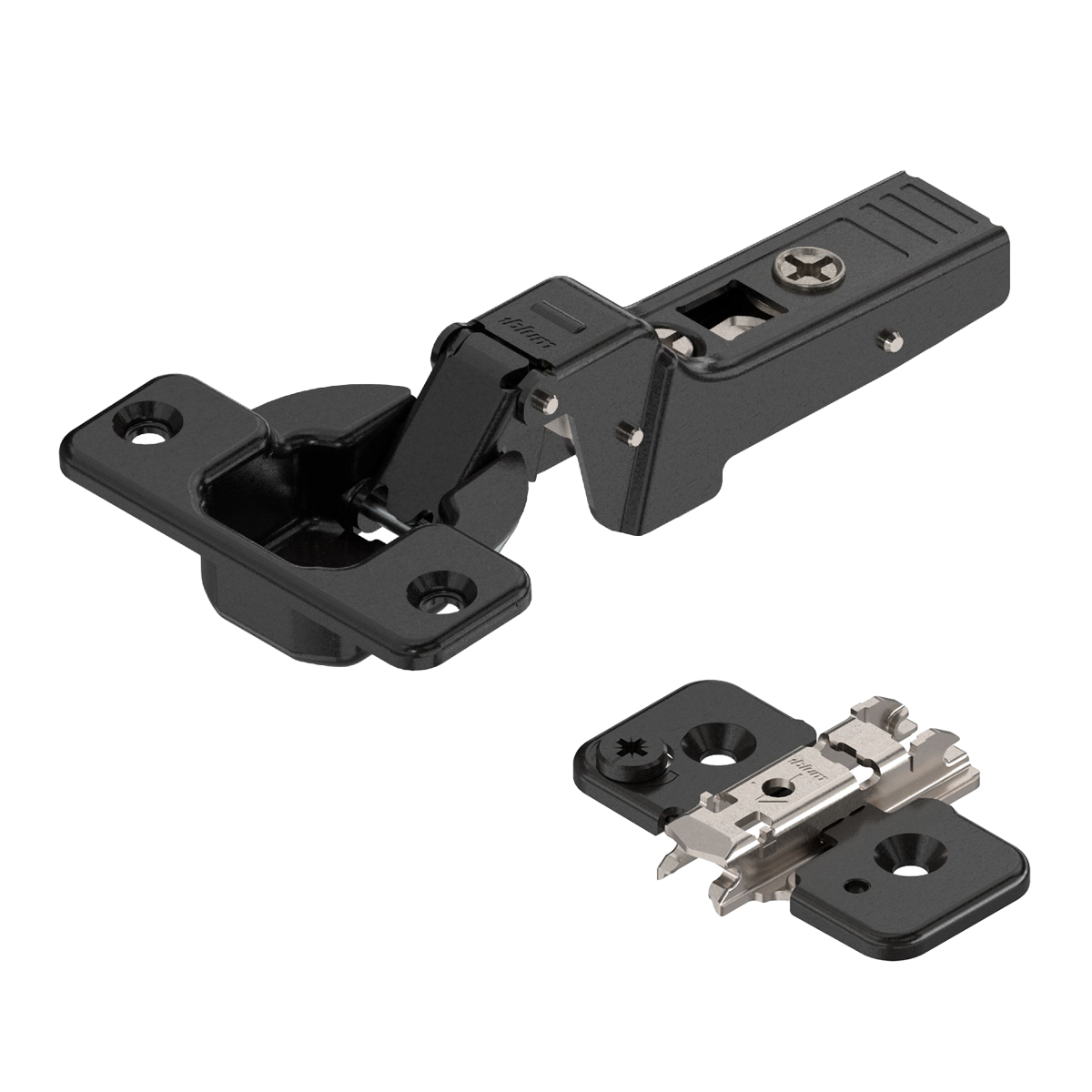

The Blum clip top half overlay 95 degree cabinet hinge 70T9650.TL is a high-quality hinge designed for cabinet doors with a half overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip standard hinge 70T9650.TL
- Opening angle: 95 degrees
- Door thickness: 16-32mm
- Cranking: horizontal

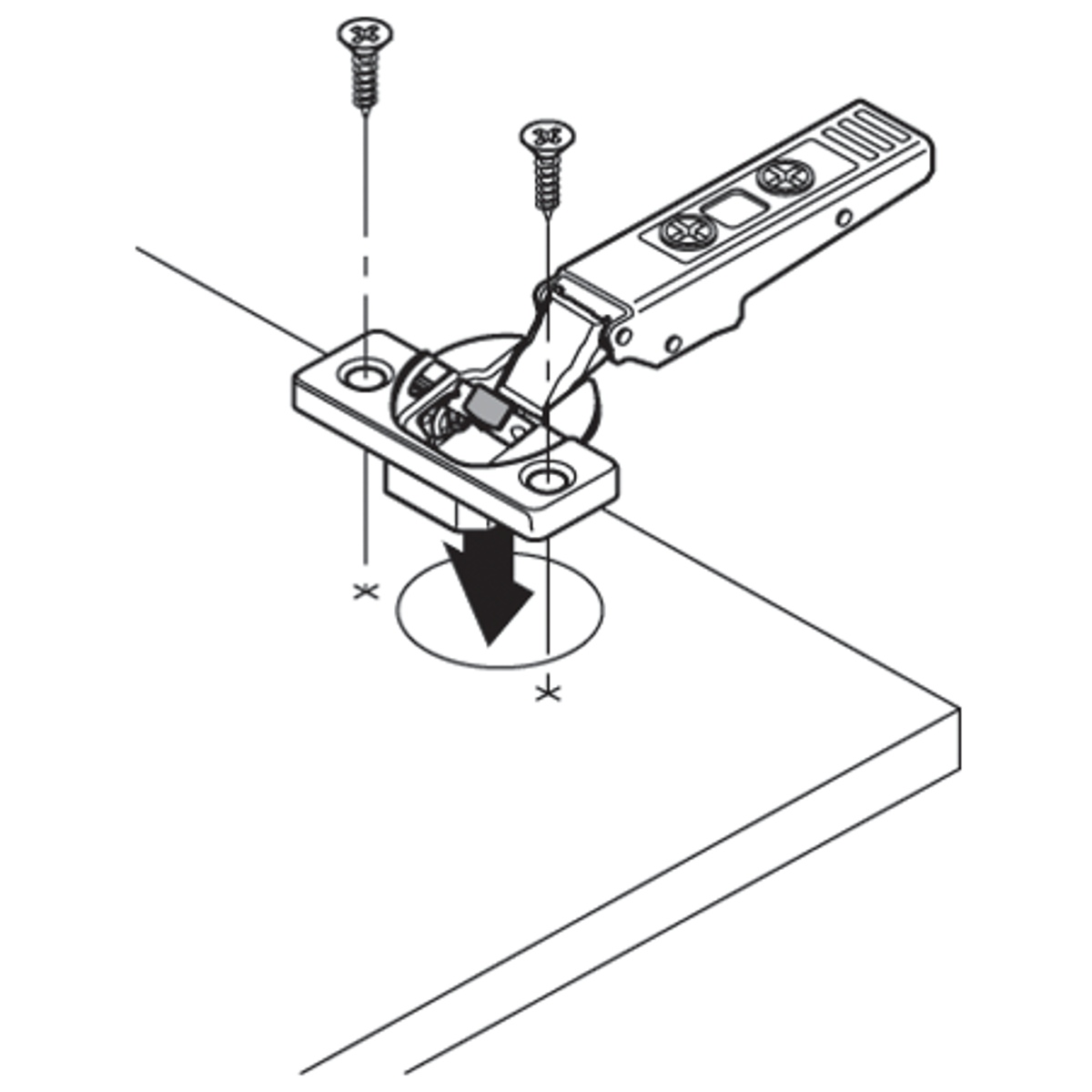

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

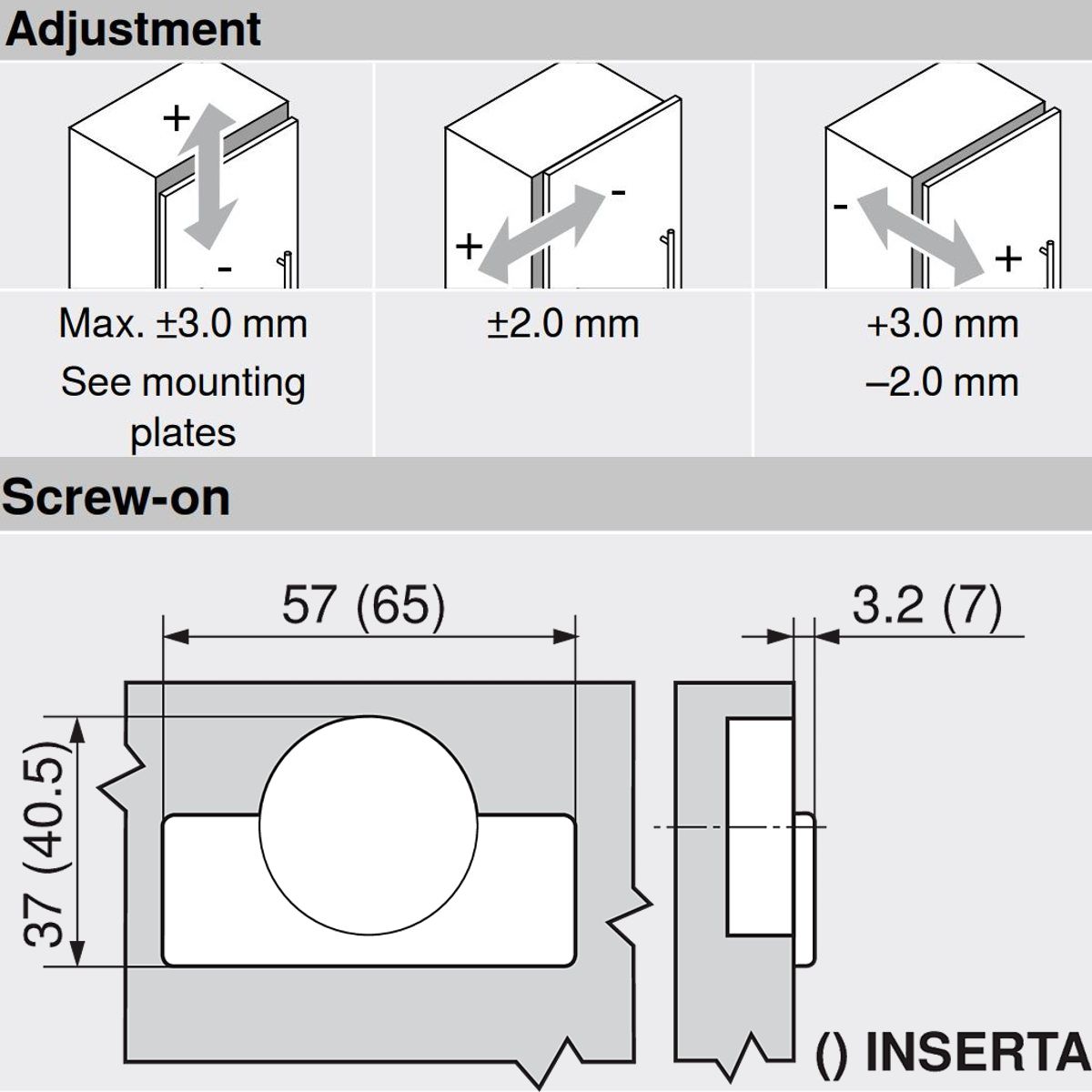

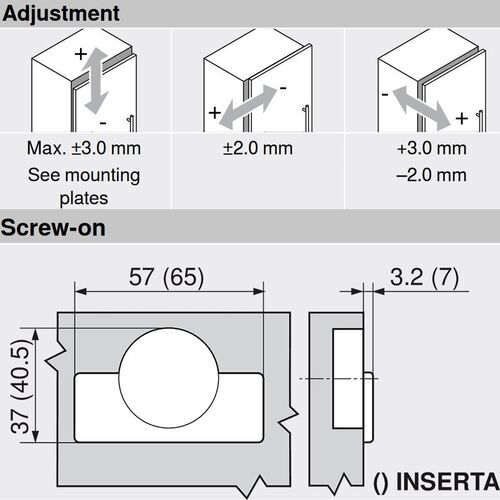

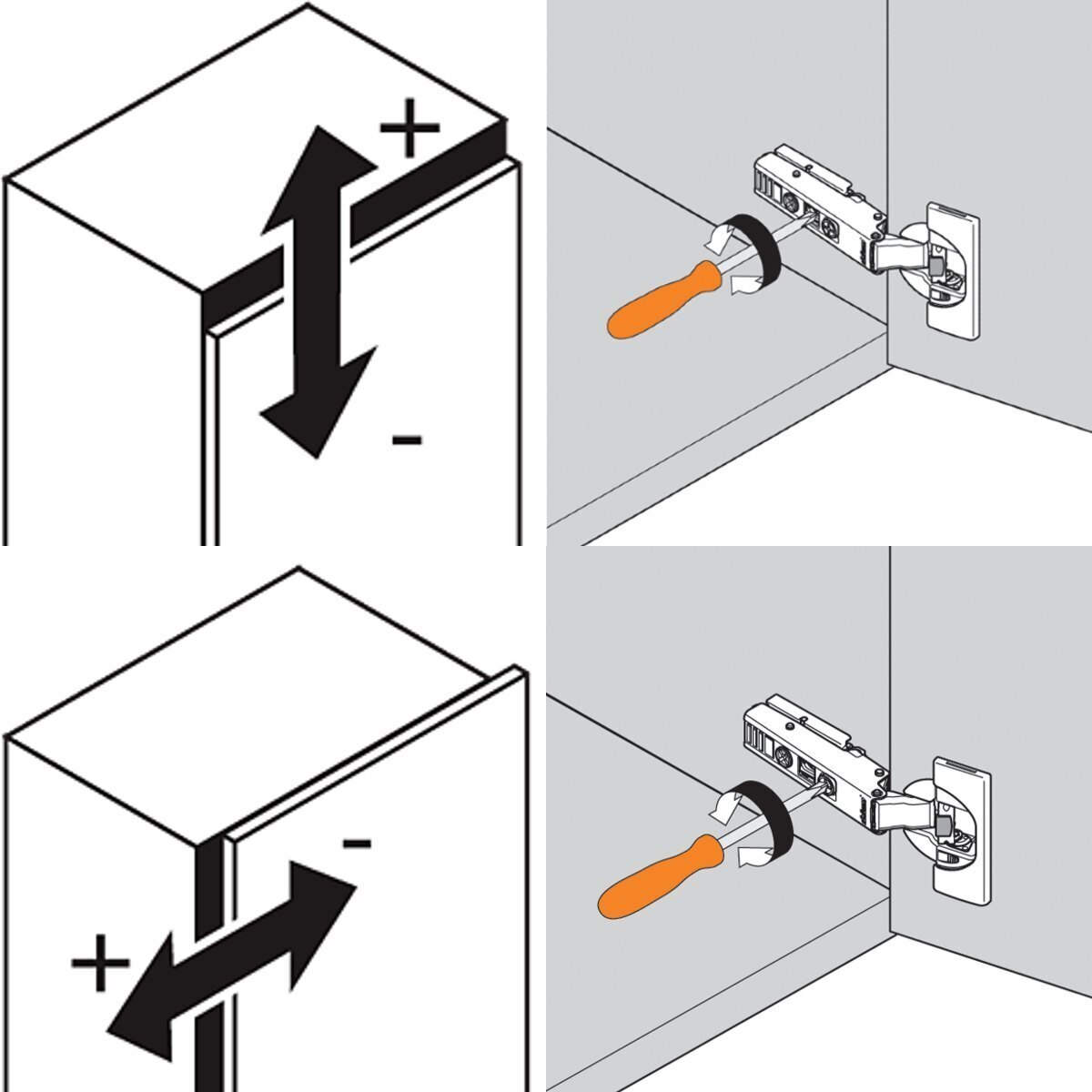

- Side adjustment: +/- 2mm
- Depth adjustment: +3mm/-2mm

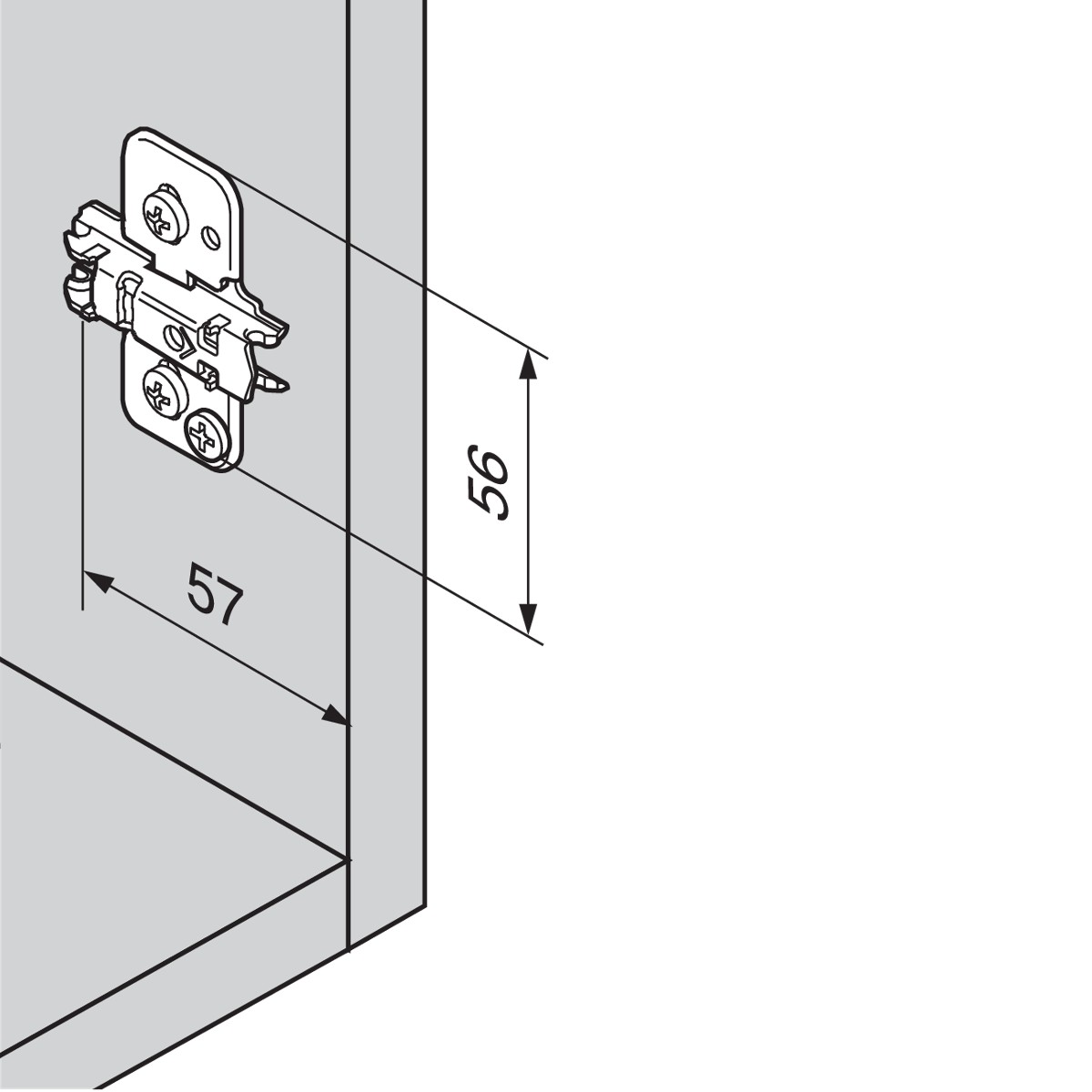

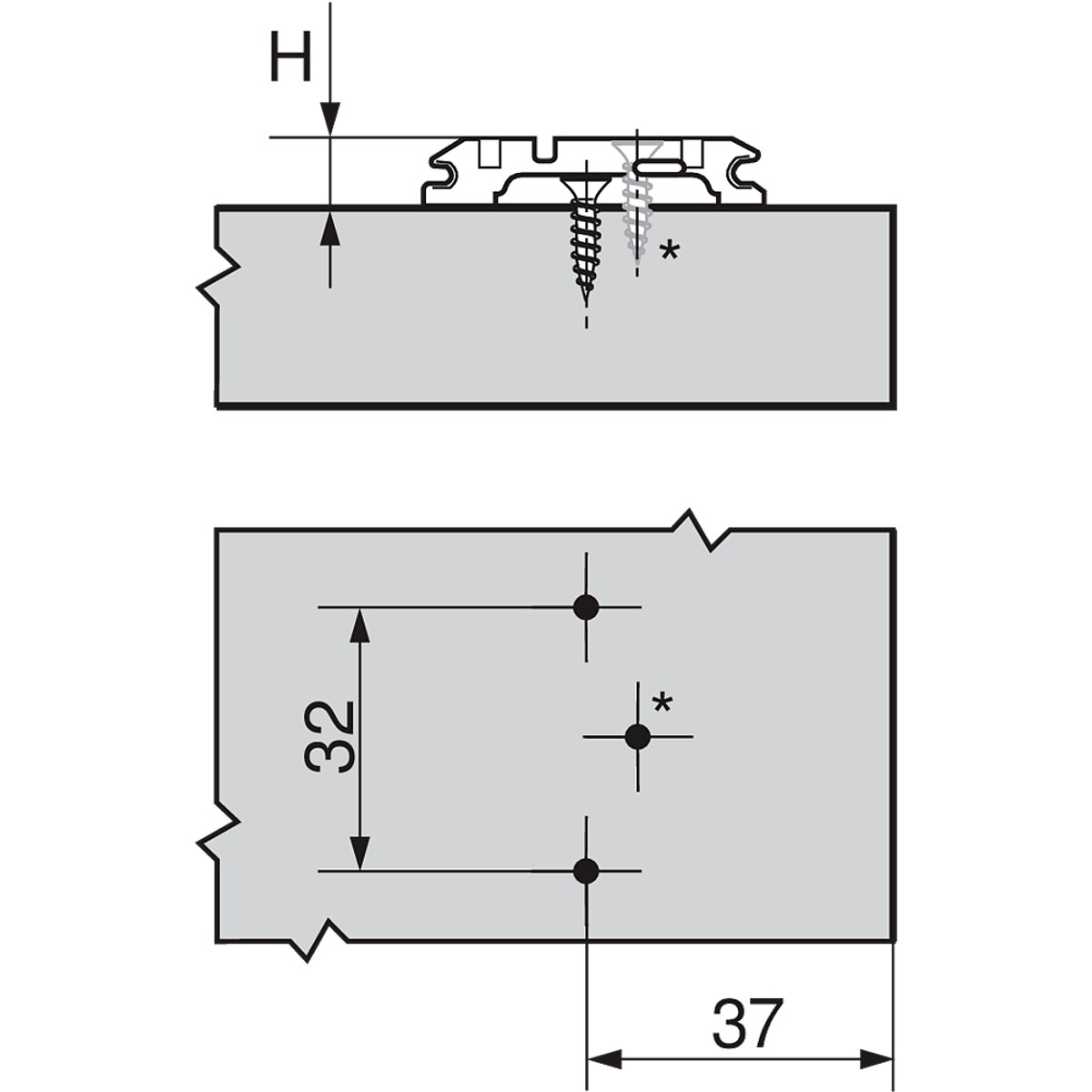

Mounting plates:
- 173H7100:
- Adjustment: yes
- Spacing: 0mm
- Screws: no
- 175H3100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 174H7100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: yes
- 177H3100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H31310:
- Screws: no
- Spacing: 3mm
- Adjustment: no
- 174H7130E: Expando
- Screws: yes
- Spacing: 3mm
- Adjustment: yes
Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
