Blum Clip Top Inset 110 Degree Blumotion Cabinet Hinge 71B3790 Inserta With Mounting Plate Onyx

The Blum clip top inset 110 degree cabinet hinge 71B3790 inserta is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

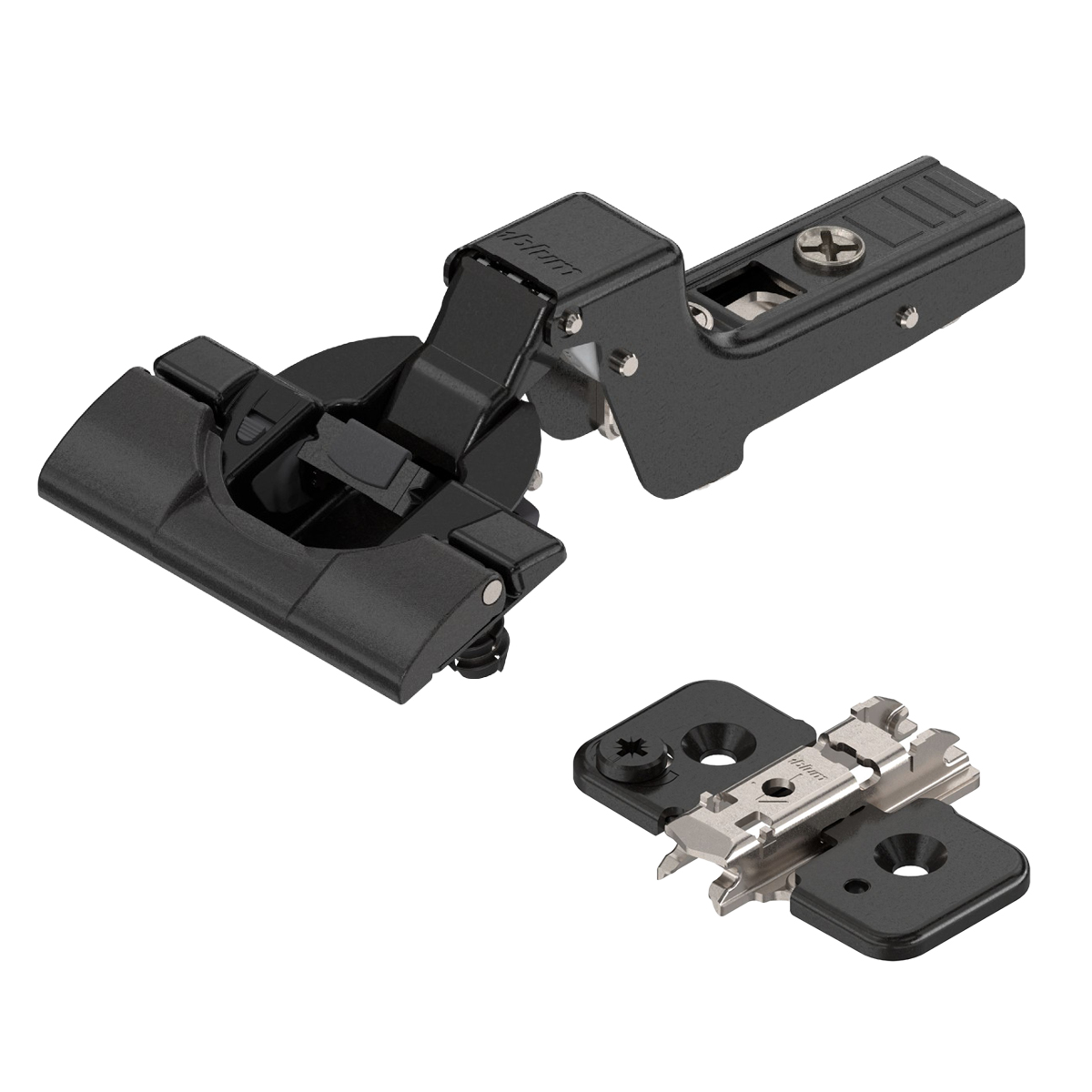

• Clip top Blumotion hinge 71B3790 finished in black Onyx
• Opening angle: 110°
• Door thickness: 16-26mm

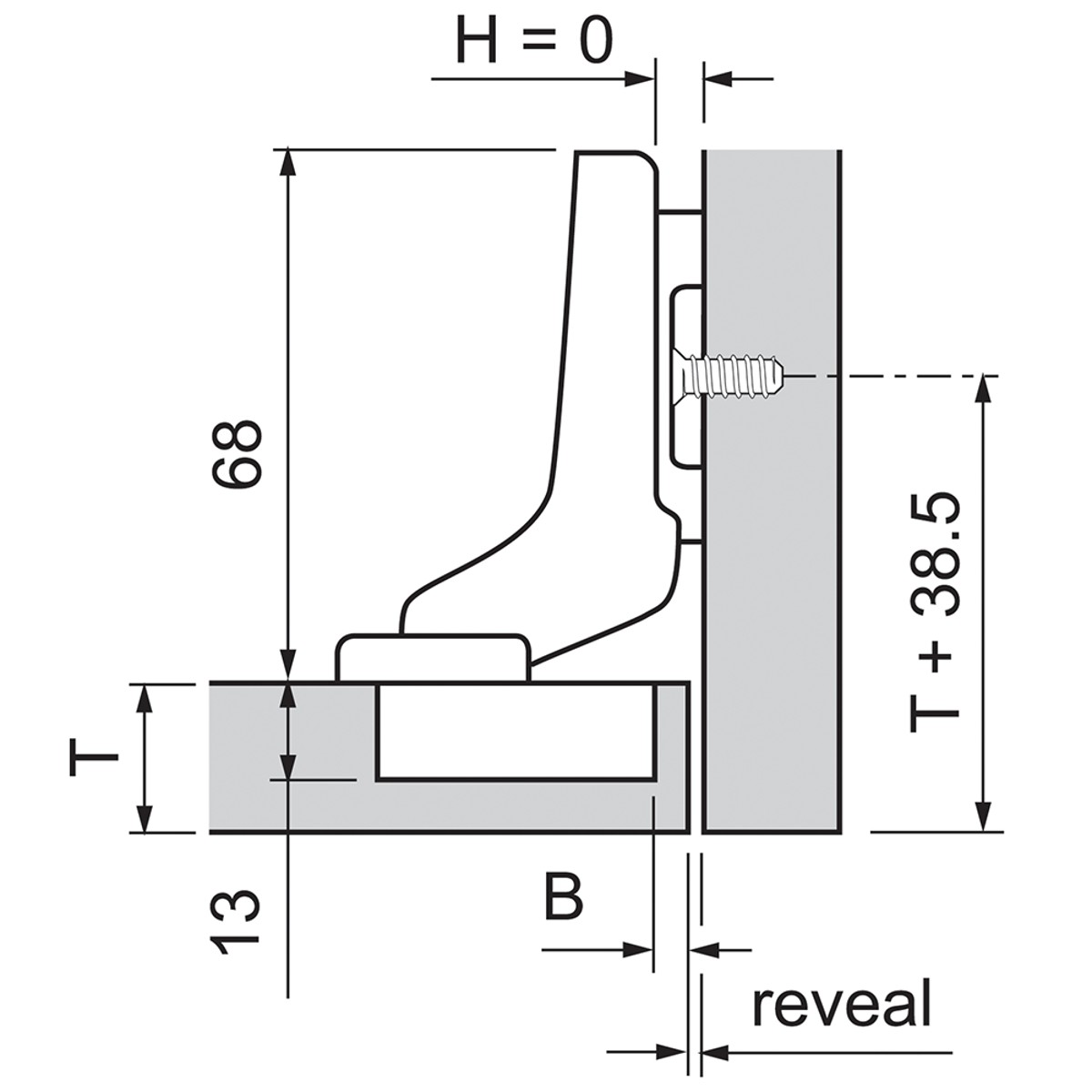

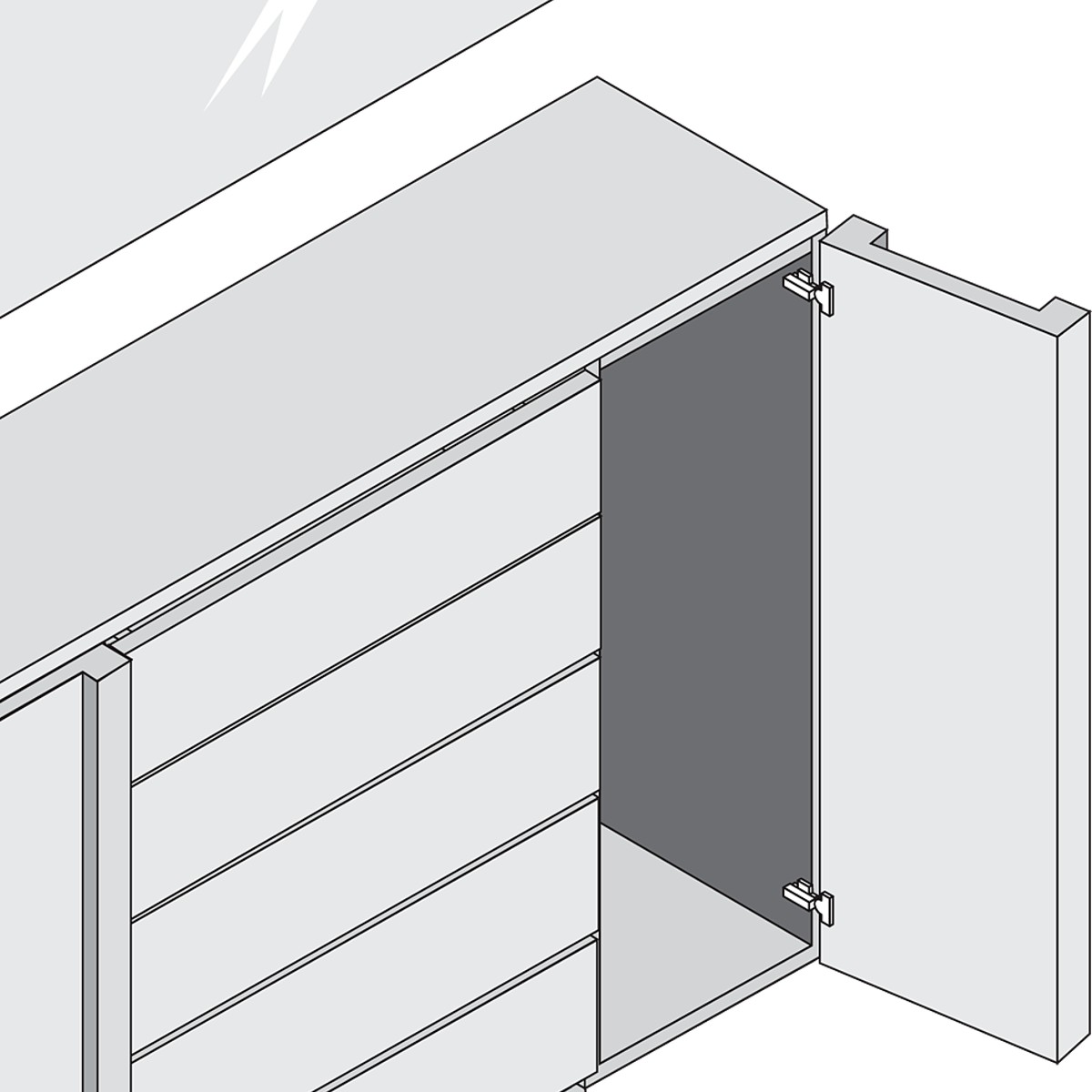

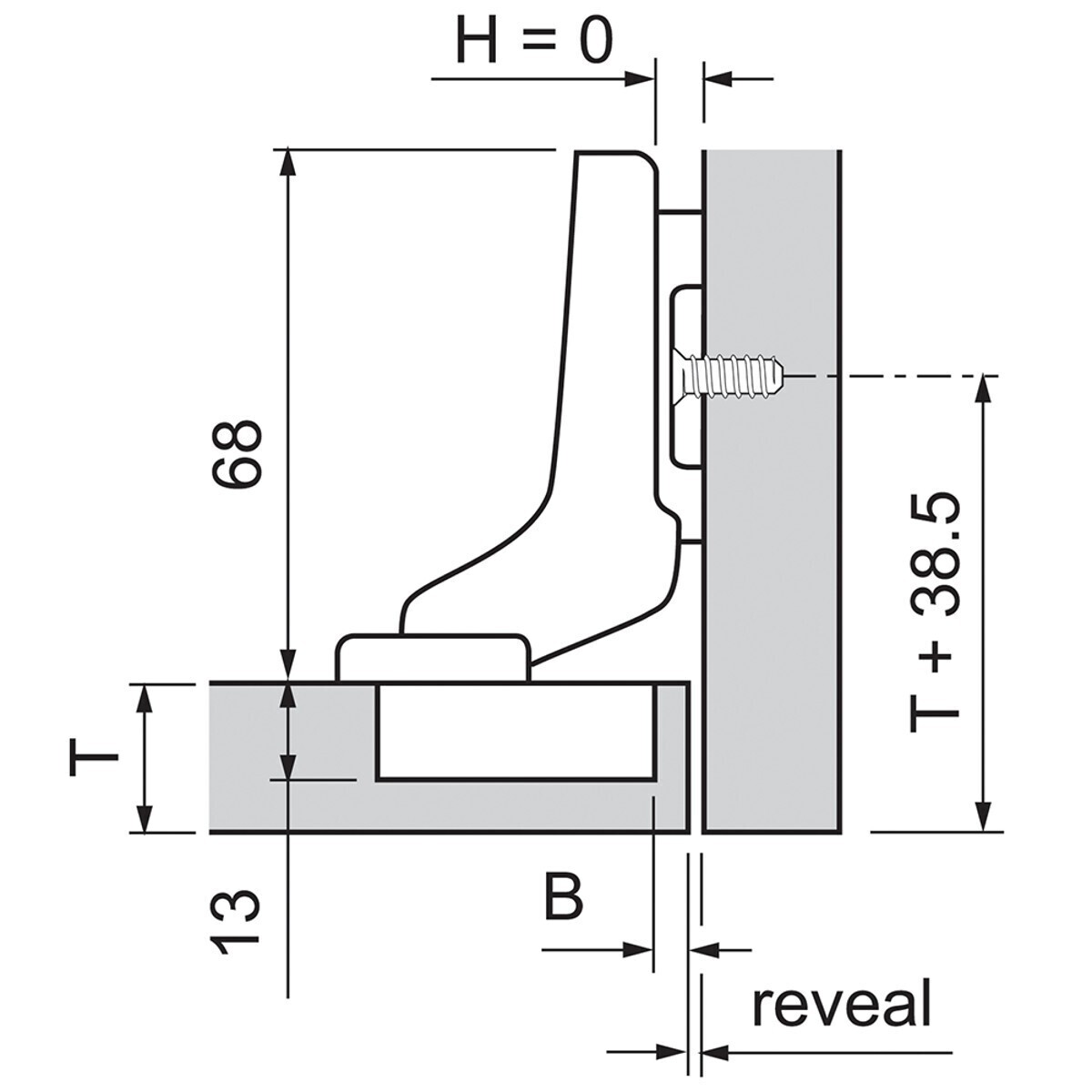

• Cranking: inset application
• Blumotion - soft close

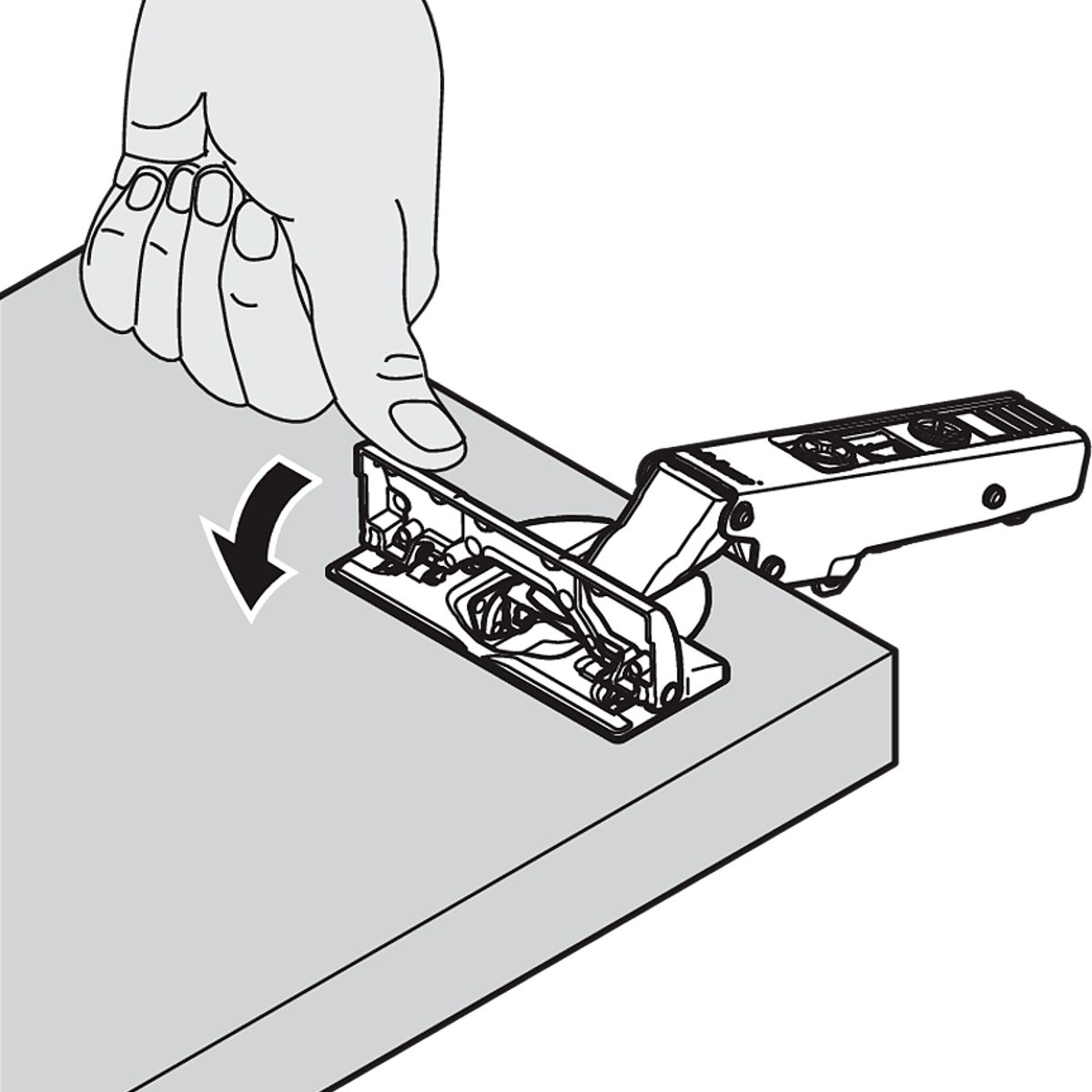

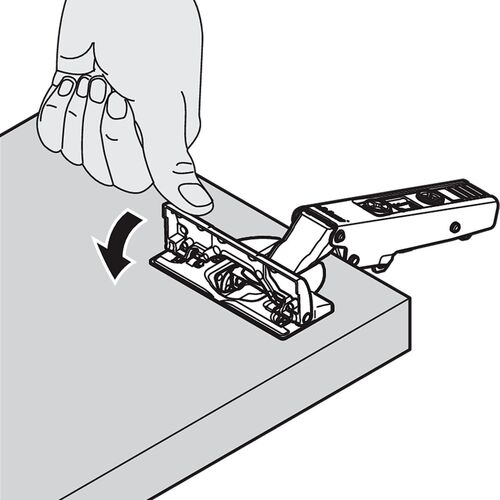

• Boss assembly: inserta
• Boss material: steel boss
• Closing mechanism: with spring and soft-close

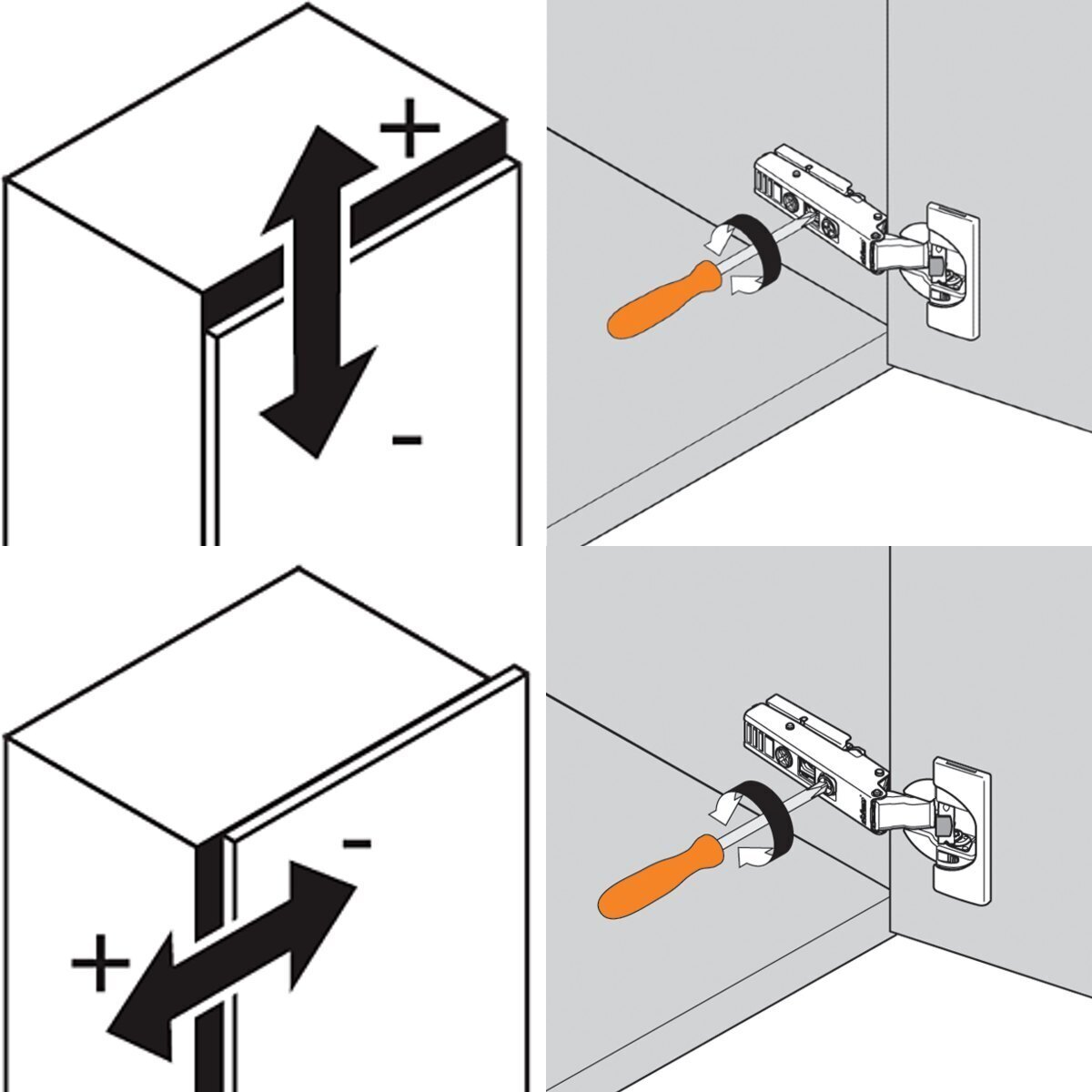

• Side adjustment: +/- 2mm
• Depth adjustment: + 3/- 2mm, convenient with spiral screw

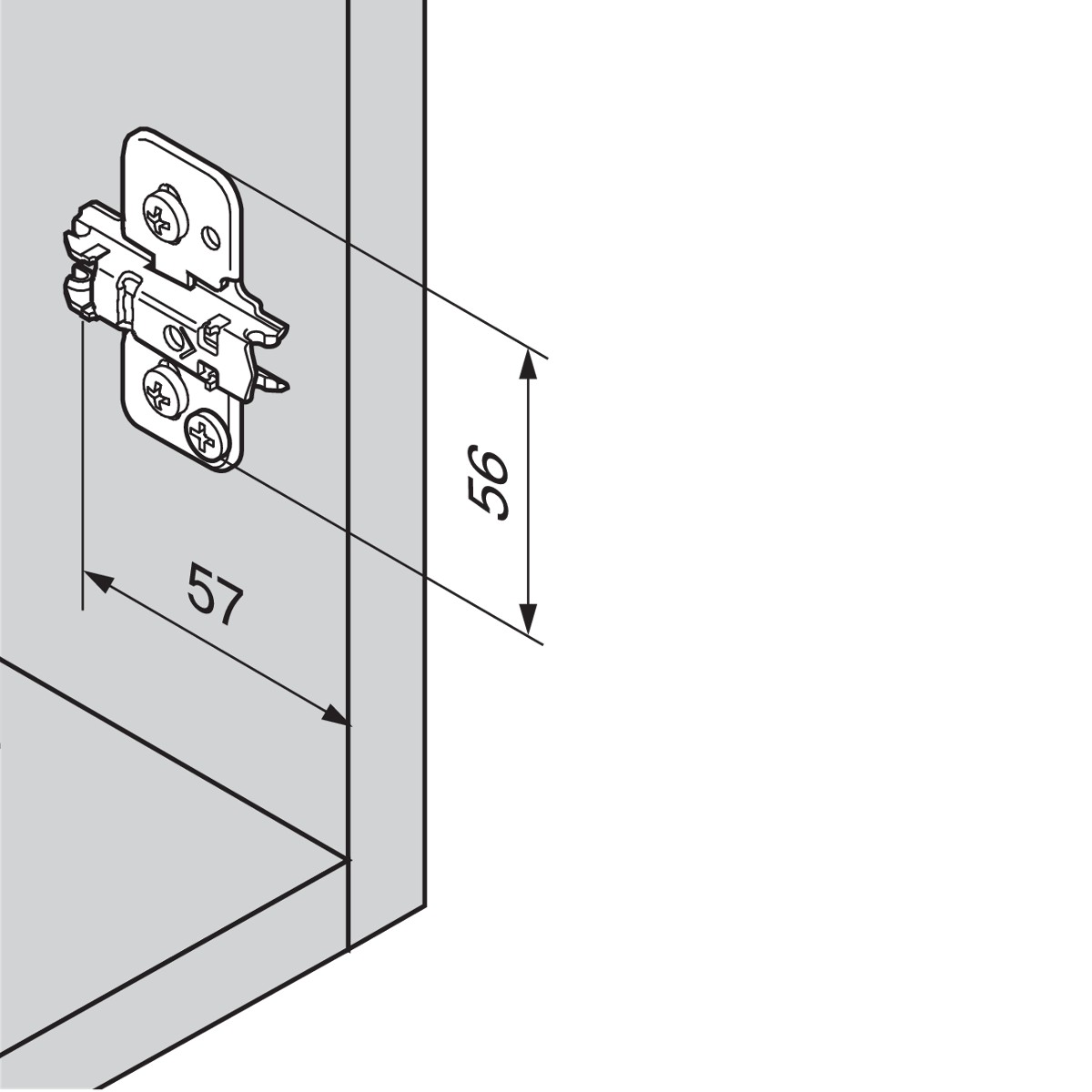

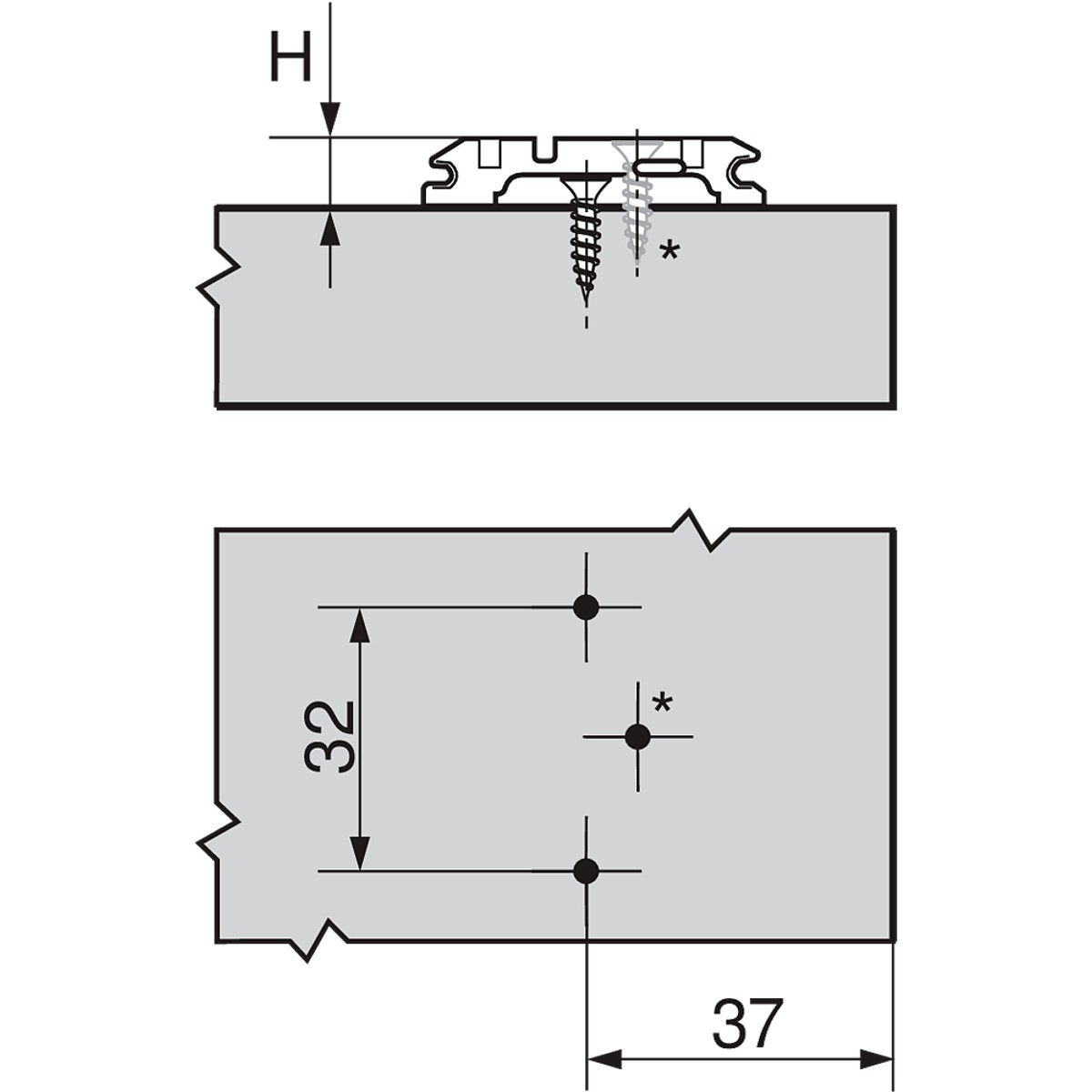

Mounting plates:

• 173H7100:
  • Adjustment: yes
  • Spacing: 0mm
  • Screws: no
• 175H3100:
  • Screws: no
  • Spacing: 0mm
  • Adjustment: no
• 174H7100E: Expando
  • Screws: yes
  • Spacing: 0mm
  • Adjustment: yes
• 177H3100E: Expando
  • Screws: yes
  • Spacing: 0mm
  • Adjustment: no
• 175H31310:
  • Screws: no
  • Spacing: 3mm
  • Adjustment: no
• 174H7130E: Expando
  • Screws: yes
  • Spacing: 3mm
  • Adjustment: yes
