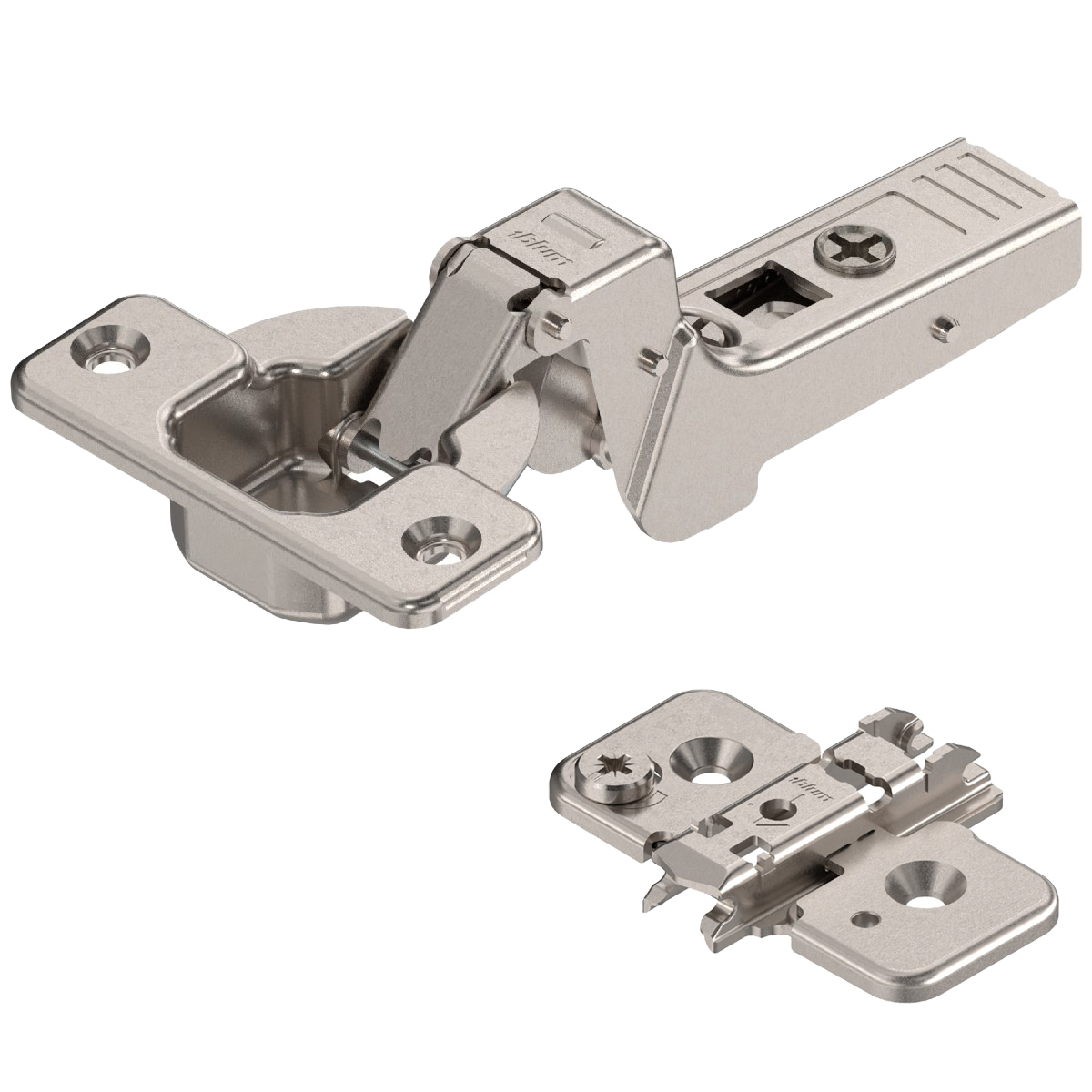

Blum Clip Top Inset 110 degree Unsprung Profile Hinge 70T9750.TL With Mounting Plate

9886-001
Price from: £3.25inc VAT
Write a review
− +

The Blum clip top inset 110 degree cabinet hinge 70T9750.TL is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip Top hinge 70T9750.TL
  • Unsprung hinge - free swing hinge for tip-on push to open cabinet doors

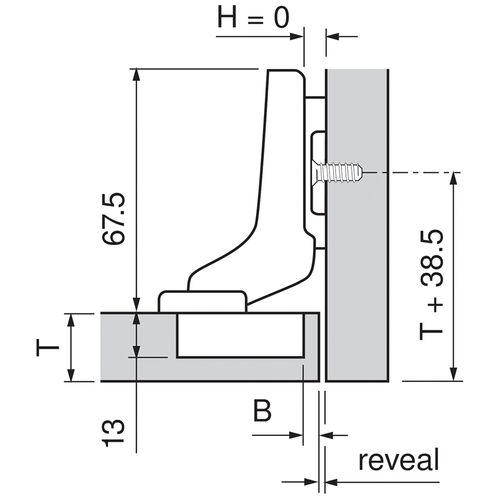

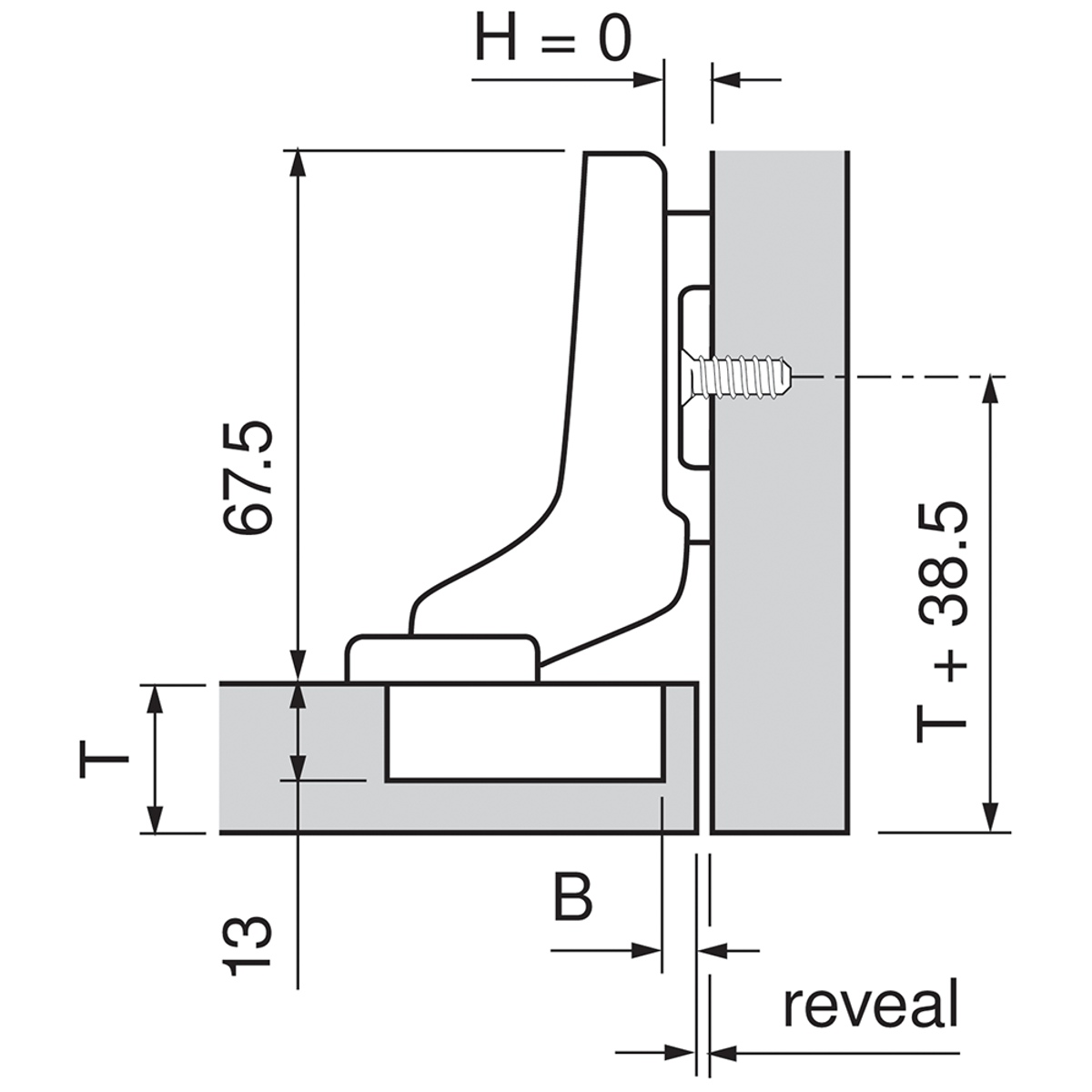

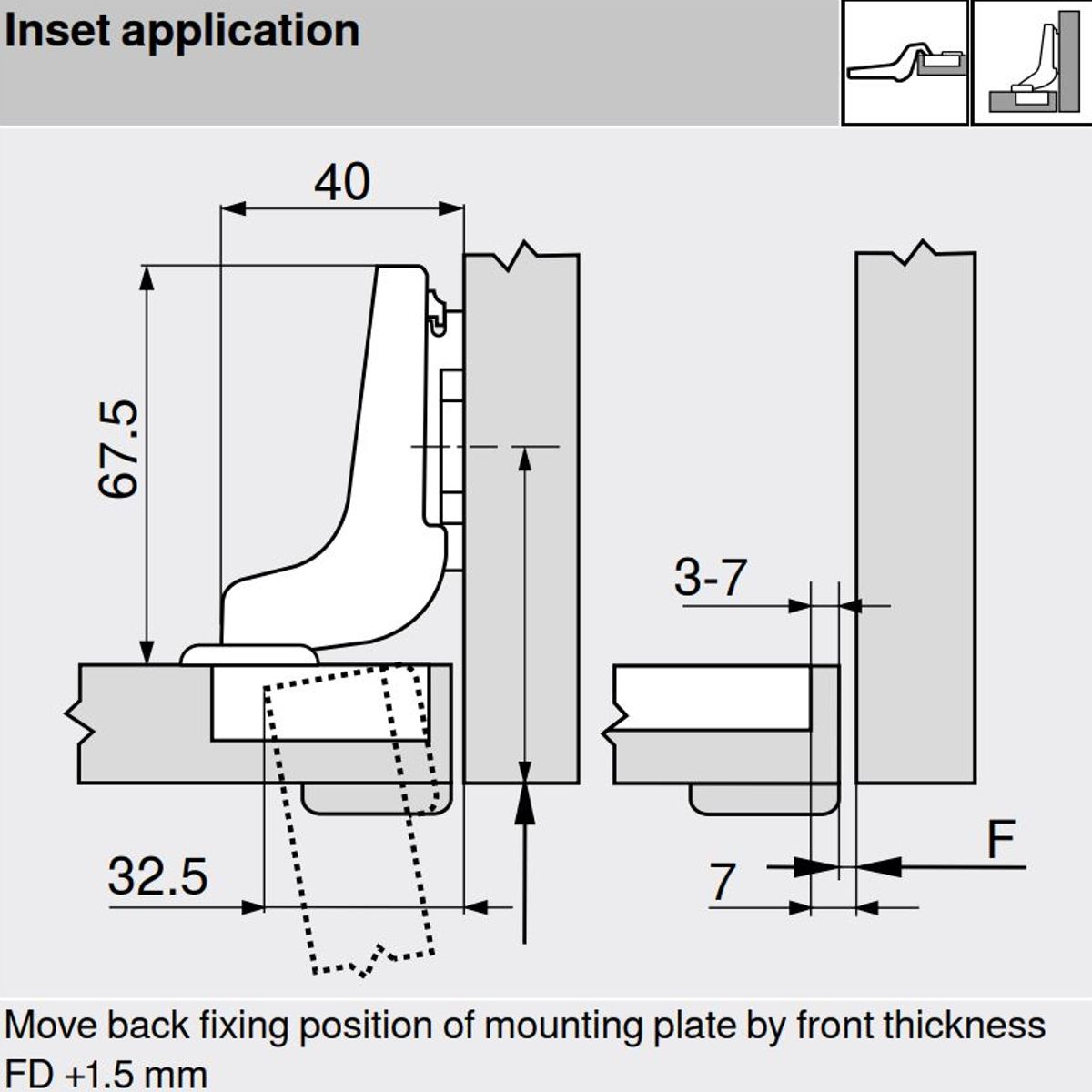

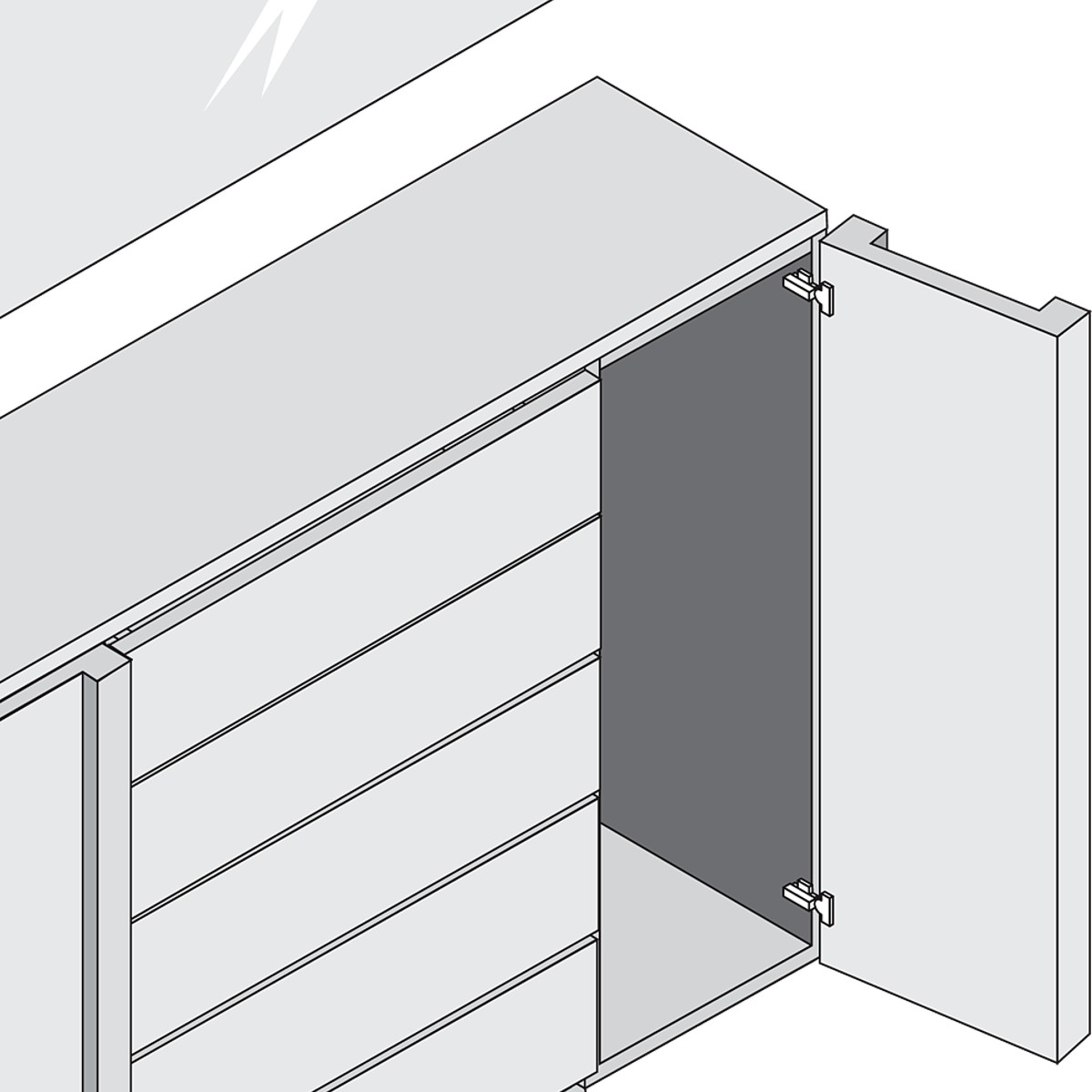

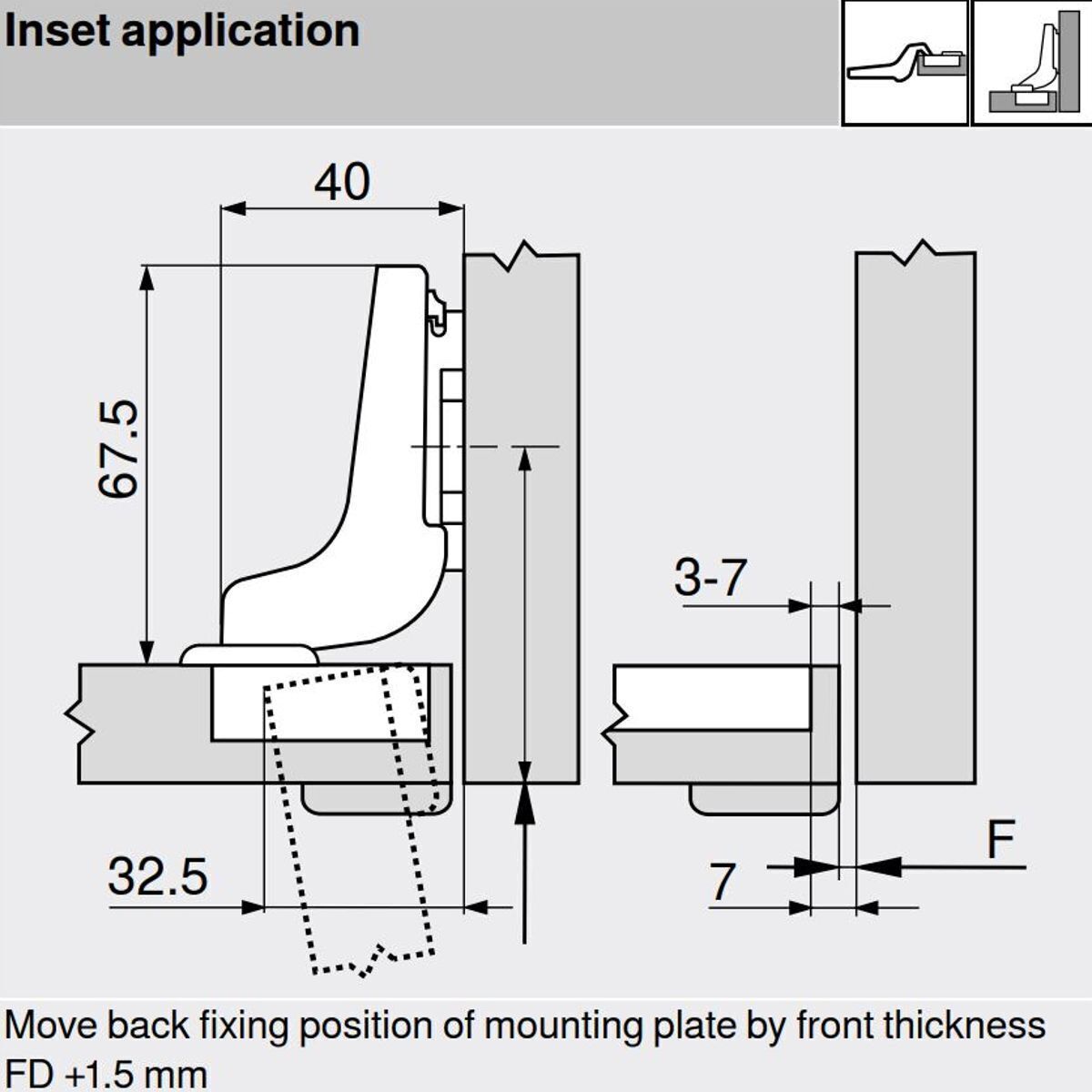

  • Application: inset thick doors
  • Opening angle: 95 degrees
  • Door thickness: 16mm to 32mm

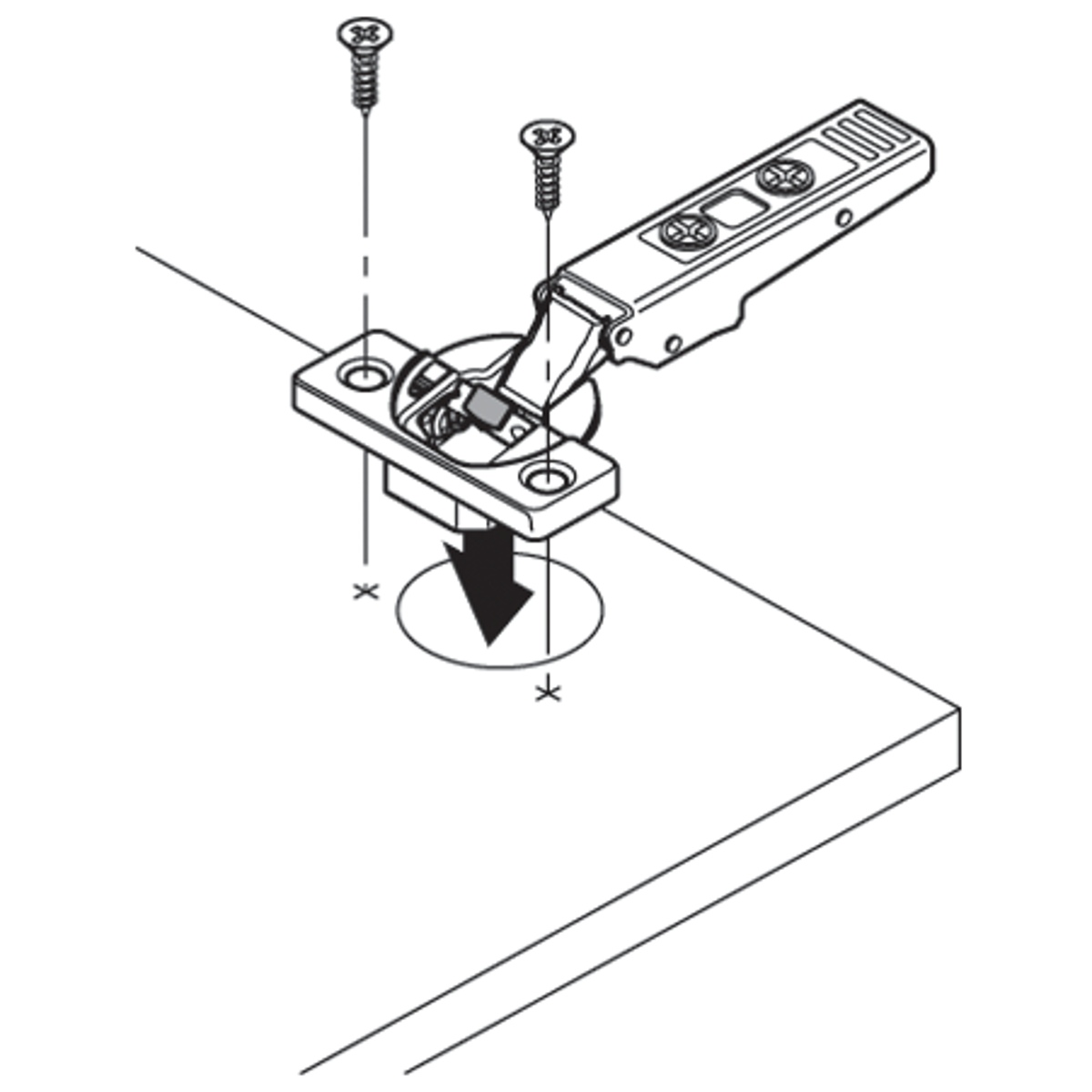

  • Boss assembly - screw-on
  • Finish - Nickel

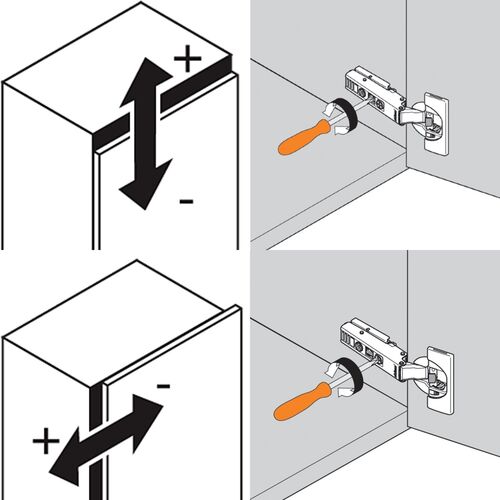

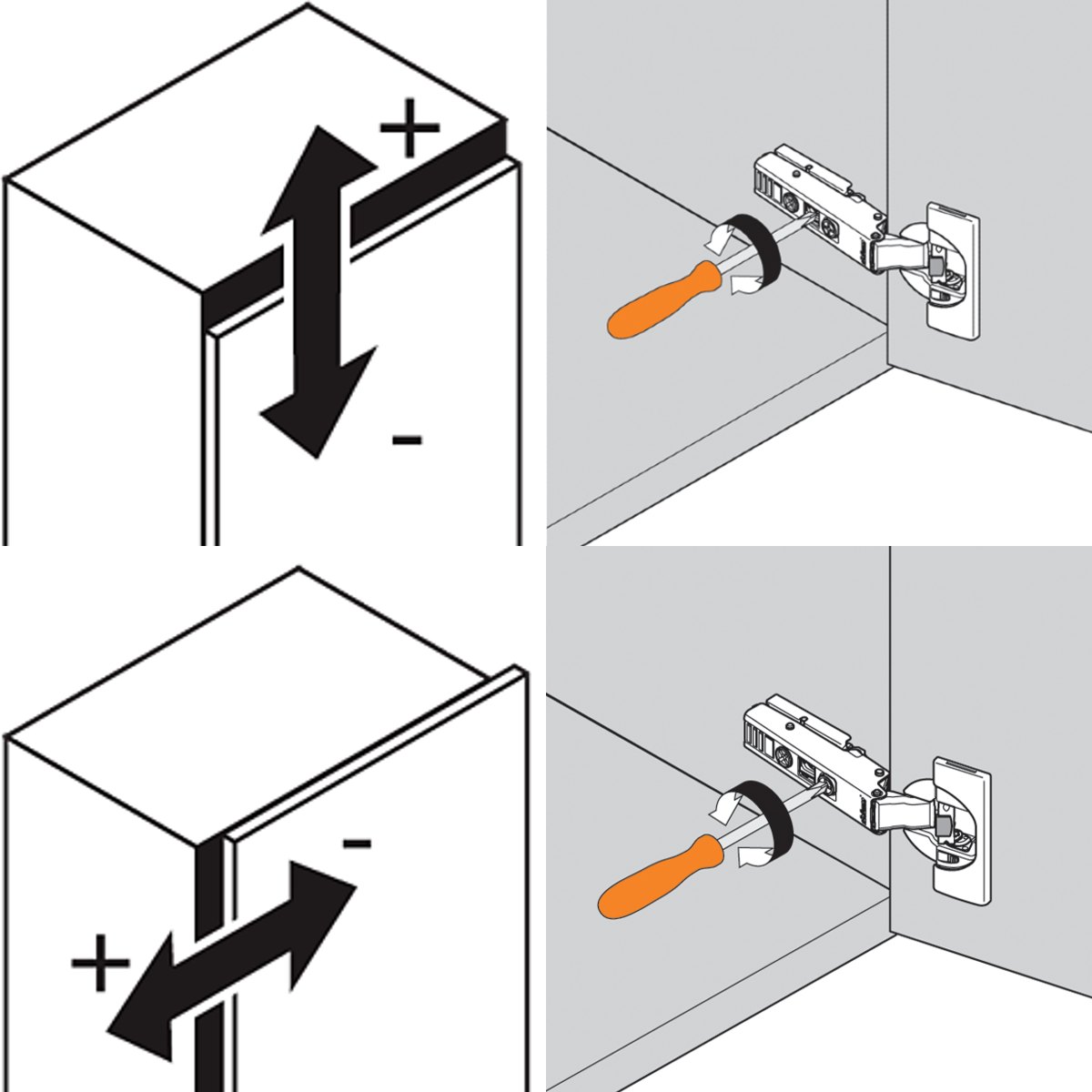

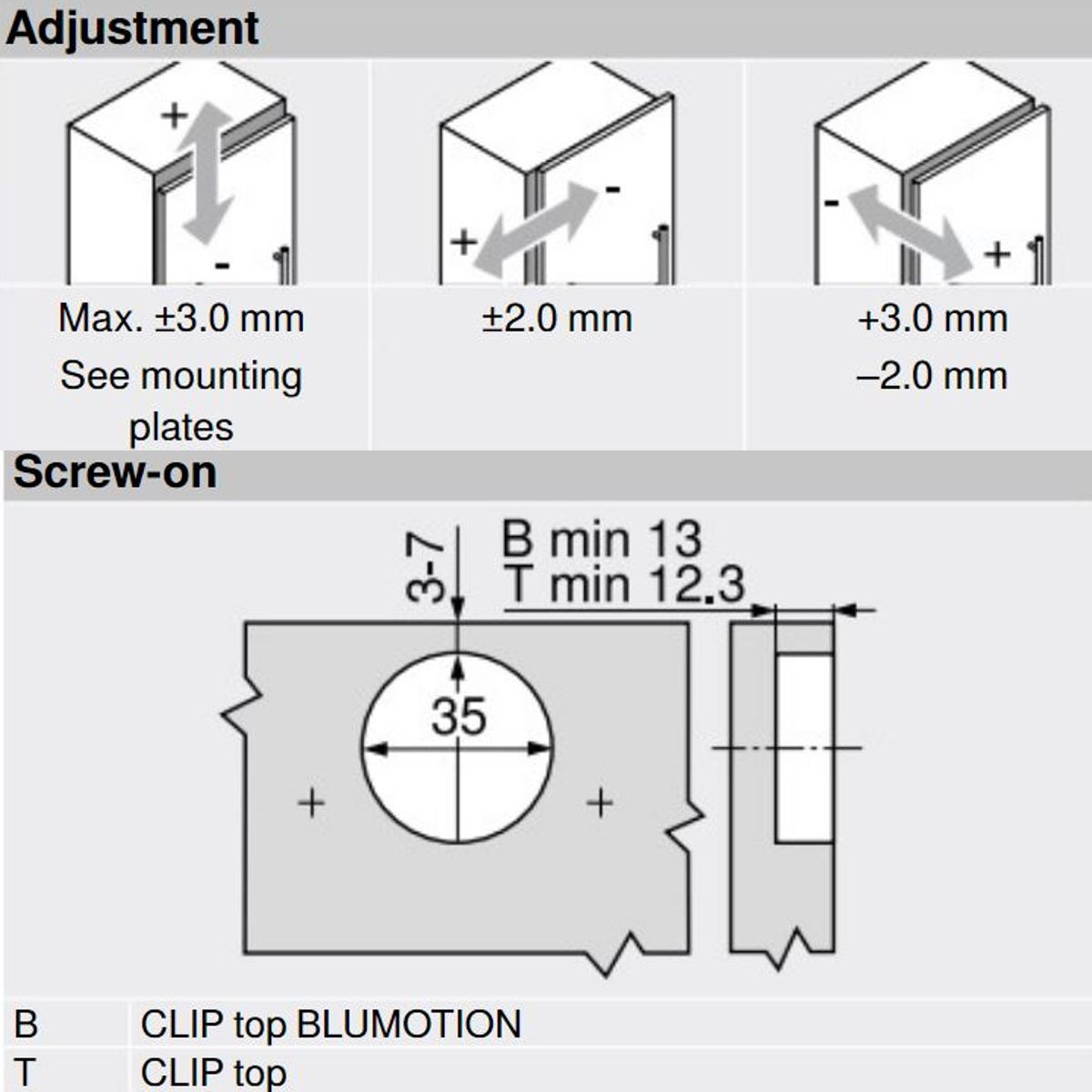

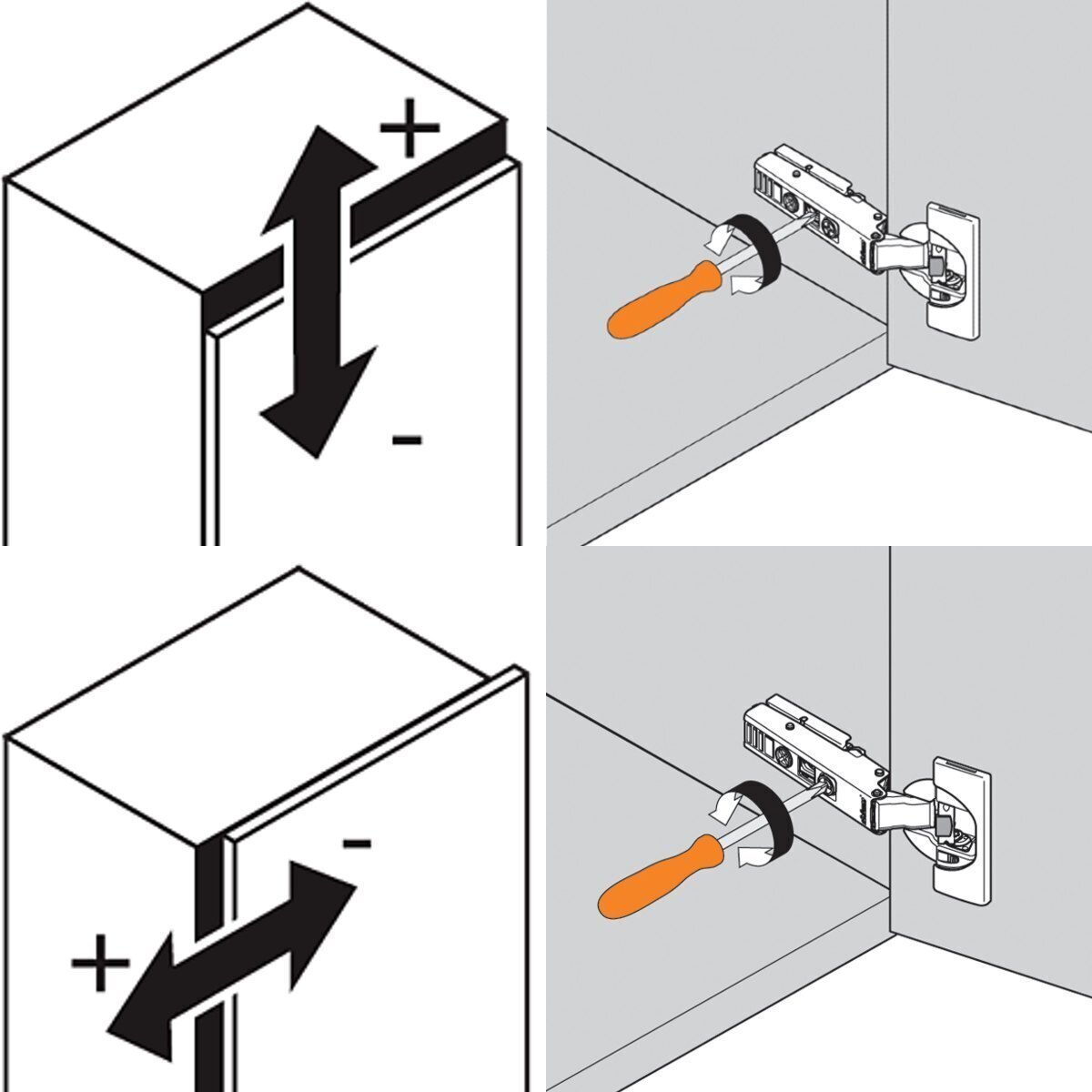

  • Side adjustment: +/- 2mm

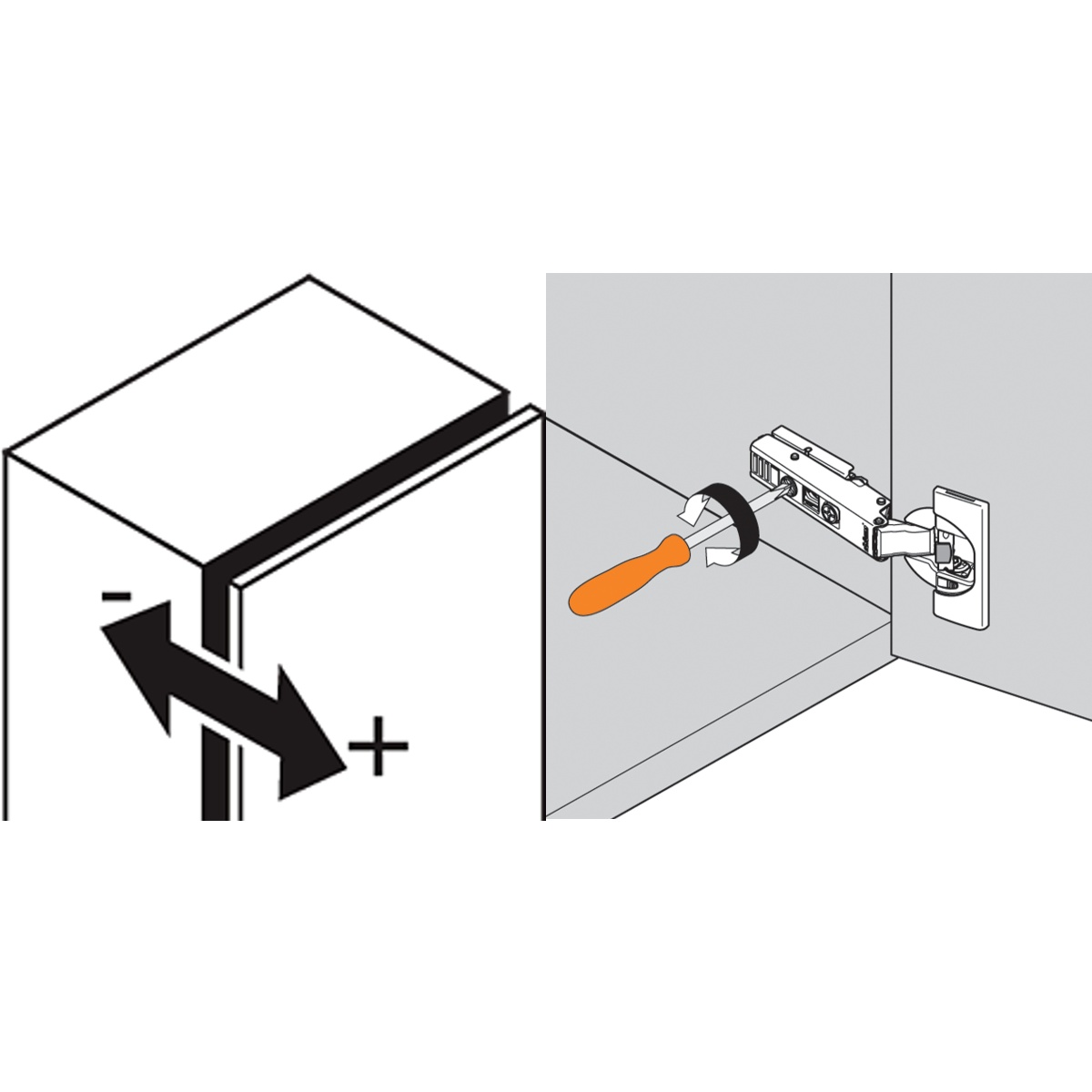

  • Depth adjustment: +3mm/- 2mm

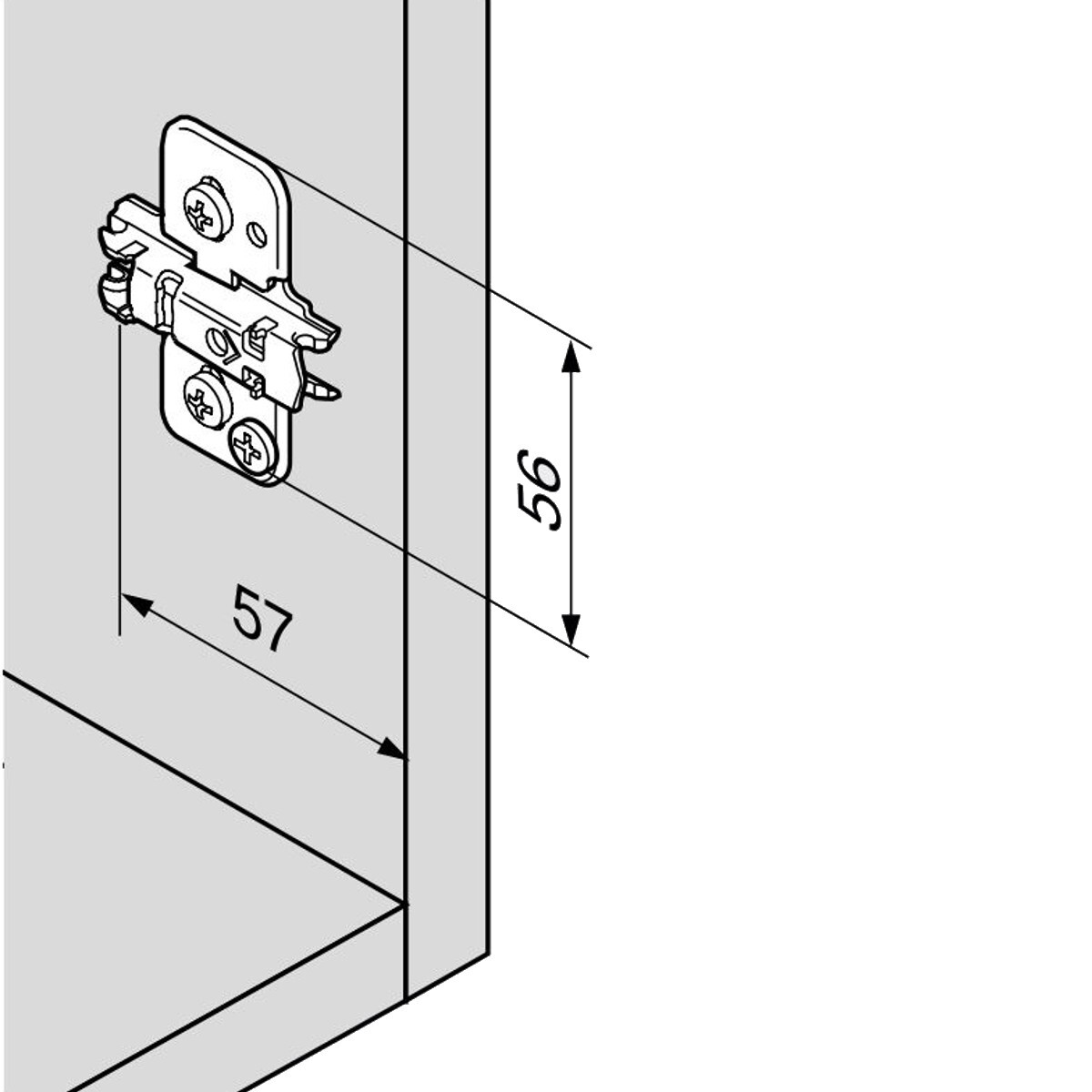

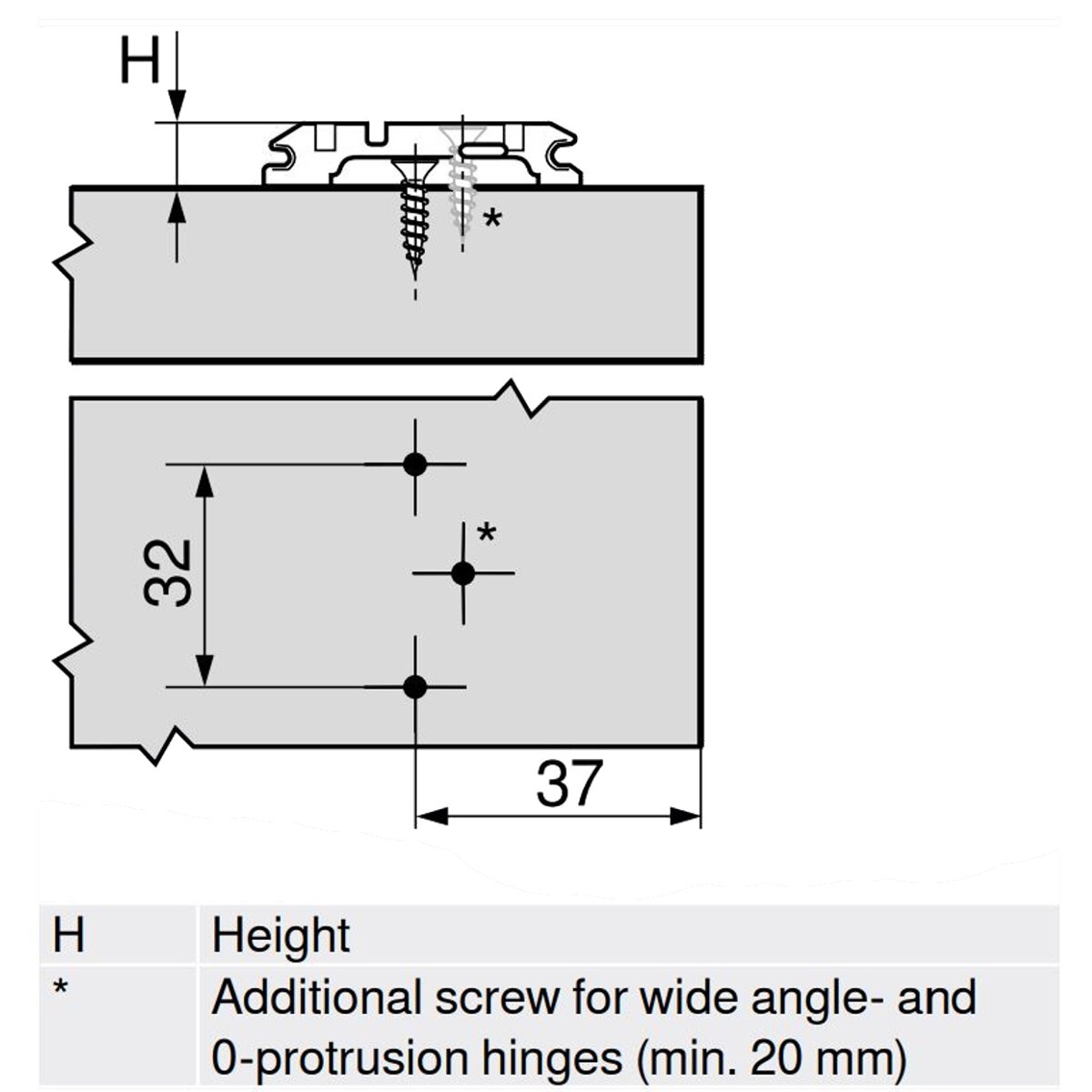

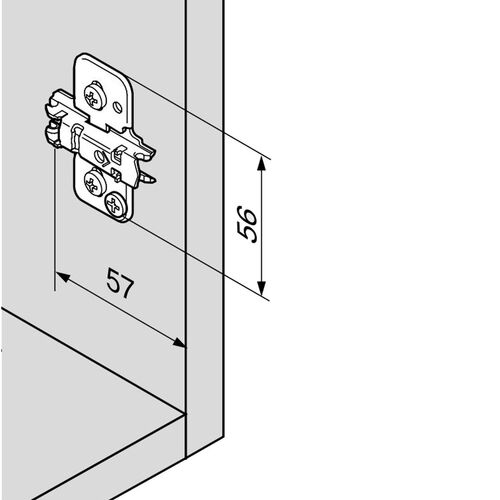

Mounting plates:

  • 174E6100 Expando:
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 174E6130 Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
  • 177H3100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
