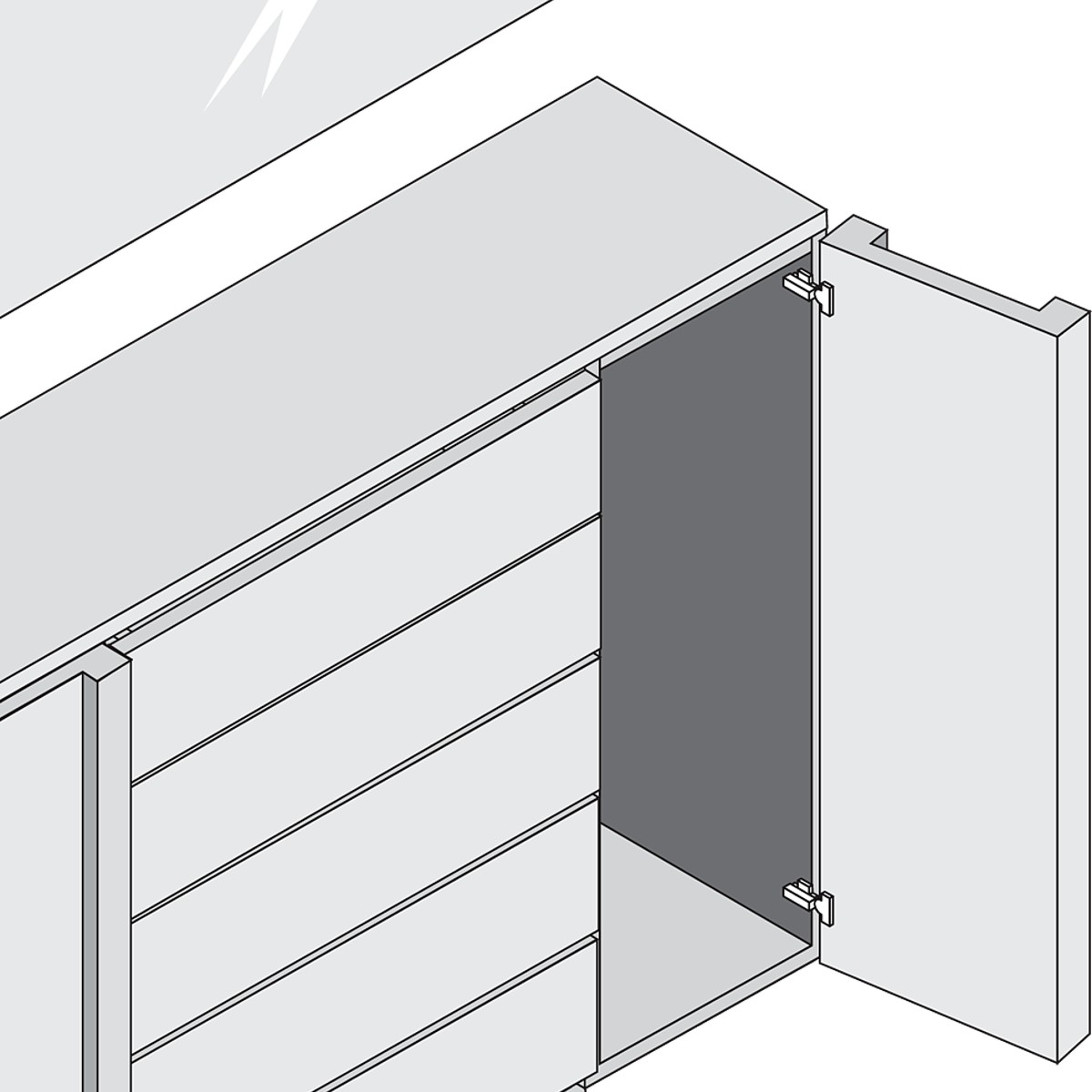

The Blum clip top inset 95 degree cabinet hinge 71B9750 is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

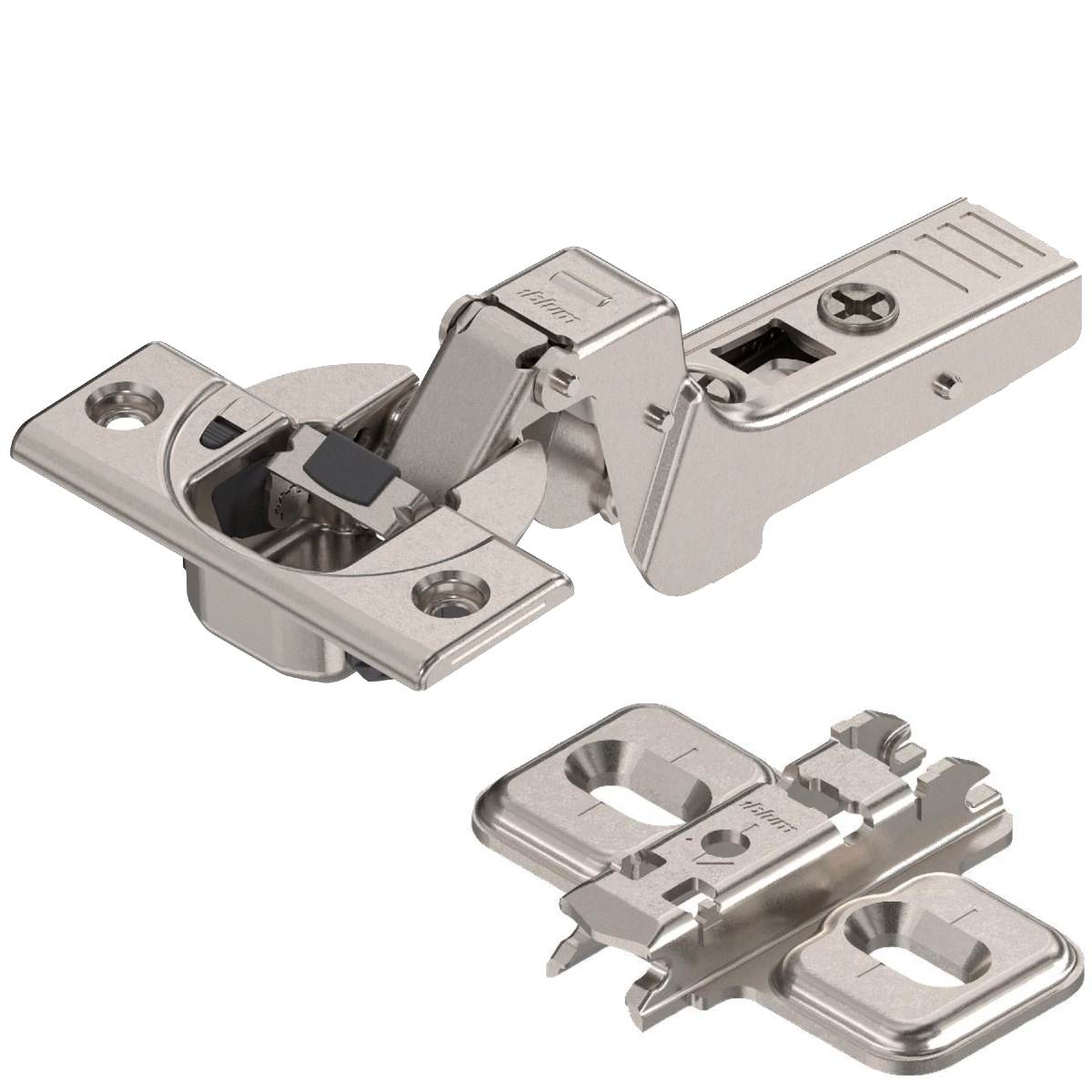

- Clip top profile door hinge 71B9750 (for thick doors)
- Nickel plated
- Door Thickness 24-32mm
- Opening angle: 95 degrees

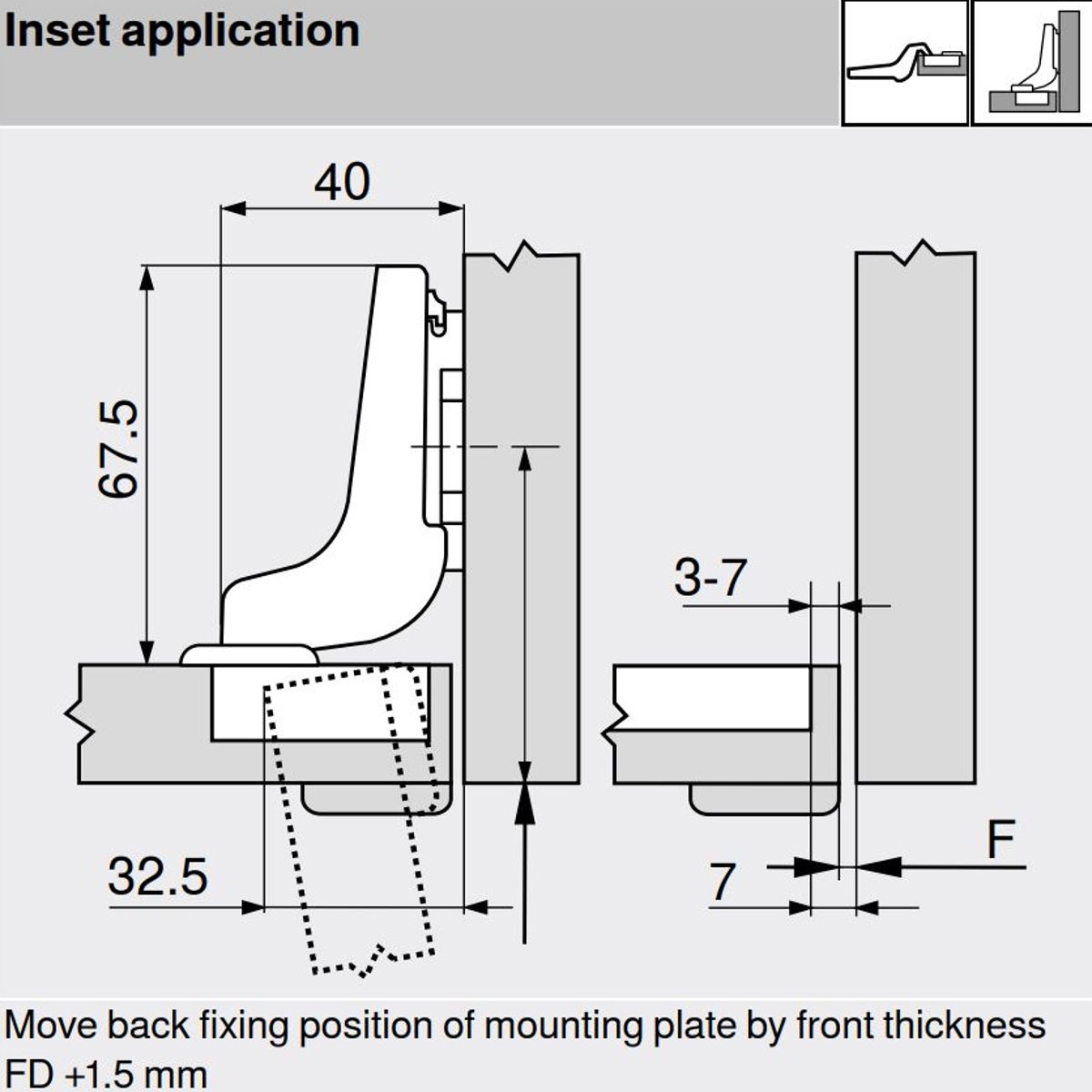

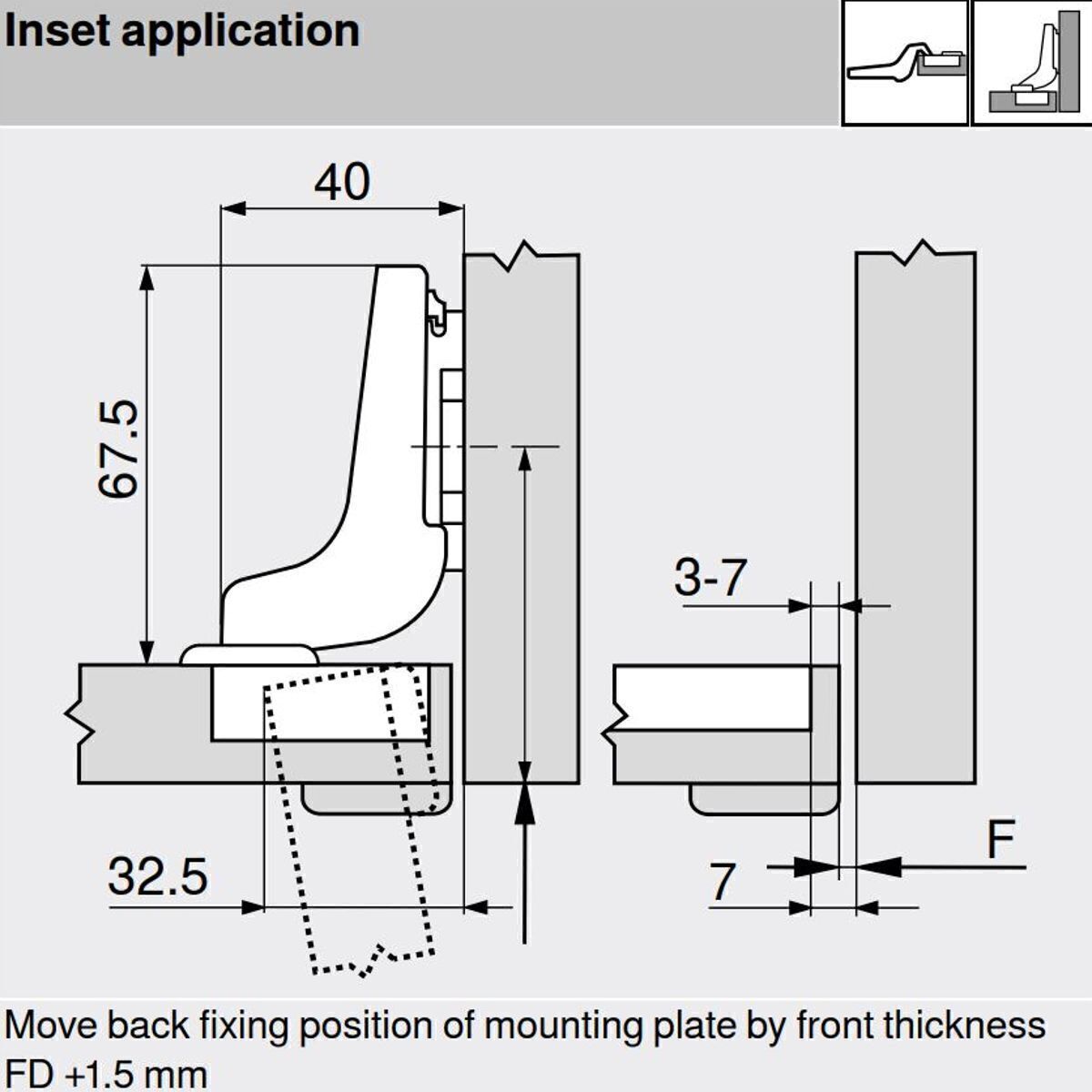

- Cranking: inset application blumotion
- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring and soft-close

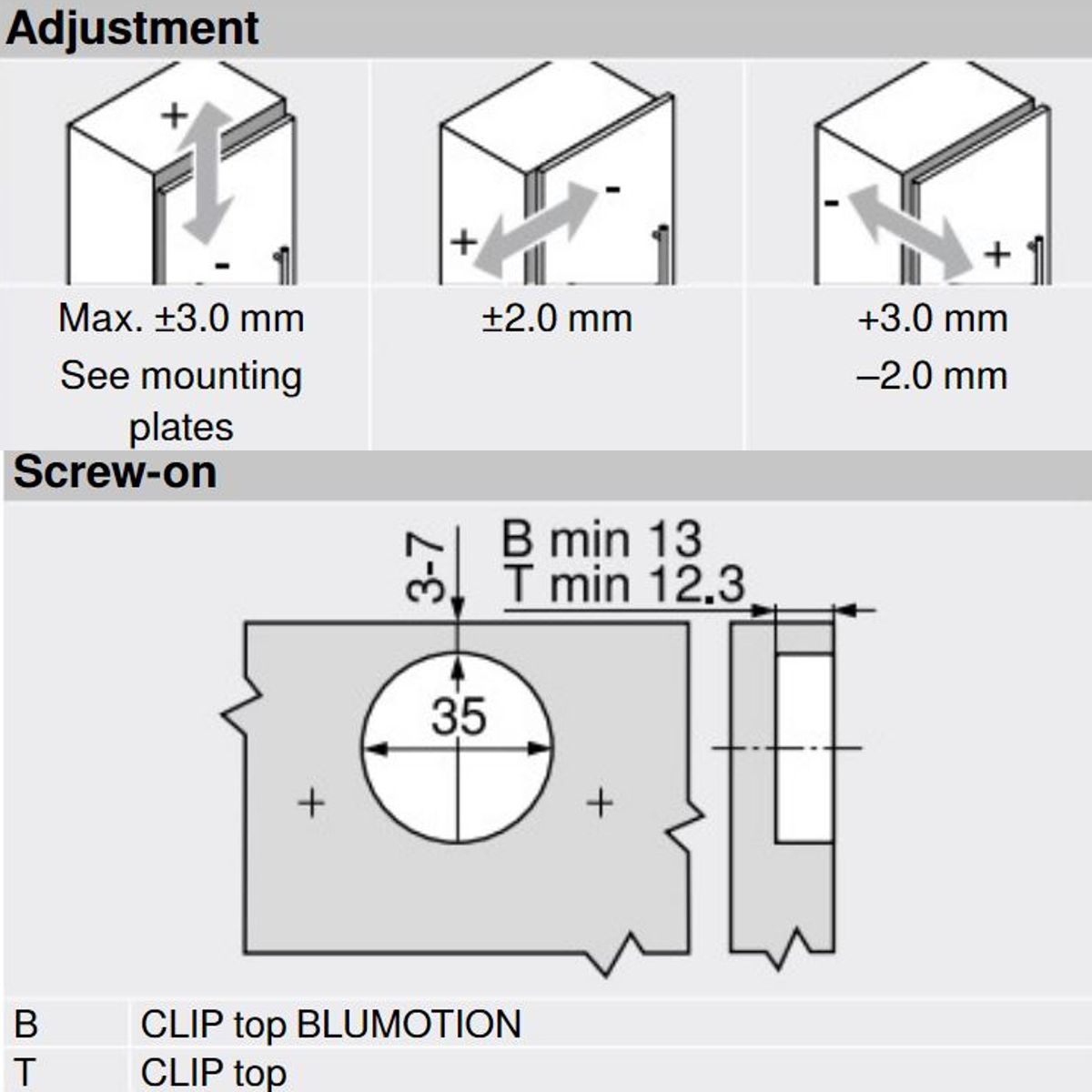

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

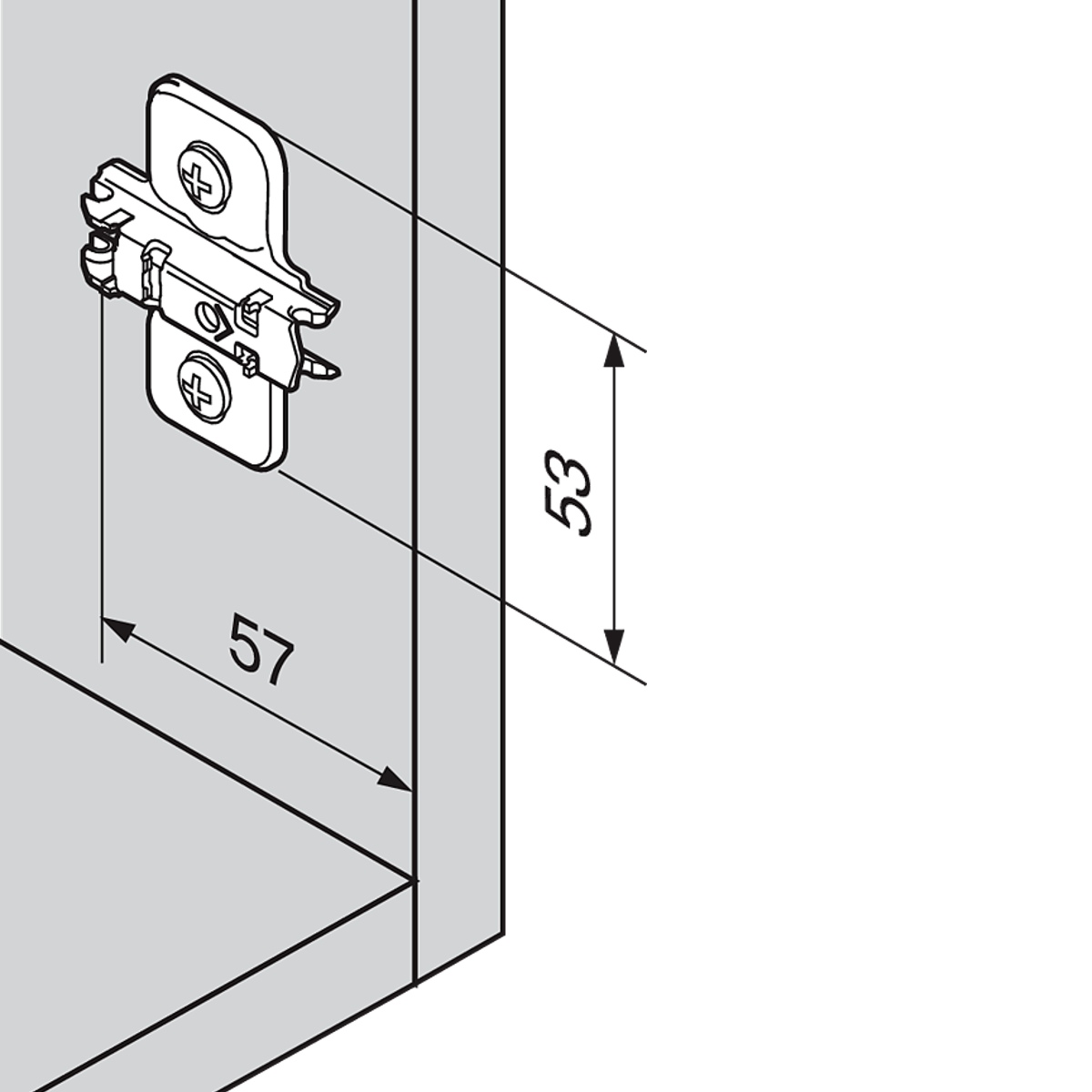

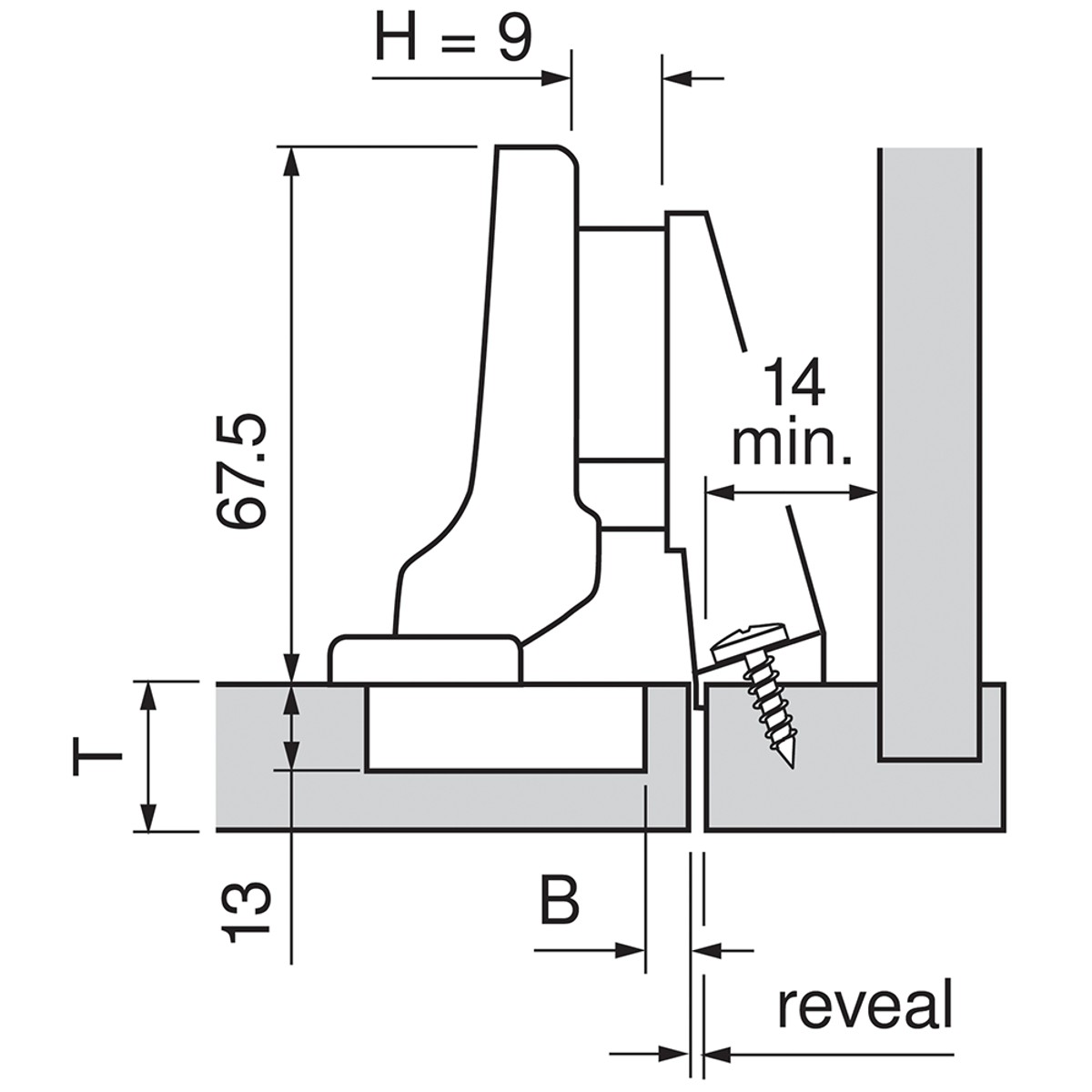

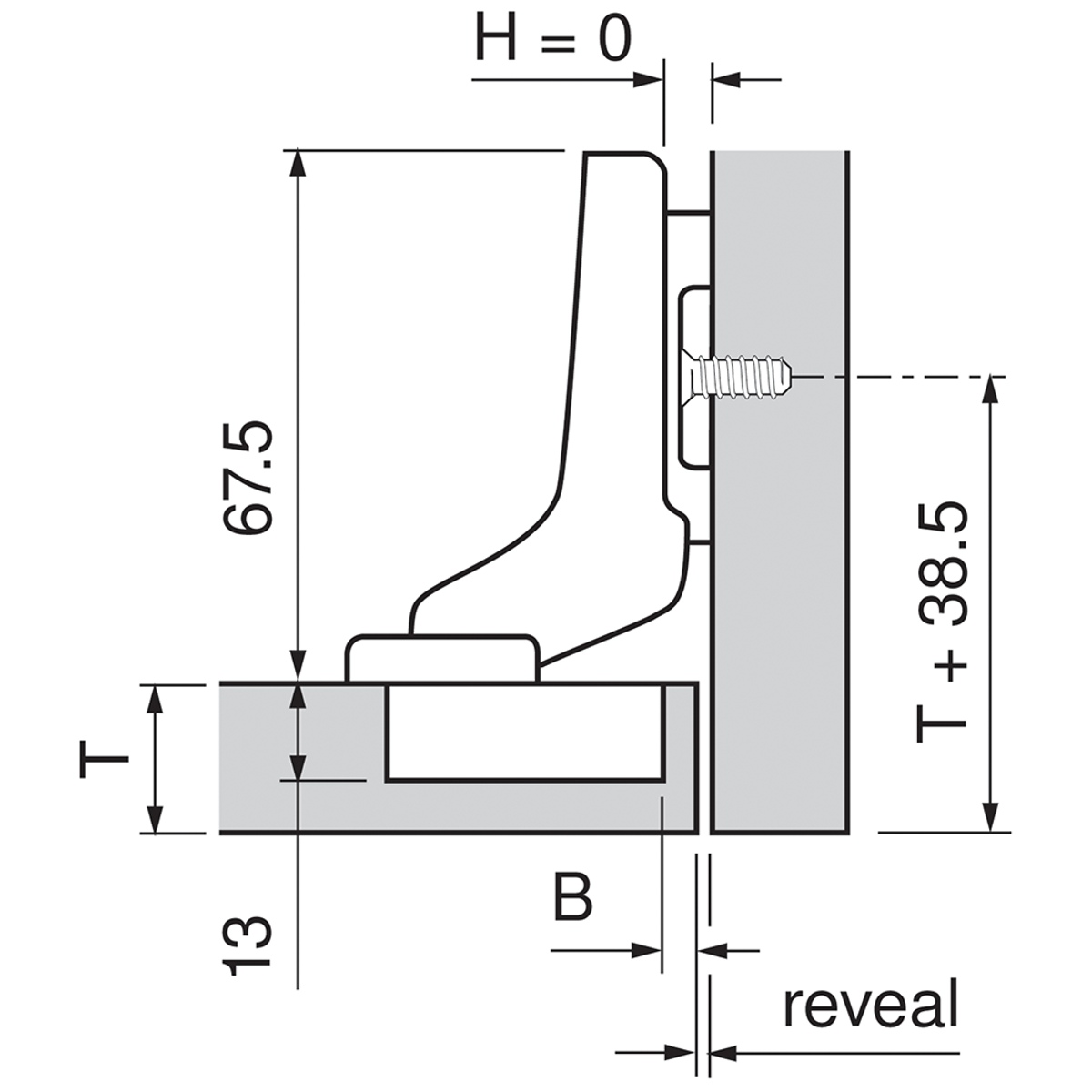

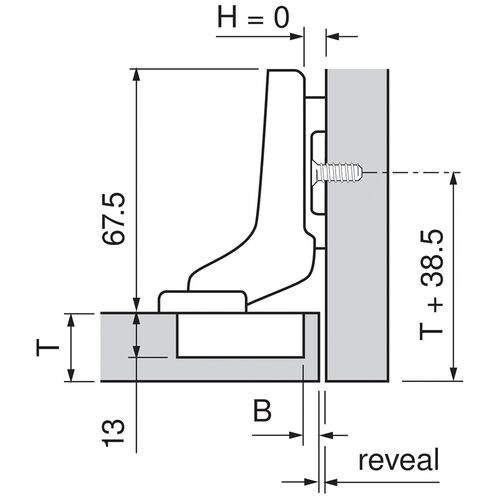

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
