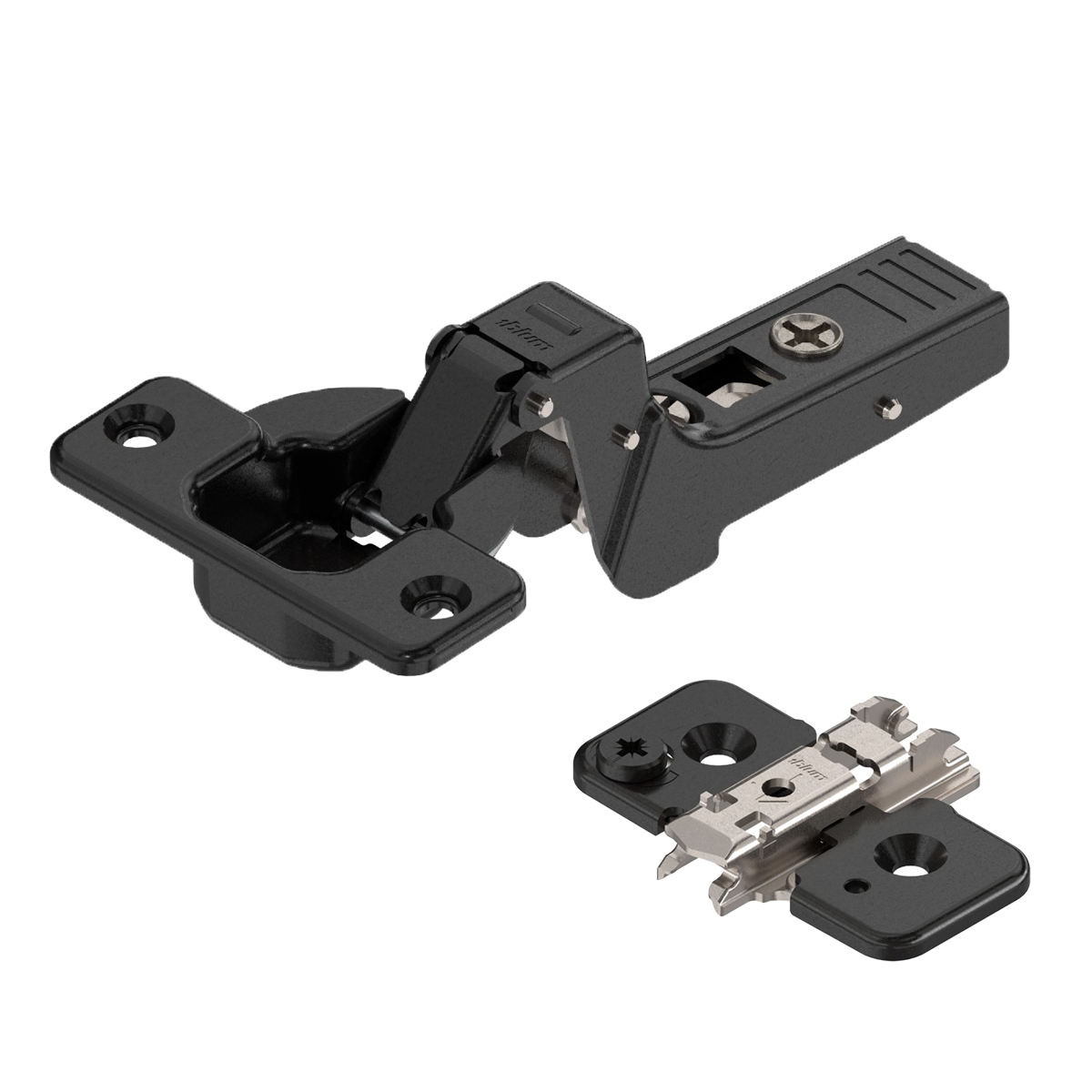

The Blum clip top inset 95 degree cabinet hinge 70T9750.TL is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip Top hinge 70T9750.TL
- Unsprung hinge - free swing hinge for tip-on push to open cabinet doors

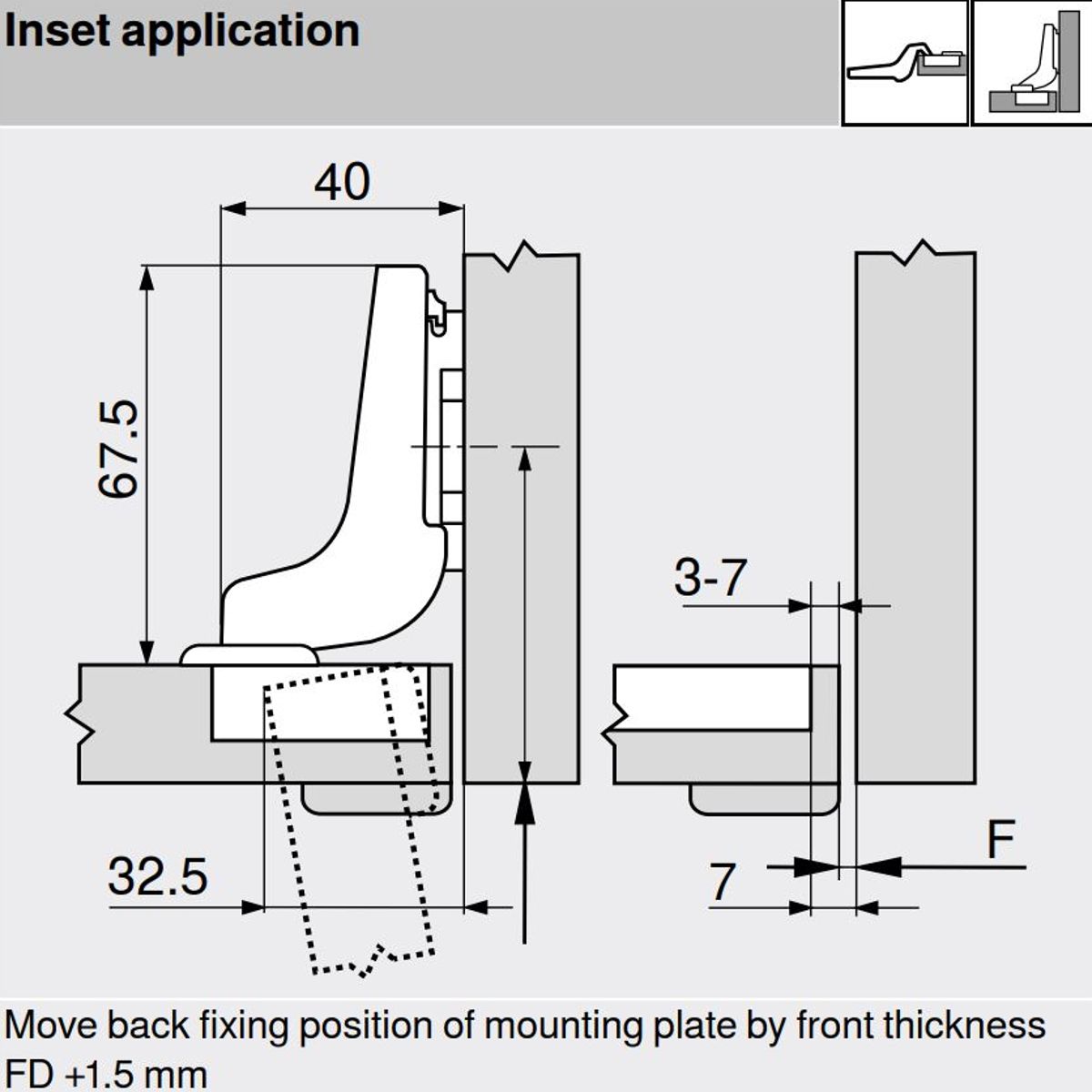

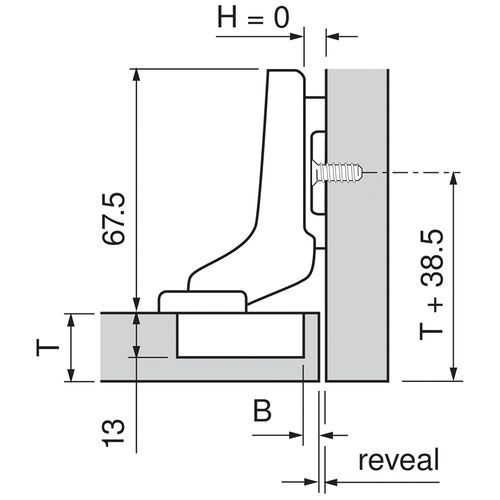

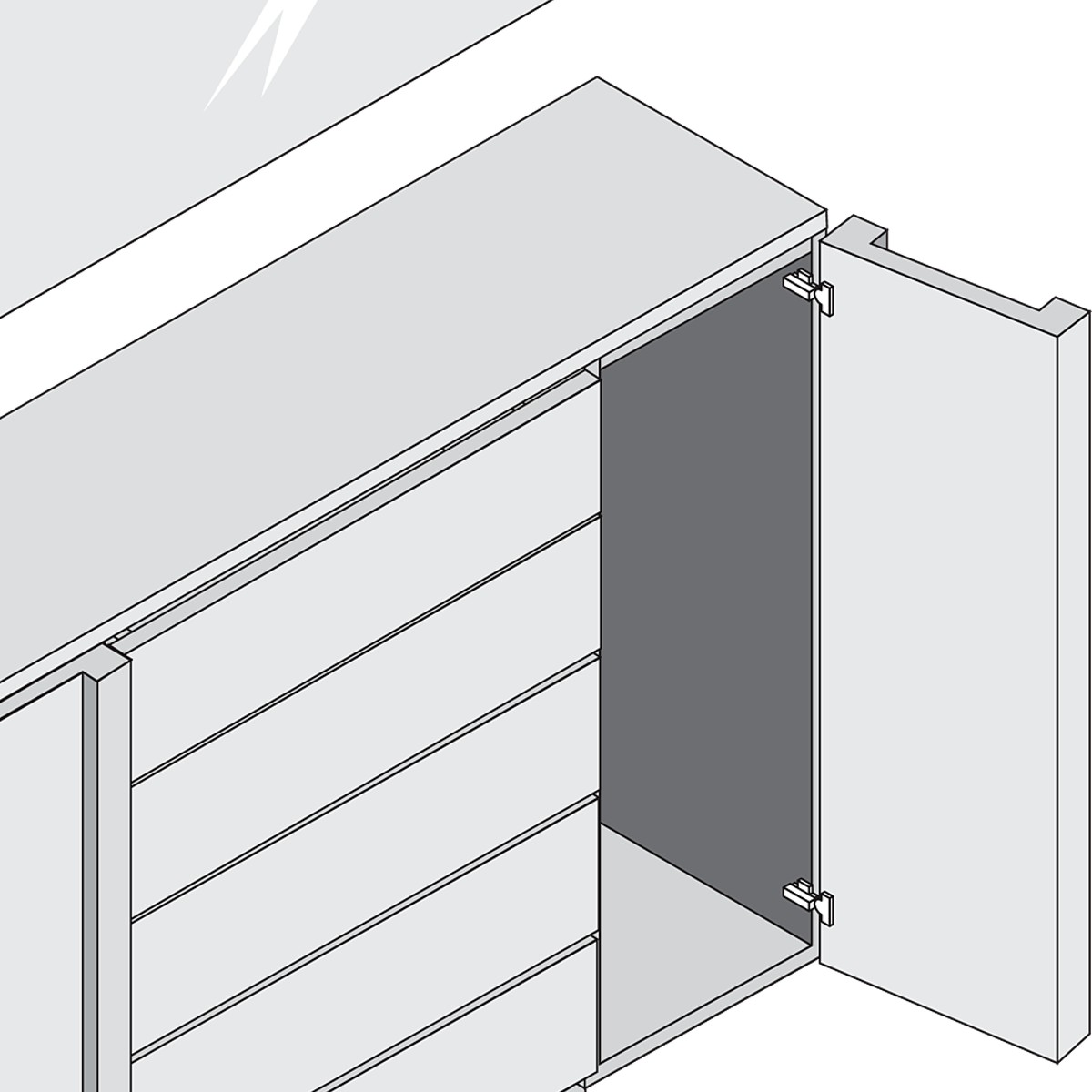

- Application: inset thick doors
- Opening angle: 95 degrees
- Door thickness: 16-32mm

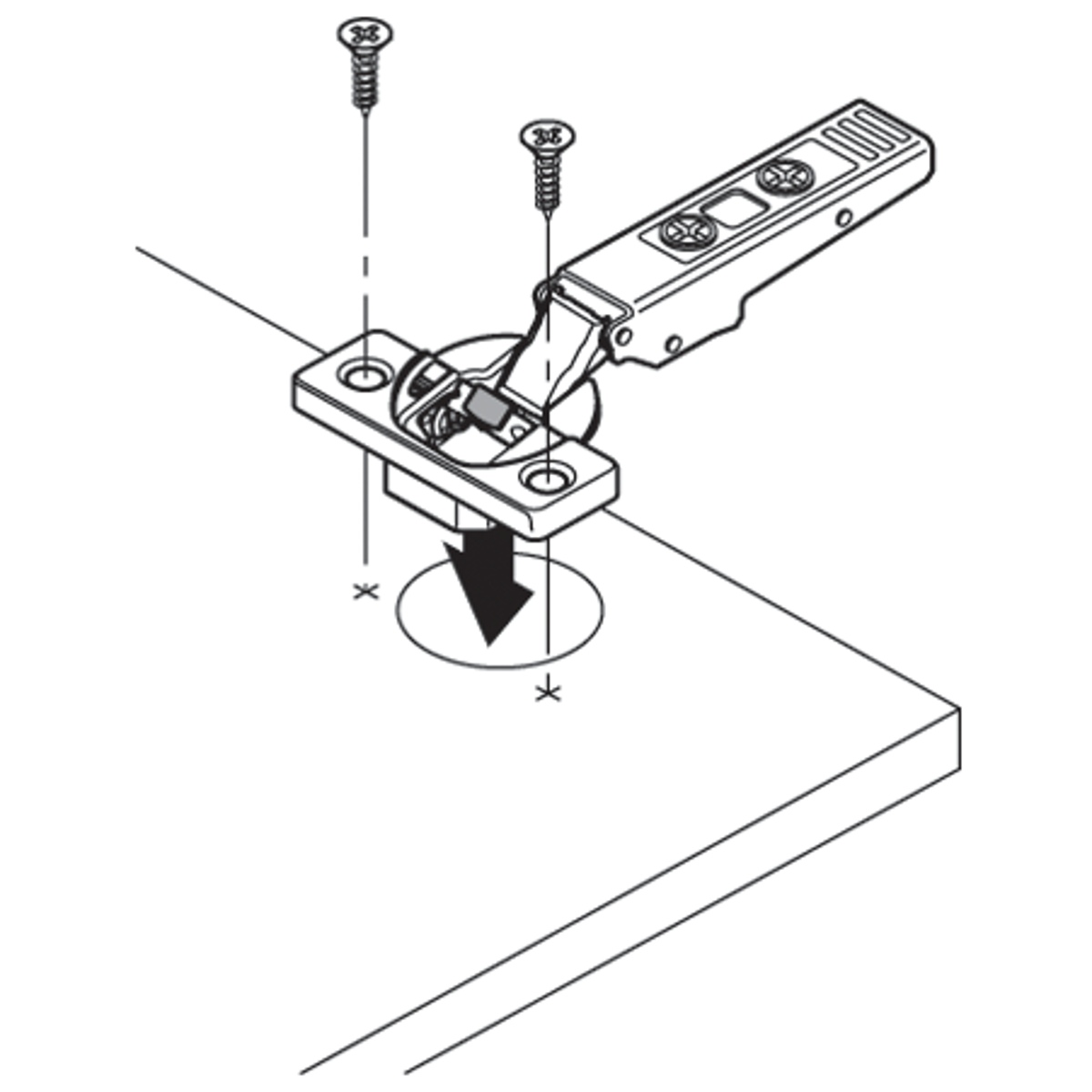

- Boss assembly - screw-on
- Finish - onyx black

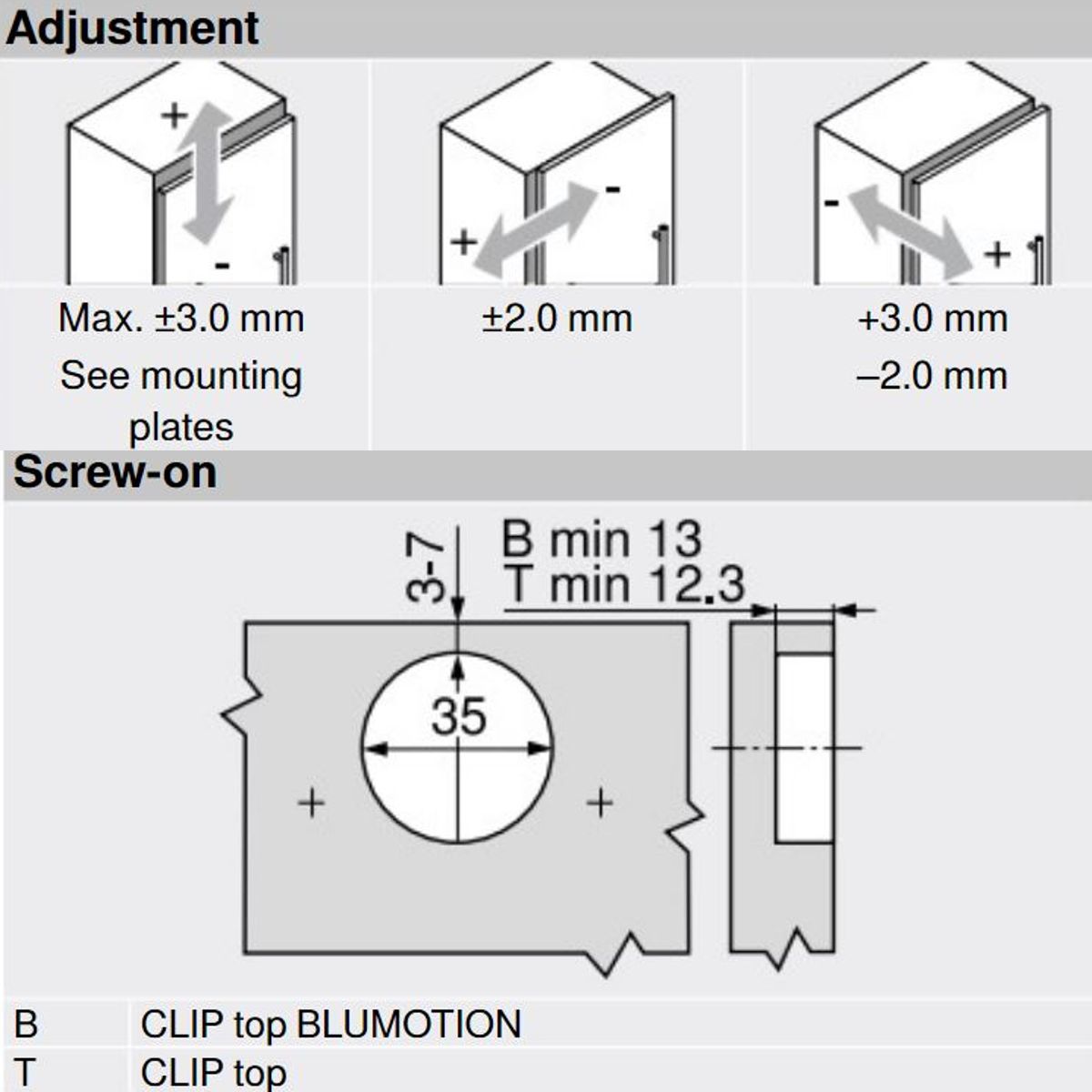

- Side adjustment: +/- 2mm
- Depth adjustment: +3mm/- 2mm

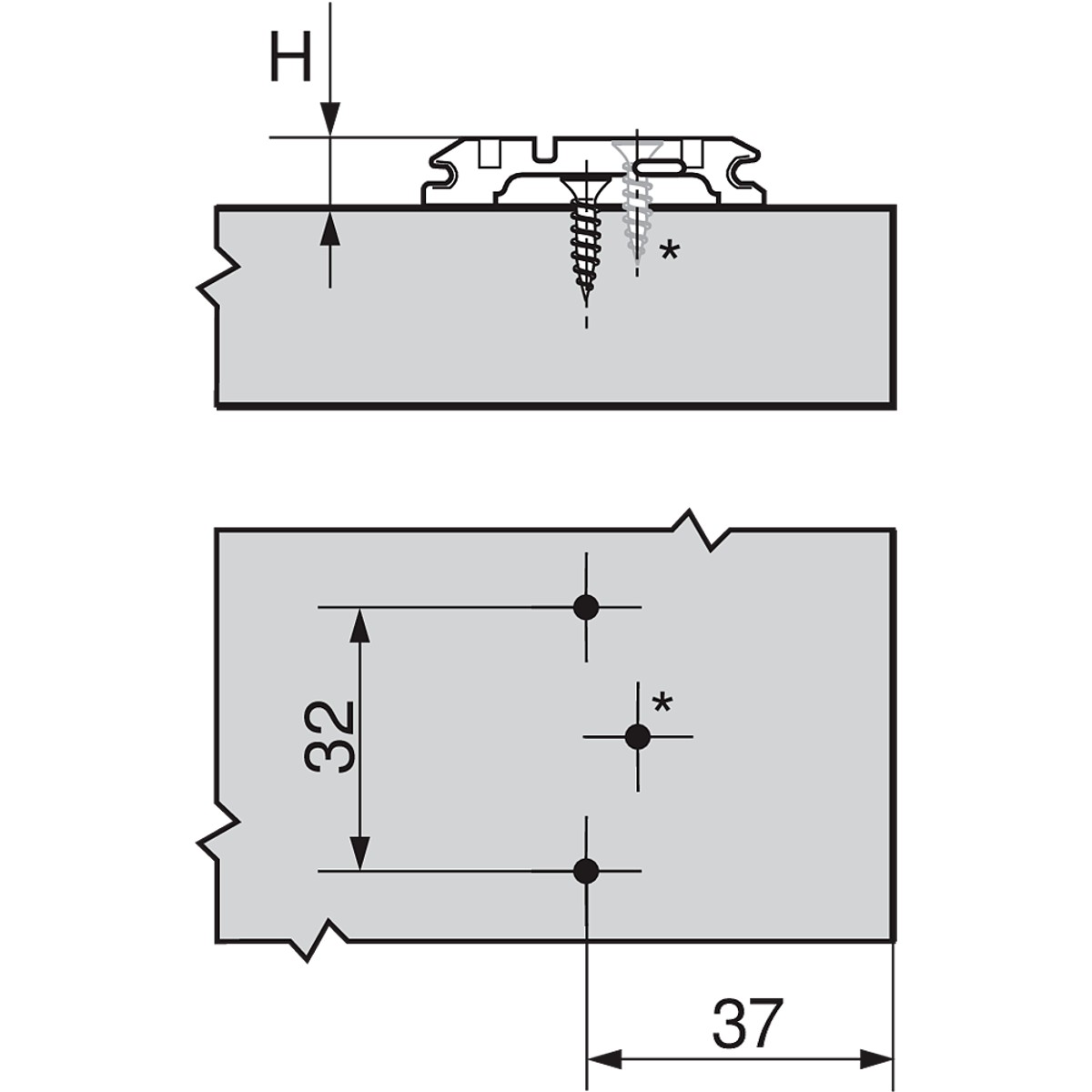

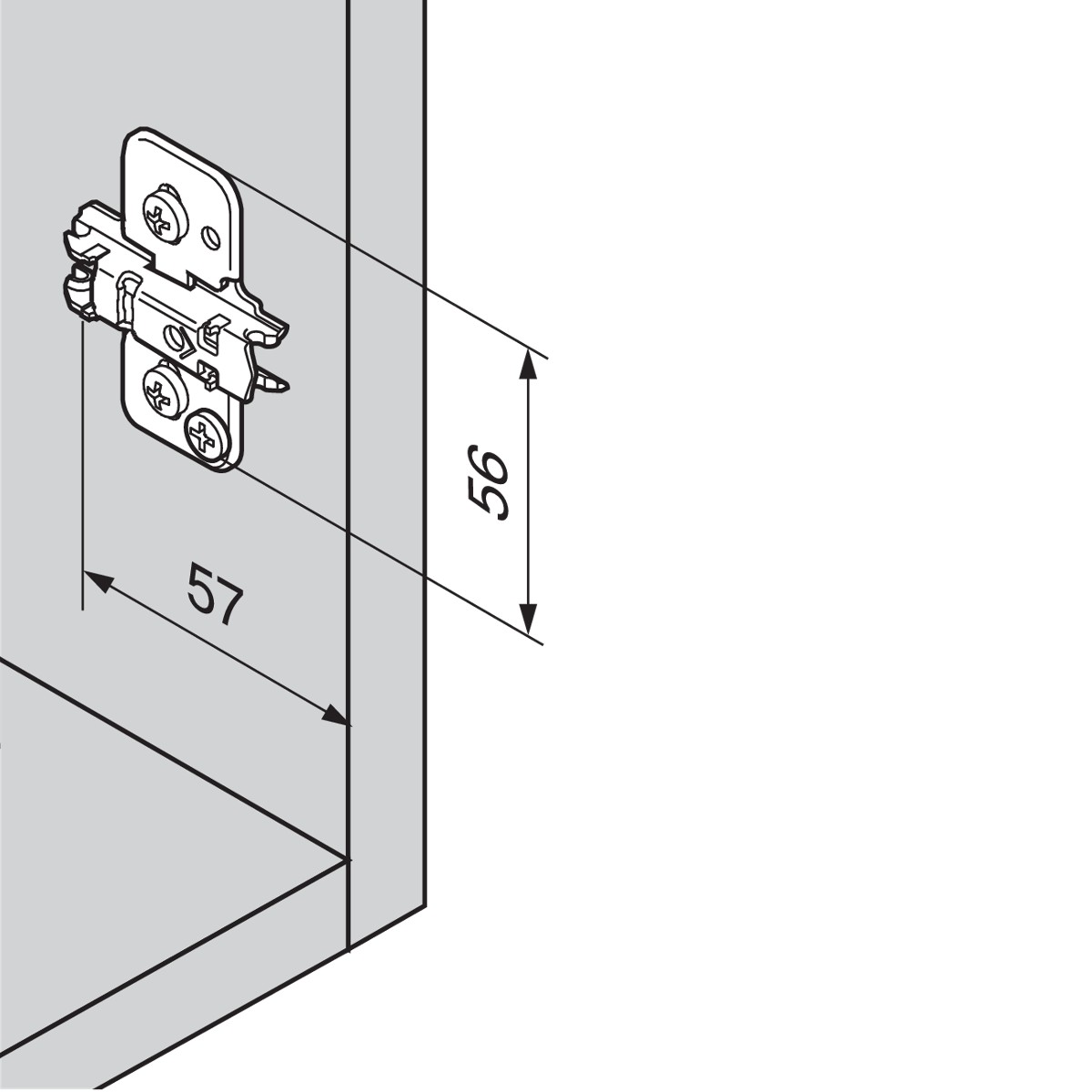

Mounting plates:
- 173H7100:
- Adjustment: yes
- Spacing: 0mm
- Screws: no
- 175H3100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 174H7100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: yes
- 177H3100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H31310:
- Screws: no
- Spacing: 3mm
- Adjustment: no
- 174H7130E: Expando
- Screws: yes
- Spacing: 3mm
- Adjustment: yes
Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
