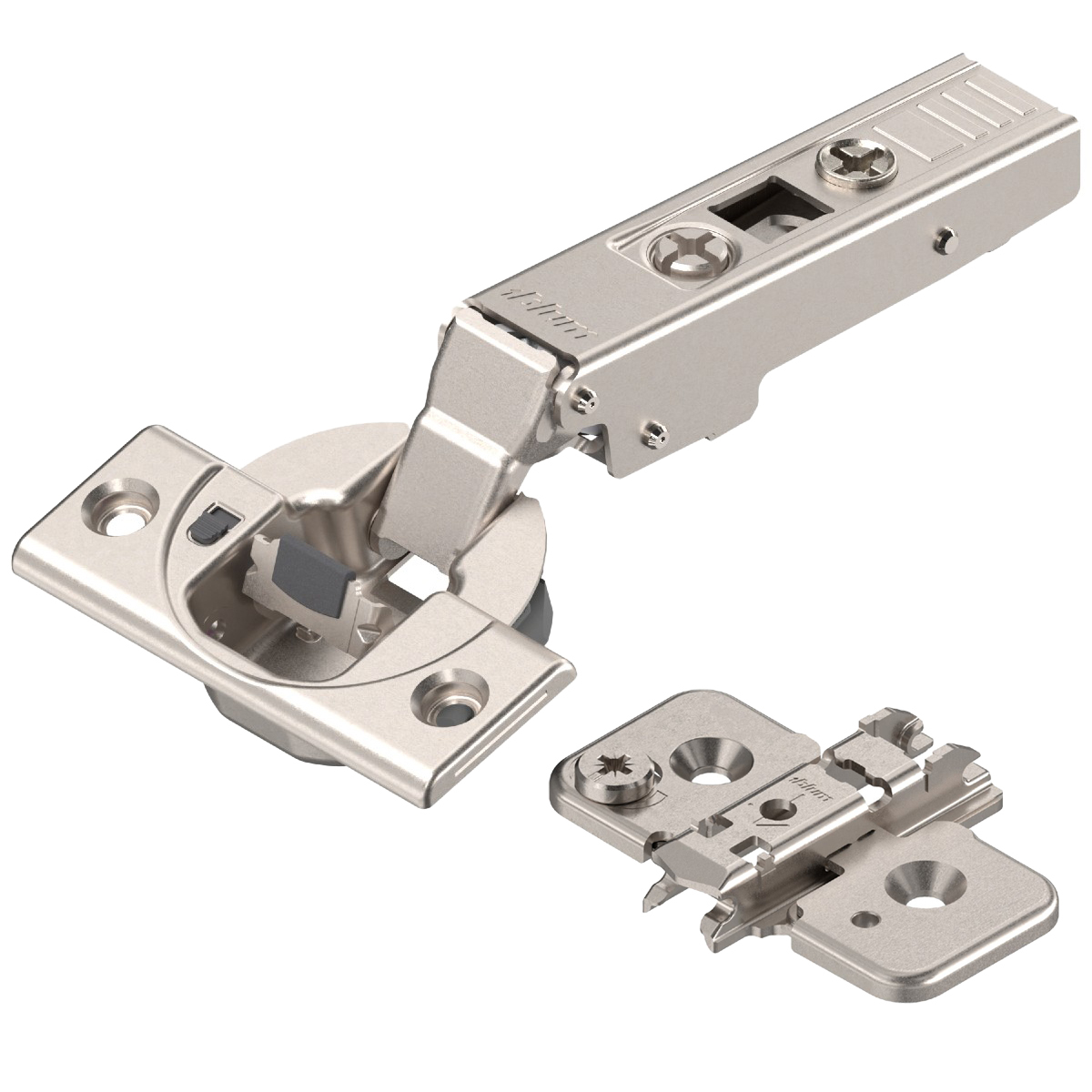

Blum Clip Top Overlay 107 Degree Blumotion Cabinet Hinge 75B1550 With Mounting Plate

9891-001
Price from: £4.57inc VAT
Write a review
− +

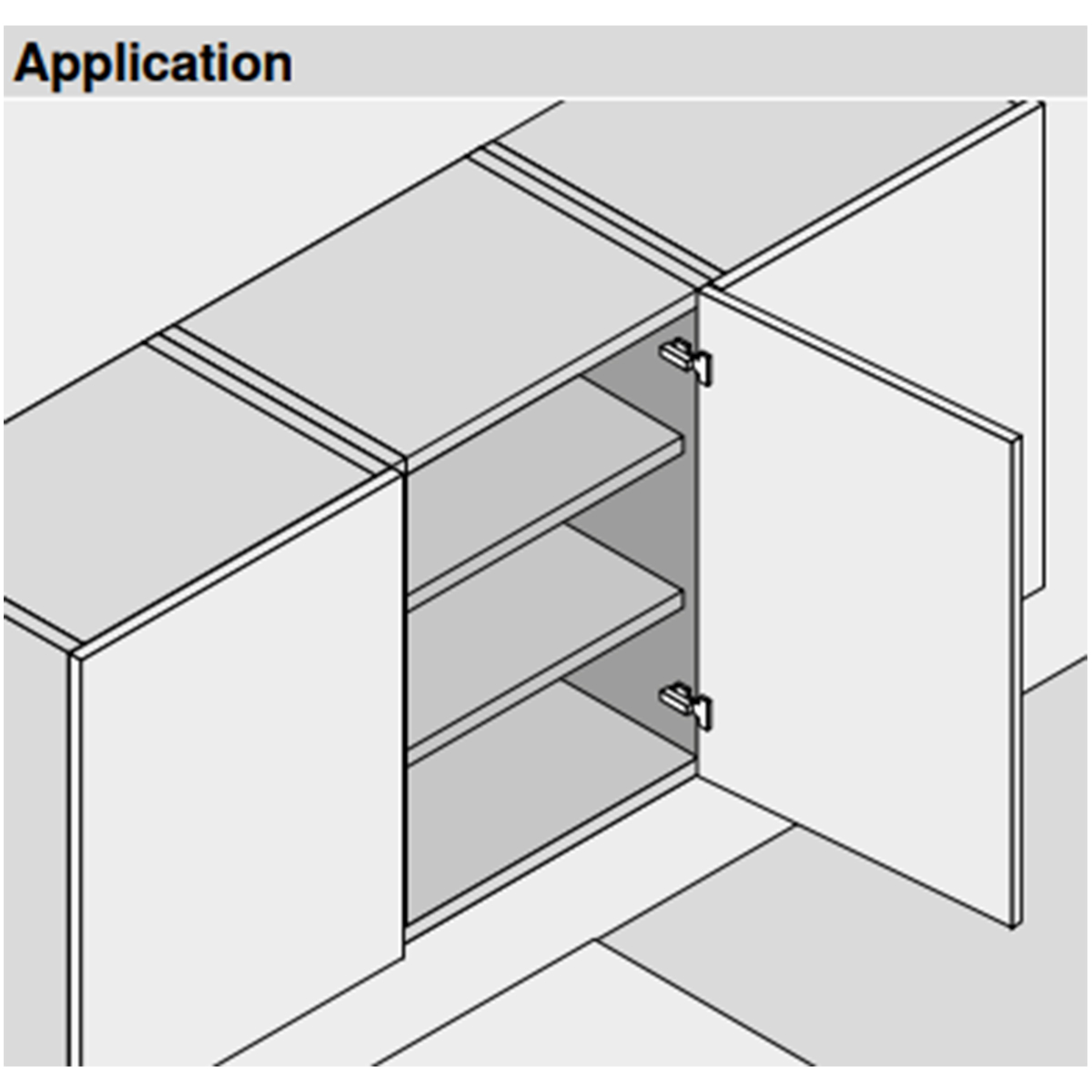

The Blum clip top overlay 107 degree cabinet hinge 75B1550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip standard hinge 75B1550
  • Opening angle: 107 degrees
  • Door thickness: 15-24mm

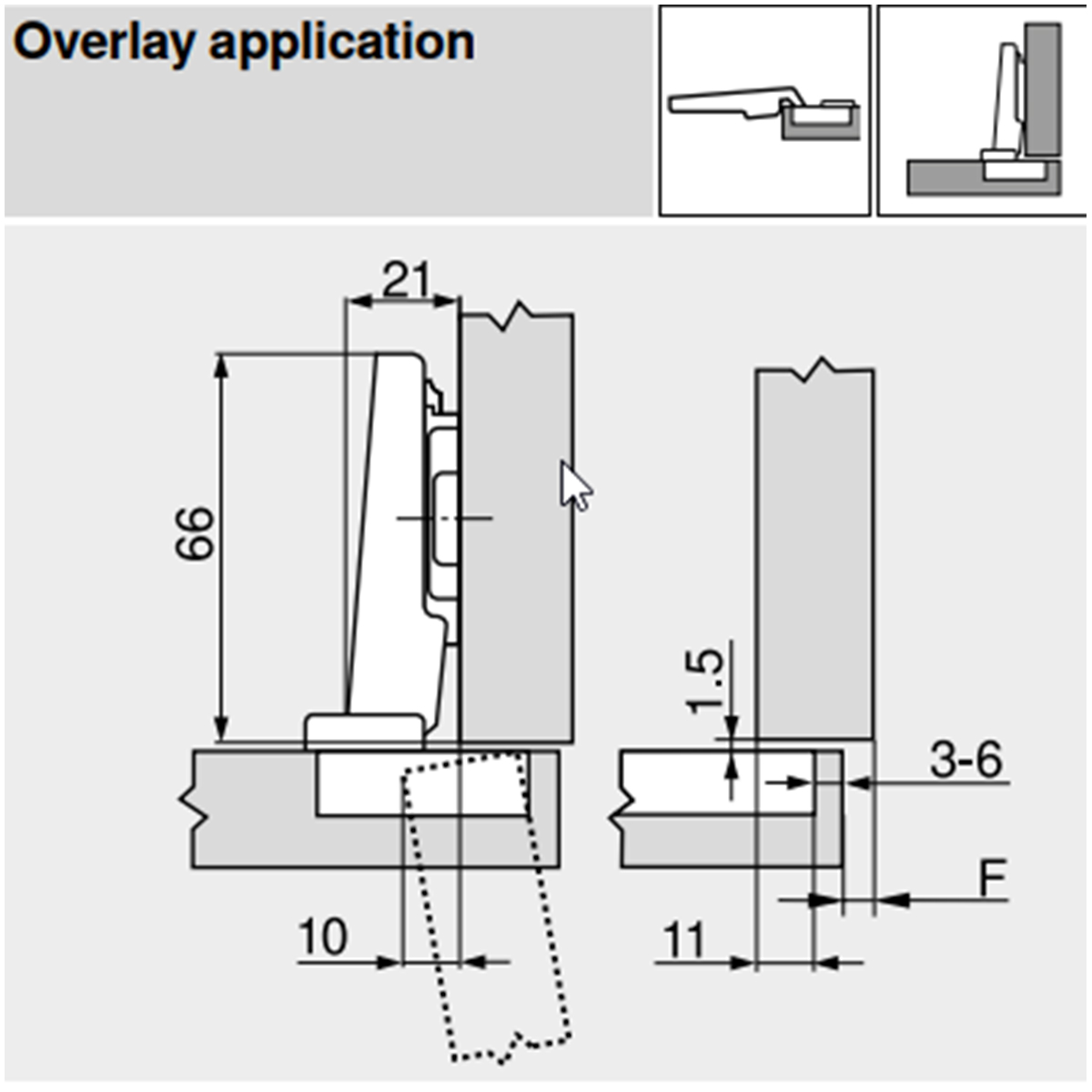

  • Cranking: overlay application

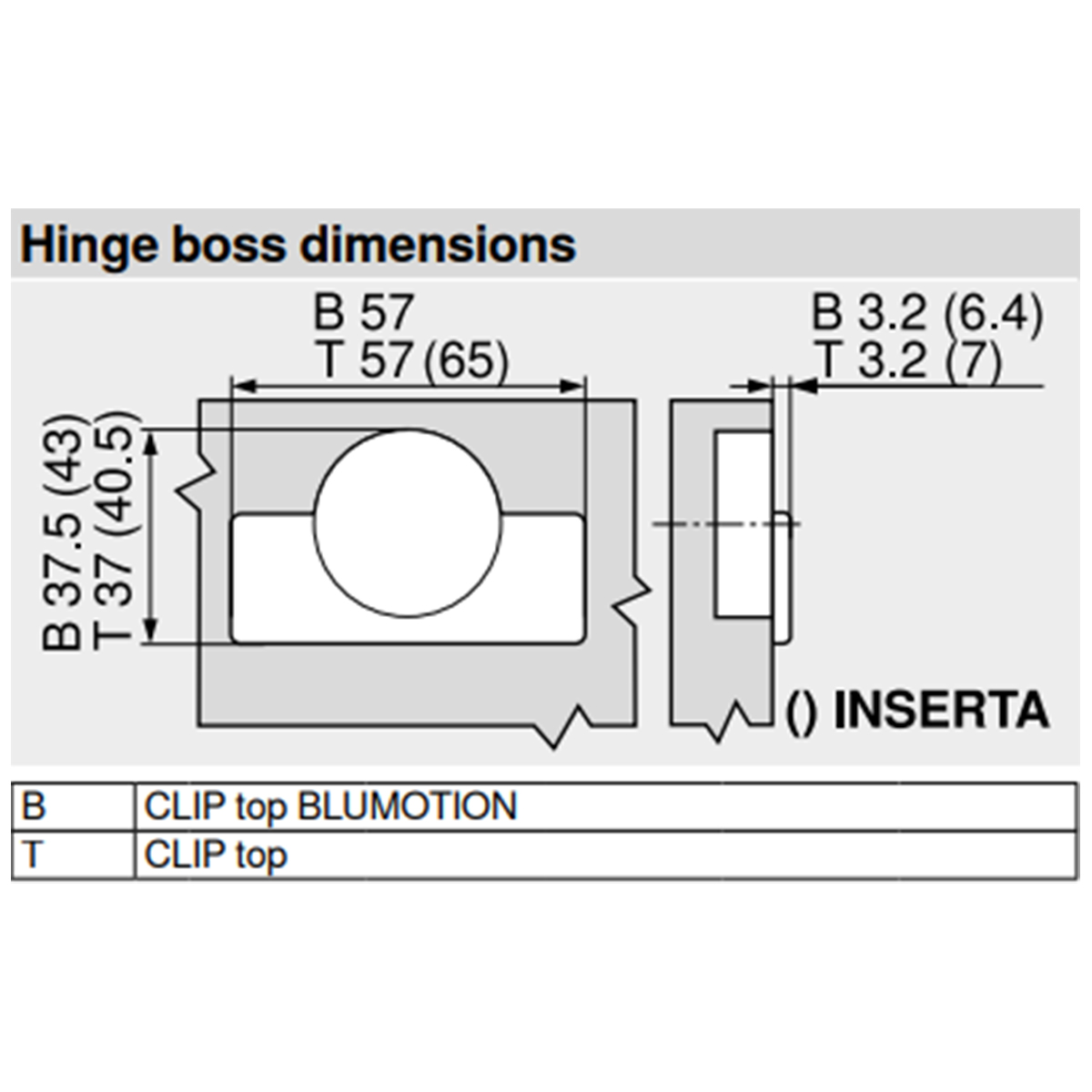

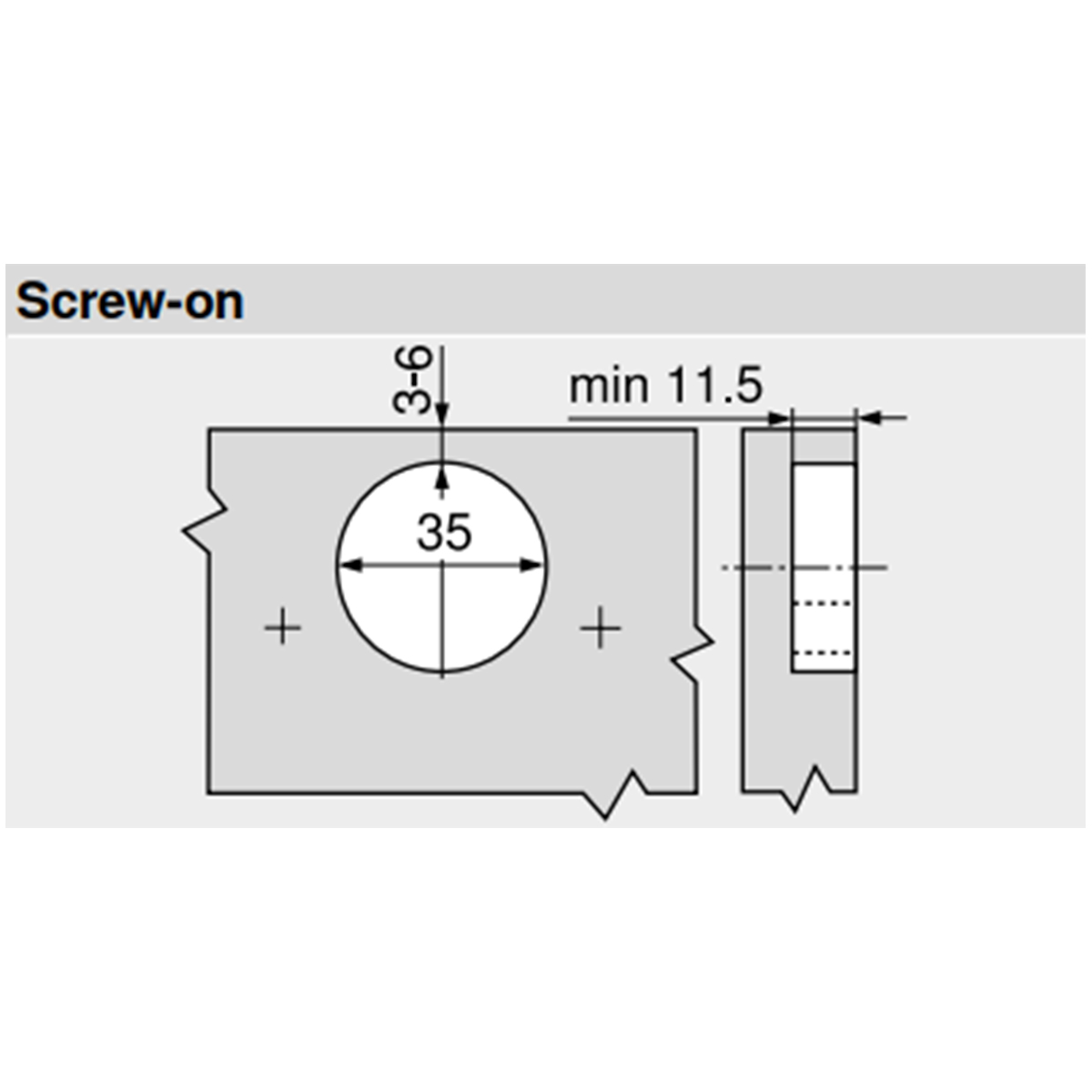

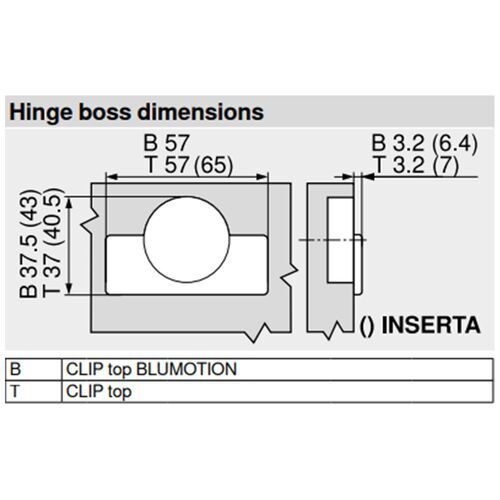

  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: with spring

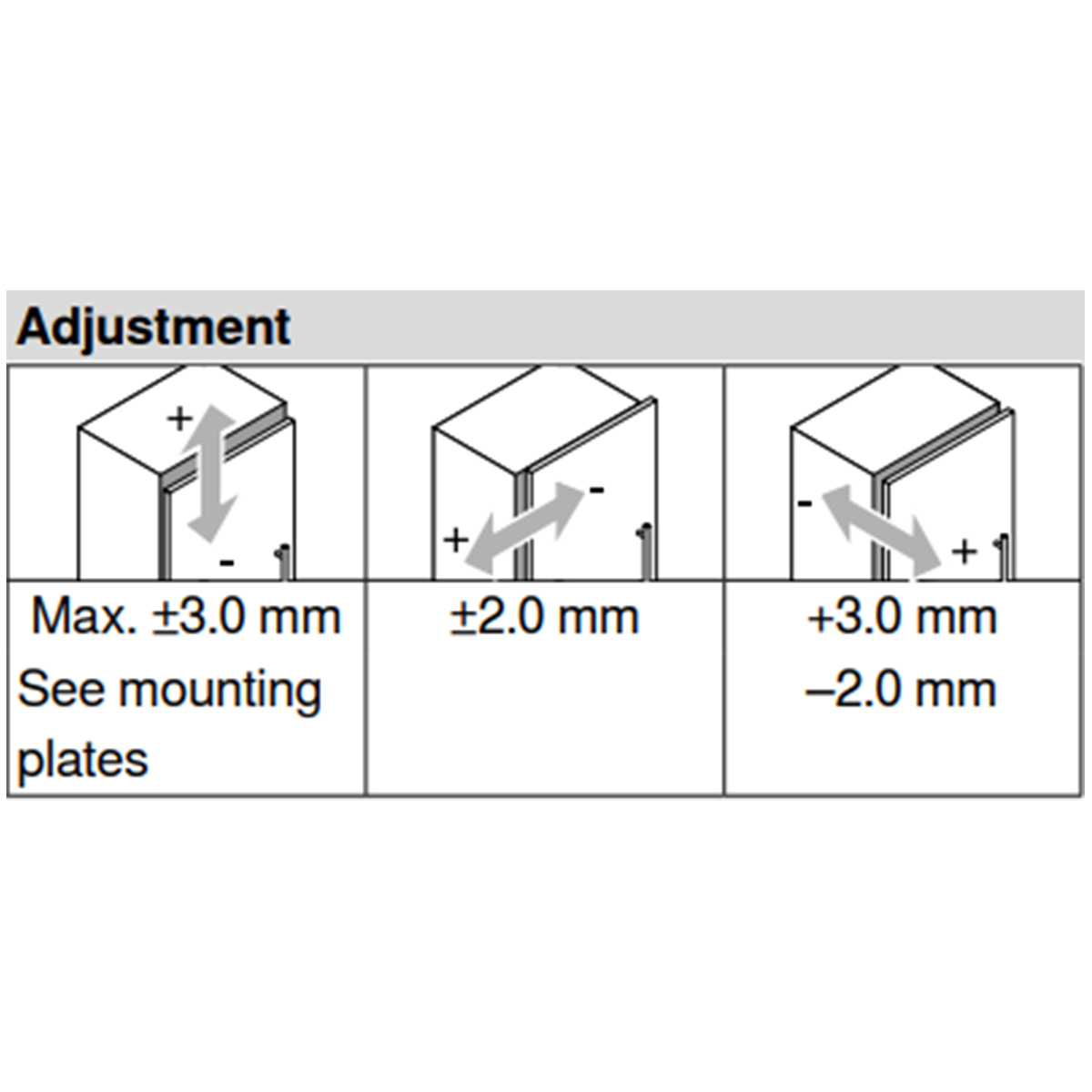

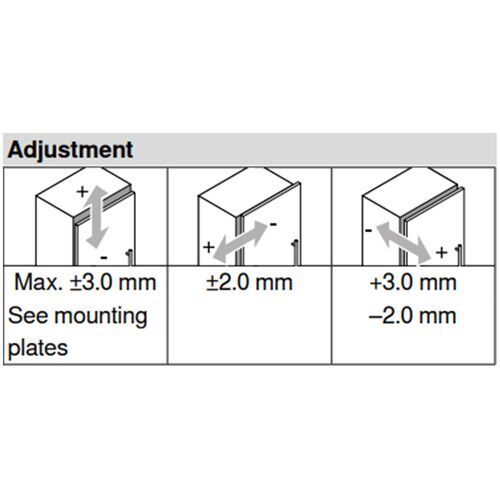

  • Side adjustment: +/- 2mm
  • Depth adjustment: +3mm/ -2mm, with screw

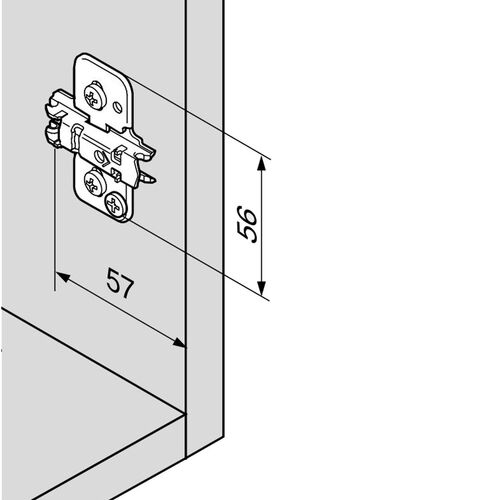

Mounting plates:

  • 173L6100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173L8100
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H3100 (inline)
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 173H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes
  • 175H7100
    • Screws: no
    • Spacing: 0mm
    • Adjustment: yes

Download Product Details (pdf)

Download CAD File (dxf)

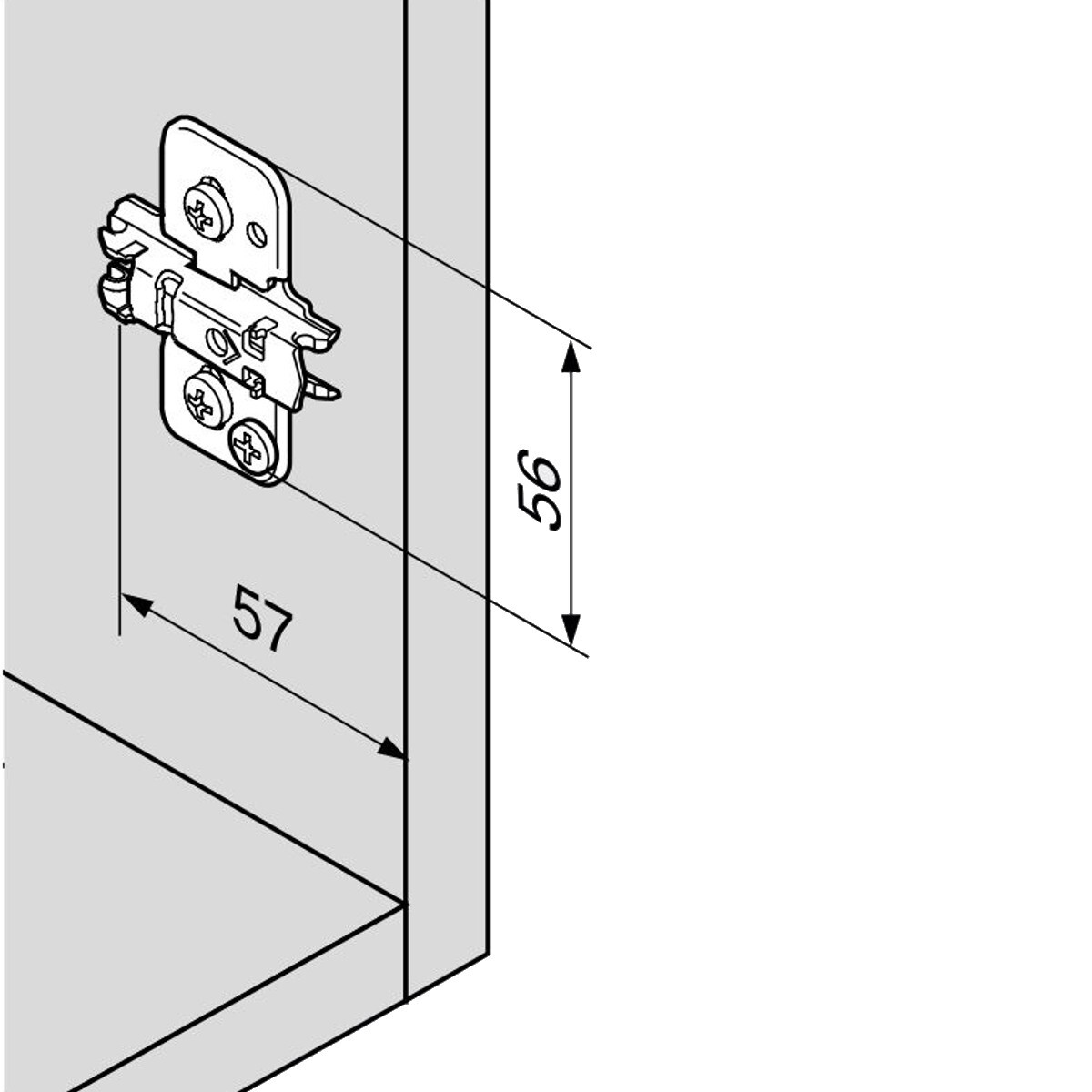

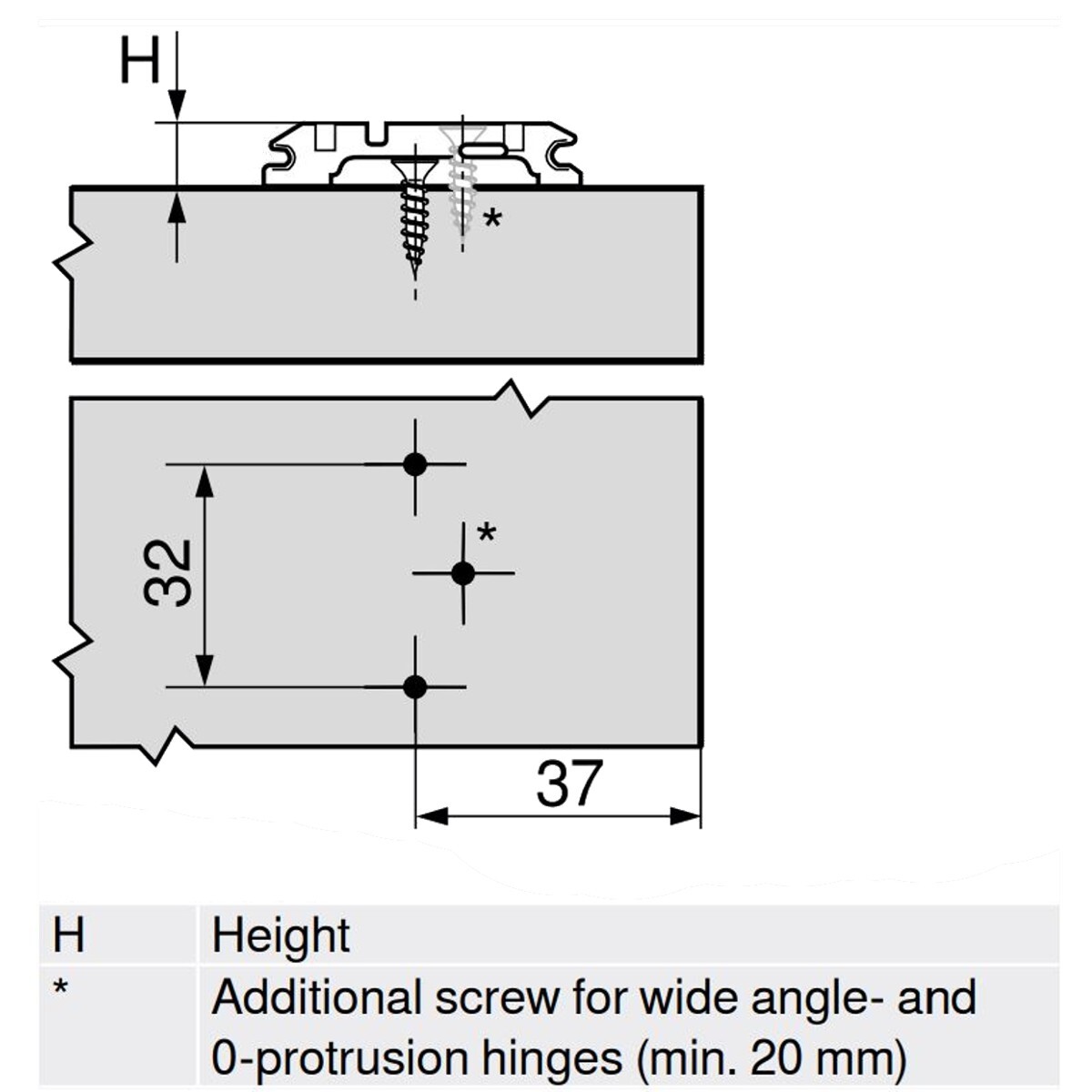

Mounting Plate:
173H7100
Cover Caps:
Without Cover Caps
