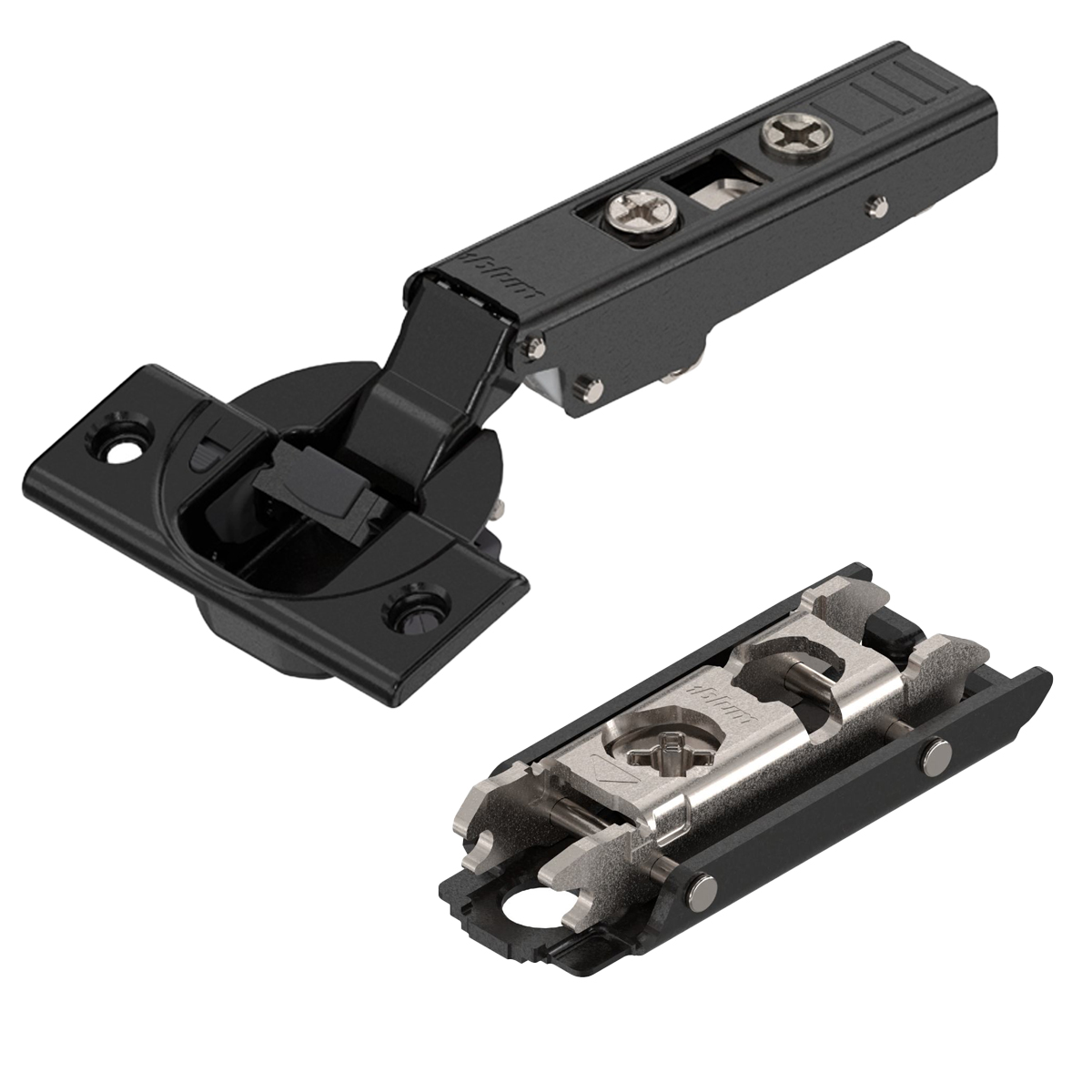

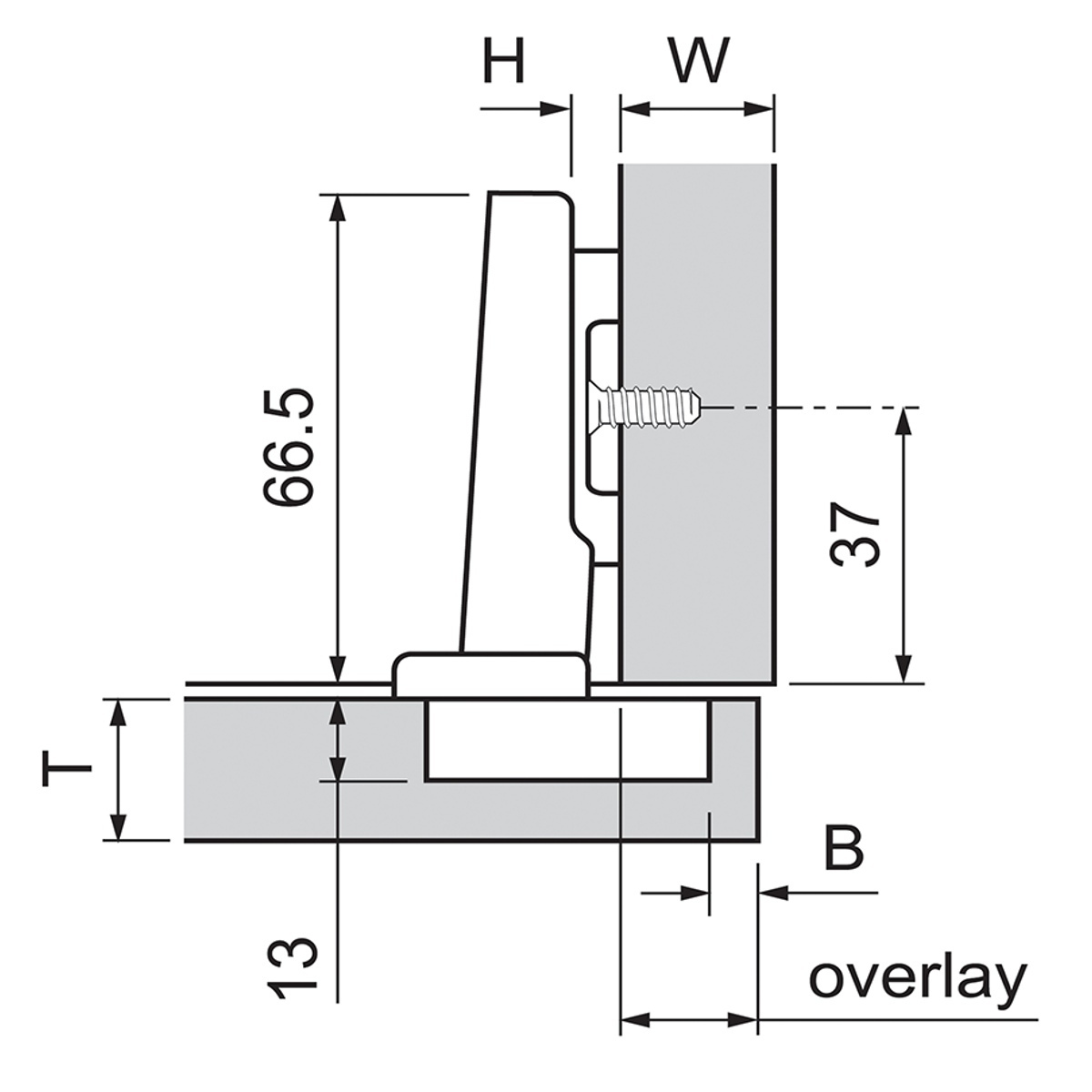

The Blum clip top overlay 110 degree cabinet hinge 71B3550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top blumotion hinge 71B3550-ON
- Opening angle: 110°
- Door thickness: 16-26mm

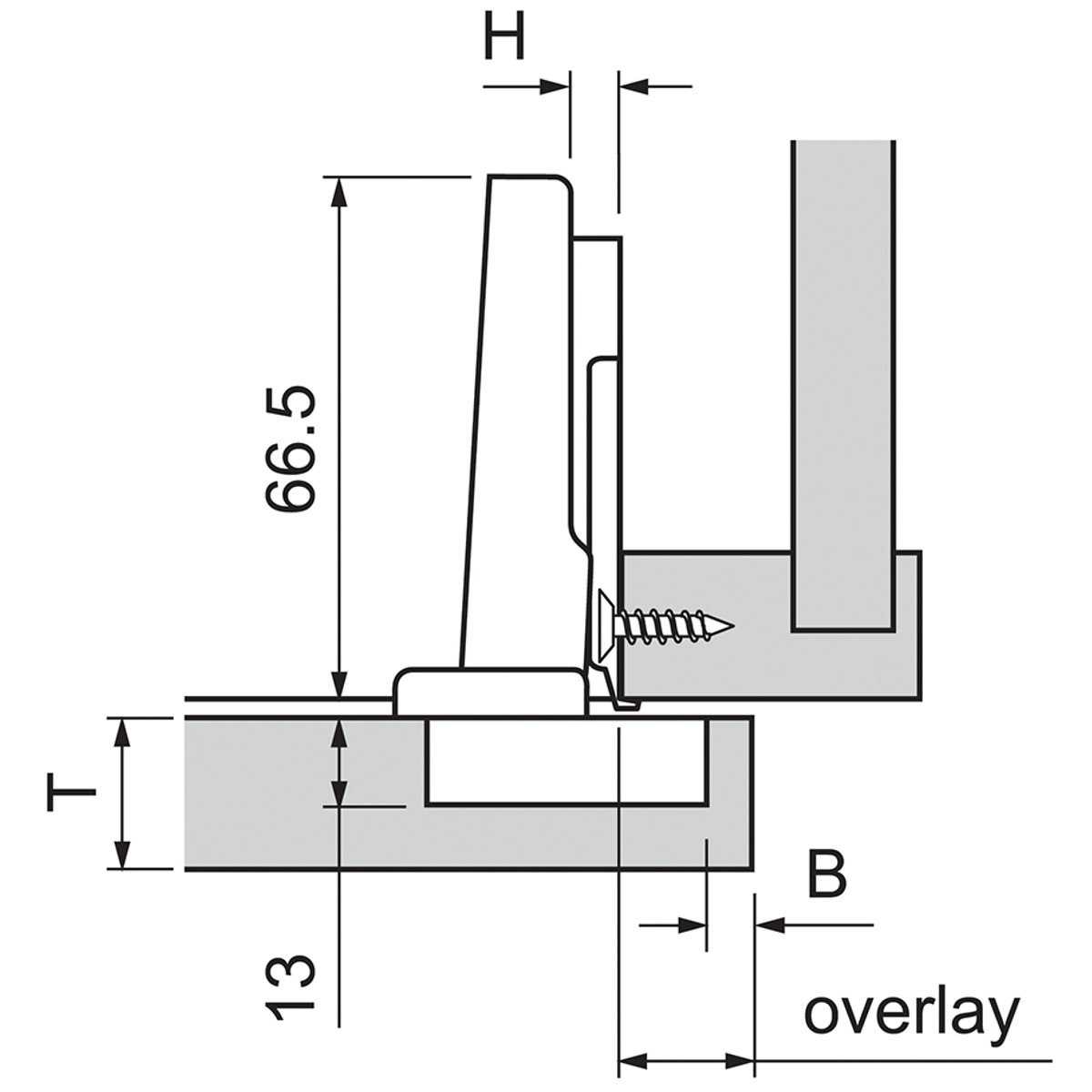

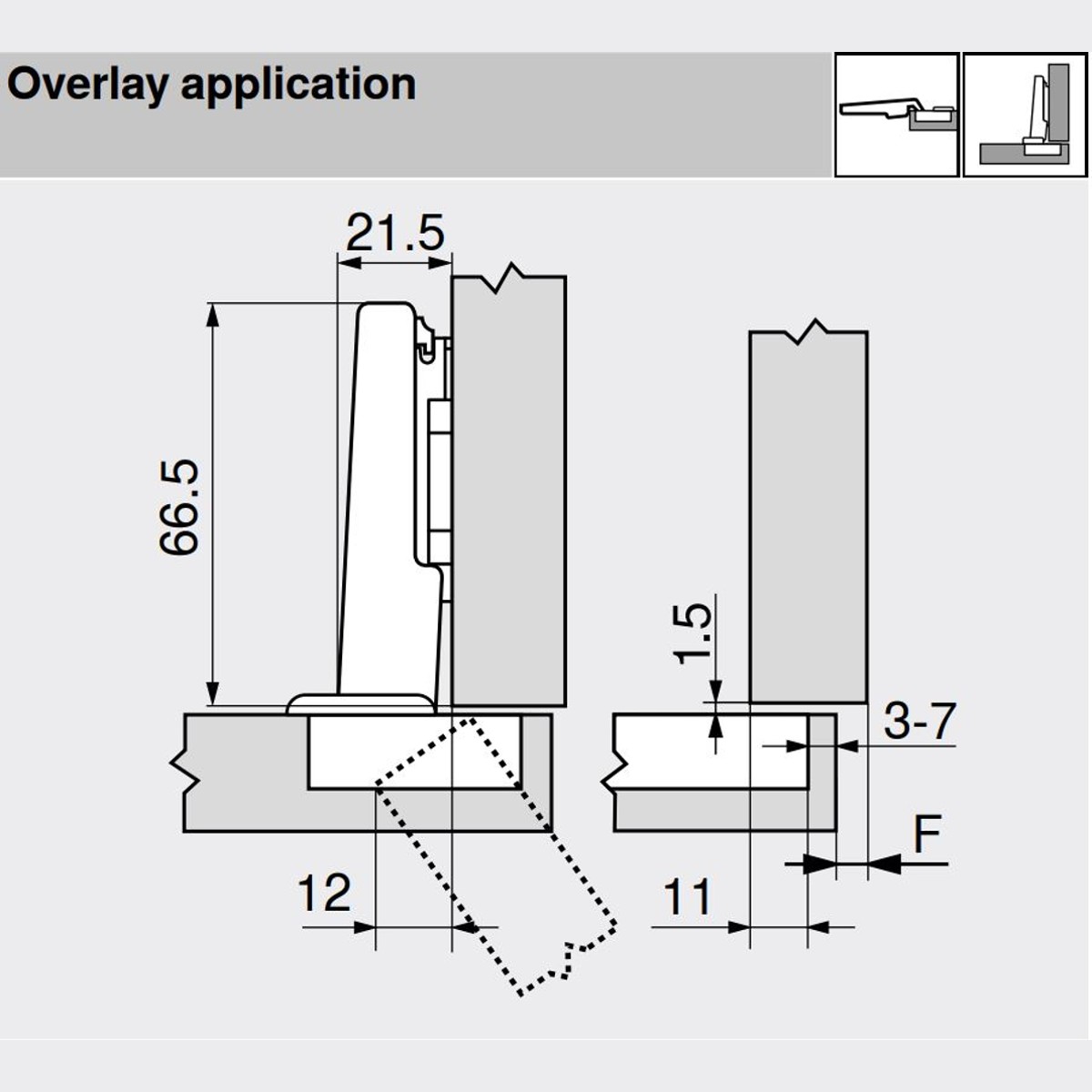

- Cranking: overlay application
- Blumotion soft-close

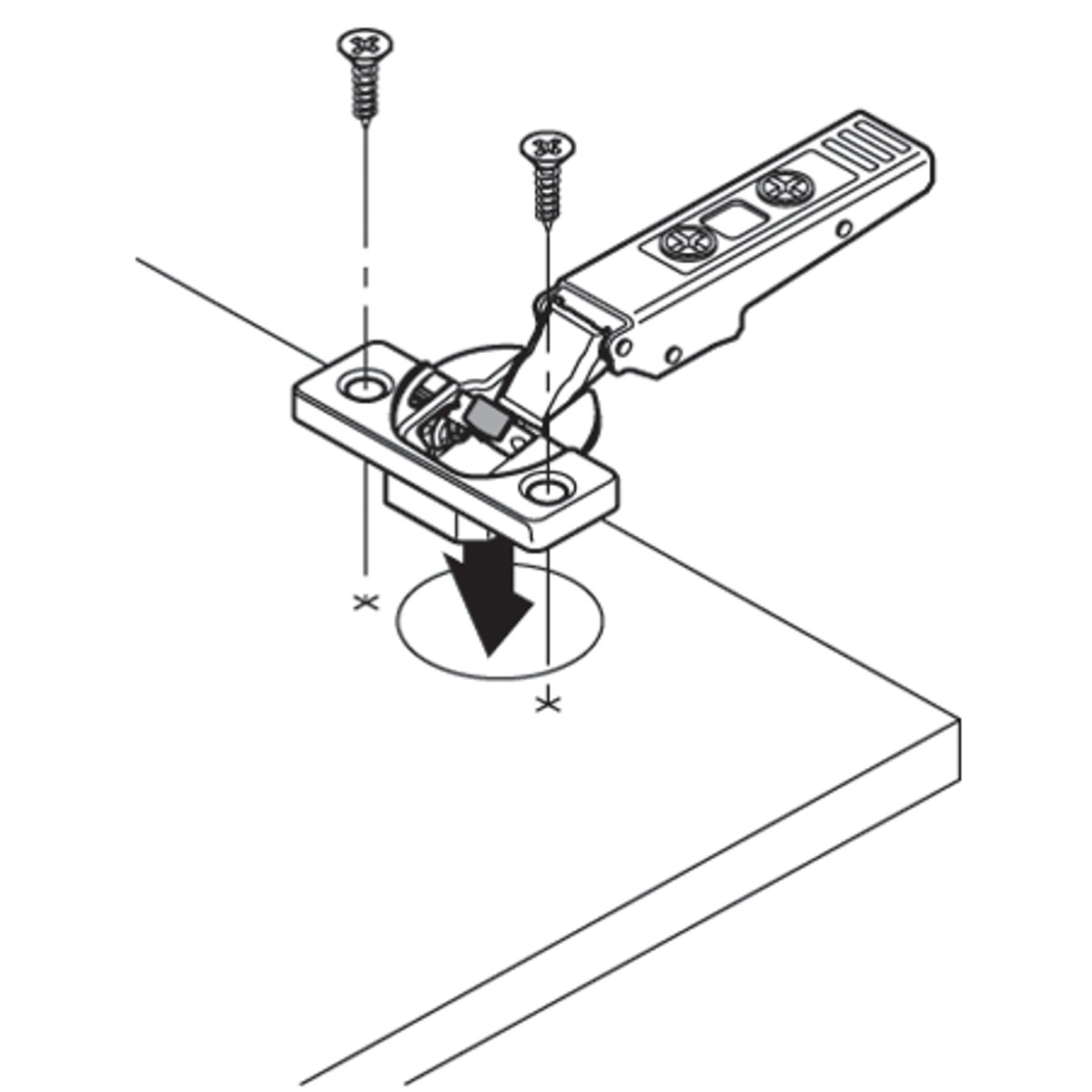

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring

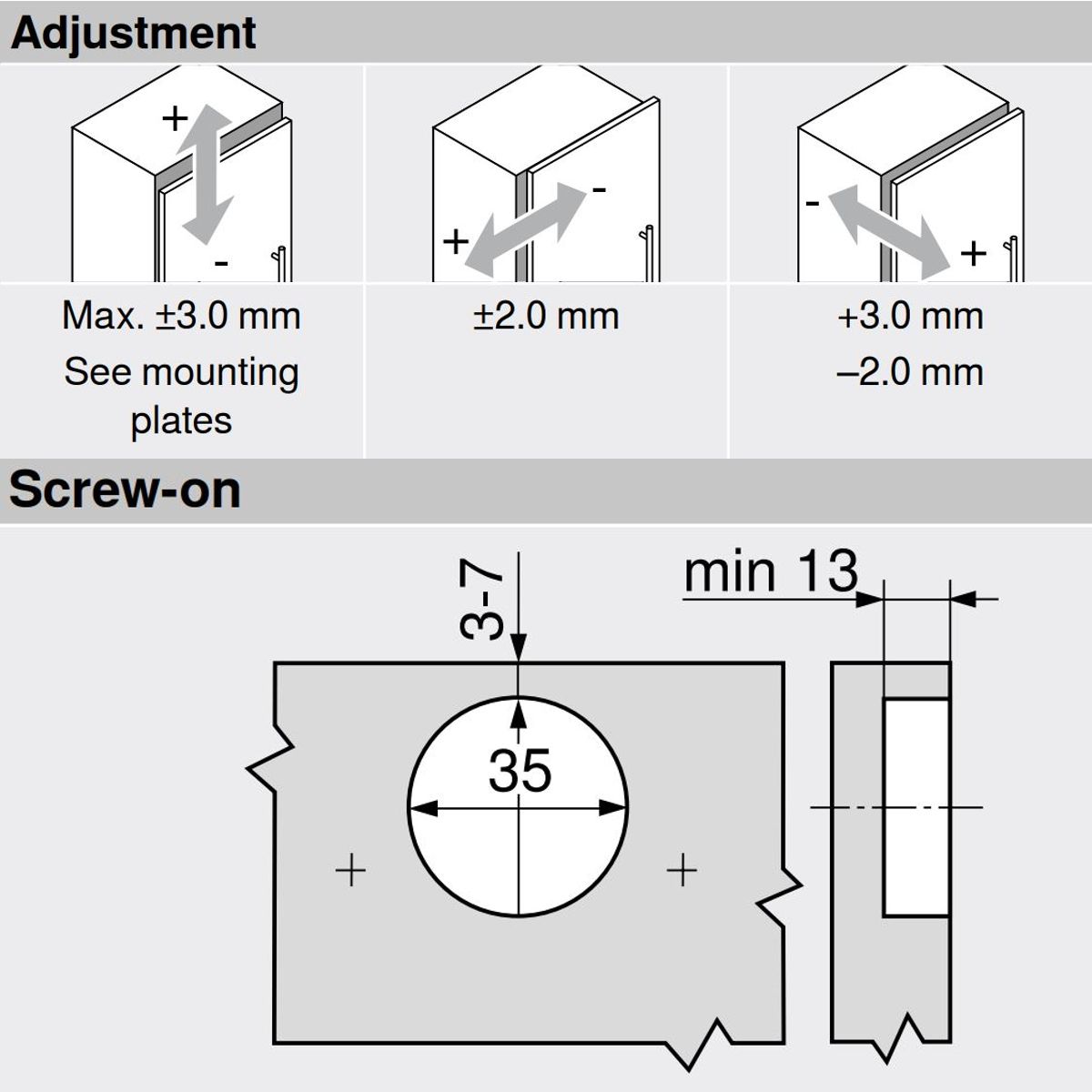

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

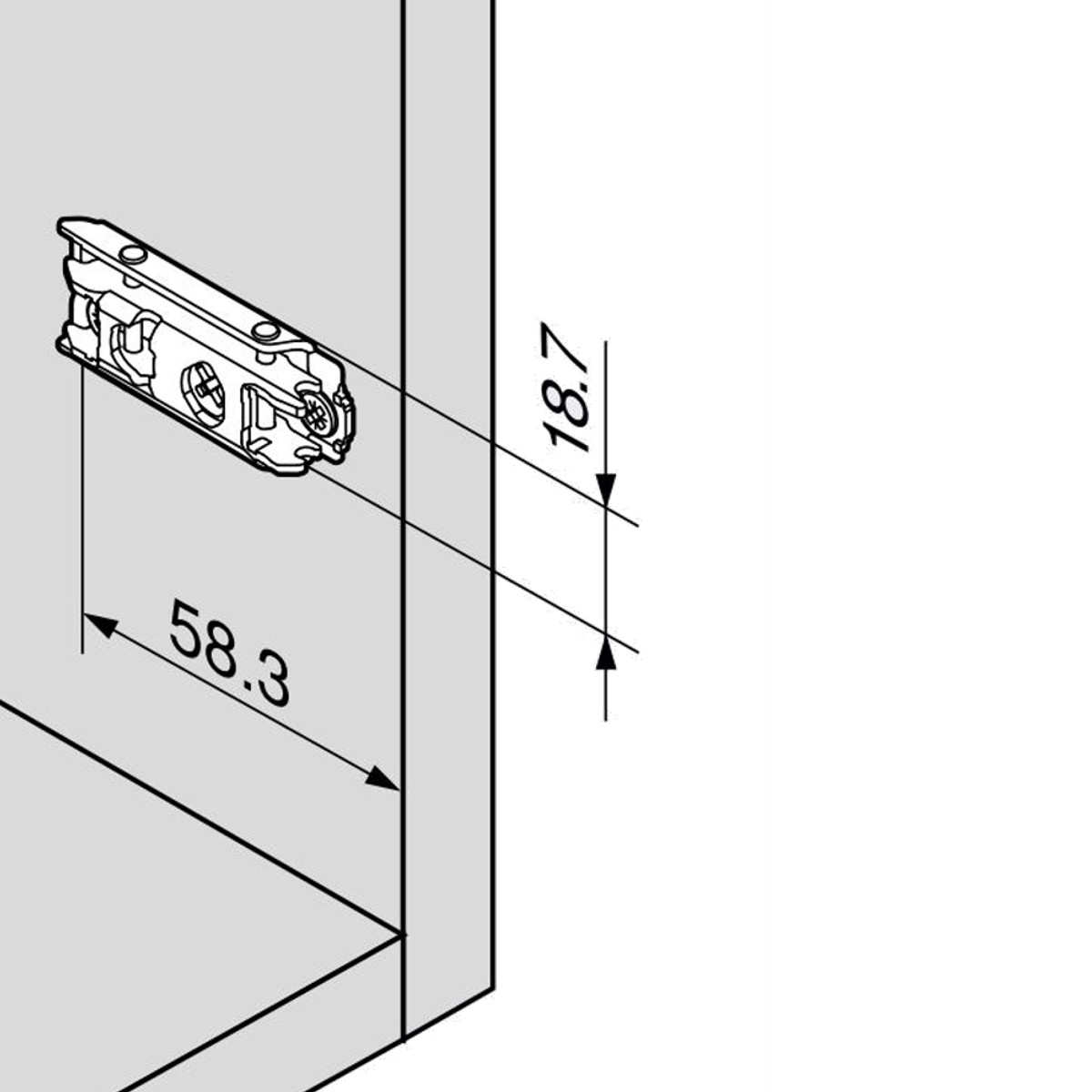

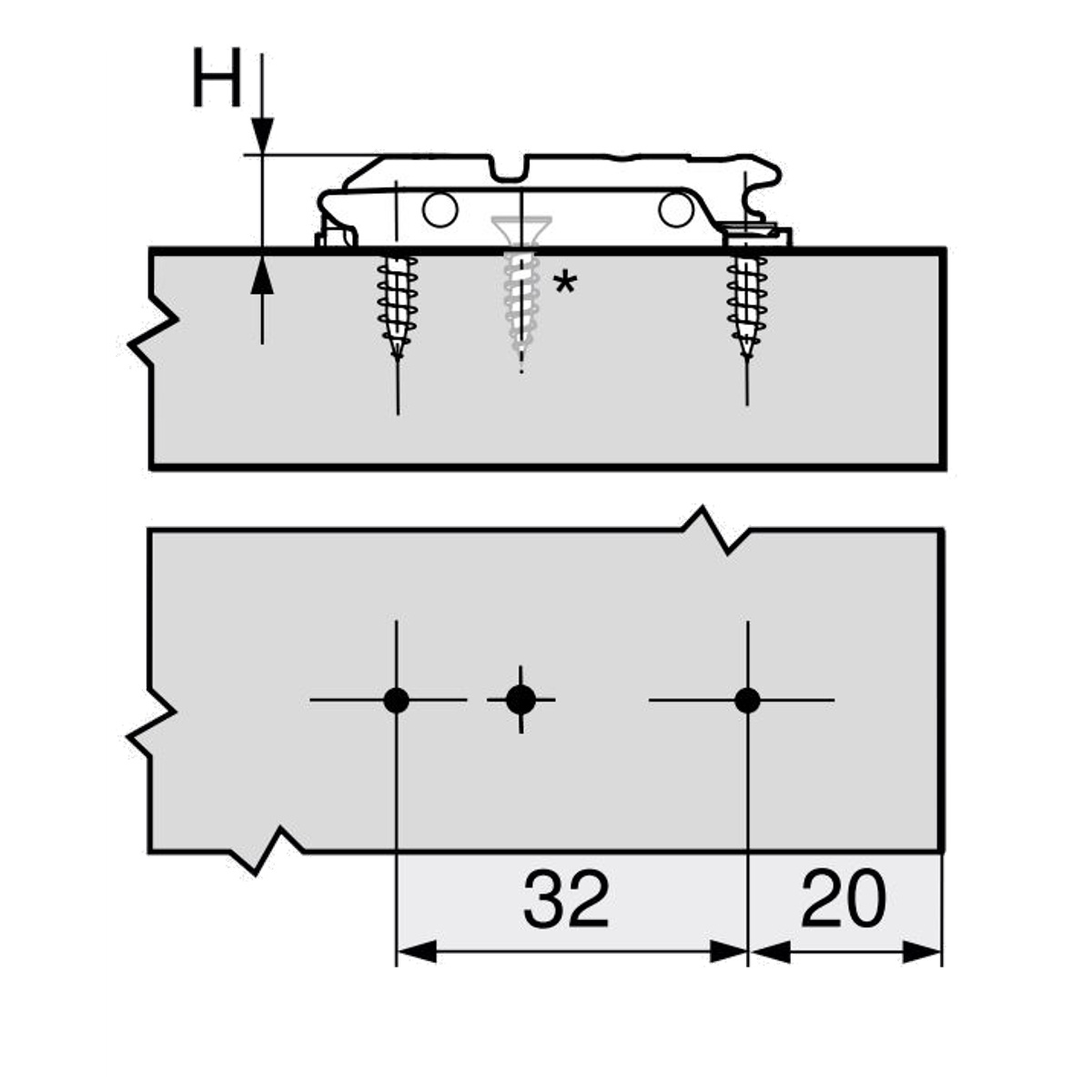

Mounting plates:
- 173H7100:
- Adjustment: yes
- Spacing: 0mm
- Screws: no
- 175H3100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 174H7100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: yes
- 177H3100E: Expando
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H31310:
- Screws: no
- Spacing: 3mm
- Adjustment: no
- 174H7130E: Expando
- Screws: yes
- Spacing: 3mm
- Adjustment: yes
Mounting Plate:
175H3100
Cover Caps:
Without Cover Caps
