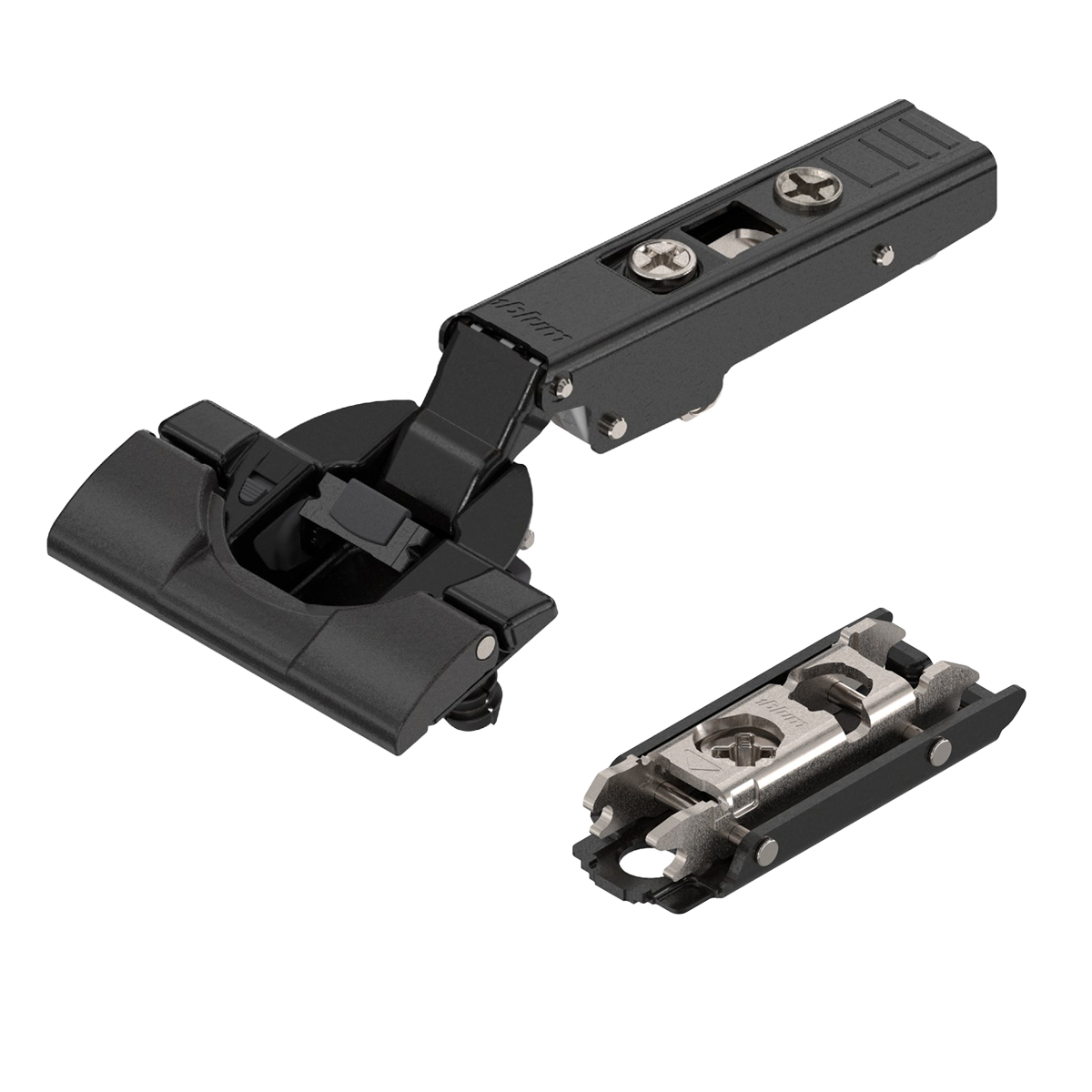

Blum Clip Top Overlay 110 Degree Blumotion Cabinet Hinge 71B3590 Black Inserta With Mounting Plate Onyx

9972-001
Price from: £5.77inc VAT
+

The Blum clip top overlay 110 degree cabinet hinge 71B3590 inserta is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top blumotion hinge 71B3590
  • Opening angle: 110°
  • Door thickness: 16-26mm

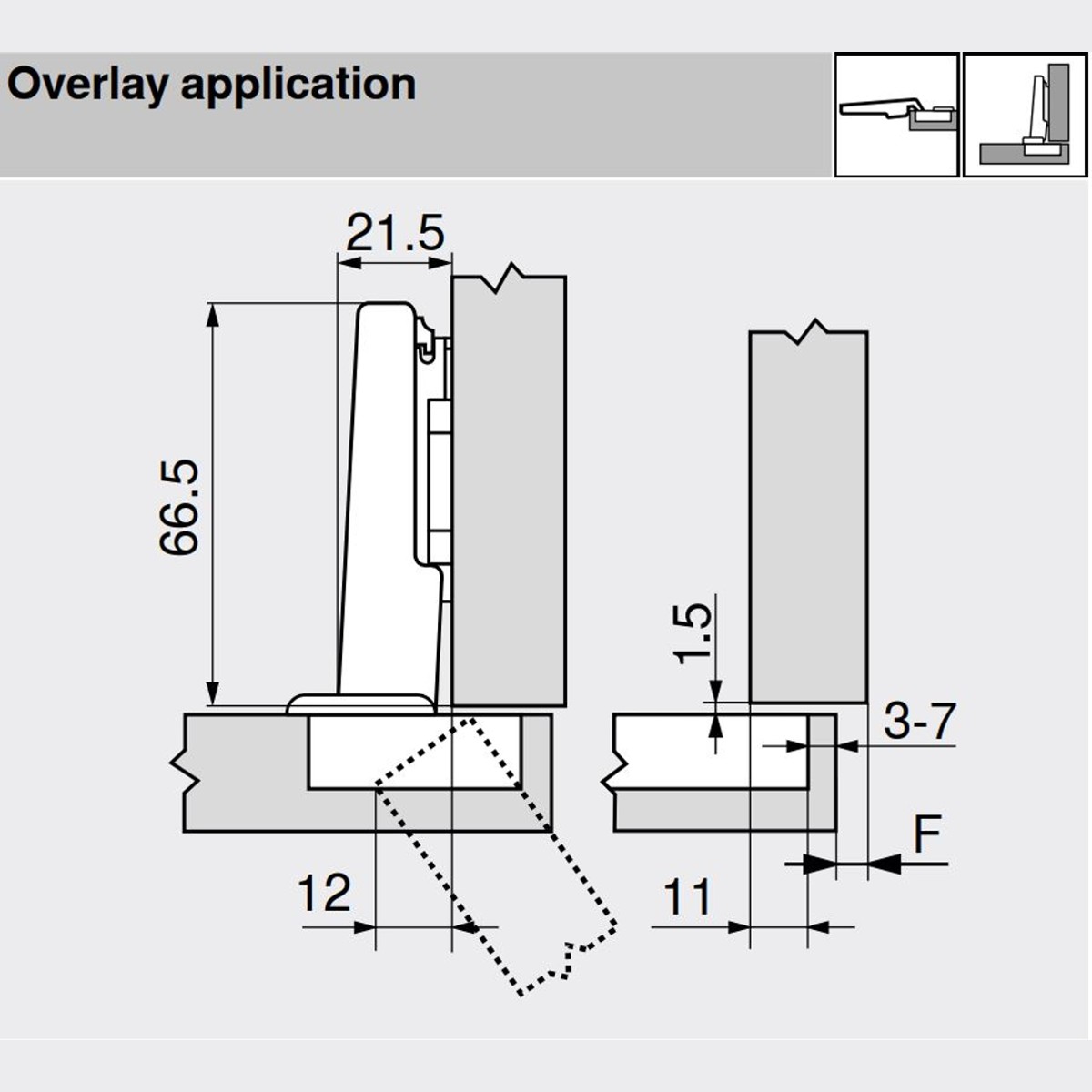

  • Cranking: overlay application
  • Blumotion soft-close
  • Boss assembly: inserta
  • Boss material: steel boss
  • Closing mechanism: with spring

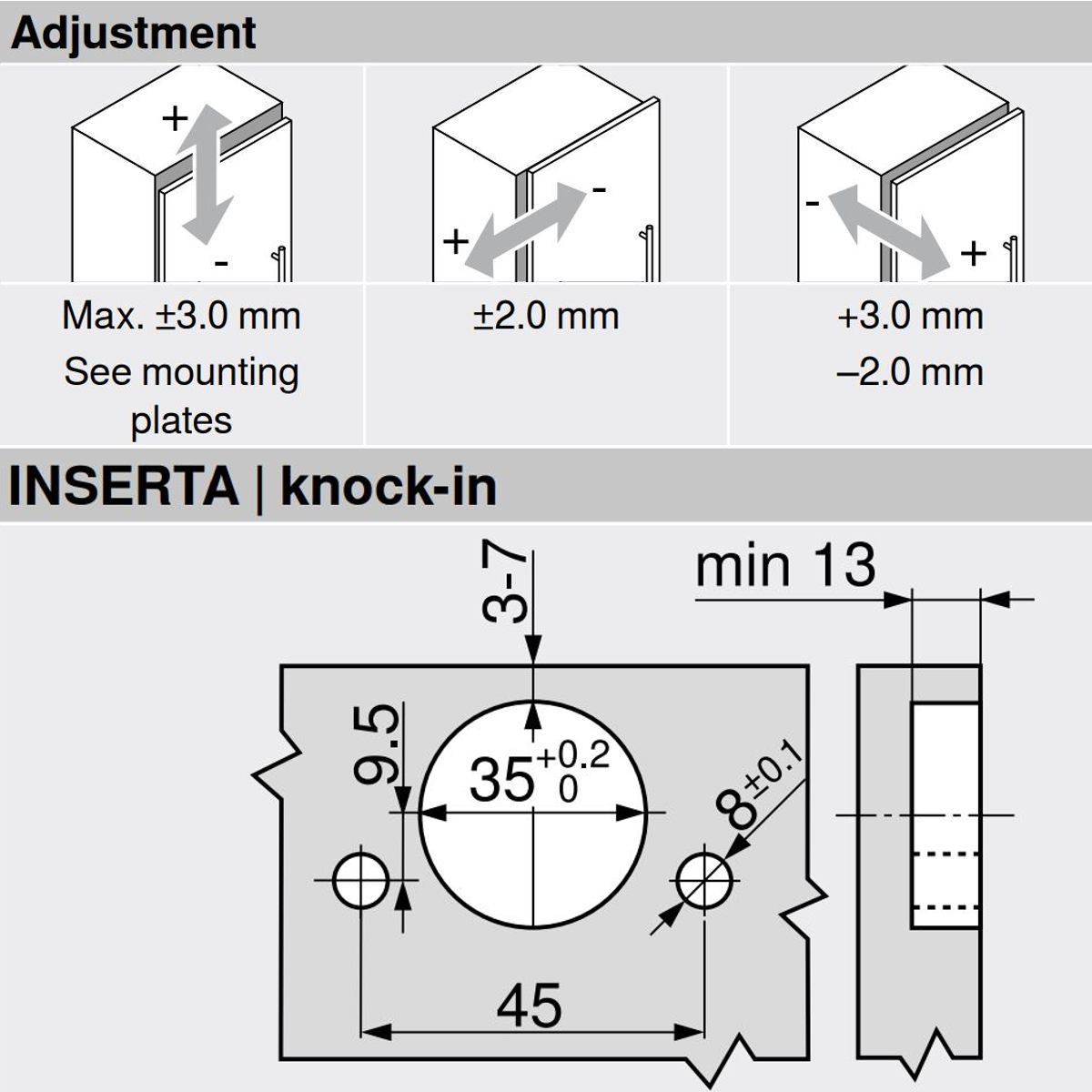

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

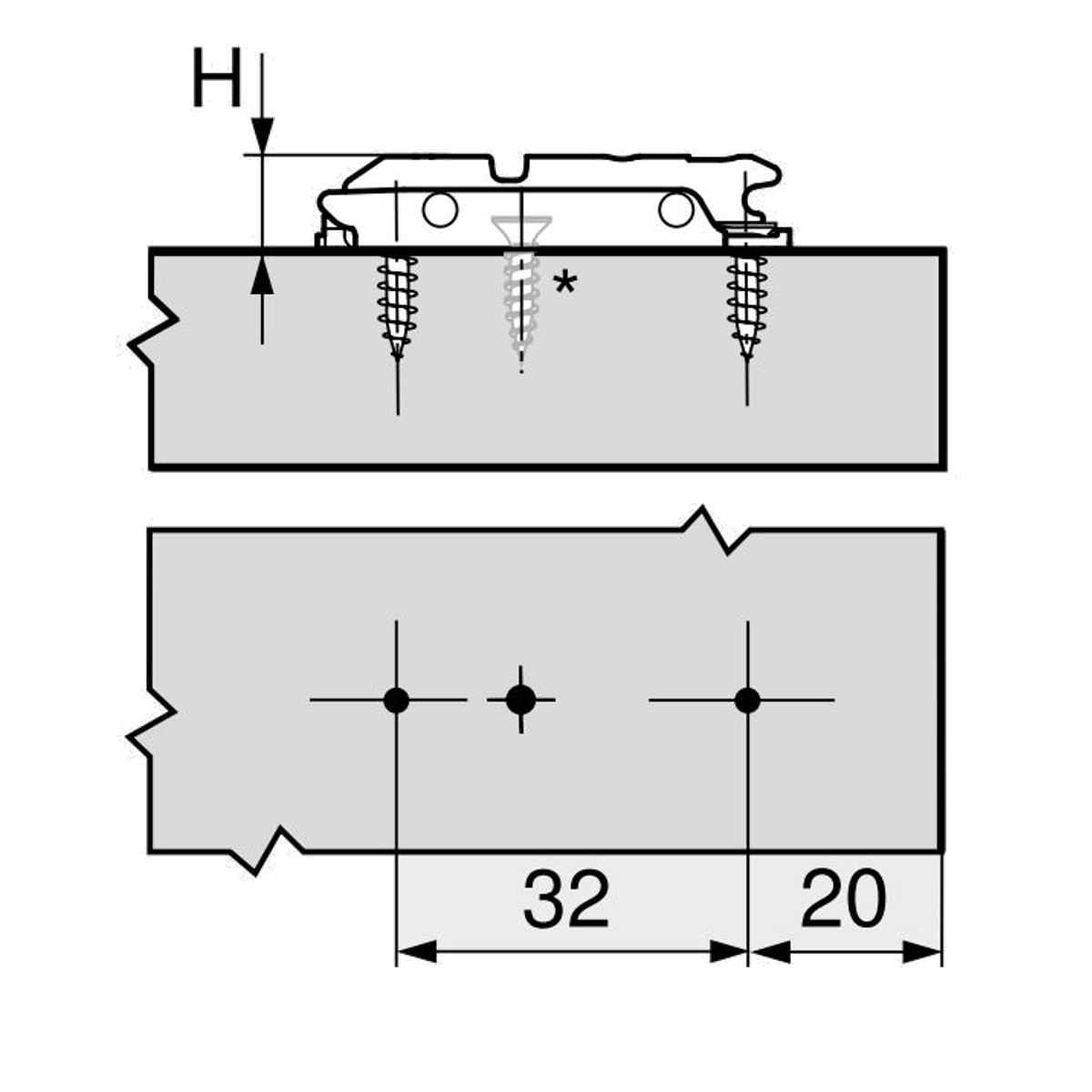

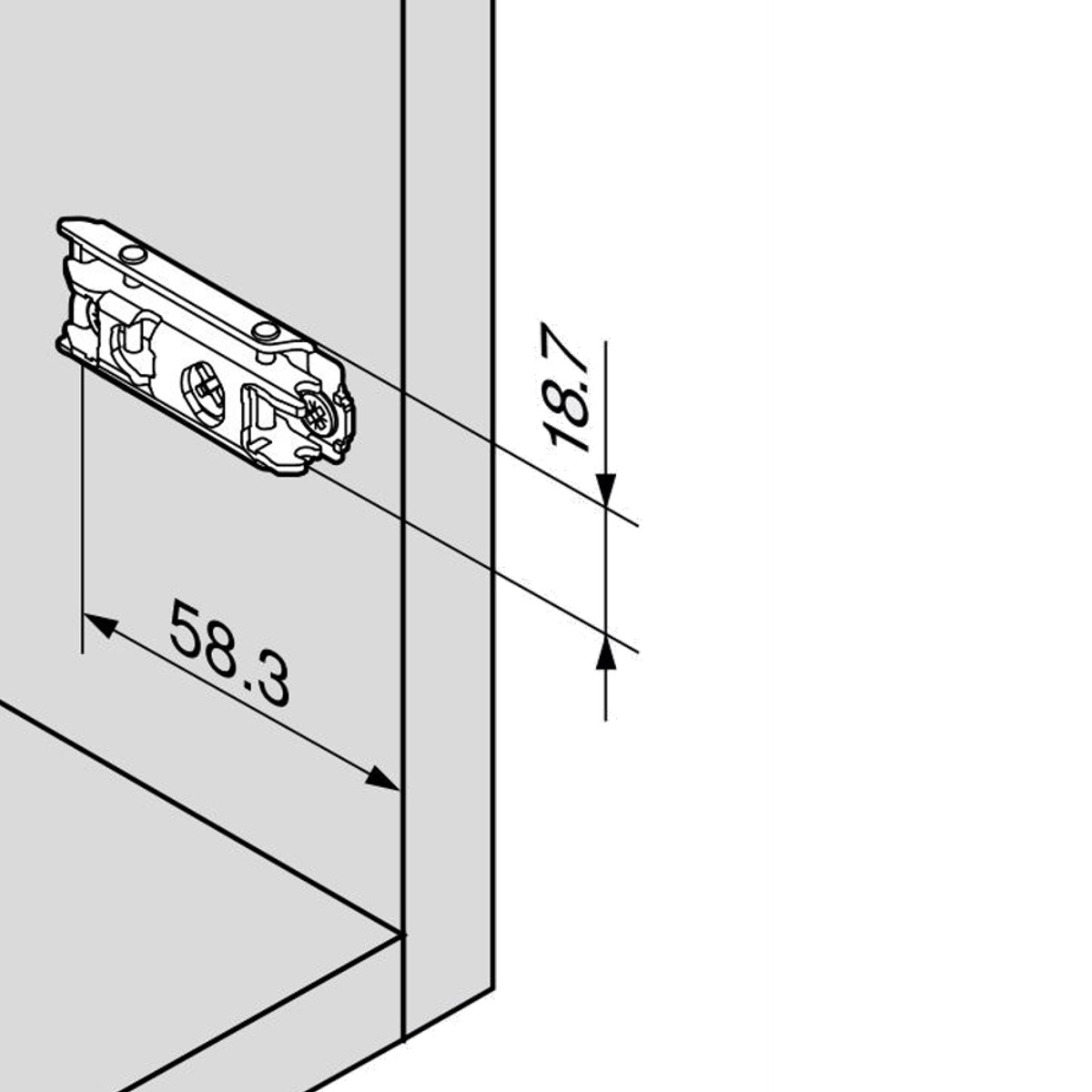

Mounting plates:

  • 173H7100:
    • Adjustment: yes
    • Spacing: 0mm
    • Screws: no
  • 175H3100:
    • Screws: no
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 177H3100E: Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 175H31310:
    • Screws: no
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E: Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
Mounting Plate:
175H3100
Cover Caps:
Without Cover Caps
