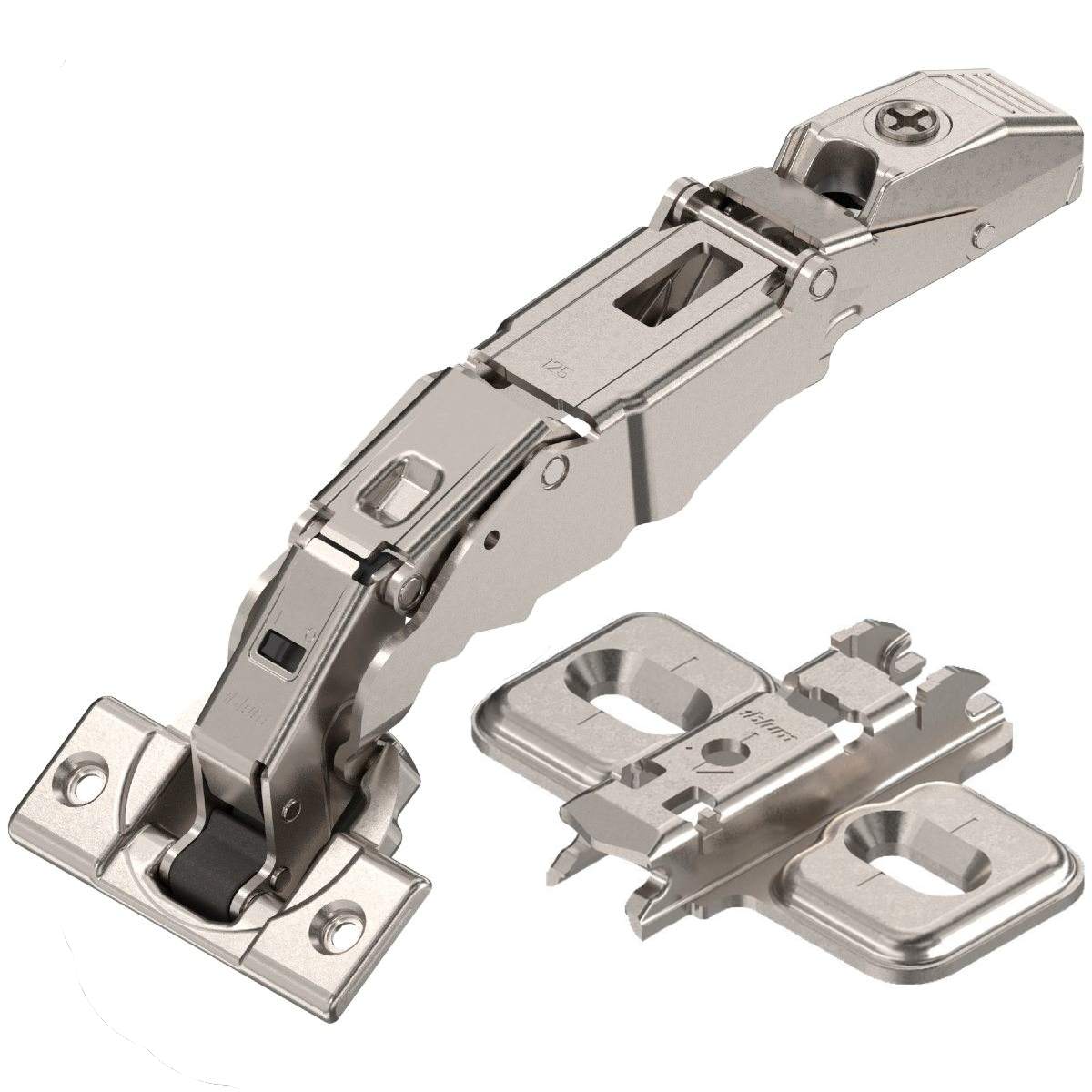

The Blum clip top overlay 125 degree cabinet hinge 71B7550D is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top Blumotion hinge 71B7550D

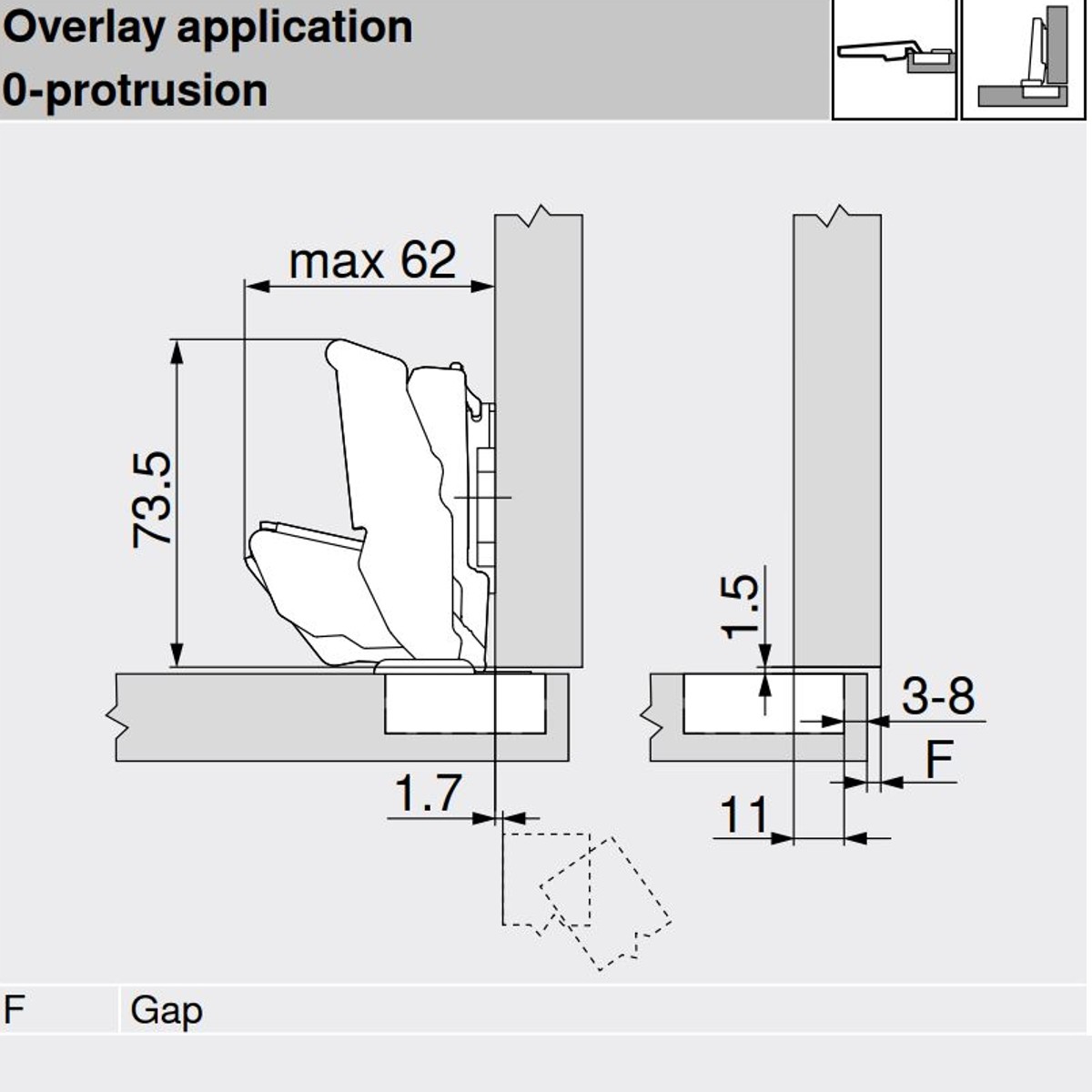

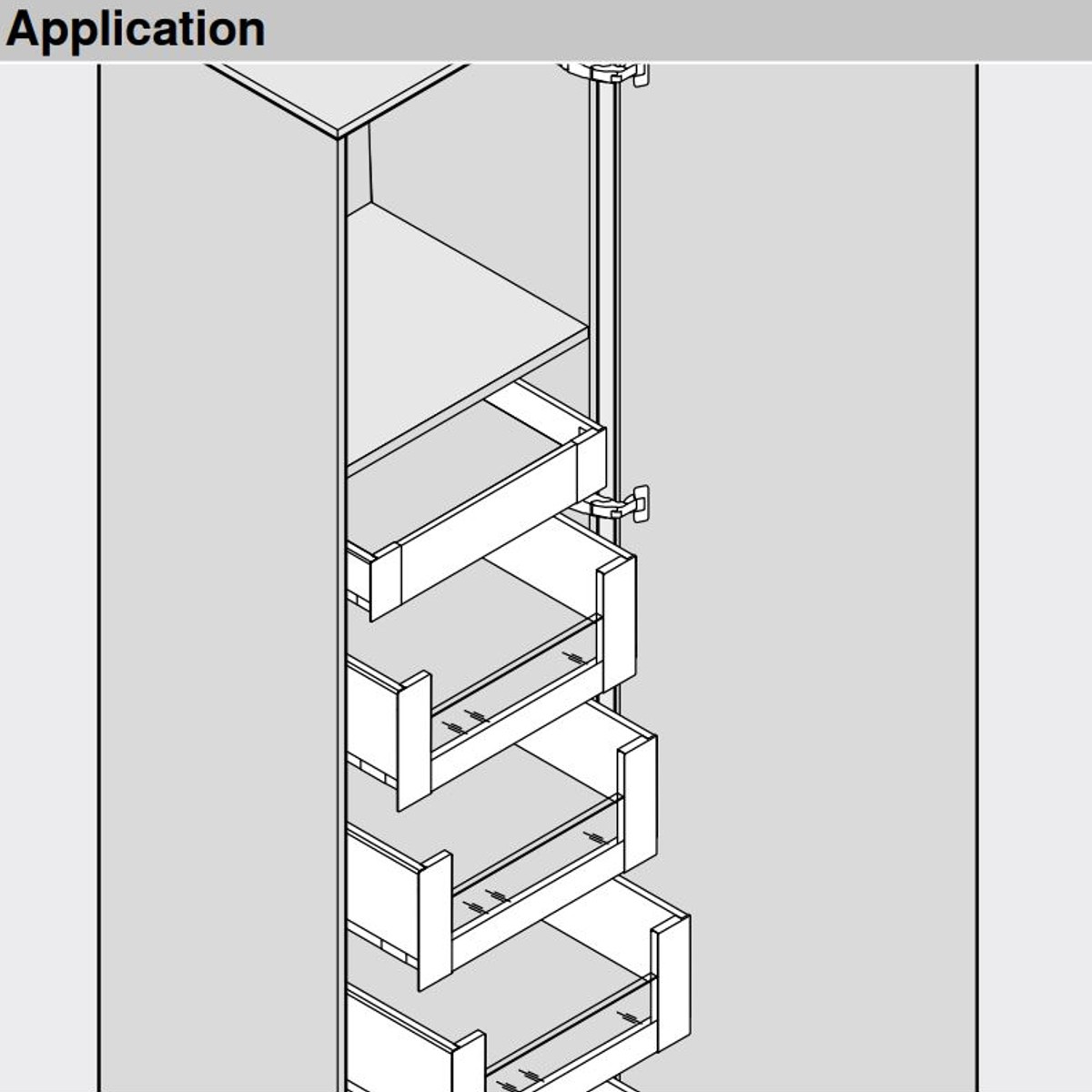

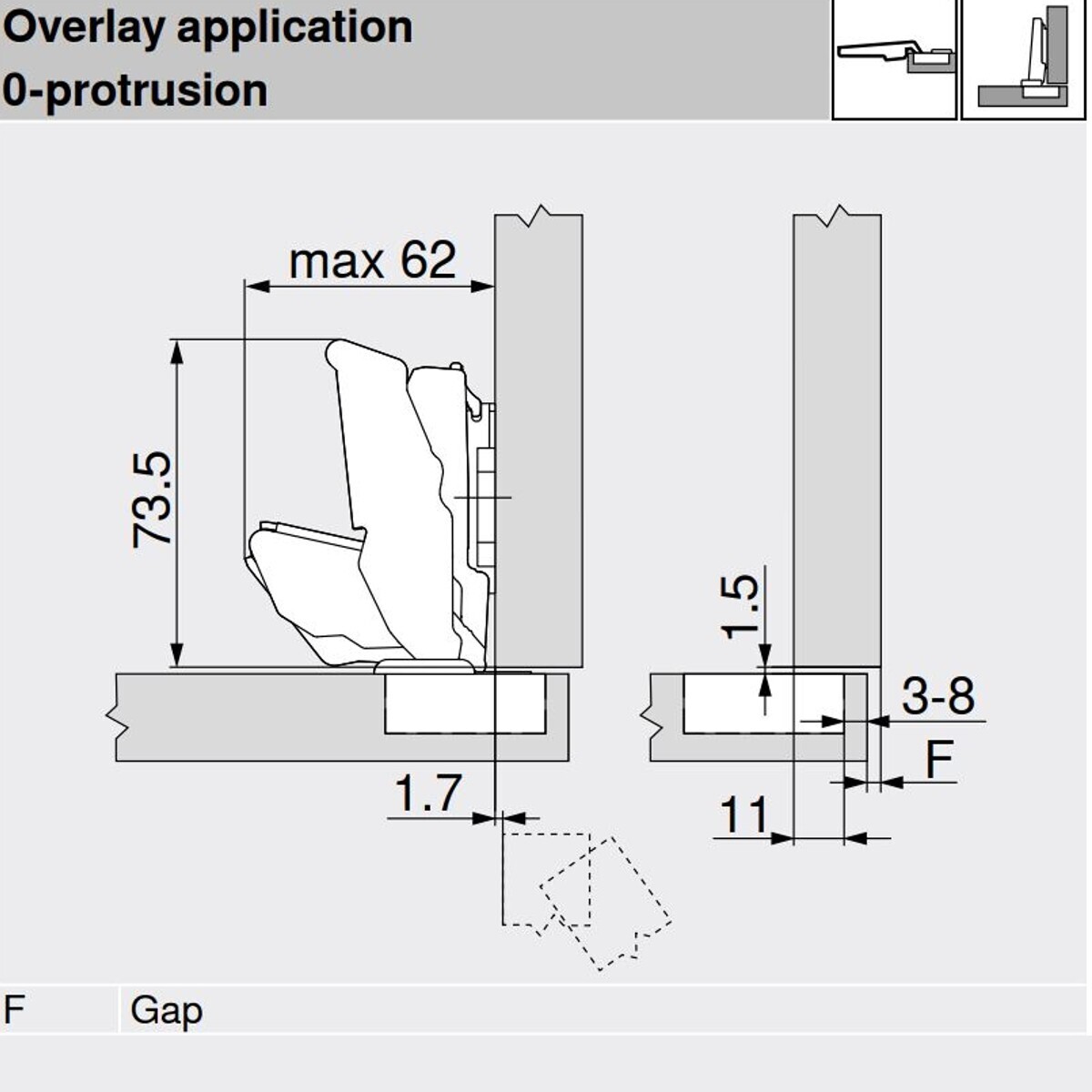

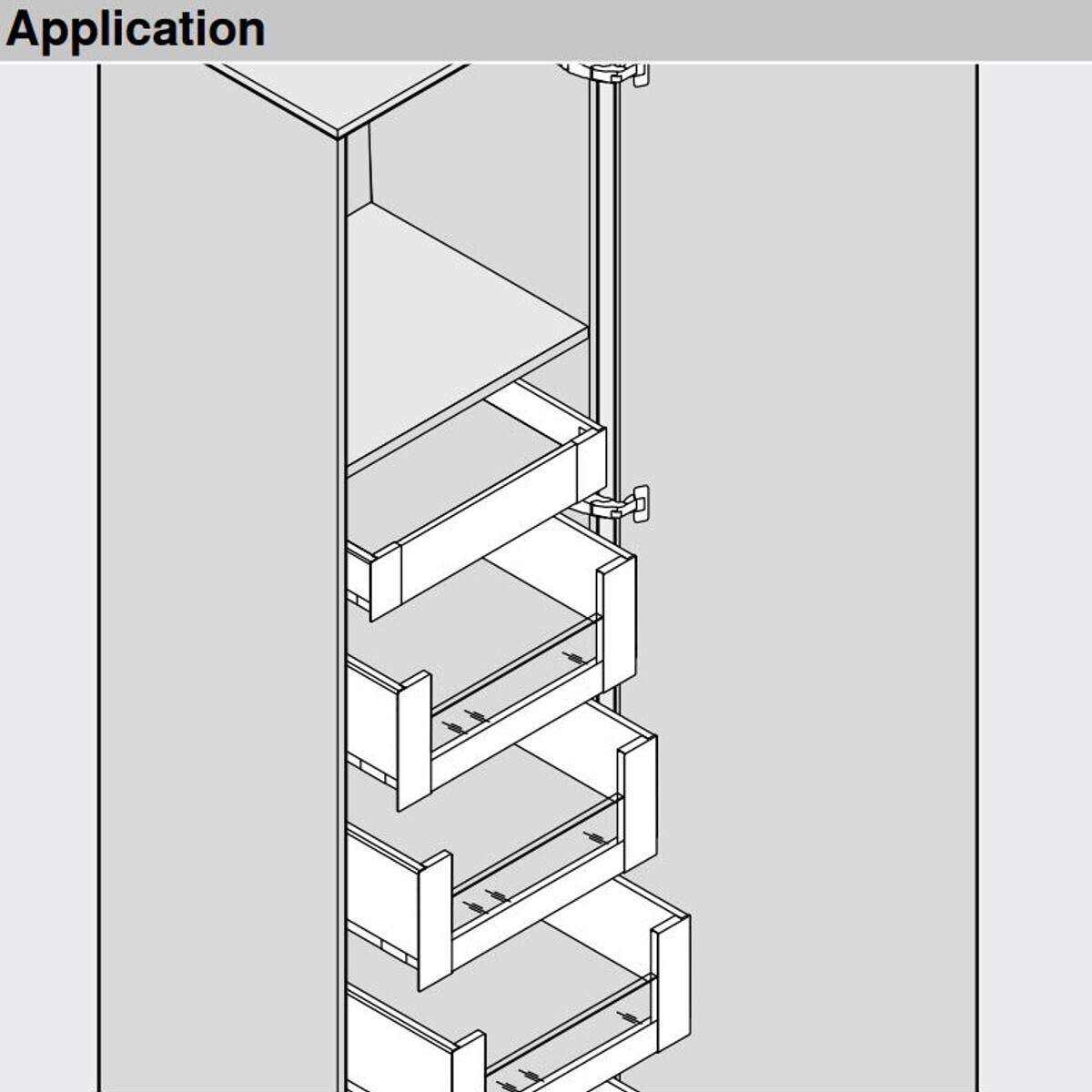

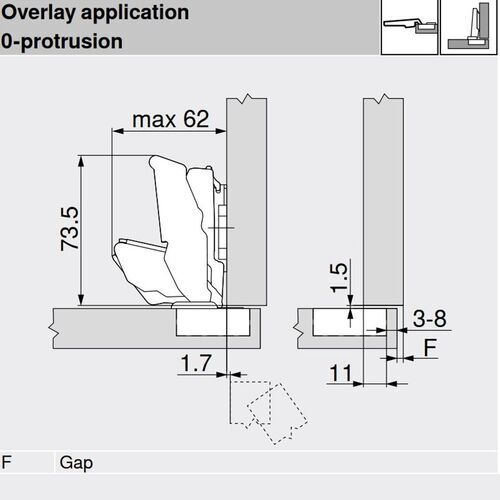

- Application: overlay
- 0-protrusion - the door clears the opening space entirely
- Opening angle: 125 degrees

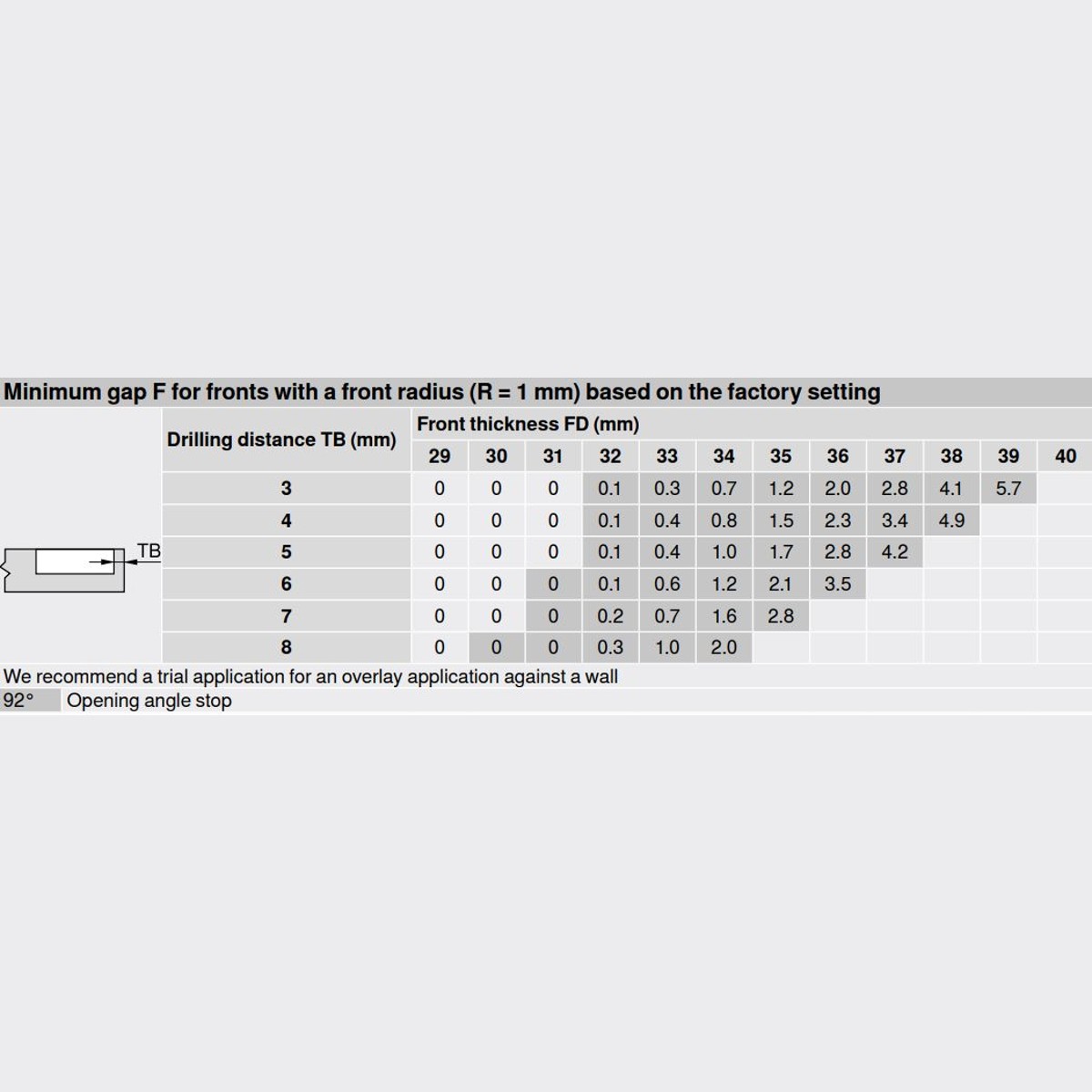

- Door thickness 29-39mm
- Cranking: overlay application
- Blumotion - soft-close
- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: with spring and soft-close

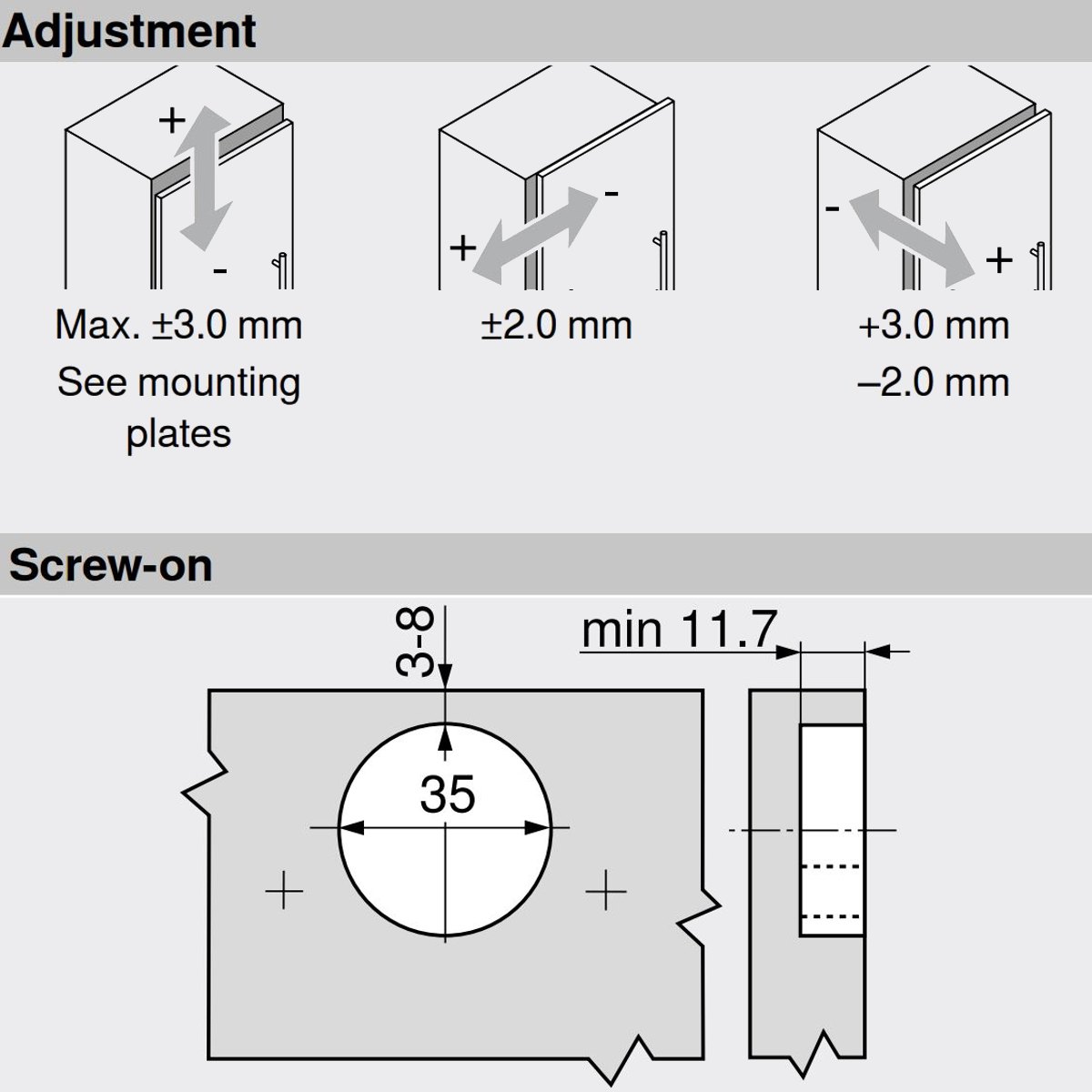

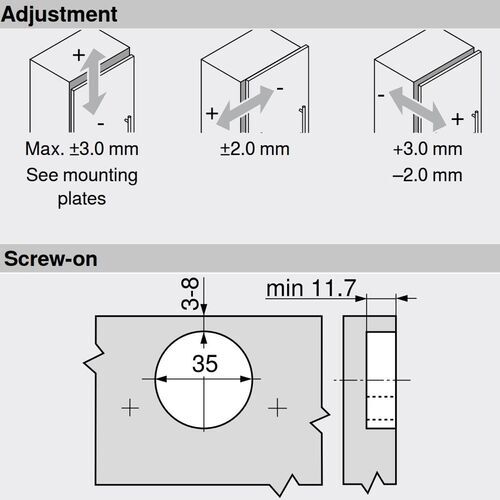

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

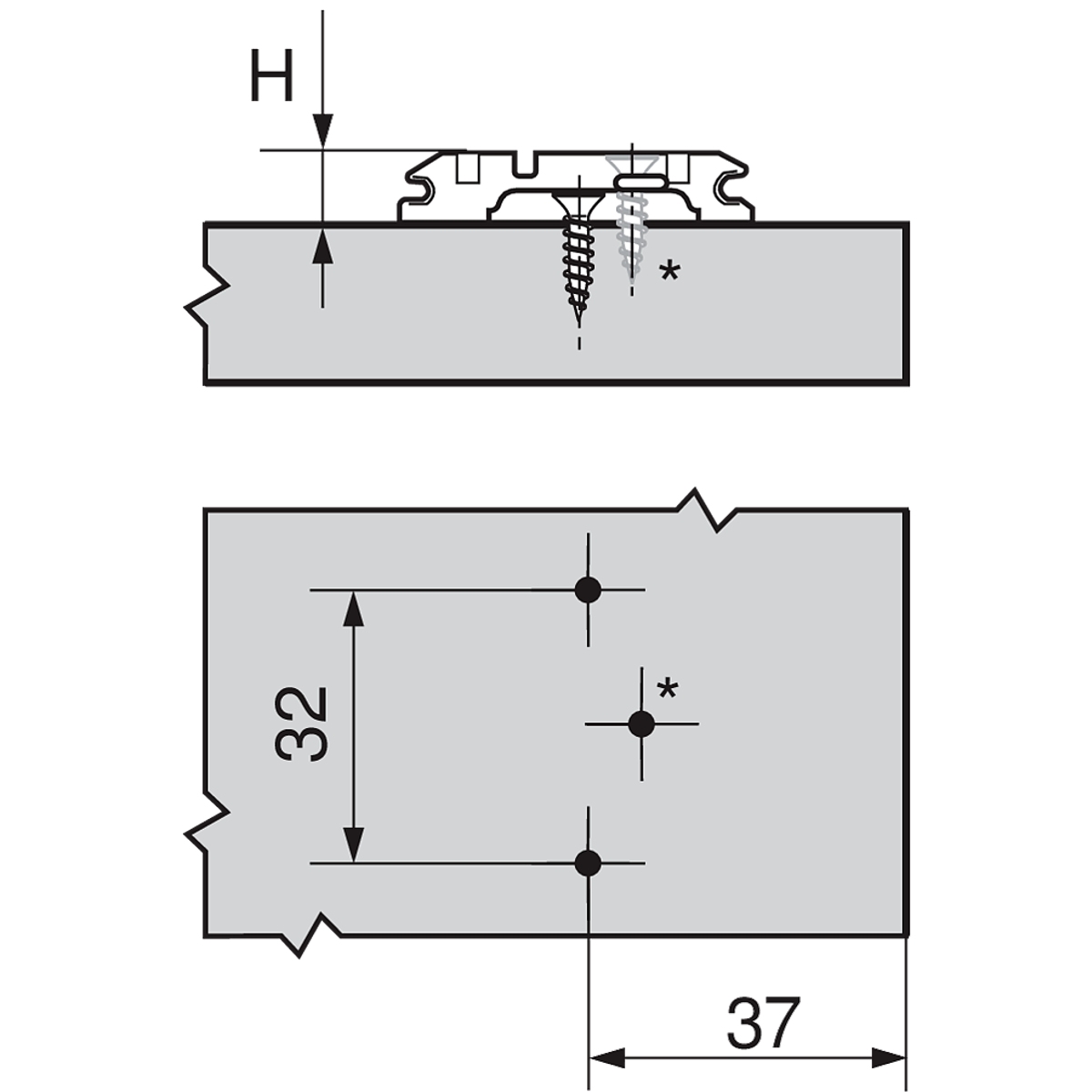

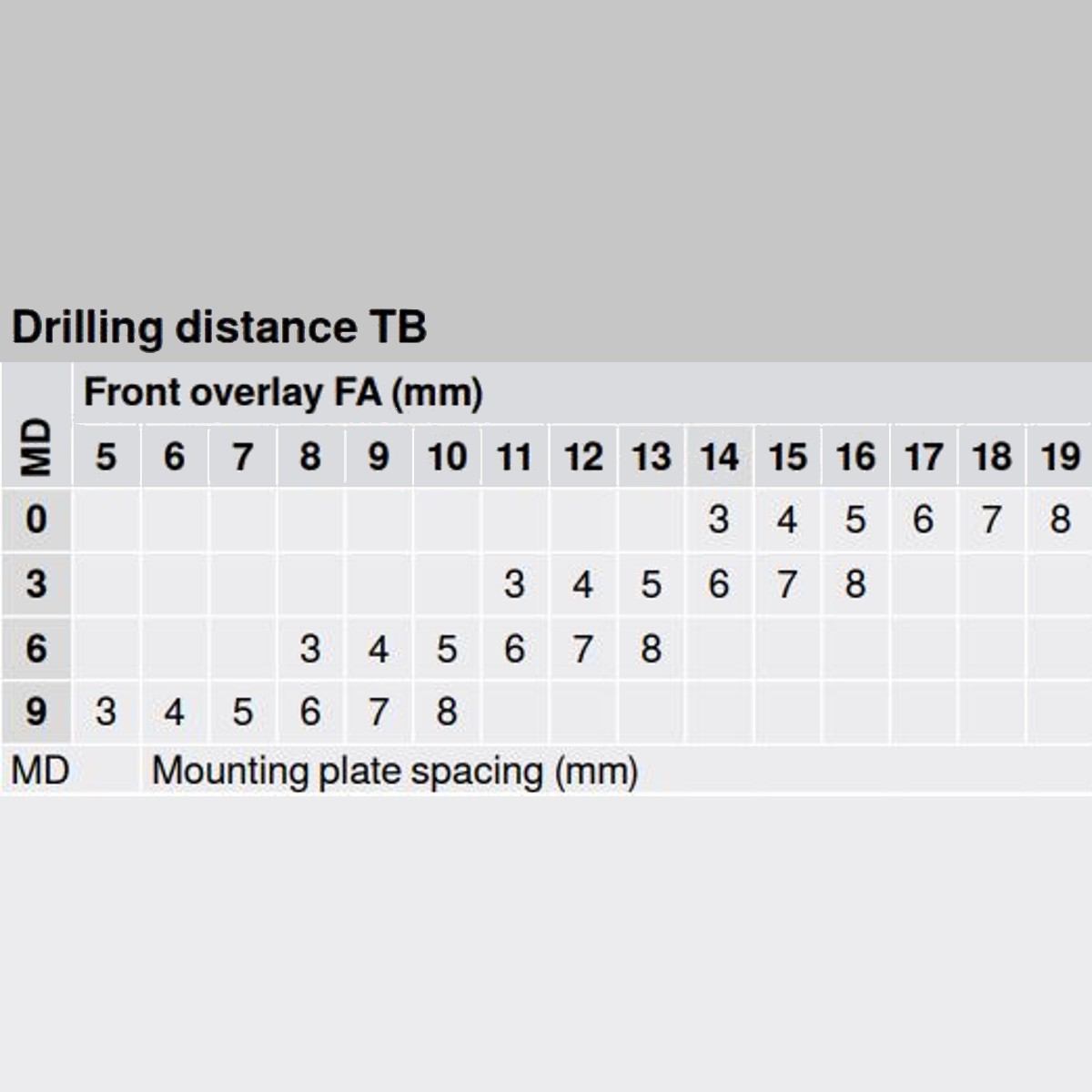

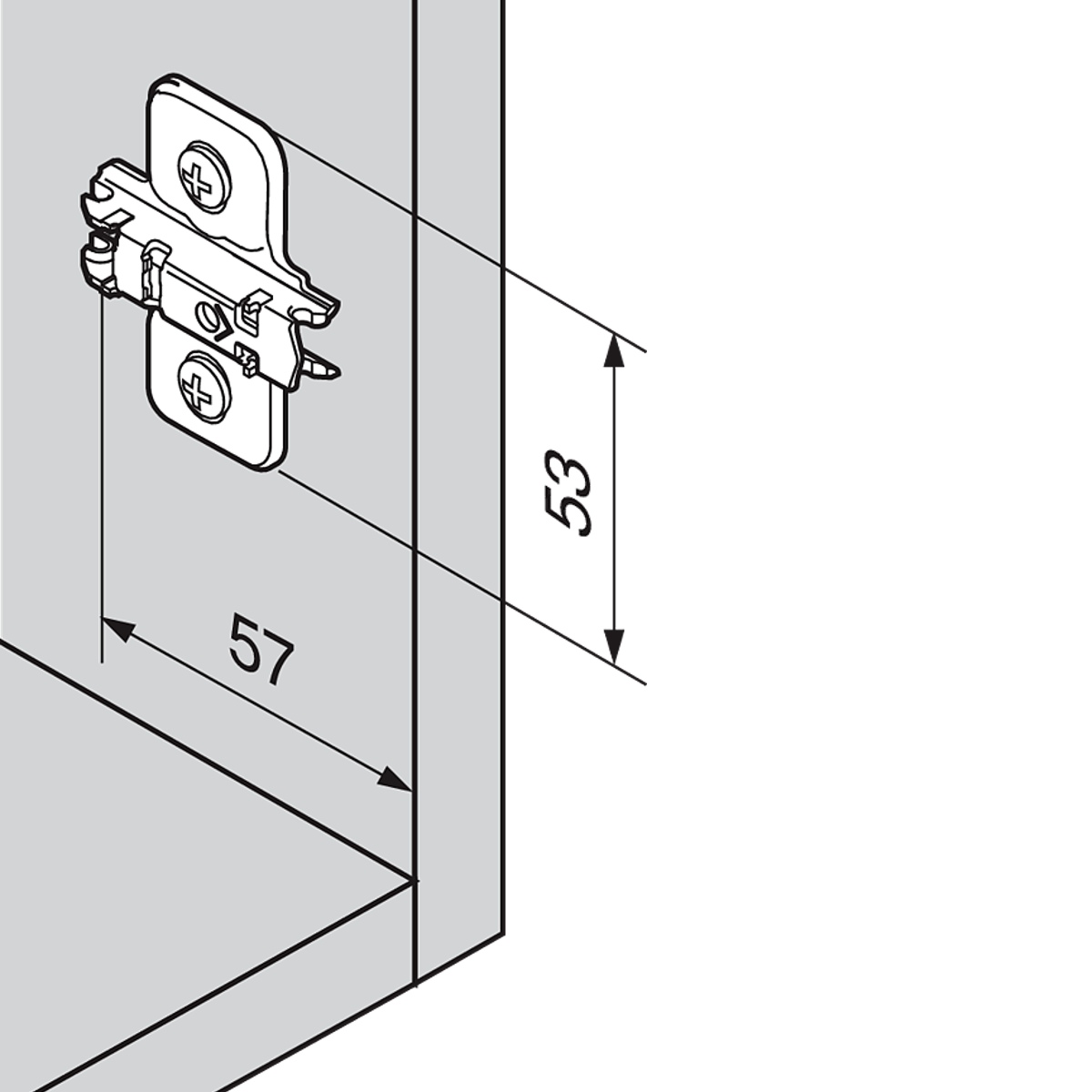

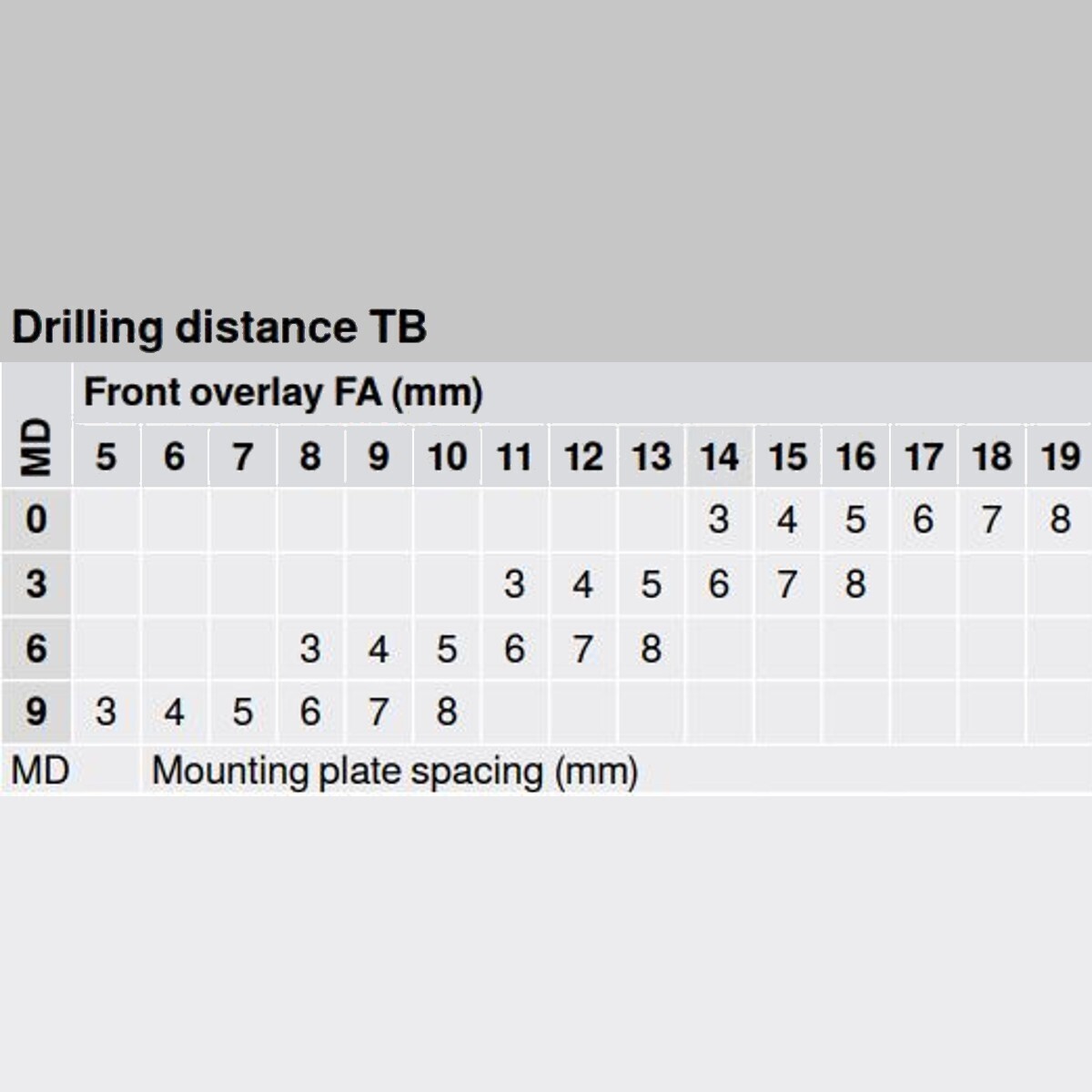

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
