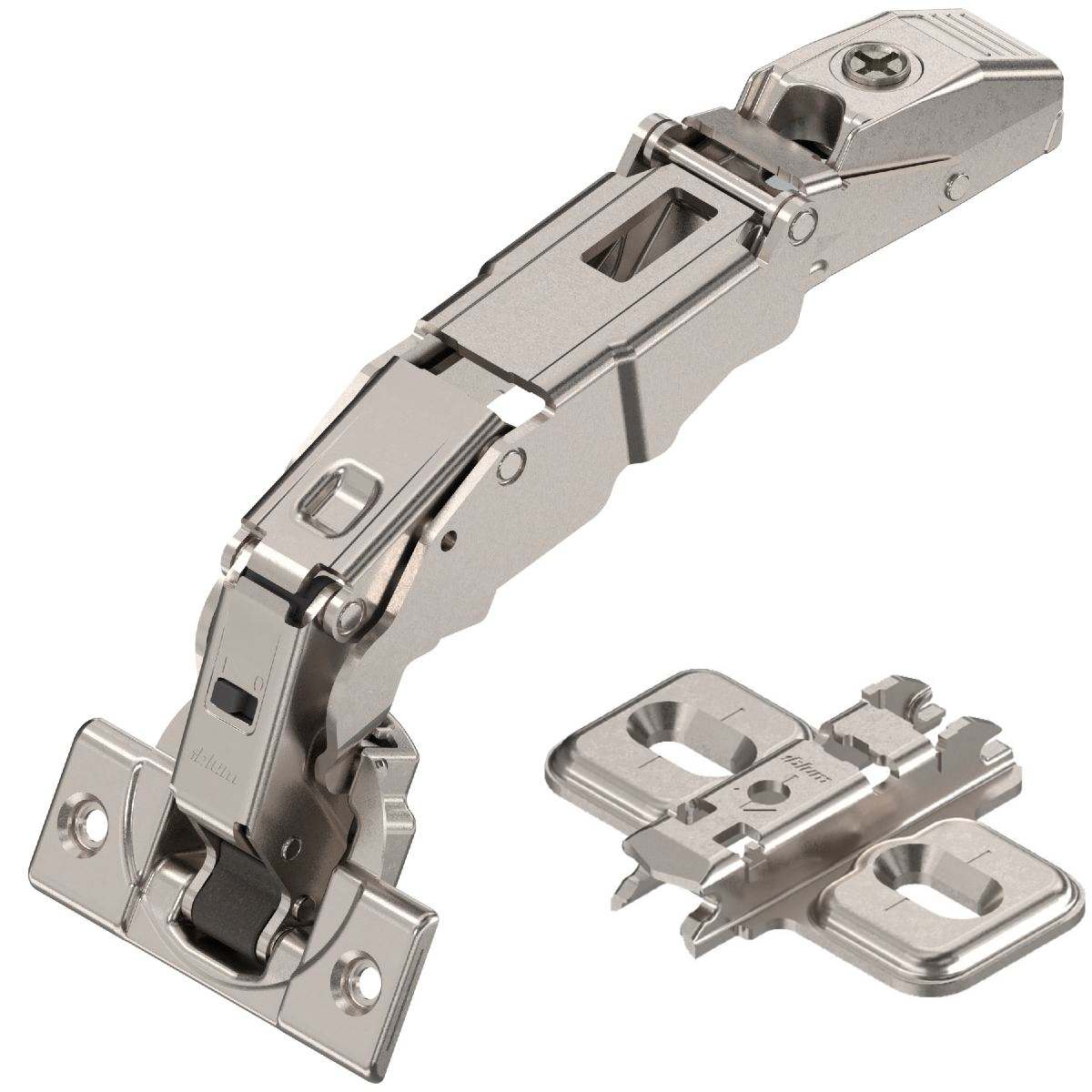

The Blum clip top overlay 155 degree cabinet hinge 71B7550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top profile door hinge 71B7550
- Opening angle: 155 degrees
- Door thickness 20-31mm

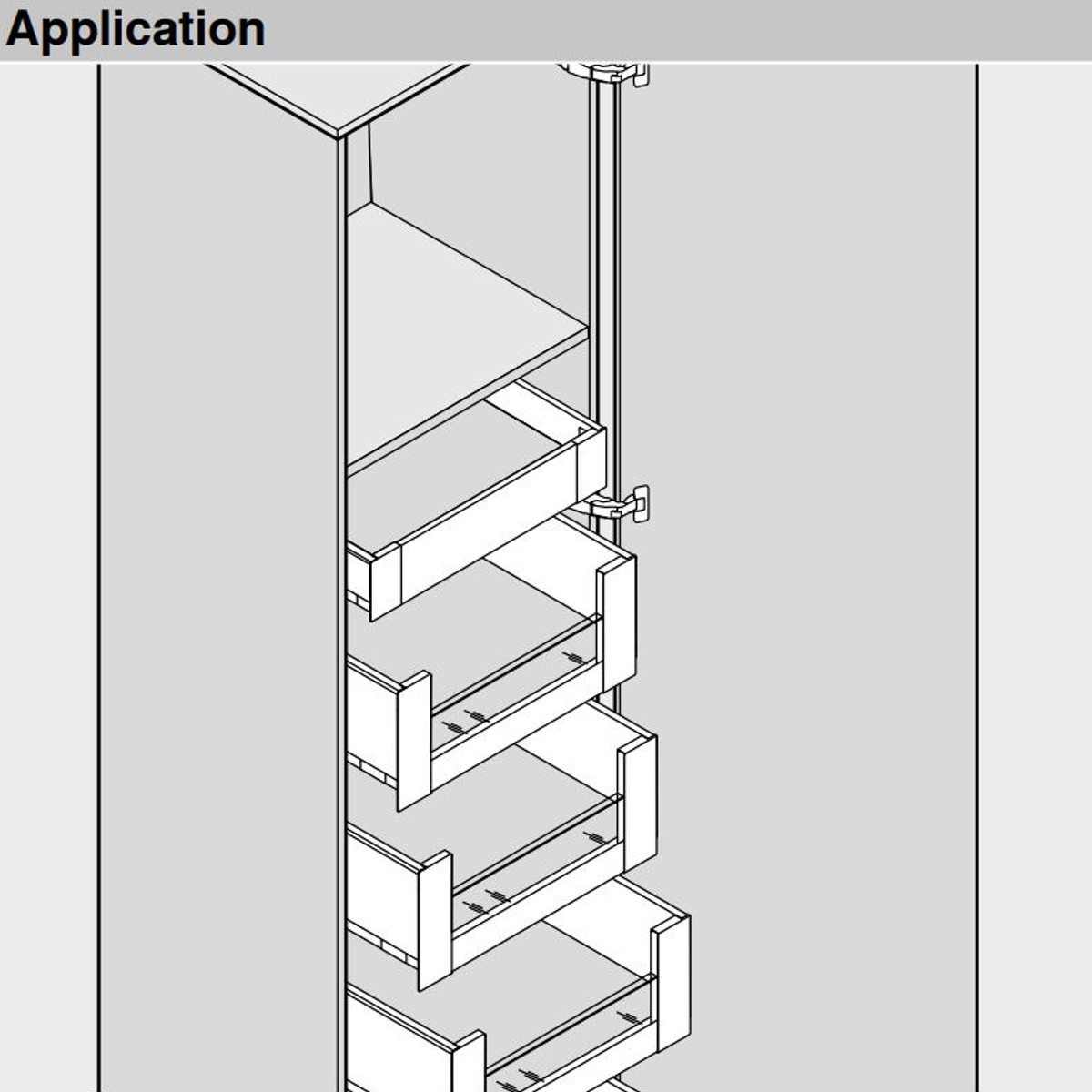

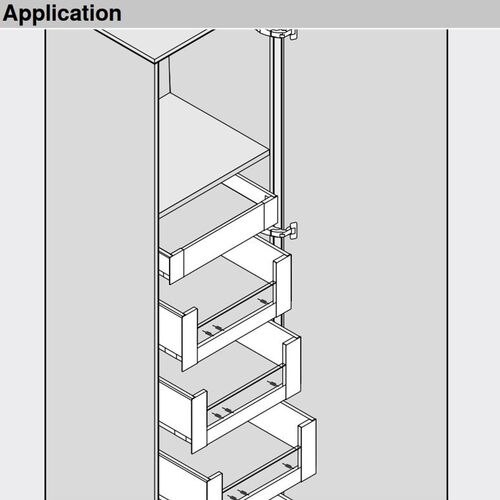

- Cranking: overlay application
- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: blumotion soft-close

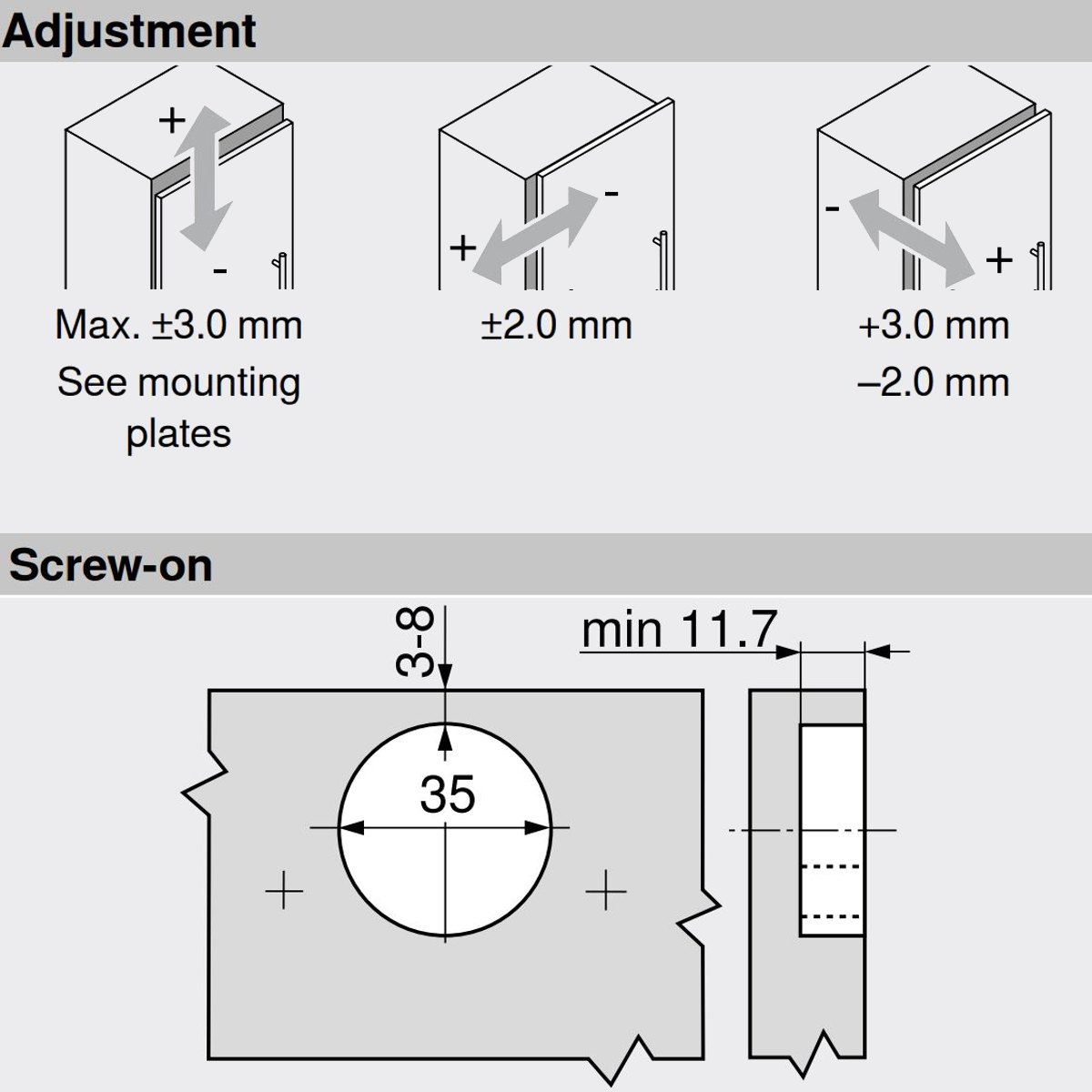

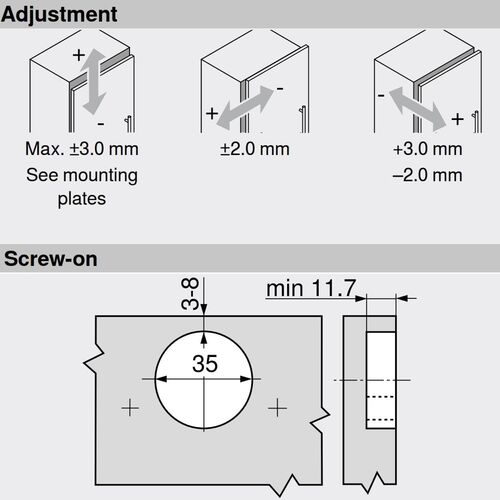

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

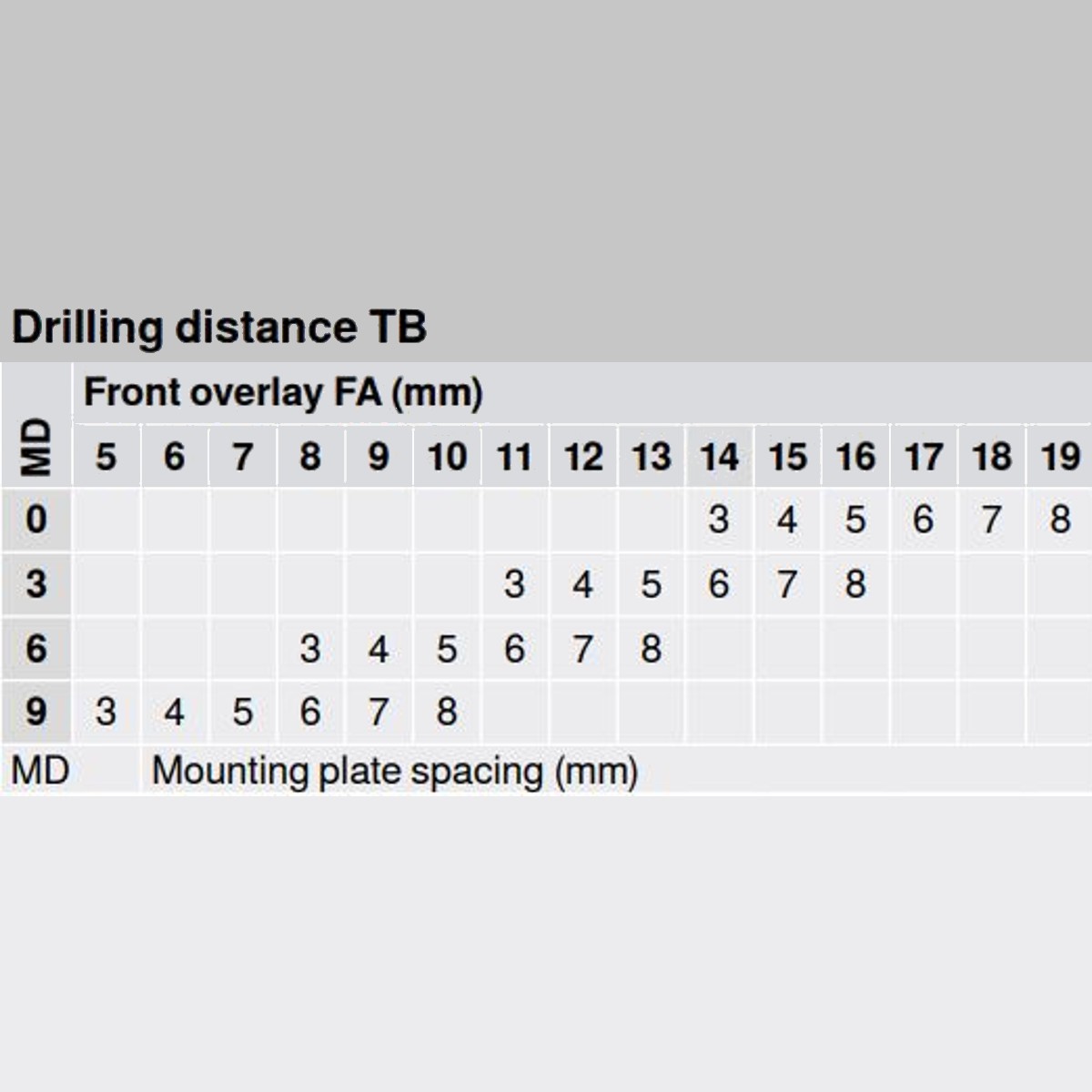

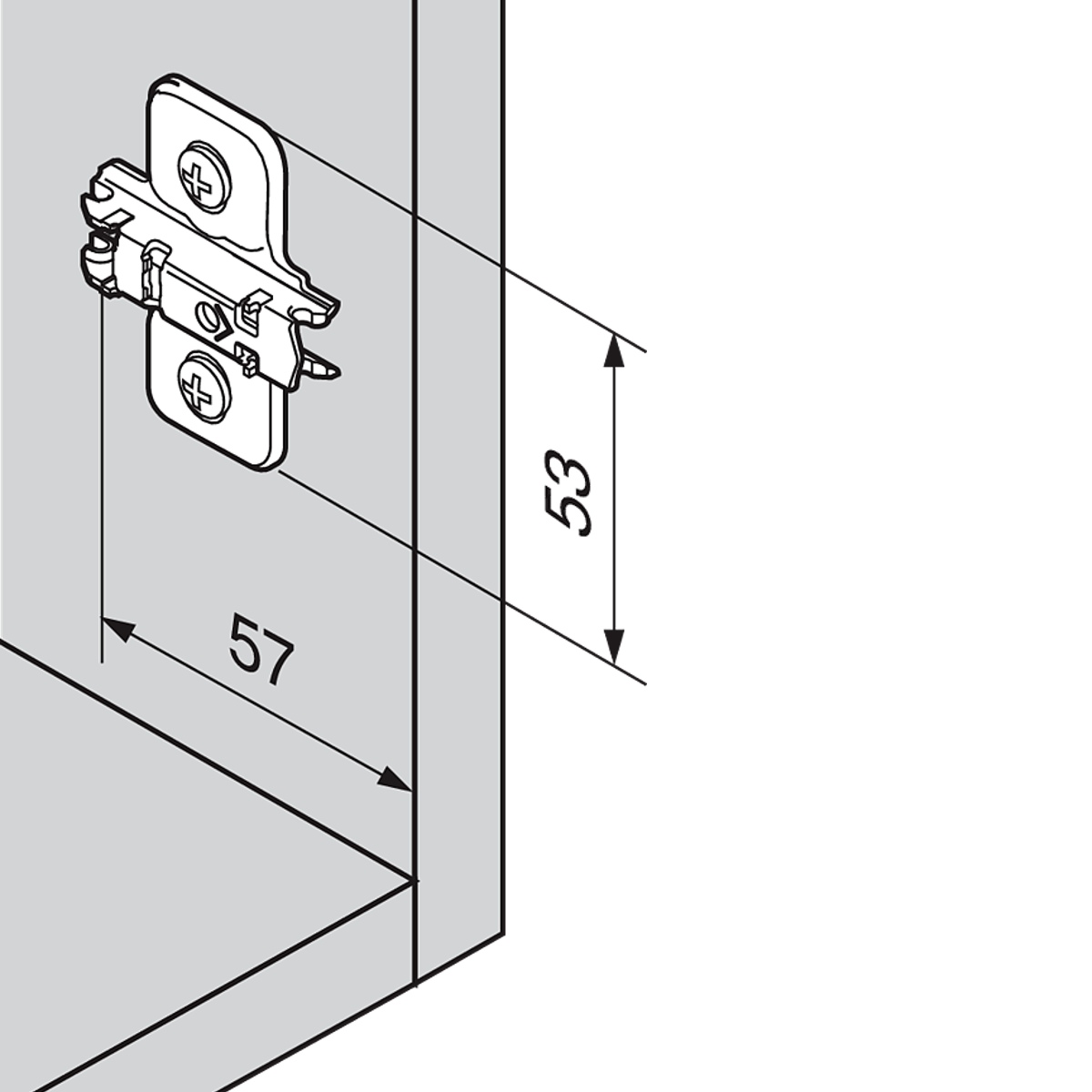

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
