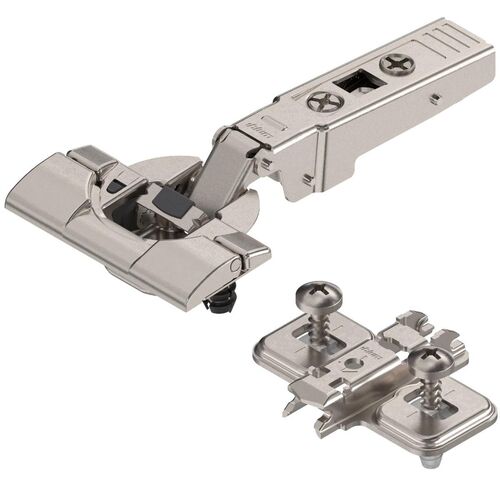

Blum Clip Top Overlay 95 Degree Blumotion Cabinet Hinge 71B9590 Inserta With Mounting Plate

9848-001
Price from: £5.92inc VAT
Write a review
− +

The Blum clip top overlay 95 degree cabinet hinge 71B9590 inserta is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top profile door hinge 71B9590 (for thick doors)
  • Finished in nickel
  • Door Thickness 16-32mm
  • Opening angle: 95 degrees

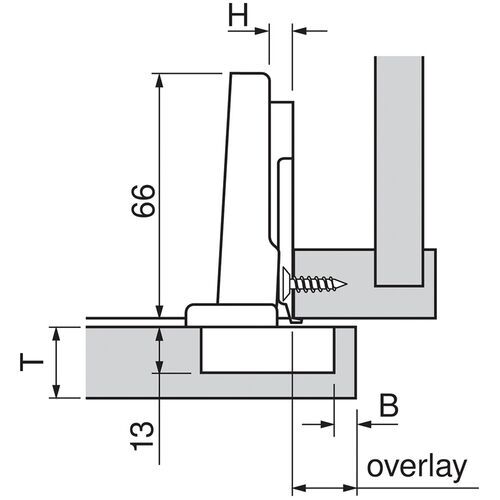

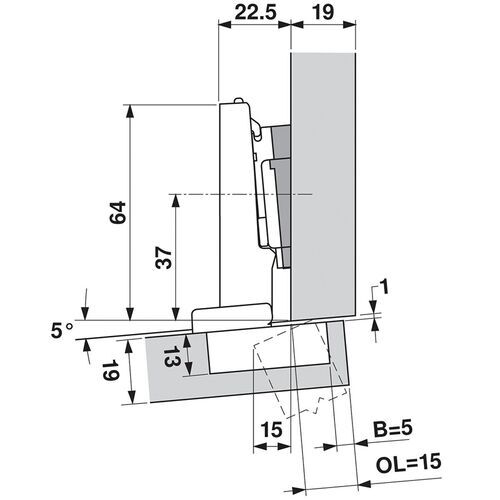

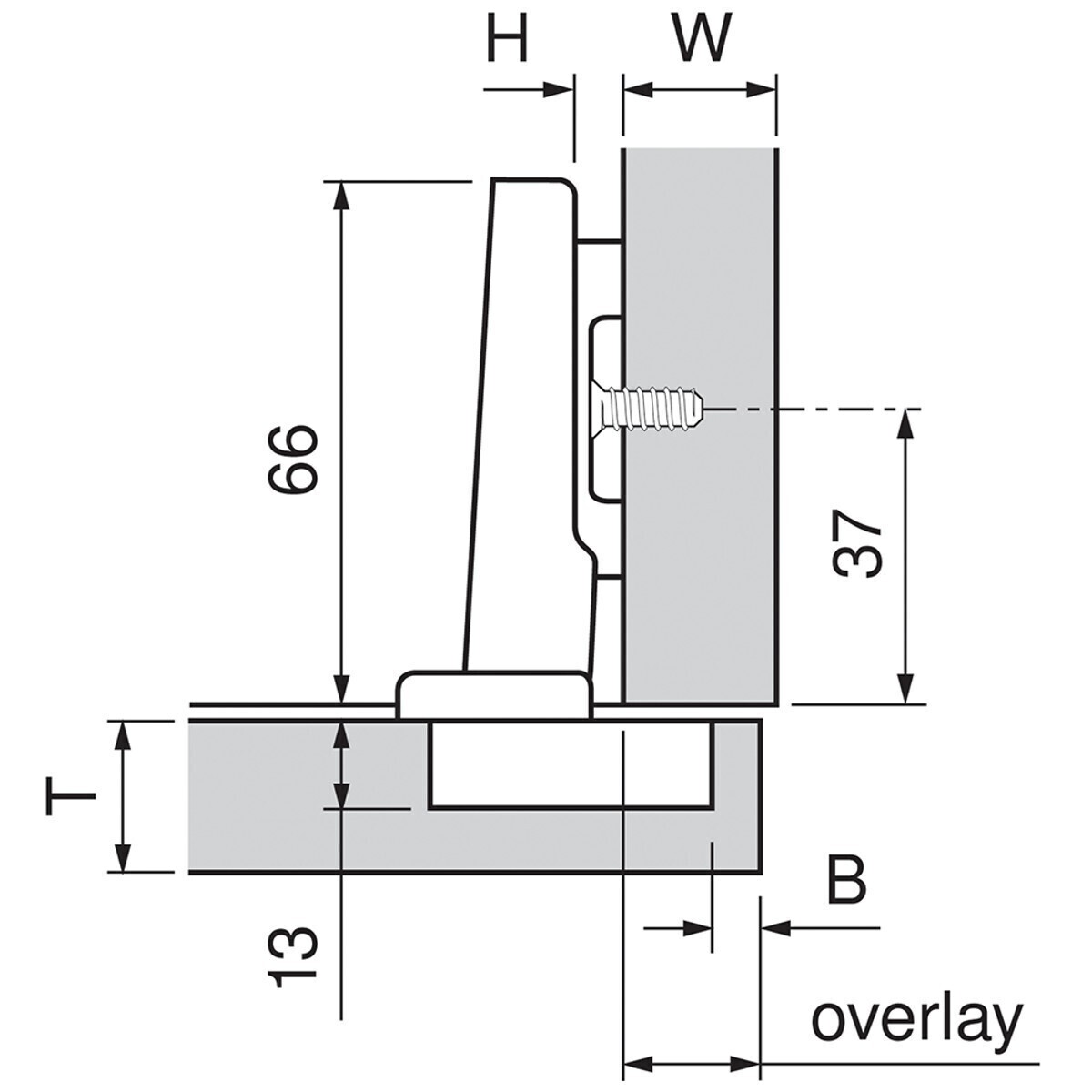

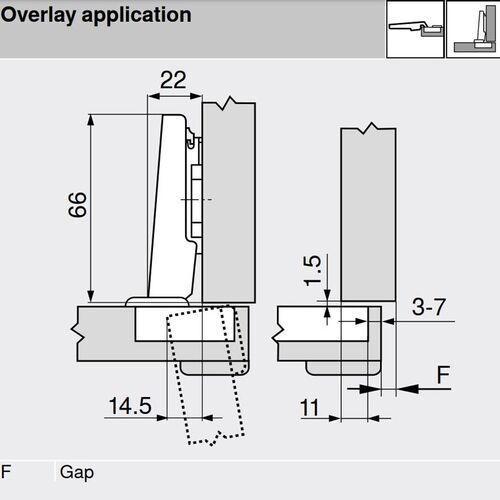

  • Cranking: overlay application blumotion
  • Boss assembly: inserta
  • Boss material: Steel boss
  • Closing mechanism: with spring and soft-close

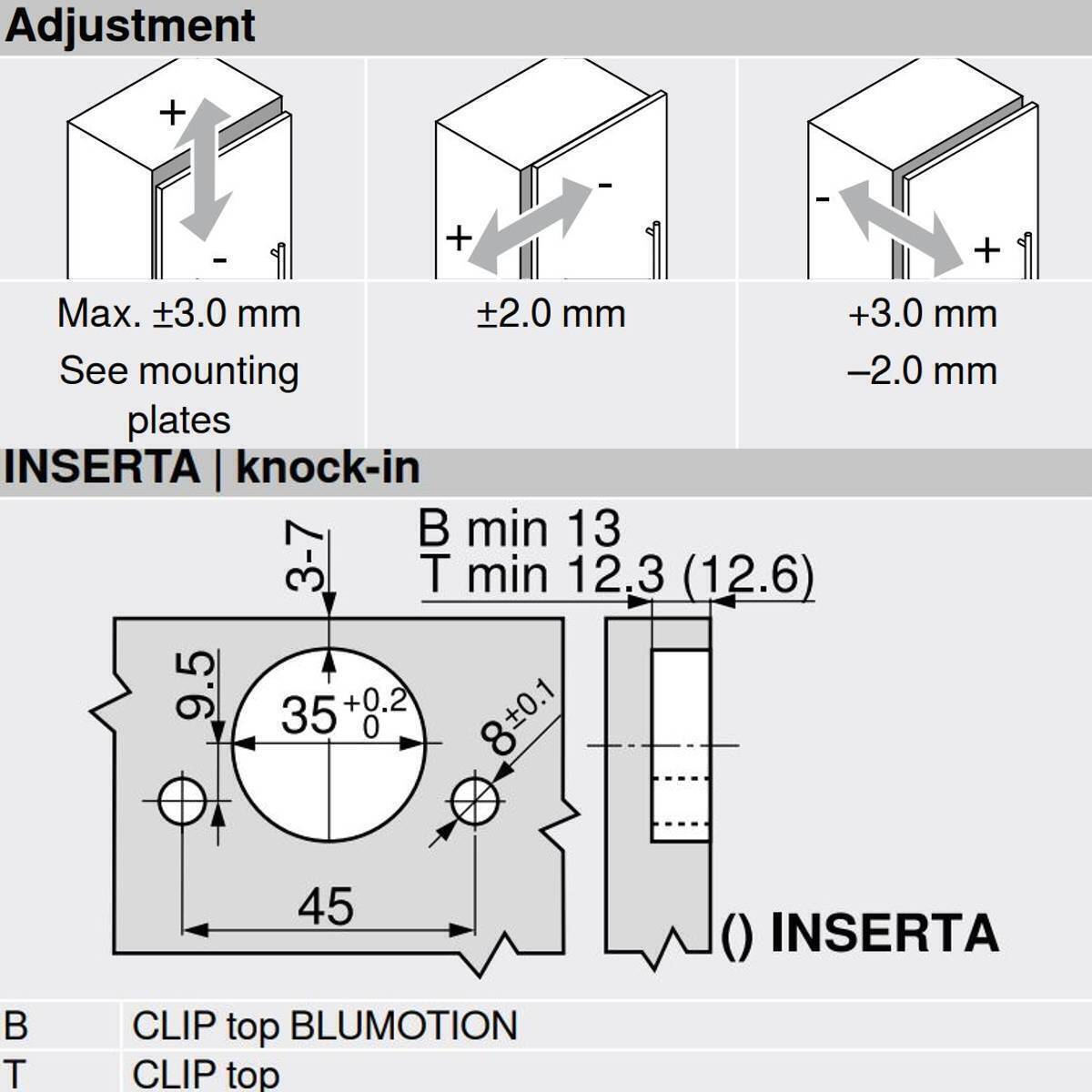

  • Side adjustment: +/- 2mm

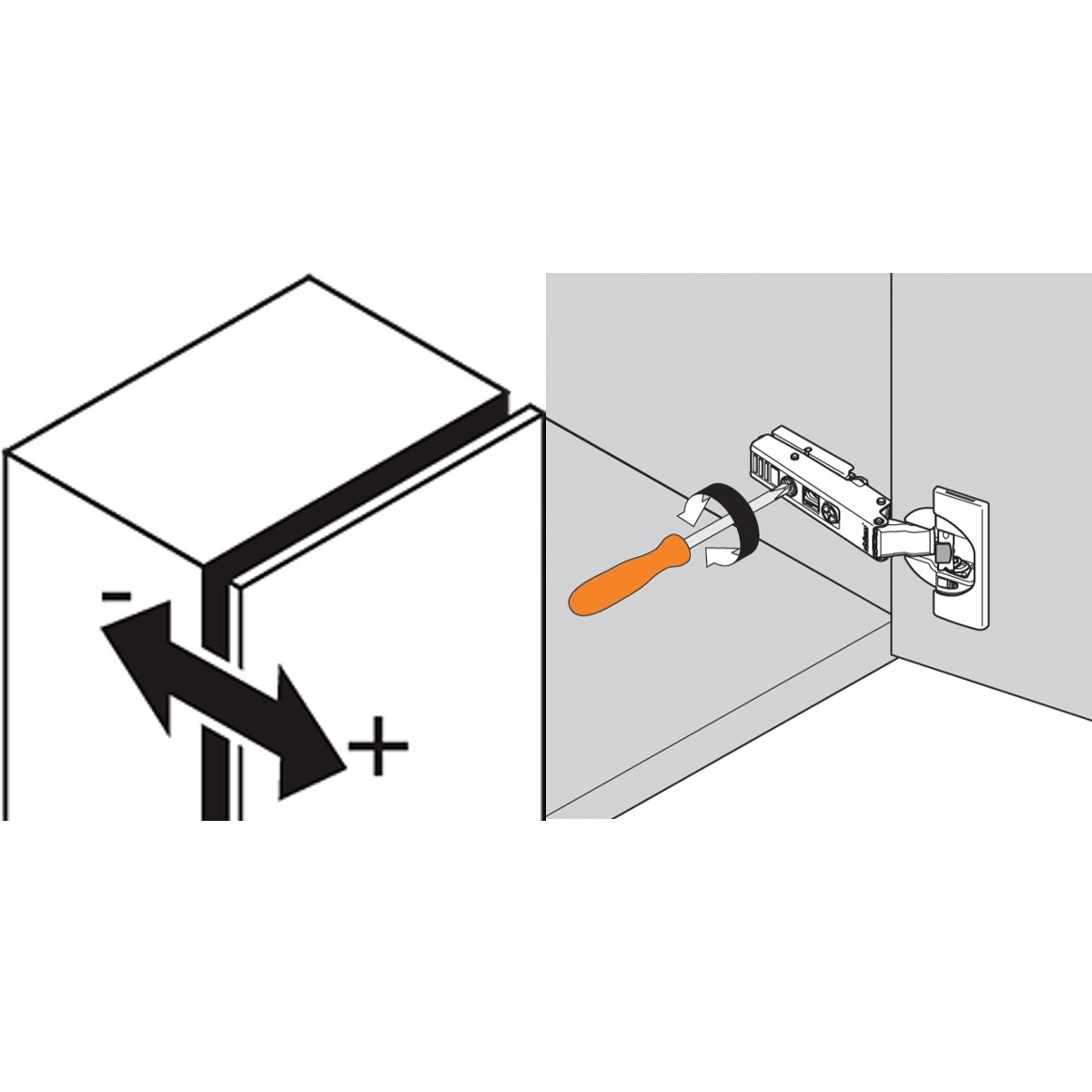

  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

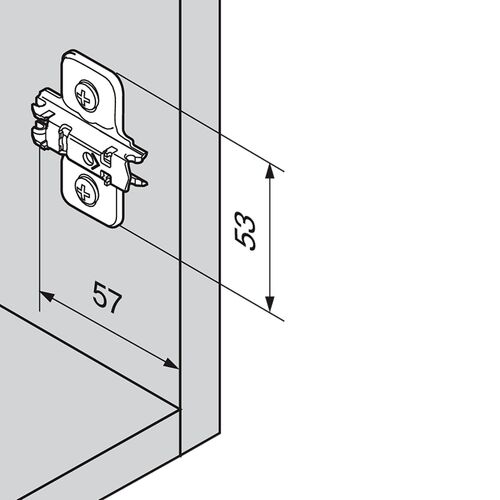

Mounting plates:

  • 174E6100 Expando:
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 174E6130 Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
  • 177H3100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
174E6100
Cover Caps:
No
