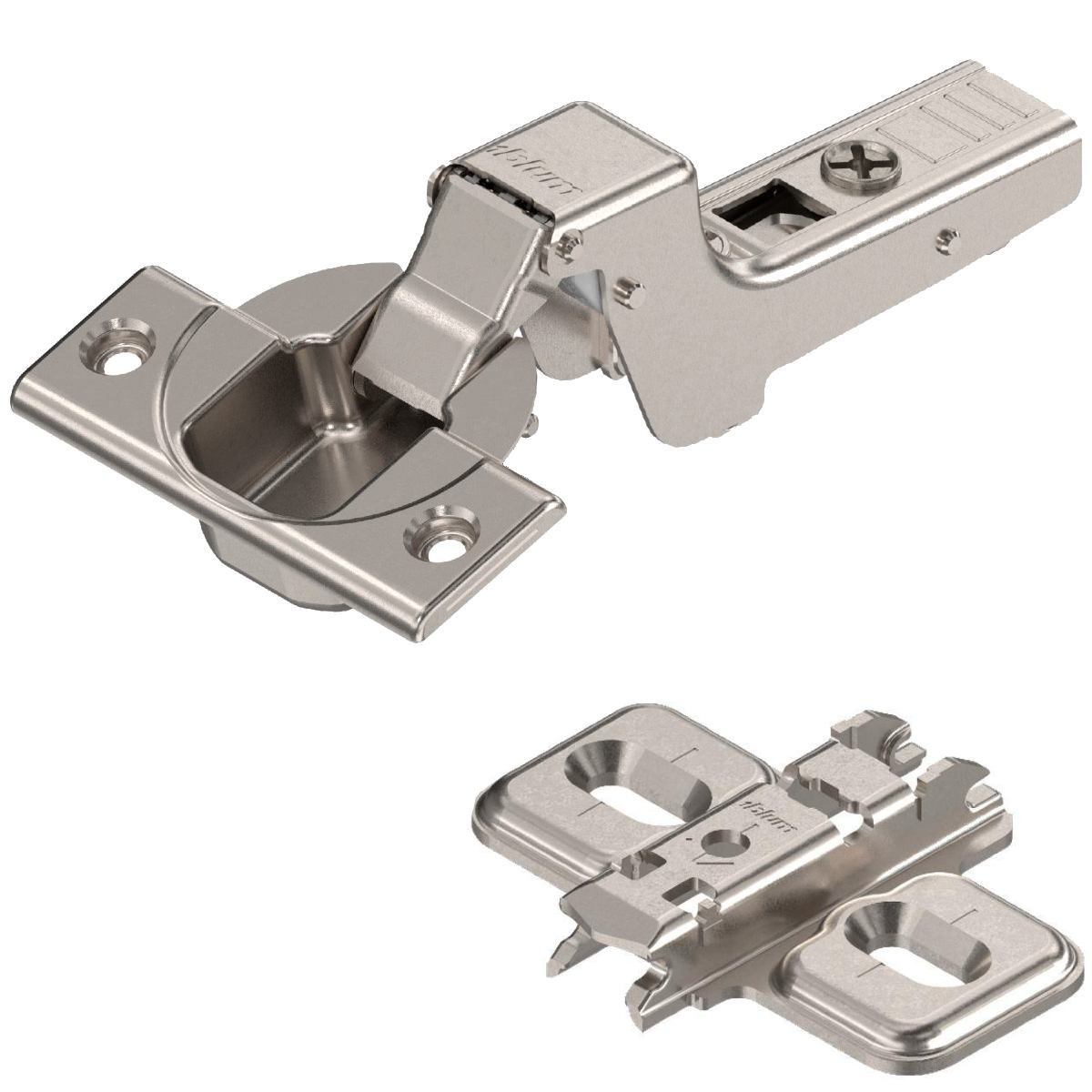

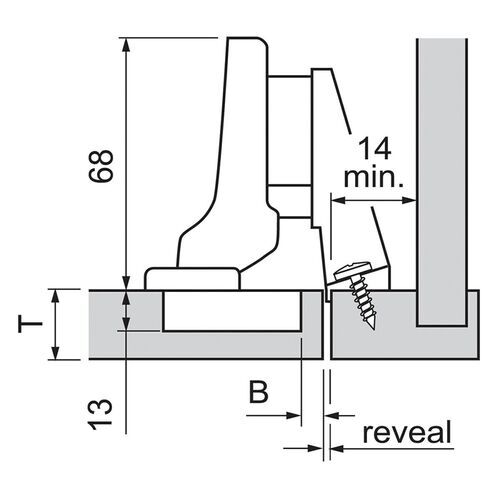

The Blum clip top inset 110 degree cabinet hinge 71T3750 is a high-quality hinge designed for cabinet doors with an inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.
- Clip top standard hinge 71T3750
- Opening angle: 110 degrees
- Door thickness: 16-26mm

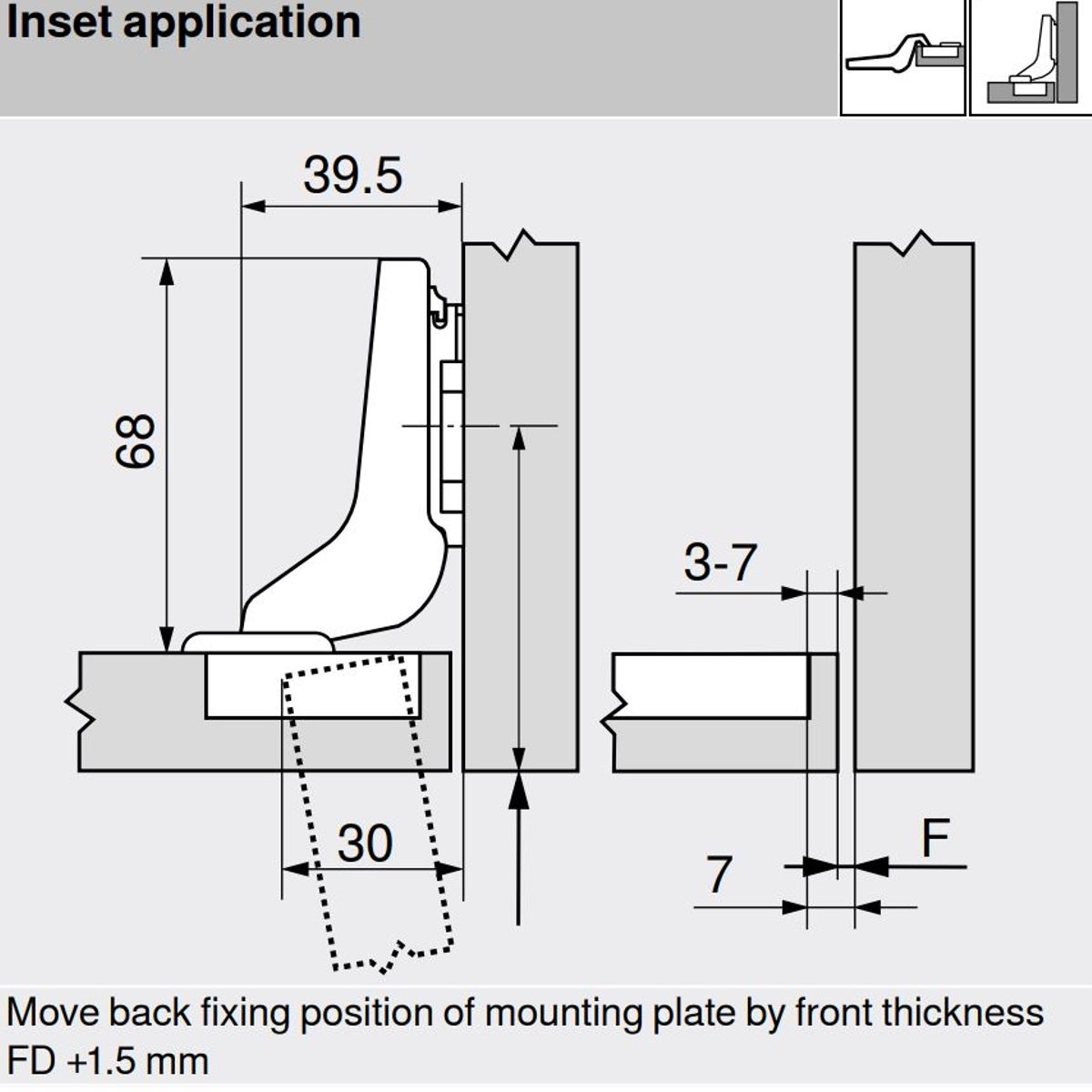

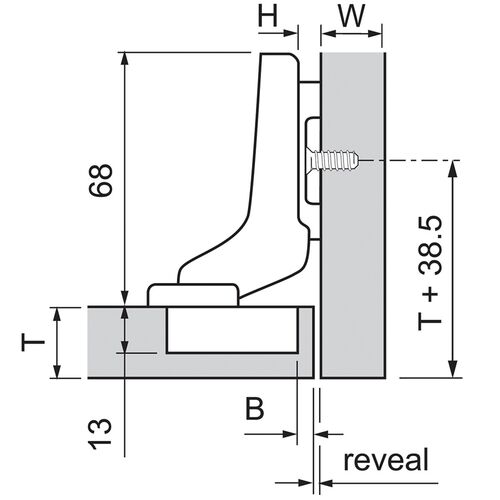

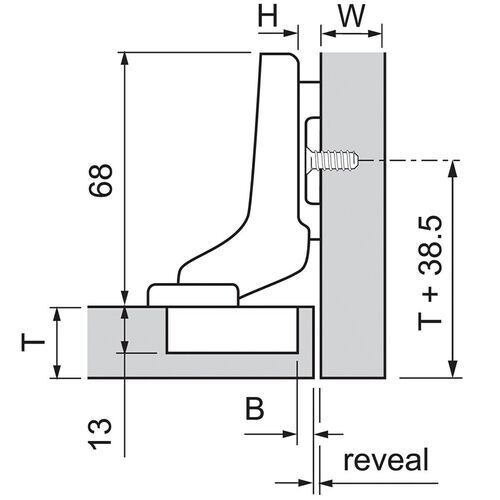

- Cranking: inset application

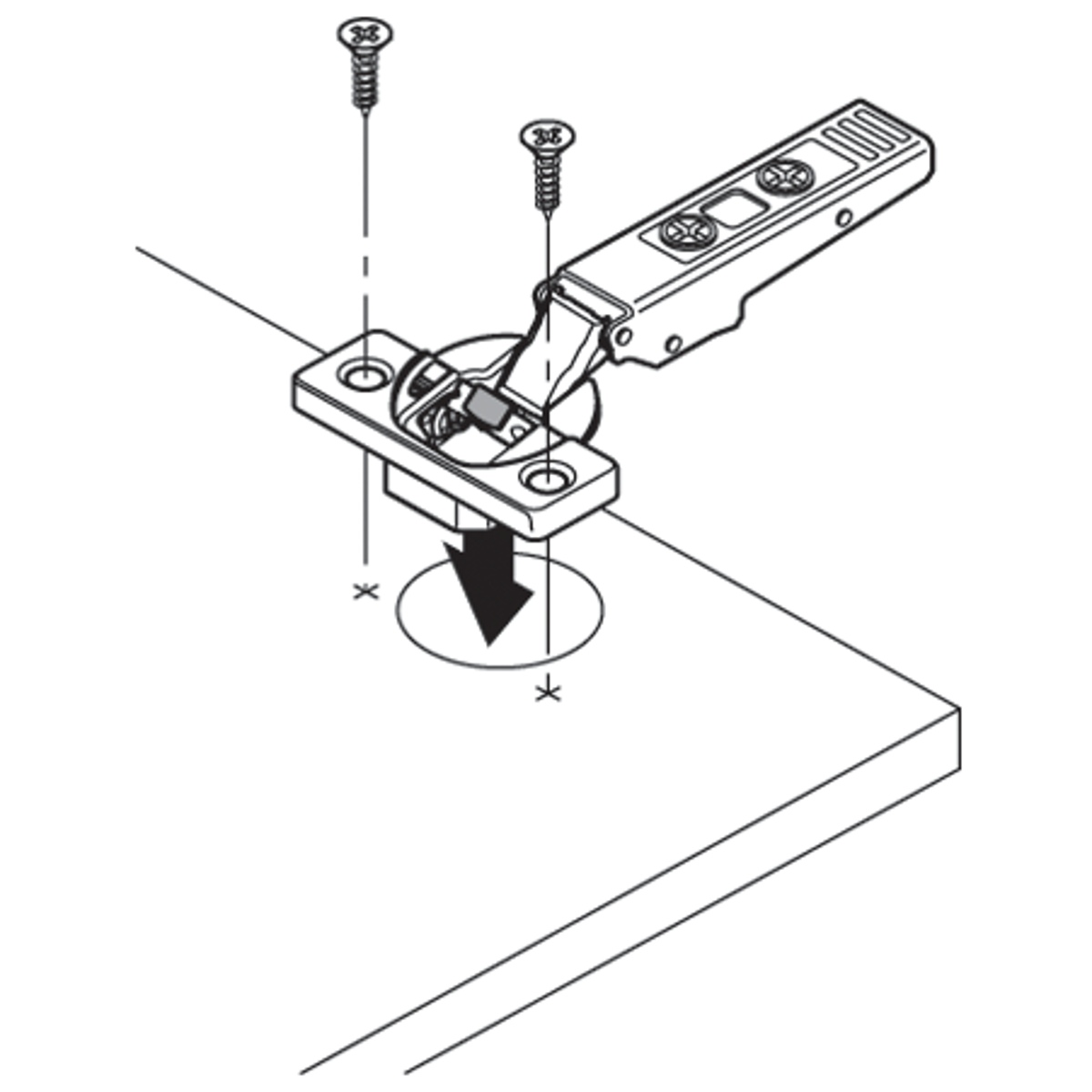

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: sprung

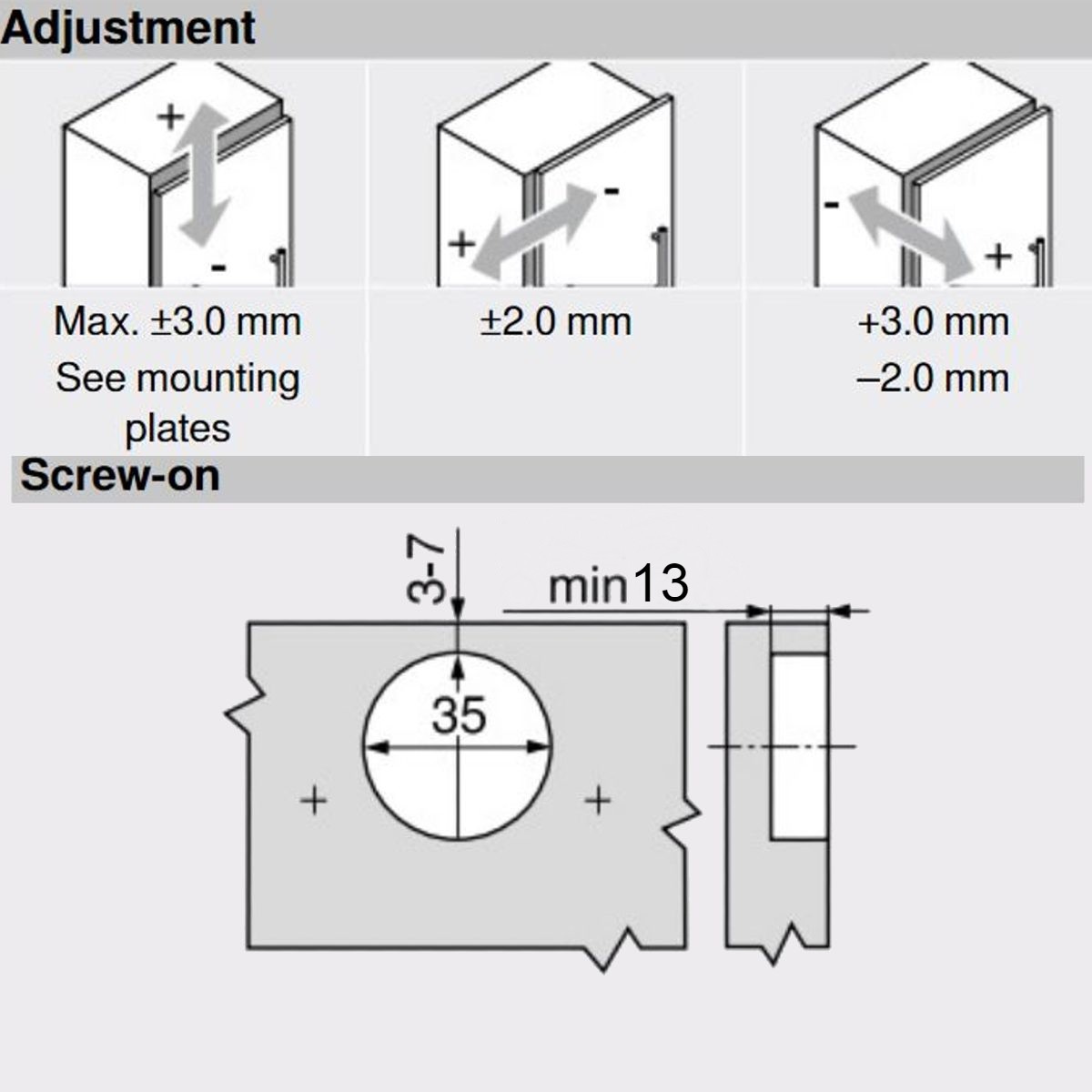

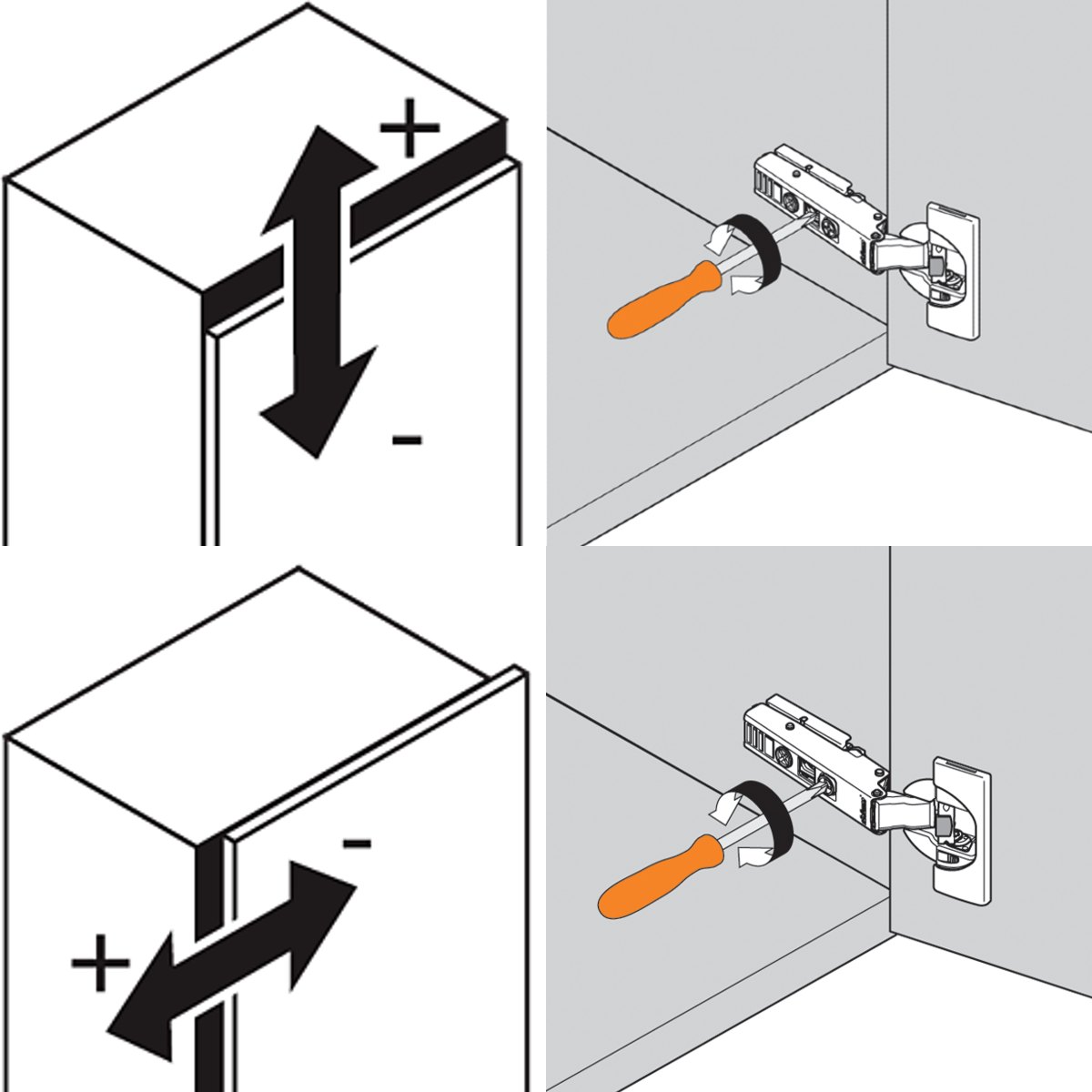

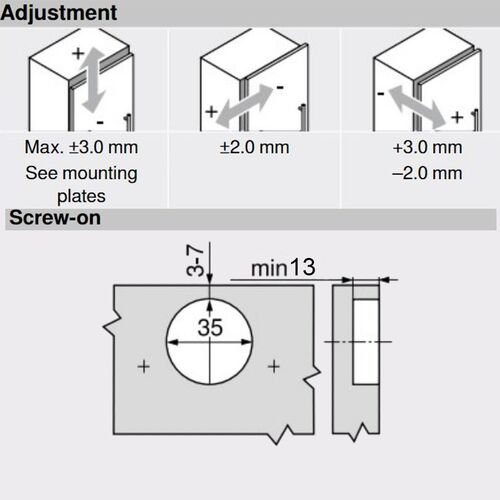

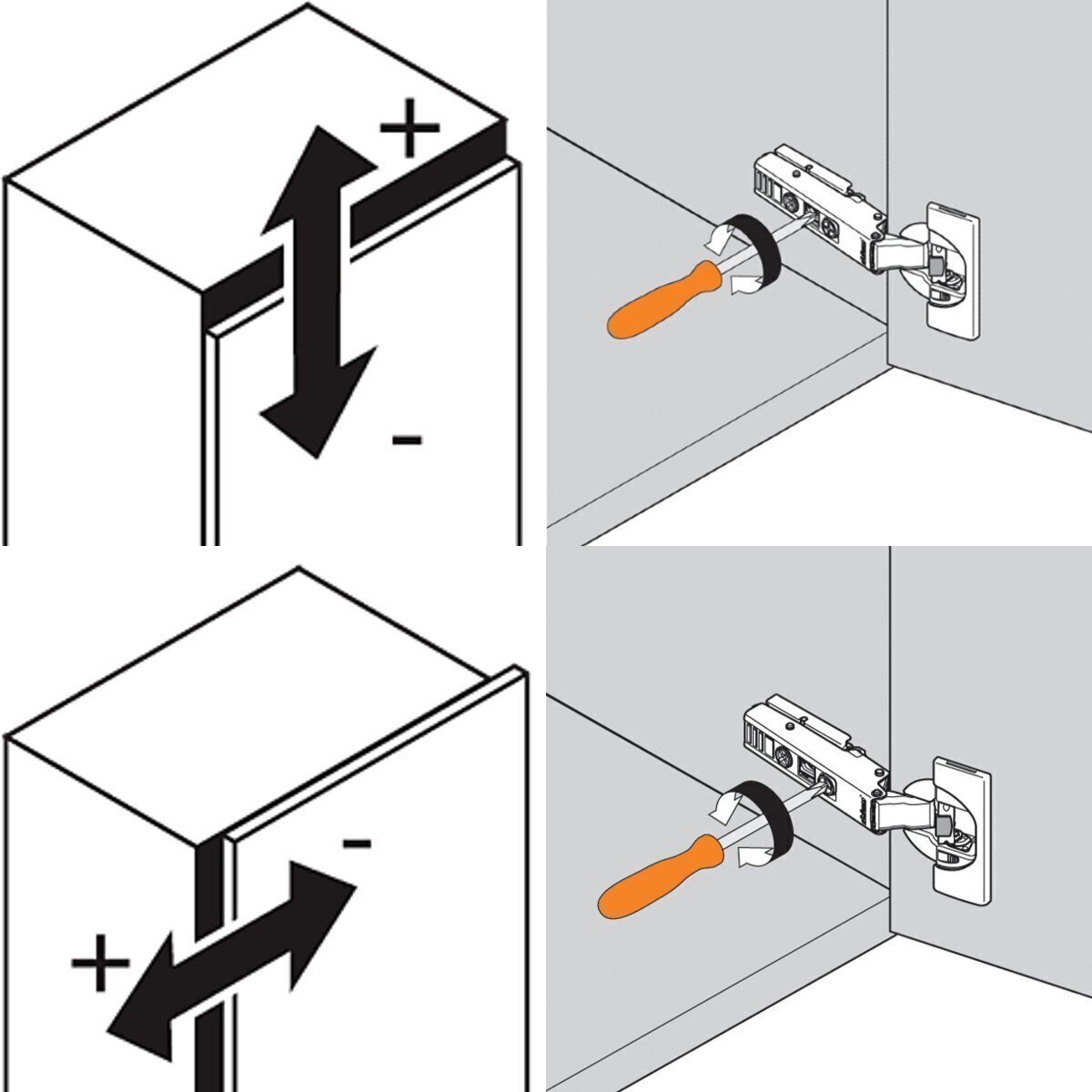

- Side adjustment: +/- 2mm

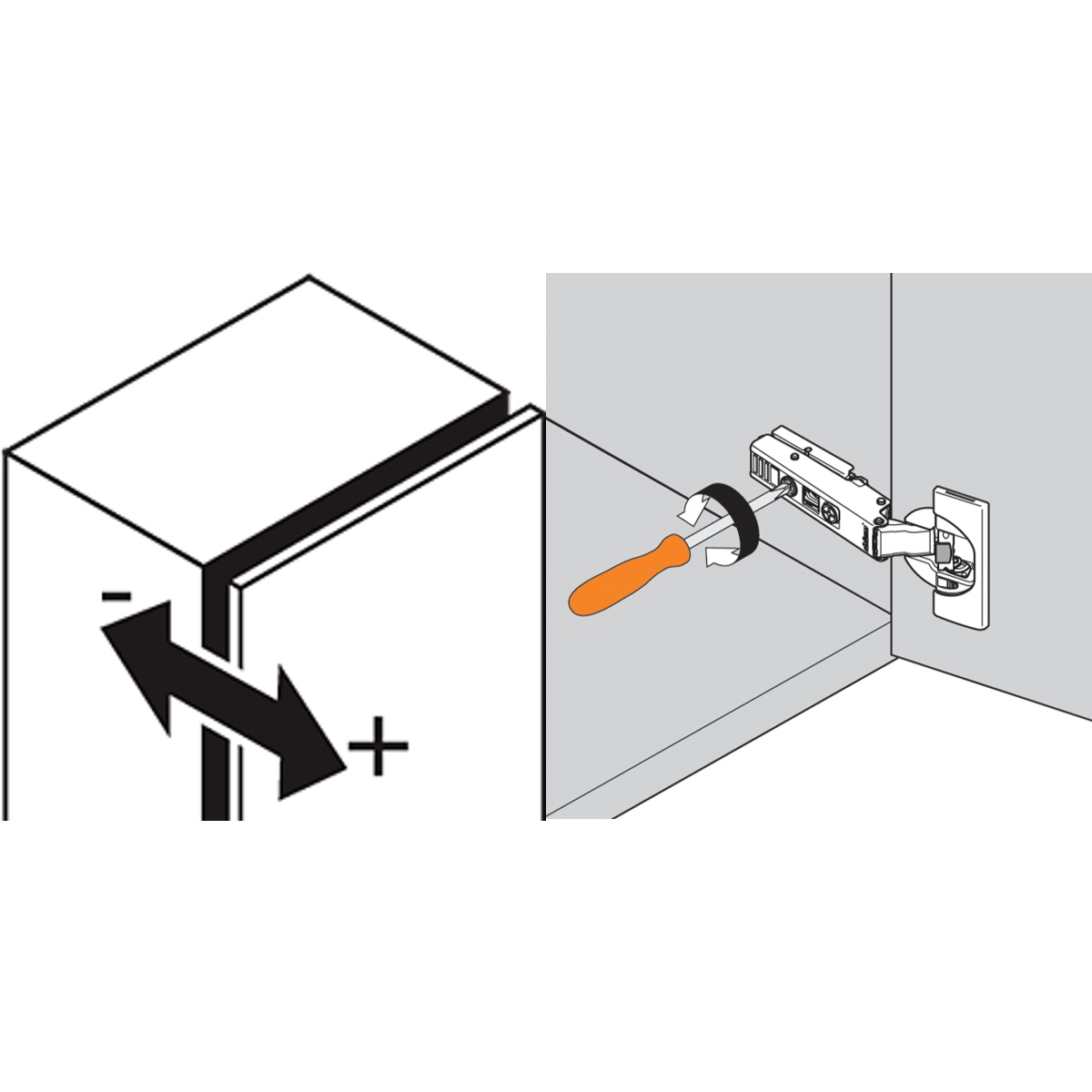

- Depth adjustment: + 3/- 2mm, convenient with spiral screw

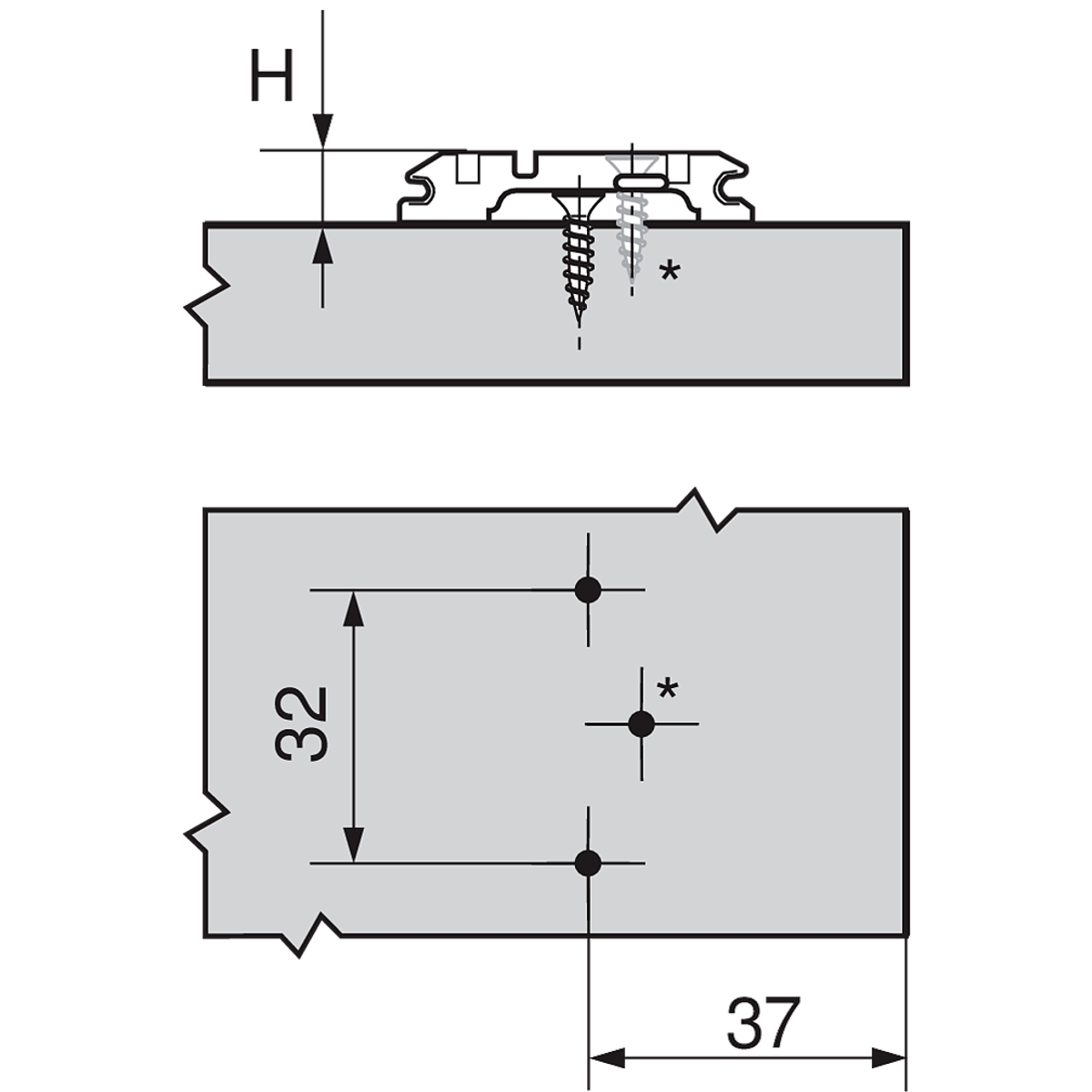

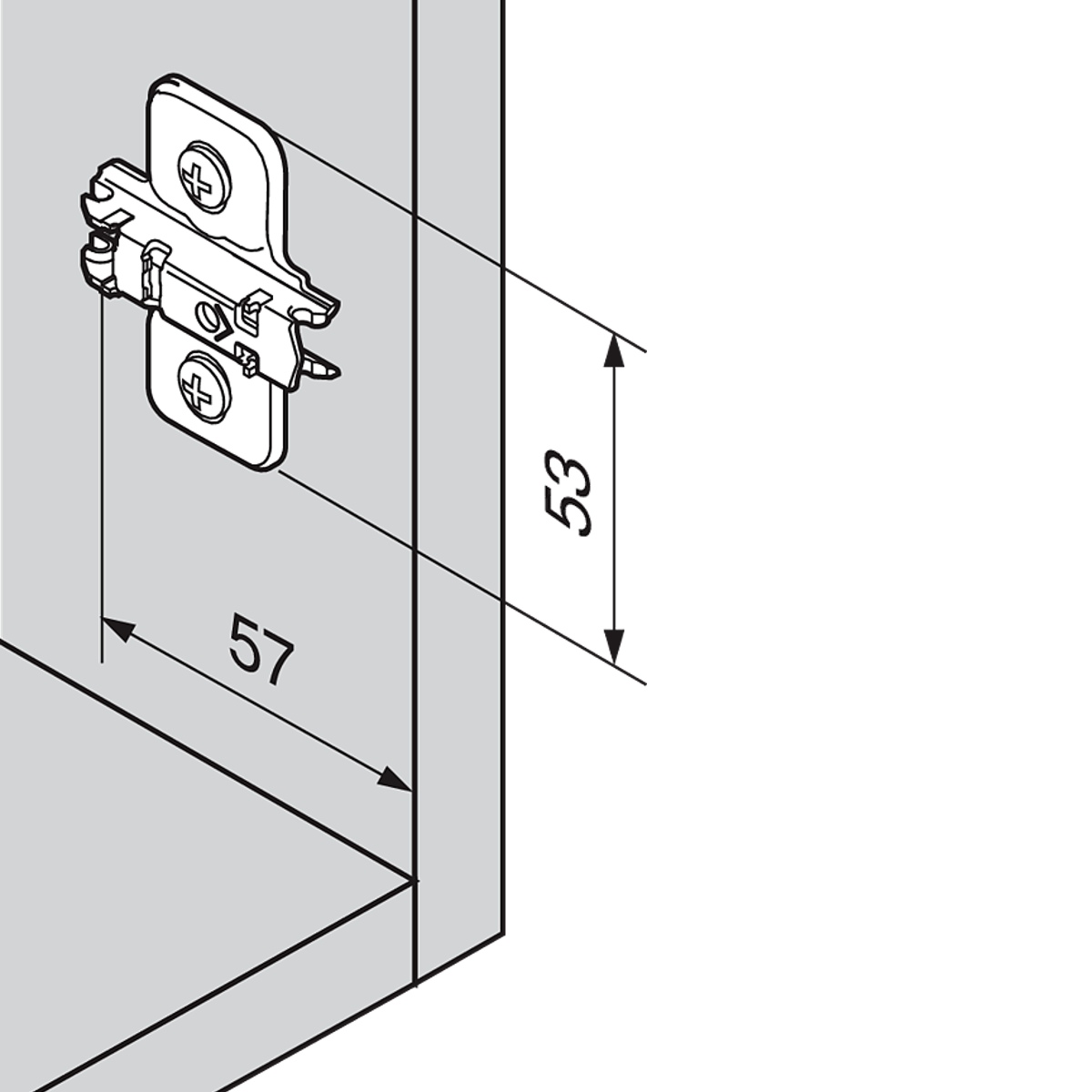

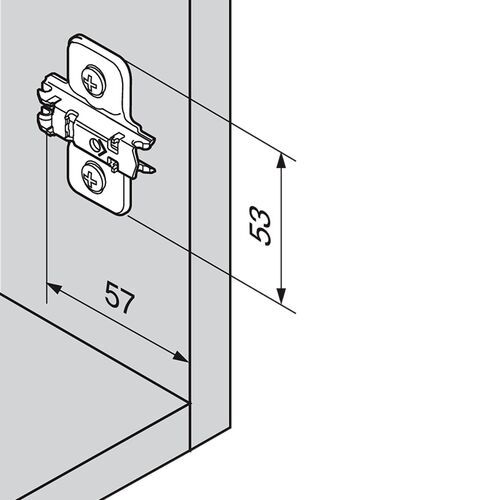

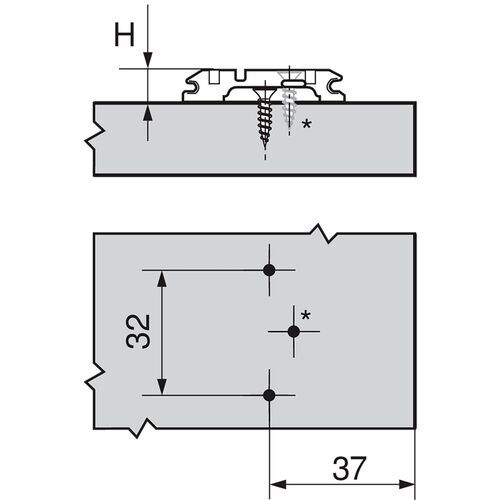

Mounting plates:
- 173L6100:
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173L8100
- Screws: yes
- Spacing: 0mm
- Adjustment: no
- 175H3100 (inline)
- Screws: no
- Spacing: 0mm
- Adjustment: no
- 173H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
- 175H7100
- Screws: no
- Spacing: 0mm
- Adjustment: yes
Mounting Plate:
173L6100
Cover Caps:
Without Cover Caps
