Door Straightening System

A door straightening system is a device that helps to keep wooden doors strong and rigid. It can be installed on hinged and wooden sliding doors that are at least 16mm thick. The door straightening system door is a popular choice for this purpose. It comes in two sizes, 1920mm and 2195mm, and two finishes, black and white.

• It is cuttable
• Recessed mounted
• Colour: white/black
• Trim strip: 1863/2138mm
• For doors over 16mm thick
• Made of: steel, zink alloy, plastic
• Installation: screw and clip fixing
• Threaded rod length: 1920/2195mm
• Prevents warping in either direction
• Adds rigidty to wooden sliding or hinged doors
• Maximum door height:
  • 1920mm rod: 2400mm maximum door height
  • 2195mm rod: 2650mm maximum door height

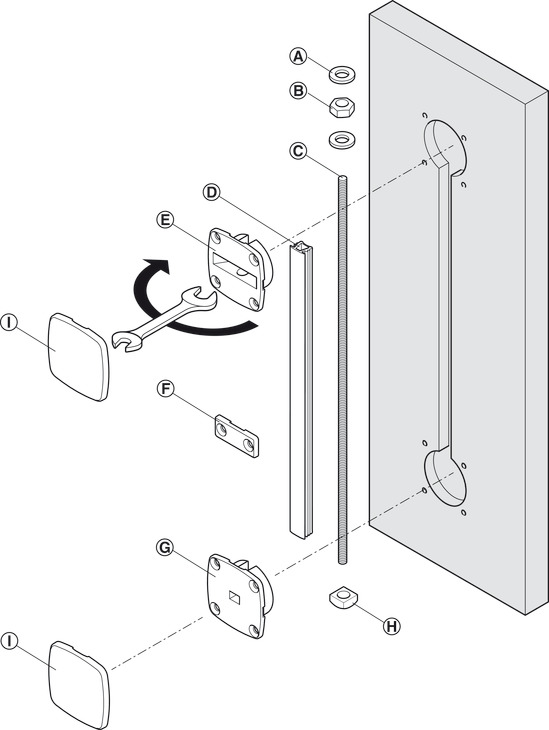

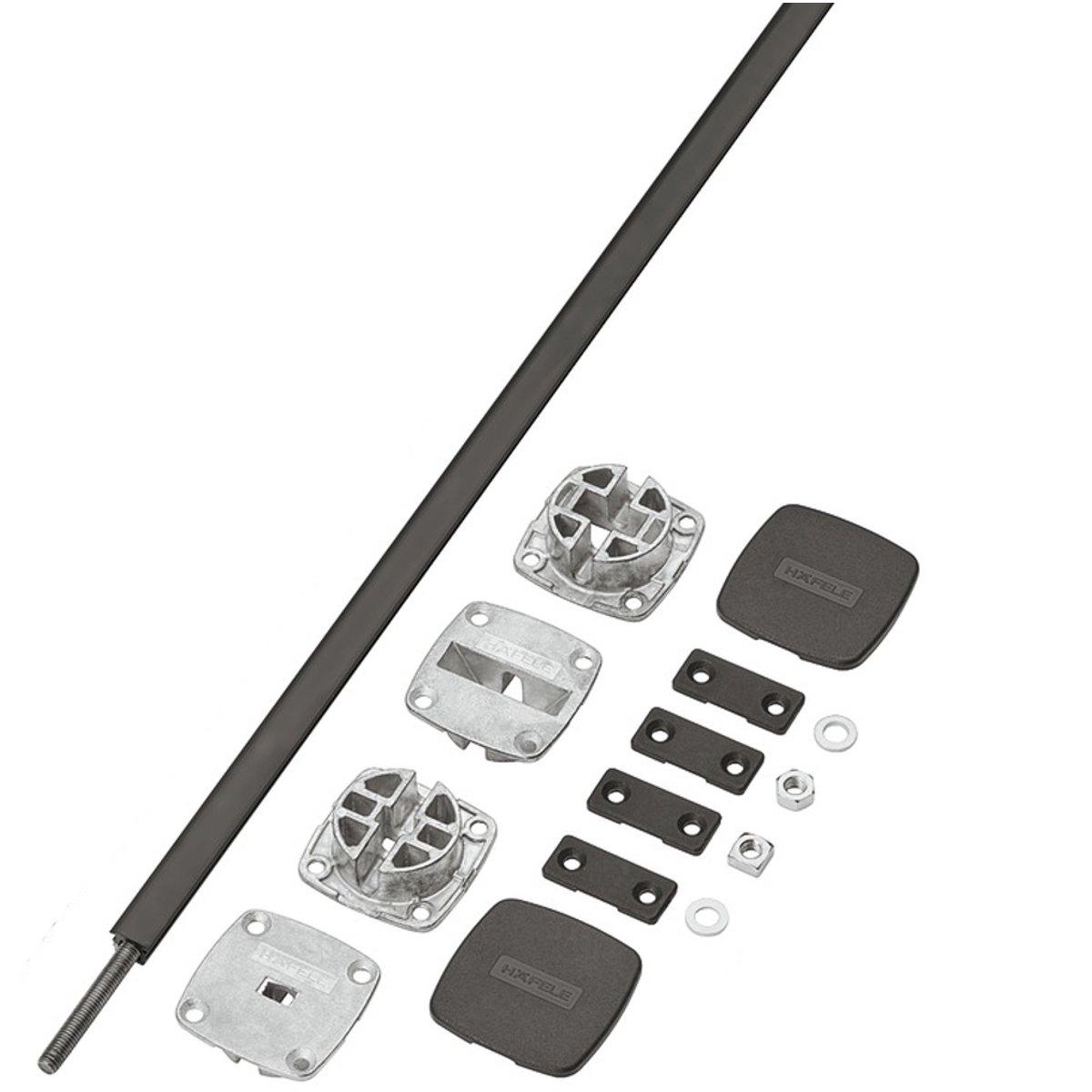

Set consist of:

• 2 x tensioners
• 1 x hexagonal nut
• 2 x security washers
• 1 x suqare nut
• 4 x cover caps
• 1 x m6 threaded rod
• 1 x trim strip

Please note that:

• Please be aware this is not suitable for hardwood
• Normally two straightening fittings are recommended per door panel
