Double Action Pivot 80kg (Stainless Steel)

Double-action floor-mounted satin stainless steel pivot hinge suitable for fire door (FD-30). Designed for medium-duty internal doors, this double-action pivot set allows doors to swing in both directions. Crafted from Grade 304 stainless steel, it features radiused door plates for easy preparation and maintenance-free oil-impregnated bronze bearings.

• Satin Stainless Steel finish
• Maximum door weight: 80kg
• Suitable for fire doors - FD-30
• Minimum door thickness 44mm
• Maximum door width: 1100mm
• Allows doors to open in both direction
• Bronze maintenance-free top and bottom bearings
• The bottom bracket is floor mounted and fits under the door

Please note that:

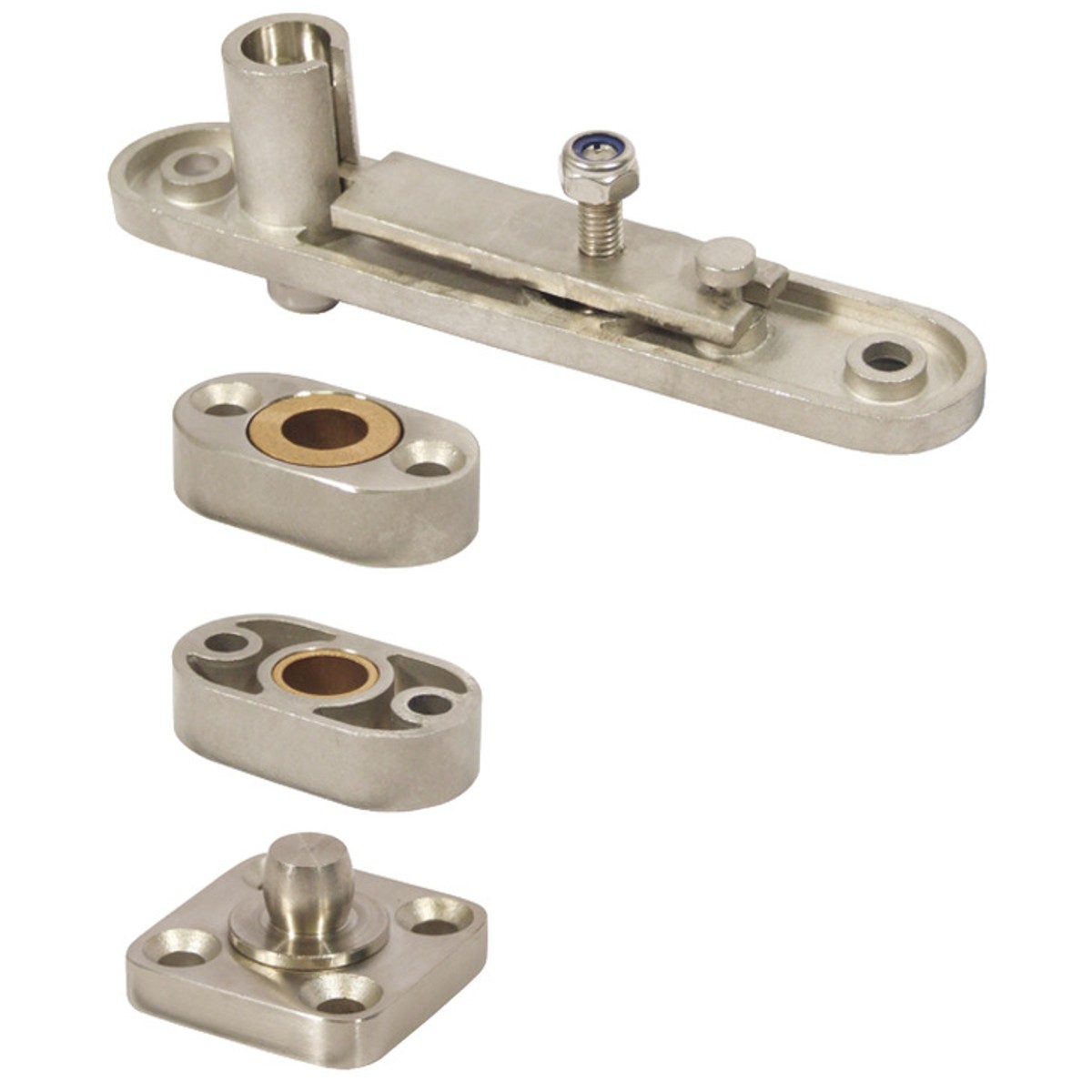

• Supplied in a set containing top and bottom pivot
