E-Space Magnetic Sliding Door System For Wooden Door

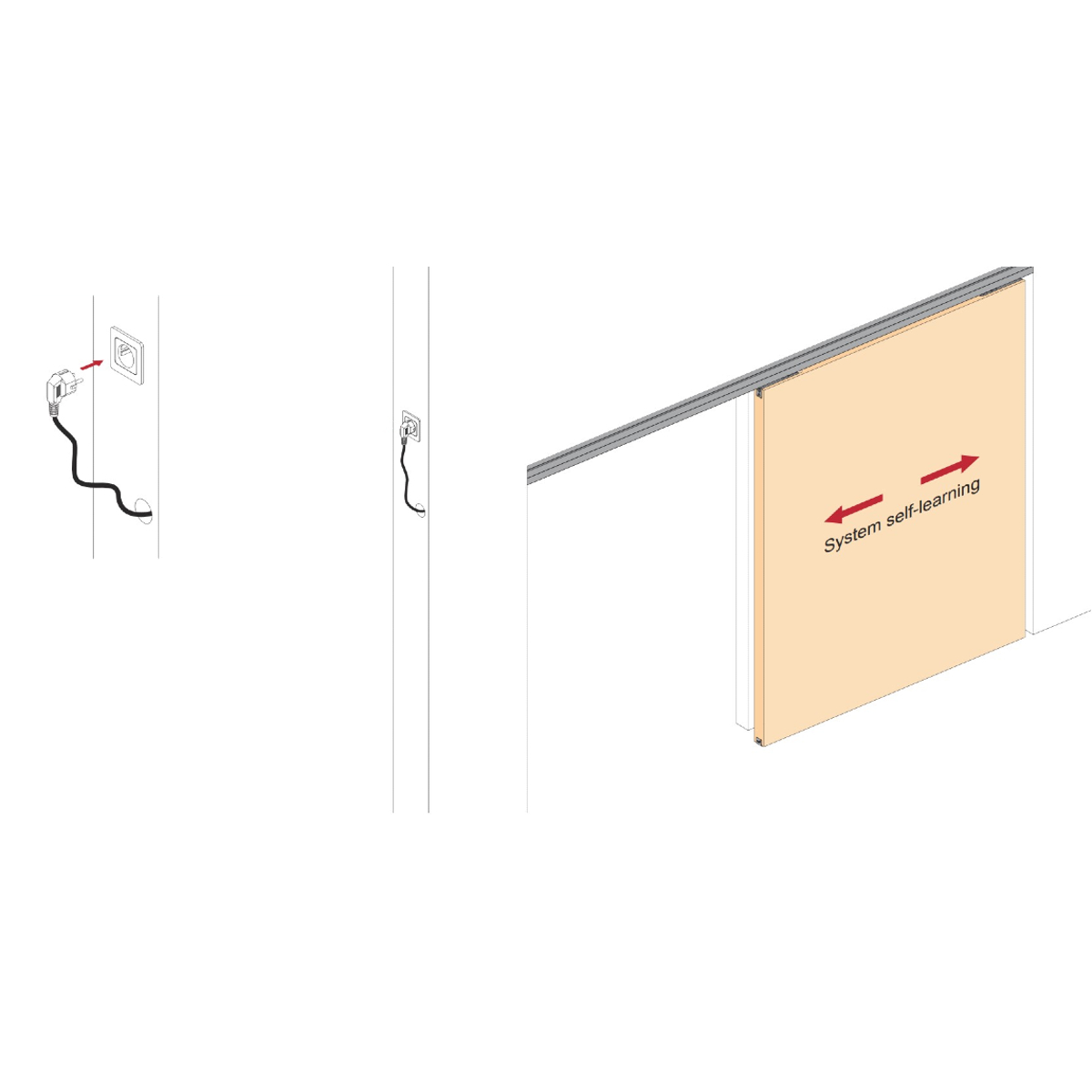

E-space magnetic sliding door track set for wooden doors is a new initiative manufactured by OPK to introduce a new automatic system on the market. All you need to do is plug-in, pair it with a mobile device and never worry about needing to manually open the door again. Due to it being magnetic the door literally floats over the track and is smooth and quiet. You can also pair it with different switches, movement sensors or your mobile phone.

• Suitable for wooden doors
• Minimum door width: 730mm
• Maximum door weight: 100kg
• Minimum door thickness: 30mm
• Door brackets have an adjustment of ±3mm
• The bottom guide track needs to be cut to the required size

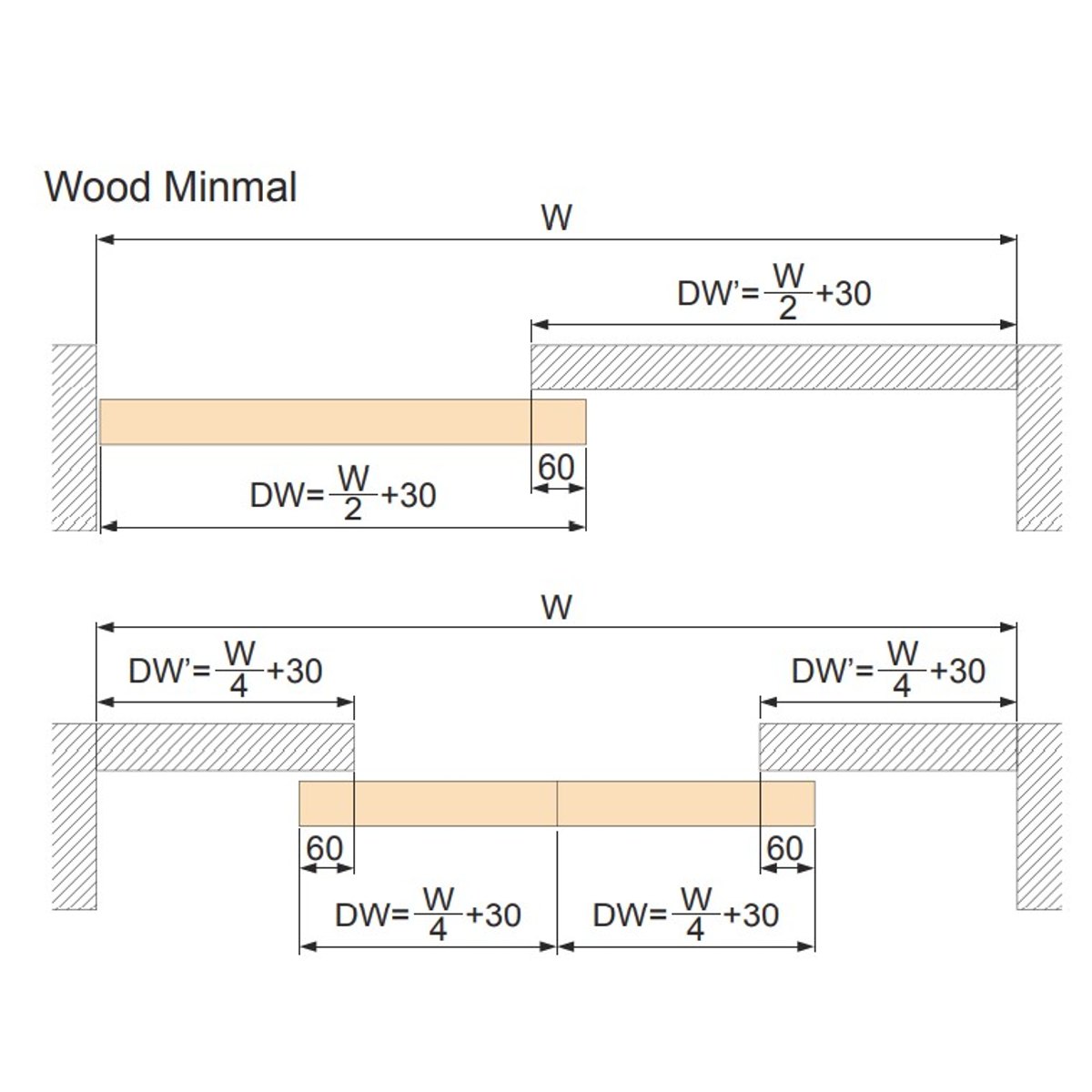

• To be able to mount double doors on one track 2x kits are required

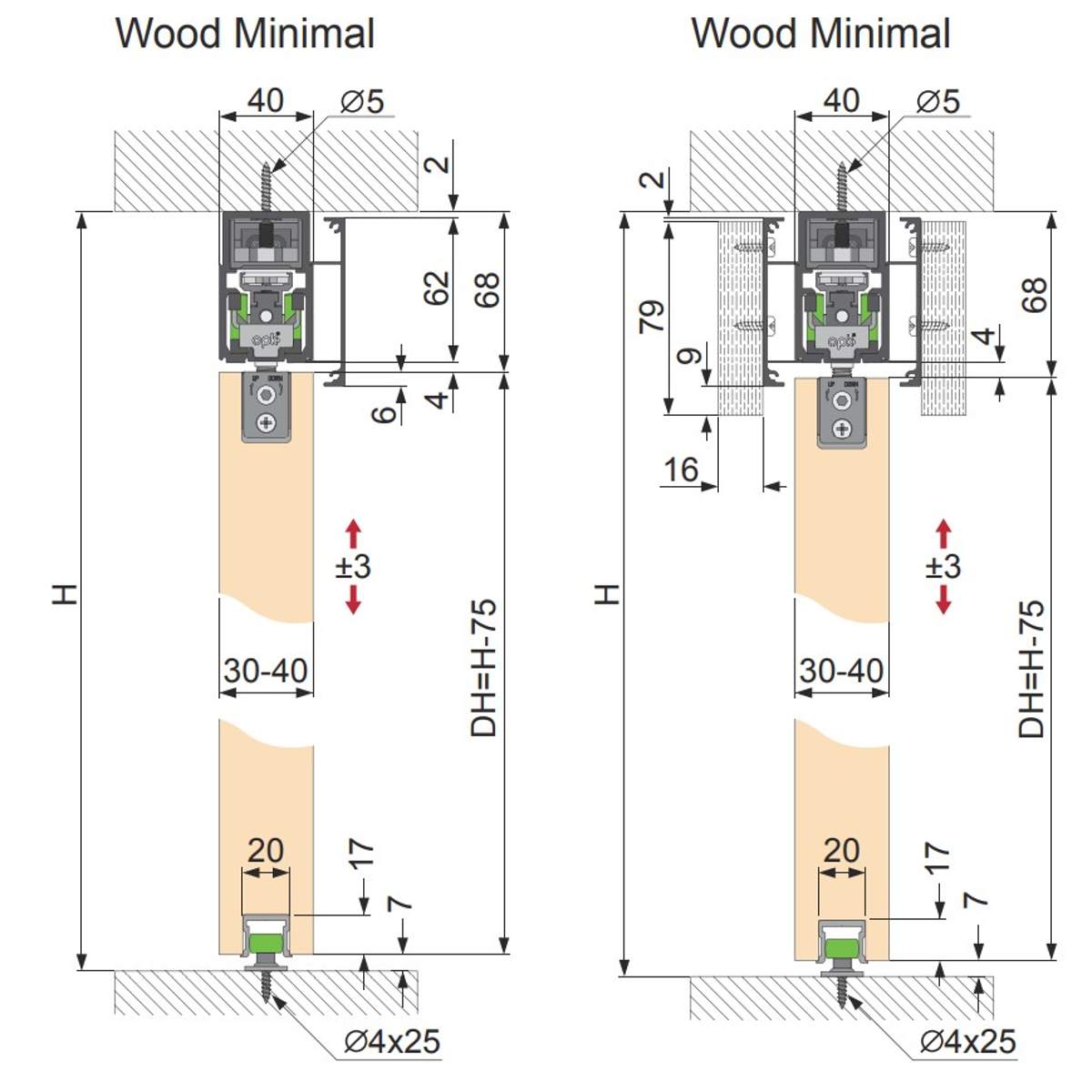

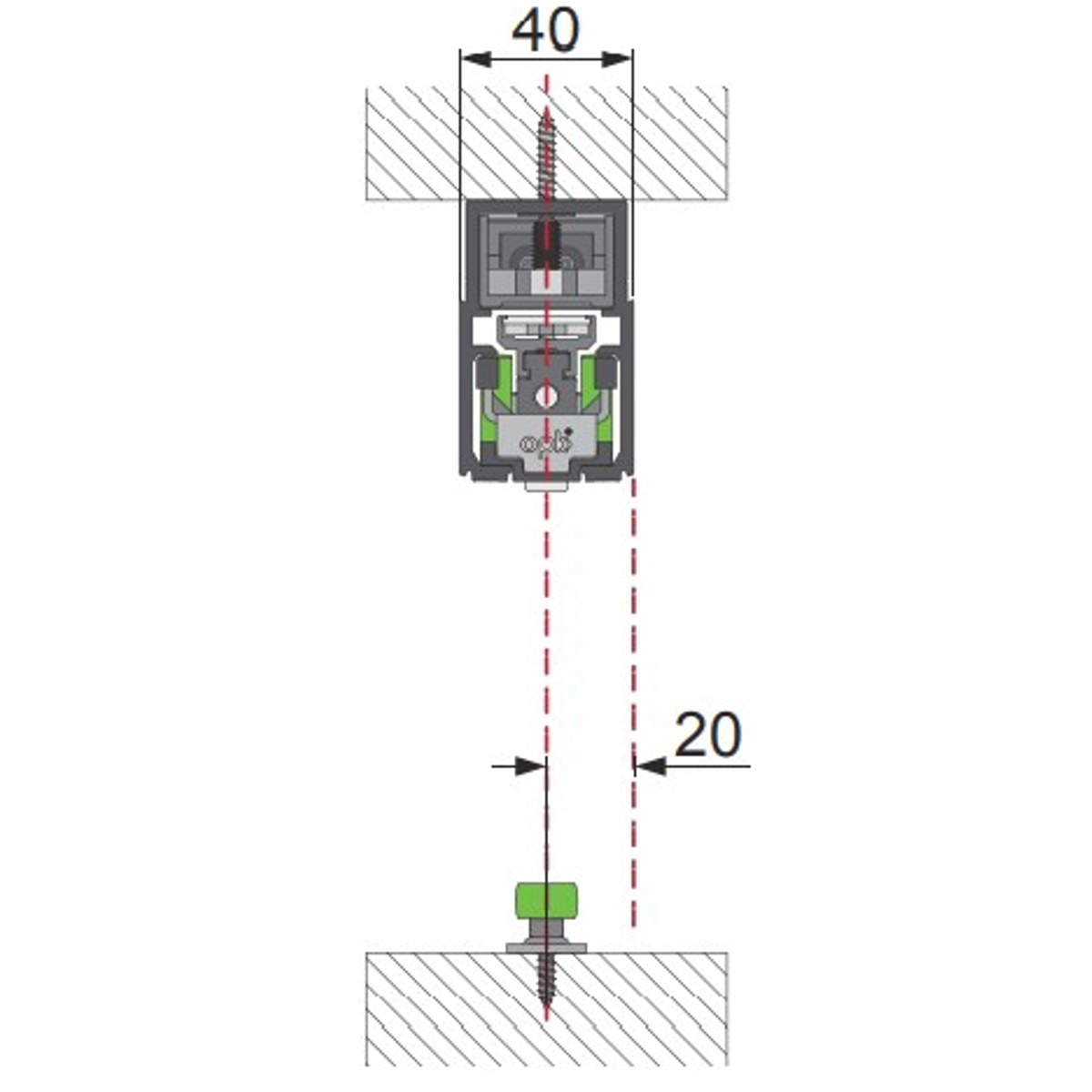

• The gap between the top of the bracket and the track is approximately 4mm

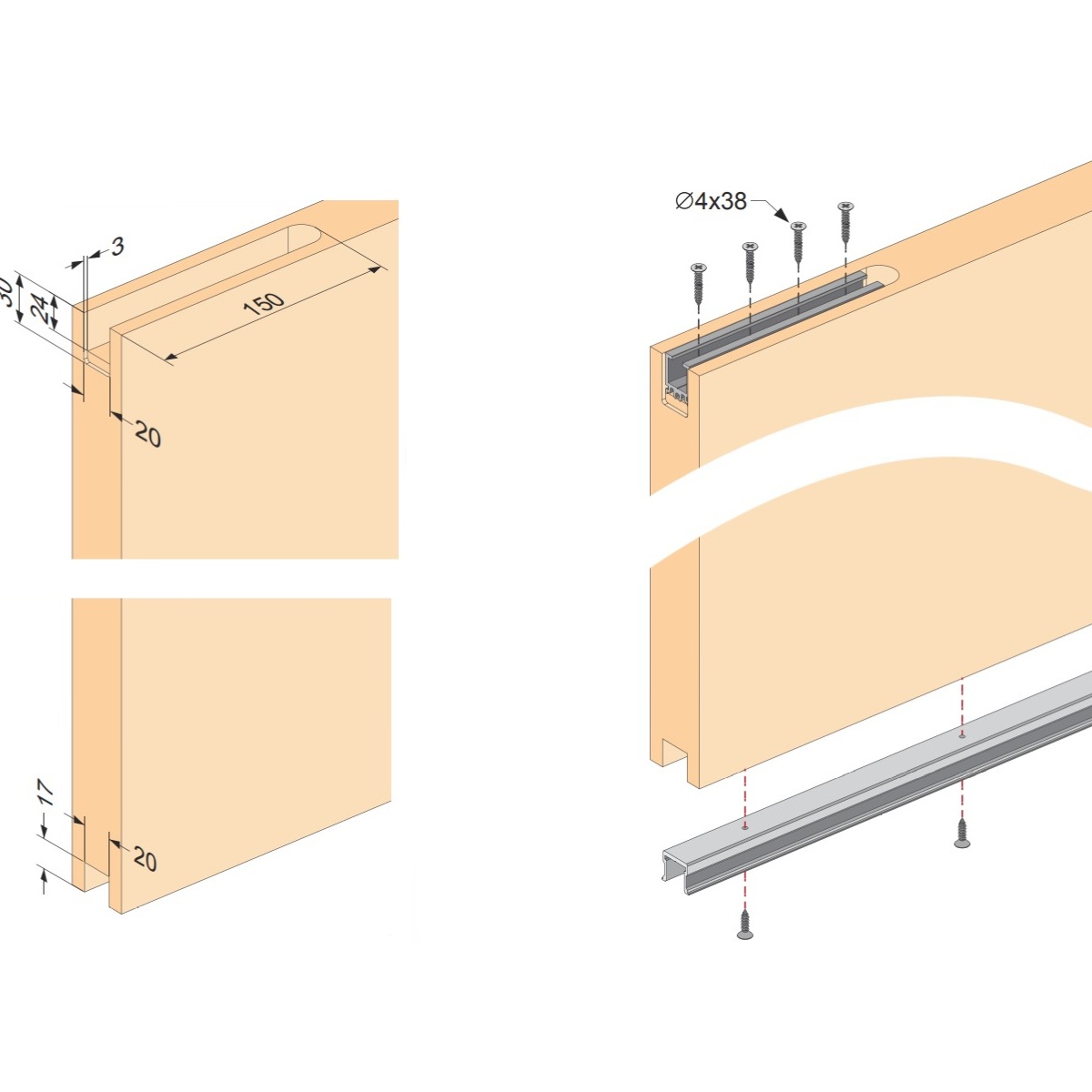

• To be able to fit the mounting brackets you will require the below groves on either side of the door:
  • Length: 150mm
  • Depth: 30mm
  • Width: 20mm

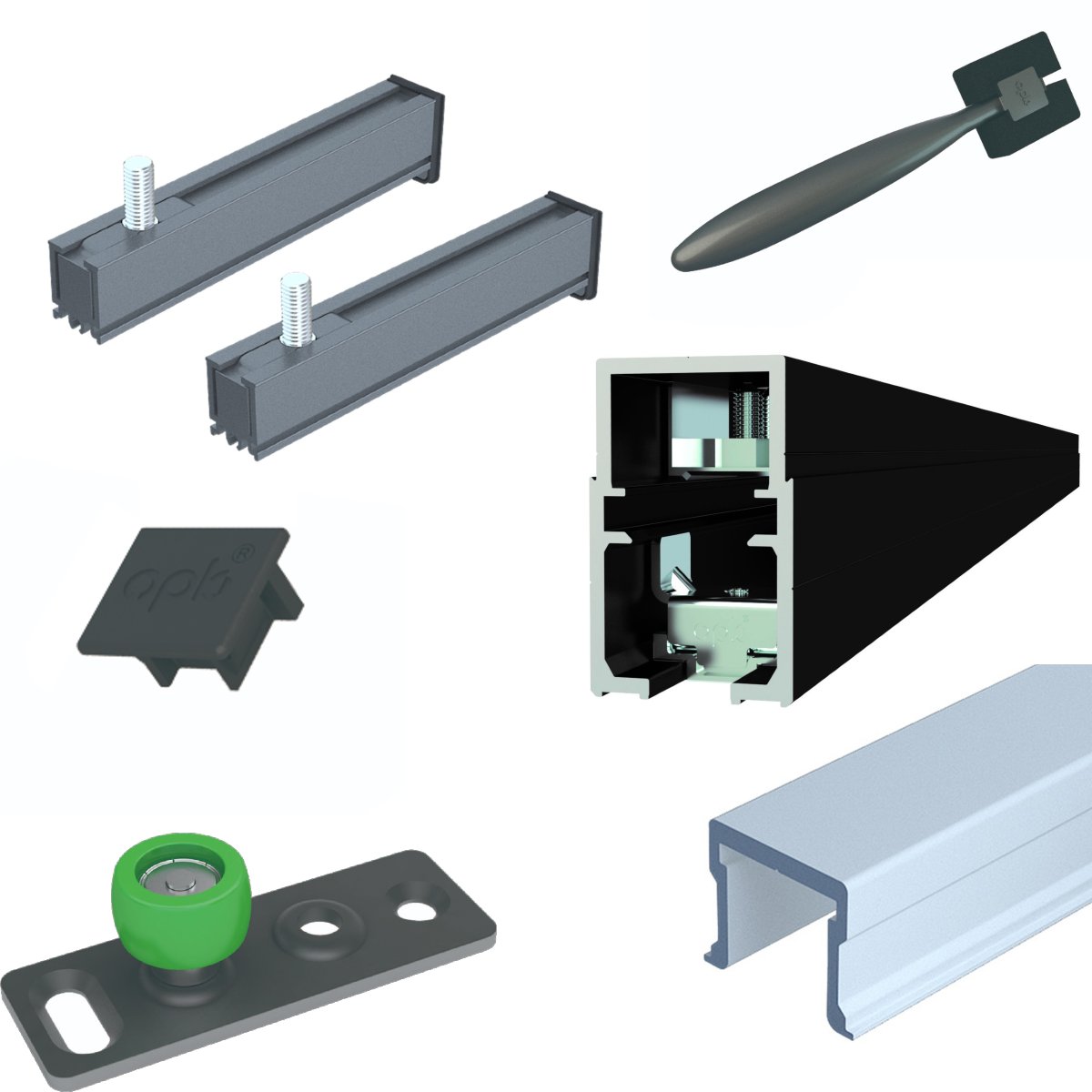

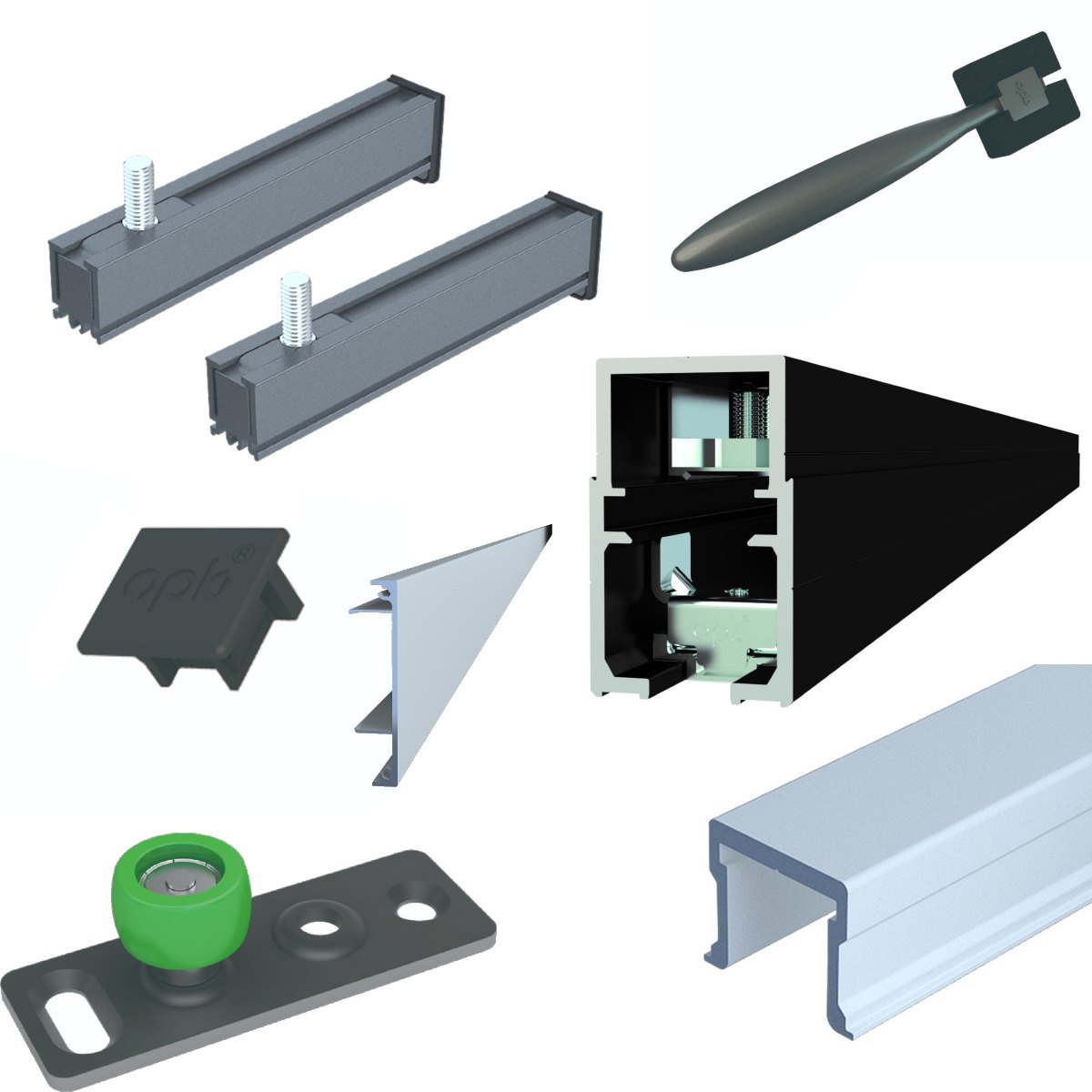

A set contains:

• 1 x track

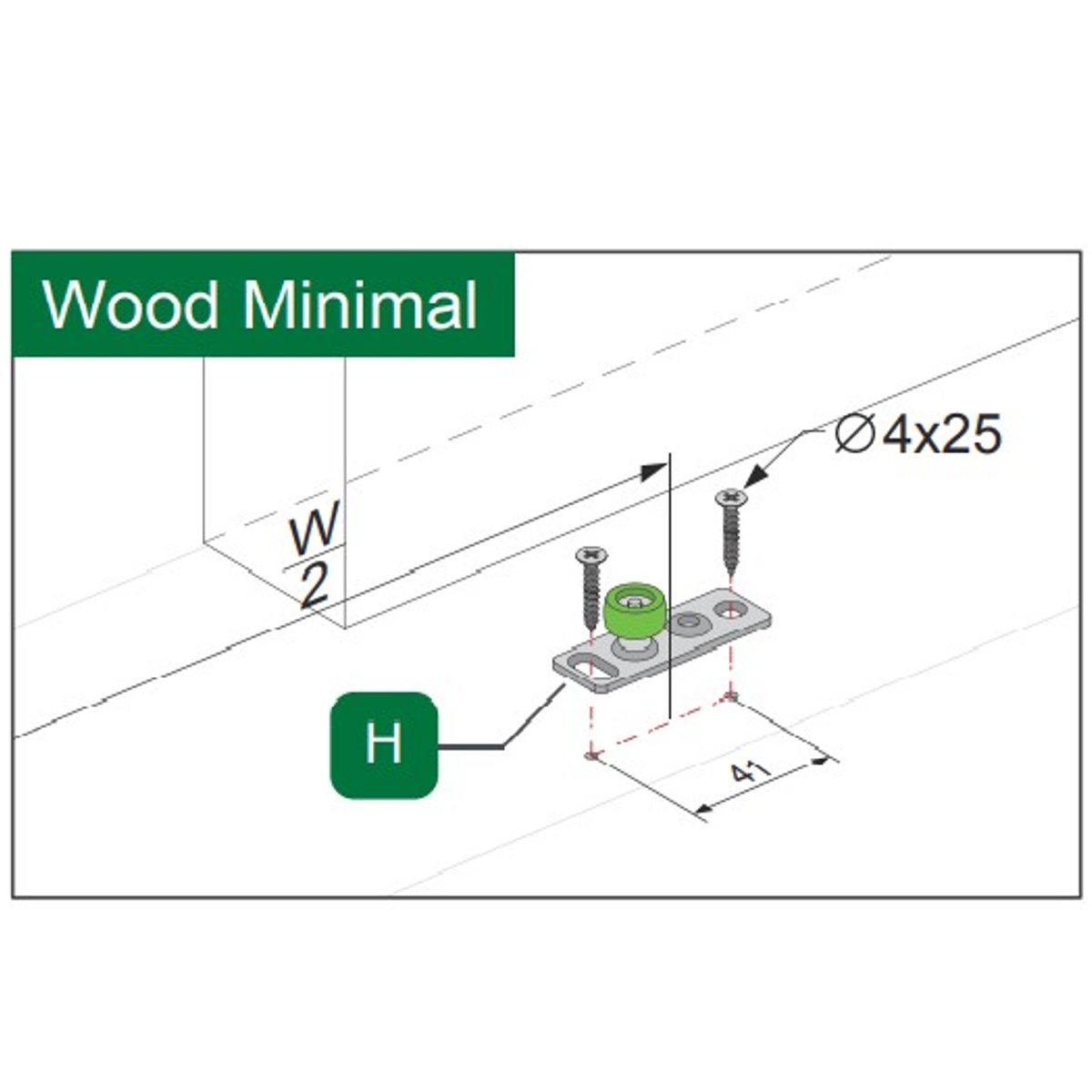

• 1 x floor guide
• 1 x set of screws
• 2 x door brackets
• 1 x bottom guide track
• 1 x brush to clean the track
• 2 x cover caps for the guide track

Please note that:

• This item is made to order and can't be returned
