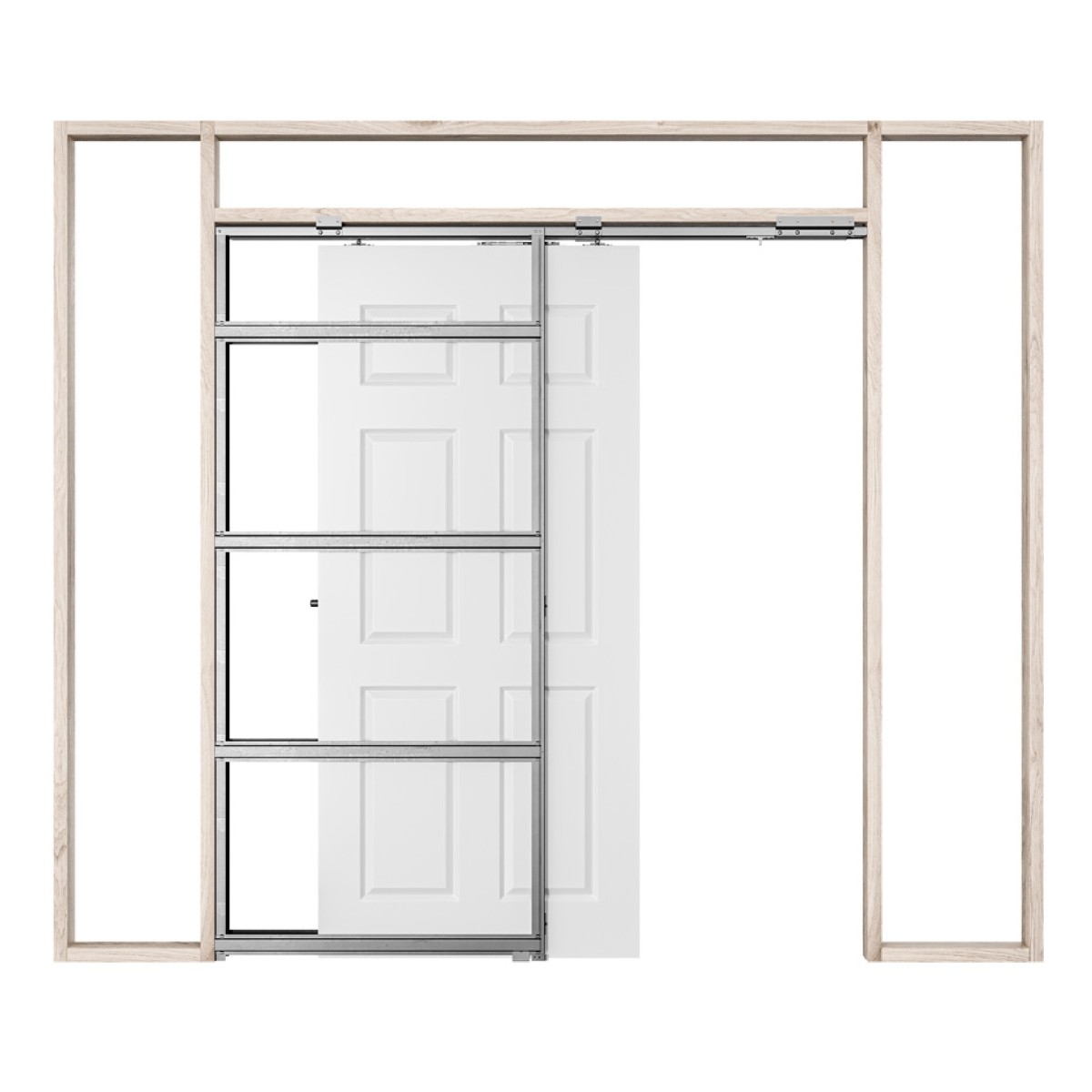

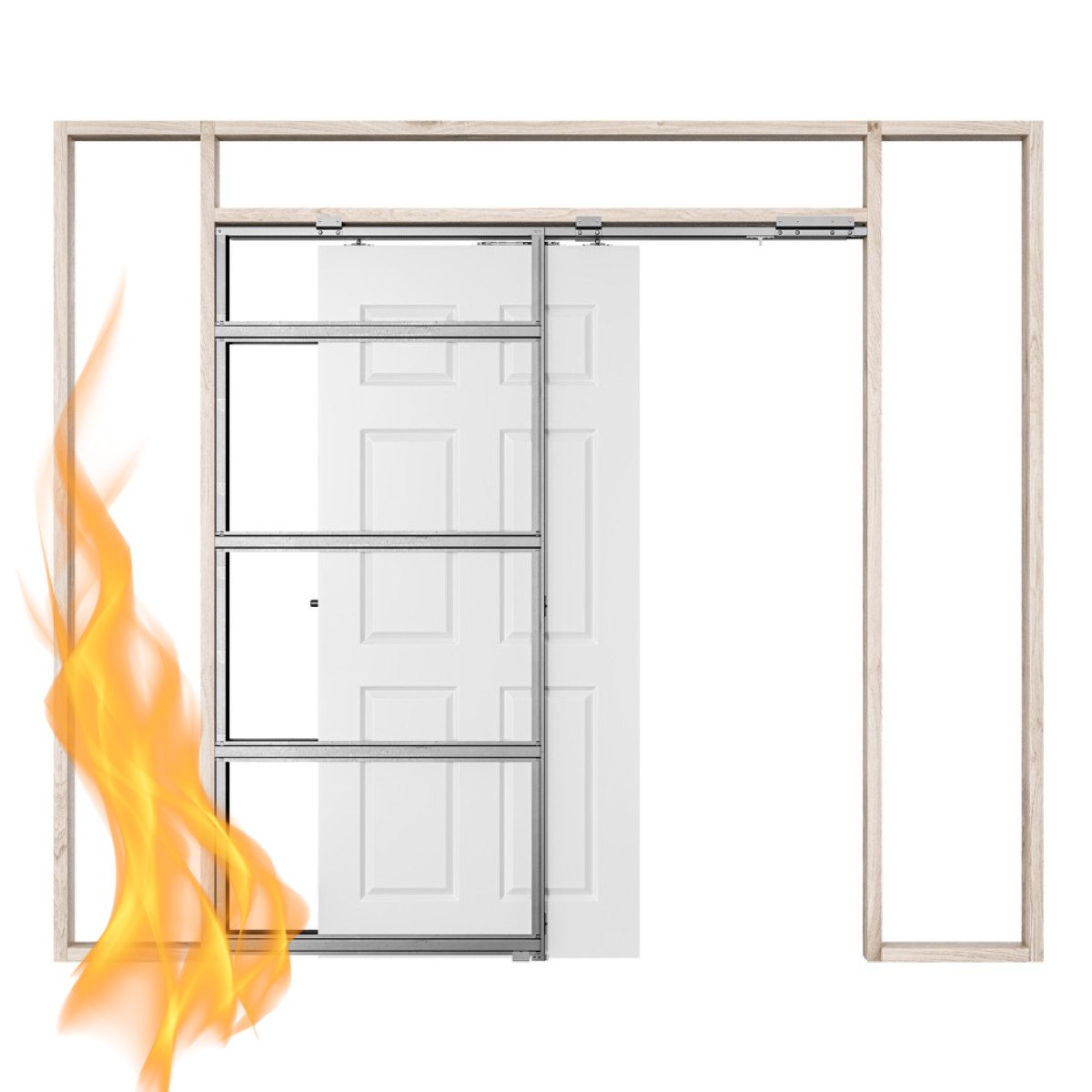

Fire Rated Pocket Door System - 90mm Frame

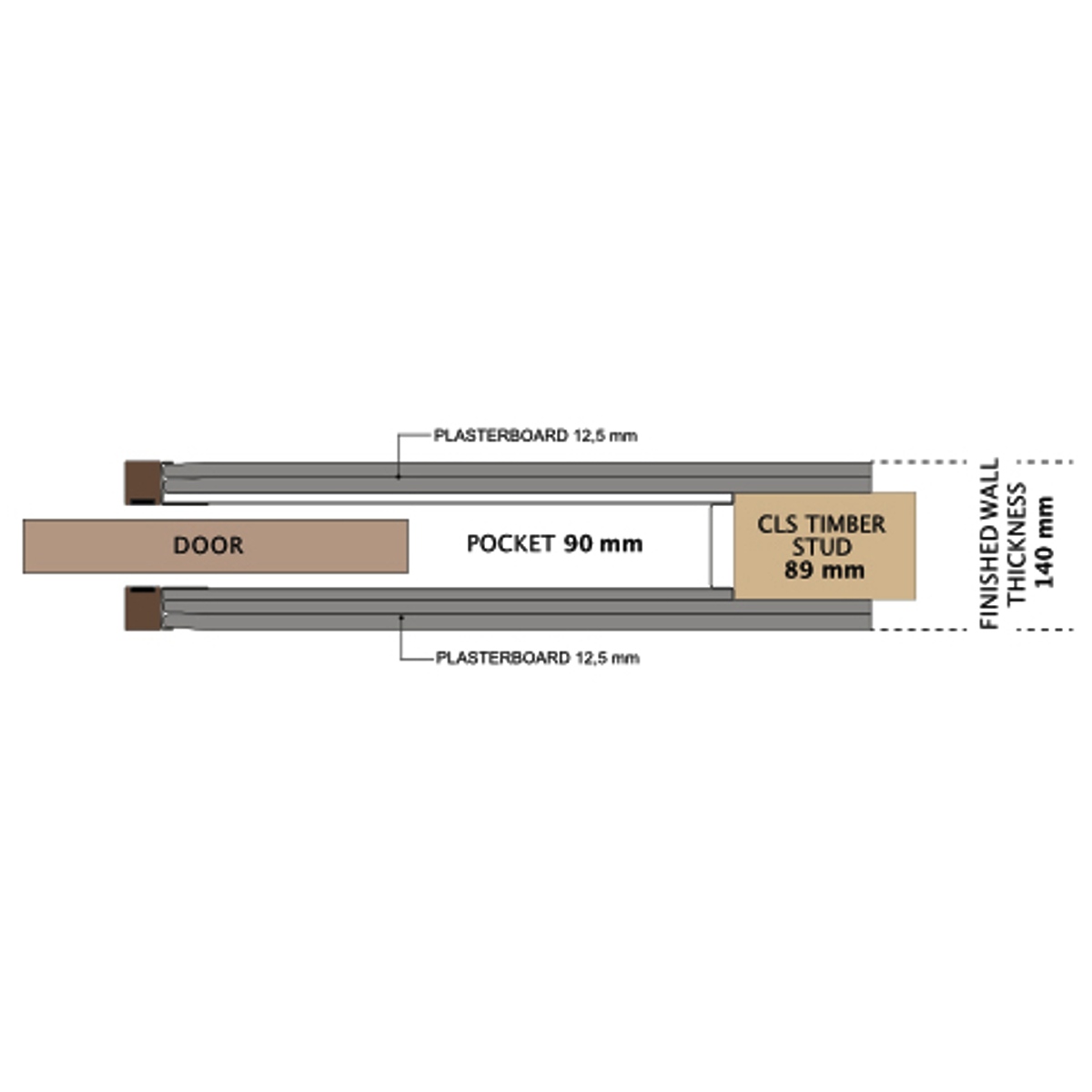

Complete fire rated pocket sliding door system with galvanised steel pocket frame, sliding track and running gear. 90mm thick frame is made specifically to fit 89mm stud work making installation even easier than before. Perfect solution to complete a finished wall thickness of 140mm.

• FD30 approved jamb kit
• Suitable for 44mm thick doors
• Maximum door weight up to 60kg
• Supplied with a lifetime warranty (covers any parts that are faulty)
• Intumescent pack included - supplied in white but also available in brown for request

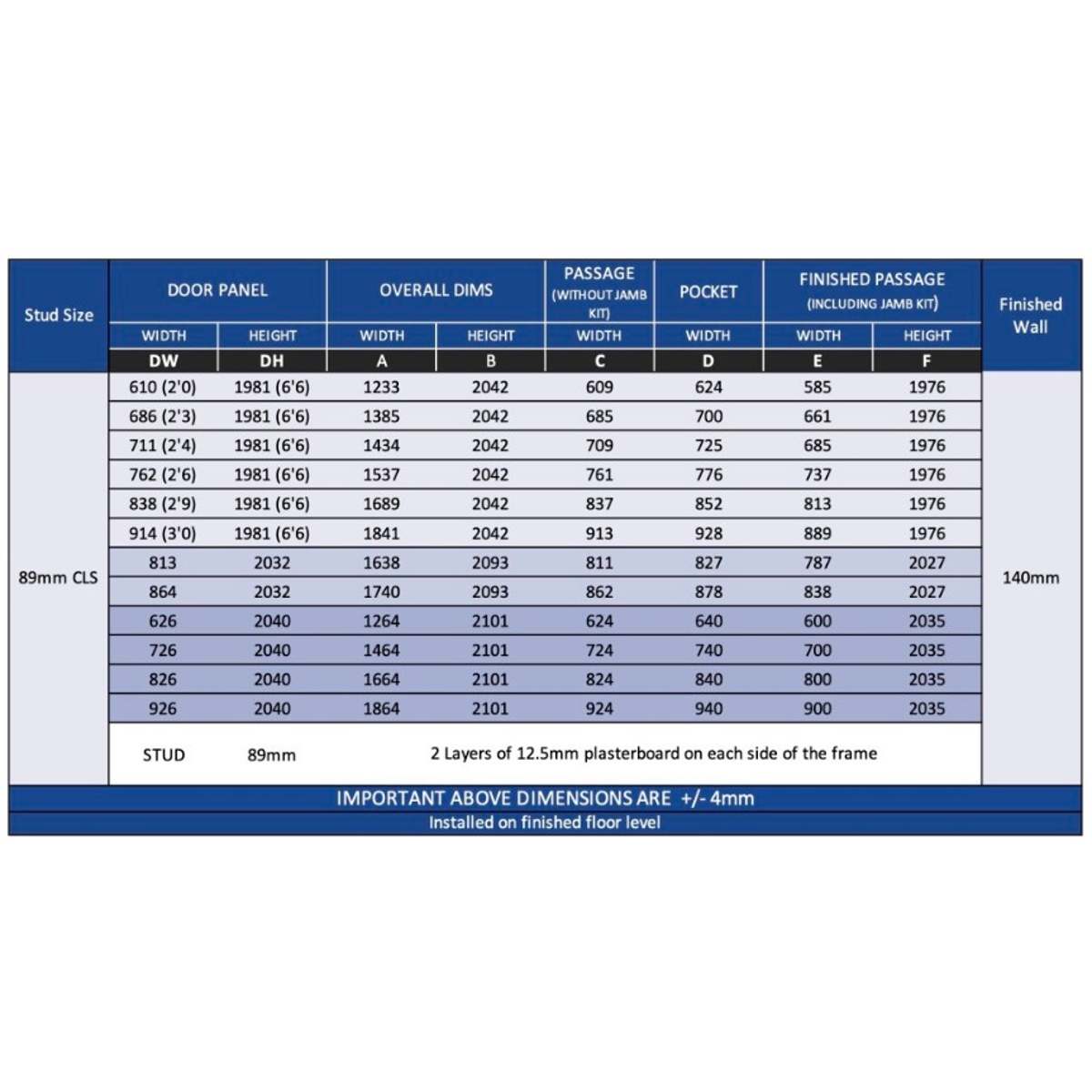

• Available in various sizes to fit door sizes:
  • 610/686/762/838/914mm x 1981mm
  • 726/826/926mm x 2040mm

Kit includes:

• Top track
• Floor guide
• Intumescent pack
• A full FD30 approved jamb kit
• Runners with carbon steel 'sealed for life' bearings
• A spring steel stopper (soft close option available)

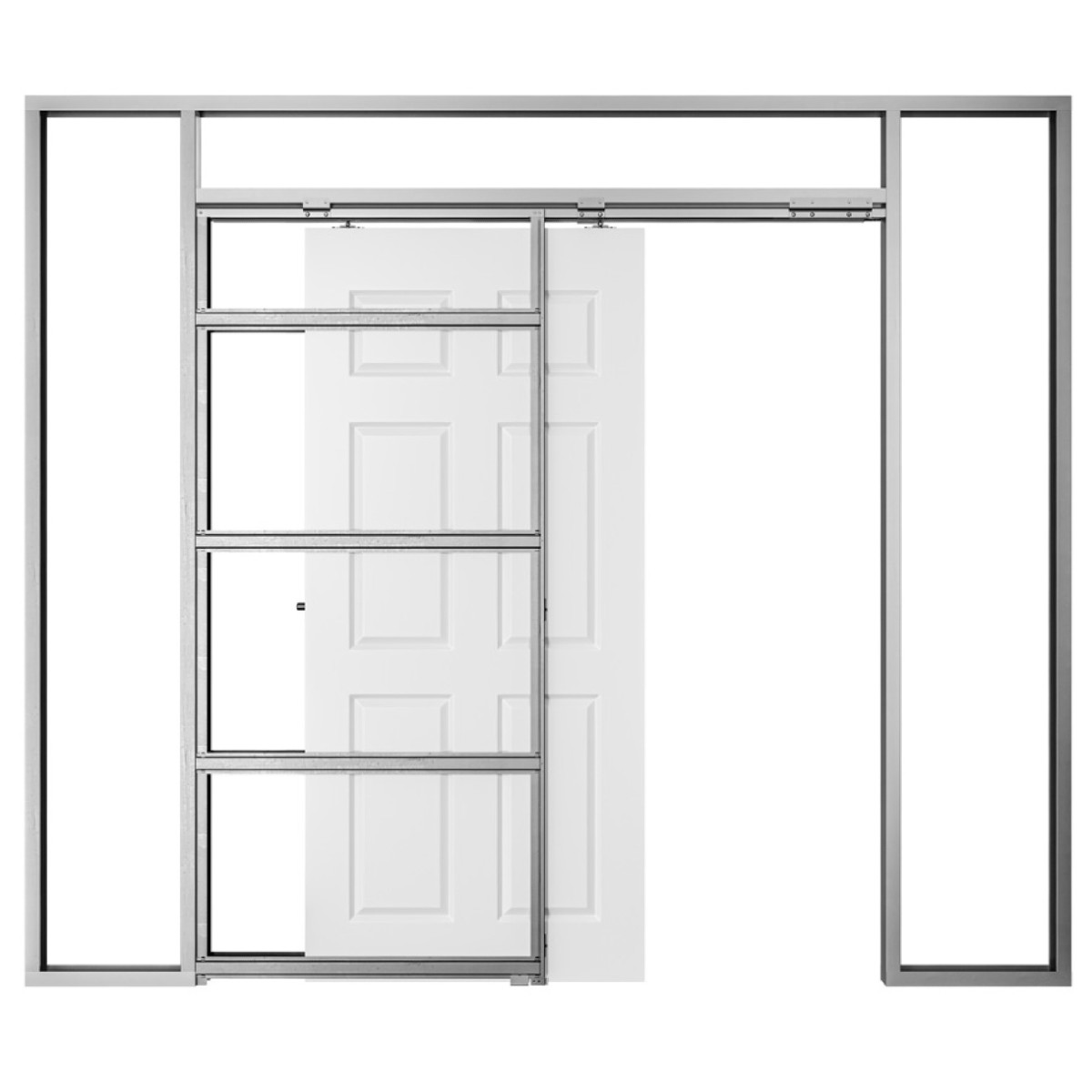

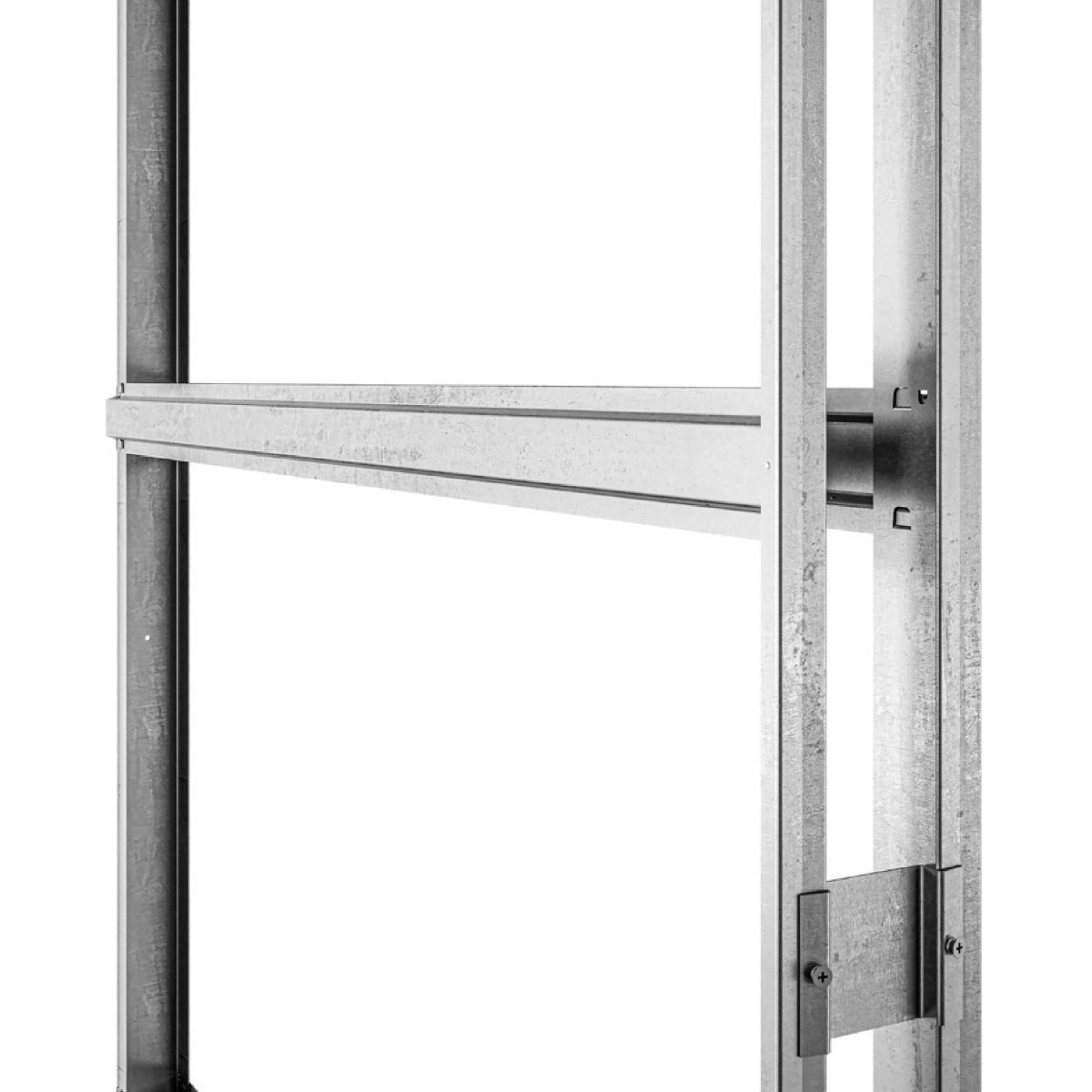

• All the galvanised steel uprights and horizontals required to build the pocket

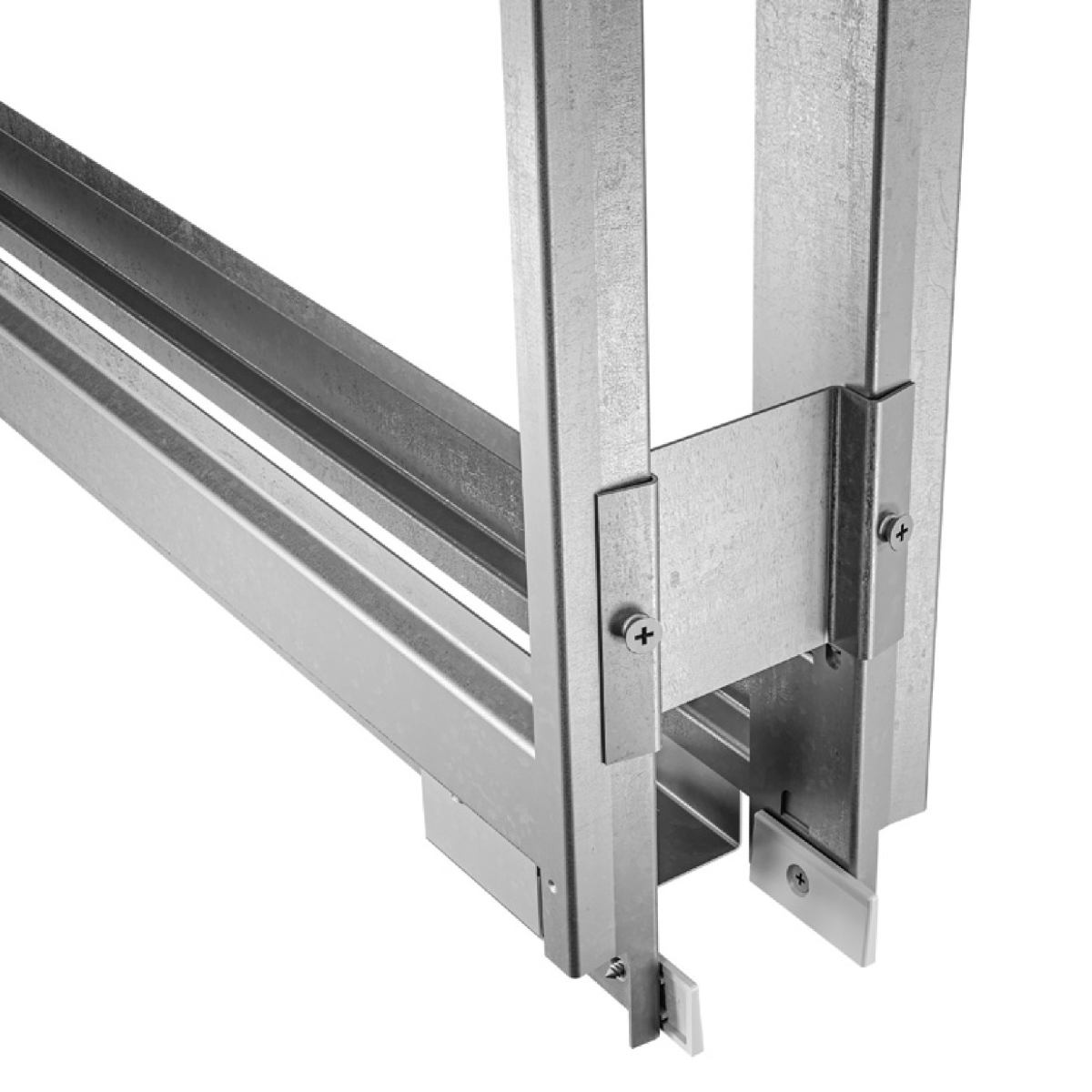

• The brackets to fit the frame to the stud that doubles as plasterboard supports

Please note that:

• The door is not included
• Not smoke sealed approved
