Free Space Door Flap Fitting Anthracite

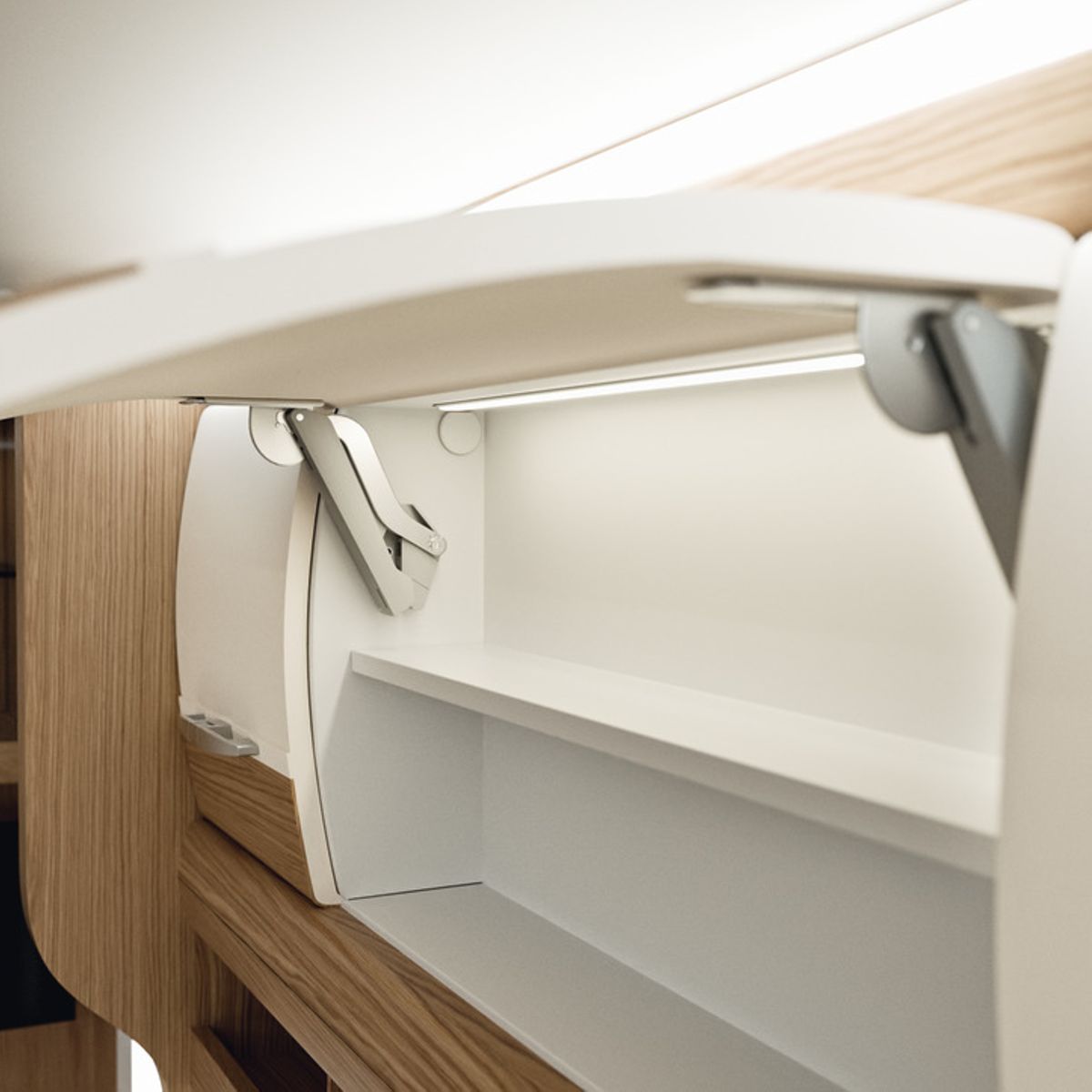

Discover the sleek and functional “Free Space” door flap fitting in anthracite—a perfect blend of style and efficiency for modern cabinetry. This hinge-less stay flap fitting is designed for one-piece wooden flaps or flaps with aluminium frames, offering an unobtrusive design that maximizes storage space within the cabinet.

• Very powerful
• Fully adjustable
• Fast and time-saving operation
• Suitable for most of the common flap sizes and weights
• Extremely compact : minimizes the use of internal space
• Gentle running characteristics making it a pleasure to use
• Hinge-less stay flap fitting for more free room in all respects
• The free space's compact size allows for more storage space in the cabinet
• A stay flap fitting for one-piece wooden flaps or flaps with aluminium frames
• Available in three standard colours and a series for handle-free applications (push to open)

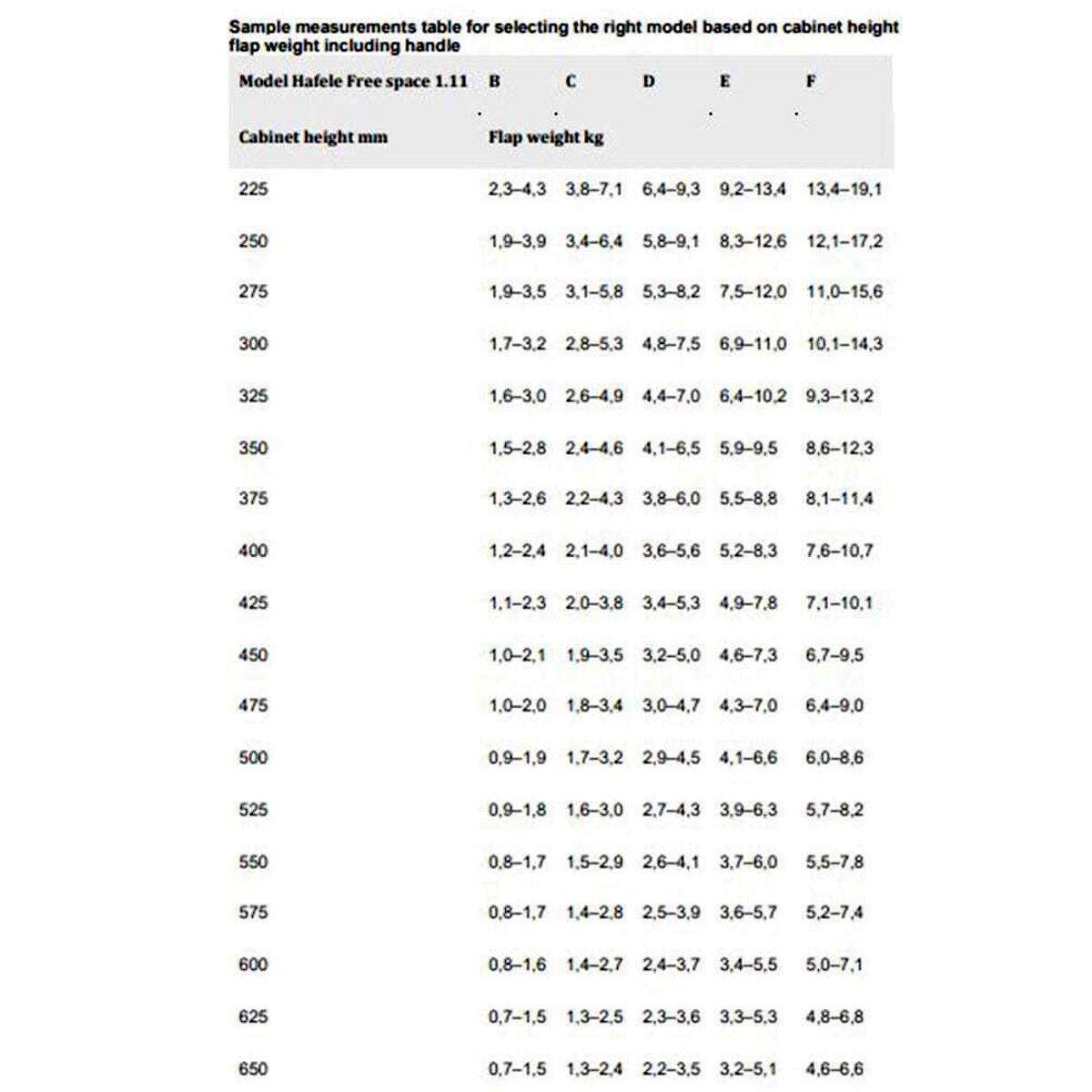

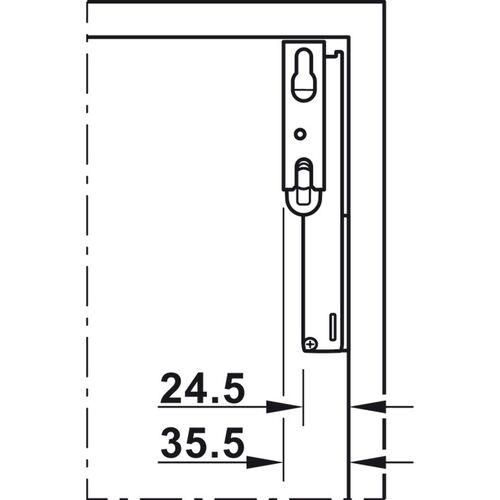

• The required model type depends on the thickness and size of the panel - please refer to technical docs for dimensions

Product features:

• Guarantee: 25 years

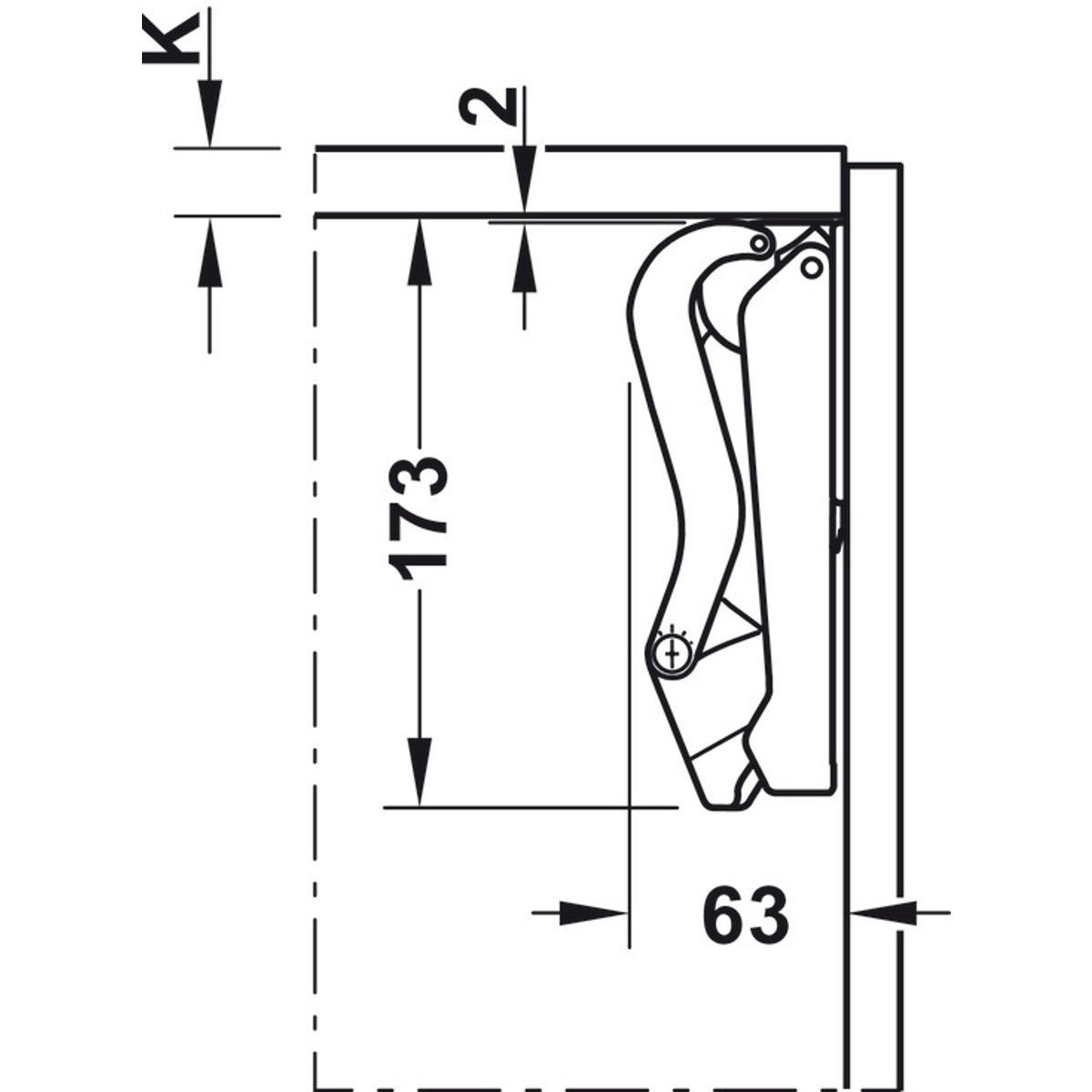

• Bracket depth: 63mm
• Bracket height: 173mm

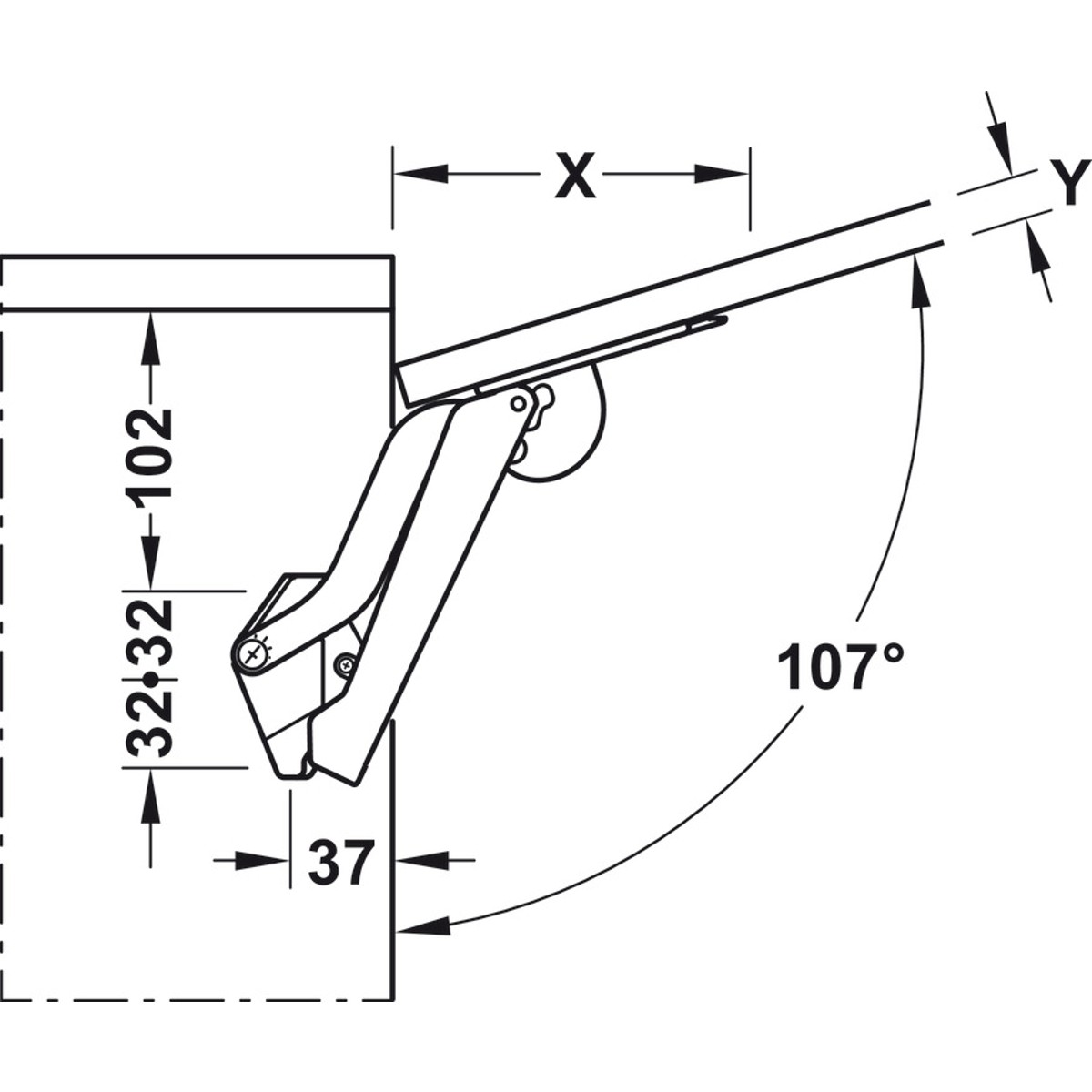

• Opening angle: 90 degree or 107 degree
• Adjustment facility: height, side, tilting angle and holding power
• Supplied as a pair of brackets (2 brackets) - price shown per pair
• Application: for standard stay flap applications with front height up to 650mm

Material & finish:

• Housing: anthracite grey plastic
• Front fixing bracket and support lever: steel
• Front fixing bracket and support lever: nickel plated

Please note that:

• For measurement and picking the correct model please refer to technical docs
