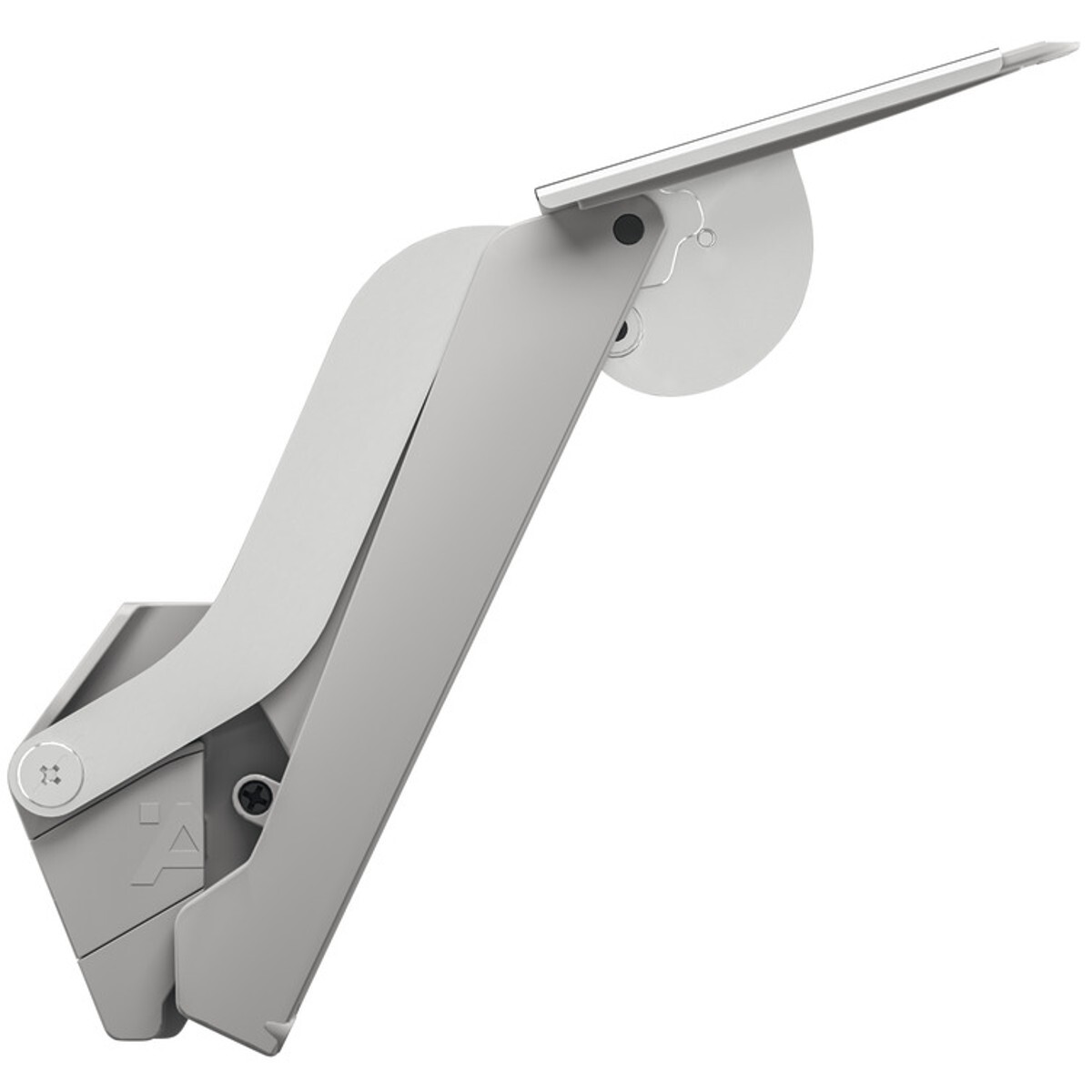

Free Space Door Flap Fitting (Light Grey)

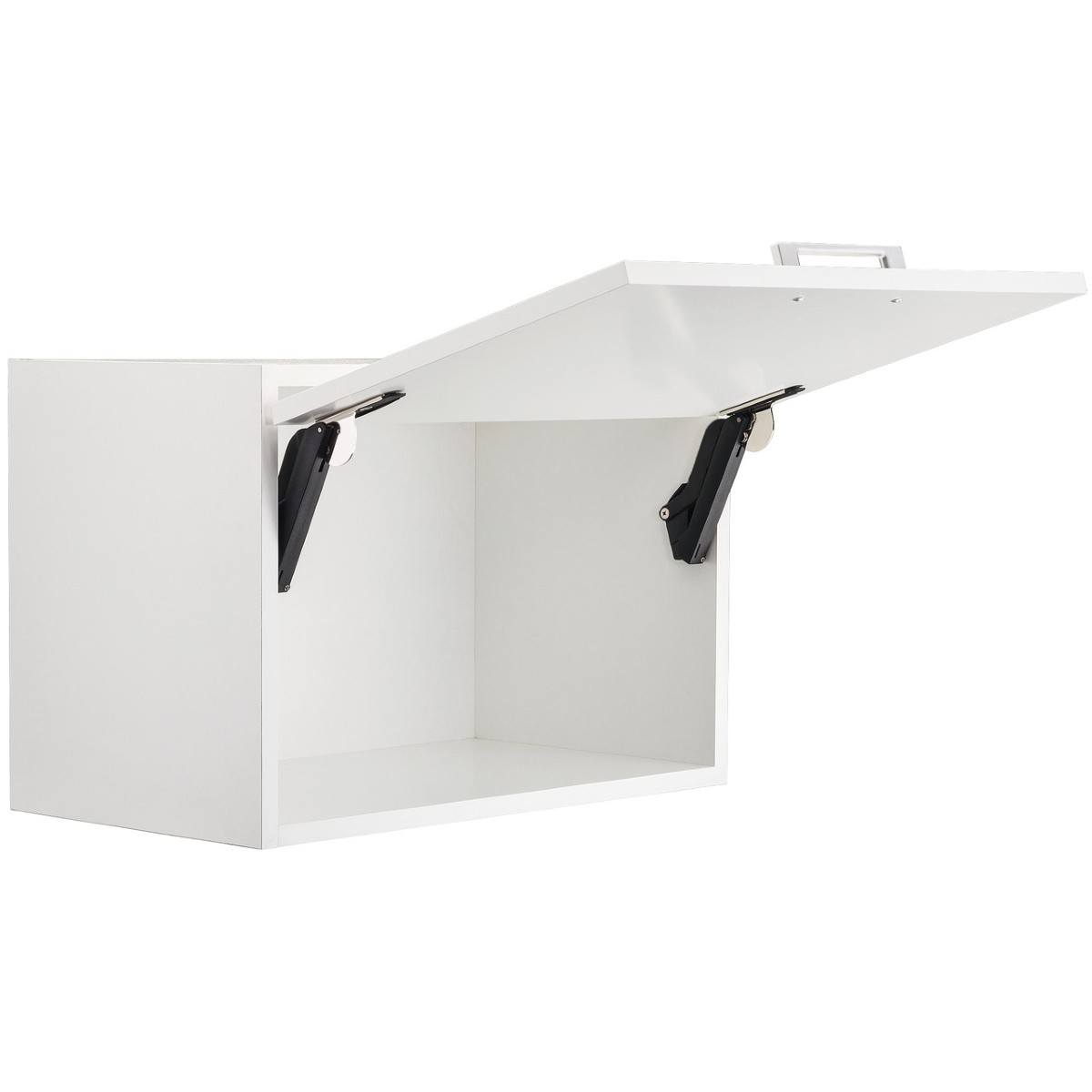

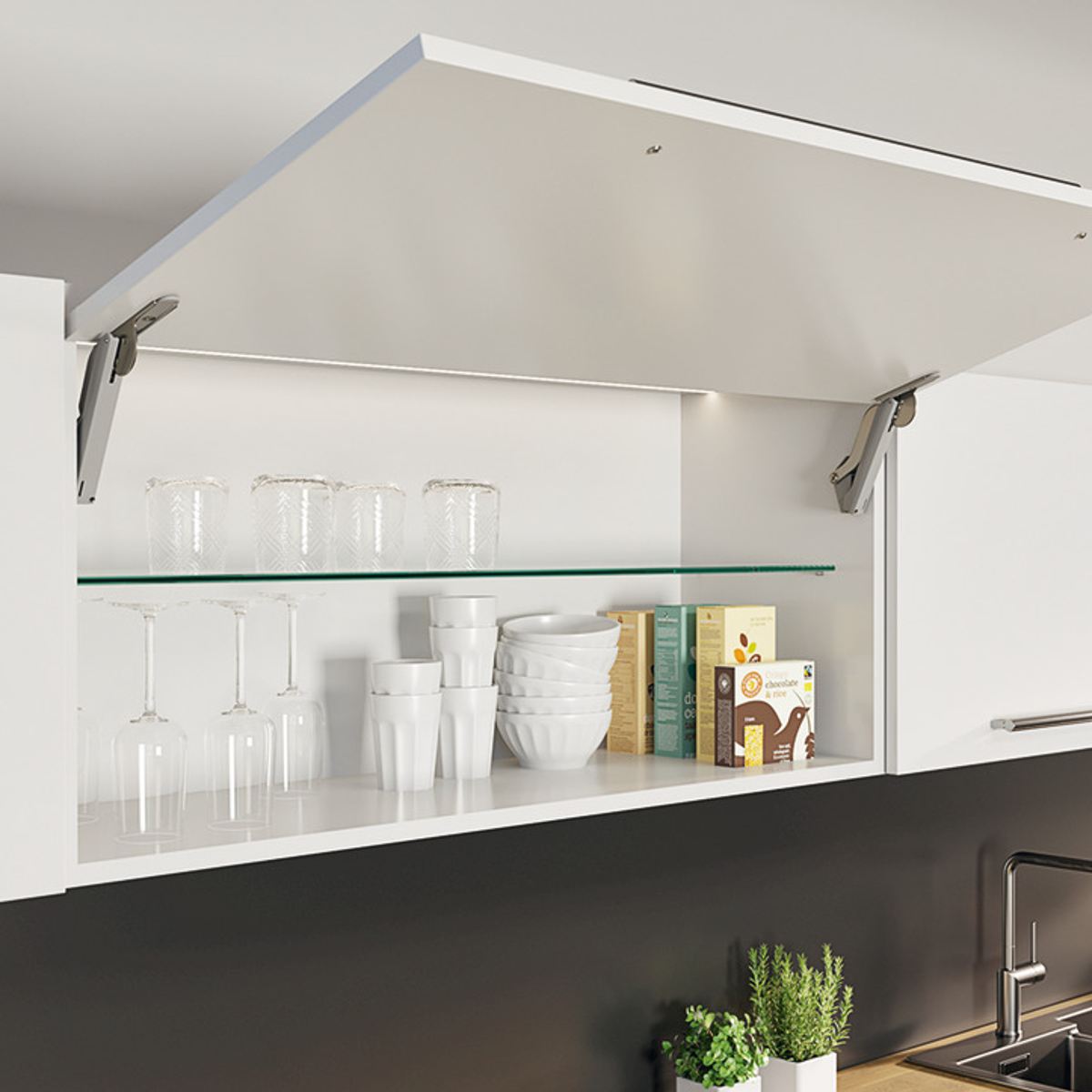

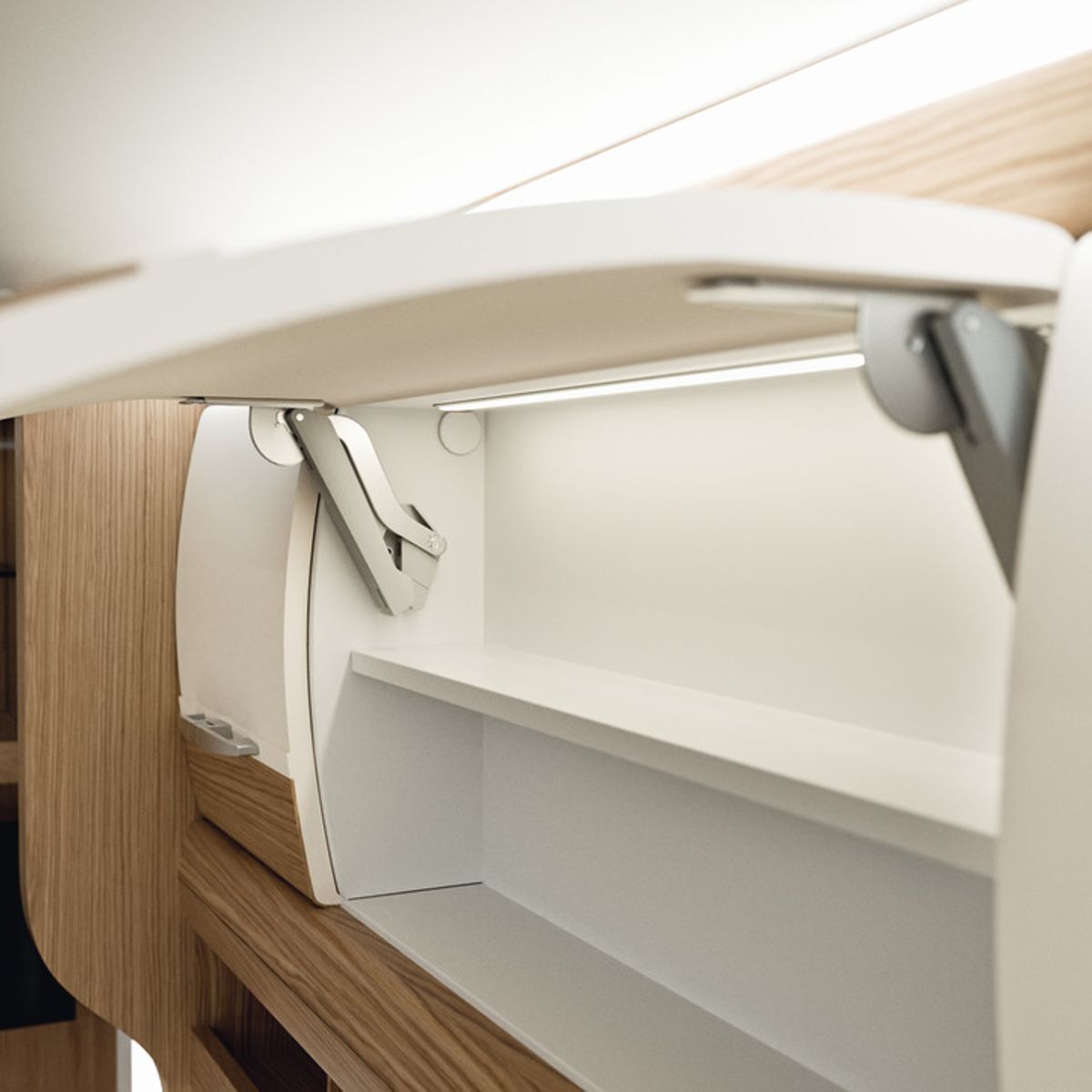

Discover the sleek and functional “Free Space” door flap fitting in light grey—a perfect blend of style and efficiency for modern cabinetry. This hinge-less stay flap fitting is designed for one-piece wooden flaps or flaps with aluminium frames, offering an unobtrusive design that maximizes storage space within the cabinet.

• Very powerful
• Fully adjustable
• Fast and time-saving operation
• Suitable for most of the common flap sizes and weights
• Extremely compact : minimizes the use of internal space
• Gentle running characteristics making it a pleasure to use
• Hinge-less stay flap fitting for more free room in all respects
• The free space's compact size allows for more storage space in the cabinet
• A stay flap fitting for one-piece wooden flaps or flaps with aluminium frames
• Available in three standard colours and a series for handle-free applications (push to open)

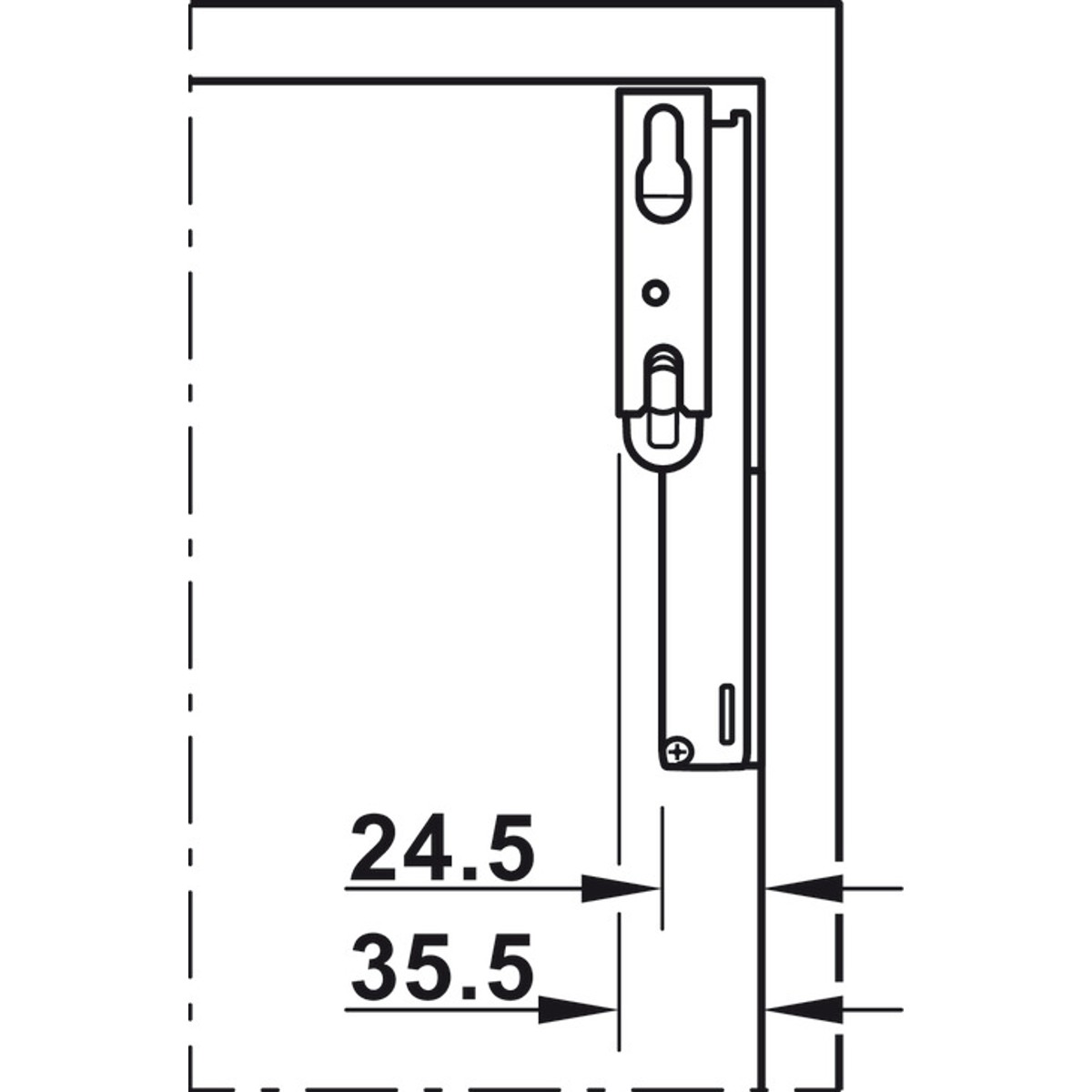

• The required model type depends on the thickness and size of the panel - please refer to technical docs for dimensions

Product features:

• Guarantee: 25 years

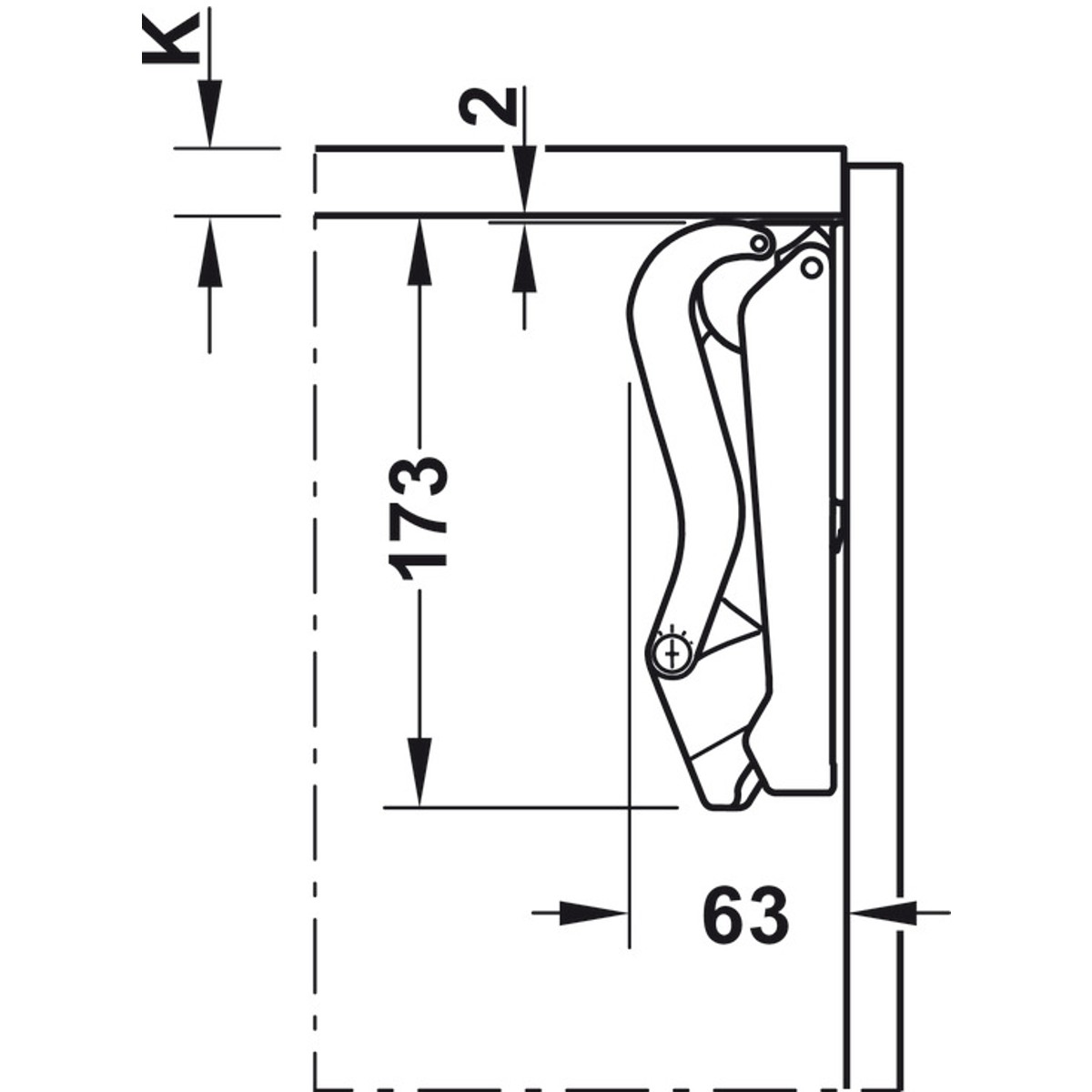

• Bracket depth: 63mm
• Bracket height: 173mm

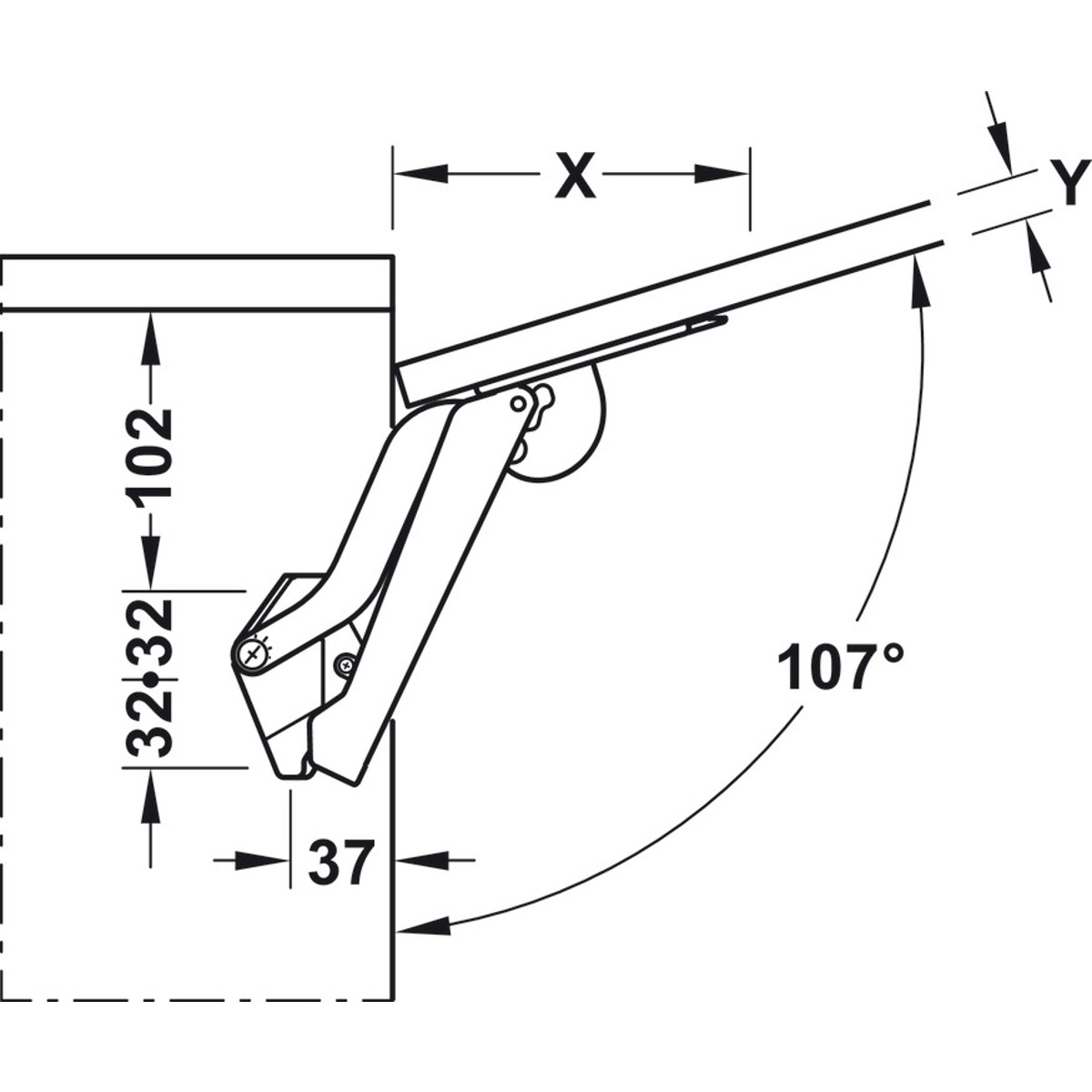

• Opening angle: 90 degree or 107 degree
• Adjustment facility: height, side, tilting angle and holding power
• Supplied as a pair of brackets (2 brackets) - price shown per pair
• Application: for standard stay flap applications with front height up to 650mm

Material & finish:

• Housing: light grey
• Front fixing bracket and support lever: steel
• Front fixing bracket and support lever: nickel plated

Please note that:

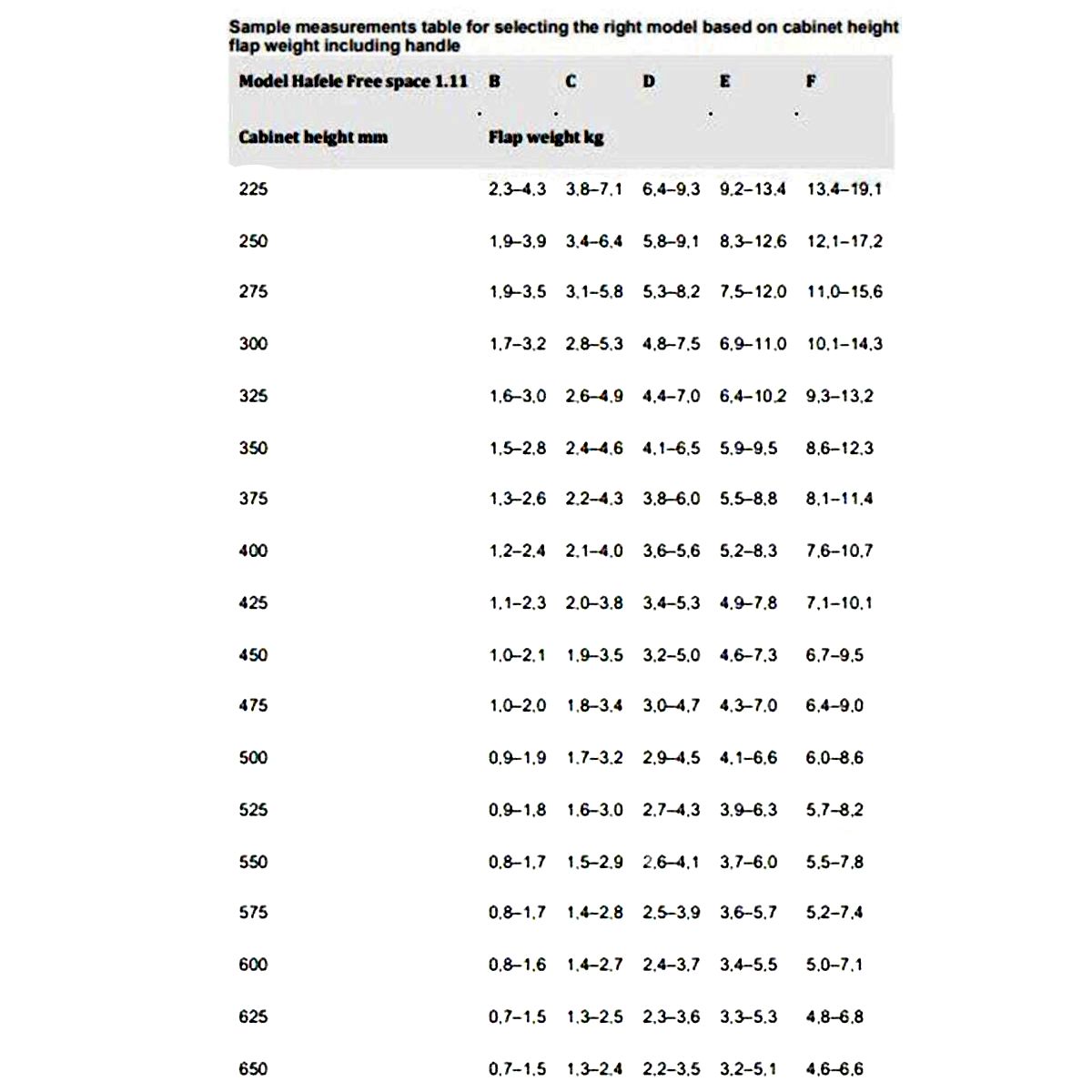

• For measurement and picking the correct model please refer to technical docs
