Grass Nova Pro Scala 186mm Assembled Drawer

Upgrade your storage solutions with the sleek and durable Nova Pro Scala pre-assembled drawer set, featuring a height of 186mm and customizable widths ranging from 300 to 1000mm, designed for seamless integration and optimal space utilization in any modern home or office.

• Drawer depth: 450mm
• Weight capacity: 40kg
• Drawer height: 186mm
• Supplied with Grass lifetime warranty
• Integrated height and side adjustment
• Available in two colours: silver and stone (anthracite grey)
• Painted and lacquered drawer sides provide a high gloss hygienic finish
• The drawer front can be removed without the tools - the drawer front is not included
• Available in a range of sizes to fit cabinets: 300-1000mm (minimum internal width is within the brackets)

Assembled drawer set consists of:

• Fitting instructions
• 1 x steel lacquered drawer back
• 1 x MFC drawer base 16mm thick
• 1 x pair of steel lacquered drawer sides: 186mm
• 1 x pair of full extension liquid soft close runners: 450mm
• Set of fixing screws and front fixing (drawer front not included)

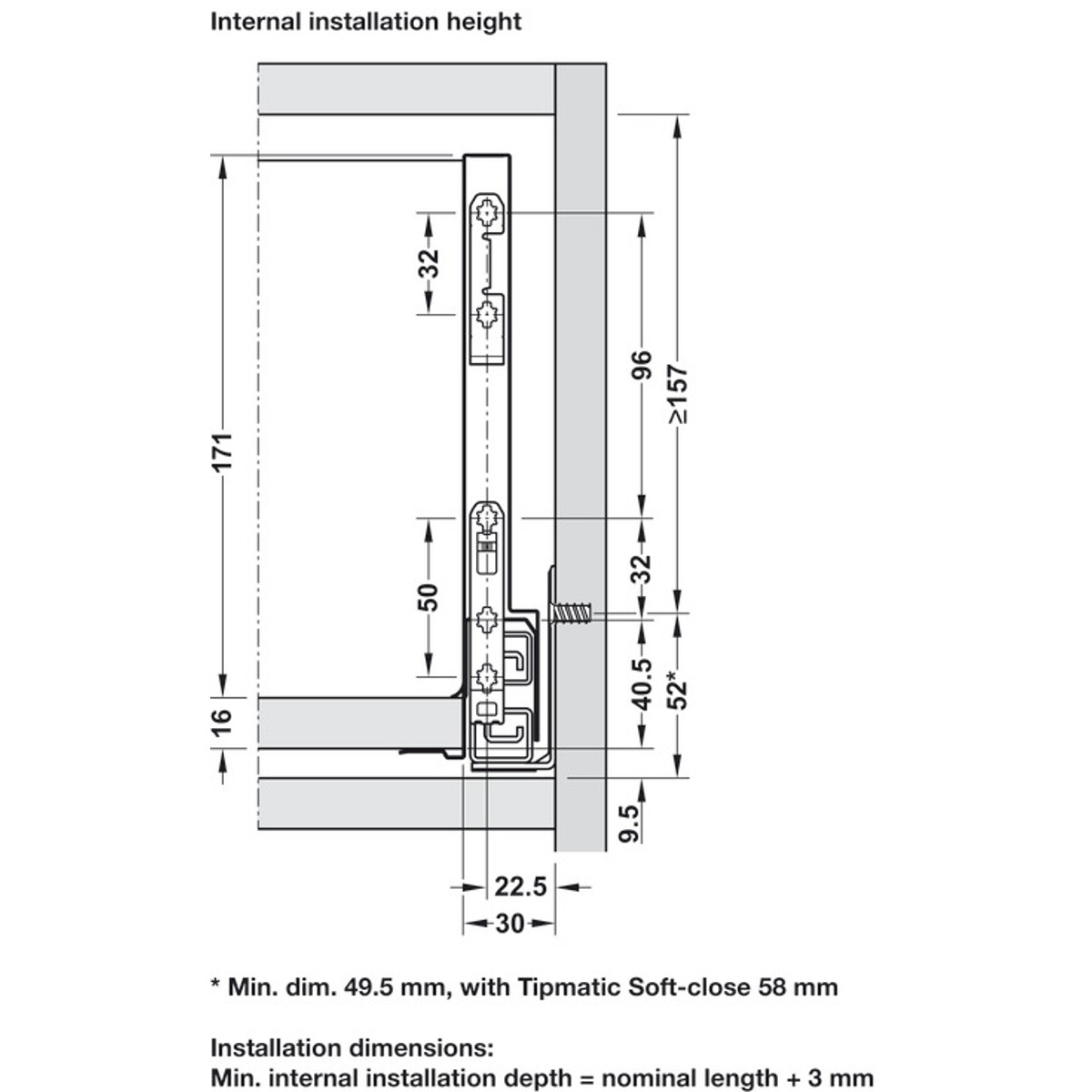

Specifications:

• 300mm cabinet requires 264mm internal width
• 400mm cabinet requires 364mm internal width
• 450mm cabinet requires 414mm internal width
• 500mm cabinet requires 464mm internal width
• 600mm cabinet requires 564mm internal width
• 800mm cabinet requires 764mm internal width
• 900mm cabinet requires 864mm internal width
• 1000mm cabinet requires 964mm internal width

Please note that:

• Push to open is available as an extra
• Drawer fronts are not included
