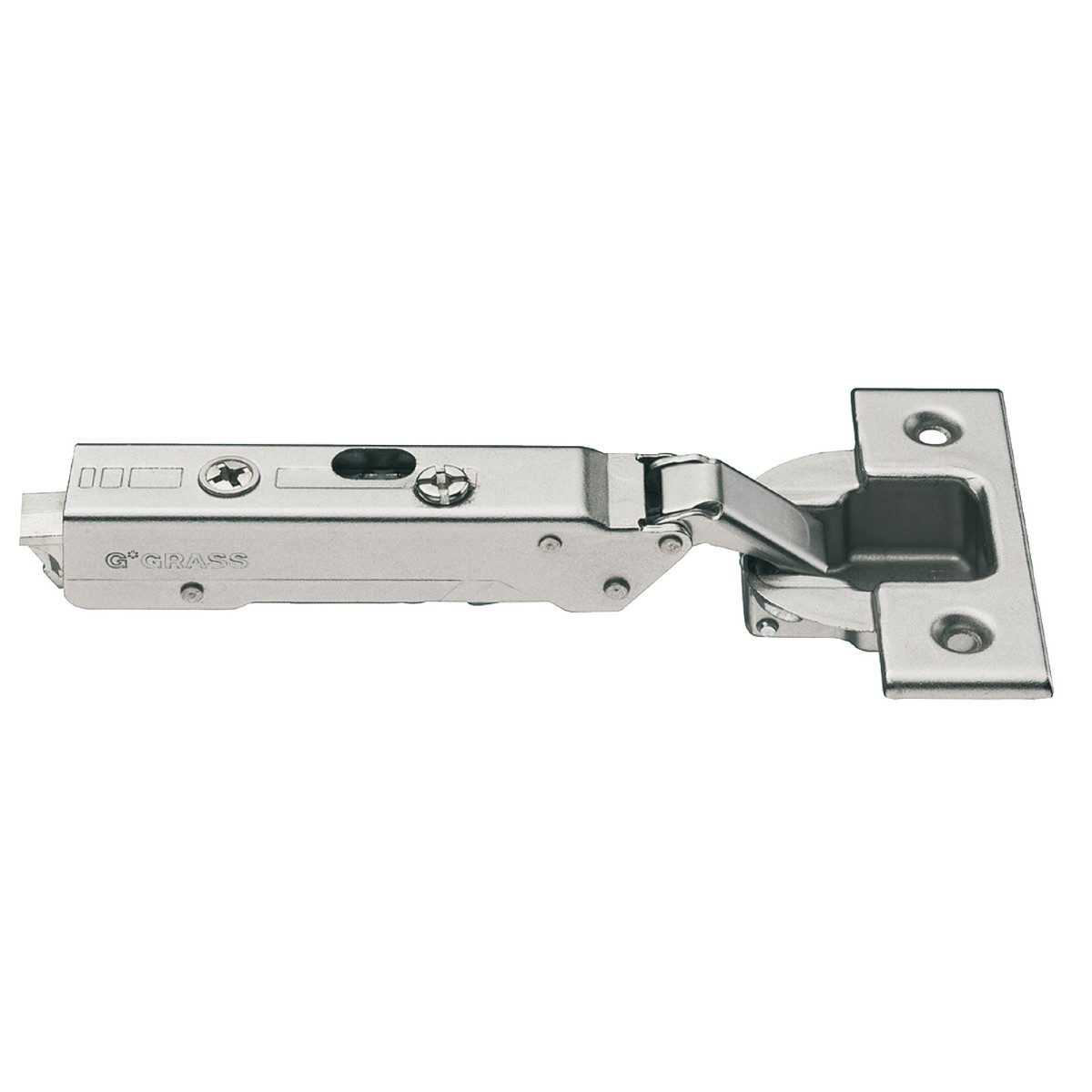

Grass Tiomos TipMatic Concealed Cup 95 Degree Hinge

1001-001
Price: £5.22inc VAT
+

Grass Tiomos Tipmatic concealed cup 95-degree hinge

  • For handle-less touch to open application
  • For 95º opening angle door thickness up to 36mm (for door thicknesses 24mm and above, a trial fitting is recommended)
  • Without spring
  • Without soft close
  • Screw fixing cup
  • Click on arm
  • Steel cup and hinge arm

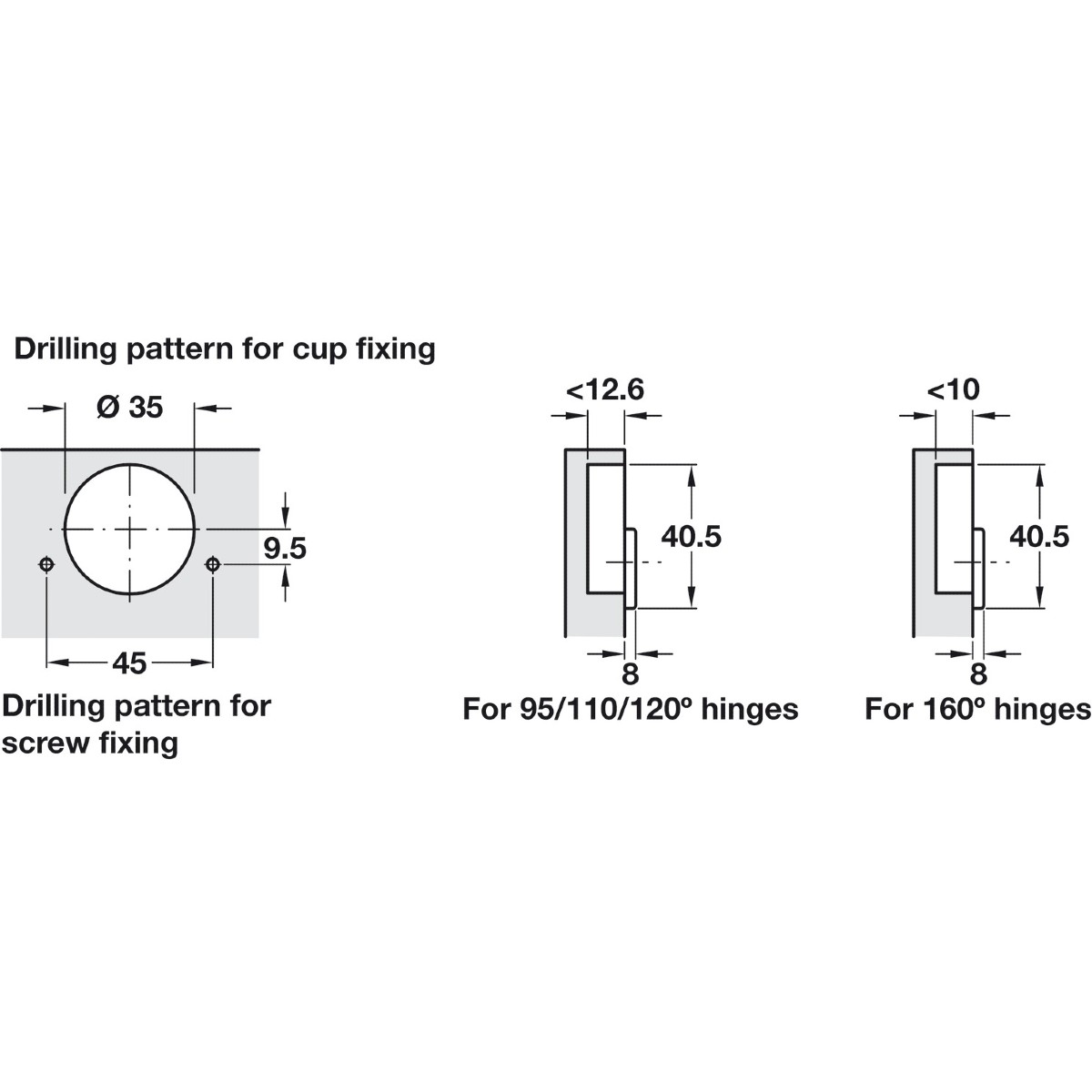

  • Cup drilling depth: 10mm
  • Cup drilling: Ø35mm
  • Tipmatic piston not included

Please look in the related products for:

  • Mounting plates
  • Cover caps
  • Tipmatic accessories
