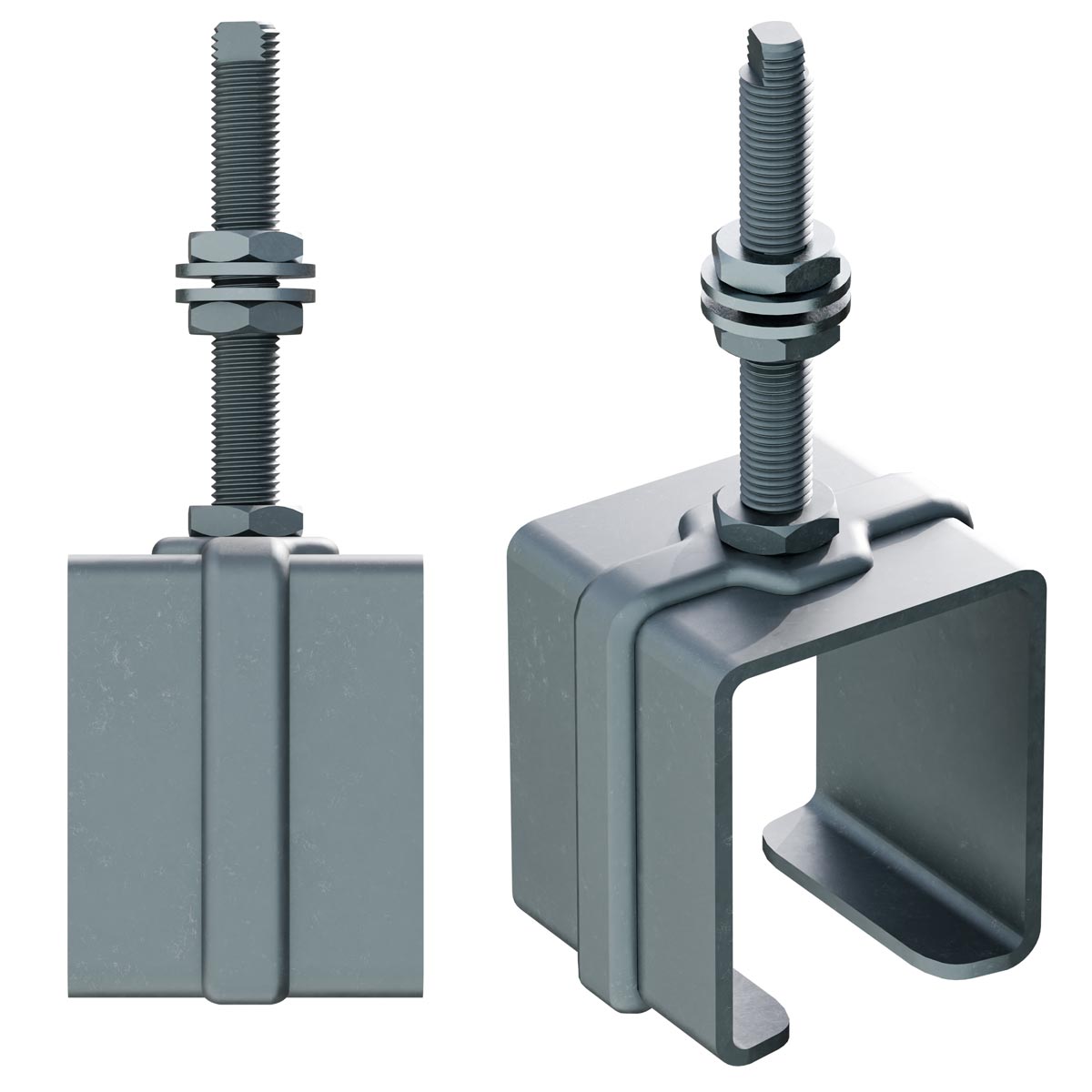

Hanging Bracket With M14 Bolt 6256L

1173-001
Price: £7.88inc VAT
Was: £9.85 inc VAT
You save: £1.97 (20%) inc VAT
+

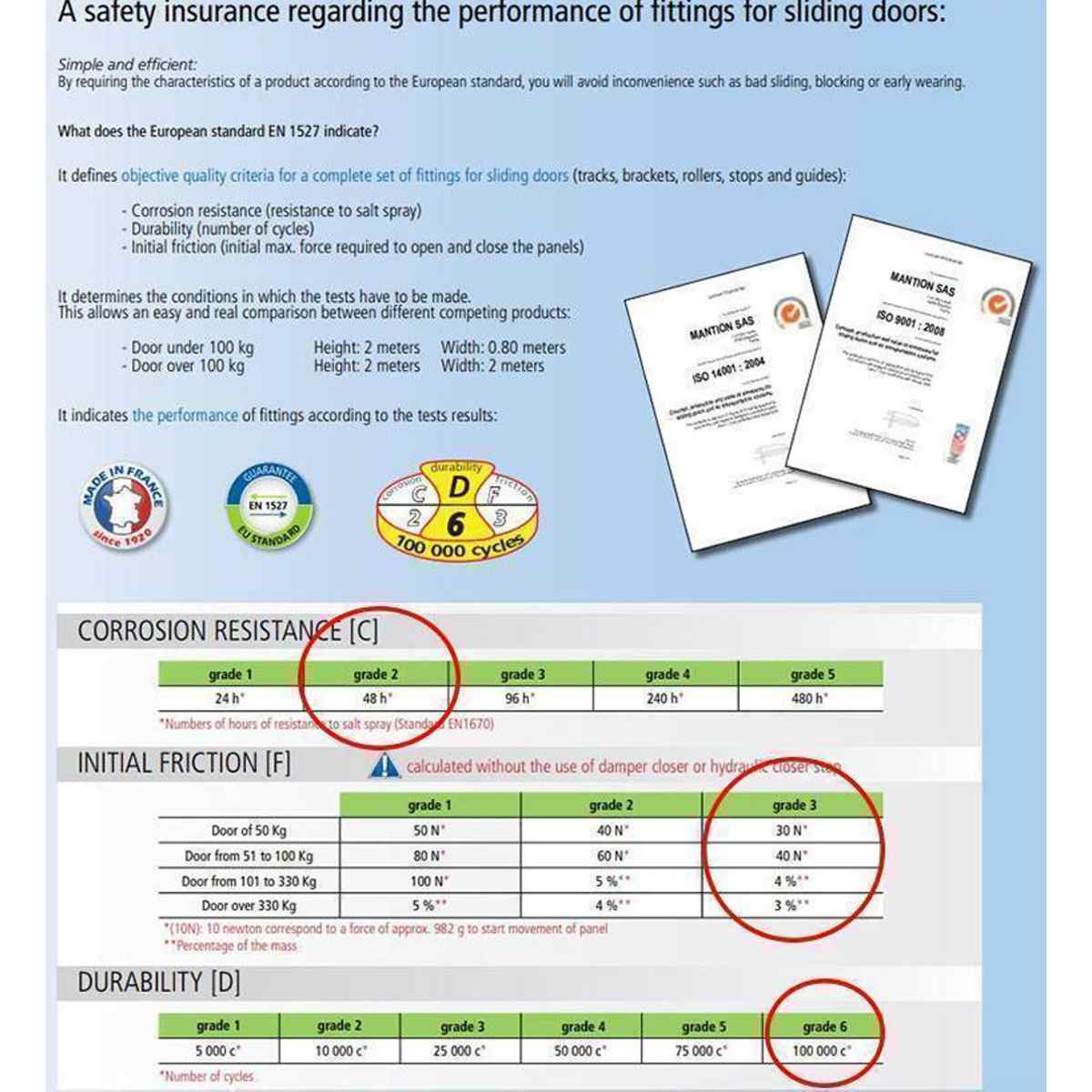

All Sportub components are manufactured to EN1527 standard. All tracks are coated with magnesium zinc (without chromium) to preserve all the qualities in all weather conditions. They have up to 800h resistance to salt spray and red rust.

  • Adjustable fixing height
  • 104mm M14 bolt fixing bolt
  • Manufactured in Europe to EN1527 standard
  • One bracket required every 70cm of the track
  • Hanging bracket required every 70cm of the track
  • To fit hanging bracket supports 6258, 6259 and 6261

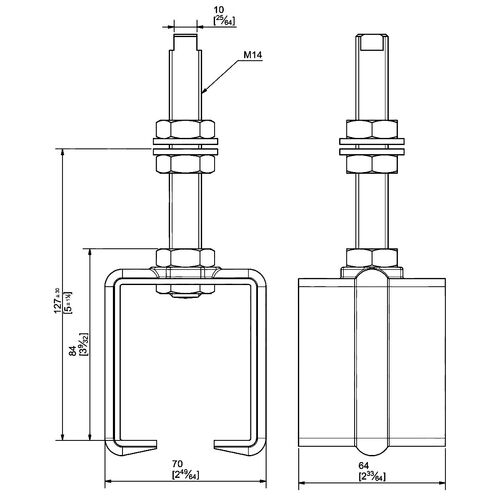

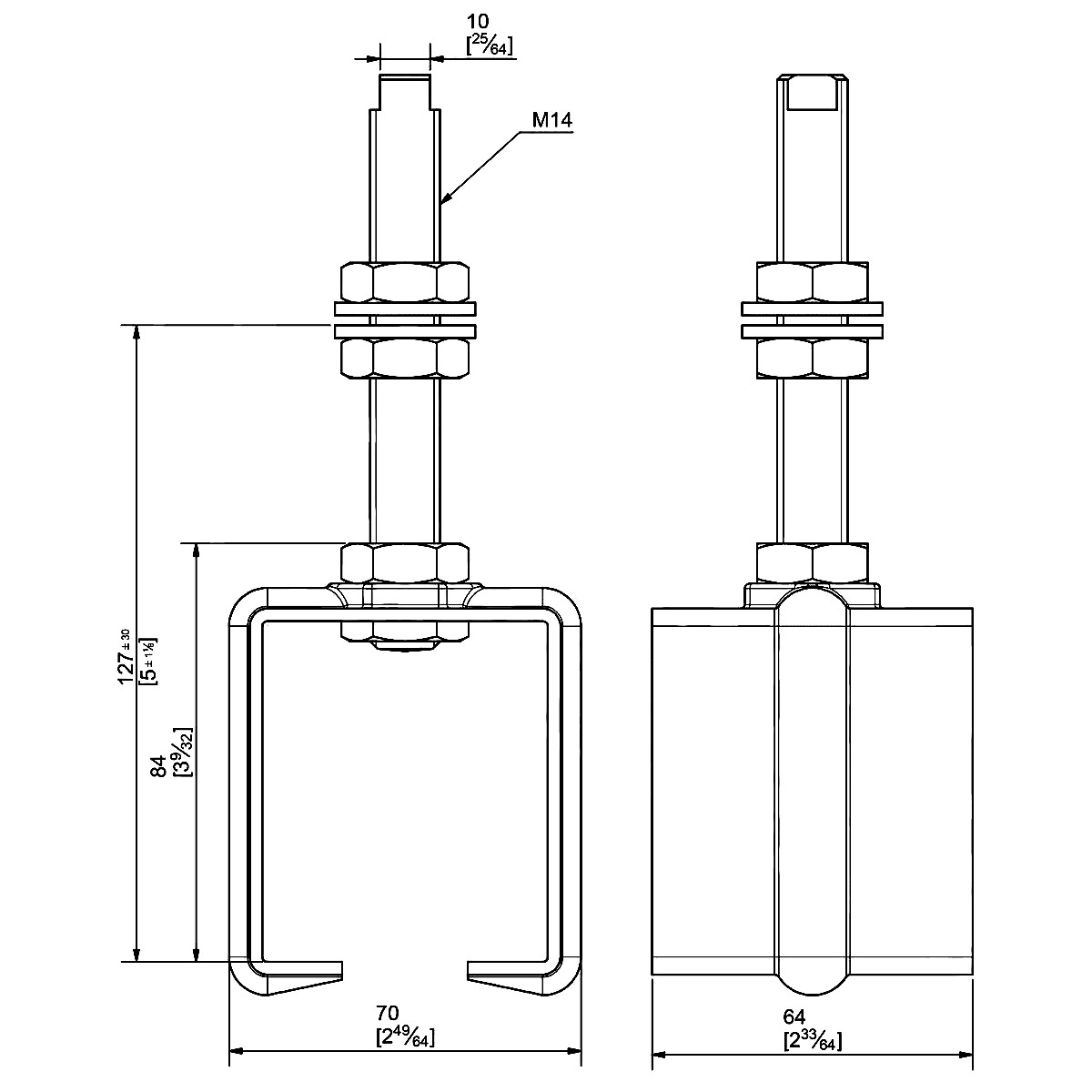

  • All technical drawings and DWG models available in the 'technical docs' tab
  • Steel hanging bracket for 6255 track (Sportub 300/400kg, Sportub Folding 500 (75kg), Sportub Folding 600 (150kg))

Sliding Systems

Dedicated for:
  • Industrial Doors
Maximum Door Weight :
400kg
Product short Name:
Sportub
System Type:
Top Hung
