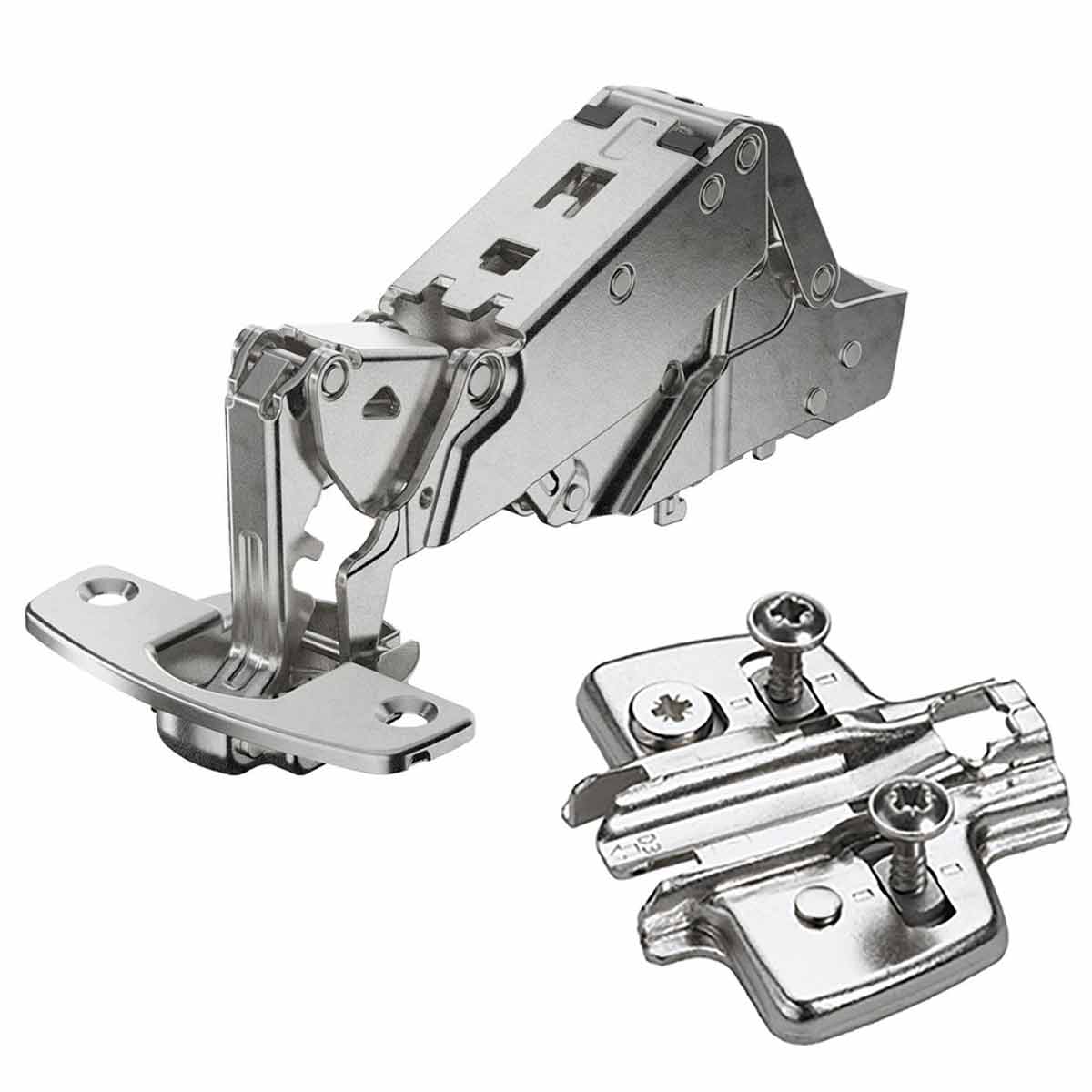

Hettich Half Overlay 165 Degree Soft Close Cabinet Hinge 9099550 With Mounting Plate

9796-001
Price from: £8.42inc VAT
+

Our Hettich hinges and fittings are made of high-quality materials and are designed to last for years, providing you with the durability and reliability you need. Our range of soft close hinges will allow you to get the top-quality product for the price of a budget hinge.

Hinge:

  • Steel nickel plated

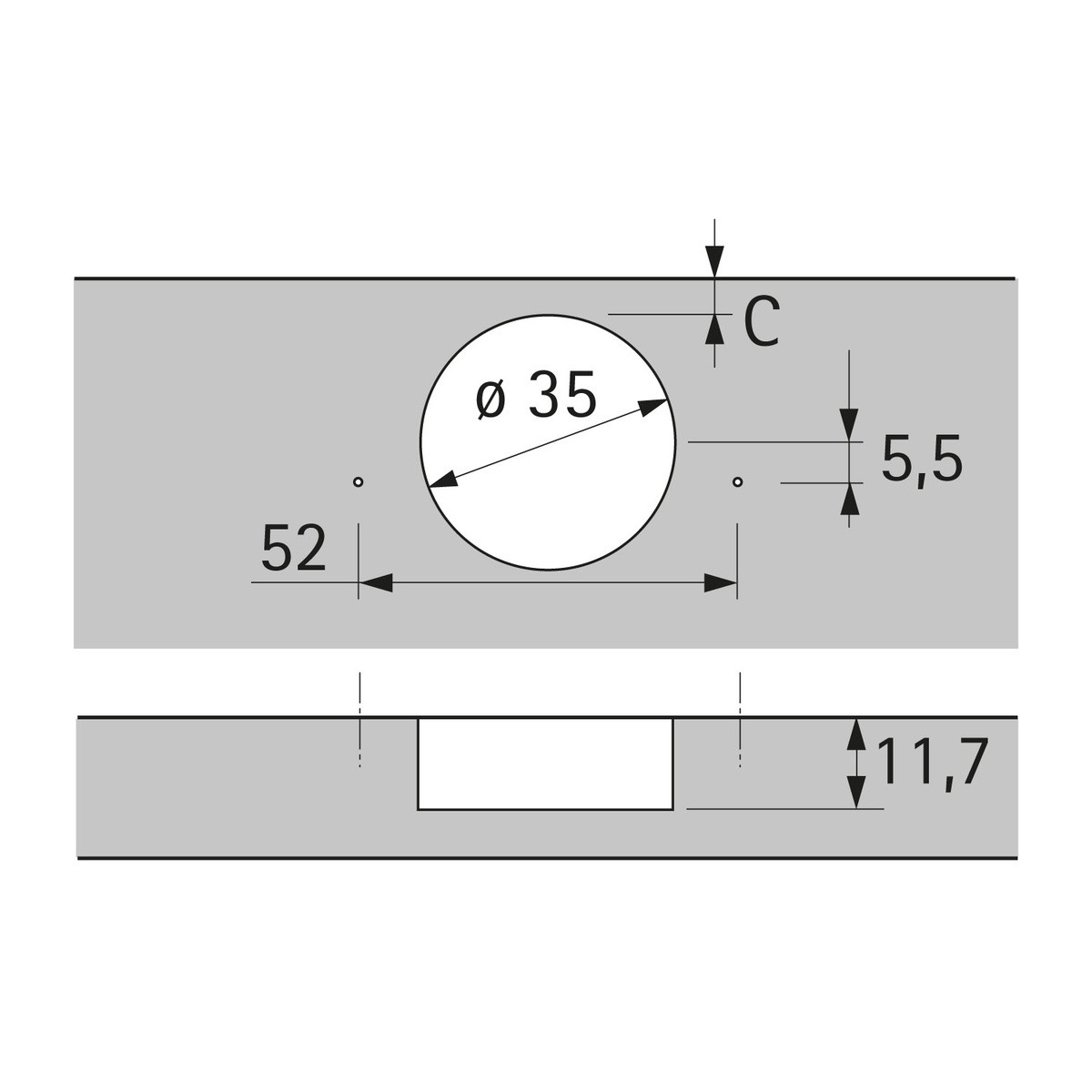

  • Cup depth: 11.6mm

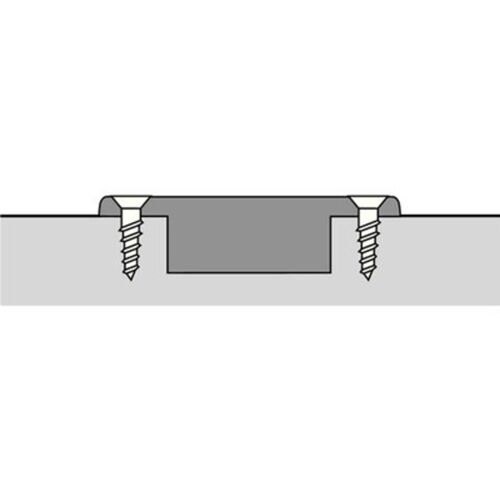

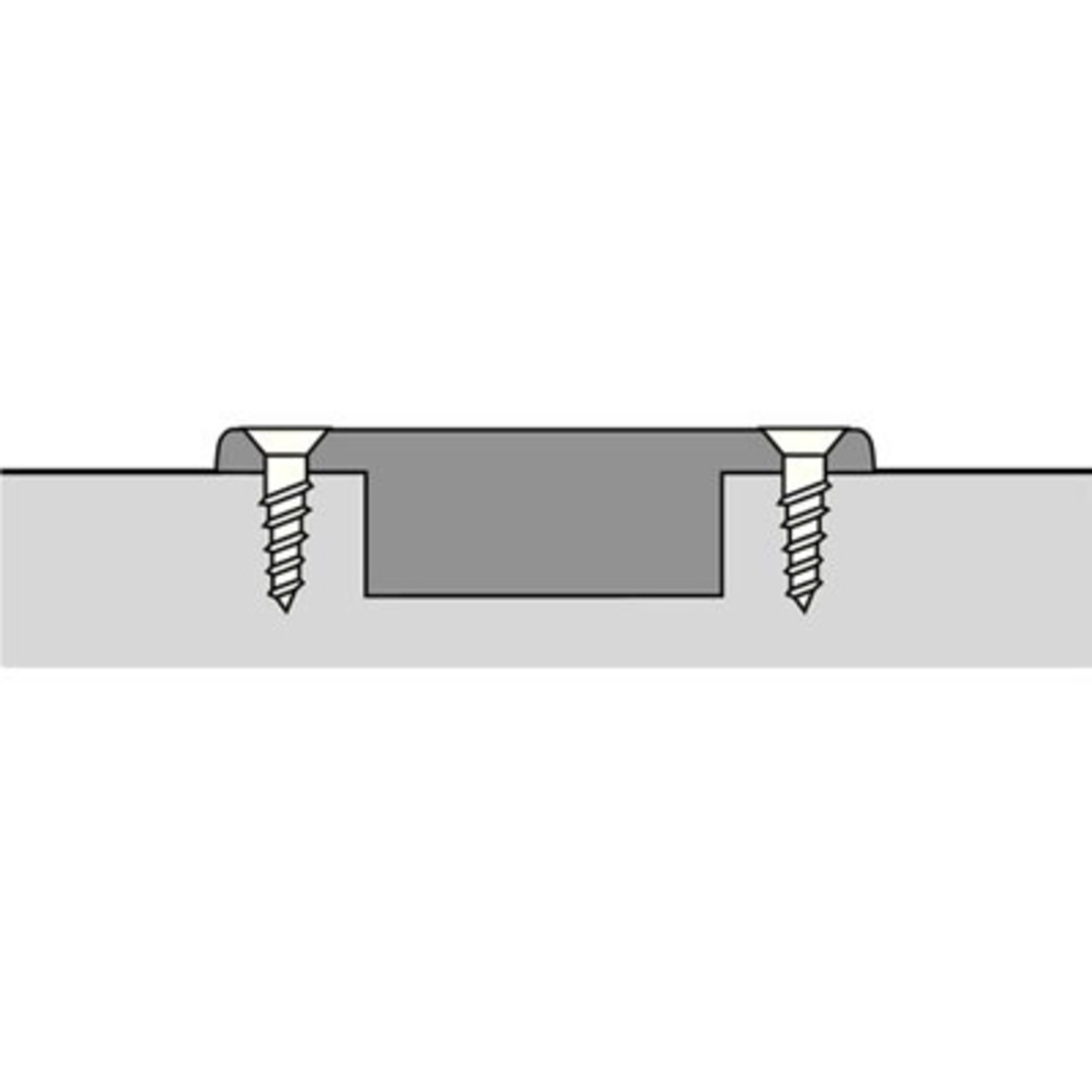

  • Assembly: screw-on
  • Name of hinge: Sensys
  • Integrated silent system

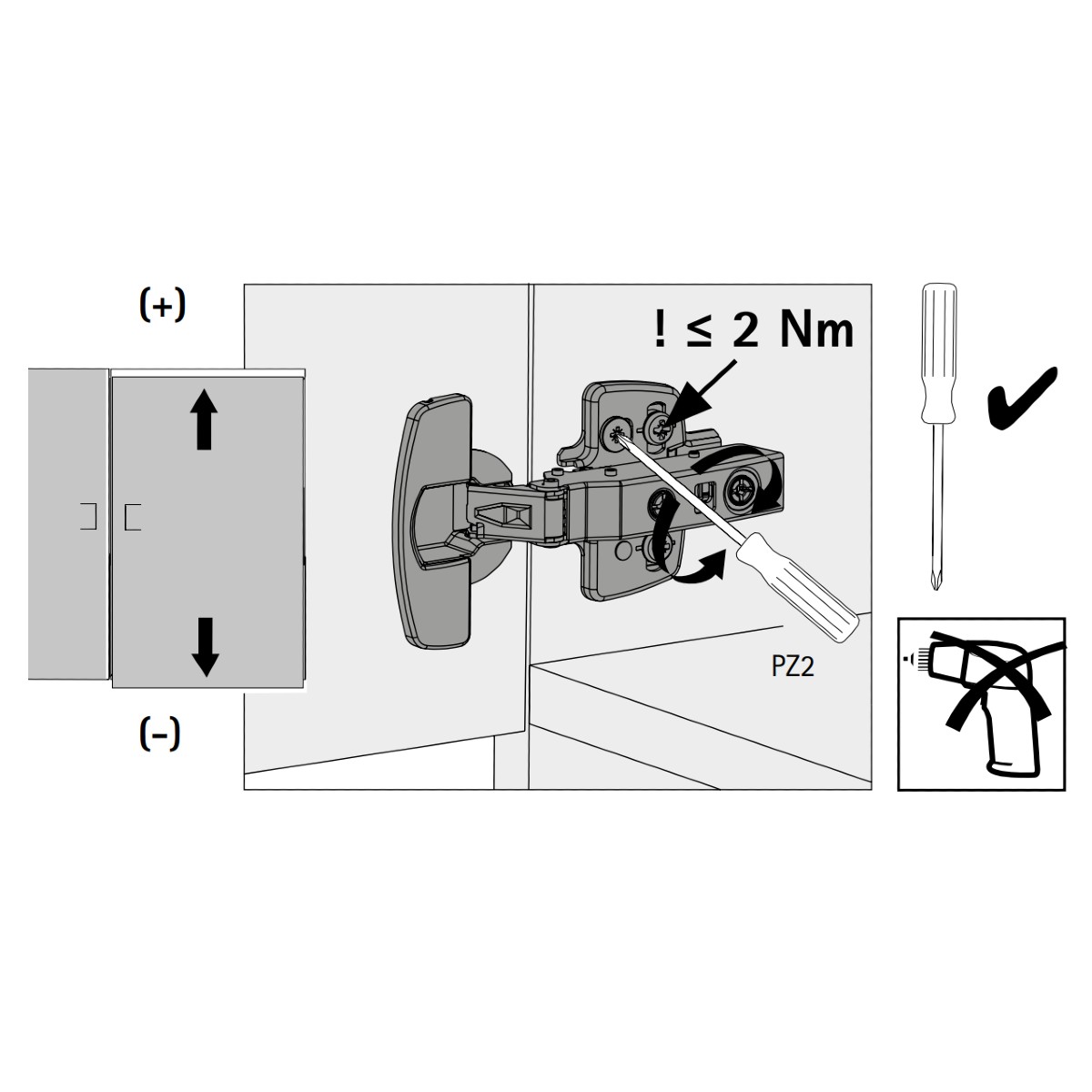

  • Side adjustment: +/-2mm
  • Opening angle: 165 degree
  • For door thickness: 15-32mm
  • Depth adjustment: +3/-2mm

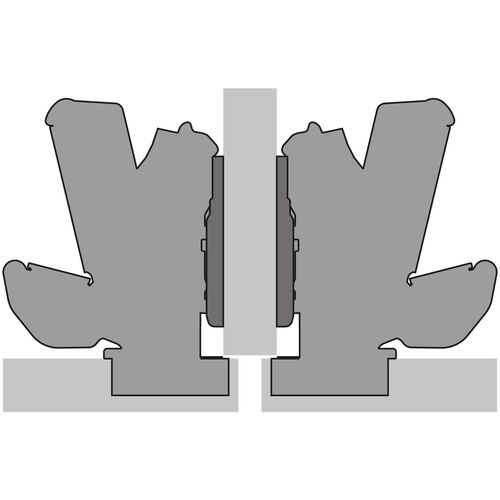

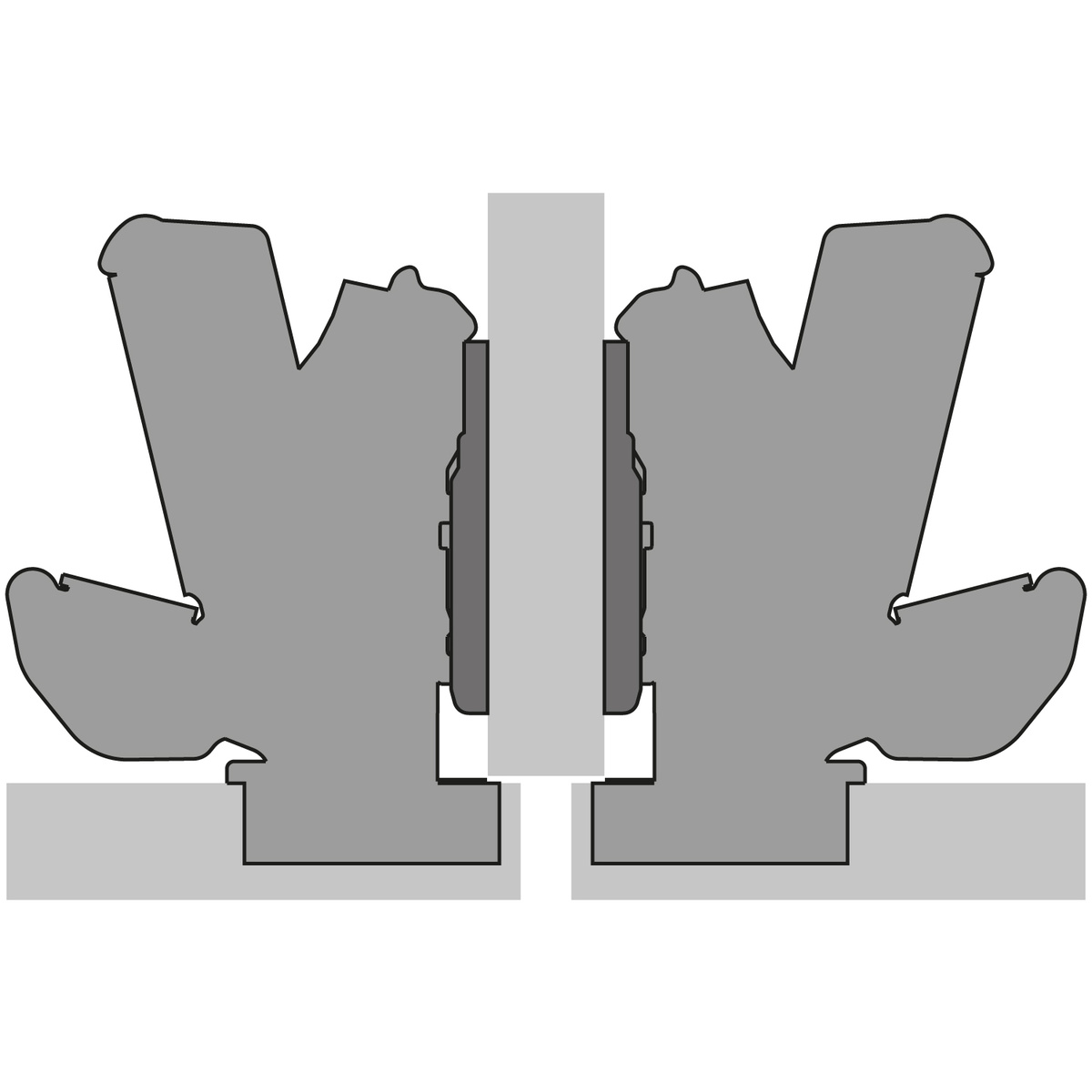

  • Cranking: half overlay application
  • Quality classification: EN15570 level 3

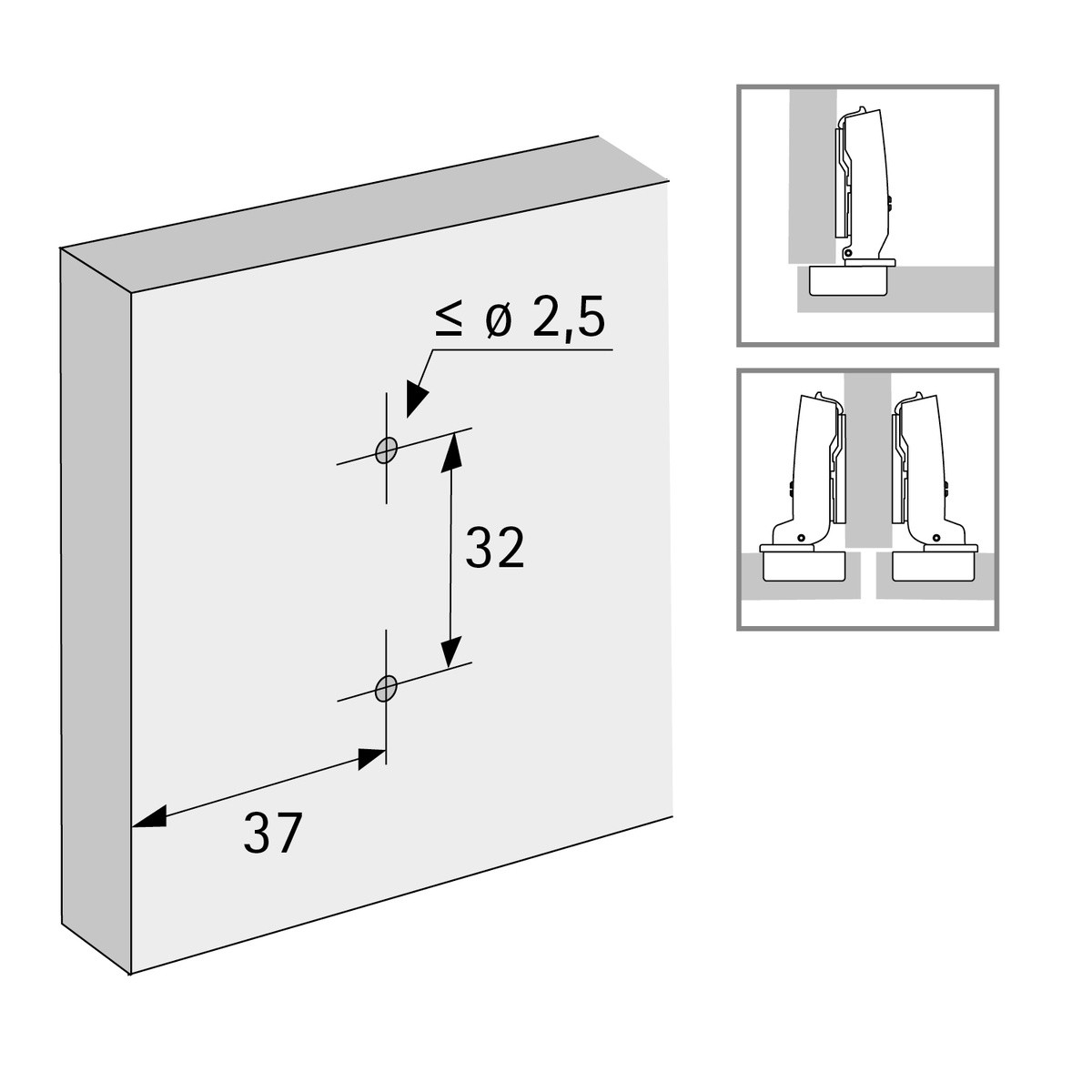

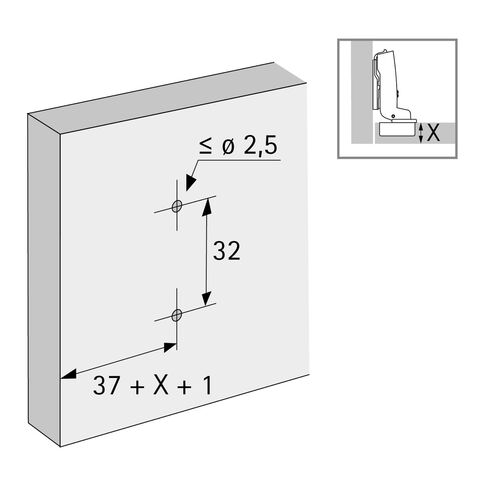

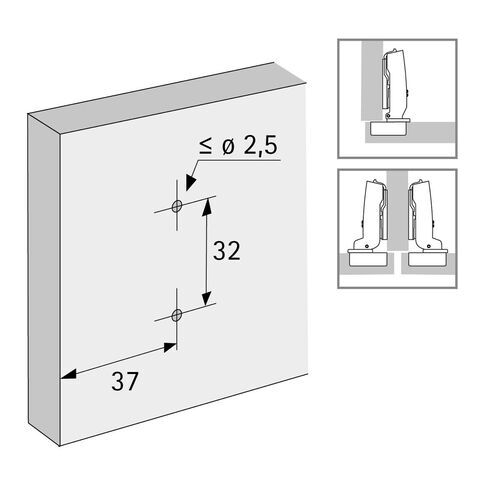

    Mounting plate:

    • Steel nickel plated
    • Cross mounting plate

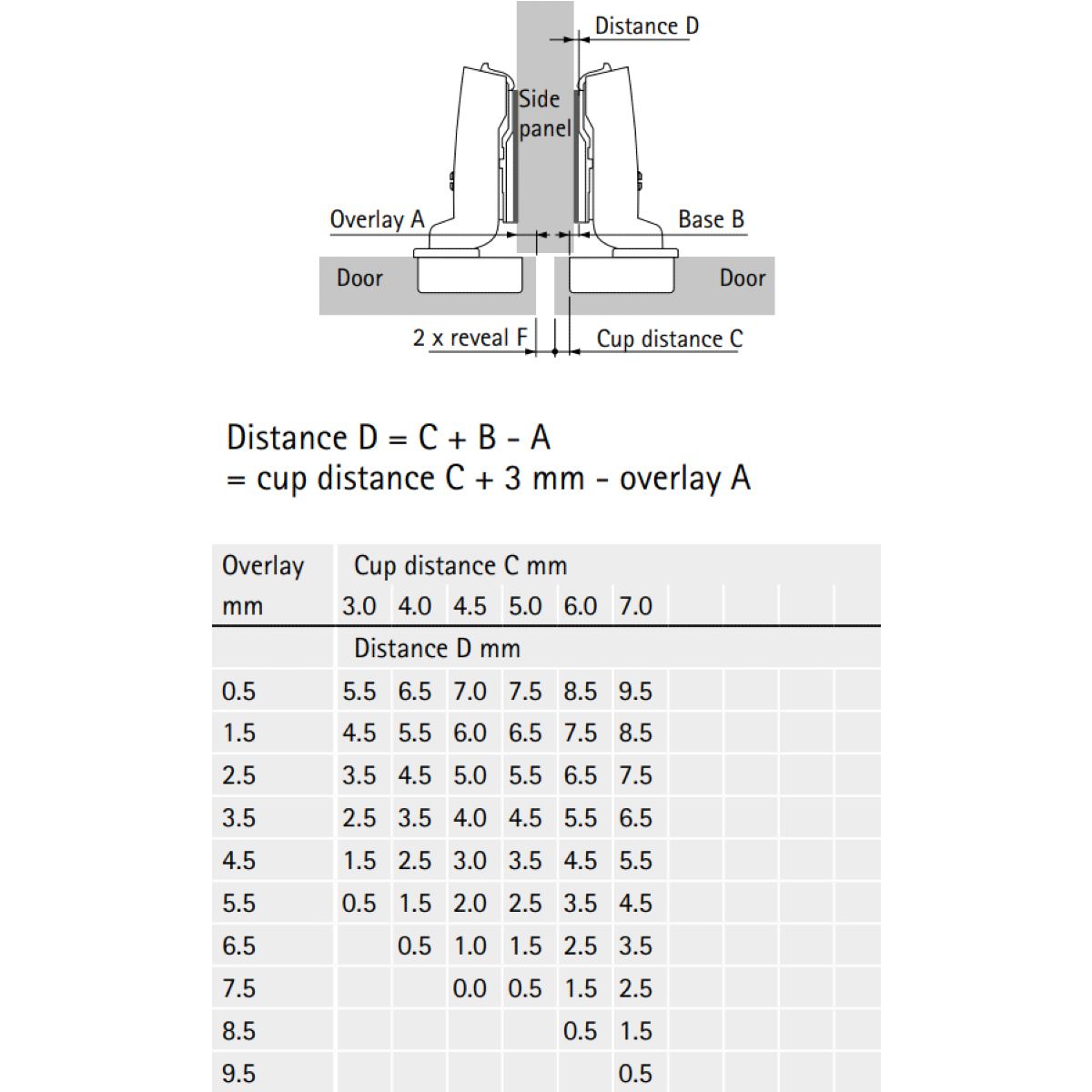

    • Distance: 0,1.5,3,5mm
    • Adjustment range: +/-2mm

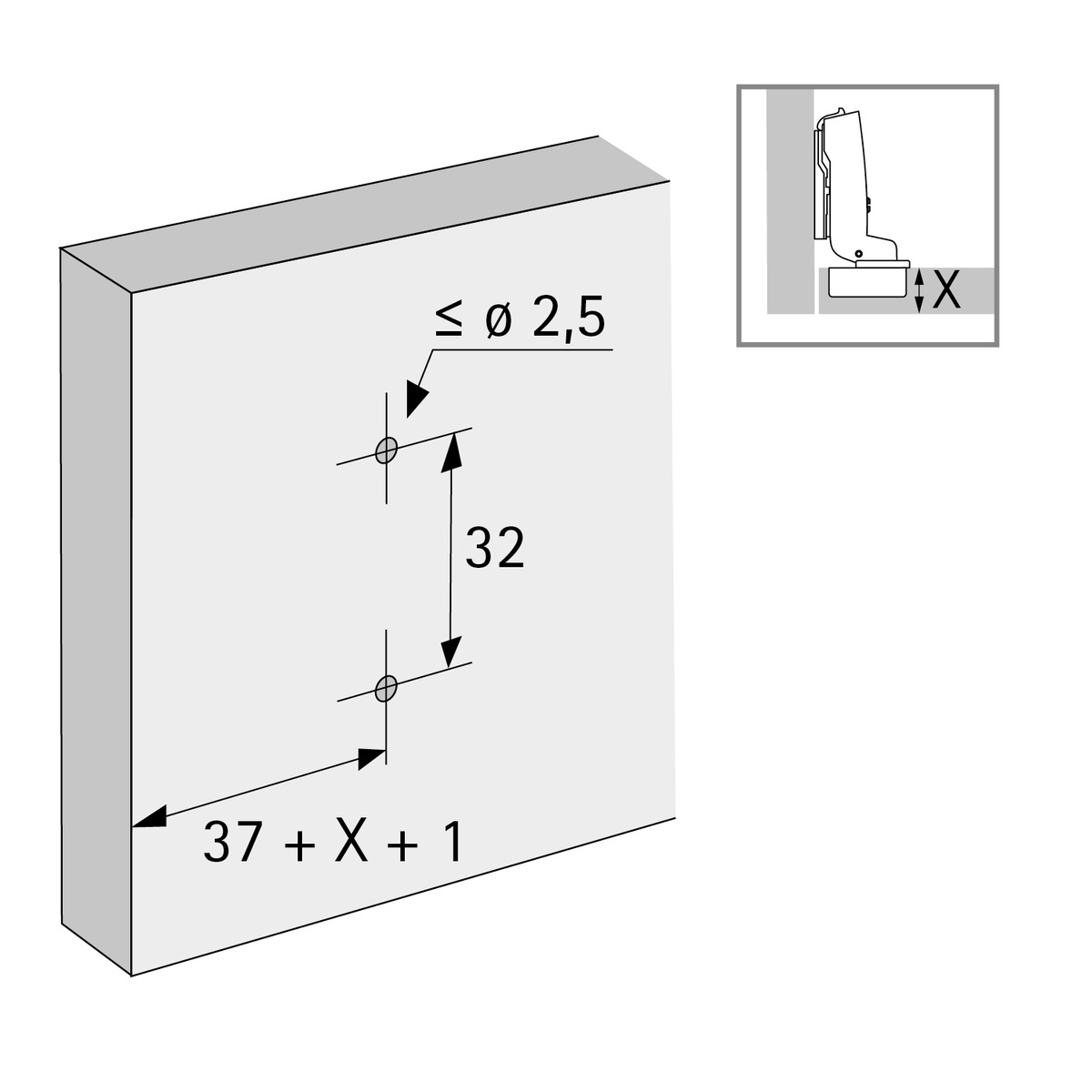

    • Installation with chipboard screws
    • Quality classification: EN15570 level 3
