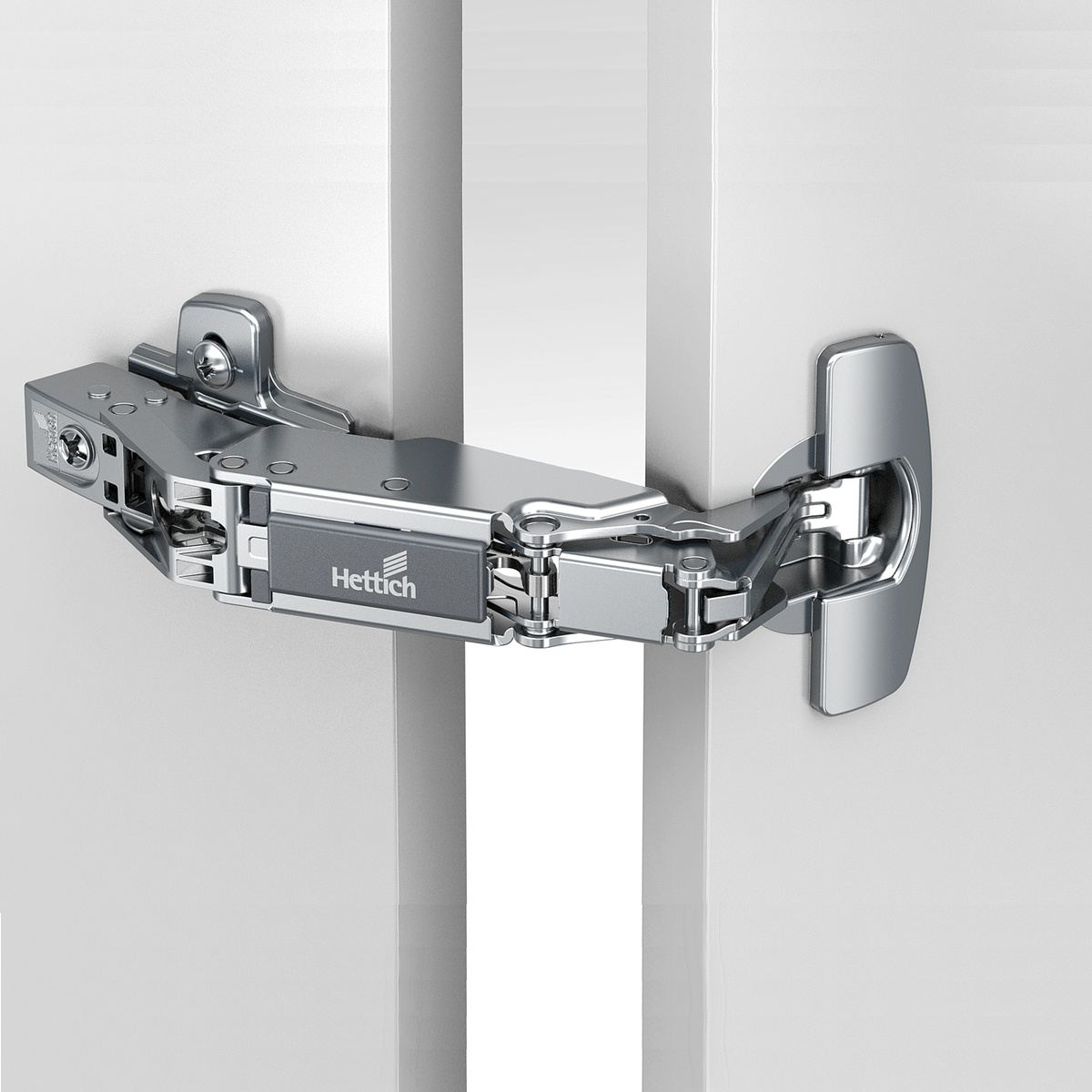

Our Hettich hinges and fittings are made of high-quality materials and are designed to last for years, providing you with the durability and reliability you need. Our range of soft close hinges will allow you to get top-quality products for the price of a budget hinge.
Hinge:
- Steel nickel plated

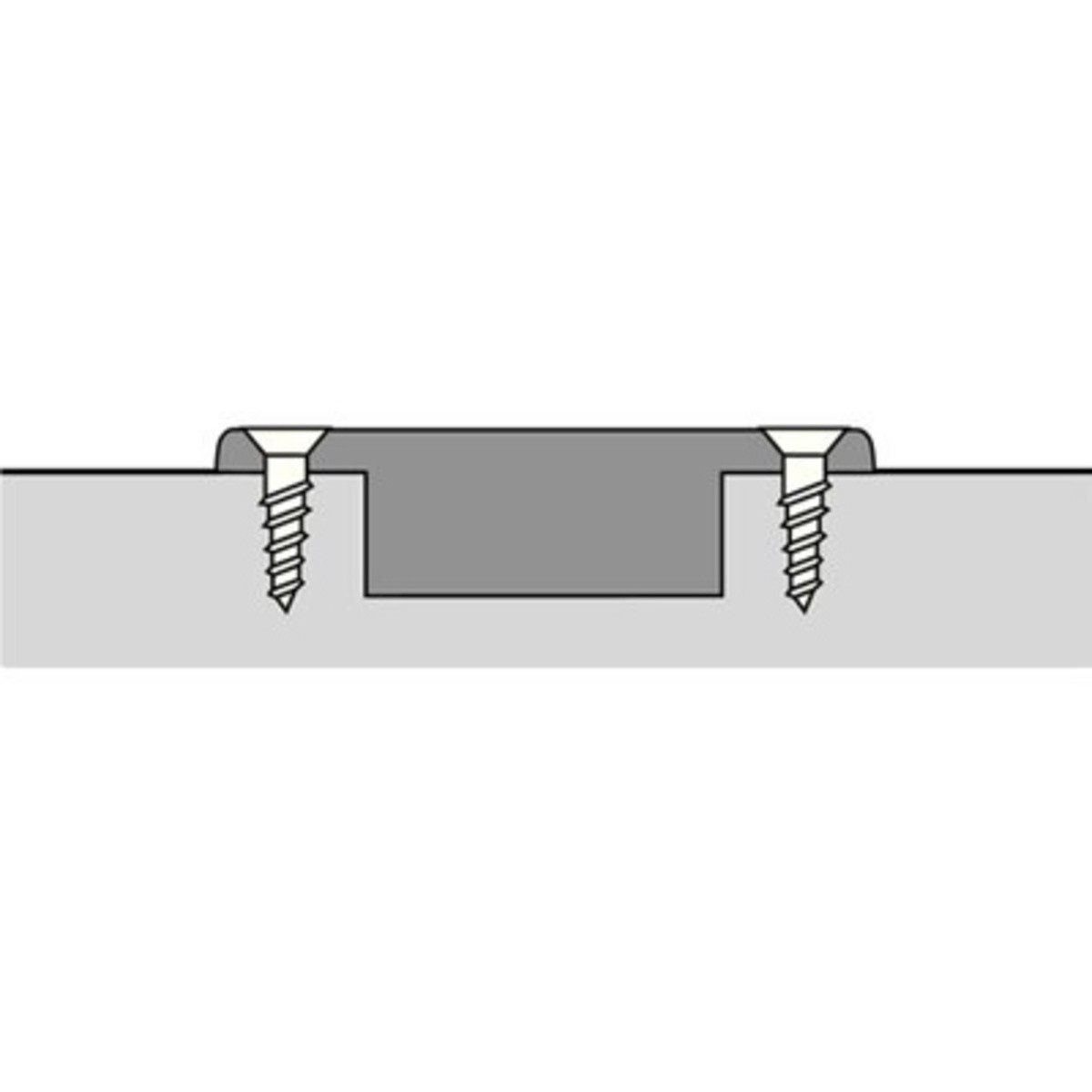

- Assembly: screw-on

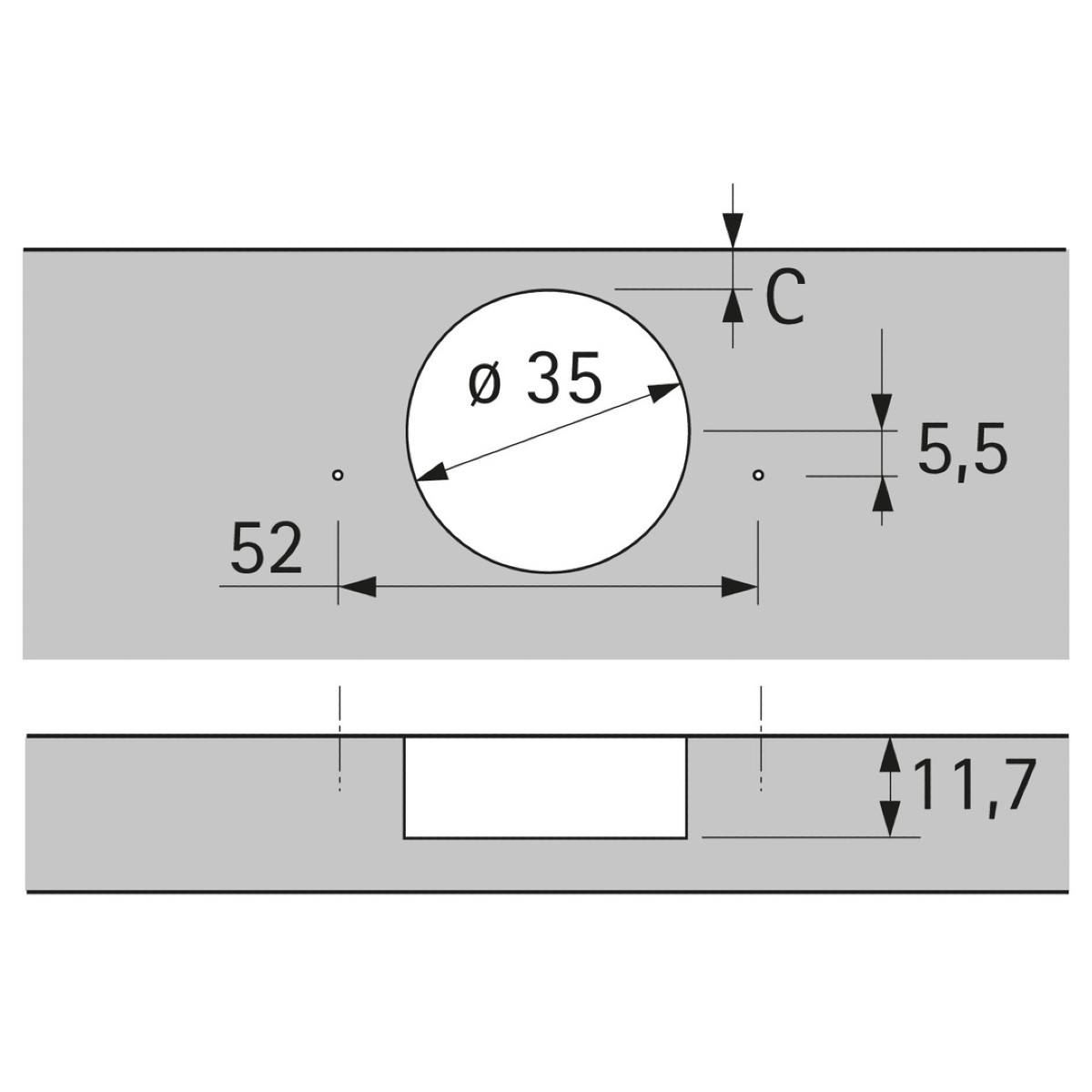

- Cup depth: 11.6mm
- Name of hinge: Sensys
- Integrated silent system
- Opening angle: 165 degree
- For door thickness: 15-32mm

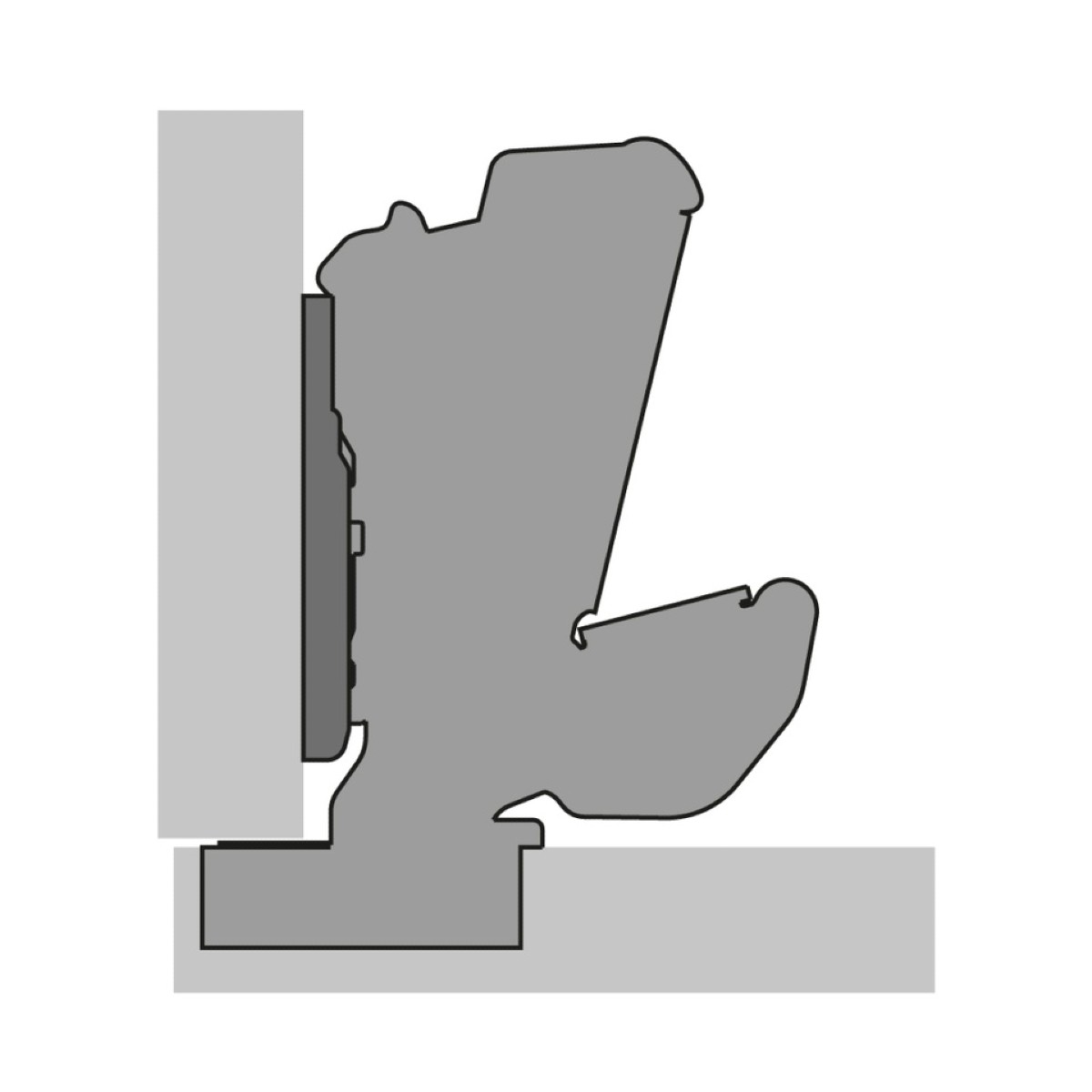

- Cranking: overlay application
- Quality classification: EN15570 level 3

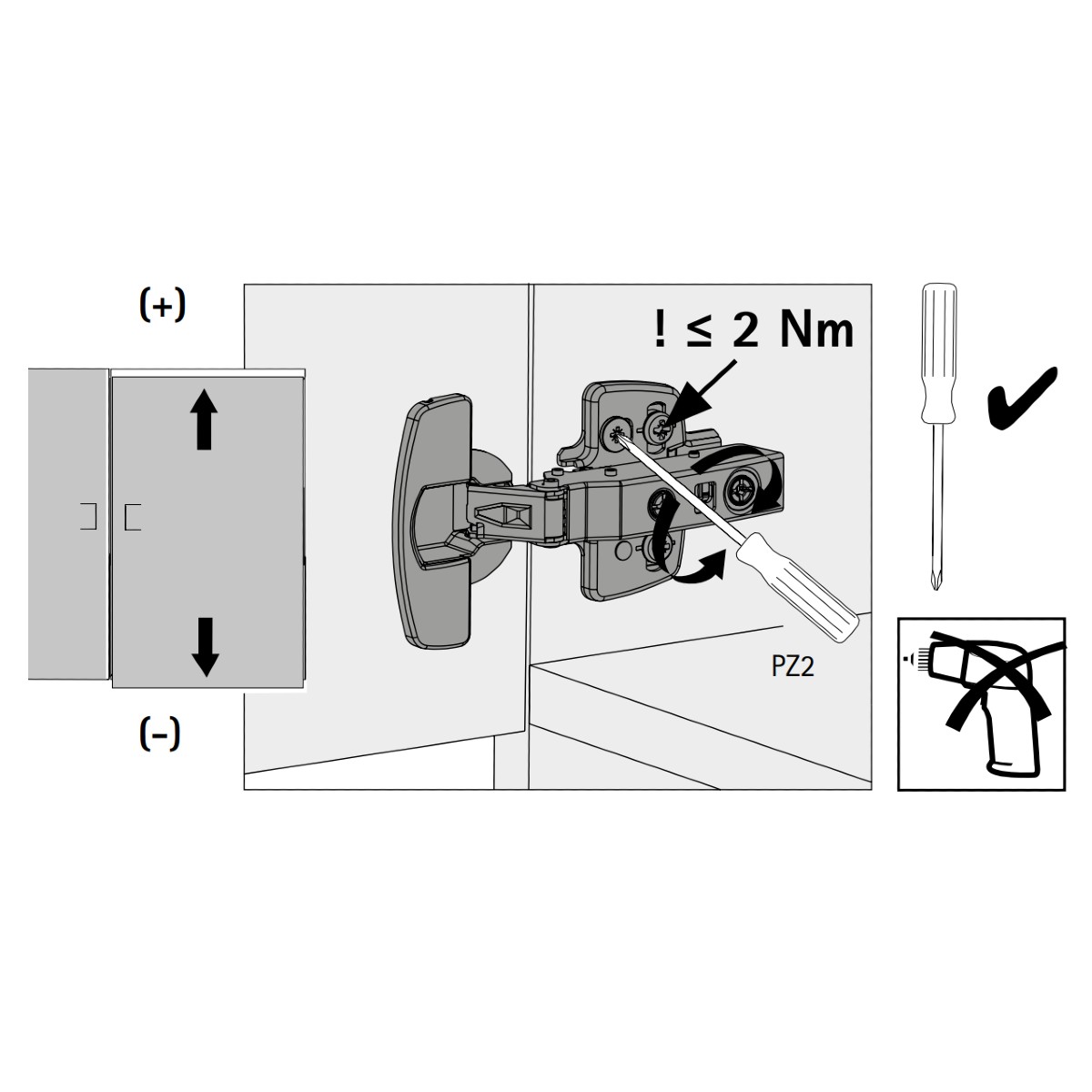

- Adjustments:
- Side adjustment: +/-2mm
- Depth adjustment: +3/-2mm

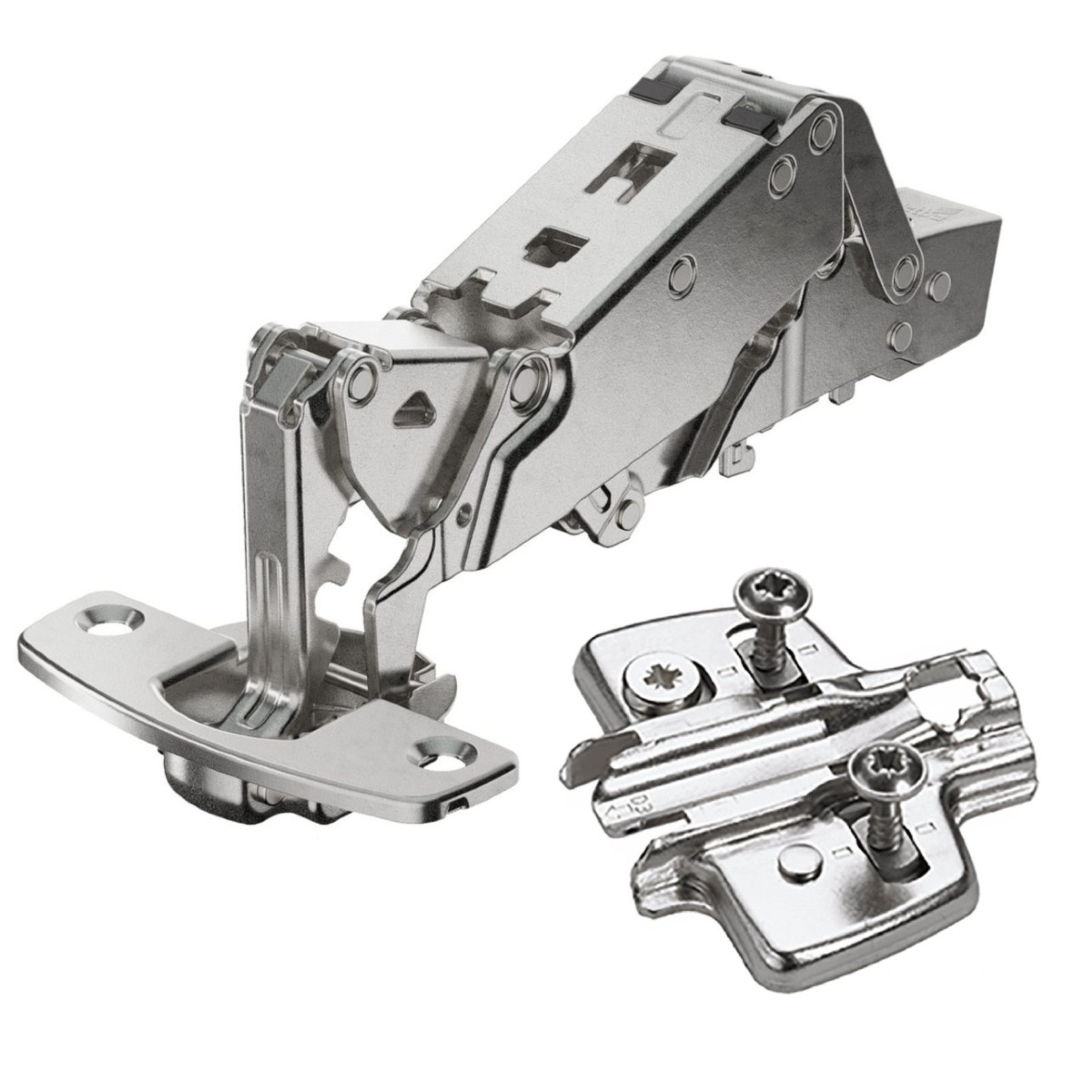

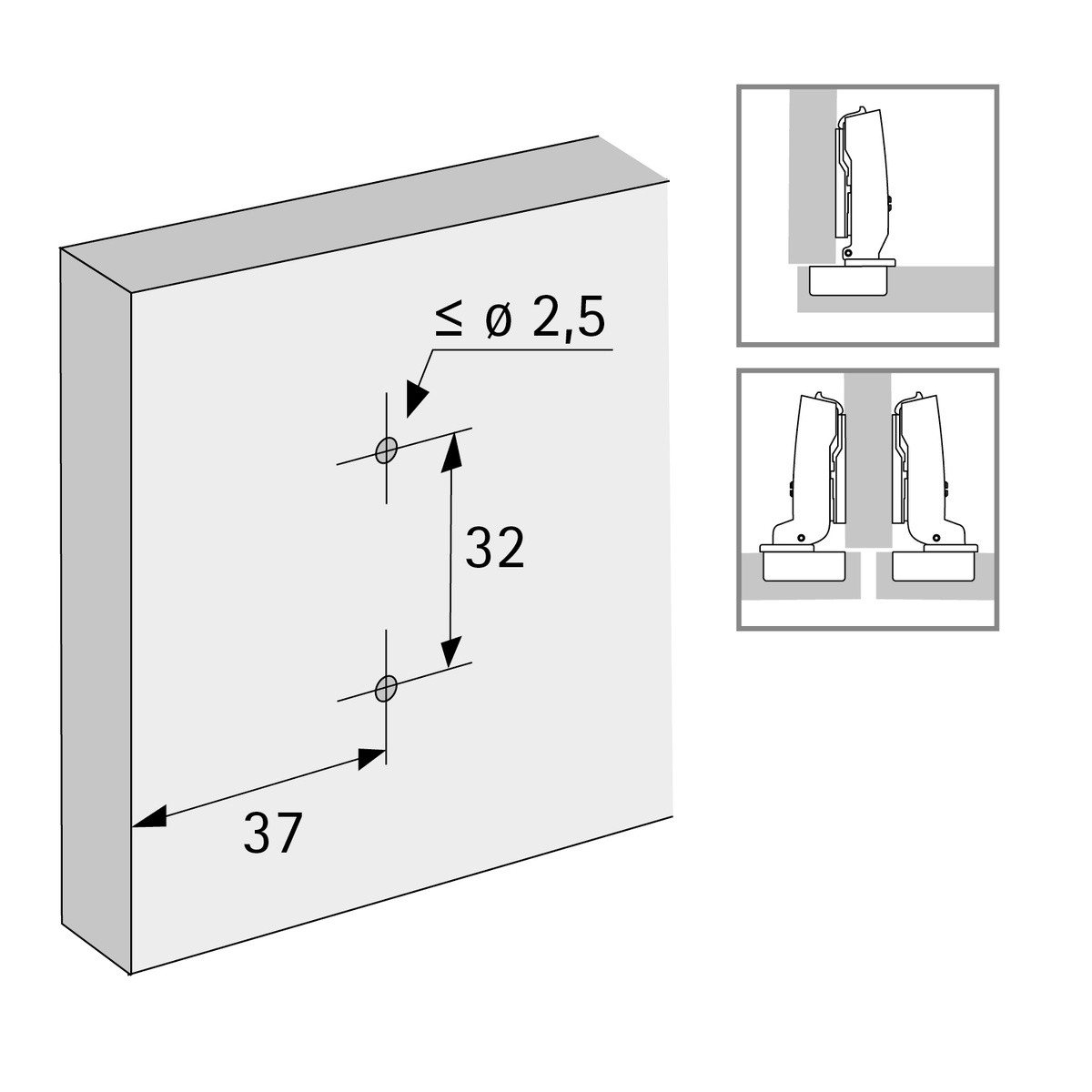

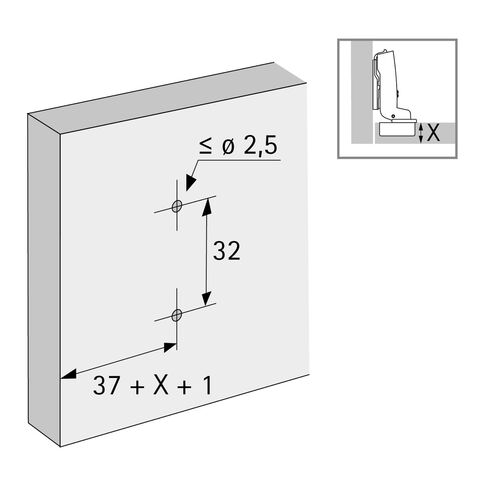

Mounting plate:
- Steel nickel plated
- Cross mounting plate

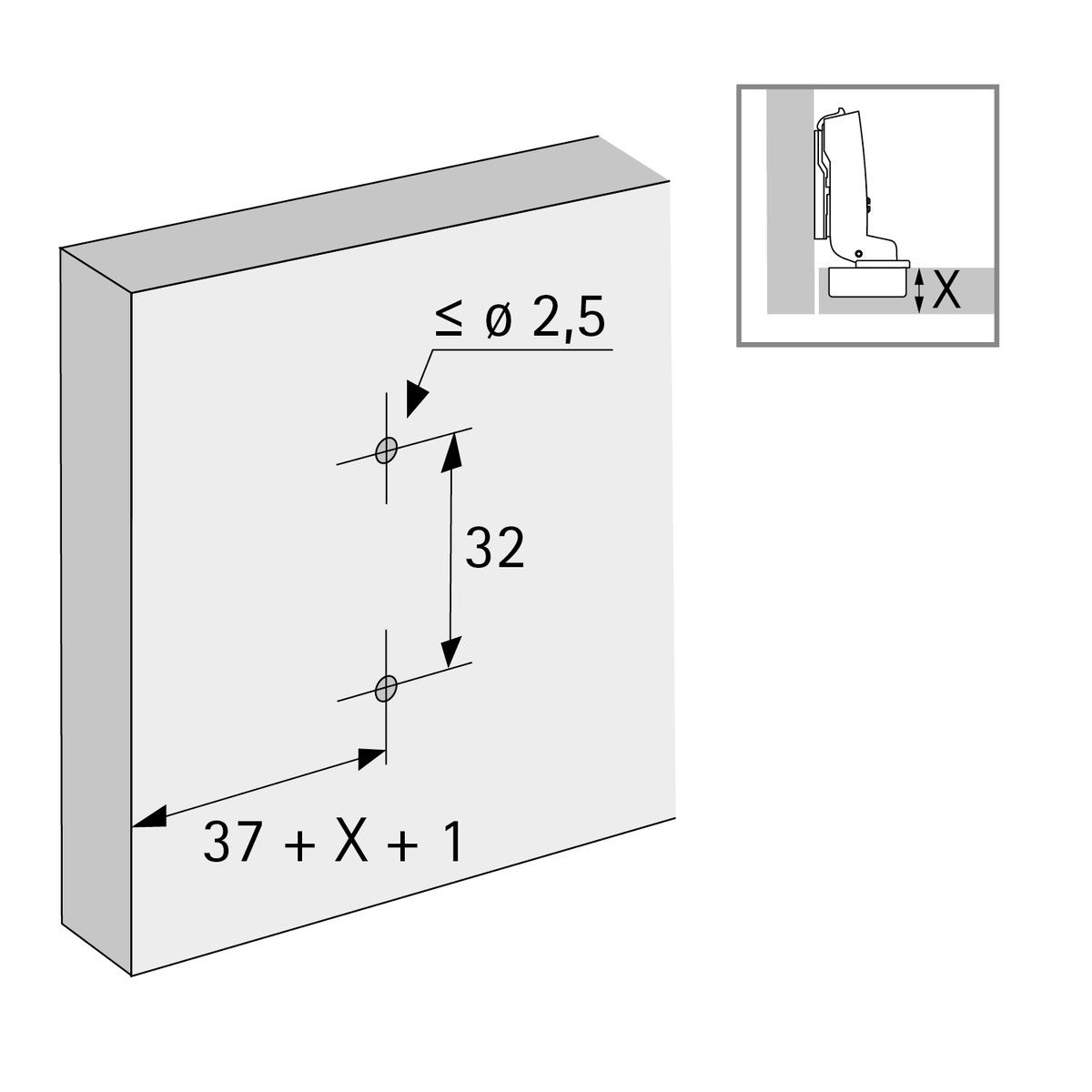

- Distance: 0,1.5,3,5mm
- Adjustment range: +/-2mm
- Installation with chipboard screws
- Quality classification: EN15570 level 3
